RF-Tuote CC-32 User manual

USER MANUAL
CC-32
PROGRAMMABLE DVB-T2 DIGITAL CHANNEL
CONVERTER/AMPLIFIER in 19” 1RU

INTRODUCTION:
Description:
DIGITAL CHANNELCONVERTER / AMPLIFIER: RF presents the new programmable channel
converter & amplifier developed with state-of-the-art digital filtering technology. CC-32 model
incorporates 32 ultra-selective digital filters which enable the selection, filtering and
amplification of each digital multiplex, guaranteeing the optimal output level for each type of
installation - whether individual or collective - and a very high quality output. The amplifiers
likewise incorporate an automatic search system for fast and efficient auto-programming of the
terrestrial multiplexes of the UHF inputs.
Main Features:
·0 4 inputs (1 x FM, 1 x VHF + DAB + VHF/UHF selectable)
·1 2 x VHF/UHF selectable
·2 2 outputs (RF OUT / TEST -30dB)
·3 32 ultra-selective digital channel filters
·4 Gain >55dB
·5 Output level 120dBuV (45004B)
·6 Automatic digital multiplex search
·7 Buttons and display programming. User-friendly menu navigation
·8 Processing functionality for channel conversion
·9 Digital multiplex input level measurement
·10
Automatic real-time gain control
·11
Selectable LTE1 (790)/LTE2 (694) filters
·12
Preamplifier power option
·13
Power supply via output connector option
·14
PIN protected
·15
Filters Sharpness adjust
Packaging Contents:
1.- CC-32 + AC power cord

CONNECTIONS AND INTERFACES:
8 7 6 5 4 3 2 1
9 11
10 12
1.-VHF-UHF 1 Input
2.-VHF-UHF 2 Input
3.-DAB or VHF-
UHF3, inputs,
selectable
4.- FM input
5.-Test output -
30dB
6.-RF output
7.-VAC 230V input
8.-Earthing
connection points
9.- SHIFT button
10.- LEFT button
11.- RIGHT/ENTER
button
12.-2x16 character
display
INSTALLATION RECOMMENDATIONS:
1.- Install the equipment vertically in a well-ventilated located 19” rack , ensuring not to
exceed the maximum recommended operating temperature range 0 to +50C.
2.- Connect a suitable earth cable to the equipment ground screw.
3.- Connect the equipment's input and output cables.
4.- Connect the power cable to the equipment.
5.- Configure.

CC-32 CONFIGURATION:
Keyboard operation explanation:
CC-32 19” 1RU unit uses the same SW version as our compact amplifier Smarthandy 4.
NOTE: RF-Tuote Oy is recommending to used manual FILTER ADDing method with manual IN and
OUT channel setting when CC-32 is used as DVB-T2 channel converter only. Please see page 7.
The keyboard of this equipment consists of three buttons: SHIFT, LEFT and RIGHT/ENTER.
SHIFT:
Enables the menu.
As this is the start menu, pressing the button will display the FW version. The different menu
selections will be validated.
In certain menus it is necessary to hold the button down in order to vary values.
LEFT:
Allows navigating to the left in the menus.
Decreasing values where required.
RIGHT/ENTER:
Allows navigating to the right in the menus.
Increasing values where required.
Menu Overview:
Pressing any key will access the main menu unless you have set a PIN. In such case proceed as
3.-Miscellaneous Menu:
RF-TUOTE
SMARTHANDY 4>
Note: The arrows to the right or left indicate that there are menu options in that direction. The
main menu options are:
SMARTHANDY 4 > <FILTER MENU> <POWER MENU> <MISCELLANEOUS MENU
Using ◀▶ to scroll through the first menu line, pressing SHIFT for accessing that submenu.

Equipment Configuration:
SMARTHANDY 4> SW version of the system.
Press SHIFT. [V3.7]
<FILTERS MENU> Filter configuration.
Press SHIFT to enter, ◀▶ to move between options and SHIFT to enter the
option.
LTE FILTER> <FILTER AUTO ADD> <FILTER ADD > < FILTER EDIT>< FILTER
DELETE > <DELETE ALL> <D.A.B.> <EXIT
<POWER MENU> Configuration of input voltages and output power.
Press SHIFT to enter, ◀▶ to move between options and ENTER to enter the
option.
IN 1 POWER> <IN 2 POWER>IN 3 POWER> <FM GAIN> <OUT LEVEL> <OUT
SLOPE> <EXIT
<MISCELLANEOUS MENU Miscellaneous configuration.
Press SHIFt to enter, ◀▶ to move between options and ENTER to enter the
option.
LANGUAGE> <DEFAULT VALUE. ><SET PIN> <BANDWITH COEF> <EXIT>

1.-Filter Menu:
<FILTER MENU>
LTE FILTERS> Allows you to modify the LTE, LTE2 filter or not have either asset.
Press SHIFT, and hold down; select [OFF]> <[LTE]> <[LTE2]> with ◀▶.
Releasing SHIFT will automatically select the selected option.
FILTER AUTO ADD> Automatic MUX search and automatic filter configuration.
Press SHIFT, and press and hold down; select [NO]> <YES] using ◀▶. When
SHIFT is released, the selected option is automatically selected. [YES]
accesses the menu, [NO] remains in <FILTER MENU>
FILTER AUTO ADD
IN PORT>
Input selection.
Press SHIFT, and press and hold down; select [1]> <[2]> <[3]> <[1&2]>
<[1&3]> <[2&3]> <[1&2&3] using ◀▶. When ENTER is released, the selected
option is automatically selected.
FILTER AUTO ADD
<START CHANNEL>
Autosearch start channel selection
Press SHIFT, and press and hold down; select the Autosearch channel start
[5] [6] [7]…[12] [21] [22]… using ◀▶. When SHIFT is released, the selected
option is automatically selected.
FILTER AUTO ADD
<STOP CHANNEL>
Autosearch end channel selection
Press SHIFT, and press and hold down; select the Autosearch end channel
[69] [68] [67]… using ◀▶. When SHIFT is released, the selected option is
automatically selected.
FILTER AUTO ADD
<SEARCH
Automatic channel search run
Press SHIFT, and press and hold down; select option: [ ]> <[ERASE &
SEARCH]> <[SEARCH ONLY]> <[EXIT] Using ◀▶. When SHIFT is released, the
selected option will be automatically selected.
[ ]> nothing occurs
[ERASE & SEARCH]> deletes any prior search and runs a search.
<[SEARCH ONLY]> runs a search.
<[EXIT] Goes back without running a search.
It is a sequential search for the various selected entries. The channel level
found and their number is displayed.
1: 45>45 51dB
3 additions
Once the search is complete, the total number of channels found will be
displayed:
PRESS KEY
10 additions

<FILTER MENU>
<FILTER ADD> Allows the manual addition of filters and/or output channel change
(Channel Conversion).
Press SHIFT, and press and hold down; select [YES]> <NO] using ◀▶. When
SHIFT is released, the selected option is automatically selected. [SI]
accesses the menu, [NO] remains in <ADD FILTERS>
FILTER ADD
IN PORT>
INPUT selection.
Press SHIFT, and press and hold down; select [1]> <[2]> <[3]> using ◀▶.
When SHIFT is released, the selected option is automatically selected.
FILTER ADD
<IN CHANNEL>
Manual channel search selection
Press SHIFT, and press and hold down; select the searched channel [5] [6]
[7]…[12] [21] [22]… using ◀▶. When SHIFT is released, the selected option
is automatically selected.
Every time the channel number is changed, if it is valid, power supply will
be displayed, and if not, the 0dB will be displayed.
[INPUT CHANNEL]
[23 61dB]
FILTER ADD
<OUT CHANNEL>
Manual output channel selection
Press SHIFT, and press and hold down; select the desired output channel [5]
[6]... [21]… using ◀▶ When SHIFT is released, the selected option is
automatically selected.
In the event of not requiring a channel conversion, the output channel must
match the input channel. (*)
An already existing output channel cannot be selected.
FILTER ADD
<SAVE
Saving an added channel.
Press SHIFT, and press and hold down; select the desired option [NO]>
<[YES]> <[EXIT]... using ◀▶. When SHIFT is released, the selected option is
automatically selected.

<FILTER MENU>
<FILTER EDIT> Allows for a manual filter edit
Press SHIFT, and press and hold down; select [BACK]> <[1:5>5]>… using ◀▶.
When SHIFT is released, the selected option is automatically selected.
[BACK]> remains in <EDIT FILTER> if not, select the filter to be changed.
FILTER EDIT
IN PORT>
Modify Input.
Press SHIFT, and press and hold down, select [1]> <[2]> <[3]> using ◀▶.
When SHIFT is released, the selected option is automatically selected.
FILTER EDIT
<IN CHANNEL>
Manual input channel selection
Press SHIFT, and press and hold down; select the searched channel [5] [6]
[7]…[12] [21] [22]… using ◀▶. When SHIFT is released, the selected option
is automatically selected.
Every time the channel number is changed, if it is valid, the voltage will be
displayed, and if not, the 0dB will be displayed.
[INPUT CHANNEL]
[23 61dB]
FILTER EDIT
<OUT CHANNEL>
Manual output channel selection
Press SHIFT, and press and hold down; select the desired output channel [5]
[6]... [21]… con ◀▶. When SHIFT is released, the selected option is
automatically selected.
In the event of not requiring a channel conversion, the output channel must
match the input channel. (*) (***)
An already existing output channel cannot be selected.
EDIT FILTER
<SAVE
Saving an added channel.
Press SHIFT, and press and hold down; select the desired option [NO]>
<[YES]> <[BACK]... using ◀▶. When SHIFT is released, the selected option
is automatically selected.

<FILTER MENU>
<.FILTER DELETE> Allows deleting a specific filter
Press SHIFT, and press and hold down; select [BACK]> <[1:5>5]>… using ◀▶.
When SHIFT is released, the selected option is automatically selected.
[BACK]> remains in <CANCEL FILTER> if not, select the filter to be deleted.
<FILTER MENU>
<DELETE ALL> Allows to delete all filters
Press SHIFT, and press and hold down; select [NO]> <YES] using◀▶. When
SHIFT is released, the selected option is automatically selected.
<FILTER MENU>
<D.A.B.> Activate/deactivate D.A.B.
Press SHIFT, and press and hold down; select [OFF]> <[ON] using ◀▶ When
SHIFT is released, the selected option will be automatically selected.
<FILTER MENU>
<EXIT.> Go back to the main menu
Press SHIFT, and hold tight; select [YES] with ◀▶. Releasing SHIFT will
automatically select the selected option.

2.-Power Supply Menu:
<POWER SUPPLY MENU>
<IN 1 POWER> Enable/disable input 1 power supply
Press SHIFT, and press and hold down; select [OFF]> <[ON] using ◀▶ When
SHIFT is released, the selected option is automatically selected.
< IN 2 POWER > Enable/disable input 2 power supply
Press SHIFT, and press and hold down; select [OFF]> <[ON] using ◀▶ When
SHIFT is released, the selected option is automatically selected.
< IN 3 POWER > Enable/disable input 3 power supply
Press SHIFT, and press and hold down; select [OFF]> <[ON] using ◀▶ When
SHIFT is released, the selected option is automatically selected.
<FM GAIN> Allows FM gain between 8dB and 28dB
Press SHIFT, and press and hold down; using ◀▶the gain can be increased
or decreased.
<OUT LEVEL> Allows to adjust output level Vo (**)
Press SHIFT, and press and hold down; using ◀▶ the gain can be increased
or decreased.
<OUT SLOPE> Allows adjusting equalisation level in pass band
Press SHIFT, and press and hold down; using ◀▶ to increase or decrease the
slope in a range of 0dB to 10dB.
<EXIT.> Go back to the main menu
Press SHIFT, and hold tight; select [YES] with ◀▶. Releasing SHIFT will
automatically select the selected option.

3.-Miscellaneous Menu:
<MISCELLANEOUS MENU>
LANGUAGE> Change language
Press SHIFT, and press and hold down; select [ENGLISH]> <[FRENCH]>
<SPANISH> <ITALIAN> using ◀▶. When SHIFT is released, the selected
option will be automatically selected.
<DEFAULT VALUE.> Default values reset
Press SHIFT, and press and hold down; select [CANCEL]> <[EUROPE]>
<BRAZIL> <THAILAND> <NEW ZEALAND> <AUSTRALIA> <MEXICO> using ◀▶.
When SHIFT is released, the selected option is automatically selected.
<SET PIN>
Allows you to enter a 4-digit access code
Press SHIFT and hold down; select [YES]> <NO] with ◀▶. Releasing SHIFT
will automatically select the selected option. [IF] enters the menu, [NO]
remains in <MENU SEVERAL>.
<SET PIN>
< [*---]>
We introduce the first digit
Press SHIFT and hold down; select [0 to 9] with ◀▶, release SHIFT to
select number.
<SET PIN>
< [-*--]>
We introduce the second digit
Press SHIFT and hold; select [0 to 9] with ◀▶, release SHIFT to select
number.
<SET PIN>
< [--*-]>
We introduced the third digit
Press SHIFT and tight; select [0 to 9] with ◀▶, relaese SHIFT to select
number.
<SET PIN>
< [---*]>
We introduced the fourth digit
Press SHIFT, and hold; select [0 to 9] with ◀▶, release SHIFT to select
number.
<SET PIN>
<Confirm>
We confirm
Press SHIFT and hold; select [YES] or [NO] with ◀▶, release SHIFT to
select.
<BANDWITH COEF>
Select the input sensitivity level
Press SHIFT and hold down; select '50-200%' with ◀▶. Releasing SHIFT will
automatically select the selected option. Default [120%].
<EXIT.> Go back to the main menu
Press SHIFT, and hold down; select [YES] with ◀▶. Releasing SHIFT will
automatically select the selected option.

(*) An already existing output channel cannot be selected.
(***) The same input channel can be selected ONLY if it is from a different input.
(**) The equipment calculates the maximum output level available according to the number of
channels. The introduced level can only be decreased.
FACTORY RESET
In case the control unit has a PIN and the user does not know the PIN , it is possible to
reconfigure the control unit if we perform a factory reset. This is done by plugging in
SMARTHANDY4 EC while holding down the right and left keys.

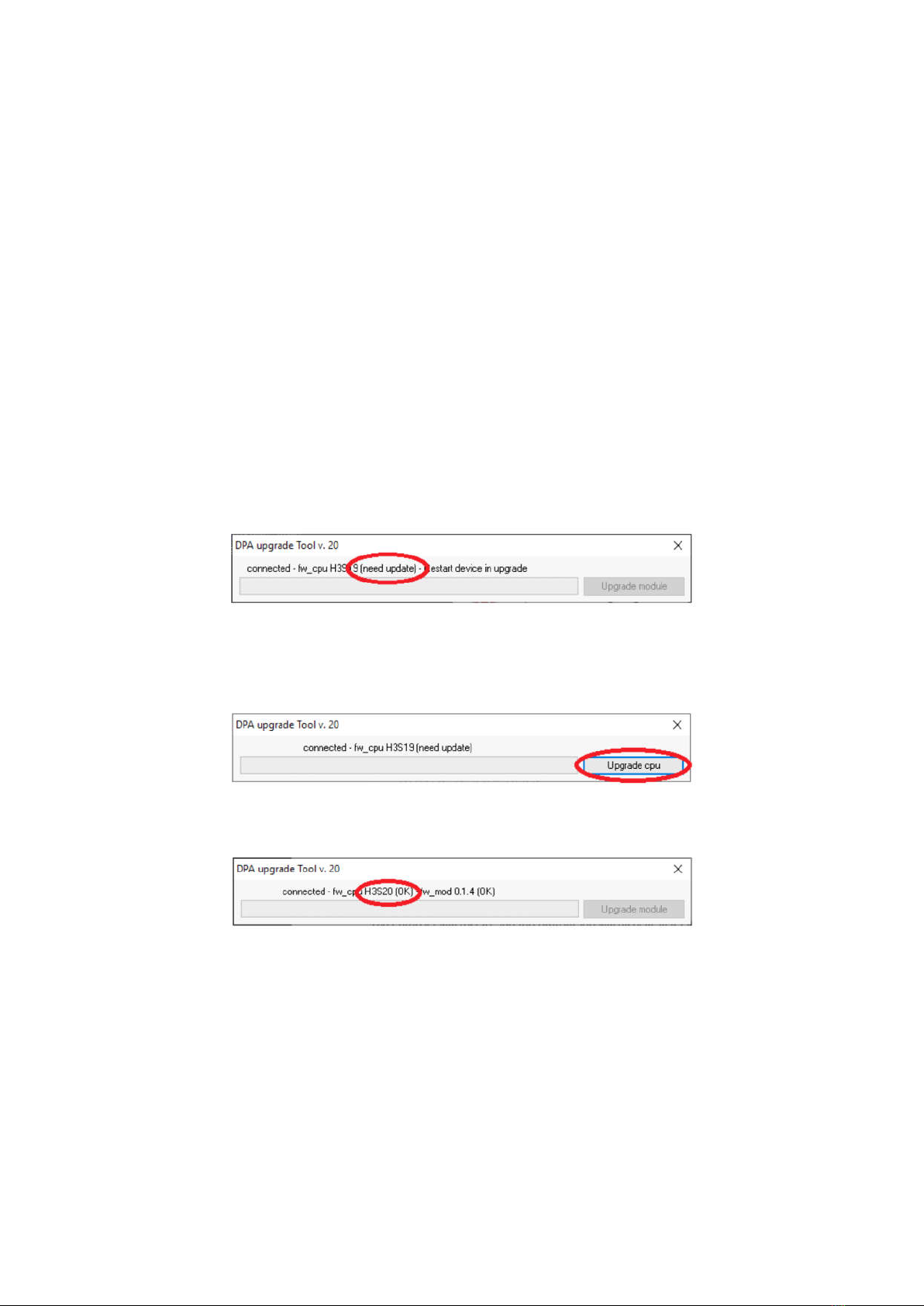

STEPS TO UPGRADE FW:
1.- Install DPA Upgrade SW on a PC and run it.
2.- Connect SmartHandy EC to PC via USB/micro-USB cable.
3.- DPA Upgrade will indicate whether an FW upgrade is required.
4.- SmartHandy 4 must be put into "upgrade mode" if an upgrade is required. To do this, plug in
SmartHandy4 EC by holding down the ENTER key.
5.- SmartHandy 4 EC will display "upgrade mode" on the display and the "upgrade CPU" button
on the SW DPA Upgrade will be activated.
6.- Click the button and wait until the update is complete.
7.- SmartHandy4 EC will restart and the DPA Upgrade will show OK.
8.- Note: In the event that the FW version to be installed is V_37 or higher and is done from a
version less than V_29 the equipment will need to be factory reset.
