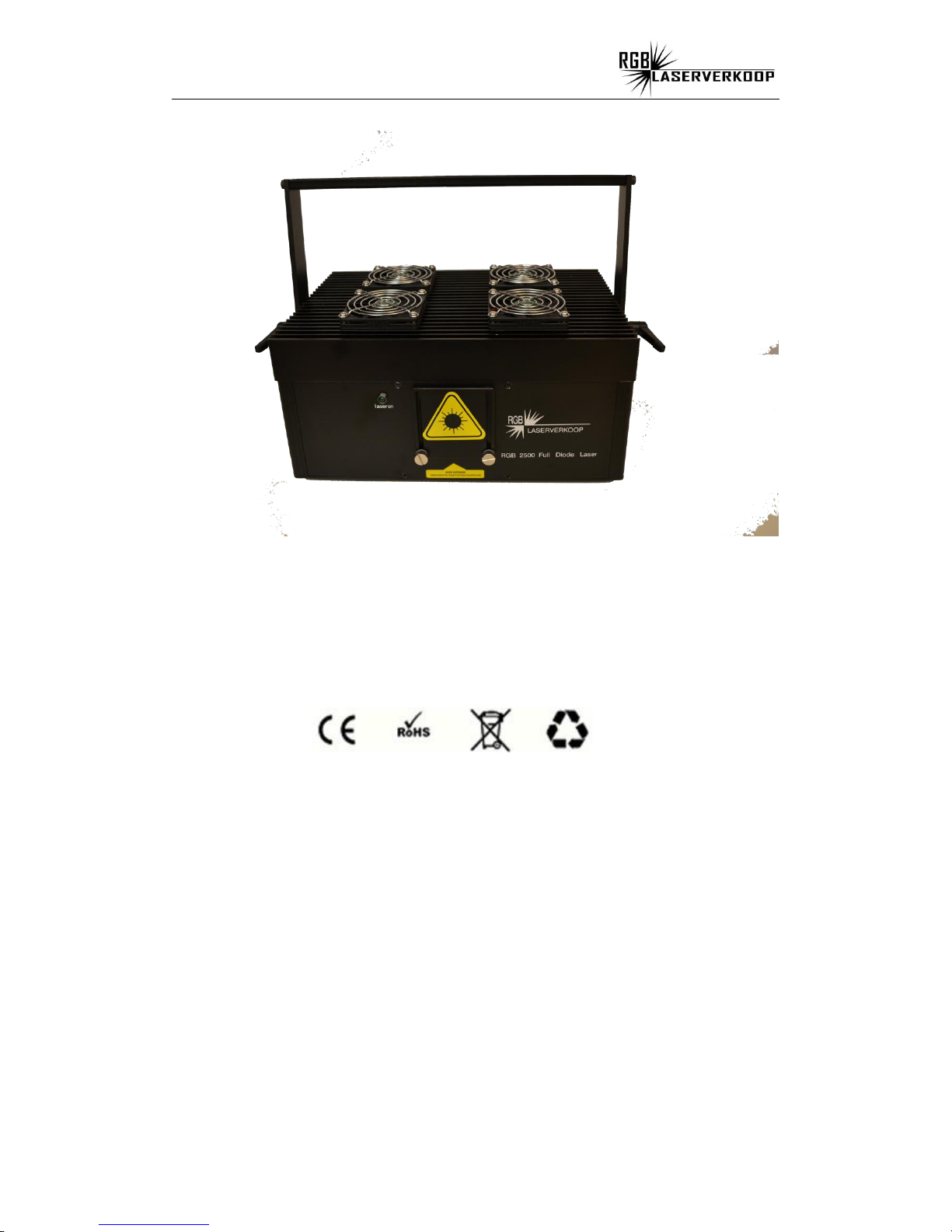

RGB Laserverkoop XS2500 User manual

User Manual for XS2500
RGBLASER VERKOOP
Lierderholthuisweg 27
8144 RG Lierderholthuis
The Netherlands / Holland
- 1 -
This product manual contains important information about the safe installation and use of this
product.Please read and follow these instruction carefully and keep this manual in a safe place for future
reference.
Security Warning
When unpacking and before disposing of the carton, check if there is any transportation
damage before using the product.Should there be any damage caused by
transportation,consult your dealer and do not use the apparatus.
This equipment is not waterproof, keep it from rain, moisture and liquids.
Do not install the product or project the beam onto inflammable surfaces. Minimum
distance is 5 M.
The product is only intended for installation, operation and maintenance by
qualified personnel.
Product should install in a cool place. Keep away from the wall 50cm
Avoid direct exposure to the light from the lamp.The light is harmful to eyes
Keep the optical system clean.Do not touch the laser reflect lens with bare hands.Do

User Manual for XS2500
RGBLASER VERKOOP
Lierderholthuisweg 27
8144 RG Lierderholthuis
The Netherlands / Holland
- 2 -
not use any alcohol liquid or any other liquit to clean the optical system.Use medicinal
absorbent cotton to clean it.
Please do not attempt to dismantle and/or modify the product inner
structure.Otherwise,would not provide 1 year of free warranty.
Electrical connection must only be carried out by qualified personnel.
Before installation,ensure that the voltage and frequency of power supply match the
power requirement of the product.
It is essential that each product is correctly earthed and that electrical installation
conforms to all relevant standards.
Do not connect this device to any other types of dimmer apparatus.
Make sure that the power-cord is never crimped or damaged by sharp edges. Never
let the power-cord come into contact with other cables.Only handle the power-cord
by the plug.Never pull out the plug by tugging the power-cord
There is no user serviceable parts inside the product,do not open the housing and
never operate the product with the cover removed.
If you have any questions,don't hesitate to consult our dealer or manufacturer.
XS2500 laser projector adopts embedded technology which enable laser
moving,scaling,rotating,turn spin and gradually draw,animation,text,broken pen,wave
laser effect can be achieved easily.
Unique functions as following:
1. Through DMX-512 Controller,you can select auto or sound control mode or to play
built-in laser effects.
2.Through menu to set up scanner speed,laser color,X opposition,Y opposition
3.Unique sound control technology.Laser effect can response according to sound
rhythm.
Product technical parameters
Item NO: XS2500
1.Voltage:AC90~240V 50~60HZ±10%
2.Power consumption:80W
3.Laser source:Solid semi-conductor laser diode.
4.Laser power /wavelength: 1x 500mW Red (638nm)
1x 800 mW Green (520nm )
1 x 1200mW Blue (445nm )
5.Colors:RGB full color

User Manual for XS2500
RGBLASER VERKOOP
Lierderholthuisweg 27
8144 RG Lierderholthuis
The Netherlands / Holland
- 3 -
6.Modulating signal: 0~30K Analogue
7.Laser Patterns:256 pieces built-in laser patterns
8.DMX Channel:12CH
9.Scanner system: 30 kpps
10.Control signal:DMX-512 international standard signal
11.Control mode:Music,auto,master-slave and DMX-512l,ILDA Control
12.Cooling system:fan
13.Operation environement :Indoor
14.Operation temperature:-10°C～40°C
15. Net Weight : 8 kg
16.Dimension Size : mm

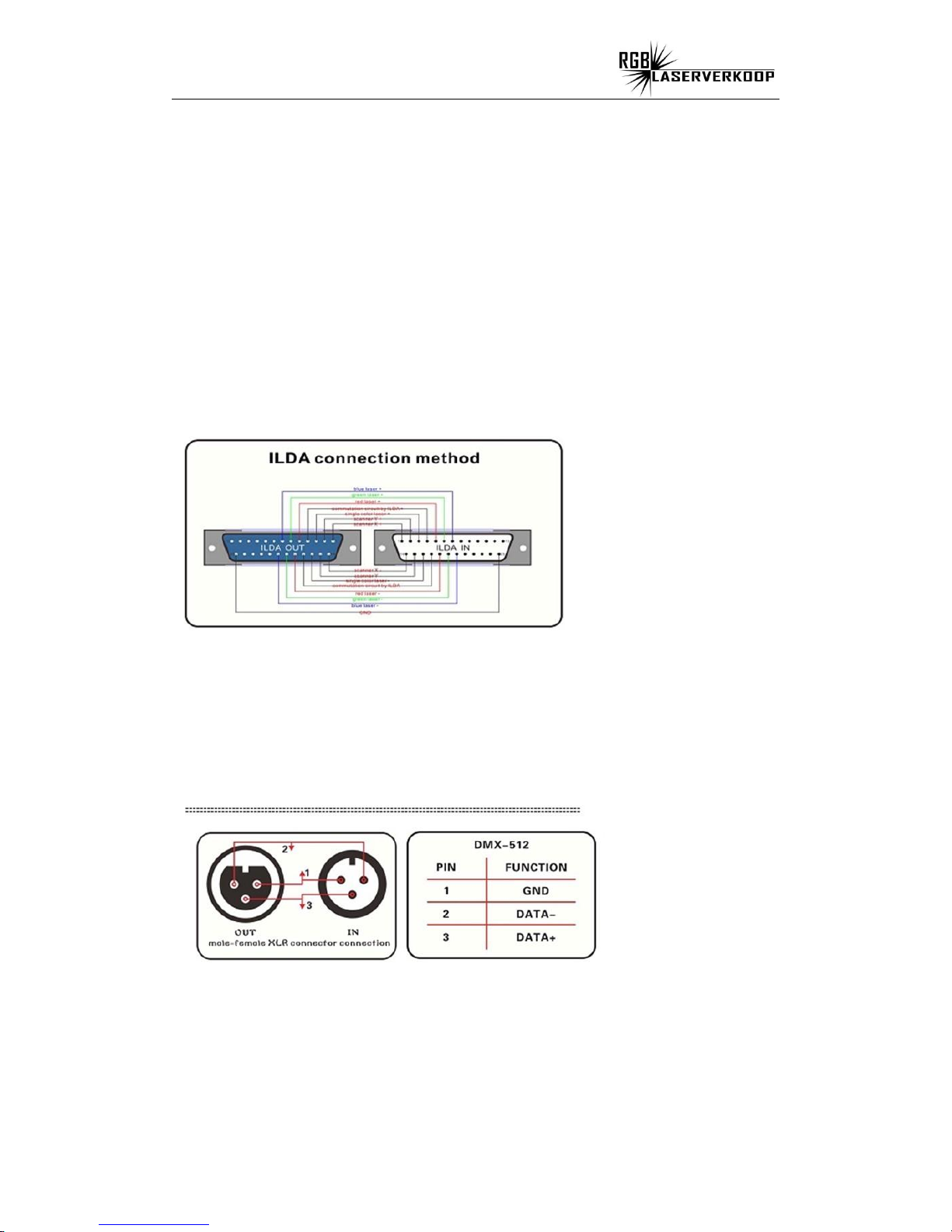

1. ILDA control signal connection method:
Connection built through product male/female DB 25 degree socket. Like above picture. In addition to
the above connections, ILDA signal cannot be connected in any other way.
Connect ILDA signal, the lighting fixtures will automatically shift to ILDA working mode.
This lighting fixtures ILDA signal cable connection way is compliant to international
standard.
2. DMX Connection method
DMX control signal connection must be made with a two core-screened cable,with each core
having at least a 0.5mm diameter. Please use the product's signal cable OUT and IN as connection.
The signal OUT and IN cables connection shown as above picture.

User Manual for XS2500
RGBLASER VERKOOP
Lierderholthuisweg 27
8144 RG Lierderholthuis
The Netherlands / Holland
- 4 -
This product accepts digital control
signals in protocol DMX512(1990).The amount of lighting fixtures connected in parallel is
no more than 32.Connect the DMX controller's Output to the first lighting fixture's Input cable
with a 2 core XLR signal cable(Shown as above ),connect the first lighting fixture's Output cable to the
second lighting fixture's Input cable and connect the rest light fixtures in the
same way.Eventually,connect the last lighting fixture's Output cable to a DMX terminator
Under DMX-512 signal control mode,the last lighting fixture's DMX Output must be connected with
a DMX terminator.This prevents electrical noise from disturbing and corrupting the DMX control
signals.The DMX terminator is simply an XLR connector with a 120(ohm ) resistor connected
across pins 2 and 3,which is then plugged into the output socket on the last projector in
the chain.Then connections are illustrated above.
Note:Please do not connect the signal cable OUT and IN in other way except above shown.
4. SD card laser operating system
Operating Buttons：
Mode Up Down Enter
MODE：Change modes
UP、DOWN：When it is at PRG and ILD mode, just change files. When it is at sound mode, just
change the rhythm.
Press and hold the Enter key for more than 3 seconds to save the current mode.
Working Mode：
Prg Mode ：Play PRG FILES. The second line displays the playing list name. Press“UP”and“DOWN”to
change playing list.
ILDA Mode：Play ILDA FILES one by one.(Format is ILD）， The second line displays the playing list
name of ILDA Files，Press“UP”and“DOWN”to change playing list.
Audio Mode：Play programs according to the music. Press“UP”and“DOWN”to change the rhythms.
Auto Mode：Play programs automatically。
Dmx Mode：The first line shows the DMX IP, the second show the receiving status of the controller.
DMX Channel Details：

User Manual for XS2500
RGBLASER VERKOOP
Lierderholthuisweg 27
8144 RG Lierderholthuis
The Netherlands / Holland
- 5 -
Description
CHANNEL
NUMBER
FUCTION
1
Modes
0-73
Light closing
74-110
PRG mode
111-147
ILD mode
148-184
Audio mode
185-221
Auto Mode
222-255
Hand-operating
2
Pictures/Files
0-255
Hand-operating
PRG/ILD mode
Pictures changing，changed with
each two numbers.
Choosing files
3
Flash/Files
0-10
Without flash
Files playing
11-199
AUTO Flash
200-255
Sound Flash
4
X Direction
0-125
Adjust the position
126-185
Auto LEFTAND RIGHT MOVING
186-225
Auto jump moving circles between left and right
226-245
Auto jump in disorder
246-255
Audio jump in disorder
5
Y Directiom
0-125
Adjust position by hand
126-185
Auto moving in circles between up and down
186-225
Auto jumping in circles between up and down
226-245
Auto jump in disorder
246-255
Audio jump in disorder
6
Zooming
0-10
No zooming
11-100
Adjust size by hand
101-150
enlarge
151-200
Zoom out
201-255
Zoom in circles
7
X-axis rotating
0-10
No rotation
11-110
Adjust manually
111-255
Auto rotation
8
Y-axis rotating
0-10
No rotation
11-110
Adjust manually
111-255
Auto rotation
9
Rotating with
center point
0
No rotation
1-180
Adjust manually
181-217
Auto clockwise rotation
218-255
Auto counter clockwise rotation
10
Drawing
0-10
No change
10-74
Manual operation
75-104
Auto（up）
105-144
Auto（down）
145-184
Auto in circles
185-224
fore-and aft line in circle（up）
225-255
fore-and aft line in circle（down）
11
wave
0-9
No speed
10-199
speed
200-255
range
color
0-16
White
17-33
Red
34-50
Green
51-67
Blue
68-84
Yellow
85-101
Purple

User Manual for XS2500
RGBLASER VERKOOP
Lierderholthuisweg 27
8144 RG Lierderholthuis
The Netherlands / Holland
- 6 -
12
RGB
102-118
Cyan
119-135
White red green blue four colors subsection
136-152
Blue Yellow Purple Cyan four colors subsection
153-169
White red green blue purple cyan seven colors
subsections
170-186
White red green blue four color subsection
moving
187-203
Blue Yellow Purple Cyan four colors subsection
moving
204-220
Blue yellow purple cyan four color moving
221-237
Display according to breakpoint
238-255
Change c
RGY
0-27
White
28-55
Red
56-83
green
84-111
Yellow
112-139
Red green two colors subsection
140-167
White red green yellow four color subsections
168-195
Red green two colors moving 红绿双色流动
196-223
White red green yellow four colors moving
224-255
Changing color with music
13
Display mode
0-63
Normal display
64-127
Bright spot display
128-191
Display in subsection
192-255
Display dots
Remarks：
1.Only support FAT32 SYSTEM，if use new SD CARD, Please format to FAT32.
2.This system only support short name of files,8 number letters name at most and 3 number letters
extension at most.(support letters, numbers, underline and so on)
3.SD card only for special use, don’t mix with other files. Support 20 files at most, each file support
256 ILDA files and 10 PRG files at most.
4.PRG Program List：you can program with text to edit program with extension .PRG.The list is
composed of file name, playing speed and playing times, then with Ishow ID CODE(i),block off
with“，”.Each line only support one program. For example: file1.ild、file2.ild、file3.ild 3 files，file1.ild playing
speed is 12K，playing time is 3 times，file2.ild playing speed is 20K，playing time is 1 time, and file2 use
ishow to edit，file3.ildplaying speed is 18K，playing time is 4times，Then prg1.prg contents are as follow：
File1.ild,12,3
File2.ild,20,1,i
File3.ild,18,4
When build a new file, you need to create a .PRG file with the same name of the new file in this new
file. And then put all the programs in the .PRG file. The playing speed is the speed of “ILDA Mode”。For
example，under aurora file，create a aurora.prg file。After add ILDA file，need to put this file to PRG
List.
◆Troubleshooting
Problems
Action

User Manual for XS2500
RGBLASER VERKOOP
Lierderholthuisweg 27
8144 RG Lierderholthuis
The Netherlands / Holland
- 7 -
Note:This product is under warranty for 1 year(From the date of delivery), 1
years after can provide paid maintenance services.But if it is because of natural disasters
or user's operation not according to manual.We won't provide warranty.
The product doesn't
switch on
Power connection is not correct.Re-connect the
power.
Power supply is damaged or abnormal.Call a
qualified personnel to fix it.
Connection of control board is not correct.Call a
qualified personnel to fix it.
The product can
turn on,but no light
coming out.
Control mode is wrongly setting up.Resetting it
according to instruction book
Control section is damaged.Call a qualified
personnel to fix it.
The beam appears
dim
The product is too hot.Take ventilation measures
to make it cool.
