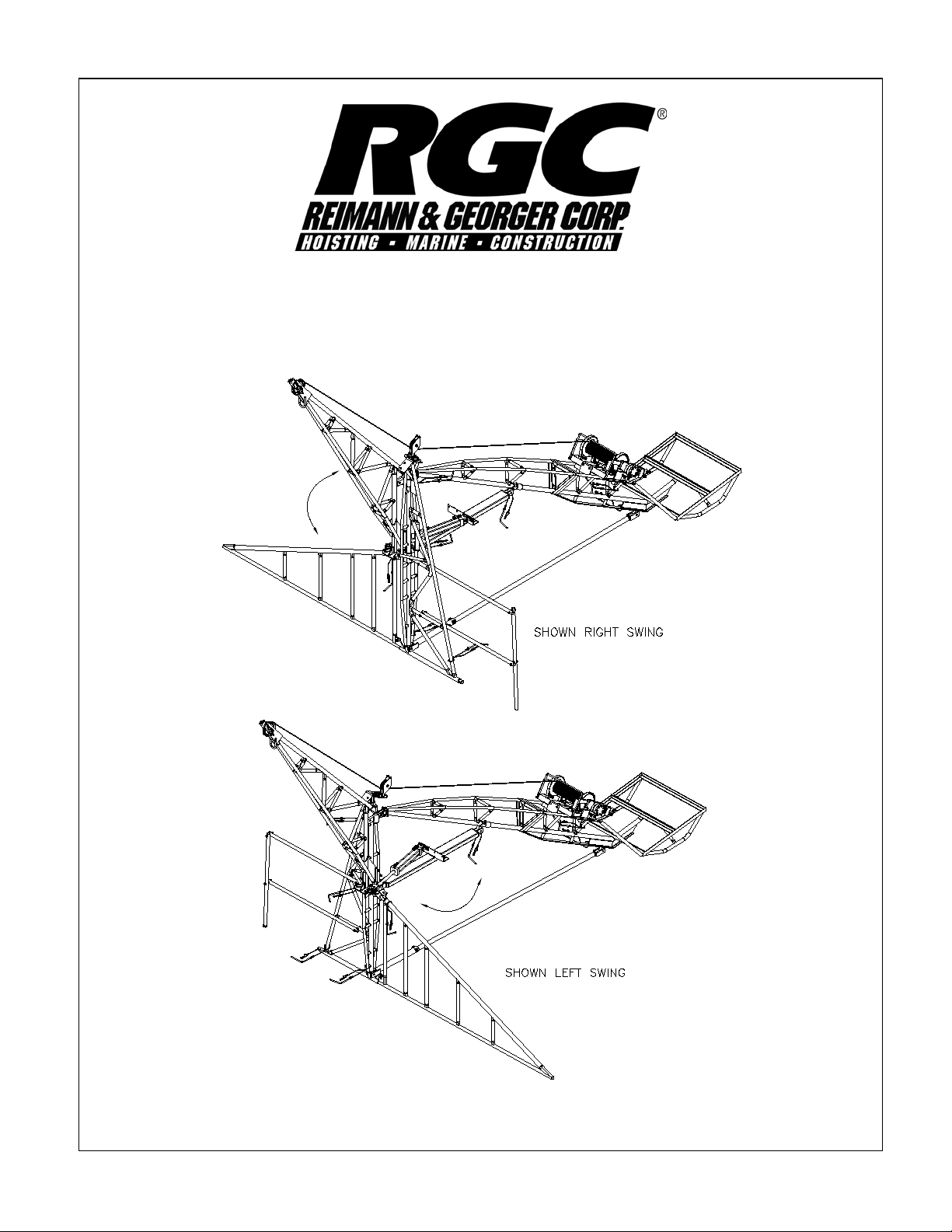

RGC HS2000 User manual

HS2000 HYDRAULIC LEFT OR RIGHT
SWING HOIST INSTRUCTIONS
REIMANN & GEORGER CORPORATION
HOISTING PRODUCTS BUFFALO, NY
P/N 6102031 04/07/15

RGC HOISTING PRODUCTS PHONE: [phone]
TABLE OF CONTENTS
CHAPTER TITLE PAGE
1 SAFETY.......................................................................................................................................1
1.1 Introduction...................................................................................................................................1
1.2 Safety Definitions .........................................................................................................................1
1.3 HydraPak And Hoist Safety Labels ..............................................................................................1
1.4 HS2000 Hoist Safety Rules...........................................................................................................1
2 SPECIFICATIONS.....................................................................................................................3
2.1 Technical Data..............................................................................................................................3
2.2 Nameplate And Serial Number Tag..............................................................................................3
3 INSTALLATION AND SETUP.................................................................................................5
3.1 Prior To Setup...............................................................................................................................5
3.2 Front Leg Pre-Assembly...............................................................................................................7
3.3 Counterweight Leg Pre-Assembly ................................................................................................9
3.4 Frame Assembly ..........................................................................................................................10
3.5 Mounting The Cylinder................................................................................................................15
3.6 Mounting The Winch...................................................................................................................17
3.7 Reeving The Wire Rope...............................................................................................................17
3.8 Ballast Block Assembly...............................................................................................................20
3.9 Raising The HydraPak To The Roof Using The Optional Hand Winch......................................21
4 OPERATION.............................................................................................................................23
4.1 Before Operating The Hoist.........................................................................................................23
4.2 Raising And Lowering The Load.................................................................................................24
4.3 Hand Signals................................................................................................................................26
4.4 Preparing Hoist For Shutdown.....................................................................................................27
5 DISASSEMBLY.........................................................................................................................29
5.1 Prior To Disassembly...................................................................................................................29
5.2 Rewinding The Wire Rope ..........................................................................................................29
5.3 Removing The Cylinder...............................................................................................................29
5.4 Removing The Winch..................................................................................................................29
5.5 Removing Parts From Deck.........................................................................................................30
5.6 Lowering The Power Unit To The Ground Using The Optional Hand Winch ............................30
5.7 Disassembling The Frame............................................................................................................31
6 INSPECTION AND MAINTENANCE....................................................................................33
6.1 General Maintenance Rules .........................................................................................................33
6.2 Initial Inspection ..........................................................................................................................34
6.3 Daily Inspection...........................................................................................................................34
6.4 Wire Rope Inspection Procedure.................................................................................................34
7 TROUBLESHOOTING ............................................................................................................37
8 PARTS LIST ..............................................................................................................................39

RGC HOISTING PRODUCTS PHONE: [phone]
LIST OF FIGURES
FIGURE DESCRIPTION PAGE
2-1 Typical Hoist Product Nameplate.....................................................................................................3
--- Dual Swing Full Assembly Layouts..................................................................................................5
3-1A Pivot Block Installation....................................................................................................................6
3-1B Pivot Block Installation....................................................................................................................7
3-2 Front Leg..........................................................................................................................................7
3-3 Stabilizer...........................................................................................................................................8
3-4 Front Leg/Stabilizer Assembly.........................................................................................................8
3-5 Upper And Lower Counterweight Leg Assembly.............................................................................9
3-6A HS2000 Bi-Dir Left Swing Boom Installation With Parts On Deck ...............................................10
3-6B HS2000 Bi-Dir Right Swing Boom Installation With Parts on Deck..............................................10
3-7A HS2000 Bi-Dir Left Swing Counterweight Leg/Front Leg/Boom Assembly..................................11
3-7B HS2000 Bi-Dir Right Swing Counterweight Leg/Front Leg/Boom Assembly................................11
3-8A HS2000 Bi-Dir Left Swing Raising The Frame...............................................................................12
3-8B HS2000 Bi-Dir Right Swing Raising The Frame ............................................................................12
3-9A HS2000 Bi-Dir Left Swing Completed Frame Assembly................................................................14
3-9B HS2000 Bi-Dir Right Swing Completed Frame Assembly..............................................................15
3-10A HS2000 Bi-Dir Left Swing Cylinder Mounting Position.................................................................16
3-10B HS2000 Bi-Dir Right Swing Cylinder Mounting Position ..............................................................17
3-11 Winch Mounting Position................................................................................................................18
3-12 Cable Keeper Operation..................................................................................................................19
3-13 Single Line Operation Up To 1000 Pounds.....................................................................................19
3-14 Double Line Operation Up To 2000 Pounds...................................................................................20
3-15 Ballast Block Assembly...................................................................................................................21
3-16 Ballast Block Filling........................................................................................................................21
3-17 Mounting Hand Winch on HS2000.................................................................................................22
4-1 HydraPak Controls ..........................................................................................................................24
4-2 Typical HydraPak/Hoist Positioning...............................................................................................25
4-3 “Hoist” Signal..................................................................................................................................26
4-4 “Lower” Signal................................................................................................................................27
4-5 “Stop” Signal...................................................................................................................................27
4-6 “Emergency Stop” Signal................................................................................................................27
4-7 “Move Slowly” Signal.....................................................................................................................27
5-1 Completed Frame Assembly............................................................................................................32
6-1 Wire Rope Components ..................................................................................................................34
8-1 HS2000 Assembly Drawing ............................................................................................................40

PRE-HOISTING CHECKLIST
This checklist must be checked prior to each use of the hoist. This checklist must be used in conjunction with the
maintenance and inspection procedures outlined in this manual. The hoist and related equipment must be thoroughly
inspected prior to each use by a trained person. A trained person is one who has read and thoroughly understands this
instruction manual and related equipment manuals and, through training and experience, has shown knowledge regarding the
safe operational procedures. If you do not have such a person in your organization, please contact Reimann & Georger
Corporation or its distributors and they will assist you in providing such a “trained person.” Do not permit any person who is
not fully trained to operate this swing hoist. This checklist should be maintained as a permanent record.
Discuss work plan, personal protective equipment, and each crew member’s responsibility before starting to set-up. All
crew members must be familiar with the use of hand signals.
Ensure OSHA compliant fall protection is in place.
Ensure a competent person (qualified engineer) has determined the structural deck can support the intended loads in
hoisting and material handling.
Ensure hoisting operation will clear all power lines and obstructions.
Ensure hoisting area is secured from all unauthorized personnel.
Ensure that all hoisting accessories such as forks, buckets, and slings are commercially manufactured, are in good
condition, and have a rated load capacity.
Capacity of slings decreases as the angle increases. Ensure slings have a capacity of at least 2000 lbs. and are in good
condition.
Inspect wire rope for signs of wear and damage. Replace defective wire rope immediately.
Ensure at least three wraps of wire rope are on the winch drum at maximum travel.
Ensure bolt securing wire rope end loop to the drum flange is tight and in good condition.
Ensure wire rope is unwinding from the top and not the bottom of the winch drum.
Ensure there is sufficient weight on the wire rope to maintain 10 lbs. of tension at all times.
Ensure wire rope is reeved properly for either one (1) part of line for 1000 lbs. capacity or two (2) parts of line for 2000
lbs. capacity.
Ensure upper pin and hairpin between Front Leg and Stabilizer are connected and in good condition.
Ensure lower pin and hairpin between Front Leg and Stabilizer are connected and in good condition.
Ensure pin and hairpin between Front Leg and Upper Counterweight Leg are connected and in good condition.
Ensure pin and hairpin between Brace and Lower Counterweight Leg are connected and in good condition.
Ensure pin and hairpin between Front Leg and Socket are connected and in good condition.
Ensure pin and hairpin between Front Leg and Cylinder Mount are connected and in good condition.
Ensure pin and hairpin between Cylinder Mount and Counterweight Leg are connected via the sliding tube and in good
condition.
Ensure pin and hairpin between Cylinder and Cylinder Mount pillow block bearing are connected and in good condition.

PRE-HOISTING CHECKLIST (continued)
Ensure pin and hairpin between Cylinder Rod and Boom pillow block bearing are connected and in good condition.
Ensure the two pins and hairpins between the Winch and Counterweight Leg are connected and in good condition.
Ensure upper and lower sections of Counterweight Leg are bolted together using grade 5 bolts and nuts with shake
washers.
Ensure all bolts between upper and lower sections of Counterweight Leg are tight (60-75 ft-lbs.) and in good condition.
Ensure both lockscrews are tight on sliding tube connecting Cylinder Mount to Counterweight Leg.
Ensure Brace is slid into socket and lockscrews are tightened.
Ensure Boom pins are completely engaged in the Front Leg sockets.
Ensure the Front Leg is mounted to 2”x 6” lumber to distribute the load along the roof edge.
Ensure the Operator Fence is lowered.
Ensure all structural members of the hoist are free of defects and damage that may affect the integrity of the hoist.
Ensure the Front Leg is vertically plumb.
Ensure 2000 lbs. (Ontario OHSA: 1140 kg.) of Reimann & Georger Corporation approved ballast blocks are secured in
the Counterweight Basket with rope.
Ensure 3/4” plywood is placed under Counterweight Basket to distribute the weight.
Ensure bolt through the Pivot Sheave is in good condition and is held securely in place with a locknut.
Ensure Pivot Sheave can rotate freely.
Ensure bolt through the Boom Sheave is in good condition and is held securely in place with a locknut.
Ensure Boom Sheave can rotate freely.
Ensure the pin through the Cable Keeper is in good condition and is securely in place.
Ensure Cable Keeper is in the locked position.
Ensure Block and Swivel Hook have a rated capacity of at least 2000 lbs. and are in good condition.
Ensure Safety Latch on the Hook does not support any load.
Ensure all Shackles have a rated capacity of at least 2000 lbs. and are in good condition.
Ensure power unit has been properly maintained.
Ensure hydraulic hoses are properly connected and in good condition.
Operate hoist with no load to test hoisting operation, controls, and power unit.
INSPECTOR: _____________________________________ DATE: ______________

1
1 SAFETY
1.1 INTRODUCTION
Your Reimann & Georger Corporation HS2000 Hydraulic Left or Right Swing Hoist has been engineered to provide lifting
performance, long term economics and safety advantages that no other type can match. However, even a well-designed
and well-built hoist can malfunction or become hazardous in the hands of an inexperienced and/or untrained user.
Therefore, read this manual and related equipment manuals thoroughly before operating your hoist to provide maximum
safety for all operating personnel, and to get the maximum benefit from your equipment.
1.2 SAFETY DEFINITIONS
A safety message alerts you to potential hazards which could injure you or others or cause property damage. The safety
messages or signal words for product safety signs are DANGER, WARNING, and CAUTION. Each safety message is
preceded by a safety alert symbol and is defined as follows:
DANGER: Indicates an imminently hazardous situation which, if not avoided, will cause death or serious injury. This
safety message is limited to the most extreme situations.
WARNING: Indicates potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. It
may also be used to alert against unsafe practices and property-damage-only accidents.
1.3 HYDRAPAK AND HOIST SAFETY LABELS
These labels warn you of potential hazards which could cause injury. Read them carefully. If a label comes off or
becomes illegible, contact Reimann & Georger Corporation for a free replacement.
1.4 HS2000 HOIST SAFETY RULES
1. Operators must be thoroughly trained before operating this hoist. A trained person is one who has read and thoroughly
understands this instruction manual and related equipment manuals and, through training and experience, has shown
knowledge regarding the safe operational procedures.
2. Prior to setting up the hoist there must be a plan of action outlining the work to be accomplished, individual
responsibilities, personal protective equipment, and method of communication.
3. A good line of communication must be maintained between the hoist operator and the ground crew. All crew
members must be familiar with hand signals.
4. Follow the Pre-Hoisting Checklist before operating.
5. Use only Reimann & Georger Corporation approved ballast blocks or factory approved equal as counterweight.
6. Ensure 2000 lbs. (Ontario OHSA: 1140 kg.) of ballast blocks are secured properly in the lower counterweight basket
before operating the hoist. Tie ballast blocks to basket with rope. No human being shall ever be utilized as ballast.
7. Wear heavy leather gloves when handling wire rope.
8. All personnel shall be protected by OSHA compliant fall protection.
9. Never use the hoist structure to anchor life lines, worker’s harnesses or other attachments.
10. Hoist operator must stand behind the operator fence while the hoist is operating.
11. Hoisting area is to be clear of power lines. Consult power company before you work near power lines.

2
12. Hoisting area is to be kept clear of unauthorized personnel at all times. Place barricades or secure the area in such a
manner that if there were an equipment failure, no personnel would be injured.
13. Keep out from under a raised load.
14. Never hoist over an open doorway.
15. Never exceed the Rated Load Capacity; 1000 lbs. for single line pull or 2000 lbs. for double line pull. The Rated
Load Capacity is the maximum load which should ever be applied to the hoist. Rated Load Capacity is for straight
line pull; avoid side loads.
16. Avoid sudden stops and shock loads.
17. All hoisting accessories such as forks, buckets and slings must be commercially manufactured.
18. All hooks, slings, shackles, and other hoisting accessories must be properly maintained and installed.
19. Secure load before lifting.
20. Tag lines shall be used to control all loads.
21. No person shall be allowed to ride on the hoist.
22. Do not climb the hoist; use only a step ladder with OSHA compliant fall protection. Do not use an extension ladder.
23. Check the hoist periodically during operation.
24. Do not disconnect hydraulic hoses or fittings while hydraulic power source is running.
25. Do not attempt to make adjustments while the hoist is being operated.
26. Keep all body parts clear of moving parts.
27. At end of operation, the hoist should be secured to prevent unauthorized use. Never assume you will find the hoist in
the same condition in which you left it.
28. Do not weld or otherwise modify the hoist. Such alterations may weaken the structural integrity of the hoist.
29. Only trained personnel are authorized to do repairs.
30. Do not operate hoist when under the influence of drugs, alcohol, or medication.

3
2 SPECIFICATIONS
2.1 TECHNICAL DATA
HS2000 Bi-Dir Hydraulic Left or Right Swing Hoist
The following specifications apply to the hoist assembly. Detailed specifications for the HydraWinch and the HydraPak are
in the separate manuals for these items.
U.S. ONTARIO
Hoist capacity (2 parts of line): 2000 lbs. 907 kg.
Hoist speed (1 part of line): up to 165 fpm up to 50 mpm
Hoist wire rope supplied 200 ft. 61 m
Hoist wire rope—maximum length* 300 ft. 91 m
Boom overhangs roof 5 ft. 1.5 m
Maximum height under hook to roof deck 12 ft. 3.7 m
Assembly weights:
Boom weight: 86 lbs. 39 kg.
Counterweight Leg assembly weight: 140 lbs. 63 kg.
Front Leg, Stabilizer assembly weight: 130 lbs. 59 kg.
Winch weight: 100 lbs. 45 kg.
Brace weight: 17 lbs. 8 kg.
Socket weight: 11 lbs. 5 kg.
Cylinder mount weight: 27 lbs. 12 kg.
Cylinder weight: 21 lbs. 10 kg.
Total weight of above parts: 532 lbs. 242 kg.
HydraPak H1158S 278 lbs. 126.2 kg.
Counterweight required 2000 lbs. 1134 kg.**
Ballast blocks required 40 46**
Ballast block weight (minimum) 50 lbs. 23 kg.
* Consult factory for longer wire rope lengths.
** Counterweight required for Ontario is greater due to counterweight ratio of 1.25 to 1.
2.2 NAMEPLATE AND SERIAL NUMBER TAG
It is important to identify your hoist completely and accurately whenever ordering spare parts or requesting assistance in
service. The hoist has a product nameplate located on the boom. The label shows the model and serial numbers and
capacity rating. The hoist label should appear as the sample nameplate shown in Figure 2-1. Record the model and serial
numbers, and capacity rating for future reference.
Figure 2-1.
Typical Hoist Product Nameplate
MODEL HS2000
SERIAL NUMBER
CAPACITY RATING 2000 LBS.
HOIST
CAP. lbs.
MODEL
SERIAL NO.

4

5
3 INSTALLATION AND SETUP
3.1 PRIOR TO SETUP
The HS2000 Bi-Directional Swing Hoist can be assembled either a Left or Right swing. Use the following layouts to
determine which direction the boom swings LEFT or RIGHT for your application.
HS2000 BI-DIR RIGHT SWING LAYOUT
HS2000 BI-DIR LEFT SWING LAYOUT

6
1. If the unit is new from the factory, cut the banding and separate the parts. Remove shipping protection on Boom pins
and Front Leg sockets.
WARNING:
ENSURE ALL STRUCTURAL MEMBERS OF THE HOIST ARE FREE OF DEFECTS AND
DAMAGE THAT MAY AFFECT THE INTEGRITY OF THE UNIT.
2. Hoist installation and setup cannot proceed until all necessary parts and equipment have been raised to the roof deck
where the hoisting operations will be done. Use a hoist beam, swing beam, or freight elevator for this purpose.
WARNING:
ENSURE THE HOISTING AREA IS SECURED FROM ALL UNAUTHORIZED PERSONNEL.
ENSURE THAT OSHA COMPLIANT FALL PROTECTION IS IN PLACE.
WARNING:
A COMPETENT PERSON MUST DETERMINE THAT THE STRUCTURAL DECK CAN
SUPPORT THE INTENDED LOADS IN HOISTING AND MATERIAL HANDLING IN
ADDITION TO THE WEIGHT OF THE COUNTERWEIGHT ON THE ROOF DECK.
FAILURE TO DO THIS CAN RESULT IN DEATH, SERIOUS PERSONAL INJURY OR
EQUIPMENT FAILURE.
WARNING:
PRIOR TO SETTING UP THE HOIST THERE MUST BE A PLAN OF ACTION OUTLINING
THE WORK TO BE ACCOMPLISHED, INDIVIDUAL RESPONSIBILITIES, PERSONAL
PROTECTIVE EQUIPMENT, AND THE METHOD OF COMMUNICATION. FAILURE TO
DO THIS CAN RESULT IN DEATH, SERIOUS PERSONAL INJURY OR EQUIPMENT
FAILURE.
3. Assemble pivot block (P/N7300428) as shown in Figure 3-1A. Use the enclosed 3/4-10 x 5-1/2” bolt and locknut. The
Pivot Block notches should fit against the top pivot block weldment plate.
4. Determine swing direction of boom and install the pivot block assembly as shown in figure 3-1B. Attach Pivot Block
assembly to Front Leg using the enclosed 5/8” x 1-1/2” bolt, lock washer and hex nut as shown in Figure 3-1B.
WARNING:
ENSURE BOLT THROUGH THE PIVOT BLOCK IS IN GOOD CONDITION AND IS HELD
SECURELY IN PLACE WITH A LOCKNUT. ENSURE PIVOT SHEAVE CAN ROTATE
FREELY.
Figure 3-1A.
Pivot Block Assembly

7
Figure 3-1B.
Pivot Block Installation
3.2 FRONT LEG PRE-ASSEMBLY
WARNING:
NEVER ASSEMBLE THE FRAME NEAR A ROOF EDGE. ANY ACCIDENT NEAR A ROOF
EDGE CAN CAUSE DEATH OR SERIOUS PERSONAL INJURY.
1. Raise Front Leg and hold upright as shown in Figure 3-2.
Figure 3-2.
Front Leg

8
2. Slide end of Stabilizer Leg into base of Front Leg as shown in Figures 3-3 and 3-4.
Figure 3-3.
Stabilizer
3. Holding Stabilizer at an angle, slide completely into Front Leg.
4. Swing Stabilizer high enough to engage the interlock as shown in Figure 3-4.
5. Connect the upper pin and hairpin at point “A” between the Front Leg and Stabilizer. Connect the lower pin and
hairpin at point “B” between the Front Leg and Stabilizer. These connections are shown in Figure 3-4.
WARNING:
ENSURE PINS AND HAIRPINS AT POINTS “A” AND “B” ARE PROPERLY CONNECTED
AND IN GOOD CONDITION.
Figure 3-4.
Front Leg/Stabilizer Assembly

9
3.3 COUNTERWEIGHT LEG PRE-ASSEMBLY
1. Align the upper and lower sections of the Counterweight Leg as shown in Figure 3-5.
2. Fasten upper and lower counterweight sections together with 1/2” x 1-1/4” Grade 5 bolts and nuts with shake washers
as shown in Figure 3-5.
WARNING:
ENSURE ALL BOLTS BETWEEN UPPER AND LOWER SECTIONS OF COUNTERWEIGHT
LEG ARE TIGHT (60-75 FT-LBS.) AND IN GOOD CONDITION.
Figure 3-5.
Upper and Lower Counterweight Leg Assembly

10
3.4 FRAME ASSEMBLY
1. With parts laying on the deck, insert Boom pins into Front Leg sockets and position assembly as shown in Figures 3-6A
or 3-6B. Fit in the bottom Boom pin first.
WARNING:
ENSURE BOOM PINS ARE COMPLETELY ENGAGED IN THE FRONT LEG SOCKETS.
Figure 3-6A HS2000 LEFT SWING.
Boom Installation With Parts On Deck
Figure 3-6B HS2000 RIGHT SWING.
Boom Installation With Parts On Deck

11
2. Connect the Counterweight Leg to the Front Leg using the pin and hairpin as shown in Figure 3-7.
WARNING:
ENSURE PIN AND HAIRPIN BETWEEN FRONT LEG AND UPPER COUNTERWEIGHT LEG
ARE PROPERLY CONNECTED AND IN GOOD CONDITION.
Figure 3-7A HS2000 BI-DIR LEFT SWING.
Counterweight Leg/Front Leg/ Boom Assembly
Figure 3-7B HS2000 BI-DIR RIGHT SWING.
Counterweight Leg/Front Leg/ Boom Assembly

12
3. Stand the unit upright to bring the Front Leg assembly to a vertical position. To do this, have one person pull at the
counterweight box and another person push up at the top of the Front Leg. When pushing up at the Front Leg, make
sure the Boom does not come out of the Front Leg sockets. See Figure 3-8. Have one person steady unit and ensure
the Front Leg is vertically plumb.
Figure 3-8A HS2000 BI-DIR LEFT SWING.
Raising the Frame
Figure 3-8B HS2000 BI-DIR RIGHT SWING.
Raising the Frame

13
4. Connect the Cylinder Mount to the Front Leg at point “E” using the pin and hairpin as shown in Figure 3-9. Connect
the Cylinder Mount to the Counterweight Leg via the sliding tube at point “D” using the pin and hairpin. The flat face
of the Cylinder Mount must point toward the Front Leg. Tighten the two lockscrews at point “F” on the sliding tube
connecting the Cylinder Mount to the Counterweight Leg.
5. Slide the Socket into the Brace at point “B” as shown in Figure 3-9. Note that this Socket comes with the block carton.
6. Connect the Brace to the Counterweight Leg at point “A” using the pin and hairpin as shown in Figure 3-9. Connect
the Socket to the Front Leg at point “C” using the pin and hairpin. Tighten the two lockscrews near point “B”.
WARNING:
ENSURE PINS AND HAIRPINS AT POINTS “A”, “C”, “D”, AND “E” ARE PROPERLY
CONNECTED AND IN GOOD CONDITION. ENSURE LOCKSCREWS AT POINTS “B” AND
“F” ARE TIGHTENED.
CAUTION:
DO NOT MOUNT THE HYDRAULIC CYLINDER UNTIL AFTER THE HYDRAPAK IS
RAISED TO THE ROOF.
7. Move hoist assembly near roof edge of supporting wall. Ensure the Front Leg is mounted to 2”x 6” board to distribute
the load and the board fastened to the supporting wall. See Figure 3-9. Ensure 3/4” plywood is placed under
Counterweight Basket to distribute the weight. Lower Operator Fence on Front Leg to operating position.
8. Mount 40 Ballast Blocks (2000 lbs.) as counterweight and tie securely to ballast box frame with rope. For equipment
protection and safety of personnel, the counterweight Ballast Blocks must be prepared properly. Follow the detailed
procedures given in section 3.8.
WARNING:
ENSURE 2000 LBS. (ONTARIO OHSA: 1140 KG.) OF REIMANN & GEORGER
CORPORATION APPROVED BALLAST BLOCKS ARE SECURED PROPERLY IN THE
LOWER COUNTERWEIGHT BASKET WITH ROPE BEFORE OPERATING THE HOIST.

14
Figure 3-9A HS2000 BI-DIR LEFT SWING.
Completed Frame Assembly

15
Figure 3-9B HS2000 BI-DIR RIGHT SWING.
Completed Frame Assembly
3.5 MOUNTING THE CYLINDER
1. The cylinder assembly, or block carton, is labeled #0713105 and contains the following parts:
Part
Number
Quantity Description
5000057 1 Cable Weight
5000214 4 Screw Lock
7300222 1 Block W / Hook
0700292 1 HS2000P Socket
7300428 1 Pivot Block
5100713 2 Bearing
0704926 1 Cylinder Assy Hydr HS
5806183 1 HHCS 3/4-10 X 5-1/2
5806372 1 Locknut 3/4-10 22UTA3
7300348 1 SHACKLE 3/8 BOLT TYPE ANCHOR
0713840 1 HS2K BI-DIR TOP PIVOT BLOCK MTG WLDMNT
5800121 2 WASHER SPLIT LOCK 5/8” CZP
5806299 2 HHCS 5/8-11 X 1-1/2 CZP
5806380 2 NUT HEX 5/8-11 CZP
5806281 6 HHCS ½-13 X 1-1/4 CZP
5806379 6 NUT HEX ½-13 CZP GR5
5806412 6 WAS FLAT EXT TOOTH ½” CZP
