RGC 4110020 User manual

SOLAR PANEL
12 & 24 VDC
INSTRUCTIONS
(Applies to P/Ns 4110020 & 3641357)
REIMANN & GEORGER CORPORATION
MARINE PRODUCTS BUFFALO, NY
P/N 6114200 04/09/18

1
1SPECIFICATIONS
1.1 TECHNICAL DATA
Model 4110020 3641357
Solar Panel Operating Voltage 12VDC 24VDC
Solar Panel Weight 3 lbs. 3 lbs.
Solar Panel Power 10 Watts 10 Watts
Current at PMax .58A .29A
Voltage at PMax 17.3V 34.6V
Short Circuit Current .66A .33A
Open Circuit Voltage 21.3VDC 42.6VDC
Mounting Screws (4) included (4) included
Overall Dimensions 10.5” x 17.5” 10.5” x 17.5”
1.2 OPTIONAL EQUIPMENT
The following options are available which enable you to customize your railway for your particular operation.
Installation instructions are provided as part of each option kit.
1. Solar panel controllers or Regulators are used in a solar system to control the charging of the battery(s) by the
solar panel.

2
2INSTALLATION AND SETUP
2.1 SOLAR PANEL MOUNTING
The solar panel must be mounted in a suitable location. Mount the solar panel so that it faces toward the south and angled
toward the afternoon sun. Route the plug end of the solar panel through the flexible cable boot in the back of the control box
or battery box.
2.2 MAKING POWER CONNECTIONS 12V SOLAR PANEL
1. Refer to figure 2-1. Attach the white solar panel lead to the positive battery terminal, and the black lead to the negative
terminal. Tighten each wing nut with a pair of pliers, as even a slightly loose connection can cause the battery terminals
to heat up. Keep battery terminals clean with a corrosion protective coating.
WARNING:
FOLLOW THE SAME SAFETY RULES WHEN WORKING INSIDE THE POWER SUPPLY BOX
AND AROUND THE BATTERY THAT APPLY TO ANY CAR OR BOAT BATTERY. A BATTERY
CAN EXPLODE AND CAUSE PERSONAL INJURY AND/OR EQUIPMENT DAMAGE.
Figure 2-1
12V SOLAR PANEL W/RING TERMINALS

3
2.3 MAKING POWER CONNECTIONS 24V SOLAR PANEL
1. Refer to figure 2-2. Attach the white solar panel lead to the positive battery terminal, and the black lead to the negative
terminal. Tighten each wing nut with a pair of pliers, as even a slightly loose connection can cause the battery terminals
to heat up. Keep battery terminals clean with a corrosion protective coating.

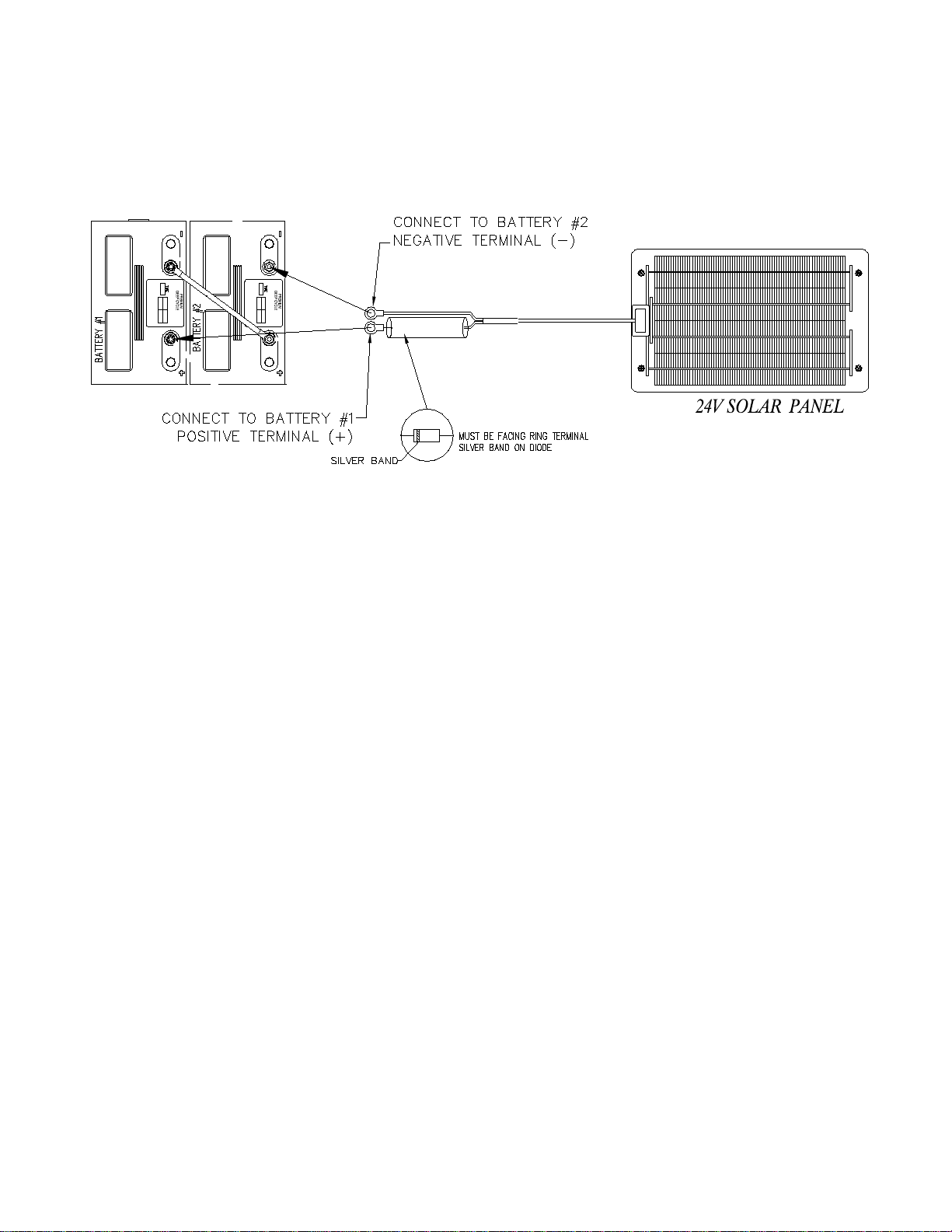

Figure 2-2
24V SOLAR PANEL W/RING TERMINALS

4
3TROUBLESHOOTING
The following chart is intended to assist with troubleshooting your hydraulic lift. While not all inclusive, the chart outlines
the most common causes of a problem and the recommended course of action.
CAUTION:
IF THE PROBLEM WITH THE SOLAR PANEL IS NOT CERTAIN, ALWAYS FOLLOW THE
MANUFACTURER’S WARRANTY POLICY BEFORE ANY OTHER REPAIR OR
MAINTENANCE IS ATTEMPTED.
WARNING:
NEVER ALLOW ANYBODY TO WORK IN OR ON THE BOAT WHEN IT IS SUSPENDED
ABOVE THE WATER ON THE LIFT.
WARNING:
DO NOT SERVICE THE LIFT WITH YOUR BOAT ON THE LIFT. DO NOT SERVICE THE
HYDRAULIC LIFT WITH LOAD TUBES IN THE RAISED POSITION. DO NOT
DISCONNECT ANY HYDRAULIC LINES UNLESS THE LIFT IS COMPLETELY
LOWERED.
SYMPTOM CAUSE AND CORRECTIVE ACTION
Battery does not keep a charge. Check the battery fluid levels, age, and time of last booster
charge. The battery must be booster charged at the beginning and
end of the season using a 10A charger.
Verify solar panel or AC charger is plugged in correctly.
Check the voltage output of the solar panel. With solar panel
unplugged, output should be about 14-18 volts (12V solar panel)
or 28-36 volts (24V solar panel) when exposed to light.
Verify that the polarity (positive or negative) of the solar panel
matches the battery’s polarity.
Battery terminal becomes hot. Verify cable is clean and tight on battery terminal
Solar Panel- no output. Verify that the solar panel gets an adequate amount of light and
the lift usage is within the monthly seasonal limits. The solar
panel may be mounted up to 50 feet away from the battery if
necessary.
Verify the solar panel has a voltage output. Unplug solar panel
and check voltage at plug with voltmeter. The voltage should be
between 17-21V (12V panel) or 34-42V (24V panel) in direct
sunlight. If not, the solar panel, cable or diode could be damaged.

5
SOLAR PANEL TEST
Test #1- Open Circuit Voltage
1. Remove solar panel from the battery terminals.
2. Refer to figure 3-1. Using a multimeter, set the meter to read ‘Volts DC’. Check voltage across
the two solar panel terminals. A +17 to +21V (12V solar panel) or +34 to +42V (24V solar panel
should be present when solar panel is in the sunlight. If not, the blocking diode in the positive
cable is bad. Go to Test #2- Diode test.

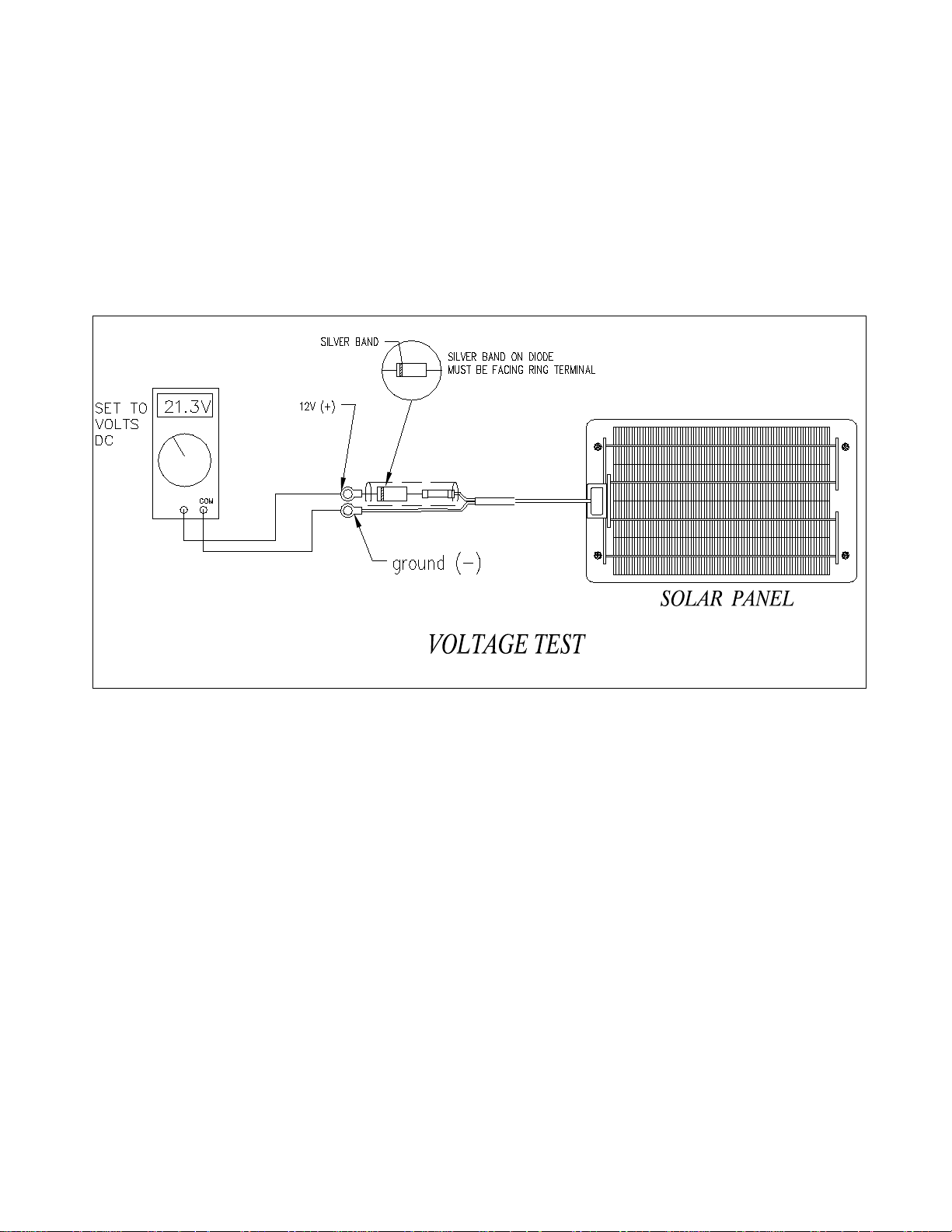

Figure 3-1

6
Test #2- Blocking Diode
1. Remove solar panel from the battery terminals.
2. Refer to figure 3-2, Diode test #1. Using a multimeter, set the meter to read ‘Ohns’. The ‘COM”
probe must be placed on the diode as shown in Diode Test #1. Check ohms resistance across the
blocking diode. A zero or low ohms reading should be present across the diode. If not, reading a
high resistance, the diode is bad or diode is installed backwards.
3. Refer to figure 3-2, Diode test #2. This test is similar to step #2 but the meter probes are
reversed. The ‘COM” probe must be placed on the diode as shown in Diode Test #2. Check
ohms resistance across the blocking diode. A high resistance ohms reading should be present
across the diode. If not, reading a zero or low, the diode is backwards.
Note:
•If in Diode test #1 the resistance is zero or low and in Diode test #2 the resistance is high, then
the diode is good and installed correctly.
•If in Diode test #1 the resistance is high and in Diode test #2 the resistance is zero or low, then
the diode is good but installed backwards.
•If in Diode test #1 the resistance is high and in Diode test #2 the high resistance is high, then the
diode is bad and must be replaced.
•If in Diode test #1 & Diode test #2 the resistance is zero or low, then the diode is bad or missing.

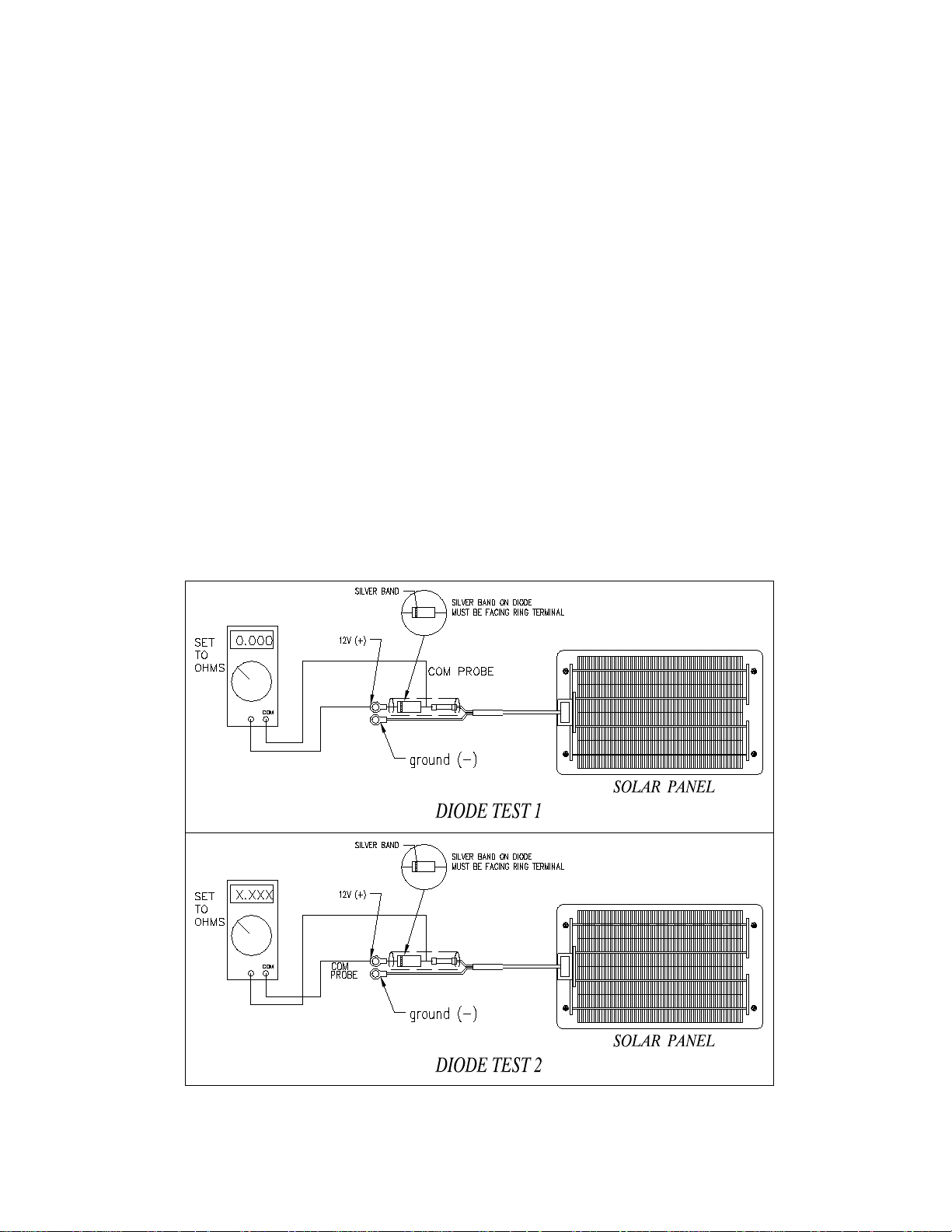

Figure 3-2

0104
