NOTE: Read these instructions completely before opening the appliance.
Lisez entierement ces instructions avant d’ouvrir l’appareil.
zero

®
REME HALO Zero
®
REME HALO Zero is a verified zero ozone, whole-home air purification
system designed to reduce indoor air pollutants. Integrated into the HVAC
®
system, REME HALO Zero is quickly, and easily installed providing
continuous air treatment to the entire air-conditioned space.
Airborne GaseousAirborne Gaseous
HydrogenPeroxideHydrogenPeroxide
TM
(aGHP )
TM
(aGHP )
Airborne Gaseous
HydrogenPeroxide
TM
(aGHP )
MATÉRIAUX NON MÉTALLIQUES EXPOSÉS POUVANT ÊTRE UTILISÉS
DANS DES ESPACES DE TRAITEMENT DE L´AIR.
HOUSING CONTAINS EXPOSED NON-METALLIC MATERIALS
SUITABLE FOR AIR-HANDLING INSTALLATIONS
This product does not require cleaning. UV-C emitters must only be
replaced or serviced by qualified contractors. Unintentional use of
this appliance or damage to the housing may result in the escape of
dangerous UV-C radiation. UV-C radiation, even in small doses,
causes harm to the eyes and skin. Appliances which are damaged
must not be used.
Things I should do to avoid problems or injuries when running my
Equipment.
Thoroughly read and understand all Operating lnstructions,
Warnings and Precautions before commencing application.
Place unit in a dry area when possible.
What service can I expect from my HVAC contractor?
Your contractor will assist you with any problems or questions you
may have.
Sell you optional parts or equipment as needed.
Assist you with any warranty claims.
Warranty Registration
Register warranty online at: www.rgf.com/registration
In case you lose this manual:
This manual can be found digitally online at www.rgf.com
®
REME HALO Zero
REME HALO®Zero by RGF®
Ion Generator

®

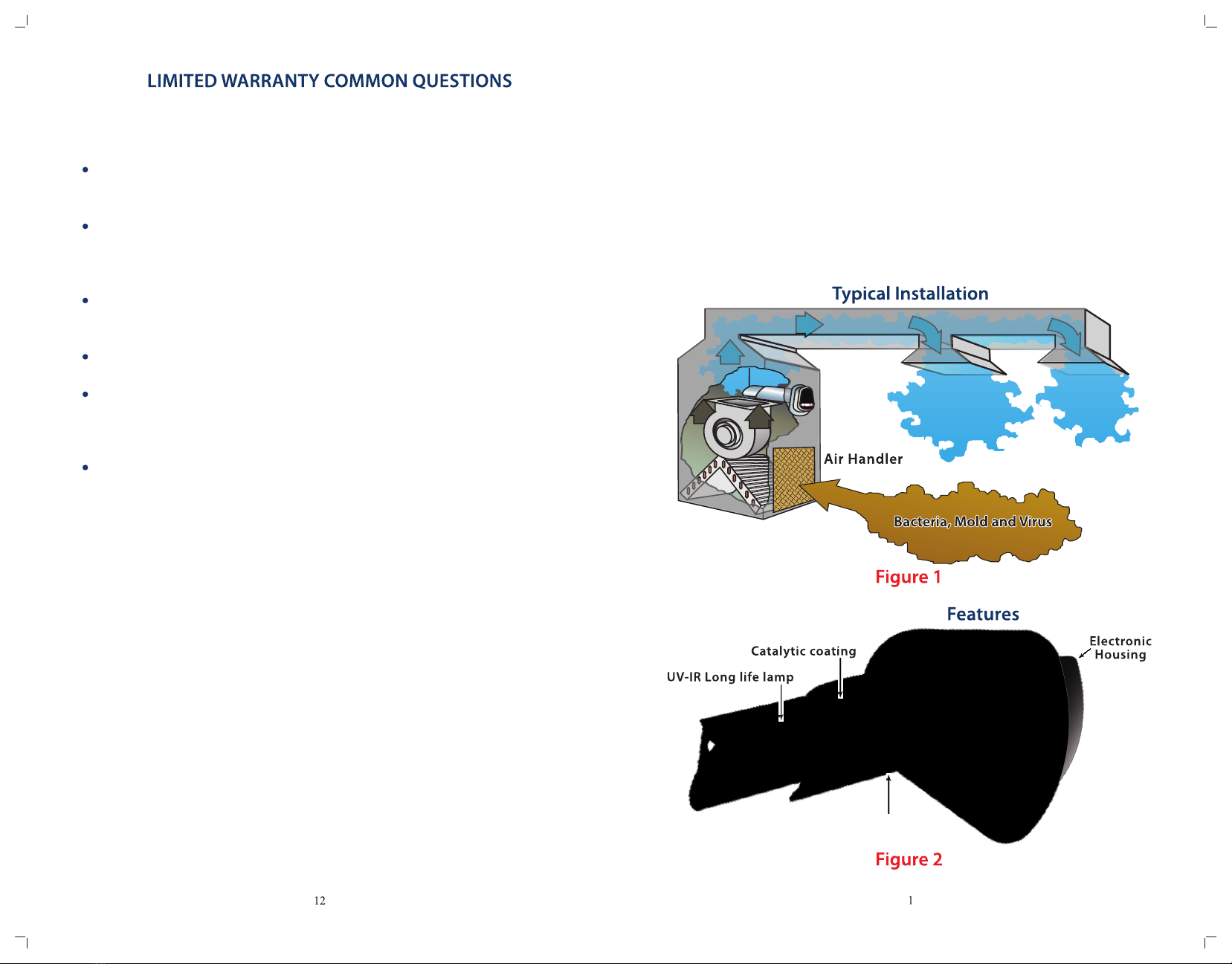

To maximize the effecveness of REME HALO®Zero, it is recommended
(whenever possible) to install REME HALO®Zero unit in the air plenum
just aer the air handling unit (supply side). Refer to for Figure 1
clarificaon.
to install the REME HALO®Zero
Once a suitable locaon is determined, posion REME HALO®Zero midway
in the air duct. Make sure you have allowed enough room to accommodate
the mounng plate when finalizing your mounng posion.
REME HALO Zero unit
Adhesive foam gasket
Adhesive backed foil sealing ring
Three (3) mounng screws
Six (6) wire nuts
Instrucon manual and warranty card
24 VAC transformer
24 V power cord
NEVER EXPOSE UNPROTECTED EYES OR SKIN TO
ULTRAVIOLET LIGHT.
NE JEMAIS EXPOSER LES YEUX OU LA PEAU SANS
PROTECTION AUX RAYONS ULTRAVIOLETS
NOTICE TO INSTALLER & HOMEOWNER
THIS PRODUCT IS ONLY TO BE INSTALLED AND SERVICED
BY A LICENSED CONTRACTOR. IT CONTAINS
NO USER-SERVICABLE COMPONENTS.
FOR DRY LOCATIONS ONLY
EMPLACEMENTS SEC SEULEMENT
SUITABLE FOR USE IN AIR-HANDLING UNITS
ADAPTÉ À UNE UTILISATION DE TRAITEMENT DE L´AIR
Manufacturer warrants the new by RGF® unit to be free from
REME HALO®Zero by RGF®
REME
®
REME HALO Zero
REME
REME

REME HALO®Zero treats your home when the HVAC unit fan is on. It is
recommended to leave your fan on connually when possible to provide
maximum benefit. However, cycling the unit on and off with the fan is
acceptable, but be aware that excessive repeated cycling may degrade the
useful life of the cell elements. RGF® recommends running the unit
connuously.
®
REME HALO Zero
Using a 3-1/4” hole saw or other suitable means), cut a 3-1/4” hole into the
®
REME HALO Zero Cell insert
to maintain optimum effectiveness of the unit.
REME HALO®Zero
REME HALO®Zero

3a. Electrical Connecon: (For installaon using 24VAC transformers)
RGF® recommends for opmal performance and maximum cell life that
the REME HALO®Zero product line operates connuously. For wiring
assistance, see .Figure 7
REME HALO®Zero may be connected to any suitable 120, 208 or 240 VAC
source with the supplied 40VA transformer. When installing mulple
units on an HVAC system, it is recommended that a properly sized
secondary 24 VAC transformer be ulized.
NOTE: BE SURE TO AFFIX CAUTION DECAL
NEXT TO MOUNTED UNIT.
APPOSEZ L'AUTOCOLLANT
D'AVERTISSEMENT À CTÉ DE L'APPAREIL.
REME HALO®Zero
REME HALO®Zero
Replacing REME HALO®Zero Cell

REFER TO WIRING DIAGRAM ON TRANSFORMER
120 208 240120 208 240
to 24VACto 24VAC
transformertransformer
(supplied)(supplied)
120 208 240
to 24VAC
transformer
(supplied)
All wire connections must be made within the provided enclosure
using wire-nuts or insulation tape with appropriate voltage ratings.
Unused wires must be individually capped off.
THIS EQUIPMENT MUST ONLY BE INSTALLED BY A QUALIFIED INSTALLER. CET
EQUIPEMENT DOIT ETRE INSTALLE UNIQUEMENT PAR UN INSTALLATEUR
QUALIFIE.
CAUTION: ENSURE THAT THE CERTIFIED CLASS 2 24V TRANSFORMER
PROVIDES AT LEAST 700mA FOR EACH UNIT INSTALLED ON THE CIRCUIT.
ATTENTION: ASSUREZ-VOUS QUE LE TRANSFORMATEUR 24V FOURNIT AU MOINS
700MA A CHAQUE APPAREIL INSTALLE SUR LE CIRCUIT.
IF MULTIPLE UNITS ARE INSTALLED ON A LARGER CAPACITY 24V TRANSFORMER
THE INSTALLER MUST PROVIDE AN ADEQUATE ENCLOSURE AS PER LOCAL CODES
AND REGULATIONS.
SI PLUSIEURS APPAREILS SONT INSTALLES SUR UN TRANSFORMATEUR 24 V DE
PLUS GRANDE CAPACITE, L'INSTALLATEUR DOIT FOURNIR UN ENCEINTE
ADEQUATE CONFORMEMENT AUX CODES ET REGLEMENTS LOCAUX.
5
RISQUE DE CHOC ELECTRIQUE. COUPER L'ALIMENTATION AVANT DE
CHANGER LA CELL-PHI.
Replacing REME HALO®Zero Cell (Part # PHIC-RH-3)
REME HALO®Zero Unit
Input 24 VAC 700 mA to
the REME HALO®Zero Unit
3b. Electrical Connection (Secondary Transformer)
Figure 7

REME HALO®Zero has a unique feature which allows the adjustment of the
hydrogen peroxide output by way of an adjustable shroud built into the
REME HALO®Zero Cell. By sliding the shroud apertures open or closed,
the can be custom adjusted to the needs of a specific area.REME HALO®Zero
Input 24VDC to the
REME HALO®Zero Unit
3c. Optional Electrical Connection: (For Installation using 24VDC
Power Supply)
®
RGF recommends for optimal performance and maximum cell life that
the REME HALO®Zero product line operates continuously.
REME HALO®Zero may be connected to the optional 24VDC power
supply. This power supply runs universally from 100-240VAC 50/60Hz.
For international installations the power cord may be replaced with
approved cords having the appropriate regional plug. (International
cords may be purchased at RGF that are approved for this adapter).
Refer to . All units must be plugged into to outlets fully Figure 7b
accessible to disconnect for servicing and maintenance. Only use the
24VDC power supply included with the unit. Do not use if the power
supply or appliance is damaged.
Figure 7b
THIS EQUIPMENT MUST ONLY BE INSTALLED BV A QUALIFIED INSTALLER.
CET EQUIPEMENT DOIT ETRE INSTALLE UNIQUEMENT PAR UN
INSTALLATEUR QUALIFIE.
Only use the 24VDC power supply provided.
Ulisez uniquement l'alimentaon 24VDC fournie.
REME HALO®Zero Unit
®
REME HALO Zero Output Adjustment
800 - 1,000 CFM fully closed 1,000 - 1,200 CFM 1/4 open
1,200 - 1,600 CFM 1/2 open 1,600 - 2,000 CFM 3/4 open
2,000 - 2,400 CFM fully open
To adjust shroud, loosen small
hilips head screw on bottom of
shrou d and s lide to desired
position. Tighten screw.
