PART'S MANUAL
An Operator's Manual was shipped with the equipment in the
Manual Canister. This Operator's Manual is an integral part
of the safe operation of this machine and must be maintained
with the unit at all times. READ, UNDERSTAND, and FOLLOW
the Safety and Operation Instructions contained in this manual
before operating the equipment. If the Operator's Manual is not
with the equipment, contact your dealer or Servis-Rhino (800-
446-5158) to obtain a Free copy before operating the equipment.
TW26
ROTARY MOWER
Rev062021 Part No. 00792377P

TO THE OWNER/OPERATOR/DEALER
Allimplementswithmovingpartsarepotentiallyhazardous. Thereisnosubstituteforacautious,safe-mindedoperatorwho
recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to
be used with all its safety equipment properly attached to minimize the chance of accidents.
BEFOREYOUSTART!! Read the safety messages on the implement and shown in your manual.
Observe the rules of safety and common sense!
WARRANTY INFORMATION:
Readand understand thecomplete Warranty Statementfound in thisManual. Fill out theWarranty Registration Form
in full and return it within 30 Days. Make certain the Serial Number of the Machine is recorded on the Warranty Card
andontheWarrantyFormthatyouretain.Theuseof"will-fit"partswillvoidyourwarrantyandcancausecatastrophic
failure with possible injury or death.

PARTS
SECTION
Parts Section – 1

Parts Section – 2
©2017Alamo Group Inc.
For maximum safety and to guarantee optimum product reliability, always use
genuine Servis-Rhino Parts. The use of inferior replacement parts may cause
premature or catastrophic failure which could result in serious injury or death.
Direct any questions regarding parts to:
The following instructions are offered to help eliminate needless delay and error in processing
purchase orders for the equipment in this section.
1. The Parts Section is prepared in logical sequence and grouping of parts that belong to
the basic machine featured in this manual. Part Numbers and Descriptions are given to help
locate the parts and quantities required.
2. The Purchase Order must include the name and address of the person or organization
ordering the parts, who should be charged, and if possible, the serial number of the machine
for which the parts are ordered.
3. The Purchase Order must clearly list the quantity of each part, the complete and correct
part number (be sure to include all periods), and the basic name of the part.
4. The Manufacturer reserves the right to substitute parts where applicable.
5. Some parts are unlisted items which are special production items not normally stocked
and are subject to special handling. Request a quotation for such parts before sending a
Purchase Order.
6. The Manufacturer reserves the right to change prices without prior notice.
NOTE: Please refer to The Safety Section in the front of this Manual for the proper
Part Number when ordering Replacement Safety Decals.
PARTS ORDERING GUIDE
RHINO®
1020 S. Sangamon Ave.
Gibson City, IL 60936
800-446-5158
Email: [email protected]

PART NAME INDEX
A-FRAME ASSEMBLY................................................................................................................................................................................ 4
BLADE CARRIER ASSEMBLY.................................................................................................................................................................. 6
CHAINGUARD ASSEMBLY....................................................................................................................................................................... 7
DECAL PLACEMENT.................................................................................................................................................................................. 8
DEFLECTOR ASSEMBLY......................................................................................................................................................................... 10
DEFLECTOR SIDE ASSEMBLY............................................................................................................................................................... 12
DRIVELINE ASSEMBLY - 00789043 CAT3 SLIPCLUTCH................................................................................................................... 14
GEARBOX ASSEMBLY - 00791028 -1:1.47 NO-LUBE 540RPM........................................................................................................... 16
SHIELD ASSEMBLY.................................................................................................................................................................................. 18
TAILWHEEL & CANISTER ASSEMBLY................................................................................................................................................ 20
©2017 Alamo Group Inc. Parts Section -3
TW26

A-FRAME ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 00792273 1 ARM, FRONT A-FRAME-RH
2 00792272 1 ARM, FRONT A-FRAME-LH
3 00792360 2 BAR, BRACE
4 00792274 1 TOGGLE LINK, WLDMT
5 00792298 1 BUSHING, 1.00 X .78 X 2.38
6 00792279 1 BUSHING, 1.25 X .69 X 2.53
7 00780869 7 NUT, FLG 5/8NC SPIRALOCK PL5
8 00156503 1 HEXB, 5/8 NC 7 PL5
9 00792280 6 BUSHING, SHOULDER 5/8"
10 00792278 2 BUSHING, .88 OD X .64 ID X 1.19
©2017 Alamo Group Inc. Parts Section -4
TW26

A-FRAME ASSEMBLY
Continued...
ITEM PART NO. QTY. DESCRIPTION
11 00790116 2 BUSHING, WING AXLE PIVOT
12 02845600 2 HEXB, 5/8 NC 3 PL5
13 00703200 2 HHCS 5/8-11 NC 2-3/4 PL5
14 00792281 2 PIN, SHORT CAT 1-2 HITCH
15 00792296 2 BUSHING, CAT. I QUICK HITCH
16 2196 2 CLIP (LYNCH PIN), 13/32 DIA.
17 00792297 2 BUSHING, CAT. II QUICK HITCH
18 00755082 2 HEXB, 5/8 NC 2-1/2PL8
19 00780663 1 FLAT, DRIVELINE STORAGE
20 00792351 1 DECK WLDMT
21 02030700 3 HHCS 1/2-13NC X 1-1/4 GR5 PL
22 02971324 3 NUT LOCK FLG 1/2-13 NC PL
©2017 Alamo Group Inc. Parts Section -5
TW26

BLADE CARRIER ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 00792357 1 WDMT, BLADE PAN 21" CTR
2 00785567 2 BLADE, FAN CCW, 25-1/2 CTR-TIP
3 00786548 1 BLADE BOLT KIT
---------- 2 NUT TOP LOCK 7/8 NF PLC
---------- 2 WASHER 7/8 STRUCTURAL - PLAIN
---------- 2 BLADE BOLT 7/8 DIA X 3 LG
©2017 Alamo Group Inc. Parts Section -6
TW26

CHAINGUARD ASSEMBLY
ITEM PART NO. QTY.
1 00792371 1
2 00792373 1
3 4528 12
4 000644 12
DESCRIPTION
ASY, FRONT CHAINGUARD- TW26
ASSY, REAR CHAIN GUARD
NUT, HEX LOCK 3/8-16 FLG WHIZ
CARB-3/8 NCK 1-1/4 PL5
©2017 Alamo Group Inc. Parts Section -7
TW26

DECAL PLACEMENT
©2017 Alamo Group Inc. Parts Section -8
TW26

DECAL PLACEMENT
Continued...
ITEM PART NO. QTY. DESCRIPTION
2 2738332 2 DECAL, RED OBLONG REFLECTOR
3 00781352 1 SHEET, SINGLE SPINDLE SAFETY DECAL
3.1 D614 2 DECAL, DANGER THROWN OBJECT
3.2 D388 1 DECAL, DANGER PTO
3.3 00756004 1 DECAL, DANGER-SHIELD MISSING
4 00792284 1 SHEET, DECAL LOGO-TW25
4.1 00792307 2 DECAL, RHINO BLACK 7.5" X 34.5"
4.2 00792180 1 DECAL, FLAG-MADE IN USA
4.3 00792376 1 DECAL, TW26 MODEL
4.4 ----- 1 DECAL, DANGER/GREASE (D389-814-590)
4.5 00760657 1 DECAL, SAFETY WARNING
4.6 D137 1 DECAL, BLADE ROTATION CCW
4.7 D395 1 DECAL, WARNING-BLADE ATTACHMENT
4.8 00792179 1 DECAL, RHINO-RED/WHITE/BLUE
4.9 00792308 1 DECAL, GEARBOX WARRANTY-HOOF
©2017 Alamo Group Inc. Parts Section -9
TW26

DEFLECTOR ASSEMBLY
©2017 Alamo Group Inc. Parts Section -10
TW26

DEFLECTOR ASSEMBLY
6 00792367 1BRACKET, REARDEFLECTOR
©2017 Alamo Group Inc. Parts Section -11
TW26
ITEM PART NO. QTY.
1 4528 12
2 000644 12
3 1
4 1
5
00792368
00792366
00792369 1
DESCRIPTION
NUT, HEX LOCK 3/8-16 FLG WHIZ
CARB-3/8 NCK 1-1/4 PL5
PANEL, FRONT RUBBER DEFLECTOR
FLAT, DEFLECTOR STRAP
PANEL, REAR RUBBER DEFLECTOR

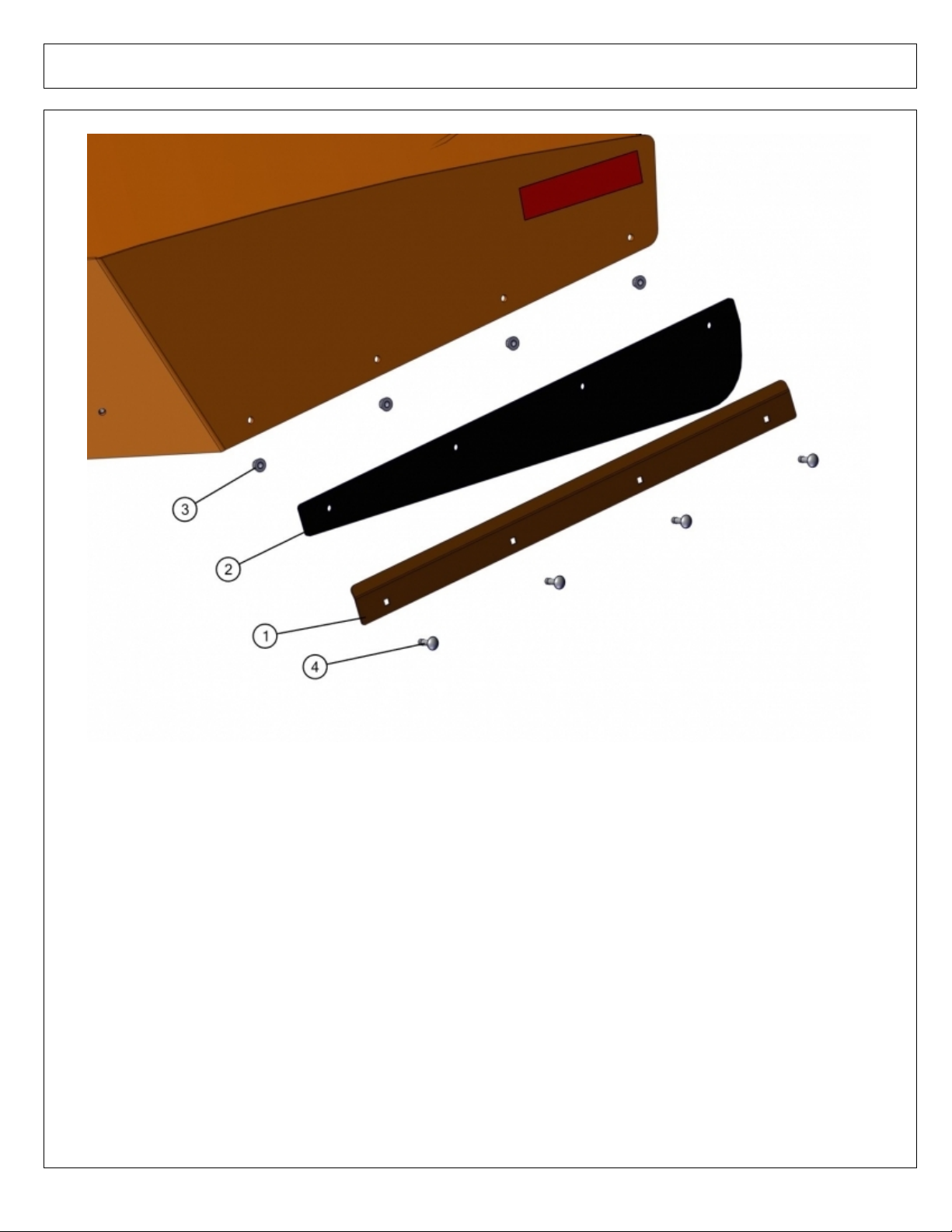

DEFLECTOR SIDE ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 00792361 2 STRAP, SIDE SKIRT DEFLECTOR
2 00792362 2 DEFLECTOR,RUBBER SIDE SKIRT
3 4528 8 NUT FLG SER 3/8-16 PLB
4 000644 8 CARRIAGE BOLT 3/8 NC 1-1/4 PL5
©2017 Alamo Group Inc. Parts Section -12
TW26

BLANK INTENTIONALLY
©2017Alamo Group Inc.
TW25
Parts Section -13

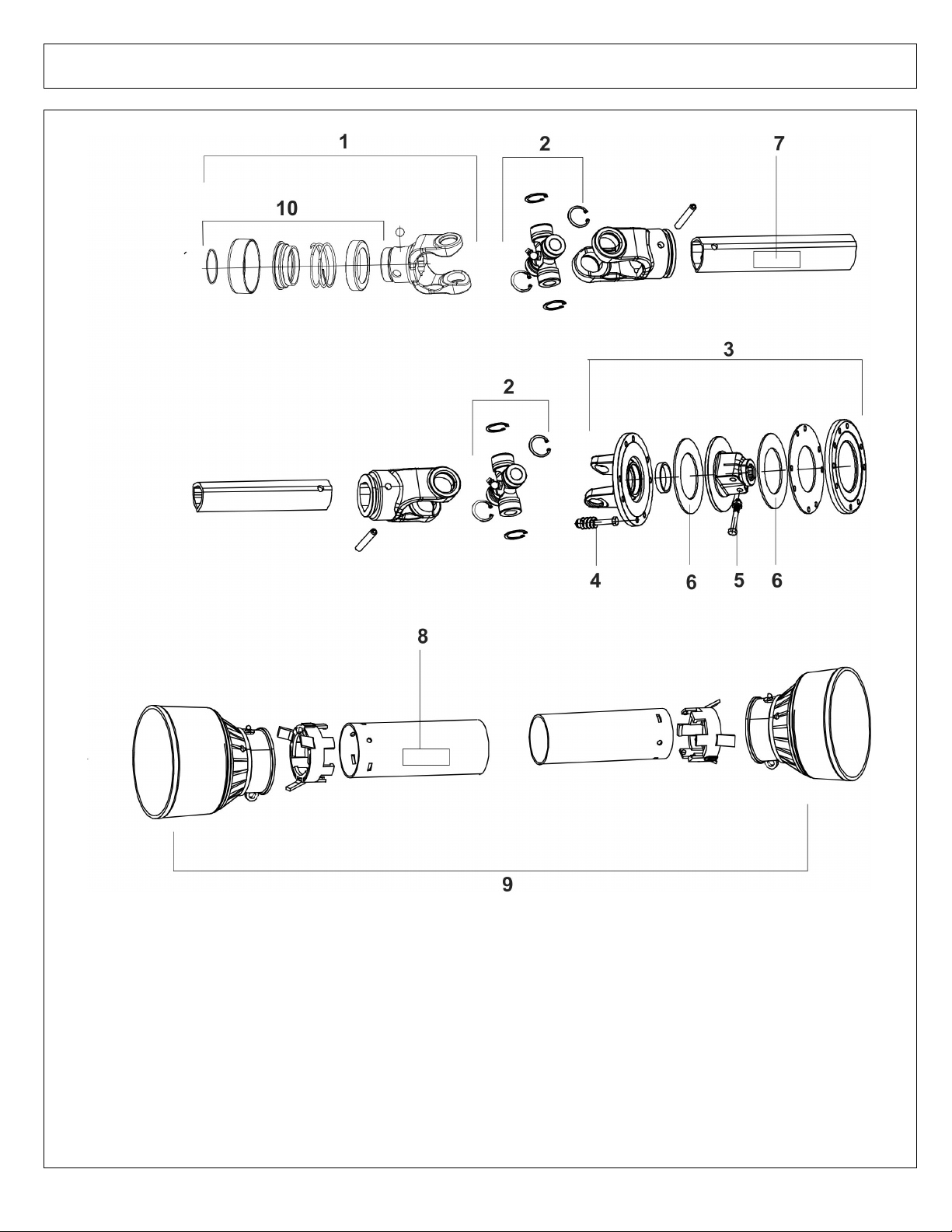

DRIVELINE ASSEMBLY - 00789043 CAT3 SLIPCLUTCH
©2017 Alamo Group Inc. Parts Section -14
TW26

DRIVELINE ASSEMBLY - 00789043 CAT3 SLIPCLUTCH
9 00789044 1SHIELD,DRIVELINE - COMPLETE
©2017 Alamo Group Inc. Parts Section -15
TW26
ITEM PART NO. QTY.
1 00789304 1
2 2
3 1
4 1
5 2
6 2
7 1
8
00789306
00789307
00789308
00789309
00768347
00756004
00756005 1
DESCRIPTION
KIT,YOKE W/COLLAR
ASY,CROSS KIT
ASY,FRICTION CLUTCH KIT
SPRING AND BOLT KIT
CLAMP BOLT/NUT FOR HUB
FRICTION DISC
DECAL,DANGER - GUARD MISSING
DECAL, ROTATING DRIVELINE

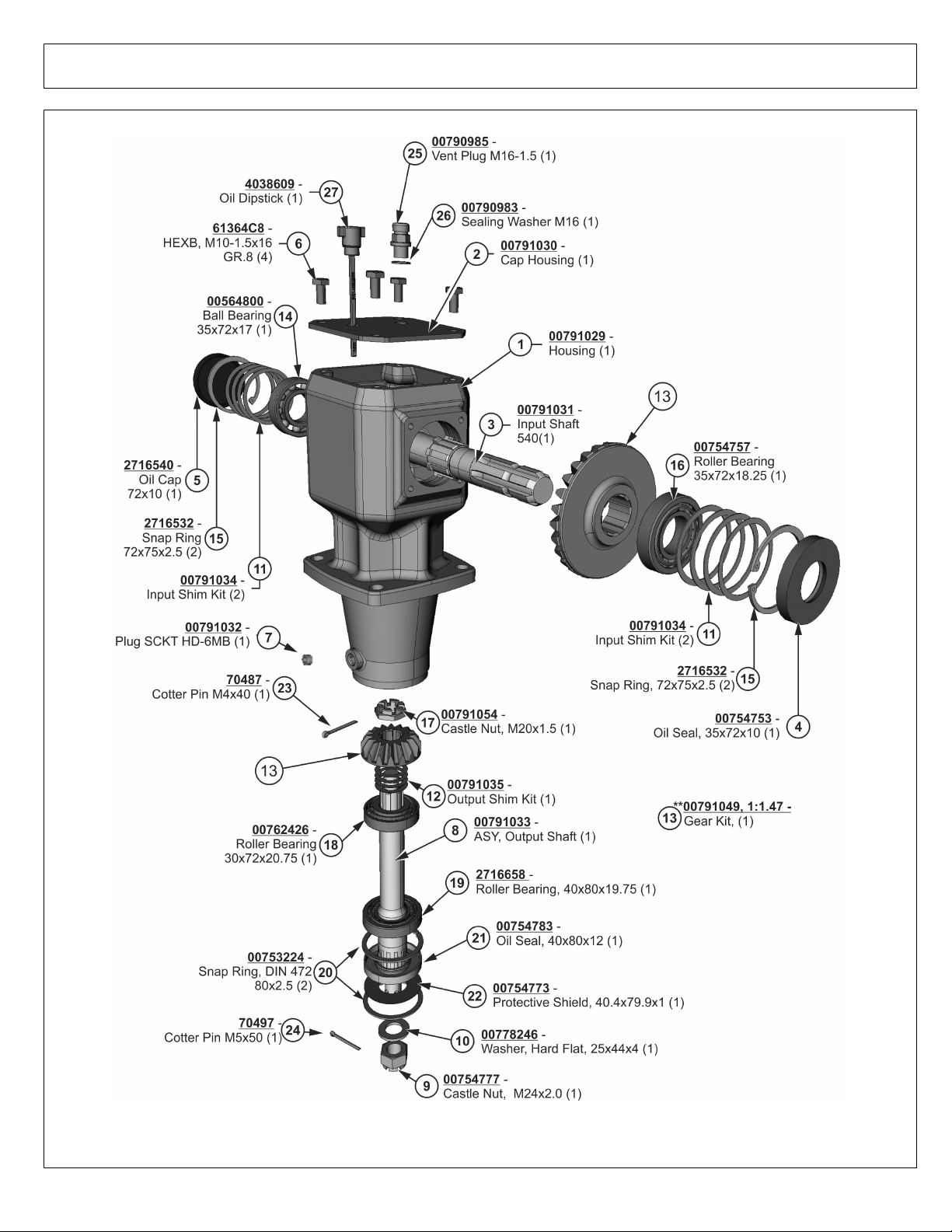

GEARBOX ASSEMBLY - 00791027-1:1.47 NO-LUBE 540RPM
©2017 Alamo Group Inc. Parts Section -16
TW26

GEARBOX ASSEMBLY - 00791027-1:1.47 NO-LUBE 540RPM
Continued...
ITEM PART NO. QTY. DESCRIPTION
0 00791027 - ASSY, GEARBOX- 1:1.47 ADJ TO INPUT SHAFT
1 00791029 1 HOUSING, GEARBOX
2 00791030 1 CAP, HOUSING
3 00791031 1 SHAFT, INPUT-1-3/8 6-SPL
4 00754753 1 SEAL, OIL - 35 X 72 X 10
5 2716540 1 CAP, OIL-72 X 10
6 61364C8 4 HHCS, M10-1.5 X 16MM PL8
7 00791032 1 PLUG, SAE ORING -6MB
8 00791033 1 SHAFT, OUTPUT
9 00754777 1 NUT, CASTLE M24-2.0
10 00778246 1 WASHER, FLAT - 25 X 44 X 4
11 00791034 2 KIT, INPUT SHIM
12 00791035 1 KIT, OUTPUT SHIM
13 791053 1 KIT, GEAR- 1:1.47
14 00564800 1 BEARING, BALL 6207 (35X72X17)
15 2716532 2 RING, SNAP -72 X 75 X 2.5
16 00754757 1 BEARING, ROLLER 30207 (35X72X18.25)
17 00791054 1 NUT, CASTLE M20 X 1.5
18 00762426 1 BEARING, ROLLER 30306 (30X72X20.75)
19 2716658 1 BEARING, ROLLER 30208 (40X80X19.75)
20 00753224 2 RING, SNAP DIN472 - 80 X 2.5
21 00754783 1 SEAL, OIL -40 X 80 X 12
22 00754773 1 SHIELD, PROTECTIVE - 40.1 X 79.9 X 1
23 70487 1 PIN, COTTER M4 X 40
24 70497 1 PIN, COTTER M5 X 50
25 00790985 1 PLUG, VENT M16-1.5
26 00790983 1 SEALING WASHER
27 4038609 1 DIPSTICK, OIL- EZ40
©2017 Alamo Group Inc. Parts Section -17
TW26

SHIELD ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 00785575 1 SHIELD,BLACK GEARBOX
2 00785574 1 RING,GB SHIELD INNER SUPPORT
3 00791651 4 HEXB SER FLG M8-20MM 1.25 P 10.9
4 00695100 4 NUT, TOPLOCK 5/8 NC PLC
5 00785946 1 KIT/ GEARBOX SHIELD & RING
©2017 Alamo Group Inc. Parts Section -18
TW26
