RHINO TM84 User manual

R
© 2007Alamo Group Inc.
RHINO®
1020 S. SangamonAve.
Gibson City, IL60936
800-446-5158
Email: [email protected]
®
®
PART'S MANUAL
An Operator's Manual was shipped with the equipment in the
Manual Canister. This Operator's Manual is an integral part of
the safe operation of this machine and must be maintained
with the unit at all times. READ, UNDERSTAND, and FOLLOW
the Safety and Operation Instructions contained in this manual
before operating the equipment. If the Operator's Manual is
not with the equipment, contact your dealer or Servis-Rhino
(800-446-5158) to obtain a Free copy before operating the
equipment.
TM 60/72
Pub 05-14 Part No. 00779788P
Rear Discharge Rotary Mowers
84/100

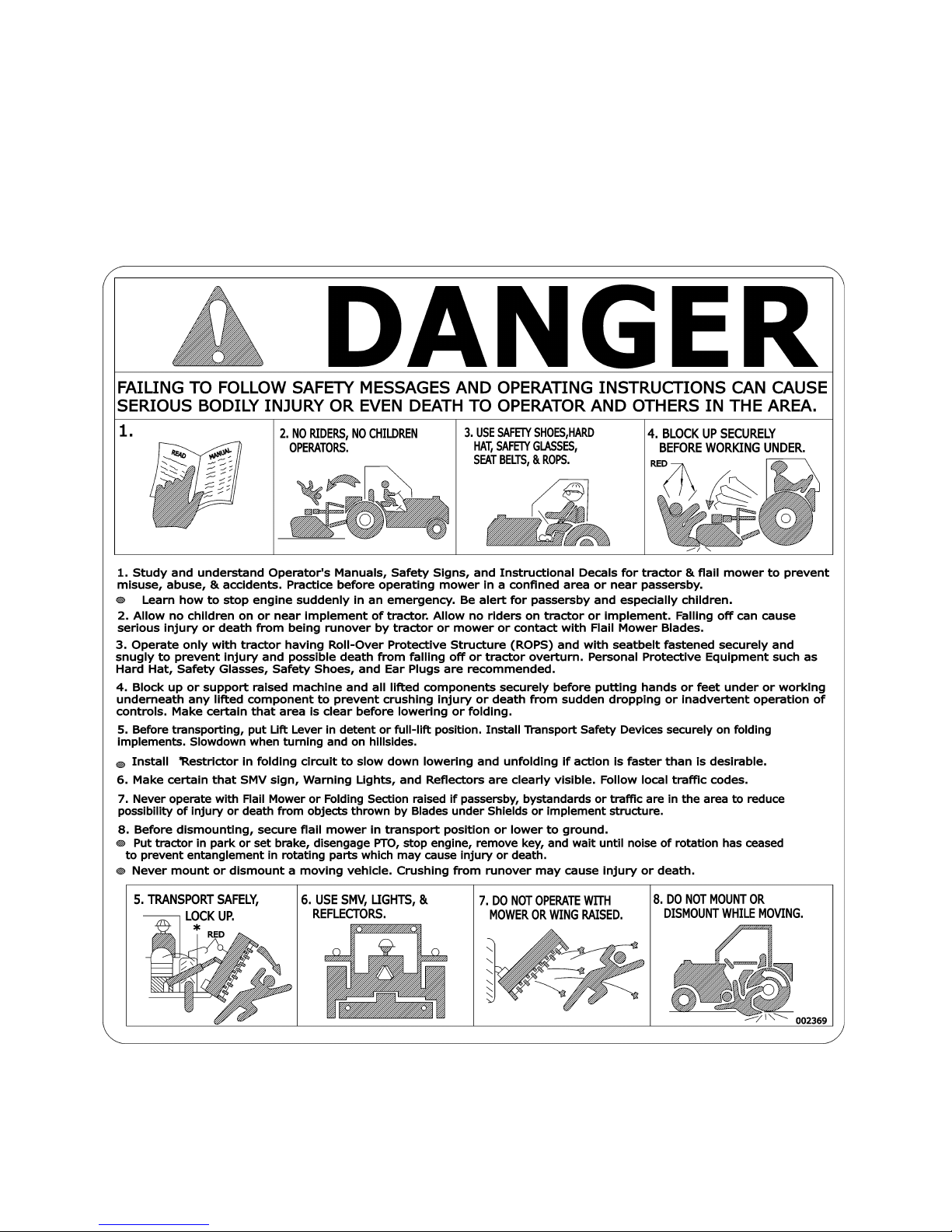

TO THE OWNER/OPERATOR/DEALER
Allimplementswithmovingpartsare potentiallyhazardous. Thereisno substituteforacautious, safe-mindedoperatorwho
recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to
be used with all its safety equipment properly attached to minimize the chance of accidents.
BEFOREYOUSTART!! Read the safety messages on the implement and shown in your manual.
Observe the rules of safety and common sense!
WARRANTY INFORMATION:
Readand understand the complete Warranty Statementfound inthis Manual. Fill outthe WarrantyRegistration Form
in full and return it within 30 Days. Make certain the Serial Number of the Machine is recorded on the Warranty Card
andontheWarrantyFormthatyouretain.Theuseof"will-fit"partswillvoidyourwarrantyandcancausecatastrophic
failure with possible injury or death.

PARTS
SECTION
Parts Section – 1

Parts Section – 2
©2007 Alamo Group Inc.
For maximum safety and to guarantee optimum product reliability, always use
genuine Servis-Rhino Parts. The use of inferior replacement parts may cause
premature or catastrophic failure which could result in serious injury or death.
Direct any questions regarding parts to:
The following instructions are offered to help eliminate needless delay and error in processing
purchase orders for the equipment in this section.
1. The Parts Section is prepared in logical sequence and grouping of parts that belong to the
basic machine featured in this manual. Part Numbers and Descriptions are given to help
locate the parts and quantities required.
2. The Purchase Order must include the name and address of the person or organization
ordering the parts, who should be charged, and if possible, the serial number of the machine
for which the parts are ordered.
3. The Purchase Order must clearly list the quantity of each part, the complete and correct part
number (be sure to include all periods), and the basic name of the part.
4. The Manufacturer reserves the right to substitute parts where applicable.
5. Some parts are unlisted items which are special production items not normally stocked and
are subject to special handling. Request a quotation for such parts before sending a
Purchase Order.
6. The Manufacturer reserves the right to change prices without prior notice.
NOTE: Please refer to The Safety Section in the front of this Manual for the proper
Part Number when ordering Replacement Safety Decals.
PARTS ORDERING GUIDE
RHINORHINO
RHINORHINO
RHINO®
1020 S. Sangamon Ave.
Gibson City, IL 60936
800-446-5158
Email: [email protected]

PART NAME INDEX
A-FRAME ASSEMBLY TM100................................................................................................................................................................... 4
A-FRAME ASSEMBLY TM60 72................................................................................................................................................................ 6
A-FRAME ASSEMBLY TM84..................................................................................................................................................................... 8
ANTI-SCALP ROLLER PARTS TM60 TM72 (OPTIONAL) TM84 (STANDARD)............................................................................... 10
AXLE & TIRE ASSEMBLY....................................................................................................................................................................... 11
DRIVELINE ASSEMBLY (TM100)........................................................................................................................................................... 13
DRIVELINE ASSEMBLY (TM60/TM72/TM84)....................................................................................................................................... 15
GEARBOX ASSEMBLY............................................................................................................................................................................ 16
LOWER DRIVE ASSEMBLY.................................................................................................................................................................... 18
ROLLER KIT TM100.................................................................................................................................................................................. 20
SPINDLE ASSEMBLY............................................................................................................................................................................... 21
UPPER DRIVE ASSEMBLY...................................................................................................................................................................... 22
©2014 Alamo Group Inc. Parts Section -3
TM60 TM72 TM84 TM100

A-FRAME ASSEMBLY TM100
ITEM PART NO. QTY. DESCRIPTION
1 00779999 1 FLAT,DRIVELINE HOLDER
2 00779751 2 WDMT,LOWER LINK - TM100
3 00786022 1 ARM,FRONT A-FRAME - LH TM100
00786021 1 ARM,FRONT A-FRAME - RH TM100 (NOT SHOWN)
4 00779659 2 ARM,UPPER LINK - TM100
5 00779644 2 ARM,REAR A-FRAME - TM100
6 00748823 5 HHCS 1/2-13UNC 1-1/2 PL5
7 00001800 14 LOCKNUT TLM 1/2 NC PLB
8 00779848 2 BUSHING,LOWER A-FRAME
9 00779850 1 BUSHING,TOP LINK
10 00001400 9 FLATWASHER 5/8 PL STD
11 00695100 12 LOCKNUT TOPLOCK 5/8NC PLB
12 00779867 6 BUSHING,UPPER LINK
13 00779869 1 PIN,TOP LINK
14 37107B13 1 CLIP-X HAIR PIN (NOT SHOWN)
15 02957007 1 HHCS 5/8 NC 5 PL8
16 00779868 2 PIN,CAT I-II QH
©2014 Alamo Group Inc. Parts Section -4
TM60 TM72 TM84 TM100

A-FRAME ASSEMBLY TM100
Continued...
ITEM PART NO. QTY. DESCRIPTION
17 02793900 2 HHCS 7/8-9UNC 2-1/2 GR 5
18 00750226 2 NUT TOPLOCK 7/8 NF PLC
19 00779846 2 PIN,HITCH - 1-3/16 DIA.
20 00773592 2 PIN, SAFETY LOCK LYNCH
21 00750227 2 FLATWASHER 7/8 PL STD
22 00750952 3 HEXB,5/8NC X 2-1/2,ZP,GRD5
23 02845500 3 HEXB 5/8 NC 2 PL5
24 00779866 2 BUSHING,UPPER LINK
25 00606000 2 PIN,COTTER 3/16X2
26 00776031 1 CANISTER, PARTS MANUAL
©2014 Alamo Group Inc. Parts Section -5
TM60 TM72 TM84 TM100

A-FRAME ASSEMBLY TM60 72
ITEM PART NO. QTY. DESCRIPTION
1 00779605 2 ARM,REAR A-FRAME - TM60
00779618 2 ARM,REAR A-FRAME - TM72
2 00779999 1 FLAT,DRIVELINE HOLDER
3 00779985 2 ARM,UPPER LINK
4 00779997 2 ARM,FRONT A-FRAME
5 00779991 2 PLATE,LOWER LINK
6 00777564 2 BUSHING,LOWER OUTSIDE HITCH
7 00773592 2 PIN, SAFETY LOCK LYNCH
8 00779866 2 BUSHING,UPPER LINK
9 00779847 2 BUSHING,LOWER A-FRAME
10 00779845 2 PIN,HITCH - 1-3/16 DIA.
11 00779869 1 PIN,TOP LINK
12 00779748 2 ASY,CAT.1 HITCH PIN W/LW & NUT
13 00779849 1 BUSHING,TOP LINK
14 37107B13 1 CLIP-X HAIR PIN
15 00779867 6 BUSHING,UPPER LINK
16 00606000 2 PIN,COTTER 3/16X2
©2014 Alamo Group Inc. Parts Section -6
TM60 TM72 TM84 TM100

A-FRAME ASSEMBLY TM60 72
Continued...
ITEM PART NO. QTY. DESCRIPTION
17 00750952 4 HEXB,5/8NC X 2-1/2,ZP,GRD5
18 00695100 12 LOCKNUT TOPLOCK 5/8NC PLB
19 00748823 5 HHCS 1/2-13UNC 1-1/2 PL5
20 00001800 8 LOCKNUT TLM 1/2 NC PLB
21 02845500 2 HEXB 5/8 NC 2 PL5
22 02845800 1 HEXB,5/8 NC X 4-1/2 GRD5 ZP
23 00001400 9 FLATWASHER 5/8 PL STD
24 00750227 2 FLATWASHER 7/8 PL STD
25 00776031 1 CANISTER, PARTS MANUAL
©2014 Alamo Group Inc. Parts Section -7
TM60 TM72 TM84 TM100

A-FRAME ASSEMBLY TM84
ITEM PART NO. QTY. DESCRIPTION
1 00779630 2 ARM, REAR A-FRAME
2 00785486 1 FLAT, DRIVELINE HOLDER
3 00779659 2 ARM, UPPER LINK TM84/TM100
4 00785716 2 ARM, FRONT A-FRAME TM84
5 00786029 1 WDMT, LOWER LINK - LH TM84
00786028 1 WDMT, LOWER LINK - RH TM84 (NOT SHOWN)
6 00777564 2 BUSHING, LOWER OUTSIDE HITCH
7 00773592 2 PIN, SAFETY LOCK LYNCH
8 00779866 1 BUSHING, UPPER LINK
9 00779848 2 BUSHING, 84/100 LOWER A-FRAME
10 00785739 2 BUSHING, TM84 A-FRAME LOWER
11 00779869 1 PIN, TOP LINK
12 00779748 2 ASY, CAT.1 HITCH PIN W/LW & NUT
13 00779850 1 BUSHING, 84/100 TOP LINK
14 37107B13 1 CLIP-X HAIR PIN
15 00779867 6 BUSHING, UPPER LINK
16 00003300 2 HEX CAP 3/4-10 X 4 GR.5
©2014 Alamo Group Inc. Parts Section -8
TM60 TM72 TM84 TM100

A-FRAME ASSEMBLY TM84
Continued...
ITEM PART NO. QTY. DESCRIPTION
17 00750952 4 HEXB, 5/8NC X 2-1/2, ZP, GRD5
18 00695100 12 LOCKNUT, TOPLOCK 5/8NC PLB
19 00002701 4 FLATWASHER 3/4 PL STD
20 00000200 1 NUT 3/4 NC HEX PL
21 02845500 2 HEXB, 5/8 NC PL5
22 02845800 1 HEXB, 5/8 NC X 4-1/2 GRD5 ZP
23 00001400 9 FLATWASHER, 5/8 PL STD
24 00750227 2 FLATWASHER, 7/8 PL STD
25 00776031 1 CANISTER, PARTS MANUAL
©2014 Alamo Group Inc. Parts Section -9
TM60 TM72 TM84 TM100

ANTI-SCALP ROLLER PARTS TM60 TM72 (OPTIONAL) TM84 (STANDARD)
ITEM PART NO. QTY. DESCRIPTION
00785018 - KIT,HD ANTI-SCALP ROLLER
1 00750959 3 HEXB,1/2NC X 1,ZP,GRD5
2 00001800 3 LOCKNUT TLM 1/2 NC PLB
3 4909 1 ROLLER-FRONT
4 00785014 1 WDMT,HD ROLLER PIN
5 00785017 1 BRACKET,TM ROLLER
©2014 Alamo Group Inc. Parts Section -10
TM60 TM72 TM84 TM100

AXLE & TIRE ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 00779851 4 BUSHING,1-1/8 AXLE DEPTH - TM60 & TM72
00779852 4 BUSHING,1-3/8 AXLE DEPTH - TM84 & 100
2 00778145 4 PIN,AXLE- TM60/72/84 (SEMI-PNEUMATIC)
00778144 4 PIN,AXLE - TM84, 100 (PNEUMATIC)
3 00779871 8 BUSHING,FLANGED
4 00779844 4 PIN,LYNCH (CLIP) 3/8 X 2.25
5 00764386 4 GREASE FITTING,8MMX1 STRAIGHT
6 00779747 4 RING,EXTERNAL SNAP - 1.125 PLT- TM60 & TM72
©2014 Alamo Group Inc. Parts Section -11
TM60 TM72 TM84 TM100

AXLE & TIRE ASSEMBLY
Continued...
ITEM PART NO. QTY. DESCRIPTION
7 00779743 4 RING,EXTERNAL SNAP - 1.625 PLT- TM60/72/84/100
00779742 4 RING,EXTERNAL SNAP - 1.375 PLT - TM84 & TM100
8 00002700 16 FLATWASHER 1/2 PL STD
9 00750959 7 HEXB,1/2NC X 1,ZP,GRD5
10 00001800 8 LOCKNUT TLM 1/2 NC PLB
11 00999418 4 HHCS 1/2-13UNC 3-1/2 PL5
12 00779859 4 WDMT,FORK - TM60/TM72
00779860 4 WDMT,FORK - TM72/84
00779861 4 WDMT,FORK - TM84/100
13 00779791 4 ASY,PNEUMATIC TIRE & WHEEL (TM60/TM72)
00779790 4 ASY,SEMI-PNEUMATIC TIRE & WHL (TM60/72/84)
00769884 4 TIRE-FM100 13 X 6.50-6 4PLY (TM84/TM100)
00787072 1 BEARING AND BUSHING KIT (TM60/TM72)
14 00779762 2 WDMT,AXLE - TM60
00779763 2 WDMT,AXLE - TM72
00779764 2 WDMT,AXLE - TM84
00779765 2 WDMT,AXLE - TM100
©2014 Alamo Group Inc. Parts Section -12
TM60 TM72 TM84 TM100

DRIVELINE ASSEMBLY (TM100)
ITEM PART NO. QTY. DESCRIPTION
00767954 2 YOKE.Q.D.KIT - PLASTIC
00775458 - DRIVELINE TRACTOR HALF 540 RPM
00775460 - DRIVELINE, 540 CAT 4
00775461 - DRIVELINE, IMPLEMENT HALF 540
00775465 1 SHIELD,INNER HALF
00777332 1 OUTER SHIELD HALF
1416601 1 ZERK
1 00775353 2 YOKE 1-3/8-6 SPLINE ASGE
10 -------- 1 INNER SHIELD
11 8393 2 BEARING RING
12 00756005 2 DECAL-ROTATING DRIVELINE
13 00756004 2 DECAL-SHIELD MISSING
14 00759217 1 SCREW 1/2 LG #8 PAN
©2014 Alamo Group Inc. Parts Section -13
TM60 TM72 TM84 TM100

DRIVELINE ASSEMBLY (TM100)
Continued...
ITEM PART NO. QTY. DESCRIPTION
15 00775465 1 SHIELD,INNER HALF
16 00767954 2 YOKE.Q.D.KIT - PLASTIC
2 00189700 2 CROSSKIT 35R U -JOINT KIT 35R
3 8384 2 SPRING PIN 10MM X 90MM
4 00775317 1 YOKE INBOARD 1B
5 0921000332 1 TUBE, SHAFT
6 00775426 1 PROFILE,OUTER 2A
7 00775318 1 YOKE INBOARD 2A
8 -------- 2 SHIELD CONE
9 -------- 1 OUTER SHIELD
©2014 Alamo Group Inc. Parts Section -14
TM60 TM72 TM84 TM100

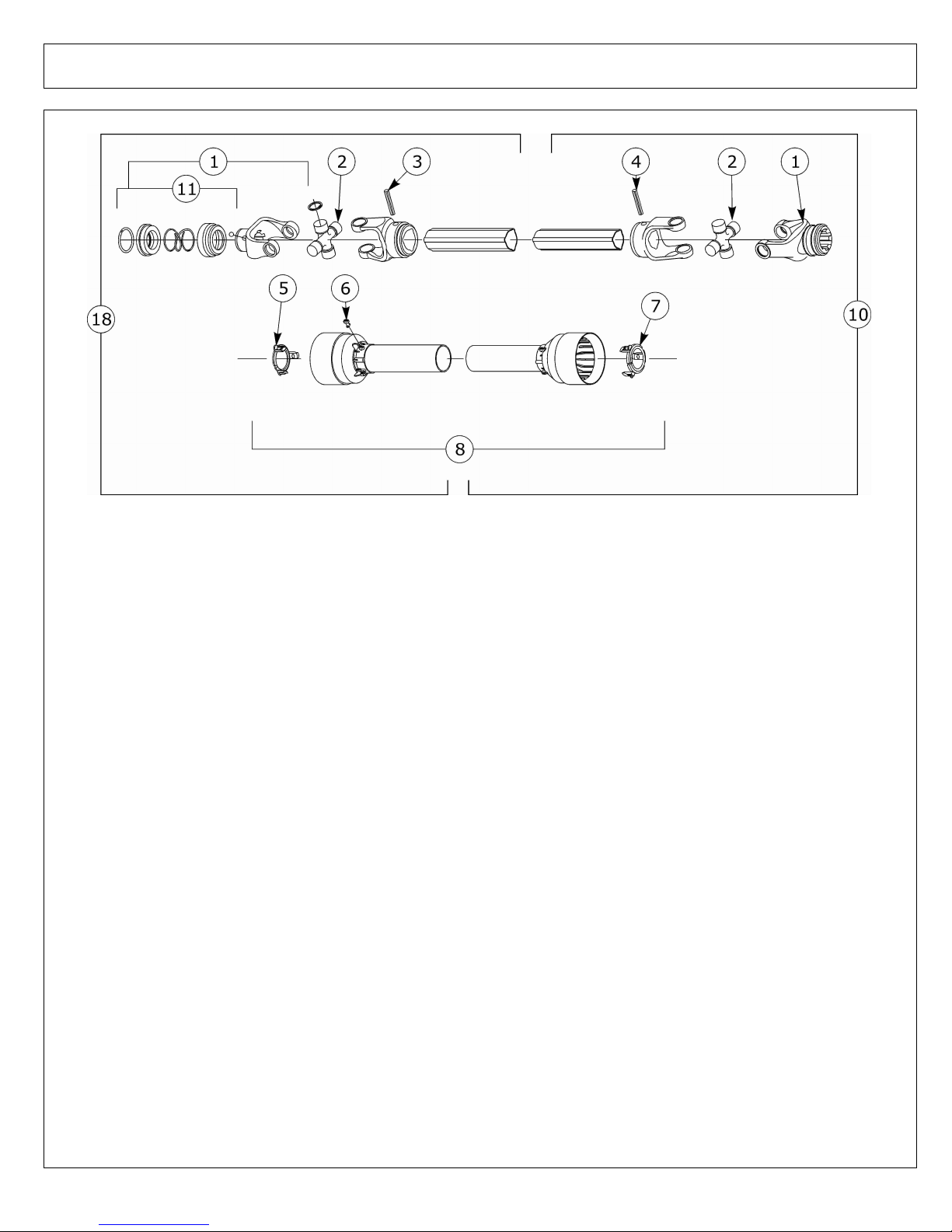

DRIVELINE ASSEMBLY (TM60/TM72/TM84)
ITEM PART NO. QTY. DESCRIPTION
00774924A - DRIVELINE
1 00764500A 2 COMPLETE COLLAR YOKE
10 00775107 1 DRIVELINE, ASY, INNER HALF
11 00774079 2 KIT,SLIDE COLLAR REPAIR
2 00756231 2 CROSS & BEARING KIT SERIES 40
3 00759169 1 PIN ROLL 8mm X 60mm
4 00759165 1 PIN ROLL INNER TUBE
5 00764506 1 COLLAR-GUARD-RETAINER
6 00754330 6 BOLT, NYLON - SAFETY SHIELD]
7 00764507 1 COLLAR-GUARD-RETAINER
8 00768342 1 SHIELD, ASY, CMPLT
9 00768294 1 DRIVELINE, HALF ASY, OUTER
©2014 Alamo Group Inc. Parts Section -15
TM60 TM72 TM84 TM100

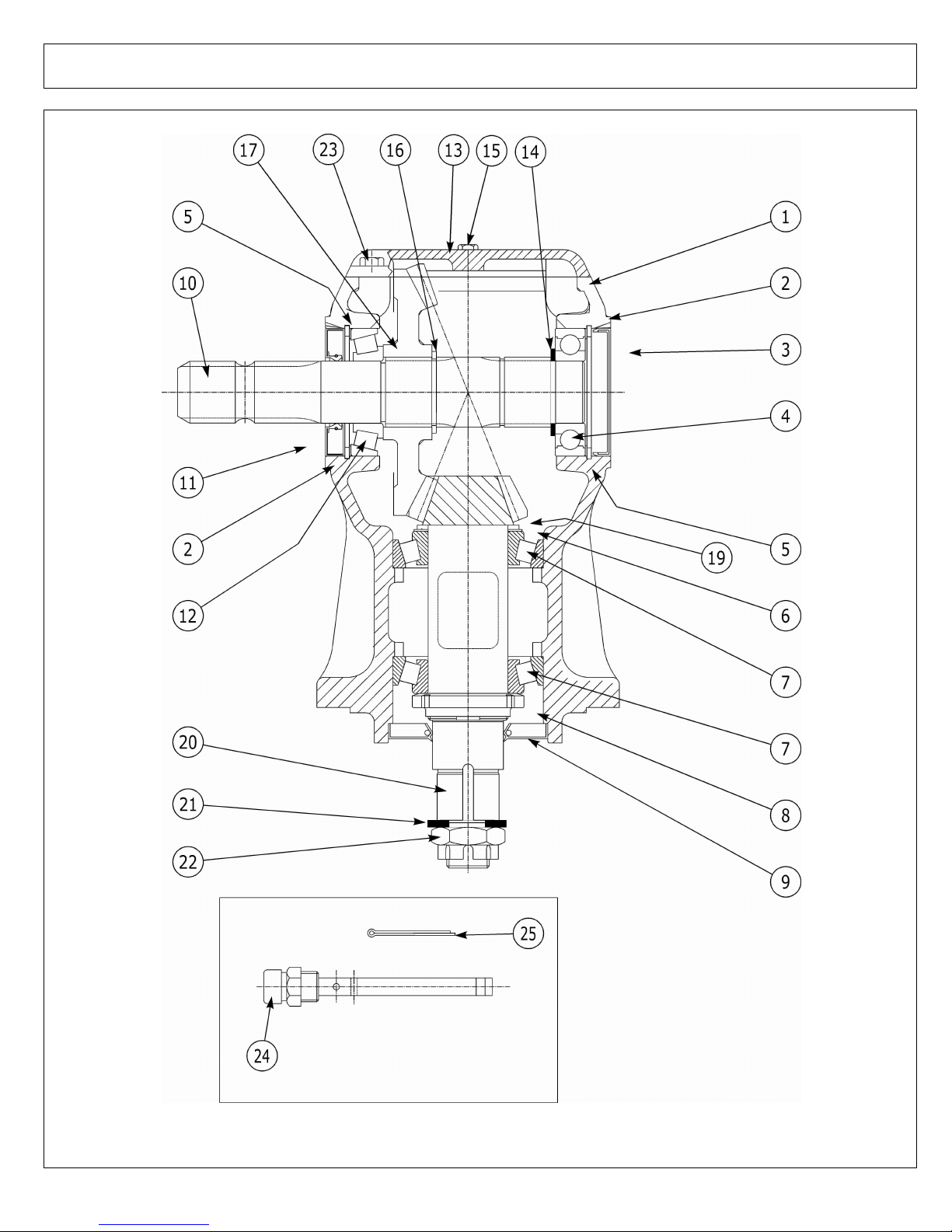

GEARBOX ASSEMBLY
©2014 Alamo Group Inc. Parts Section -16
TM60 TM72 TM84 TM100
