RHODE INOX Series User manual

RHODE UV-C PROFI/INOX
single and dual-function sterilizer
Manual Instruction
RHODE Sp. z o.o.
ul. Piękna 24/26A
00-549 Warszawa
Poland
te www.rhode-uvc.com
l. e-mail: [email protected]om

RHODE UVC 2020.02.01 Page2
CONTENTS
1. MANUFACTURE`S NOTE.................................................................................................................... 3
2. DESCRIPTION AND PROPERTIES OF THE MACHINE................................................................... 3
3. SAFETY INFORMATION...................................................................................................................... 3
3.1 HEALTH AND SAFETY INFORMATION.................................................................................... 3
Before starting maintenance work, disconnect the device from the power supply......................................... 3
4. SET ELEMENTS..................................................................................................................................... 4
5. TECHNICAL DATA............................................................................................................................... 4
5.1 SINGLE FUNCTION STERILIZERS............................................................................................. 4
5.2 DUAL-FUNCTION STERILIZERS................................................................................................ 4
6. SPECIFICATIONS.................................................................................................................................. 5
7. PICTORIAL VIEW ................................................................................................................................. 5
8. ADDITIONAL EQUIPMENT (not covered by the standard set) ........................................................... 6
8.1 INDUCTION WORKING HOUR COUNTER ............................................................................... 6
8.2 MICROPROCESSOR WORKING HOUR COUNTER.................................................................. 6
8.3 BASIC TIMER................................................................................................................................. 6
8.4 PROFI TIMER ................................................................................................................................. 6
8.5 REMOTE CONTROL...................................................................................................................... 6
8.6 PROFI BASE.................................................................................................................................... 6
8.7 PROFI STANDFOOT ...................................................................................................................... 6
9. INSTALLATION..................................................................................................................................... 6
9.1 DELIVERY QUALITY.................................................................................................................... 6
9.2 WALL/CEILING MOUNTING....................................................................................................... 6
9.3 BASE/STANDFOOT MOUNTING ................................................................................................ 7
10. OPERATION ....................................................................................................................................... 7
10.1 GENERAL REMARKS ................................................................................................................... 7
11. MAINTENANCE................................................................................................................................. 7
11.1 GENERAL REMARKS ................................................................................................................... 7
11.2 UV-C RADIATORS REPLACEMENT .......................................................................................... 7
11.3 ANTI-DUST FILTER REPLACEMENT ........................................................................................ 8
11.4 FUSE REPLACEMENT .................................................................................................................. 8
12. HEALTH AND SAFETY ISSUES...................................................................................................... 8
13. UTILISATION..................................................................................................................................... 9

RHODE UVC 2020.02.01 Page3
1. MANUFACTURE`S NOTE
Thank you for purchasing the RHODE-UVC air decontamination device. To guarantee long and trouble-free
operation of the device, please read this manual carefully and follow the instructions contained therein.
With a view to further improving the technical and utility values, in the interests of continuous improvement of the
quality of its products, RHODE reserves the right, without prior notification, to make appropriate modifications to the
device without prejudice to basic technical data.
RHODE is not responsible for material or human damage resulting from incorrect operation of the device, incorrect
connections or incorrect installation, and maintenance - not in accordance with the instructions.
Thank you for trusting in our brand and we wish you much satisfaction from the operation of the purchased device.
If you have any questions or problems arising from the use of the purchased device, please contact our Technical
Department.
2. DESCRIPTION AND PROPERTIES OF THE MACHINE
RHODE-UVC sterilizers are designed for the decontamination of rooms based on the use of UV-C ultraviolet
radiation. RHODE UV-C single-function flow devices are based on an internal ventilation system. The air sucked into
the sterilizer chamber passes through the filter located close to the inlet. Here, larger particles are blocked to prevent
contamination of the germicidal lamp reflectors. Then the air is passed directly through a low-pressure mercury lamp,
which, thanks to UV-C rays with a precisely emitted wave length of 253.7 nm, destroys all microorganisms.
Returning disinfected and purified air is released through the end nozzle, which completes the process of effective
cleaning.
The design of the single-function sterilizer does not cause a threat to people staying in the room during
operation.
The dual function sterilizer allows the use of independent room lighting by switching on external UV-C
radiators. In such a situation it is forbidden for people and animals to stay in the sterilized room.
The device guarantees continuous air sterilization with a capacity of up to 60 m³ / h.
This device can be used only inside buildings, in the temperature range from 5 to 40 ° C [41 to 104 ° F] and humidity
25 to 75%.
A voltage tolerance of up to 10% of the nominal value is allowed.
3. SAFETY INFORMATION
3.1HEALTH AND SAFETY INFORMATION
The RHODE UV-C sterilizer is a potentially dangerous electrical device.
To avoid electric shock, the device requires connection to an electrical system equipped with a protective
grounding plug.
The power plug must be easily accessible.
Secure the power cord against accidental damage.
A damaged cable should be replaced immediately with another one provided by the supplier.
Do not shorten or extend the power cord yourself.
The device may only be supplied with electricity which is in accordance with the information on the type plate
All electrical connections should be checked before operation. Damaged connections prevent working with
the device.
The device is only used for dry sterilization of indoor air.
It is forbidden to turn on the lamp power supply with the housing removed.
Switching on UV-C lamps may damage your eyesight!
Before starting maintenance work, disconnect the device from the power supply.
ATTENTION
UV-C radiation is harmful to the eyes and skin!
The radiators should not be switched on in open fittings when people or animals are nearby!

RHODE UVC 2020.02.01 Page4
4. SET ELEMENTS
1.
RHODE-UVC Sterilizer
- 1 pc
2.
Ceiling/Wall Mounting Set
- 1 set
3.
Draft how to drill the wall holes
- 1 pc
4.
Maual instruction
- 1 pc
5.
Warranty card
- 1 pc
6.
CE declaration of conformity
- 1 pc
5. TECHNICAL DATA
5.1 SINGLE FUNCTION STERILIZERS
INOX, PROFI
Type
Radiators
Efficiency
Power
consumption
[W]
Measures
max.
(L x G x H)
[cm]
Power
[W]
Quantity
[pcs]
Area [m²]
Volume
[m³]
50
2 x 30
2w
≤20
≤50
75
1125 x 131 x
251
90
3 x 30
3w
≤30
≤90
105
100
2 x 55
2w
125
150
3 x 55
3w
≤40
≤120
180
5.2 DUAL-FUNCTION STERILIZERS
INOX, PROFI
Type
Radiators
Efficiency
Power
consumption
[W]
Measures
max.
(L x G x H)
[cm]
Power
[W]
Quantity
[pcs]
Area [m²]
Volume
[m³]
51
3 x 30
2w + 1z
≤20
≤50
105
1125 x 161 x
298
91
4 x 30
3w + 1z
≤30
≤90
135
101
3 x 55
2w + 1z
180
102
4 x 55
2w + 2z
235
1125 x 161 x
345
151
4 x 55
3w + 1z
≤40
≤120
235
1125 x 161 x
298
152
5 x 55
3w +2z
290
1125 x 161 x
345
Voltage:
-230 V / 50 Hz
Radiator types: UV-C:
- models:50, 51 , 90 i 91
-PHILIPS TUV T8 30W G30
- models: 100,101, 102, 150, 151 i 152
-PHILIPS TUV T8 55W G55
Radiator life span:
-9.000 h / min. 1 year
Radiation–wave lenght UV-C
-253,7 nm
Casing protection level:
-IP 20
Noise level:
- 40 dBA
Weight:
- 12 kg
Radiators marks:
„w" -internal
„z - external

RHODE UVC 2020.02.01 Page5
6. SPECIFICATIONS
1.Casing
7. Anti-dust filter
2. Casing cover
8. Reflector
3. Wall/ceiling handle
9. UV-C radiator
4. Handle screw
10. Power supply with a fuse socket
5. Air inlet
11. PROFI base
6. Air outlet
12.PROFI standfoot

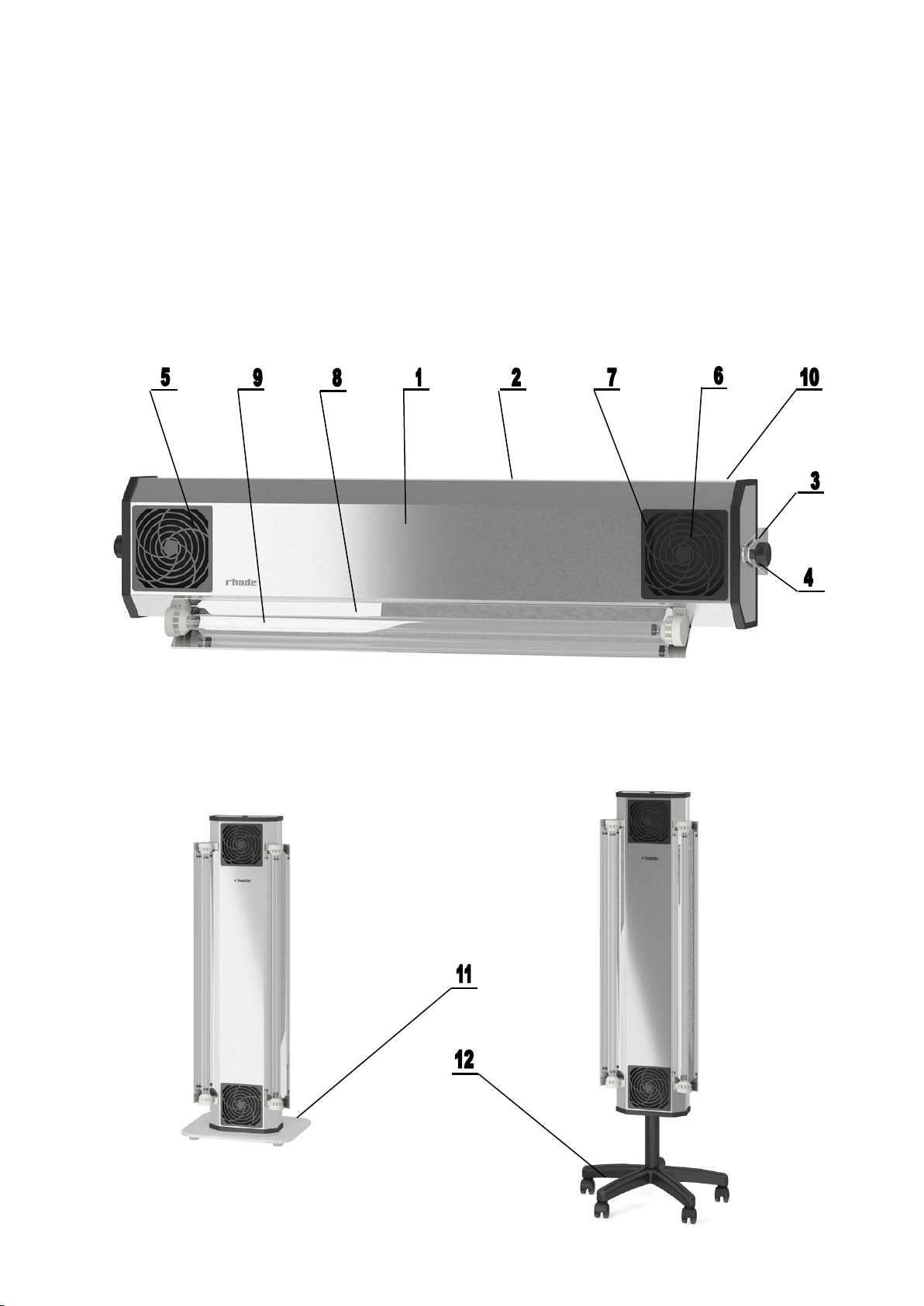

7. PICTORIAL VIEW

RHODE UVC 2020.02.01 Page6
8. ADDITIONAL EQUIPMENT (not covered by the standard set)
RHODE timer functions
BASIC
PROFI
Working hour counter
No
Yes
Radiator replacement indicator
No
Yes
Filter replacement sound indicator
No
Yes
External and internal timer
No
Yes
Day and week timer
No
No
Hour timer
Yes
Yes
Day Stage Quantity
1
1
8.1 INDUCTION WORKING HOUR COUNTER
-electromechanical hour meter is used to measure the operating time in hours of UV-C radiators.
8.2 MICROPROCESSOR WORKING HOUR COUNTER
- electronic counter for hours of operation of UV radiators with a 4-digit LCD display with indications with an
accuracy of 1 hour, with an acoustic notification of the obligation to replace the radiators.
8.3 BASIC TIMER
- digital counter with a microprocessor, allows you to program the daily working time individually for each day
of the week.
8.4 PROFI TIMER
- cyfrowy programator łączy w sobie funkcje licznika godzin pracy i ustawienia czasu w jakim lampa ma
pracować.
8.5 REMOTE CONTROL
- enables remote on and off of the sterilizer.
8.6 PROFI BASE
- enables placing the RHODE UV-C sterilizer in a vertical position.
8.7 PROFI STANDFOOT
- enables placing the RHODE UV-C sterilizer in a vertical position. The base with soft wheels facilitates
comfortable and safe sliding of the device on the floor.
9. INSTALLATION
9.1 DELIVERY QUALITY
After removing the device from the packaging, check that the set is complete and that there are no external
damages that may have occurred during transport. If you notice any damage, please contact your dealer.
After unpacking and before starting, leave the sterilizer at room temperature for about 30 minutes to equalize
the temperature of the device with the temperature of the room in which it will be installed.
New UV-C radiators in the first phase of their work can emit a minimal amount of ozone, causing a
characteristic smell in the room. It is recommended to pre-heat the radiators for approx. 100 hours
without people being in the room during this time.
9.2 WALL/CEILING MOUNTING
The device should be installed in a convenient place ensuring optimal air circulation in the room and allowing
easy access for maintenance, away from sources of heat, vibration and moisture.
Make sure the wall or ceiling on which you mount the device is stable enough!
Using a template, mark the fixing holes on the wall surface with a pencil.
Drill 4 holes in the wall with a Ø 8 mm drill bit to a depth enabling proper seating of the wall plugs.

RHODE UVC 2020.02.01 Page7
Attention:
The set includes dowels for fixing in walls made of building ceramics, in the case of other walls, e.g.
plasterboard or wooden panels, it is necessary to use specialized fixings.
Screw the wall brackets (3) to the wall or ceiling.
Attach the RHODE UV-C sterilizer to the wall holders (3) with the fixing screws (4).
Adjust the angle of the UV-C sterilizer to the wall or ceiling optimally and tighten the screws (4) securely.
Do not cover or block the sterilizer inlet or outlet.
Before connecting the device to the power supply, make sure that the voltage present in it is correct, i.e.
230V / 50Hz. If it is correct, insert the plug into a socket.
The device is ready for use.
9.3 BASE/STANDFOOT MOUNTING
Using the optional tripod or base, the RHODE UV-C sterilizer can be used as a standing device.
A standfoot or base is an accessory and is not included in the basic set.
Assemble the standfoot according to the diagram shown in the overview drawing point 7.
Screw the tripod screw (12) into place on the side of the RHODE UVC sterilizer housing.
Mount the wheels by pushing them all the way into the seats of the standfoot’s base.
Place the standfoot screw with the assembled sterilizer in the central socket of the standfoot's base.
Do not cover or block the sterilizer inlet or outlet.
Before connecting the device to the power supply, make sure that the voltage present in it is correct, i.e.
230V / 50Hz. If it is correct, insert the plug into a power socket.
The device is ready for use.
10.OPERATION
10.1 GENERAL REMARKS
The sterilizer is started up using the power switch (10) by supplying power..
After turning the power on, the fan starts and the UV-C radiators light up.
Air is sterilized continuously.
The sterilizer is equipped with air filters, the cleanliness of which should be periodically checked and, in the
event of significant pollution, replaced with new ones.
RHODE UV-C sterilizers can be additionally equipped with timers to control the working time of UV-C
radiators and to program work in daily and weekly modes. Timers are additional equipment and are not
included in the scope of delivery of the RHODE UV-C sterilizer in the basicoption.
10.2 REMOTE CONTROL NAVIGATION
The remotecontrolenableswireless on and off of the sterilizer and independent control of internal and
external UV-C radiators.
To activate the remotecontrolproceed as follows:
Start the sterilizer with the powerswitch (10), the internal and externalradiators of the sterilizerwillswitch on.
Switch off the sterilizerremotelyusing the OFFbutton on the remotecontrol.
Button A turns on internal UV-C radiators. Press again to turnit off.
Button B turns on external UV-C radiators. Press again to turnit off.
The ON buttonturns on bothinternal and external UV-C radiatorssimultaneously.
The OFF buttonsimultaneouslydeactivatesbothinternal and external UV-C radiators.
11.MAINTENANCE
11.1 GENERAL REMARKS
Before cleaning and maintenance work, make sure to switch off the sterilizer with the power switch (10) and
disconnect the plug from the socket.
Periodically clean the casing of the RHODE UV-C sterilizer from the outside using a cloth moistened with
soapy water, before removing the plug from the socket.
11.2 UV-C RADIATORS REPLACEMENT
INTERNAL RADIATORS
Remove the screws securing the rear cover (2) from the housing (1).
Remove the radiators from the catches and disconnect their two-pin shafts from electrical holders.

RHODE UVC 2020.02.01 Page8
Install new radiators in the same place.
Mount the cover (2) to the housing (1).
Turn on the sterilizer's power supply.
Reset the radiator operating time counter.
EXTERNAL RADIATORS
Remove the radiators from the catches and disconnect their two-pin shafts from electrical holders.
Install new radiators in the same place.
Turn on the sterilizer's power supply.
Reset the radiator operating time counter (see section - programmer operation).
ATTENTION:
Replacement of the sterilizer radiators must be carried out by a qualified electrician.
Do not turn on the sterilizer with the casing removed.
Turning on the power of UV-C lamps can damage your eyes!
11.3 ANTI-DUST FILTER REPLACEMENT
The device is equipped with an air filtration system consisting of a dust filter.
Turn off the device and unplug the power cord.
Remove used (dirty) filters from the holders.
Replace with new filters.
Mount the filter covers.
11.4 FUSE REPLACEMENT
Turn off the device and unplug the power cord.
Open the fuse cover with a flat screwdriver.
Remove and replace the fuse.
Za pomocą płaskiego śrubokrętaotwórz pokrywkę bezpiecznika.
Wyjmij i wymień bezpiecznik.
Close the fuse cover and secure it against opening by lightly pressing until it stops.
Attention:
Do not use fuses with a value higher than the permissible value. (2 A).
Fuses must not be regenerated.
12.HEALTH AND SAFETY ISSUES
Make sure that the mains voltage is correct, i.e. 230V / 50Hz and that the electrical power socket has a
grounding prong.
Do not use the sterilizer in rooms with high humidity or near heat sources.
Do not allow children or unauthorized personnel to manipulate the device.
Avoid twisting, stretching or bending the power cord excessively.
Do not immerse the device in any liquid.
Do not carry out maintenance work under the influence of alcohol or other drugs.
Do not exceed the service life of the radiators.
Do not allow excessive filter contamination.
Do not block the inlet and outlet openings on the device.
Attention:
UV-C radiation is harmful for skin and eyes!
Do not switch on UV-C lamps with the casing removed.

RHODE UVC 2020.02.01 Page9
13.UTILISATION
Send cardboard packaging for waste paper.
Put polyethylene (PE) bags and polyurethane (PU) foam into a plastic container.
Return used device to an appropriate storage point, as hazardous components contained in the device
may cause a threat to the environment.
When buying new UV-C radiators, return the used ones to the store, dispose of them in a special
container for used fluorescent lamps or deliver them to an electro-waste collection point.
In the event of a broken fluorescent lamp - carefully collect the elements and glass residues in a plastic
bag and tie it tightly. The packaging should be handed over to a company that collects used electrical or
electronic equipment.
Utilisation in UE area
The rules for the disposal of electrical and electronic equipment in the European Community are regulated by
the European Commission Directives ordering the collection of used equipment by the producer for recycling
or disposal. Before disposing of the device, ask the local authorities about the possibility of disposal in
accordance with regulations.
Attention:
The instructions in these operating instructions must be strictly observed for the safety of the
user and the device. In the event of non-compliance, the manufacturer shall not be liable for
damages or their consequences.
15. WARRANTY CONDITIONS
1. The warranty for the smooth operation of the equipment is granted by the manufacturer for the period
specified in the warranty card, counted from the date of purchase of the equipment confirmed by the seal of
the point of sale and the signature of the seller. Defects revealed during this period will be removed by the
manufacturer free of charge.
2. The warranty is granted for a period of 24 months from the date of purchase of the device.
3. The warranty does not cover:
damages resulting from circumstances that are not the responsibility of the manufacturer or seller,
and in particular damages resulting from faulty installation and use of the device contrary to its
intended use and operating instructions,
mechanical, thermal, chemical and other damages caused by the user's act or omission (flooding,
foreign objects that got inside, dust, corrosion),
damage caused by external forces, e.g. disturbances and overvoltages in the electric network,
lightning, flooding, fire, impact,
consumables: UV-C radiators and filters,
wear parts, such as fuses, knobs, seals.
4. The customer loses the right to free service under the warranty in the event of:
finding damages resulting from tampering, modification, modification, design changes made by the
user or third parties,
determination of intentional damage to the equipment.
breaking stickers, seals and other warranty protections
5. The warranty repair does not cover the activities provided for in the operating instructions or to be performed
by the user on their own and at their own cost, e.g. installation, checking, maintenance, replacement of UV-C
radiators, filters.
6. The warranty card is invalid without entering the serial number, date, seal and signature of the seller, as well
as corrections and deletions made by unauthorized persons.
7. If the warranty card is lost, a new one will not be issued.
8. In matters not covered by the above warranty conditions, the relevant provisions of the Civil Code will apply.
Attention:
Damage or removal of the security stickers or data plate from the device will void the warranty.
Warranty services do not extend the warranty.
All rights reserved. No part of this document may be reproduced or preserved, processed, reproduced or distributed using electronic systems without the prior written consent of ROKO s.c. The
breach will be subject to compensation.
This document has been issued with the utmost care and all data has been checked. We reserve the right to make changes due to the constant development of products. We are not responsible
for any incorrect or incomplete data resulting from changes.

RHODE UVC 2020.02.01 Page10
UE DECLARATION OF CONFORMITY
NR 20 - 2020
* Does not apply to potentially explosive rooms.
We declare that the product regarding this declaration meets the provisions of the UE directives above and the requirements
of EU harmonization legislation. This declaration of conformity is issued entirely at the manufacturer’s responsibility.
The products mentioned in this declaration are produced in accordance with the ISO 9001 quality system.
20 –in reference to the year when the product has been marked with CE.
Częstochowa 03.04.2020 r.
General Director
Arkadiusz Rokosa
Manufacturer:
ROKO s.c.
Rokosa M. Rokosa A.
PL 42-200 Częstochowa, Bór 177
Product name:
ANTIBACTERIAL RHODE FLOW UVC LAMPS
SINGLE AND DUAL-FUNCTION , TYPES: INOX, PROFI, ELITE
Purpose and
range of use:
Lamp for air disinfection and prevention of secondary infections by continuous
elimination of bacteria, viruses, fungal spores and mold in all types of rooms *. In
the 2-function version, additional, direct surface disinfection.
Reference
documents:
Directive 2014/35/UE
Directive 2014/30/UE
Directive 2011/65/UE
Directive 93/42/EWG
Low-voltage electric devices
Electromagnetic compatibility
RoHS II
Medical products MDD –specified requirements
PN-EN 60598-1:2015-04
PN-EN 60598-1:2015-04/A1:2018-04
PN-EN 60601-1:2011
PN-EN ISO 29464:2020-03
PN-EN ISO 15858:2016-10
PN-EN 61547:2009
PN-EN IEC 63000:2019-01
Air-handling luminaires - Part 1: General
requirements and tests.
Medical electrical equipment. Part 1: General
requirements for basic safety and essential
operation
Clearance air and other gases - Terminology
UV-C devices - Safety information - Permitted
human exposure
General lighting equipment purpose. Part 1:
General requirements for basic safety and
essential operation.
Technical documentation for the assessment of
electrical and electronic products in relation to the
reduction of hazardous substances.
