RHOX LGT-297 User manual

Caution: Please read through the instructions carefully. Before starting
this project, remove the system’s positive and negative connections
from the battery or battery pack. This kit is designed for a 12-30V
operation only. Operating this kit at a higher voltage will void any and
all warranties. Look behind each drill location BEFORE YOU DRILL.
Installer is responsible for damage (i.e. drilling into a wiring harness,
battery, fuel tank etc.). Do no attempt to activate or control this device
in a hazardous driving situation.
LGT-297 and LGT-298
Strobe Light Bar, 10-30V DC
Installation Instructions
LGT-297
LGT-298

Page 2
Hardware Kit
* The hardware kit is for universal fitment. A different length carriage bolt may be
required depending on thickness of mounting surface.
Tools Needed for Installation
- Socket & Ratcheting Wrench (10mm)
- Drill & Drill Bit (1/4”)
- Wire Cutters, Strippers and Crimpers
- Marking Device
Specifications
LED Color: Amber (LGT-297); Red / Blue (LGT-298)
Voltage: 10-30V DC
Max Power: 36W
Flash Pattern: 10
Size: 356mm x 210mm x 44.9mm (excluding mounting brackets)
Cleaning Instructions
Use only soap and water to clean the outer lens. Use of other chemicals could result
in premature lens cracking (crazing) or discoloration. Lenses in this condition have
significantly less effectiveness and should be replaced. Do not pressure wash.
Before You Start
1. Turn Key OFF.
2. Place Tow/Run Switch in Tow if equipped.
3. Remove the system’s positive and negative connections from the battery or
battery pack.
4. Engage the parking brake.
Contents of LGT-297/298 Hardware Kit Qty.
a6mm-1.0 Carriage Bolts*4
b6mm Spacer 4
c6mm Flat Washer 4
d6mm Lock Washer 4
e6mm-1.0 Hex Nut 4

Page 3
Strobe Light Bar Installation
1. Locate a desirable area on the top to mount the strobe light bar.
2. Using the light bar’s mounting brackets as a guide, mark the (4) mounting hole
locations onto the top using a marking device.
3. Drill through the top at the marked locations using a 10mm drill bit.
4. Fasten the strobe light bar
to the top using the included
hardware as shown. Hand
tighten.
NOTE: At least (3) threads
on the carriage bolt should
extend out of the hex nut
once the hardware is
completely fastened. If the
bolt is too short, a longer bolt
will be required.

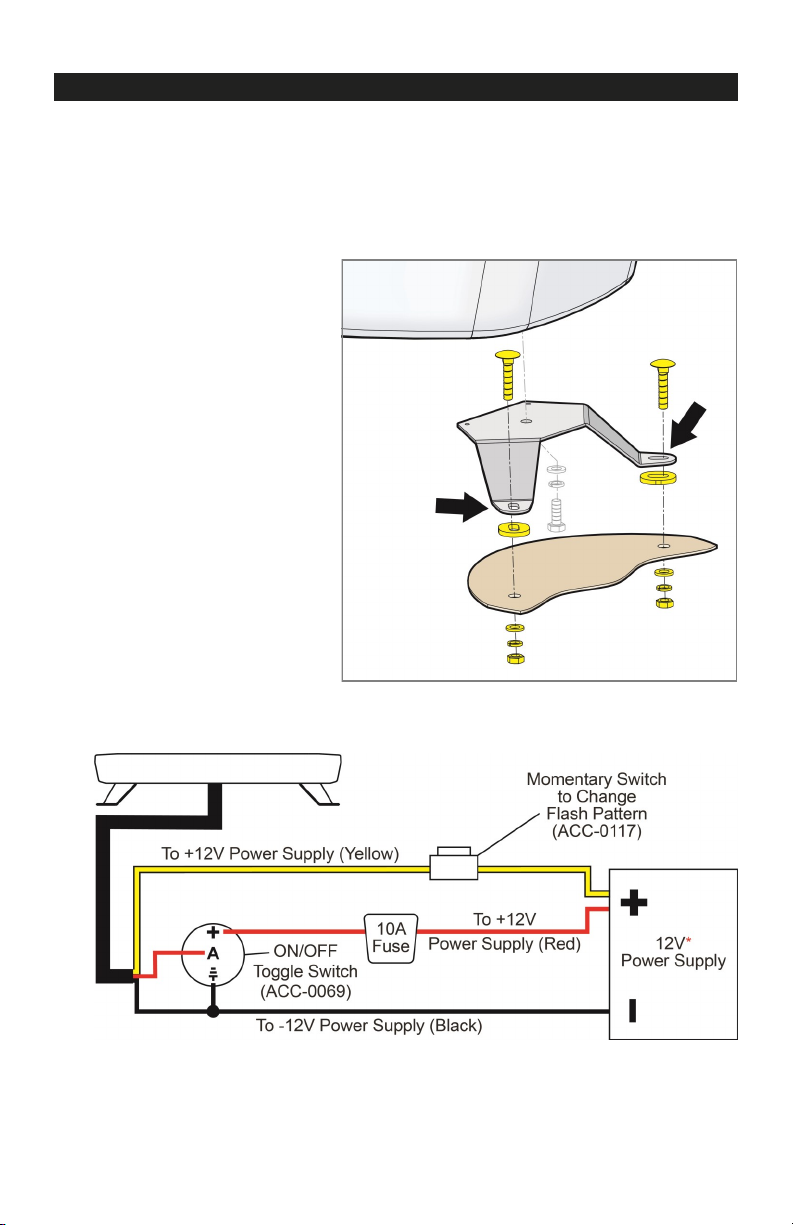

5. Route wires from a 12-30VDC power source to the wires on the strobe light bar.
Connect the wires following the diagram below.
NOTE: LGT-217 wiring kit can be purchased separately for additional wires and
recommended switches (*12V only).

Page 4
Operation
1. Power the strobe light
bar ON using the
ON/OFF switch.
2. Change the sequence of
the flash pattern by
pressing the momentary
switch.
3. To change to the first
flash pattern of the
sequence, hold down the
momentary switch for (5)
seconds.
4. To sync more than (2)
light bars, connect the
yellow wire to the power
source for more than (3)
seconds with the power
OFF. Configure both
light bars to display the
same flash pattern and
then connect the yellow
wires.
Your Strobe Light Bar is now complete.
Please enjoy safely!
Scan QR code or use the link below to view the installation video.
https://vimeo.com/user39935056
Amber Strobe Light Bar (LGT-297)
Sequence Flash Pattern FPM
1ECE Single 150
2Quad 71
3Rotate 1 60
4Single - Double - Quint 15
510 - Flash 69
6Rotate 2 100
7Alternate Single 120
8Alternate Quad 72
9Alternate 10 - Flash 75
10 Random -
Red & Blue Strobe Light Bar (LGT-298)
Sequence Flash Pattern FPM
1Quad (Blue) 150
2Quad (Red) 71
310 - Flash (Blue) 60
410 - Flash (Red) 15
5Alternate Quad (Red/Blue) 69
6Alternate 10 - Flash (Red / Blue) 100
