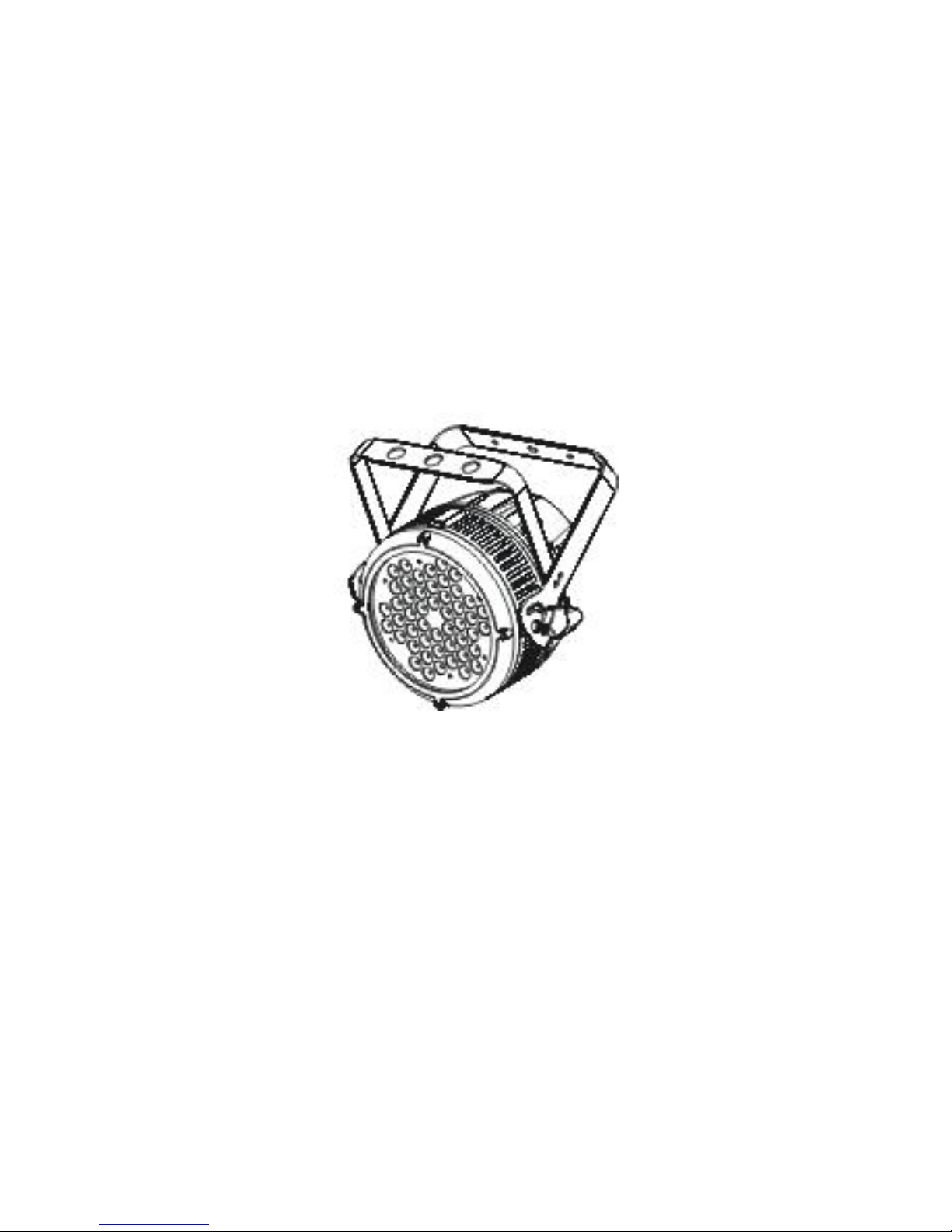

Ri-Art i.Shine 3148 RGBW User manual

i.Shine 3148 RGBW
Color Stainer XP
USER MANUAL
Thank you very much for choosing our product. For safety purpose, please
read this manual carefully before your operation. This manual included
installation and using information. Please install and operate it according to
this manual.

3148RGBW-V6.0 05.15.2010
Indexing
Part 1 Product (GENERAL)
1.1--PRODUCT INTRODUCTION
1.2--PRODUCT FEATURES
1.3--TECHNICAL SPECIFICATIONS
1.4--DIMENSION
1.5-- EXPLODED VIEW
1.6--PHOTOMETRIC DATA
1.7--SAFETY WARNING
PART 2 INSTALLATION
2.1--MOUNTING
2.2--SETTING UP WITH A DMX512 CONTROLLER
2.2-1--DMX512 ADDRESSING WITHOUT ID ADDRESSING
2.2-2--DMX512 ADDRESSING WITH ID ADDRESS
2.2-3-- DMX Channel instruction
2.2-4—Special instruction of DMX connection
2.3—Master/Salve Operation
PART 3 LED DISPLAY PANEL OPERATION
3.1 -- Basic instruction
3.2 -- Display operation menu tree
3.3 -- White balance adjustment instruction
PART 4 TROUBLESHOOTING
4.1 TROUBLESHOOTING LIST

4.2 Checking steps about why led lamp not light
PART 5 MAINTENANCE

Part 1 Product
1.1 Product introduction
This product is designed for outdoor use. Suitable applications include
wash or effect lighting for architectural, stage or nightclub applications. This
product can also be installed for use in signage and advertising using the
dynamic functions available with DMX512 control. Direct input of DMX512
signal allows the units to be controlled from any DMX512 controller. This
product can be operated as a single unit or in multiple units for large applications.
1.2 Product Features
* Optical system: 1-256 grades electric adjustable, mini within 100ms
*Strobe:
Adjustable speed
samestep strobe
random electric strobe
pulse strobe
* Working mode:
Standard DMX512 signal (3, 4, 5, 6, 10 channels - 8 modes)
**Intelligent ID addressing separately
**Intelligent ID group addressing
Auto-mode
Master/Salve Mode
*Display panel: 4-LED digital display DMX address code, test or play auto-
programs.
White balance adjustable*
* Advanced New Function:
t color**Set white balance via software to guarantee same brigh
**Self-check inside temperatu
**Overheat auto-protection. re of lighting fixture.
*
Auto-mode:
*8 preset color change scenes*

.3 Technical Specifications
230V--0.7A, AC115V—1.4A
, Cool White 12pcs
rs
º、30 º、45º）
minum
ize: 289 x 237 x 306mm

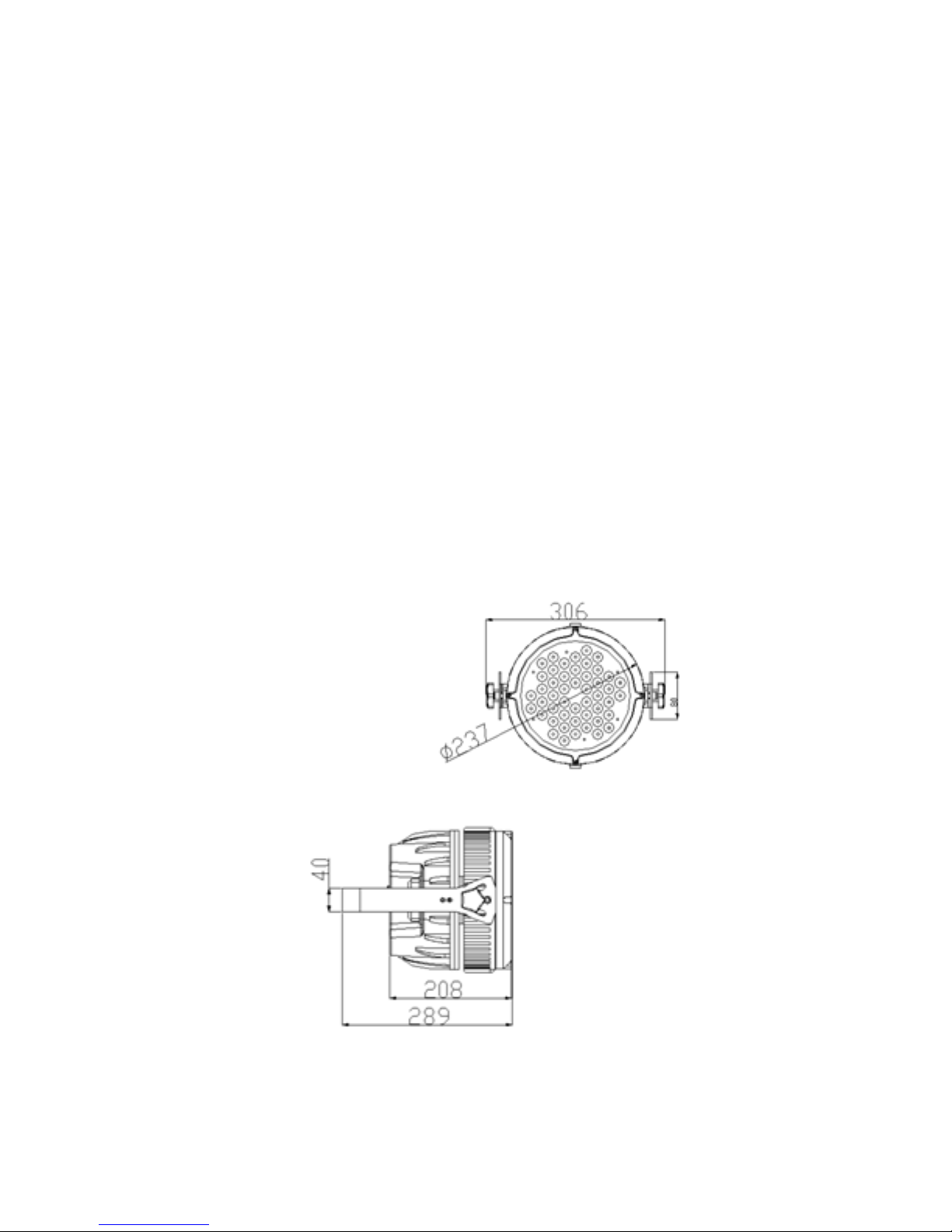

.4 Dimension
Front
1
Voltage: AC90-259v, 50/60Hz
AC
IP rating: IP67
Power: 158W
Light Source: 48*3W LED lamp
Red 12pcs, Green 12pcs, Blue 12pcs
LED Lifespan: around 30,000 ~ 50,000 hou
(RatedbyLEDlamp factory)
Beam angle: 25 º（Optional 15
Case: Die-casting alu
Net Weight：8.98Kg
S
1
Side

1.5 Exploded View

1.6 Photometric Data

1.7 IMPORTANT:
ALWAYS READ THE USER MANUAL BEFORE OPERATION.
PLEASE CONFIRM THAT THE POWER SUPPLY STATED ON THE
PRODUCT IS THE SAME AS THE MAINS POWER SUPPLY IN
YOUR AREA.
 This product must be installed by a qualified professional.
 Always operate the equipment as described in the user manual.
 A minimum distance of 0.5m must be maintained between the equipment and
combustible surface.
 The product must always be placed in a well ventilated area.
 Always make sure that the equipment is installed securely.
 DO NOT stand close to the equipment and stare directly into the LED light
source.
 Always disconnect the power supply before attempting and maintenance.
 Always make sure that the supporting structure is solid and can support the
combined weight of the products.
 The earth wire must always be connected to the ground.
 Do not touch the power cables if your hands are wet.
ATTENTION:
 This product left the place of manufacture in perfect condition. In order to
maintain this condition and for safe operation, the user must always follow
the instructions and safety warnings described in this user manual.
 Avoid shaking or strong impacts to any part of the equipment.
 Make sure that al parts of the equipment are kept clean and free of dust.
 Always make sure that the power connections are connected correct and
secure.
 If there is any malfunction of the equipment, contact your distributor
immediately.
 When transferring the product, it is advisable to use the original packaging in
which the product left the factory.
 Shields, lenses or ultraviolet screens shall be changed if they have become

damaged to such an extent that their effectiveness is impaired.
 The lamp (LED) shall be changed if it has become damaged or thermally
deformed.

PART 2 INSTALLATION
2.1 Mounting:
2.1-1 Hanging
The Color Stainer XP can be mounted in a hanging position using the
supporting bracket. The bracket should be secured to the mounting truss or
structure using a standard mounting clamp. Please note that when hanging
the unit a safety cable should also be used
.
2.1-2 Upright
The Color Stainer XP can be mounted in an upright or sitting position using
the supporting brackets.
NOTE:
The Color Stainer XP can be mounted at any angle and in any position. It is
possible to further adjust the angle of the Color Stainer XP using the two
adjustment knobs located on the side of the fixture.
2.2 SETTING UP WITH A DMX512 CONTROLLER
2.2-1 DMX512 ADDRESSING WITHOUT ID ADDRESSING
 Connect the DMX512 controller to the units in series.
 When set 10 dmx channel mode, each unit will has 10 DMX channels so
the DMX Addresses should increase by increments of 10 (e.g.
1,11,21,31...)
 The ID address has not been set so therefore when using the controller
CH10 must be inactive (CH10=0).
 Each DMX Address may be used as many times as required.
 Any DMX address in the range from 001 to 511 may be used.

2.2-2 DMX512 ADDRESSING WITH ID ADDRESS
 Connect the DMX512 controller to the units in series
 When set 10 dmx channel mode, each unit will has 10 DMX channels so
the DMX Addresses should increase by increments of 10 (e.g.
1,11,21,31...)
 Each DMX Address may be used as many times as required.
 Any DMX address in the range from 001 to 511 may be used.
 Each DMX address may carry up to 50 separate ID addresses.
ID should be set in the menu on each unit in ascending values (i.e. 1, 2,
3...)
 ID addresses are accessible from Ch10 on the DMX512 controller at 10
channel dmx mode.
Example:
The figure above shows a simple DMX layout which has used three units at
each DMX address. The three units have different ID addresses which
allows the user to collectively control the whole group of units at that DMX
address by settingCH10 to 0, or to control each unit independently by first
selecting the DMX address and then by using CH10 to select the target ID
address。

2.2-3 DMX Channel instruction
Mode
/Channel Function & Effect DMX Value
DMX Mode 1- STAG MODE
CH1 Dimmer 0~100% 0<==>255
CH2 RED 0~100% 0<==>255
CH3 GREEN 0~100% 0<==>255
CH4 BLUE 0~100% 0<==>255
CH5 Cool White 0~100% 0<==>255
CH6
0<==>5 No function
6<==>40 Red
41<==>76 Green
77<==>112 Blue
COLOR MACRO (7 preset color effect)
113<==>148 Yellow
149<==>184 Cyan
185<==>220 Purple
221<==>225 White
CH7 Strobe speed from slow to fast 0<==>255
Auto program - 8 programs
0<==>5 No function
6<==>36 Program 1
37<==>68 Program 2
69<==>100 Program 3
101<==>132 Program 4
133<==>164 Program 5
CH8
165<==>196 Program 6
197<==>228 Program 7
229<==>255 Program 8
Program Fade in/out time 0<==>128
CH9
Program run speed 129<==>255
CH10 ID ADDR 0-51 Group 0<==>255

DMX Mode 2- ARC MODE
CH1 RED 0~100% 0<==>255
CH2 GREEN 0~100% 0<==>255
CH3 BLUE 0~100% 0<==>255
DMX Mode 3 - ARC2 MODE
CH1 RED 0~100% 0<==>255
CH2 GREEN 0~100% 0<==>255
CH3 BLUE 0~100% 0<==>255
CH4 White 0-100% 0<==>255
DMX Mode 4 - ARCD MODE
CH1 Dimmer 0~100% 0<==>255
CH2 RED 0~100% 0<==>255
CH3 GREEN 0~100% 0<==>255
CH4 BLUE 0~100% 0<==>255
DMX Mode 5 - AR2D MODE
CH1 Dimmer 0~100% 0<==>255
CH2 RED 0~100% 0<==>255
CH3 GREEN 0~100% 0<==>255
CH4 BLUE 0~100% 0<==>255
CH5 Cool White 0~100% 0<==>255
DMX Mode 6 - ARCS MODE
CH1 Dimmer 0~100% 0<==>255
CH2 RED 0~100% 0<==>255
CH3 GREEN 0~100% 0<==>255
CH4 BLUE 0~100% 0<==>255
CH5 0<==>255
STROBE 0-100%
DMX Mode 7 - AR2S MODE
CH1 Dimmer 0~100% 0<==>255
CH2 RED 0~100% 0<==>255
CH3 GREEN 0~100% 0<==>255

CH4 BLUE 0~100% 0<==>255
CH5 Cool White 0~100% 0<==>255
CH6 0<==>255
STROBE 0-100%
DMX Mode 8 - HSV MODE
CH1 0<==>255
HUE - 256 colors
CH2 0<==>255
SATURATION 0-100%
CH3 0<==>255
VALUE 0-100%
2.2-4 Special construction for DMX connection.
 At last fixture, the DMX cable has to be terminated with a terminator to
reduce signal errors. Solder a 120-ohm 1/4W resistor between pin
2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the
DMX-output of the last fixture.
 If the controller is 5-pin output, it’s necessary to use an adaptor to transfer
signal from 5-pin output to 3-pin XLR-plug or you can connect cables as
following:
3-pin XLR Pin 1 – 5-pin XLR Pin 1 GND
3-pin XLR Pin 2 – 5-pin XLR Pin 2 Negative signal (-)
3-Pin XLR Pin 3 – 5-pin XLR Pin 3 Positive signal (+)
5-pin XLR Pin4 & Pin 5 not used
2.3 Master/Slave Operation.
Color Stainer XP can be linked 10pcs together to work in Master/Salve
mode without any console. The 1st machine will be set as Master
and others will work as Salve unit at same
effect.
PART 3 LED Display Panel Operation

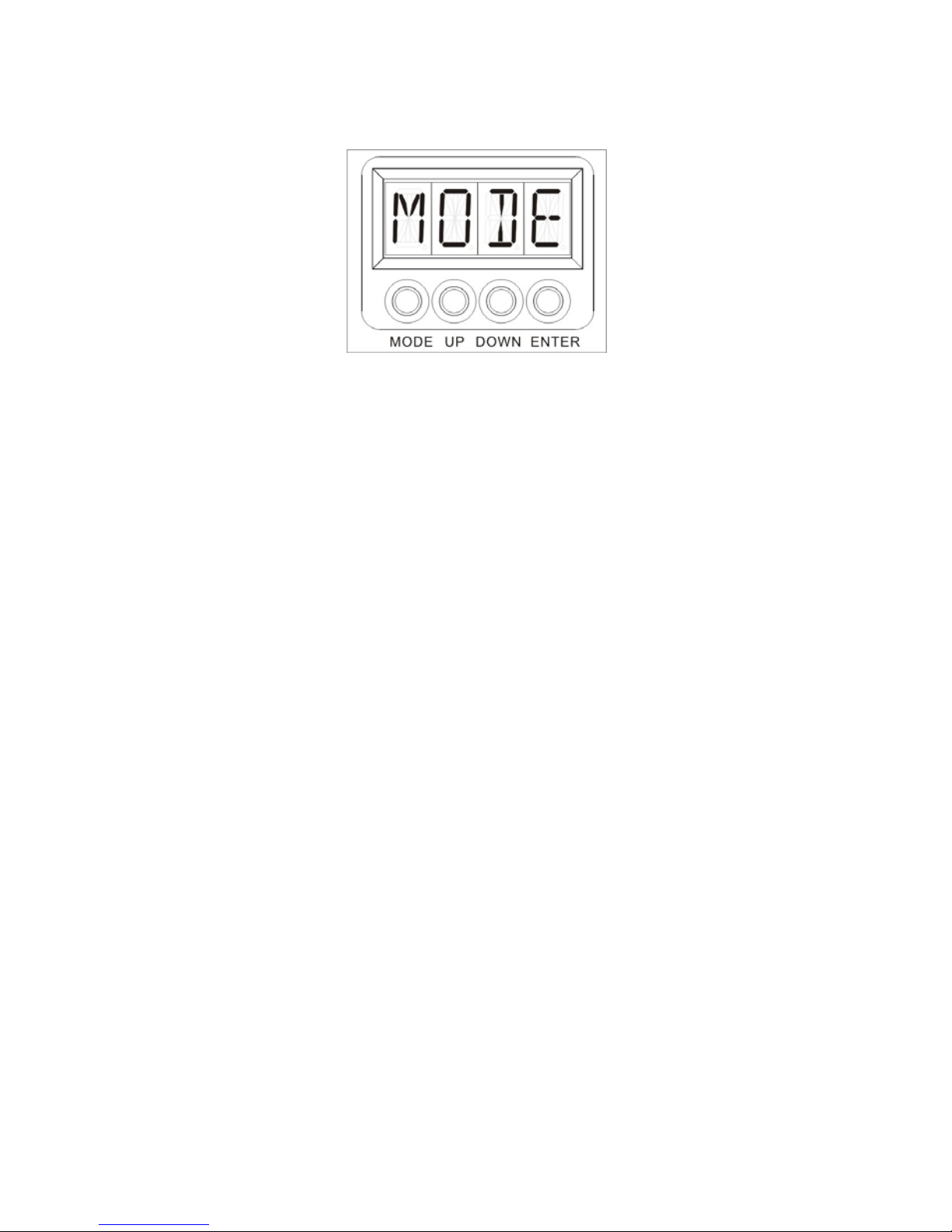

3.1 Basic instruction:

MENU -- menu selection or return to previous menu
UP -- Press UP through the menu list to increase/change the
value of the current function
DOWN -- Press DOWN through the menu list to
decrease/change the value of the current function
ENTER -- Confirm & Quit out current function setting
3.2 Display operation menu tree

3.3 White Balance fine-adjustment instruction

Part 4, Troubleshooting
4.1 Troubleshooting list for some common electrical
problems may happen during use:
Phenomenon Solution
* The fixture does not work
* No light out
* No Display
* Check main power fuse & power cable
connection
* Measure main voltage on the mai
n
connector
* The fixture does not work
* No display
* Check connection of display PCB
* Replace a new display
N
o responding to DMX controlle
r
* Check working mode setting on display
is DMX mode or not
* Check whether the unit be set as
SLAVE
* Check DMX address settings
* Check DMX cable and it’s connection
* Try to use another DMX console
Signal error while use DMX
* Check whether DMX cables be
connected well or not
* Check whether the DMX cable has to
be terminated with a terminator to reduce
signal errors. If not, please Solder a 120-
ohm 1/4W resistor between pin 2(DMX-)
and pin 3(DMX+) into a 3-pin XLR-
p
lug
and plug it in the DMX-output of the last
fixture

- 19 -
4.2 Checking steps about why LED lamp not light
(Example: Red led lamp not light)
Step 1: Disassemble lighting fixture and use multi-meter to measure input voltage
between R+/ R- on main PCB. There should have DC48V.
** If there no 48V voltage, please check the electro circuit and parts such as
CQ12, R39, R37, Q3 and etc.
** If there have 48V voltage, please go to step 2.
Step 2: Check voltage between R+ and R- on LED lamp PCB and it should be 48V.
** If there has voltage, but LED lamp not work, the reason may be LED lamp
short circuit or burnt. Use a metal cable connect the two points which be
marked with correspondent color such as R+, R-, G+, G-, B+, B- to check
whether it is short circuit one by one
** If there is no voltage, that’s mean the connection cable between lamp PCB
and main PCB is short circuit and just need to replace that connection cable.
** If there has voltage and no LED lamp burnt, the problem might be some LED
lamps on LED PCB not be welded well. Check every led lamp and use a
solder to re-weld those not be welded led lamps.
Part 5, Maintenance
The cleaning of internal must be carried out periodically to optimize light output.
Cleaning frequency depends on the environment in which the fixture operates: damp,
smoky or particularly dirty surrounding can cause greater accumulation of dirt on the
fixture’s optics.
 Clean with soft cloth using normal glass cleaning fluid.
 Always dry the parts carefully.
 Clean the external optics at least every 20 days.
Clean the internal optics at least every 30/60 days – Up to vary products. Please
ask professional technical to clean waterproof products and make sure the fixture
will be reassembled well for waterproof
