Riccar SupraLite R10E User manual

Owner’s Manual
R10E

.

Getting Started
Important Safety Instructions 2
Polarization Instructions 3
Description of the Vacuum 4
Assembling the Vacuum
Installing the Handle 5
Postioning the Power Cord 6
Operation
Turning the Vacuum On/Off 7
Edge Cleaning 7
Automatic Carpet Height Adjustment 7
How To
Change the Vacuum Bag 8
Remove/Install the Bottom Plate 9
Change the Belt 10
Reset the Circuit Breaker 11
Problem Solving Guide
Troubleshooting 12
Visit Riccar Vacuums Online 12
How to Contact Your Authorized Retailer 12
Key Replacement Parts 12
For Best Performance 12
Warranty 13
CONTENTS

2
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions
should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS
APPLIANCE. FOR HOUSEHOLD USE ONLY.
IMPORTANT: The manufacturer cannot accept responsibility for damage caused when the appliance is not used according to the
instructions, or for uses other than those for which it was intended.
WARNING: To reduce the risk of fire, electric shock, damage or injury:
• Do not leave appliance when plugged in.
Unplug from outlet when not in use
and before servicing.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close
attention is necessary when used by or
near children.
• Use only as described in this manual.
• Do not use with a damaged cord or
plug. If appliance is not working as it
should, has been dropped, damaged,
left outdoors, or dropped into water,
return it to your Authorized Riccar
Retailer for service.
• Do not pull or carry by the cord, use
the cord as a handle, close a door on
the cord, or pull the cord around sharp
edges or corners. Do not run appliance
over the cord. Keep the cord away from
heated surfaces.
• Do not unplug by pulling on the cord. To
unplug, grasp the plug, not the cord.
• Do not handle the plug or appliance
with wet hands.
• Do not put any object into openings.
Do not use with any opening blocked;
keep free of dust, lint, hair and anything
that may reduce air flow.
• Keep hair, loose clothing, fingers and all
parts of the body away from openings
and moving parts.
• Do not pick up anything that is burning
or smoking, such as cigarettes, matches
or hot ashes.
• Do not use without a vacuum bag and/or
filters in place.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or
combustible liquids such as gasoline
or use in areas where they may be present.
• Do not attempt to service the unit while
appliance is plugged in.
SAVE THESE INSTRUCTIONS

3

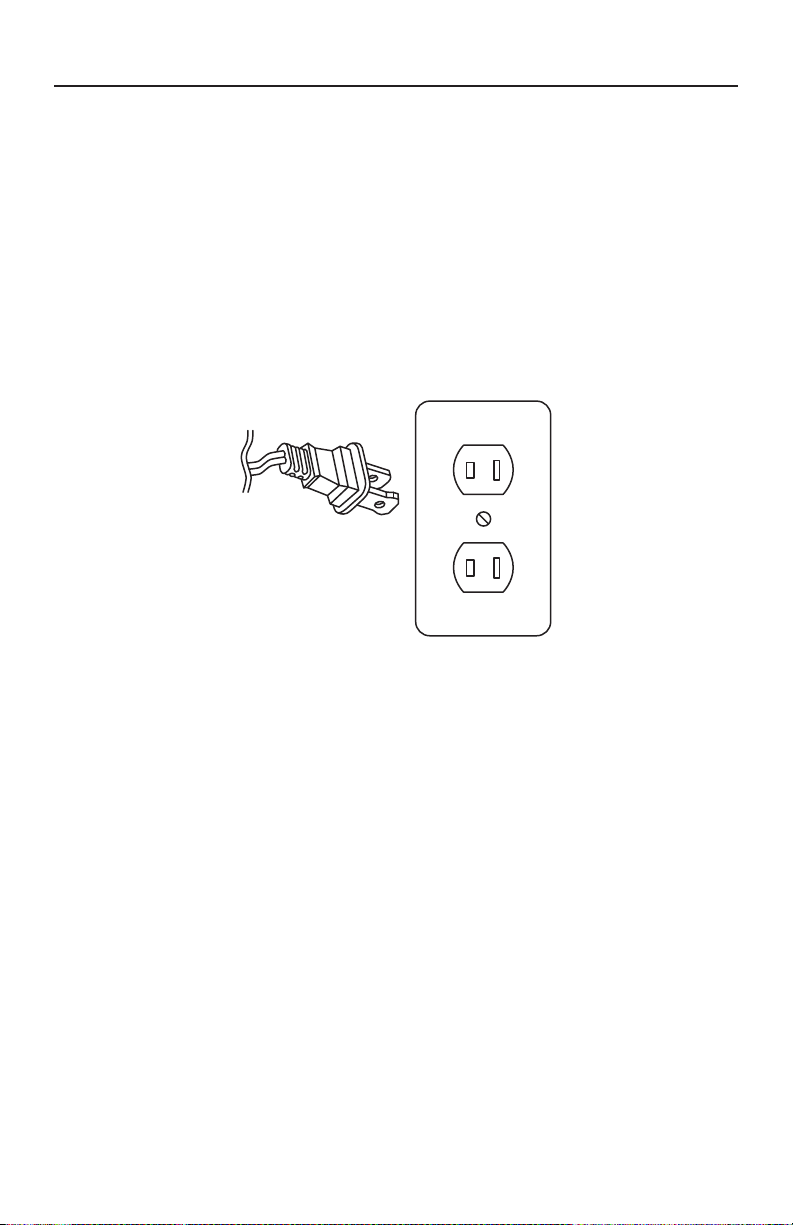

Power Cord, 2-Wire Polarized Cord
To reduce the risk of electric shock, this product is equipped with a polarized
alternating current line plug (a plug having one blade wider than the other). This
plug will fit into the power outlet only one way. This is a safety feature. If you are
unable to insert the plug fully into the outlet, try reversing the plug. If the plug
should still fail to fit, contact a qualified electrician to replace the obsolete outlet.
Do not defeat the safety purpose of the polarized plug.
POLARIZATION INSTRUCTIONS

4

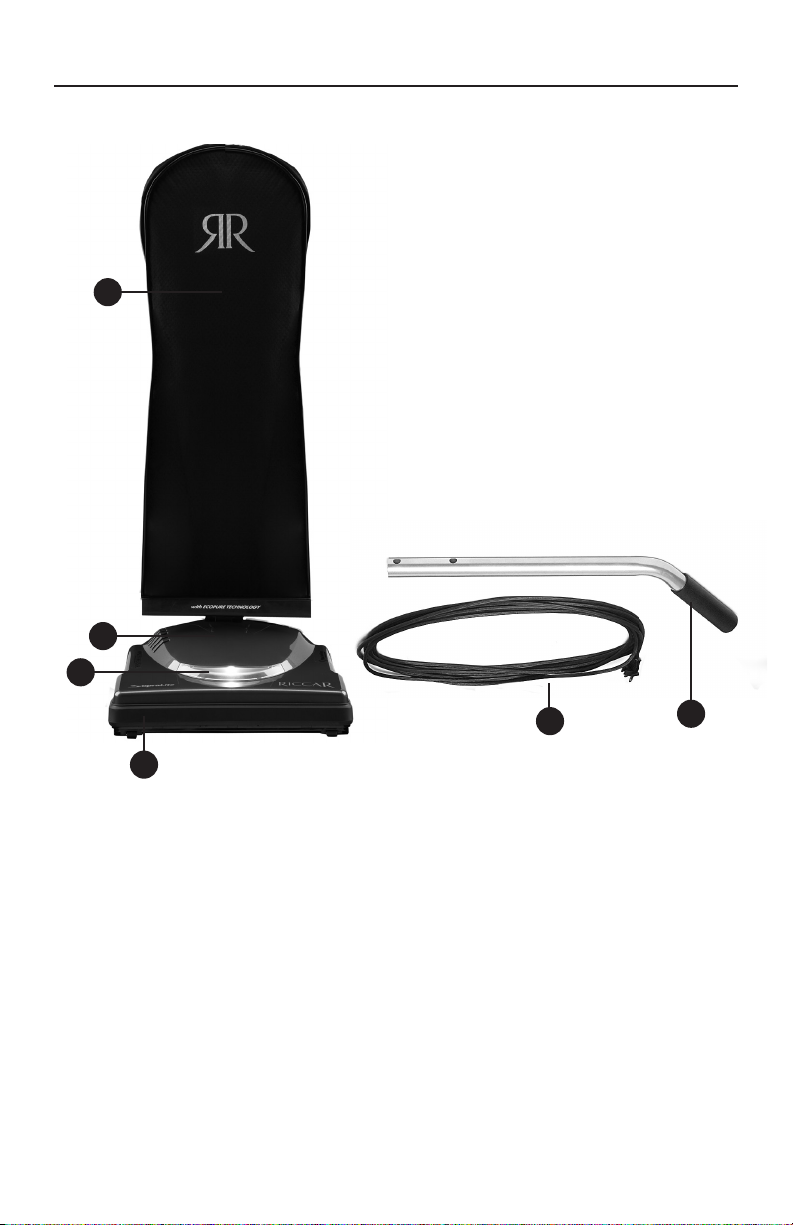

DESCRIPTION OF THE VACUUM
1 Cloth Bag
2 Vacuum Nozzle
3 Headlight
4 Furniture Guard
5 Power Cord
6 Handle
1
2
3
4
56

5
Attaching the Handle to the
Vacuum
NOTE: Do not plug in the vacuum until
it is completely assembled.
The vacuum cleaner handle is packed
as a separate component that requires
assembly.

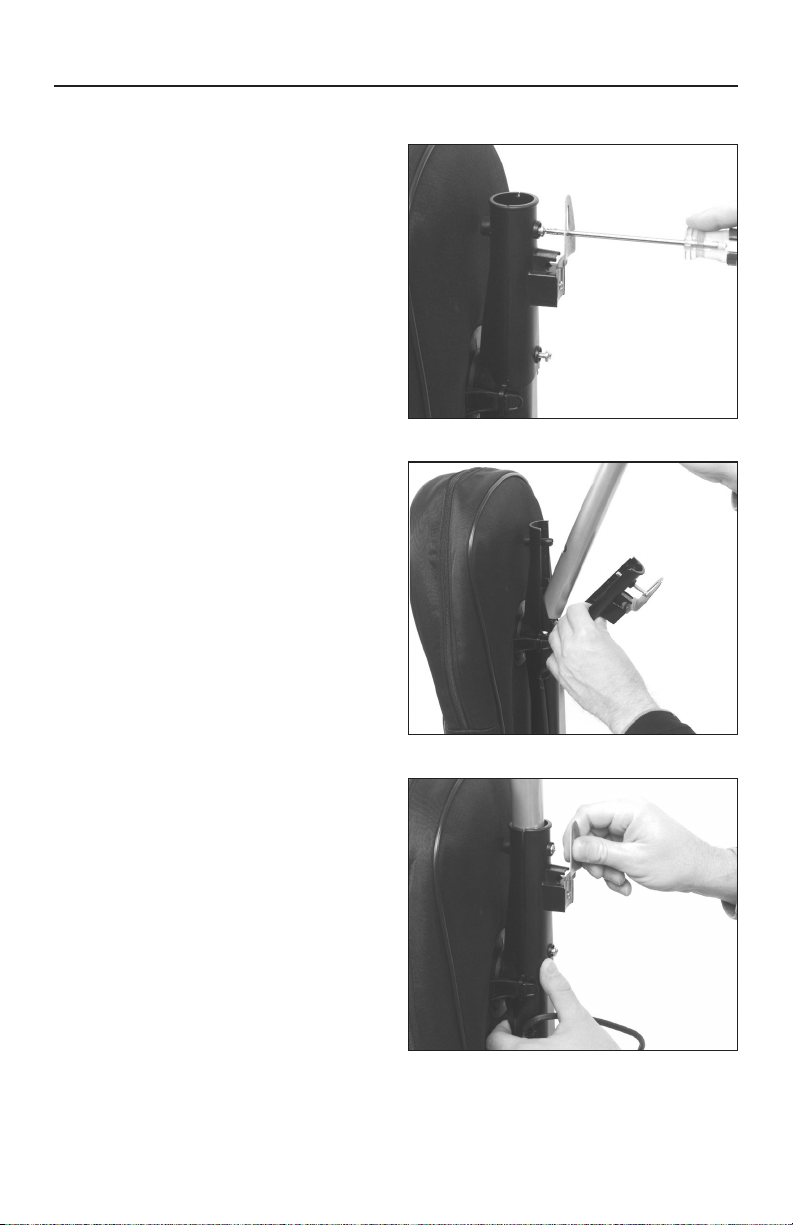

• Release the handle bracket from the
handle tube by removing the two
screws (Fig. 1).
• Place handle onto the handle tube,
aligning holes with pegs (Fig. 2).
• Place the handle bracket back into
position (Fig. 3).
• Secure with two screws removed
in step 1.
Fig. 1
Fig. 2
ASSEMBLING THE VACUUM
Fig. 3

6
ASSEMBLING THE VACUUM

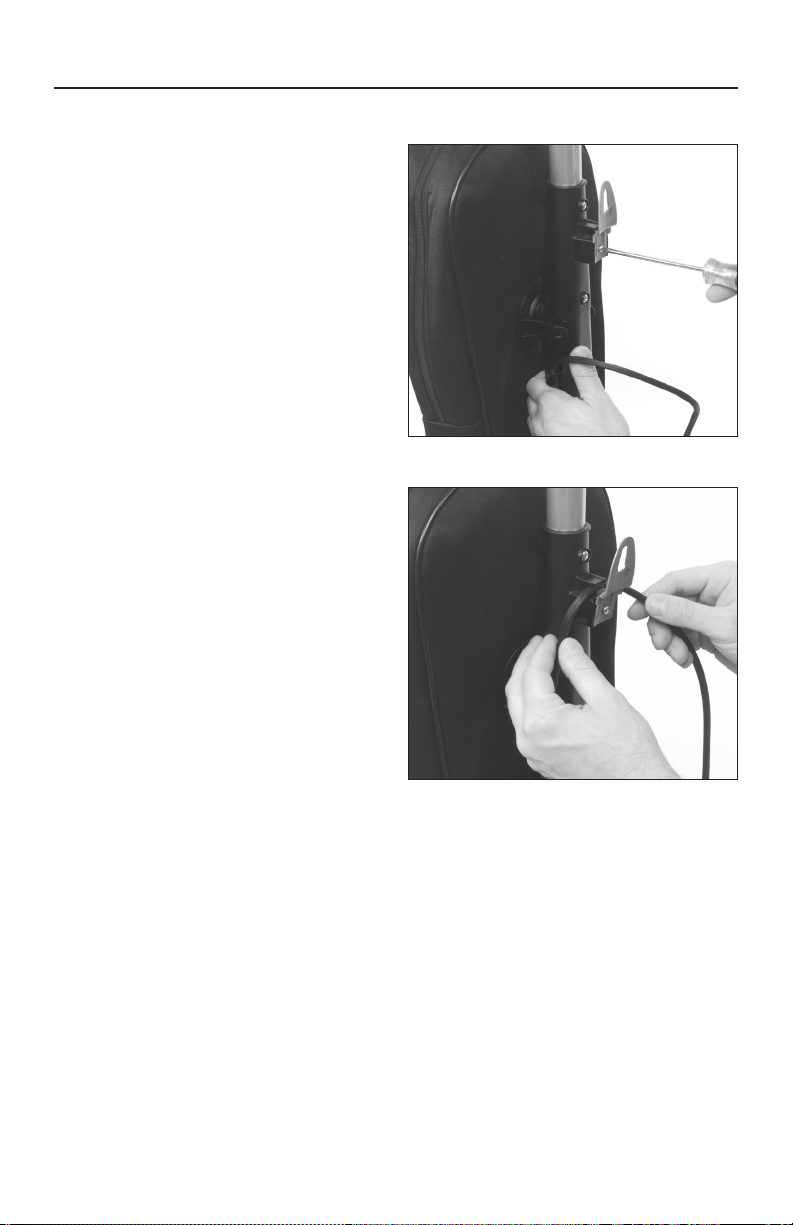

Positioning the Power Cord
• Loosen, but do not remove, the screw
holding the upper cord hook (Fig. 1).
• Position the cord between the cord
hook and the vacuum tube (Fig. 2).
Re-tighten the screw.
• Once the cord is secured by the cord hook,
proceed with wrapping the cord.
• Wrap the cord clockwise around the
top and bottom cord hooks. Fasten
the plug to the wrapped cord using the
channel on the plug. When not in use,
store the vacuum indoors in a clean,
dry area where it cannot be damaged
or cause injury.
Fig. 1
Fig. 2

7

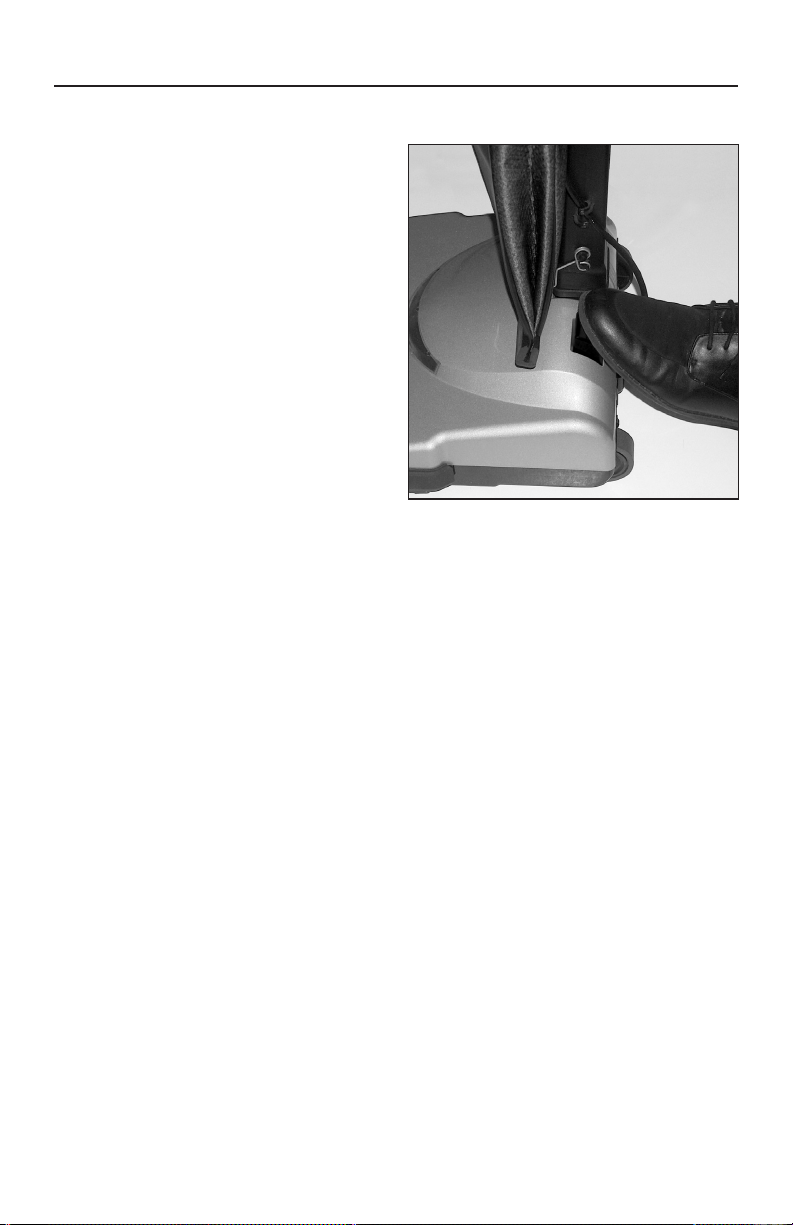

Turning the Vacuum On/Off
The switch is located on the back of the
nozzle to the left of the handle tube (Fig. 1).
Press the switch with your foot to turn
the vacuum On or Off.
The vacuum should be turned Off
before returning handle to full upright
position. Always turn the vacuum cleaner
Off before unplugging it from the
electrical outlet.
Edge Cleaning
The edge cleaning feature provides
improved cleaning near walls and
stationary furniture. For maximum
edge cleaning, place the left side
of the nozzle against the wall or
stationary furniture.
Automatic Carpet Height
Adjustment
Your vacuum is designed with an automatic,
self-adjusting nozzle. No manual adjustments
are required. The height of the nozzle is
instantly and automatically adjusted to the
flooring surface. This self-adjusting feature
allows the nozzle to float evenly over all
flooring surfaces.
Fig. 1
OPERATION
This vacuum is intended for household use only.

8
HOW TO

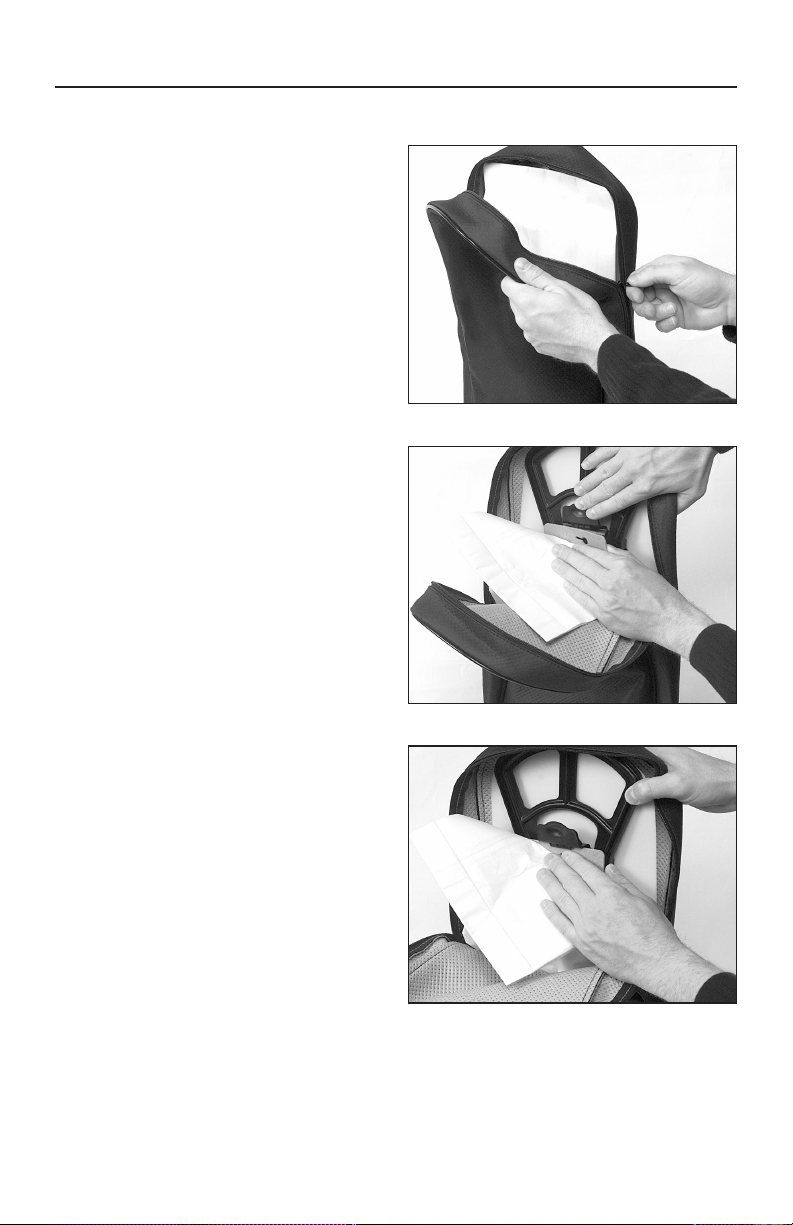

Change the Vacuum Bag
NOTE: Unplug the vacuum cleaner from
the electrical outlet before changing the bag.
• Unzip the outer cloth bag (Fig. 1).
• Remove the used bag by pressing the
bag holder tab and pulling the bag off
vacuum (Fig. 2). Discard the used bag.
• To install a new bag, position the
bottom of the bag collar into the bag
collar holder (Fig. 3).
• Push the top of the bag collar inward
until the collar “snaps” into place under
the bag holder tab.
• Zip the outer cloth bag closed.
Fig.1
Fig.2
Fig.3

9
HOW TO

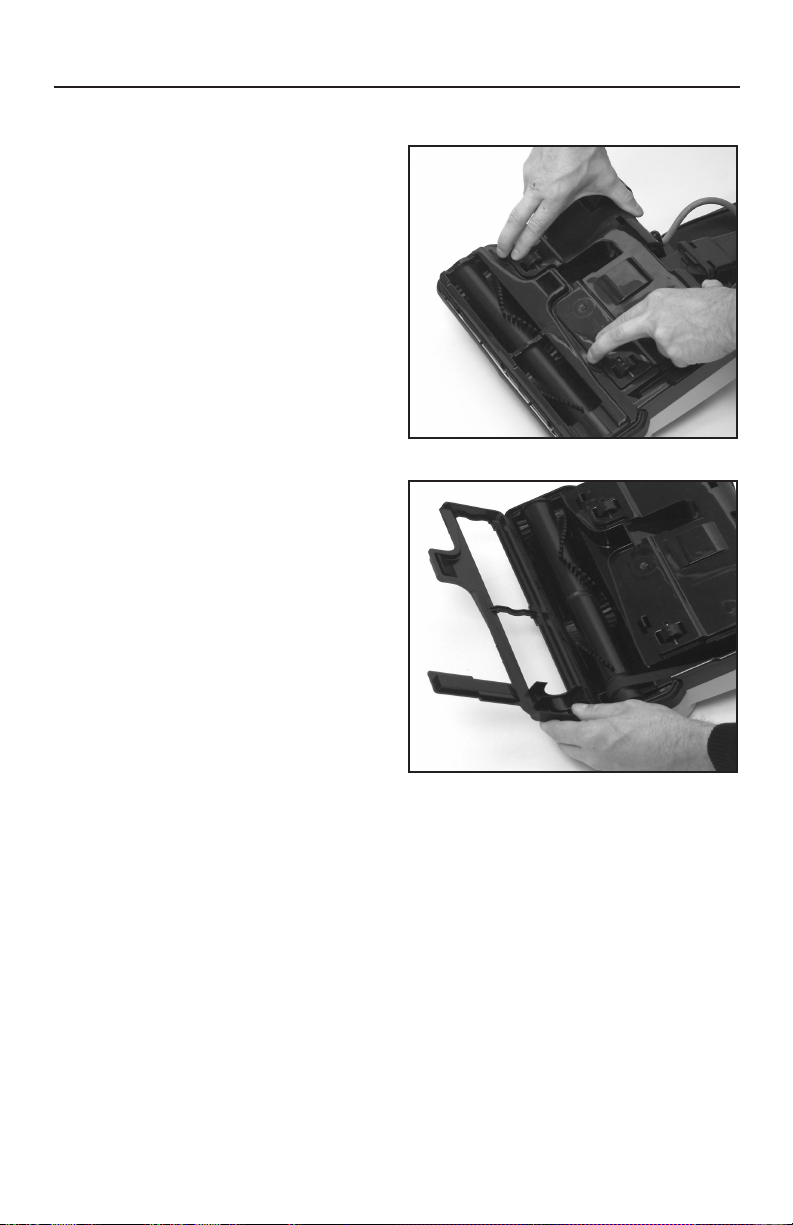

Remove/Install the Bottom Plate
CAUTION: To reduce the risk of injury
from moving parts, unplug the vacuum
before servicing.
To Remove Bottom Plate
• After unplugging the power cord, turn
the vacuum cleaner over, exposing the
underside.
• Press the two holding tabs towards the
back of the nozzle. (Fig. 1) releasing
the bottom plate. Remove the bottom plate.
To Install Bottom Plate
• Make sure bottom plate hinge tabs are
in place before setting the plate (Fig. 2).
• Press the bottom plate into position until
it “clicks” on both sides.
Fig. 1
Fig. 2

10

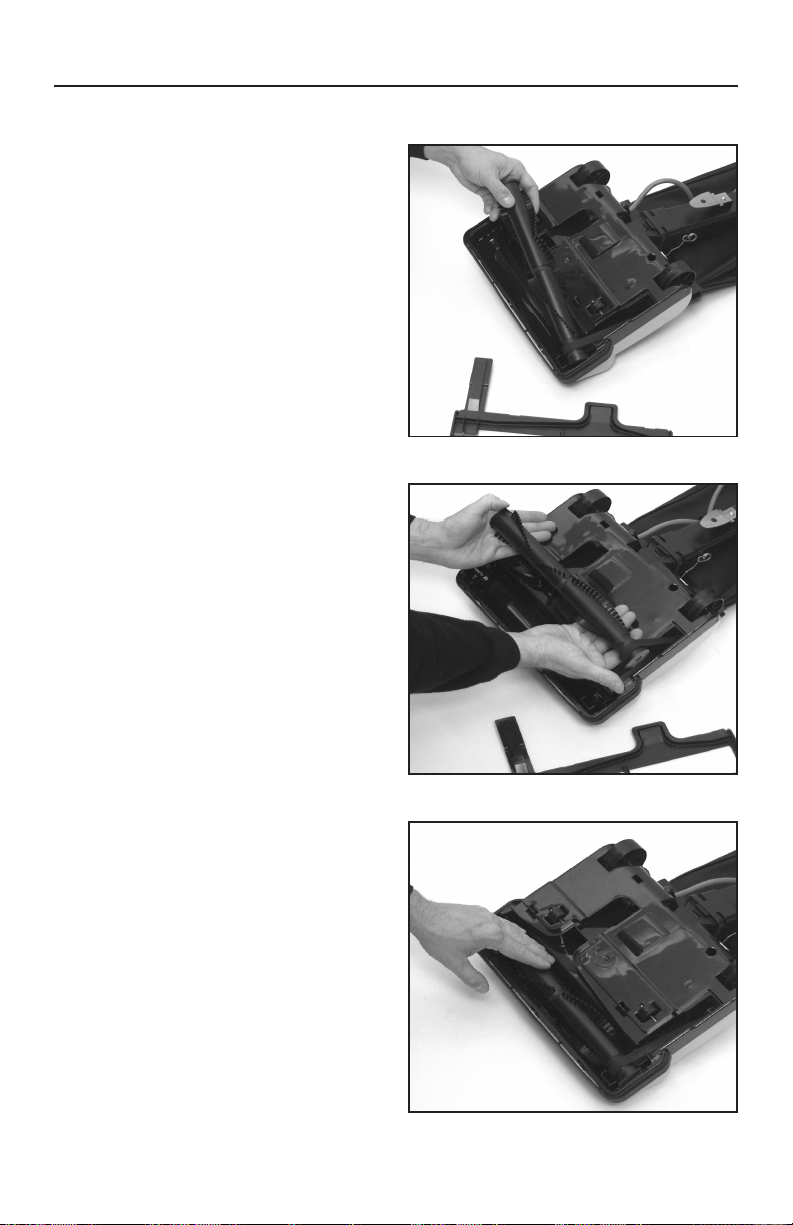

Change the Belt
CAUTION: To reduce the risk of injury
from moving parts, unplug the vacuum
before servicing.
• Turn the vacuum over and remove
the bottom plate (see “Removing and
Reinstalling the Bottom Plate” on
pg. 9).
• Remove the brushroll and the worn
or broken belt from the brushroll pulley
and the motor drive shaft (Fig. 1).
• Loop the new belt around the motor
drive shaft and the brushroll (Fig. 2).
• Reinstall the brushroll back into the
housing. Turn the brushroll by hand,
making sure the belt is not twisted and
all rotating parts move smoothly (Fig. 3).
• Reinstall the bottom plate (see “Removing
and Reinstalling the Bottom Plate” on pg. 9).
NOTE: To ensure maximum cleaning
efficiency, the belt should be checked
regularly to be sure it is in good condition.
Check to see if the belt is stretched, cracked,
or if excessive slipping is occurring. Replace
if needed.
Fig. 1
Fig. 2
Fig. 3
HOW TO

11

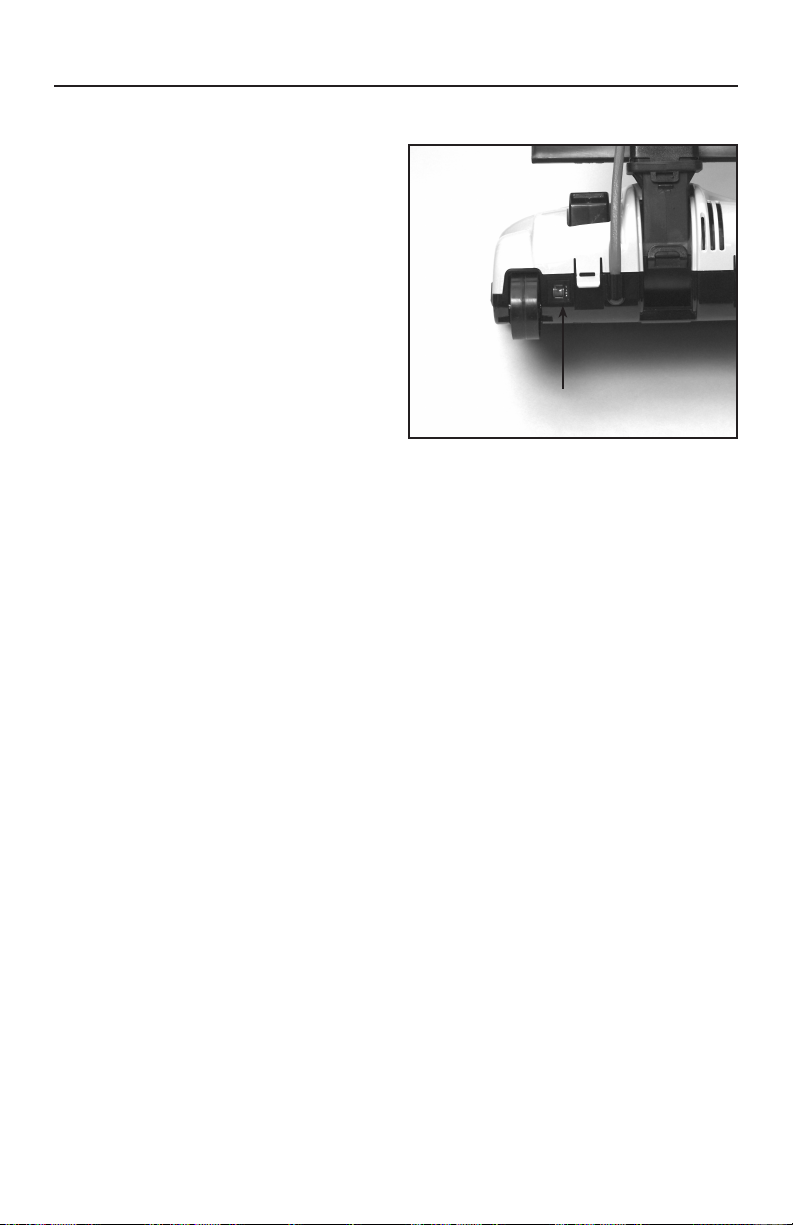

Reset the Circuit Breaker
Your vacuum features a circuit breaker
to protect the machine against damage
due to a surge in the electrical current.
Electrical surging can be a result of, though
not limited to a jammed motor fan.
Should your vacuum experience a jammed
brushroll with the circuit breaker tripping,
first turn the vacuum off and unplug the
unit. Inspect the brushroll by removing
the bottom plate (see “Removing and
Reinstalling the Bottom Plate” on pg. 9)
and remove any debris which may be
causing the jam. Reinstall the bottom
plate (see “Removing and Reinstalling
the Bottom Plate” on pg. 9), reset the
circuit breaker by pressing the Circuit
Breaker Reset Button (Fig. 1), plug in
power cord, and turn unit on. If the unit
fails to turn on, return it to an Authorized
Riccar Retailer for service.
Fig. 1
Circuit breaker
reset button
HOW TO

12
PROBLEM SOLVING GUIDE
Troubleshooting
WARNING! To reduce the risk of electrical shock or injury from moving parts,
unplug the vacuum before servicing or cleaning the vacuum.
CAUTION! To Reduce the Risk of Electric Shock, Do Not Handle Plug or Appliance
with Wet Hands.
PROBLEM CHECK POINT POSSIBLE SOLUTION
Vacuum won’t
turn on.
Power Cord Plug unit in firmly.
House Fuse or Breaker Check house fuse or breaker. Replace
fuse/reset breaker.
Needs Service Take to an Authorized Riccar Vacuum
Retailer.
Vacuum won’t
pick up or low
suction.
Vacuum Bag Replace full bag.
Belt Take to an Authorized Riccar Vacuum
Retailer.
Brushroll Replace worn brushroll.
Dust escaping
from vacuum Vacuum Bag Install bag properly. Review bag instillation (page 8).
Any other service should be performed by an Authorized Riccar Vacuum Retailer.
To locate your nearest Authorized Retailer, visit our website at
Riccar.com or call 888-674-2227.
Key Replacement Parts
• Genuine Paper Vacuum Bags: RSL-6
• Genuine HEPA Media Vacuum Bags: RFH-6
• Genuine Vacuum Belts: ULW-B2
For Best Performance
• Keep your vacuum clean and in good operating condition.
• Change vacuum bags once a month or when the bags are 2/3 full to maximize
cleaning performance.
• Always use genuine Riccar vacuum bags and replacement parts. Use of other
products may result in poor cleaning performance, potential vacuum cleaner
damage and may void vacuum warranty. Genuine products are designed for
maximum cleaning performance.
• Have your vacuum checked annually by your Authorized Riccar Retailer.
• Store your vacuum carefully in a dry area.
• For optimum cleaning performance and safety, follow your owner’s manual
instructions.

13
What is Covered:
This warranty covers any defects in material and workmanship in your new Riccar
vacuum and applies exclusively to the original purchaser.
How Long Coverage Lasts:
Warranty coverage for your Riccar SupraLite vacuum lasts three years. Household
models used commercially are only warranted for 90 days.
What is Not Covered:
• Damage to the vacuum which occurs from neglect, abuse, alterations, accident,
misuse or improper maintenance.
• Normal replacement items: belts, light bulbs and disposable bags.
What We Will Do:
This warranty provides, at no cost to you, all labor and parts to keep this vacuum
in correct operating condition during the warranted period.
How to Get Service:
Warranty service can only be obtained by presenting the vacuum to an Authorized
Riccar Retailer. A proof-of-purchase and product serial number will be required
before service is rendered. To locate your nearest service center, please call
888-674-2227 or visit Riccar.com.
THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY AND ALL OTHER
WARRANTIES WHETHER WRITTEN, ORAL, EXPRESSED OR IMPLIED, (INCLUDING
ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE). THIS WARRANTY DISCLAIMS LIABILITY FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES.
How State Law Applies:
This warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
Owner’s Warranty Information (keep this for your records)
Store name
Store Address City State Zip
Telephone Date of purchase
Serial number Model number
Register your warranty online at Riccar.com
WARRANTY

©2018 Tacony Corporation B503-2900D 11.18
Riccar.com
888-674-2227
1760 Gilsinn Lane
Fenton, MO 63026
