Riccar SupraLite R10S User manual

R10S, R10D, R10P & R10SAND
Owner’s Manual
R10S, R10D, R10P & R10SAND

.

1
Contents
Getting Started
Important Safety Instructions 2
Polarization Instructions 3
State of California Proposition 65 Warnings 3
Description of the Vacuum 4
Assembling the Vacuum 5
Operation
Reclining the Handle 6
On/Off Switch 6
Edge Cleaning 6
Automatic Carpet Height Adjustment 6
Bare Floor Cleaning 6
Maintenance and Care
Power Cord Care 7
Vacuuming Under Furniture 7
Replacing the Vacuum Bag 8
Removing/Reinstalling the Bottom Plate 9
Replacing the Agitator Belt 10
Lifetime Belt Protection 10
Brushroll Jam Indicator 11
Resetting the Circuit Breaker 12
Replacing the Squeegee 12
Annual Checkup 12
Problem Solving Guide
Troubleshooting 13
Visit Riccar Vacuums Online 13
How to Contact Your Authorized Retailer 13
Key Replacement Parts 13
For Best Performance 13
Warranty 14

2
IMPoRtAnt sAFetY InstRUCtIons
When using an electrical appliance, basic precautions should always be followed,
including the following:
READ ALL INSTRUCTIONS BEFORE
USING THIS APPLIANCE
The manufacturer cannot accept responsibility for damage
caused when the appliance is not used according to the
instructions, or for uses other than those for which it
was intended.
To reduce the risk of fire, electric shock or injury:
sAVe tHese InstRUCtIons.
IMPoRtAnt:
• Do not leave appliance when plugged in.
Unplug from outlet when not in use and
before servicing.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close
attention is necessary when used by or
near children.
• Use only as described in this manual.
• Do not use with damaged cord or plug.
If appliance is not working as it should,
has been dropped, damaged, left
outdoors, or dropped into water, return
it to your Authorized Riccar Retailer
for service.
• Do not pull or carry by cord, use cord as
a handle, close a door on the cord, or pull
cord around sharp edges or corners. Do
not run appliance over cord. Keep cord
away from heated surfaces.
• Do not unplug by pulling on cord. To
unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with
wet hands.
• Do not put any object into openings. Do
not use with any opening blocked; keep
free of dust, lint, hair and anything that may
reduce air flow.
• Keep hair, loose clothing, fingers and all
parts of body away from openings and
moving parts.
• Do not pick up anything that is burning or
smoking, such as cigarettes, matches or
hot ashes.
• Do not use without vacuum bag in place.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or
combustible liquids such as gasoline or
use in areas where they may be present.
• Do not attempt to service the unit while
appliance is plugged in.

3
PolARIzAtIon InstRUCtIons

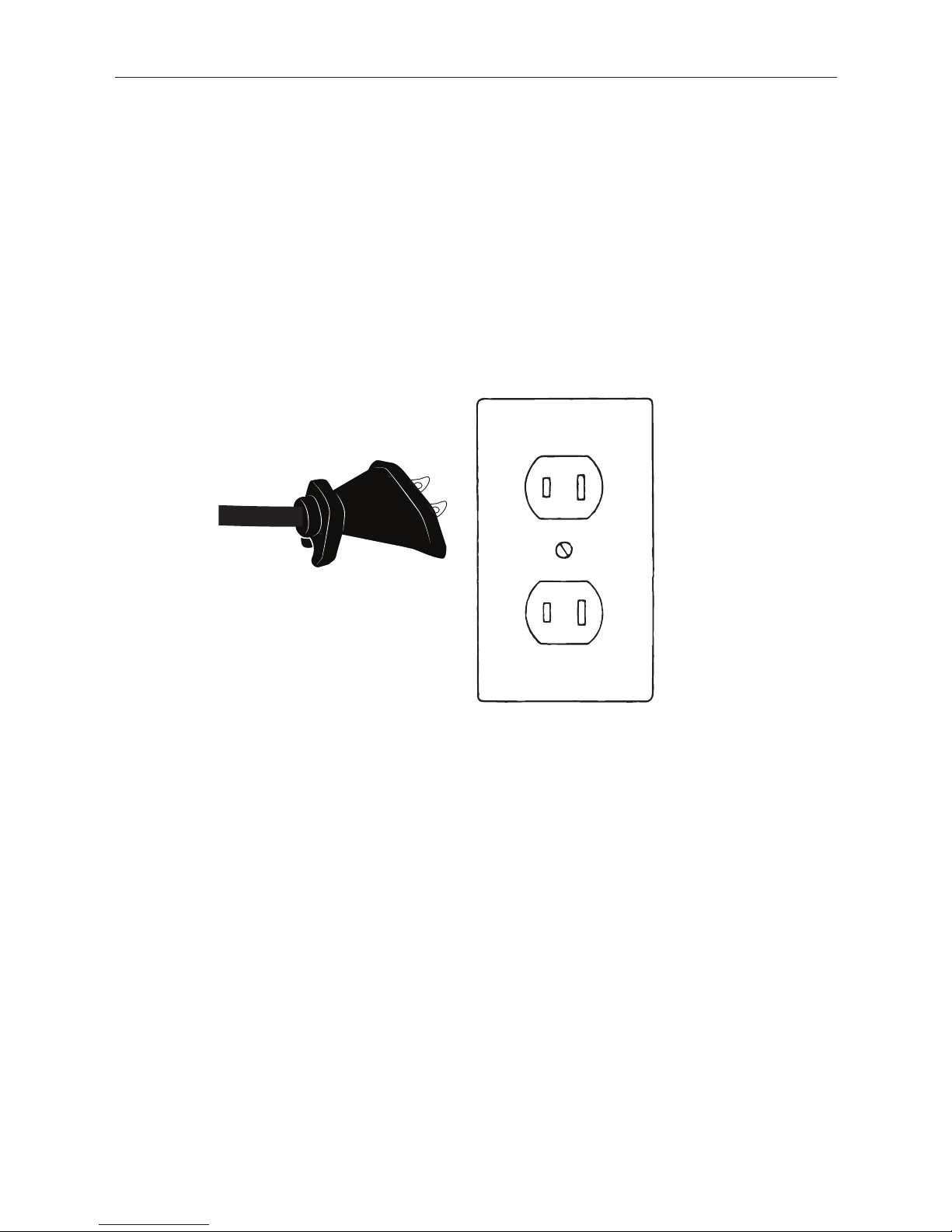

Power Cord, 2-Wire Polarized Cord
To reduce the risk of electric shock, this product is equipped with a polarized alternating
current line plug (a plug having one blade wider than the other). This plug will fit into the
power outlet only one way. This is a safety feature. If you are unable to insert the plug fully
into the outlet, try reversing the plug. If the plug should still fail to fit, contact a qualified
electrician to replace the obsolete outlet. Do not defeat the safety purpose of the
polarized plug.
State of California Proposition 65 Warnings:
WARNING: This product contains one or more chemicals known to the State of California to
cause cancer.
WARNING: This product contains one or more chemicals known to the State of California to
cause birth defects or other reproductive harm.

4

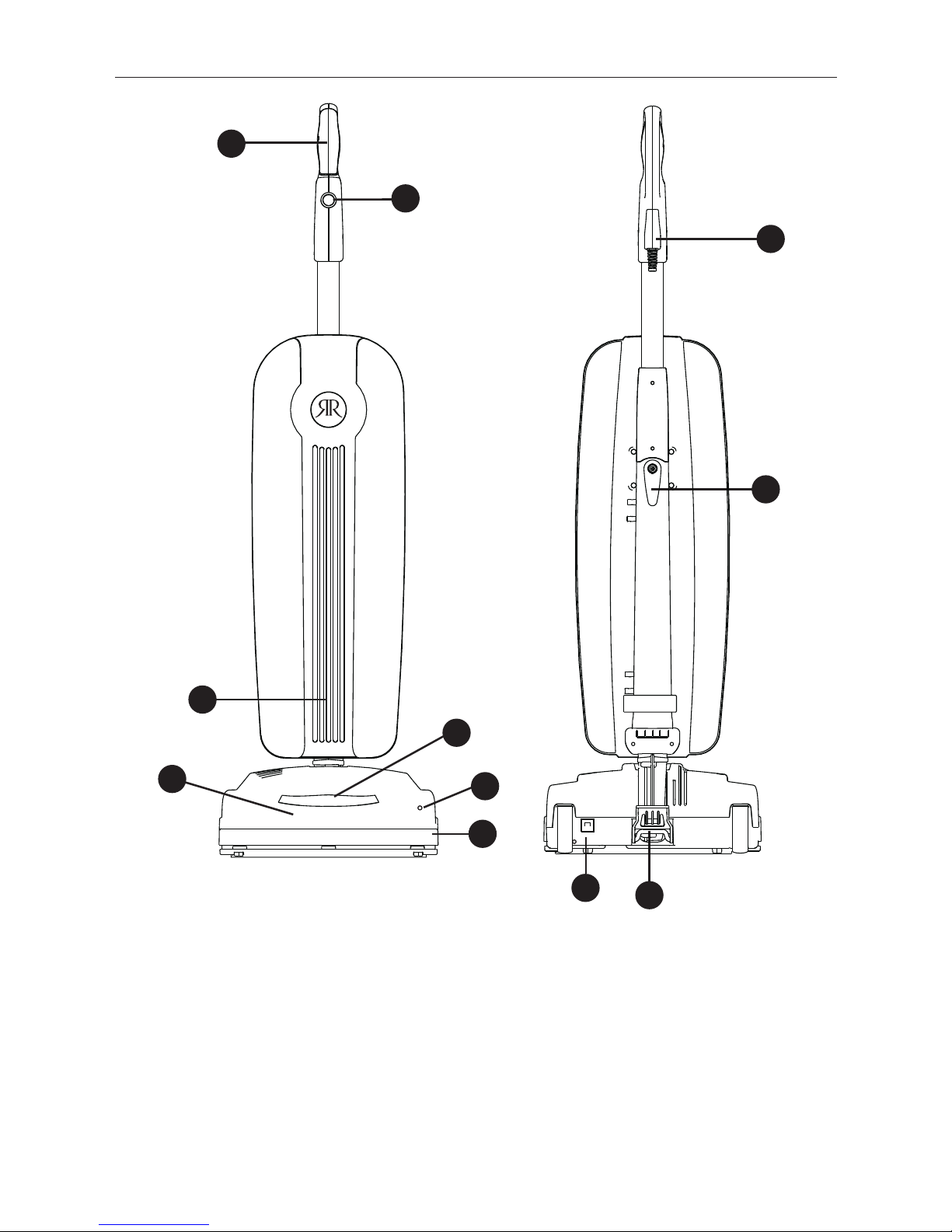

DesCRIPtIon oF tHe VACUUM
1 Ergonomic Handle
2 On/Off Power Switch
3 Bag Compartment
4 Vacuum Nozzle
5 Headlight
6 Furniture Guard
7 Brushroll Jam Indicator (models R10P and R10SAND only)
8 Circuit Breaker Reset Button (models R10S and R10D only)
9 Handle Release Pedal
10 Quick Release Cord Hook
11 Upper Cord Hook
4
3
1
2
5
6
7
10
9
8
11

5
AsseMblIng tHe VACUUM
Attaching the Handle to the Vacuum
NOTE: Do not plug in the vacuum until it is
completely assembled.
The vacuum cleaner and the handle are
packed separately and require assembly.
• Thread the cord through the lower and upper
cord guides on the back of the vacuum bag (Fig. 1).

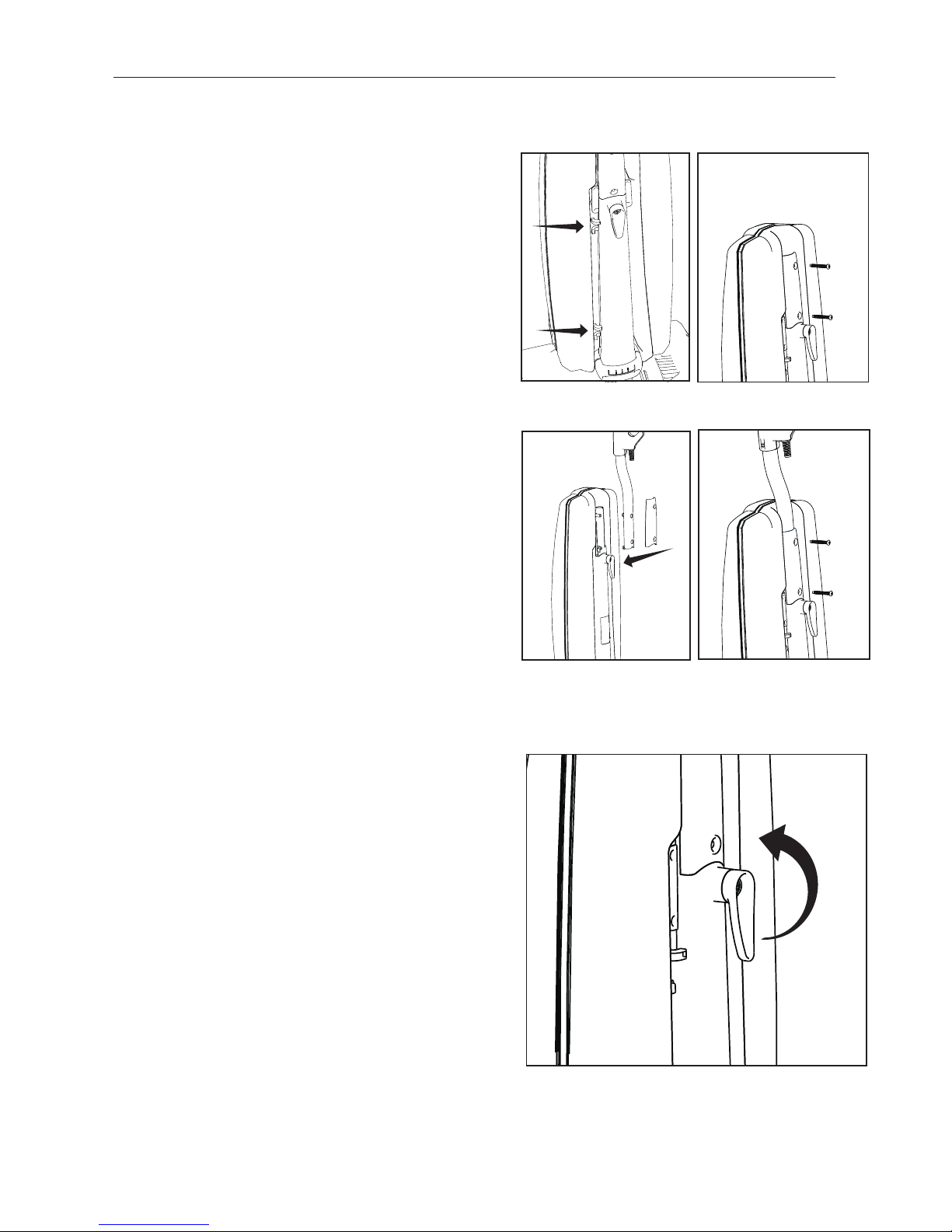

• Remove the handle bracket by removing the
two screws (Fig. 2).
• Place handle onto the back of the vacuum,
aligning holes with pegs (Fig. 3).
• Place the handle bracket back into position (Fig. 4).
• Secure with two screws removed in Step 2.
• Open the bag compartment to ensure a
vacuum bag is in place.
• Your vacuum is now ready for use.
• If storing the vacuum, wrap the cord clockwise
around the top and bottom cord hooks. Fasten
the plug to the wrapped cord using the channel
on the plug.
Unwinding the Power Cord
• The lower cord hook rotates to allow for
quick access to the power cord. Turn the
lower cord hook upward and you can quickly
drop the power cord to the floor without
unwinding it from the cord hooks.
• When storing the vacuum cleaner, turn the lower
cord hook to the downward position and wind the
power cord around the cord storage hooks.
DESCRIPTION
DRAWING SIZE:D
PART NUMBER
SHEET 1 OF 1
± .02
± .01
° 30" COMMON TO BE CONCETRIC TO .002
TACONY CORPORATION CLAIMS PROPRIETARY RIGHTS IN THE MATERIAL DISCLOSED HERE IN. THIS DRAWING IS ISSUED FOR ENGINEERING INFORMATION ONLY. IT MAY NOT BE REPRO- DUCED, NOR MAY THE INFORMATION HERE IN BE USED FOR MANUFACTURING PURPOSES WITHOUT WRITTEN PERMISSION FROM TACONY CORPORATION.
DESCRIPTION OF CHANGE
REV
PART NUMBER
SHEET
1 OF 1
A
B
C
D
12345678
78
DESCRIPTION
DRAWING SIZE:D
PART NUMBER
SHEET 1 OF 1
± .02
± .01
° 30" COMMON TO BE CONCETRIC TO .002
TACONY CORPORATION CLAIMS PROPRIETARY RIGHTS IN THE MATERIAL DISCLOSED HERE IN. THIS DRAWING IS ISSUED FOR ENGINEERING INFORMATION ONLY. IT MAY NOT BE REPRO- DUCED, NOR MAY THE INFORMATION HERE IN BE USED FOR MANUFACTURING PURPOSES WITHOUT WRITTEN PERMISSION FROM TACONY CORPORATION.
DESCRIPTION OF CHANGE
REV
PART NUMBER
SHEET
1 OF 1
A
B
C
D
12345678
78
Fig. 2
Fig. 3 Fig. 4
MATERIAL
DRAWN
ISSUED
SCALE
FINISH
DATE
DATE
DO NOT SCALE
UNLESS OTHERWISE SPECIFIED
DESCRIPTION
DRAWING SIZE:D
PARTNUMBER
SHEET 1 OF 1
X.X ± .02 IN RADII X.X ± .02
X.XX ± .01 IN X,XX ± .01
X.XXX ± .005 IN MACHINE SURFACE
X.XXXX ± .0005 IN BREAK SHARP CORNERS TO .010 MAX
± 0 ° 30" COMMON TOBECONCETRIC TO .002
TACONYCORPORATION CLAIMS PROPRIETARY
RIGHTSIN THE MATERIAL DISCLOSED HERE IN.
THISDRAWING IS ISSUED FOR ENGINEERING
INFORMATIONONLY. IT MAY NOT BE REPRO-
DUCED,NOR MAY THE INFORMATION HERE IN
BEUSED FOR MANUFACTURING PURPOSES
WITHOUTWRITTEN PERMISSION FROM TACONY
CORPORATION.
1.000
TACONY CORPORATION
1760 Gilsinn Lane, Fenton, MO 63026
PARTNUMBER
DESCRIPTIONOF CHANGE
REV
PARTNUMBER
SHEET
1 OF 1
A
B
C
D
12345678
A
B
C
D
12345678
Fig. 1
DESCRIPTION
DRAWING SIZE:D
PART NUMBER
SHEET 1 OF 1
± .02
± .01
° 30" COMMON TO BE CONCETRIC TO .002
TACONY CORPORATION CLAIMS PROPRIETARY
RIGHTS IN THE MATERIAL DISCLOSED HERE IN.
THIS DRAWING IS ISSUED FOR ENGINEERING
INFORMATION ONLY. IT MAY NOT BE REPRO-
DUCED, NOR MAY THE INFORMATION HERE IN
BE USED FOR MANUFACTURING PURPOSES
WITHOUT WRITTEN PERMISSION FROM TACONY
CORPORATION.
DESCRIPTION OF CHANGE
REV
PART NUMBER
SHEET
1 OF 1
A
B
C
D
125678
78

6
oPeRAtIon
Reclining the Handle
• Press the handle release pedal located on the
back of the vacuum with your foot to recline the
handle (Fig. 1).
On/Off Switch
• The power switch located on the vacuum handle, is a
three-way switch (Fig. 2). The middle position is the
“Off” setting, the rear position is the “On” setting and
the forward position is for “Maximum Power” (Fig. 3).
• Use the “Maximum Power” setting for carpet cleaning.
Use the “On” setting for cleaning bare floors and throw
rugs. Always turn the vacuum cleaner to the “Off”
setting before unplugging it from the electrical outlet.
Edge Cleaning
The edge cleaning feature provides improved cleaning
near walls and stationary furniture. For maximum edge
cleaning, place the left side of the nozzle, from the user’s
perspective, against the wall or stationary furniture.
Automatic Carpet Height Adjustment
Your vacuum is designed with an automatic self-
adjusting nozzle. No manual adjustments are required.
The height of the nozzle automatically adjusts to the
flooring surface. This self-adjusting feature allows the
nozzle to float evenly over all flooring surfaces.
Bare Floor Cleaning
Your vacuum is equipped with a squeegee on the bottom
of the vacuum to improve its effectiveness in cleaning
bare floors (Fig. 4). When cleaning tile, hardwood, vinyl,
etc., use the “On” setting for best results.
MATERIAL
DRAWN
ISSUED
SCALE
FINISH
DATE
DATE
DO NOT SCALE
UNLESS OTHERWISE SPECIFIED
DESCRIPTION
DRAWING SIZE:D
PARTNUMBER
SHEET 1 OF 1
X.X ± .02 IN RADIIX.X ± .02
X.XX ± .01IN X,XX ± .01
X.XXX ± .005 IN MACHINE SURFACE
X.XXXX ± .0005 IN BREAK SHARP CORNERS TO .010 MAX
± 0 ° 30" COMMON TOBE CONCETRIC TO .002
TACONYCORPORATION CLAIMS PROPRIETARY
RIGHTSIN THE MATERIAL DISCLOSED HERE IN.
THISDRAWING IS ISSUED FOR ENGINEERING
INFORMATIONONLY. IT MAY NOT BE REPRO-
DUCED,NOR MAY THE INFORMATION HERE IN
BEUSED FOR MANUFACTURING PURPOSES
WITHOUTWRITTEN PERMISSION FROM TACONY
CORPORATION.
1.000
TACONY CORPORATION
1760 Gilsinn Lane, Fenton, MO 63026
PARTNUMBER
DESCRIPTIONOF CHANGE
REV
PARTNUMBER
SHEET
1 OF 1
A
B
C
D
12345678
A
B
C
D
12345678
BYECNNODATEREV
5.000SCALE
Fig. 2
Fig. 1
Fig. 3
MATERIAL
DRAWN
ISSUED
SCALE
FINISH
DATE
DATE
DO NOT SCALE
UNLESS OTHERWISE SPECIFIED
DESCRIPTION
DRAWING SIZE:D
PART NUMBER
SHEET 1 OF 1
X.X ± .02 IN RADII X.X ± .02
X.XX ± .01 IN X,XX ± .01
X.XXX ± .005 IN MACHINE SURFACE
X.XXXX ± .0005 IN BREAK SHARP CORNERS TO .010 MAX
± 0 ° 30" COMMON TO BE CONCETRIC TO .002
TACONY CORPORATION CLAIMS PROPRIETARY
RIGHTS IN THE MATERIAL DISCLOSED HERE IN.
THIS DRAWING IS ISSUED FOR ENGINEERING
INFORMATION ONLY. IT MAY NOT BE REPRO-
DUCED, NOR MAY THE INFORMATION HERE IN
BE USED FOR MANUFACTURING PURPOSES
WITHOUT WRITTEN PERMISSION FROM TACONY
CORPORATION.
1.000
TACONY CORPORATION
1760 Gilsinn Lane, Fenton, MO 63026
PART NUMBER
DESCRIPTION OF CHANGE
REV
PART NUMBER
SHEET
1 OF 1
A
B
C
D
12345678
A
B
C
D
12345678
BYECN NODATEREV
5.000SCALE
ON
OFF
MAX
POWER
Fig. 4
This vacuum is intended for household use only.
DESCRIPTION
DRAWING SIZE:D
PART NUMBER
SHEET 1 OF 1
± .02
± .01
° 30" COMMON TOBE CONCETRIC TO .002
TACONY CORPORATION CLAIMS PROPRIETARY
RIGHTS IN THE MATERIAL DISCLOSED HERE IN.
THIS DRAWING IS ISSUED FOR ENGINEERING
INFORMATION ONLY. IT MAY NOT BE REPRO-
DUCED, NOR MAY THE INFORMATION HERE IN
BE USED FOR MANUFACTURING PURPOSES
WITHOUT WRITTEN PERMISSION FROM TACONY
CORPORATION.
DESCRIPTION OF CHANGE
REV
PART NUMBER
SHEET
1 OF 1
A
B
C
D
12345678
78

7
Fig. 2
Power Cord Care
• If the cord or plug has any apparent damage,
refrain from using the vacuum. Please visit an
Authorized Riccar Retailer for a new cord
or plug.
• When the vacuum is in use, hold the cord to
keep from running over it.
• Avoid obstructions and do not pull the cord
around sharp edges or corners.
• Always keep the cord away from heated
surfaces and never close doors on it as this
may cause damage to the wiring.
• To unplug, always grasp the plug, not the cord.
Vacuuming Under Furniture
Your vacuum will lay flat on the floor for effective
cleaning under beds and tables.
• Press the handle release pedal once for normal
vacuum cleaning (Fig. 1).
• Continue to lower the handle to enable the
vacuum to lay flat on the floor (Fig. 2).
MAIntenAnCe AnD CARe
DESCRIPTION
DRAWING SIZE:D
PART NUMBER
SHEET 1 OF 1
± .02
± .01
° 30" COMMON TO BE CONCETRIC TO .002
TACONY CORPORATION CLAIMS PROPRIETARY
RIGHTS IN THE MATERIAL DISCLOSED HERE IN.
THIS DRAWING IS ISSUED FOR ENGINEERING
INFORMATION ONLY. IT MAY NOT BE REPRO-
DUCED, NOR MAY THE INFORMATION HERE IN
BE USED FOR MANUFACTURING PURPOSES
WITHOUT WRITTEN PERMISSION FROM TACONY
CORPORATION.
DESCRIPTION OF CHANGE
REV
PART NUMBER
SHEET
1 OF 1
A
B
C
D
12345678
78
Fig. 1

8

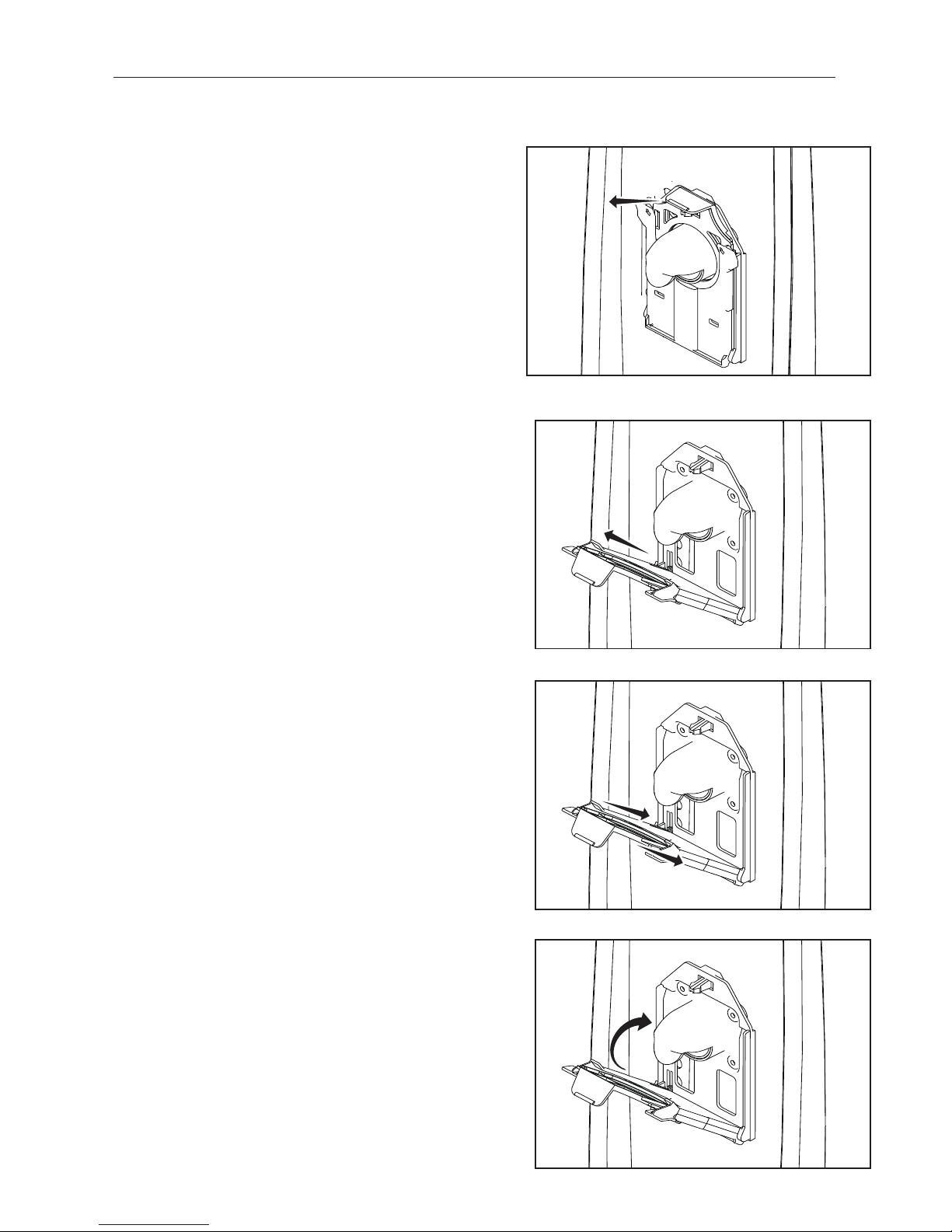

Replacing the Vacuum Bag
NOTE: Unplug the vacuum cleaner from the
electrical outlet before changing the bag.
• Unzip the bag compartment.
• Remove the used vacuum bag by pulling
the green bag collar tab away from the
vacuum (Fig. 1). Slide the used bag out
of the bag holder which automatically
seals the bag opening (Fig. 2). Discard
the used bag.
• To install a new bag, slide the bottom of
the green bag collar into the bag holder
until it “snaps” into place (Fig. 3).
• Push the top of the bag collar upward
until the collar “snaps” into place on
the vacuum (Fig. 4).
• Tuck the bag corners into the bag
compartment then zip the bag
compartment closed.
MATERIAL
DRAWN
ISSUED
SCALE
FINISH
DATE
DATE
DESCRIPTION
DRAWING SIZE:D
PART NUMBER
SHEET 1 OF 1
.02 IN RADII X.X ± .02
.01 IN X,XX ± .01
.005 IN MACHINE SURFACE
.0005 IN BREAK SHARP CORNERS TO .010 MAX
0 ° 30" COMMON TOBE CONCETRIC TO .002
TACONY CORPORATION CLAIMS PROPRIETARY
RIGHTS IN THE MATERIAL DISCLOSED HERE IN.
THIS DRAWING IS ISSUED FOR ENGINEERING
INFORMATION ONLY. IT MAY NOT BE REPRO-
DUCED, NOR MAY THE INFORMATION HERE IN
BE USED FOR MANUFACTURING PURPOSES
WITHOUT WRITTEN PERMISSION FROM TACONY
CORPORATION.
1.000
A
678
Fig. 1
Fig. 2
MAIntenAnCe AnD CARe
MATERIAL
DRAWN
ISSUED
SCALE
FINISH
DATE
DATE
DESCRIPTION
DRAWING SIZE:D
PART NUMBER
SHEET 1 OF 1
.02 IN RADII X.X ± .02
.01 IN X,XX ± .01
.005 IN MACHINE SURFACE
.0005 IN BREAK SHARP CORNERS TO .010 MAX
0 ° 30" COMMON TO BE CONCETRIC TO .002
TACONY CORPORATION CLAIMS PROPRIETARY
RIGHTS IN THE MATERIAL DISCLOSED HERE IN.
THIS DRAWING IS ISSUED FOR ENGINEERING
INFORMATION ONLY. IT MAY NOT BE REPRO-
DUCED, NOR MAY THE INFORMATION HERE IN
BE USED FOR MANUFACTURING PURPOSES
WITHOUT WRITTEN PERMISSION FROM TACONY
CORPORATION.
1.000
A
678
Fig. 3
MATERIAL
DRAWN
ISSUED
SCALE
FINISH
DATE
DATE
DESCRIPTION
DRAWING SIZE:D
PART NUMBER
SHEET 1 OF 1
.02 IN RADII X.X ± .02
.01 IN X,XX ± .01
.005 IN MACHINE SURFACE
.0005 IN BREAK SHARP CORNERS TO .010 MAX
0 ° 30" COMMON TO BE CONCETRIC TO .002
TACONY CORPORATION CLAIMS PROPRIETARY
RIGHTS IN THE MATERIAL DISCLOSED HERE IN.
THIS DRAWING IS ISSUED FOR ENGINEERING
INFORMATION ONLY. IT MAY NOT BE REPRO-
DUCED, NOR MAY THE INFORMATION HERE IN
BE USED FOR MANUFACTURING PURPOSES
WITHOUT WRITTEN PERMISSION FROM TACONY
CORPORATION.
1.000
A
678
Fig. 4
MATERIAL
DRAWN
ISSUED
SCALE
FINISH
DATE
DATE
DESCRIPTION
DRAWING SIZE:D
PART NUMBER
SHEET 1 OF 1
.02 IN RADII X.X ± .02
.01 IN X,XX ± .01
.005 IN MACHINE SURFACE
.0005 IN BREAK SHARP CORNERS TO .010 MAX
0 ° 30" COMMON TO BE CONCETRIC TO .002
TACONY CORPORATION CLAIMS PROPRIETARY
RIGHTS IN THE MATERIAL DISCLOSED HERE IN.
THIS DRAWING IS ISSUED FOR ENGINEERING
INFORMATION ONLY. IT MAY NOT BE REPRO-
DUCED, NOR MAY THE INFORMATION HERE IN
BE USED FOR MANUFACTURING PURPOSES
WITHOUT WRITTEN PERMISSION FROM TACONY
CORPORATION.
1.000
A
678

9
MAIntenAnCe AnD CARe
MATERIAL
DRAWN
ISSUED
SCALE
FINISH
DATE
DATE
DO NOT SCALE
UNLESS OTHERWISE SPECIFIED
DESCRIPTION
DRAWING SIZE:D
PARTNUMBER
SHEET 1 OF 1
X.X ± .02IN RADII X.X ± .02
X.XX ± .01 IN X,XX ± .01
X.XXX ± .005 IN MACHINE SURFACE
X.XXXX ± .0005 IN BREAK SHARP CORNERS TO .010 MAX
± 0 ° 30" COMMON TO BE CONCETRIC TO .002
TACONYCORPORATION CLAIMS PROPRIETARY
RIGHTSIN THE MATERIAL DISCLOSED HERE IN.
THISDRAWING IS ISSUED FOR ENGINEERING
INFORMATIONONLY. ITMAY NOT BE REPRO-
DUCED,NOR MAY THE INFORMATION HERE IN
BEUSED FOR MANUFACTURING PURPOSES
WITHOUTWRITTEN PERMISSION FROM TACONY
CORPORATION.
1.000
TACONY CORPORATION
1760 Gilsinn Lane, Fenton, MO 63026
PARTNUMBER
DESCRIPTIONOF CHANGE
REV
PARTNUMBER
SHEET
1 OF 1
A
B
C
D
12345678
A
B
C
D
12345678
Fig. 1
Fig. 2
Removing and Reinstalling the
Bottom Plate
WARNING! To Reduce the Risk of Electrical
Shock or Injury From Moving Parts, Unplug
Before Servicing or Cleaning.
To Remove the Bottom Plate:
• Press the handle release pedal to place the
vacuum cleaner in the flat position.
• Turn the vacuum cleaner over, exposing the
bottom plate.
• Turn the two screws a quarter turn to release the
bottom plate (Fig. 1). Remove the bottom plate.
• Reinstall the bottom plate by aligning the front
edge of the bottom plate into the notches inside
the nozzle housing (Fig. 2).
• Press the bottom plate into position until the
plate “clicks” on both sides. Tighten the two
screws a quarter turn to secure the bottom plate.

10
Fig. 1
Fig. 2
MAIntenAnCe AnD CARe

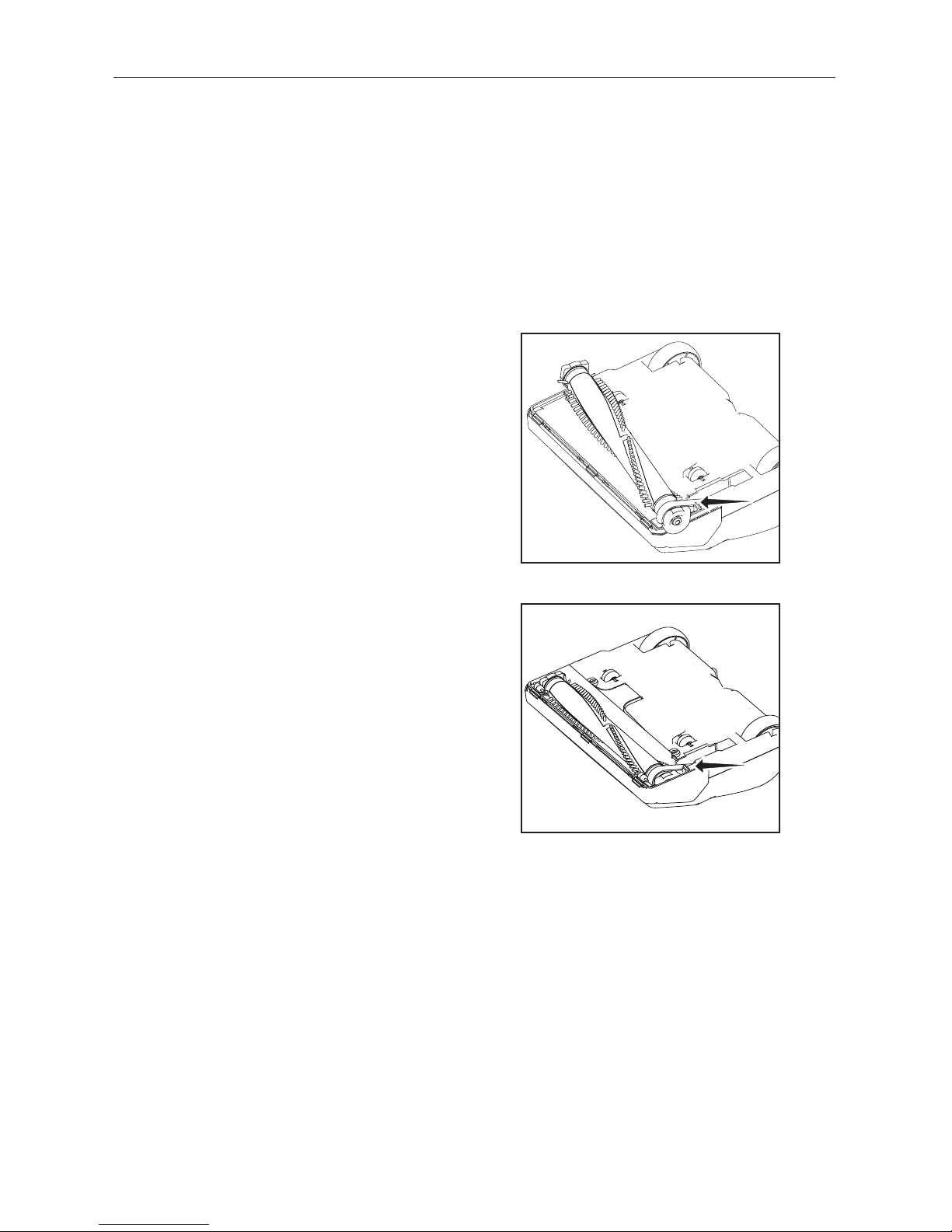

Replacing the Agitator Belt
(Models R10S and R10D only)
WARNING! To Reduce the Risk of Electrical
Shock or Injury From Moving Parts, Unplug
Before Servicing or Cleaning.
NOTE: To ensure maximum cleaning
efficiency, the belt should be checked
regularly to be sure it is in good condition.
Check to see if the belt is stretched,
cracked, or if excessive slipping is
occurring. Replace if needed.
• Remove the bottom plate (see page 9).
• Remove the brushroll and the worn or
broken belt from the brushroll pulley and
the motor drive shaft (Fig. 1).
• Loop the new belt around the motor
drive shaft and the brushroll (Fig. 2).
• Reinstall the brushroll into the housing.
Turn the brushroll by hand, making sure
the belt is not twisted and all rotating
parts move smoothly.
• Reinstall the bottom plate (see page 9).
Lifetime Belt Protection Warranty
(Models R10P and R10SAND only)
Your vacuum belt is covered with a lifetime
warranty. Should the vacuum belt break,
simply bring your vacuum to your Authorized
Riccar Retailer for a free replacement.

11
Brushroll Jam Indicator
(Models R10P and R10SAND only)
If an object, such as a throw rug or article of
clothing is ever picked up into your vacuum,
the vacuum will sense this “jammed brushroll”
condition and turn off the brushroll. When this
happens, the Brushroll Jam Indicator light on the
top of the nozzle will flash in red.
• Turn off the vacuum and remove the cause of
the jam. Turn the vacuum back on.
• If the brushroll is free of obstructions and the
Brushroll Jam Indicator light is still flashing,
it’s likely the clogged condition is located in
the vacuum motor fan. If so, please take your
SupraLite to an Authorized Riccar Retailer for
service.
MAIntenAnCe AnD CARe

12
Resetting the Circuit Breaker
(Models R10S and R10D only)
WARNING! To Reduce the Risk of Electrical
Shock or Injury From Moving Parts, Unplug
Before Servicing or Cleaning.
Your vacuum features a circuit breaker to
protect the machine against damage due to
a surge in the electrical current. Electrical
surging can be a result of, though not limited
to, a jammed motor fan.
Should your vacuum cleaner experience
a jammed brushroll with the circuit breaker
tripping, first turn the vacuum off and unplug
the unit. Inspect the brushroll by removing the
bottom plate (see page 9) and remove any
debris that may be causing the jam. Reinstall the
bottom plate (see page 9) and reset the circuit
breaker by pressing the Circuit Breaker Reset
Button. Plug in the power cord and turn on the
vacuum. If the vacuum fails to turn on, visit an
Authorized Riccar Retailer for assistance.
Replacing the Squeegee
If your squeegee splits or begins to look worn,
simply slide the worn squeegee from its track
and slide a new one into the track. If you have
trouble installing the new squeegee, please
visit an Authorized Riccar Retailer for help.
Annual Checkup
To keep your vacuum in peak operating
condition, it is recommended you bring
it to an Authorized Riccar Retailer for an
annual checkup. The Retailer will conduct a
comprehensive examination to ensure your
vacuum is in top operating condition.
MAIntenAnCe AnD CARe
Circuit Breaker
Reset Button

13
PRobleM solVIng gUIDe
PROBLEM
Vacuum won’t turn on
Vacuum won’t pick up or
low suction
Dust escaping from
vacuum
POSSIBLE REASON
• Power cord not rmly
plugged in
• Blown fuse or tripped
breaker
• Needs service
• Vacuum bag full
• Broken belt
• Worn brushroll
• Vacuum bag not installed
properly
POSSIBLE SOLUTION
• Plug cord in rmly
• Check house fuse or
breaker. Replace fuse/
reset breaker.
• Take to Authorized
Riccar Retailer
• Install new bag
• Replace belt
• Replace brushroll
• Install bag properly.
Review bag installation
(page 8).
Troubleshooting
Any other service should be performed by an Authorized Riccar Retailer.
To locate your nearest Authorized Riccar Retailer visit our website
at www.Riccar.com or call 888.6.RICCAR.
• Keep your vacuum clean and in good operating condition.
• Change the vacuum bag once a month or when the bag is 2/3 full to maximize cleaning performance.
• Always use genuine vacuum bags and replacement parts. Use of other products may result in poor
cleaning performance, potential vacuum cleaner damage and may void vacuum warranty. Genuine
products are designed for maximum cleaning performance.
• Have your vacuum checked annually by your Authorized Riccar Retailer.
• Store your vacuum carefully in a dry area.
• For optimum cleaning performance and safety, follow your owner’s manual instructions.
Key Replacement Parts
• Genuine HEPA Media Vacuum Bags: RLH-6
• Genuine Vacuum Belts: R10B-2
For Best Performance
WARNING! To Reduce the Risk of Electrical Shock or Injury From Moving Parts, Unplug
Before Servicing or Cleaning.
CAUTION! To Reduce the Risk of Electric Shock, Do Not Handle Plug or Appliance with Wet Hands.

14
WARRAntY
What is Covered:
This warranty covers any defects in material and workmanship in your new Riccar vacuum
and applies exclusively to the original purchaser.
How Long Coverage Lasts:
Warranty coverage for R10S and R10D lasts four years. R10P and R10SAND lasts 5 years.
Household models used commercially are only warranted for 90 days.
What is Not Covered:
• Damage to the vacuum which occurs from neglect, abuse, alterations, accident,
misuse or improper maintenance.
• Normal replacement items: disposable bags, belts (models R10S and R10D only)
and light bulbs.
What We Will Do:
This warranty provides, at no cost to you, all labor and parts to keep this vacuum in
correct operating condition during the warranted period.
How to Get Service:
Warranty service can only be obtained by presenting the vacuum to an Authorized
Riccar Retailer. A proof-of-purchase and product serial number will be required before
service is rendered. To locate your nearest service center, please call 1-888-6-RICCAR
or visit www.Riccar.com.
THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY AND ALL OTHER WARRANTIES
WHETHER WRITTEN, ORAL, EXPRESSED OR IMPLIED, (INCLUDING ANY WARRANTY
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE). THIS WARRANTY
DISCLAIMS LIABILITY FOR INCIDENTAL, OR CONSEQUENTIAL DAMAGES.
How State Law Applies:
This warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
Register your warranty online at www.Riccar.com

15
oWneR’s WARRAntY InFoRMAtIon
keep this for your records…
Date of purchase
Serial number
Model number
Purchased from:
Store name
Address
City, State, Zip
Telephone

16
notes

1717

www.Riccar.com
B503-7000 10.13©2013 Tacony Corporation
