RICE HYDRO DIRTDAWG-9HON-T User manual

Web: ricehydro.com • Email: [email protected] • Phone: [phone]
POST HOLE DIGGERS •POST PULLERS •POST POUNDERS •ACCESSORIES
Auger bits sold separately
POST HOLE DIGGERS
Got holes, just whistle for the DAWG…
The “DIRTDAWG” a contractor’s best friend. One and two-man units, towable and handheld,
hydraulic and mechanical. All units engineered with precision, high-quality components, and
functions, providing you with rugged, durable, and dependable equipment.Accessories
include a variety of adapters, auger bits, extensions, teeth and display stands, along with post
pounders and pullers.
DIRTDAWG-9HON-T
• 9 GPM, 351 ft lbs. torque, 83 RPM.
• Three-year warranty from manufacturers defect.
• Bit diameters from 2 to 18 inch,
lengths available in 36” or 42”.
• Telescoping handle, twists 180 degrees for accurate digging
on hills and slopes.
• Forward and reverse auger drive operation.
• Integrated locking tow hitch, allows for towing at
highway speeds, bearing buddies.
• Axle length 44” for digging and towing stability.
Retracts to 35 ½” access through gates,
walkways, and tight spaces.
• Made in America from components
sourced in the USA and globally.

DIRTDAWG -TM11
• 190 ft lbs. torque.
• One-year warranty from manufacturers defect.
• Bit diameters from 2 to 12 inch, lengths available
in 36” or 42”.
• Oil sight glass, for quick fill and level control.
• Timken tapered roller bearings, less maintenance
and longer life.
• All gear drive transmission for maximum power.
• Centrifugal clutch slips when
encountering digging obstruction.
• Engine Kill Switch from both operator positions.
• Made in America from components
sourced in the USA and globally.
DIRTDAWG-CUB
• One-year warranty from manufacturers defect.
• Compact lightweight design.
• Hip Saver Pad.
• Stand-Alone Frame for easy storage on shelf.
• PROGRIP hand grips.
• Made in America from components sourced in the
USA and globally.
• Auger bits available: 6” x 36”
8” x 36”
8” x 36” ice fishing bit.
Stand and auger bits sold separately
Stand and auger bits sold separately

Auger Bits available in 6”, 8”, 10” or 12” diameter with either
36” or 42” length. Standard 7/8” square drive,
with various drive styles available.
Adapters styles available in muliple configurations to take
advantage of your existing auger bit inventory.
Extensions available in 6”, 12”, 24” and 36” lengths.
Optional drive styles available.
(Maximum extension on TM11 unit is 12”)
Auger teeth and pilot bits available in several different
styles and sizes, to meet all your digging needs.
TM-11 STAND
Heavy duty welded steel framework, with a black powder
coated finish. Designed for quick and easy storage of your
DIRTDAWG-TM11 and related auger bits. This stand holds the
unit with attached bit, and four additional auger bits.
DIRTDAWG-CUB ACCESSORIES
The DIRTDAWG-CUB is available with three auger bit options,
6 or 8-inch, or “Ice fishing” auger bit with dual carbide steel
blades. Welded industrial steel, with a powder coated finish.
Designed for maximum digging power.
Replacement blades available.
DIRTDAWG-9HON-T and DIRTDAWG-TM11 ACCESSORIES

DIRTDAWG-CUB STAND
Heavy duty welded steel framework, with a black powder
coated finish. Designed for quick and easy storage of your
DIRTDAWG-CUB and related auger bits. The CUB stand holds
the unit with attached bit, and two additional auger bits.
POST PULLERS
Manufactured of heavy duty welded steel. Two-piece
construction eliminates common pinch points. Well balanced 6”
base. Durable powder coated finish.
Styles include: T-Post Puller
Choker Puller
Combo T-Post and Choker Puller
POST POUNDERS
Ergonomically designed with large handles for comfortable
gripping, minimizes force and vibration felt by the operator.
Available in three sizes:
2” = 15 Pounds of Force
2 & ½” = 22 Pounds of Force
3” = 37 Pounds of Force
3500 Arrowhead Drive • Carson City • Nevada 89706
Web: ricehydro.com • Email: [email protected] • Phone: [phone] • Fax: [phone]
Combo Package Available
Are you ready to run… with the Big DAWGS!

(1) LEFT HAND MARKED “OPERATOR” HANDLE
(1) MARKED “ASSISTANT” KILL SWITCH ASSISTANTS HANDLE
(1) MARKED “LEAN ON THESE HANDLES”
(1) RIGHT HAND THROTTLE HANDLE
(1) TRANSMISSION HONDA ENGINE
ASSEMBLY INSTRUCTIONS
RECOMMENDED TOOLS:
½” WRENCH ½” SOCKET RACHET SCREWDRIVER

PLACE TRANSMISSION HONDA ENGINE ON A
SECURE TABLE FOR ASSEMBLY. CONNECT TWO
HANDLES ON ONE SIDE THEN CONNECT THE
OTHER TWO ON OPPOSITE SIDES TO BALANCE.
Step 1. CONNECT RIGHT HAND THROTTLE
HANDLE WITH LABELED THROTTLE SIDE OF
TRANSMISSION
Connect OPERATOR RIGHT HAND THROTTLE into
TRANSMISSION HONDA ENGINE where it says
THROTTLE SIDE. Place anti-vibration vinyl tubing between
handles connection and transmission. Use Wrench to secure
tightly in place with bolts, nuts & washers provided. *Note,
right hand throttle handle is the only one that the handle can
twist.
Step 2. CONNECT LEFT HAND HANDLE
LABELED “OPERATOR” TO SIDE LABELED
OPERATOR ON TRANSMISSION
Connect the handle marked “OPERATOR” into
TRANSMISSION HONDA ENGINE where it says
OPERATOR in a position directly to the left of the marked
throttle handle. Place anti-vibration vinyl tubing between
handles connection and transmission. Use Wrench to secure
tightly in place with bolts, nuts & washers provided.
Step 3. CONNECT LEFT SIDE HANDLE
LABELED “ASSISTANT” TO SIDE LABELED
ASSISTANT ON TRANSMISSION
Move around to the “ASSISTANT” side of your
TRANSMISSION HONDA ENGINE and securely connect the
assistant left side handle. Place anti-vibration vinyl tubing
between handles connection and transmission. Use Wrench to
secure tightly in place with bolts, nuts & washers provided
Step 4. CONNECT RIGHT HAND LEAN ON THIS
HANDLE TO UNLABELED SIDE ON TRANSMISSION
Connect the handle marked “LEAN ON THIS HANDLE”.
Place anti-vibration vinyl tubing between handles connection
and transmission. Use Wrench to secure tightly in place with
bolts, nuts & washers provided.

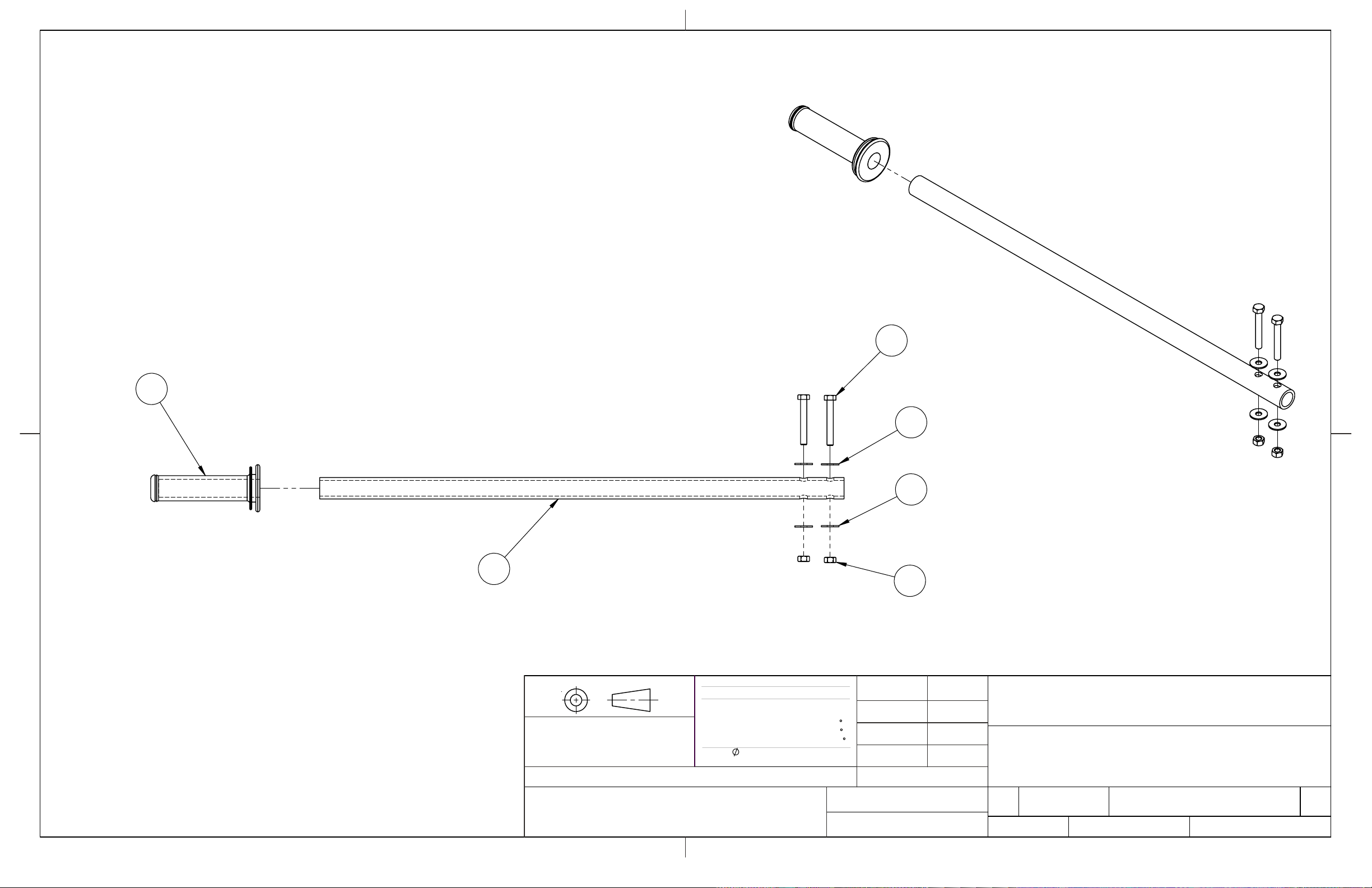

CONNECTING HANDLES

CONNECTING CABLE WIRES

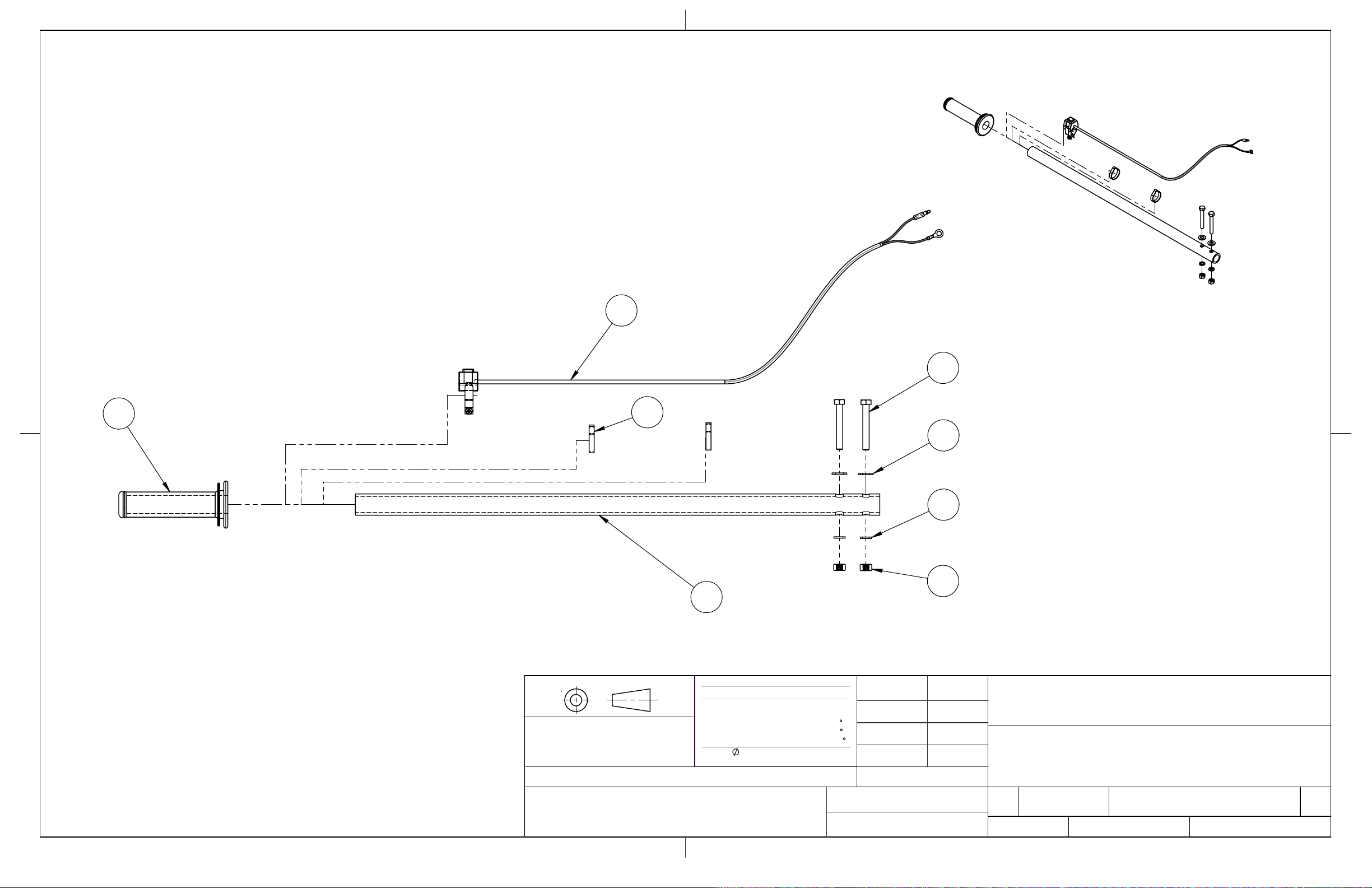

Step 1. CONNECT RIGHT HAND THROTTLE HANDLE CABLE WIRE
As shown in picture, connect the throttle cable thru clamp, securing clamp at the one o’clock positions then secure the cable eyelet & tighten
screw. *To prevent binding of the throttle cable, maintain loop as shown in picture.
Step 2. CONNECT LEFT HAND OPERATOR THROTTLE CABLE WIRE
You are now ready to connect the “RING” & “BULLET” WIRES from the OPERATOR HANDLE. Remove the GROUND SCREW
(GREEN IN COLOR) on top of the KILL SWITCH sticker. Place OPERATOR “RING WIRE’ over ground screw, and center. Next,
connect the “BULLET WIRE” from the OPERATOR. Slide bullet into plastic sleeve on receiver wires. *Side or color of wires or receivers
are not specific.
Step 3. CONNECT ASSISTANT THROTTLE CABLE WIRE
You are now ready to connect the “RING” & “BULLET” WIRES for the ASSISTANT HANDLE. Remove the GROUND SCREW
(GREEN IN COLOR) on top of the KILL SWITCH sticker. Place ASSISTANT “RING WIRE” over OPERATOR “RING WIRE” & use
GROUND SCREW to tighten, and center. Next, connect the “BULLET WIRE” from the OPERATOR. Slide bullet into plastic sleeve on
receiver wires. Use zip ties & snugly secure wires.

RICE Hydro, Inc.
Dirtdawg-TM11
Two Man Post Hole Digger –gas powered
WARNING: Operating, servicing and maintaining this equipment can expose you to chemicals
including engine exhaust, carbon monoxide and lead, which are known to the State of
California to cause cancer and birth defects or other reproductive harm. To minimize
exposure, avoid breathing exhaust, do not idle the engine except as necessary, operate and
service your equipment in a well-ventilated area and wear gloves or wash your hands
frequently when servicing your equipment. For more information go to:
www.p65warnings.ca.gov
WARNING & SAFETY instructions:
TURN THE FUEL VALVE TO THE OFF POSITION: Your
DIRTDAWG-TM11 is equipped with a float type carburetor; this unit’s
fuel valve should remain in the OFF position when not in use, to
prevent flooding of the carburetor. Flooding of the carburetor may
result in direct damage to the engine, personal injury or other property
damage.
NOT IN USE –STORAGE OF UNIT: To properly store your
DIRTDAWG-TM11 when not in use; properly shut off fuel valve, and
store in the correct position as instructed by labels directly on unit.
Failure to properly store your unit may result in damage effecting the
operation of your unit.
FLUID LEVELS: Always check and maintain proper levels of engine
& transmission OIL. The transmission holds 46 ounces of 30WT
motor oil. In viewing the DIRTDAWG-TM11 transmission sight glass
the fluid level should be directly in the middle lined up with the red
dot. The engine requires around 1/2 quart of 30WT motor oil, when
checking dipstick your fluid level should reach the FULL setting as
marked.
DANGER & SAFETY PRECAUTIONS: Improper use or neglecting to
follow all manufacturers operation and safety instructions can result
in property damage, or personal injury including death. Call 811
before you dig. Completely read and understand the manufacturers
operating instructions on your DIRTDAWG-TM11, or contact RICE
Hydro customer service with any questions or lack of understanding
at 800-245-4777. Or you may obtain a copy directly from our
website ricehydro.com.

PRECAUTIONS:
1. During operation –Do not wear loose fitting, or frayed clothing
that may become entangled in rotating auger bit or other
moving parts.
2. Always keep hands, arms, feet, and legs clear of rotating auger
bit, and WEAR proper safety eye protection.
3. Engine and fuel valve should always be in the OFF position when
changing out auger bit. DO NOT ATTEMPT TO CHANGE AUGER
BIT WITH UNIT RUNNING.
4. Remove auger bit before storing or transporting unit.
5. During extended use, some components may become HOT, DO
NOT TOUCH. Use handles for all hands on control.
6. CAUTION BEFORE DIGGING –Always check with local utility
companies to determine / verify location of existing cables, lines,
or piping.
7. Do not try and operate post hole digger alone, both operator
and assistant should be of physical stature and strength to
handle/operate this unit. Each should have the proper level of
skill, experience and common sense to operate this machinery.
8. Do not fill oil and gas with engine running or hot from extended
use. Do not smoke cigarettes or have any flame/igniter located
near the engine while fueling.
9. NOT following ALL engine and post hole digger manufacturers’
warnings, instructions, or cautions will void any warranty claim,
on the DIRTDAWG-TM11.
MAINTENANCE: Check ALL fluids before each use. SAE 10w30
motor oil is recommended. Oil level should be filled to meet sight
glass and / or dipstick measurement as notated above. For
maintenance on the DIRTDAWG-TM11 change oil within the 1st
month, or after 20 hours of use, and every 6 months or 100 hours of
use, thereafter.
RICE HYDRO, INC.
CONTACT CUSTOMER SERVICE INFORMATION:
For assistance in use, operation, design change or capability, or special order
options on your DIRTDAWG-TM11 please contact RICE Hydro Inc. 3500
Arrowhead Drive Carson City, NV 89706, or [phone], direct number
[phone] or email ricehydr[email protected]om.

Original setup & Operation instructions
RICE Hydro, Inc. DIRTDAWG-TM11
Two Man Post Hole Digger –Gas powered
View #1 before attaching wires.
View #2 after attaching wires.

Assembly instructions:
1. Remove post hole digger and separate handles from packaging.
Pieces included: post hole digger unit, 1 each operator throttle
control handle, 1 each kill switch operator handle, 1 each kill
switch assistants handle, and 1 each left side assistants handle.
2. Place post hole digger on a large secure table for assembly,
positioning the handles in their proper position for connection.
When attaching handles as instructed below, place anti-vibration
vinyl tubing between and handle connection and transmission
case. Connect operator right hand throttle handle assembly,
secure tightly in place with bolts, nuts, and washers provided.
Connect the handle marked “operator” in position directly to the
left of the throttle handle securing tightly in place with bolts,
nuts, and washers provided.
3. Move around to the “assistant” side of your post hole digger,
and securely connect the assistant left side handle. Next
connect the assistant kill switch handle on the right side of unit
nearest the ground loop sticker, under engine carburetor.
Tightly secure all handles with bolts, nuts, and washers
provided.

4. As shown in picture above, connect the throttle cable thru
clamp, securing clamp at the one o’clock position; then secure
the cable eyelet and tighten screw. To prevent binding of the
throttle cable, maintain angles as shown in the picture above.
You are now ready to connect the “ring” and “bullet”
connections for both the operator and assistant kill switch
handles. Using the pictures above as a guide, remove the
ground screw (green in color) directly below the ground loop
sticker. Place both rings, (operator & assistant) over ground
screw hole, and center. Replace ground screw and tightly
secure with screwdriver.
5. You are now ready to connect the “bullet” wire from each side,
the operator and the assistant. Take each bullet and slide into
plastic sleeve on receiver wires located directly below and to the
left of the ground wire connections. Sides or colors of wires
or receivers are not specific. Use attached zip ties and
snugly secure all wires.
6. Add fluids, this unit takes around 2 quarts of oil to fill; follow
instructions from manufacturer’s labels on engine to fill with
10w30 motor oil as directed, about 1/2 quart. Check level with
dipstick as instructed. Then remove sight glass from side of
transmission case and fill with the 46 ounces of remaining
motor oil. Replace sight glass ensuring gasket is still intact. DO
NOT OVER TIGHTEN PLASTIC SIGHT GLASS, IT WILL
BREAK. Unit is now assembled and ready for operation.

Operation instructions:
1. Check all fluids and fill as necessary.
2. Attach desired auger bit to shaft and secure with locking
hitchpin, as provided.
3. Position post hole digger at digging site, and turn on fuel.
4. With both operator and assistant both in position and
completely in control of unit, start the engine.
5. Operator has control of throttle lever and can begin to twist
engaging the auger for digging. Twisting the throttle back will
place the unit in neutral; allowing the operator / assistant to
clear debris and rocks, or while moving to the next digging
location / hole.
6. Each side comes equipped with an EMERGENCY KILL SWITCH.
In the case of any type of emergency either the operator or
assistant can hit the red kill button to stop engine immediately.
7. Always check and maintain all auger bits before use; worn, lost,
or damaged bits, pilot bits, or teeth may result in damage to the
unit, property or personal injury.
8. Never use more than one non-flighted extension at a time.
RICE HYDRO, INC.
CONTACT CUSTOMER SERVICE INFORMATION:
For assistance in use, operation, design change or capability, or special order
options on your DIRTDAWG-TM11 please contact RICE Hydro Inc. 3500
Arrowhead Drive Carson City, NV 89706, or [phone], direct number
[phone] or email ricehydr[email protected]om.

QTY
REF:
PART NUMBER..
DESCRIPTION.. REQ'D
COVER ASSEMBLY..
1HONDA-GXV160UH2-N1XH 5.5 HP HONDA ENGINE 1
2AUGER-2MAN-COVER TM-11 COVER 1
3CLUTCH-TM11 TM-11 CLUTCH ASSY 1
4FITTING-BREATHER-DD BREATHER FITTING 1
5MUFFLER-CAP-GX200 DIFFUSER 1
6LOCKNUT-5/16X18 GR 8 5/16 X 18 LOCKNUT 1
7SHCS-5/16X24X1 SOCKET HEAD CAP SCREW 3
8PLUG-S-1/8 PORT PLUG 1
9SHCS-5/16X18X2 SOCKET HEAD CAP SCREW 1
10 WDRFKEY-5/32X5/8 WOODRUFF KEY GEAR 2
11 D3-2811-0004 WASHER 1
14 DD-ORING-2228 COVER TO ENGINE 1
15 BEARING-3/4X1 OILITE TM-11 1
23 FLATWASHER-SAE-5/16 FLATWASHER 4
LOWER ASSEMBLY.. QTY
2AUGER-2MAN-BODY GEAR BODY 1
3DOWELPIN-1/4X1 2
4DRUM-ASSY-TM11 DRUM WITH GEAR AND BEARING 1
DRUM-TM11
BEARING-3/4X7/8
GEAR-DRUM-TM11
5SPEC-02269 OIL SIGHT GLASS 1
6LOCKNUT-5/16X18 GR 8 5/16 X 18 LOCKNUT 1
7UD02-0605.43 GASKET FOR CRANKCASE 1
8PLUG-DRAIN CRANKCASE DRAIN 1
9SPUR-GEAR-75T-5/8 5/8" SPUR GEAR on GEAR SHAFT 1
10 WDRFKEY-5/32X5/8 WOODRUFF KEY GEAR 1
11 MAIN-SHAFT-LOCKNUT LOCKNUT 1
12 MAIN-SHAFT-WASHER WASHER 1
13 GEAR-SHAFT-TM11 GEAR SHAFT 1
14 SPUR-GEAR-75T-1 1" SPUR GEAR on MAIN SHAFT 1
15 BEARING-3/4X1 OILITE TM-11 1
16 MAIN-SHAFT-TM11 MAIN SHAFT 1
when ordering Main-Shaft-TM11 "WDRFKEY-1/4x1 & MAIN-SHAFT-LOCKNUT" are also required
17 CONE-08125 TM-11 TAPER ROLLER BEARING 2
18 CUP-08231 TM-11 RACE 2
19 HITCHPIN-5/16X2&3/4 SAFETY PIN 1
20 OIL-SEAL OIL SEAL 1
21 BOLT-5/16X18X4&1/2 BOLT FOR TM11 BODY 8
22 WDRFKEY-1/4X1 WOODRUFF KEY MAIN SHAFT 1
23 FLATWASHER-SAE-5/16 FLATWASHER 18
MISC SECTION…
LABEL-KIT-TM11 INSTRUCTION AND CAUTION STICKERS 1
TM11-CHOKE CHOKE CONTROL ADD ON ASSEMBLY 1
PARTS BREAKDOWN FOR MODEL TM-11
RICE HYDRO, INC.
when ordering 1" Spur Gear "WDRFKEY-1/4x1" is also required
PAGE 1 OF 2
when ordering Auger-2man-Cover "BEARING-3/4X1" is also required
when ordering Cone-08125 OR Cup-08231 "OIL-SEAL & MAIN-SHAFT-LOCKNUT" are also required

ASSISTANT HANDLE ASSY..
4GRIPS-1" BLACK GRIPS 1
6TM11-HANDLE ASSISTANT - HANDLE ONLY 1
8BOLT-5/16X18X2&1/4 BOLT FOR HANDLE 2
9FLATWASHER-SAE-5/16 FLATWASHER 4
11 LOCKNUT-5/16X18 LOCKNUT FOR HANDLE 2
THROTTLE HANDLE ASSY..
3THROTTLE-TM11 THROTTLE 1
4GRIPS-1" BLACK GRIPS 1
5CABLE-THROTTLE-ASSY TM-11 CABLE THROTTLE 1
7TM11-HANDLE-THROTTLE THROTTLE - HANDLE ONLY 1
8BOLT-5/16X18X2&1/4 BOLT FOR HANDLE 2
9FLATWASHER-SAE-5/16 FLATWASHER 4
11 LOCKNUT-5/16X18 LOCKNUT FOR HANDLE 2
13 ZIPTIE-MED ZIPTIE 2
KILL SWITCH HANDLE ASSY (OPERATOR/ASSISTANT)...
4GRIPS-1" BLACK GRIPS 1
6TM11-HANDLE KILL SWITCH SIDE - HANDLE ONLY 2
8BOLT-5/16X18X2&1/4 BOLT FOR HANDLE 2
9FLATWASHER-SAE-5/16 FLATWASHER 4
11 LOCKNUT-5/16X18 HANDLE LOCKNUT 2
12 DD-KILL-SWITCH-ASSY SWITCH ENGINE KILL 2
when ordering DD-KILL-SWITCH-ASSY "Locknut-Keps-6/32 & Mach-Screw-6/32" are included
13 ZIPTIE-MED ZIPTIE 2
MAIN-SHAFT-TM11 MAIN SHAFT 1
MAIN-SHAFT-LOCKNUT LOCKNUT 1
WDRFKEY-1/4X1 WOODRUFF KEY MAIN SHAFT 1
CONE-08125 TM-11 TAPER ROLLER BEARING 2
MAIN-SHAFT-LOCKNUT LOCKNUT 1
CUP-08231 TM-11 RACE 2
OIL-SEAL 1
AUGER-2MAN-BODY GEAR BODY 1
BEARING-3/4X1 OILITE TM-11 1
CUP-08231 TM-11 RACE 2
MAIN-SHAFT-LOCKNUT LOCKNUT 1
OIL-SEAL OIL SEAL 1
CONE-08125 TM-11 TAPER ROLLER BEARING 2
AUGER-2MAN-COVER GEAR BODY COVER 1
BEARING-3/4X1 OILITE TM-11 1
DD-KILL-SWITCH SWITCH ENGINE KILL 1
LOCKNUT-KEPS-6/32 TM-11 KILL SWITCH LOCKNUT 1
MACH-SCREW-6/32 TM-11 KILL SWITCH SCREW 1
*Prices subject to change without notice*
PAGE 2 OF 2
PARTS BREAKDOWN FOR MODEL TM-11
RICE HYDRO, INC.
if ordering BODY must also replace bearing (pressed), cup, locknut and seal
if ordering MAIN SHAFT must also replace locknut
if ordering CONE or CUP must also replace locknut, seal, cup and cone
if ordering COVER must also replace bearing (pressed)
if ordering DD-KILL-SWITCH-ASSY will include

DIMENSIONS IN INCHES
(UNLESS OTHERWISE SPECIFIED) Rice HYDRO,INC.
3500 ARROWHEAD DRIVE
CARSON CITY, NEVADA 89706
TOLERANCES:
DECIMALS ANGLES
MANUALLY UPDATE ALL
CHECKED:
+ .003 - .000
Copyright 2017 Rice HYDRO INC.
.XXX : +/- 0.010
'S FOR PEM HARDWARE
.XX : +/- 0.020
PRIOR WRITTEN CONSENT OF OWNER.
ENGR:

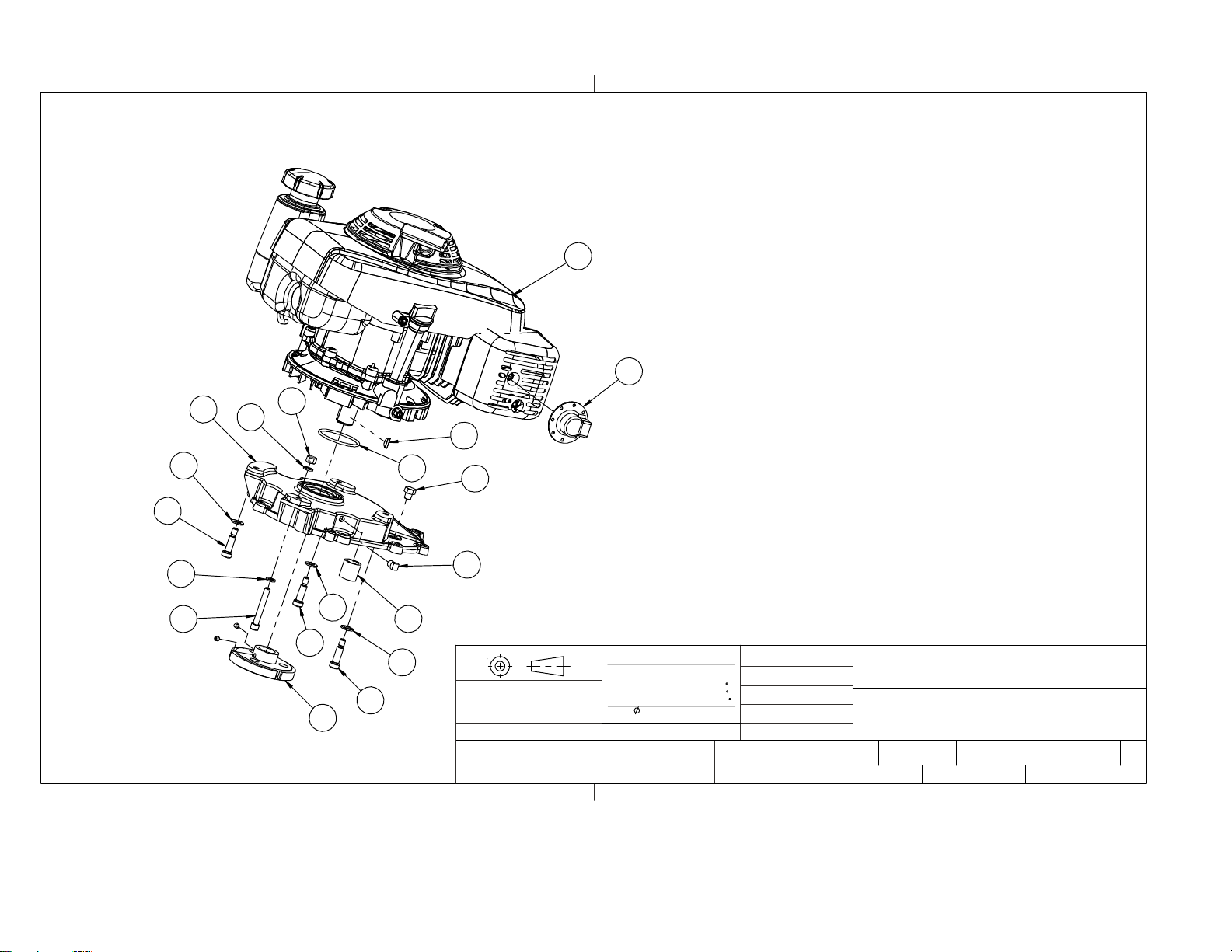

BTM-11 TOP Assy Exploded B
TM-11 T0P - EXPLODED VIEW
TITLE:
SIZE:
DATE:
DWG NUMBER: REV:MATERIAL:
FINISH: SEE NOTES SCALE: SHEET: 1 OF 1
12/07/17
APPROVED:
.X : +/- 0.050
d.j.michno
DRAWN:
DO NOT SCALE DRAWING
NOTES: (UNLESS OTHERWISE SPECIFIED)
1.
REPRODUCED IN ANY MEDIA OR DISCLOSED WITHOUT THE
BELONGS TO Rice HYDRO INC. IT MAY NOT BEUSED OR
1:4
CAD GENERATED
THIS IS CONFIDENTIAL AND PROPRIETARY INFORMATION THAT
DO NOT
DRAWING :
X : +/- 1.0
X.X : +/- 0.5
X.XX : +/- 0.05
THIRD ANGLE PROJECTION
11
8
23
14
1
26
7
8
23
15
7
3
5
10
11
11
4
7

15
11
14
17
16
18
12
3
18
13
10
9
7
7
8
2
22
4
19
20
5
17
6
21
23
23
(UNLESS OTHERWISE SPECIFIED) Rice HYDRO,INC.
DIMENSIONS IN INCHES
3500 ARROWHEAD DRIVE
CARSON CITY, NEVADA 89706
ENGR:
APPROVED:
CHECKED:
d.j.michno
TOLERANCES:
DECIMALS ANGLES
.XX : +/- 0.020
PRIOR WRITTEN CONSENT OF OWNER.
Copyright 2016 Rice HYDRO INC.
BEXPLODED VIEW B
PHD-TM11-LOWER
TITLE:
SIZE:
DATE:
DWG NUMBER: REV:MATERIAL:
FINISH: SEE NOTES SCALE: SHEET: 1 OF 1
11/17/2017
DO NOT SCALE DRAWING
ALL
.X : +/- 0.050
DRAWN:
THIS IS CONFIDENTIAL AND PROPRIETARY INFORMATION THAT
1:4
BELONGS TO Rice HYDRO INC. IT MAY NOT BEUSED OR
REPRODUCED IN ANY MEDIA OR DISCLOSED WITHOUT THE
DRAWING :
DO NOT
CAD GENERATED
MANUALLY UPDATE 'S FOR PEM HARDWARE
.XXX : +/- 0.010
+ .003 - .000
X : +/- 1.0
X.X : +/- 0.5
X.XX : +/- 0.05
THIRD ANGLE PROJECTION

DIMENSIONS IN INCHES
(UNLESS OTHERWISE SPECIFIED) Rice HYDRO,INC.
3500 ARROWHEAD DRIVE
CARSON CITY, NEVADA 89706
TOLERANCES:
DECIMALS ANGLES
MANUALLY UPDATE ALL
CHECKED:
+ .003 - .000
Copyright 2017 Rice HYDRO INC.
.XXX : +/- 0.010
'S FOR PEM HARDWARE
.XX : +/- 0.020
PRIOR WRITTEN CONSENT OF OWNER.
ENGR:
BTM-11 TOP Assy Exploded B
TM-11 T0P - EXPLODED VIEW
TITLE:
SIZE:
DATE:
DWG NUMBER: REV:MATERIAL:
FINISH: SEE NOTES SCALE: SHEET: 1 OF 1
12/07/17
APPROVED:
.X : +/- 0.050
d.j.michno
DRAWN:
DO NOT SCALE DRAWING
NOTES: (UNLESS OTHERWISE SPECIFIED)
1.
REPRODUCED IN ANY MEDIA OR DISCLOSED WITHOUT THE
BELONGS TO Rice HYDRO INC. IT MAY NOT BEUSED OR
1:4
CAD GENERATED
THIS IS CONFIDENTIAL AND PROPRIETARY INFORMATION THAT
DO NOT
DRAWING :
X : +/- 1.0
X.X : +/- 0.5
X.XX : +/- 0.05
THIRD ANGLE PROJECTION
11
8
23
14
1
26
7
8
23
15
7
3
5
10
11
11
4
7

4
6
9
11
8
9
1.
NOTES: (UNLESS OTHERWISE SPECIFIED)
CHECKED:
d.j.michno
DRAWN:
THIS IS CONFIDENTIAL AND PROPRIETARY INFORMATION THAT
BELONGS TO Rice HYDRO INC. IT MAY NOT BEUSED OR
REPRODUCED IN ANY MEDIA OR DISCLOSED WITHOUT THE
PRIOR WRITTEN CONSENT OF OWNER.
Copyright 2018 Rice HYDRO INC.
B
TM-11 Handle (Assistant) Assy
A
TM-11 HANDLE ASSEMBLY
ASSISTANT
1 PER UNIT
TITLE:
SIZE:
DATE:
DWG NUMBER:
REV:
MATERIAL:
FINISH:
TBD
SEE NOTES
SCALE:
SHEET: 1 OF 1
11/1/2018
DO NOT SCALE DRAWING
1:4
CAD GENERATED
DRAWING :
DO NOT
MANUALLY UPDATE
ALL 'S FOR PEM HARDWARE
+ .003 - .000
DIMENSIONS IN INCHES
(UNLESS OTHERWISE SPECIFIED)
.X : +/- 0.050
.XX : +/- 0.020
.XXX : +/- 0.010
X : +/- 1.0
X.X : +/- 0.5
X.XX : +/- 0.05
DECIMALS ANGLES
TOLERANCES:
ENGR:
APPROVED:
THIRD ANGLE PROJECTION
Rice HYDRO,INC.
3500 ARROWHEAD DRIVE
CARSON CITY, NEVADA 89706

4
6
13
8
9
11
12
9
1.
NOTES: (UNLESS OTHERWISE SPECIFIED)
CHECKED:
d.j.michno
DRAWN:
THIS IS CONFIDENTIAL AND PROPRIETARY INFORMATION THAT
BELONGS TO Rice HYDRO INC. IT MAY NOT BEUSED OR
REPRODUCED IN ANY MEDIA OR DISCLOSED WITHOUT THE
PRIOR WRITTEN CONSENT OF OWNER.
Copyright 2018 Rice HYDRO INC.
B
TM-11 Kill Switch Handle Assy Exploded
A
TM-11 KILL SWITCH HANDLE
ASSEMBLY EXPLODED
2/UNIT OPERATOR & ASST SIDES
TITLE:
SIZE:
DATE:
DWG NUMBER:
REV:
MATERIAL:
FINISH:
TBD
SEE NOTES
SCALE:
SHEET: 1 OF 1
10/26/2018
DO NOT SCALE DRAWING
1:4
CAD GENERATED
DRAWING :
DO NOT
MANUALLY UPDATE
ALL 'S FOR PEM HARDWARE
+ .003 - .000
DIMENSIONS IN INCHES
(UNLESS OTHERWISE SPECIFIED)
.X : +/- 0.050
.XX : +/- 0.020
.XXX : +/- 0.010
X : +/- 1.0
X.X : +/- 0.5
X.XX : +/- 0.05
DECIMALS ANGLES
TOLERANCES:
ENGR:
APPROVED:
THIRD ANGLE PROJECTION
Rice HYDRO,INC.
3500 ARROWHEAD DRIVE
CARSON CITY, NEVADA 89706
