Richelieu 1282407124 User manual

Apparecchio in classe di protezione III. L'alimentazione deve essere fornita da un alimentatore di sicurezza.
Protection class III device. Power must be supplied by a safe power supply.
Appareil avec classe de protection III. L'alimentation doit être fournie par un transformateur de sécurité.
Leuchte mit Schutzklasse III. Die Stromversorgung muss mit einem Sicherheits-Anschlusskabel geliefert werden.
Sicurezza fotobiologica: L'apparecchio appartiene al gruppo di rischio 0 (ESENTE),secondo la norma EN62471.
Photobiologische sicherheit: Die Leuchte gehört zur Risikogruppe 0 (KEINE) gemäß EN-Norm 62471.
Photobiological safety: The device belongs to the risk 0 group (EXEMPT) in accordance with the EN62471.
Securite photobiologique: L'appareil fait partie du groupe de risque 0 (EXEMPT), conformément à la norme EN62471.
Il prodotto deve essere smaltito separatamente dai rifiuti urbani consegnandolo ai centri di raccolta previsti dalla normativa in vigore.
L'adeguata raccolta differenziata contribuisce ad evitare possibili effetti negativi sull'ambiente e sulla salute e favorisce il reimpiego e/o il riciclo
dei materiali. Lo smaltimento abusivo comporta l'applicazione delle sanzioni amministrative previste dalla normativa vigente.
The product must be disposed of separately from urban waste, delivering it to the collection centres established by the prevailing standard.
Adequate sorted waste collection contributes to preventing negative effects on the environment and health and favours reuse and/or recycling
materials. Incorrect disposal of the product implies the application of the administrative sanctions envisaged by the prevailing regulation.
Die Leuchte muss getrennt vom Hausmüll entsorgt und entsprechend der geltenden Richtlinien, an den vorgesehenen Sammelstellen abgegeben werden. Die angemessene
getrennte Sammlung trägt dazu bei, eventuelle negative Auswirkungen auf die Umwelt und die Gesundheit zu vermeiden und die Wiederverwendung und/oder das Recycling der
Materialien zu begünstigen. Die unsachgemäße Entsorgung bringt die Anwendung administrativer Strafen mit sich, die in den geltenden Richtlinien vorgesehen sind.
Le produit doit être collecté séparément et non jeté avec les déchets ménagers en le portant dans les déchetteries prévues par la réglementation en vigueur. Un tri sélectif
approprié contribue à éviter des possibles effets négatifs sur l'environnement et sur la santé et favorise la réutilisation et/ou le recyclage des matériaux. L'élimination abusive
entraîne l'application des sanctions administratives prévues par la réglementation en vigueur.
Apparecchio per sola installazione in ambiente interno.
Device only for indoor installation.
L'appareil doit être uniquement installé à l'intérieur.
Leuchte nur für die Installation im Innenbereich.
Aparato de clase de protección III. La alimentación debe realizarse mediante un alimentador seguro.
Seguridad fotobiológica: El aparato pertenece al grupo de riesgo 0 (EXENTO) según la norma EN62471.
Se debe desechar el producto de forma separada de los residuos urbanos; se lo debe entregar en los centros de recolección previstos por la norma en vigor. La recolección
diferenciada adecuada contribuye a evitar posibles efectos negativos en el medioambiente y en la salud y favorece la reutilización y/o el reciclaje de los materiales. Si se lo desecha
en forma abusiva tendrá como consecuencia la aplicación de sanciones administrativas previstas por la normativa vigente.
Aparato para un solo uso en un ambiente interior.

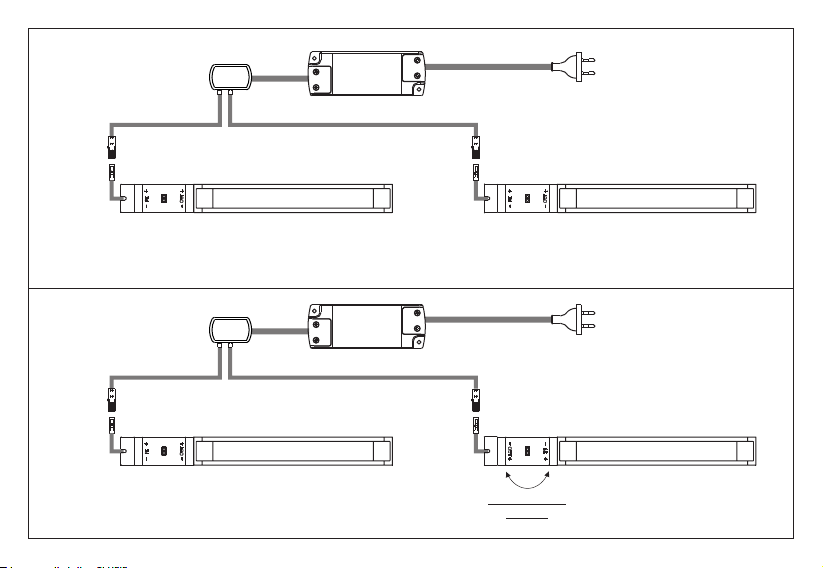

Fig 1
input cable
TRACK
controller
interconnect
connector
A
A
B
B
D
E
(IN)
interconnect
cable
C
C
G
F

x
Converter
IN
TRACK TRACK TRACK
Fig 3
interconnect
connector
Fig 2
interconnect
cable
Converter
TRACK
TRACK
IN
TRACK
TRACK
controller
TRACK
controller
NO

Fig 4
Converter
IN
TRACK TRACK
Fig 5
YES
x
Converter
IN
TRACK TRACK
YES NO
NO REVERSE
IN-OUT
YES

INSTALLATION MANUAL EN
TRACK and the TRACK controller switch can be installed
individually or as a MASTER luminaire in a continuous row
SET. For a correct operation, it is not possible to connect
multiple TRACK controllers in a continuous row. Furthermore,
it is not allowed to connect the TRACK + TRACK controller to
a power supply connected to a socket controlled by a switch
or downstream of other electronic controllers or dimmer.
INSTALLATION OF A SINGLE LUMINAIRE
- Fix the clips (A) to the installation surface using the screws
(B) supplied in the package as shown in figure 1.
- Connect the power supply cable (D) to the TRACK controller
or to the input connector (C) of the TRACK then attach the
profile to the clips (A) fixed to the installation surface.
INSTALLATION OF LUMINAIRES IN CONTINUOUS ROW
- Fix the clips (A) to the installation surface using the screws
(B) supplied in the package as shown in figure 1.
- Connect the power supply cable (D) to the TRACK controller
or directly to the power supply connector (C) of the lighting
profile.
- If necessary, use the appropriate extension cables (F) or
interconnection connectors (G) for continuous row
- Finally, attach the profile to the clips (A) fixed to the
installation surface.
CONNECTING THE DEVICE TO THE POWER SUPPLY
Connect TRACK only to a safe power supply with 24Vdc
stabilised voltage (sold separately) and with power at least
10% higher than the total load. For the total load calculation
check plate data printed on the product label.
WARNING
Safety is guaranteed if these instructions are followed so they
must be kept. Installation may require involving qualified
personnel. Before installing the luminaire ensure that the
environmental conditions are in compliance with and suitable
for product characteristics. Before any operation on the
luminaire, disconnect the mains voltage.
INSTALLATION
The TRACK luminaires are recommended for under cabinet
and under shelf installation. Installation is possible with the
luminaire power cable axially or radially with respect to the
mounting surface. As regards special requirements, it is
nonetheless possible to install these units in other positions
as long as they do not interfere with the integrity of the wire
and/or connector installed on it.
The installation can therefore provide a SET of luminaires
connected in a continuous row with only one power cable
connected to the first luminaire that supplies power to the
luminaires connected in cascade.
The continuous line connection can not exceed the maximum
load of 72W @24Vdc.
The continuous row installation in which the TRACK
controller switch is included must be prepared connecting
this luminaire upstream of all the lamps and downstream of
the power supply cable.
ATTENTION:
The TRACK controller electronic switch must be connected
respecting the orientation of the connections
IN-OUT as shown in figure 4.
