Ricoh Priport JP5800 User manual

SERVICE MANUAL
(Machine code: C232)
C232V500.WMF

1
IMPORTANT SAFETY NOTICES
PREVENTION OF PHYSICAL INJURY
1. Before disassembling or assembling parts of the printer and peripherals, make
sure that the power cord is unplugged.
2. The wall outlet should be near the printer and easily accessible.
3. If any adjustment or operation check has to be made with exterior covers off or
open while the main switch is turned on, keep hands away from electrified or
mechanically driven components.
HEALTH SAFETY CONDITIONS
1. If you get ink in your eyes by accident, try to remove it with eye drops or flush
with water as first aid. If unsuccessful, get medical attention.
2. If you ingest ink by accident, induce vomiting by sticking a finger down your
throat or by giving soapy or strong salty water to drink.
OBSERVANCE OF ELECTRICAL SAFETY STANDARDS
1. The printer and its peripherals must be installed and maintained by a customer
service representative who has completed the training course on those models.
øCAUTION
The RAM has a lithium battery which can explode if handled incorrectly.
Replace only with the same type of RAM. Do not recharge or burn this
battery. Used RAM's must be handled in accordance with local regulations.
øATTENTION
La carte RAM comporte une pile au lithium qui présente un risque
d'explosion en cas de mauvaise manipulation. Remplacer la pile
uniquement par une carte RAM identique. Ne pas recharger ni brûler cette
pile. Les cartes RAM usagées doivent être éliminées conformément aux
réglementations locales.

2
SAFETY AND ECOLOGICAL NOTES FOR DISPOSAL
1. Dispose of replaced parts in accordance with local regulations.
2. Used ink and masters should be disposed of in an environmentally safe
manner and in accordance with local regulations.
3. When keeping used lithium batteries (from the main processing units) in order
to dispose of them later, do not store more than 100 batteries (from the main
processing units) per sealed box. Storing larger numbers or not sealing them
apart may lead to chemical reactions and heat build-up.

1
TABLE OF CONTENTS
1. OVERALL INFORMATION..........................................................1-1
1.1 ESSENTIAL DIFFERENCES BETWEEN C232 AND C229 MODELS....... 1-1
1.2 SPECIFICATIONS..................................................................................... 1-2
1.3 GUIDE TO COMPONENTS AND THEIR FUNCTIONS............................. 1-6
1.3.1 MACHINE EXTERIOR...................................................................... 1-6
1.4 MACHINE INTERIOR................................................................................ 1-7
1.5 OPERATION PANEL................................................................................. 1-9
1.5.1 KEYS................................................................................................ 1-9
1.1.2 INDICATORS.................................................................................. 1-11
1.6 PRINTING PROCESS OVERVIEW......................................................... 1-12
1.7 MECHANICAL COMPONENT LAYOUT.................................................. 1-13
1.8 ELECTRICAL COMPONENT LAYOUT................................................... 1-15
1.8.1 PRINTED CIRCUIT BOARD LAYOUT ........................................... 1-15
1.8.2 SCANNER SECTION..................................................................... 1-16
1.8.3 PAPER FEED SECTION................................................................ 1-16
1.8.4 MASTER EJECT, PRESSURE CYLINDER,
AND OTHER SECTIONS ............................................................... 1-17
1.8.5 PAPER DELIVERY SECTION........................................................ 1-18
1.8.6 MASTER MAKING UNIT ................................................................ 1-18
1.8.7 DRUM UNIT.................................................................................... 1-19
1.8.8 RELAY UNIT................................................................................... 1-20
1.8.9 VERTICAL TRANSPORT UNIT, BACK PLATE UNIT, AND OTHER
SECTIONS .............................................................................................. 1-20
1.8.10 TRAY 1, TRAY 2........................................................................... 1-21
1.8.11 PAPER DELIVERY TABLE........................................................... 1-21
1.8.12 TABLES OF ELECTRICAL COMPONENTS................................. 1-22
1.9 DRIVE LAYOUT ...................................................................................... 1-28
1.9.1 OVERVIEW .................................................................................... 1-28
1.9.2 MAIN DRIVE................................................................................... 1-29
2. DETAILED SECTION DESCRIPTIONS.......................................2-1
2.1 PAPER BANK............................................................................................ 2-1
OVERVIEW ............................................................................................... 2-1
2.1.2 PAPER FEED................................................................................... 2-2
2.1.3 TANDEM TRAY MECHANISMS....................................................... 2-4
2.1.4 PAPER LIFT..................................................................................... 2-7
2.1.5TRAY UPPER LIMIT DETECTION
AND PAPER HEIGHT CONTROL..................................................... 2-8
2.1.6 SIDE FENCE POSITIONING AND PAPER SIZE DETECTION........ 2-9
2.1.7 VERTICAL TRANSPORT............................................................... 2-11
2.2 PAPER DELIVERY TABLE...................................................................... 2-12
2.2.1 SIDE AND END PLATE DRIVE...................................................... 2-12
2.3 MAIN MOTOR PROTECTION MECHANISM.......................................... 2-13

2
2.4 DRUM HOME POSITION DETECTION................................................... 2-14
2.5 TIMING CHART....................................................................................... 2-15
2.6 ERROR DETECTION.............................................................................. 2-19
2.6.1 PAPER FEED ERROR DETECTION IN THE PAPER BANK......... 2-19
3. INSTALLATION...........................................................................3-1
3.1 INSTALLATION REQUIREMENTS............................................................ 3-1
3.1.1 REQUIRED ENVIRONMENTAL CONDITIONS................................ 3-1
3.1.2 ENVIRONMENTS TO AVOID........................................................... 3-1
3.1.3 POWER CONNECTION................................................................... 3-1
3.1.4 ACCESS TO THE MACHINE ........................................................... 3-2
3.2 INSTALLATION PROCEDURE ................................................................. 3-3
3.2.1 ACCESSORY CHECK...................................................................... 3-3
3.1.2 INSTALLATION PROCEDURE ........................................................ 3-4
4. SERVICE TABLES......................................................................4-1
4.1 DIP SW, LED, VR, TP, AND FUSE TABLES............................................. 4-1
4.1.1 TEST POINTS.................................................................................. 4-1
4.1.2 DIP SWITCHES................................................................................ 4-1
4.1.3 POTENTIOMETERS ........................................................................ 4-1
4.1.4 LED'S................................................................................................ 4-2
4.1.5 FUSES.............................................................................................. 4-2
4.2 SERVICE CALL CODES ........................................................................... 4-3
4.3 SPECIAL TOOLS..................................................................................... 4-13
4.4 SERVICE PROGRAM MODE.................................................................. 4-14
4.4.1 ACCESS PROCEDURE................................................................. 4-14
4.4.2 SERVICE PROGRAM TABLE........................................................ 4-16
4.4.3 CLEARING THE FACTORY SETTINGS (SP7-1)........................... 4-64
4.4.4 LOAD PROGRAM (SP8-20)........................................................... 4-65
4.4.5 USER TOOLS................................................................................. 4-66
5. PREVENTIVE MAINTENANCE...................................................5-1
5.1 MAINTENANCE TABLE ............................................................................ 5-1
6. REPLACEMENT AND ADJUSTMENT........................................6-1
6.1 PAPER TRAY............................................................................................ 6-1
6.1.1 PAPER TRAY REMOVAL................................................................. 6-1
6.1.2 PAPER FEED ROLLER AND PICK-UP ROLLER REMOVAL.......... 6-2
6.1.3 VERTICAL TRANSPORT UNIT REMOVAL ..................................... 6-2
6.1.4 TANDEM BACK PLATE DRIVE UNIT REMOVAL............................ 6-4
6.1.5 PAPER WIDTH SENSOR REPLACEMENT..................................... 6-5
6.1.6 TRAY COVER REMOVAL................................................................ 6-6
6.1.7 BOTTOM PLATE LIFT WIRE REPLACEMENT................................ 6-8

3
6.2 PRINTING SECTION............................................................................... 6-10
6.2.1 TORQUE LIMITER......................................................................... 6-10
6.2.2 FEED START SENSORS AND FEED ENCODER......................... 6-16
6.3 PAPER FEED SECTION (MAIN BODY).................................................. 6-18
6.3.1TIMING BELT TENSION ADJUSTMENT
FOR THE REGISTRATION MOTOR............................................... 6-18
6.3.2TIMING BELT TENSION ADJUSTMENT
FOR THE PAPER TABLE FEED MOTOR....................................... 6-19
6.3.3 PAPER FEED LENGTH ADJUSTMENT ........................................ 6-20
7. POINT TO POINT DIAGRAM......................................................7-1
7.1 DETAILS................................................................................................... 7-1
7.2 MAIN BODY.............................................................................................. 7-2
7.2.1 LOCATION MAP.............................................................................. 7-2
7.2.2 SECTION A...................................................................................... 7-3
7.2.3 SECTION B...................................................................................... 7-4
7.2.4 SECTION C ..................................................................................... 7-5
7.2.5 SECTION D ..................................................................................... 7-6
7.2.6 SECTION E...................................................................................... 7-7
7.2.7 SECTION F...................................................................................... 7-8
7.3 PAPER BANK........................................................................................... 7-9
7.3.1 LOCATION MAP.............................................................................. 7-9
7.3.2 SECTION A.................................................................................... 7-10
7.3.3 SECITON B.................................................................................... 7-11
7.3.4 SECTION C ................................................................................... 7-12
7.3.5 SECTION D ................................................................................... 7-13
7.4 PAPER DELIVERY TABLE..................................................................... 7-14

1 March, 2000 ESSENTIAL DIFFERENCES BETWEEN C232 AND C229 MODELS
1-1
Overall
Information
1. OVERALL INFORMATION
1.1 ESSENTIAL DIFFERENCES BETWEEN C232 AND
C229 MODELS
No. Item Remarks
1Thermal Head, Thermal
Head Power Supply, MPU,
I/O Board, PSU
Some related parts are also changed.
2 Paper Table Paper table capacity is changed from 1,000
sheets (C229) to 500 sheets (C232).
3 Paper Tray Two drawer-type paper trays are added.
The maximum capacity of the paper tray unit is
2,500 sheets.
4 Paper Delivery Table The side and end plates are automatically
adjusted to the print paper size.
5 Energy Saving
(New Function) Energy saving modes cut down the energy consumption below 10 W.
Only the LED at the clear mode key stays on.
Other keys and the LCD remain standing by until
the clear mode key is touched.
6 Drum Home Position
Indicator New LEDs are added to indicate when the drum is
at home position.
Green LED: Indicates the drum is at home
position.
Red LED: Indicates that drum is not at home
position.
7 JS Sorter Connection The new JS 40 sorter can be connected.
8 Friction Pad
(Paper Table) A newly designed friction pad is used.
9 New SP modes New SP modes are added for the paper tray and
JS 40 sorter.
10 Tray Feed Start Sensor A new sensor is added to detect paper fed from
the paper trays.
11 Torque Limiter The torque limiter is added to prevent damage to
the main motor when torque from the drum or
pressure cylinder gets too high and may lock it.
12 Paper Feed Length
Adjustment The paper feed length adjustment is changed. Refer to the PAPER FEED LENGTH
ADJUSTMENT in the replacement and
adjustment section.
13 Firmware Update Method The firmware on the MPU can be upgraded using
a flash memory card.
It is not necessary to use the card interface board.
Refer to LOAD PROGRAM (SP8-20) in the
service tables section.

SPECIFICATIONS 1 March, 2000
1-2
1.2 SPECIFICATIONS
Configuration: Floor type
Master Processing: Digital
Scanning (Pixel Density): 400 dpi CCD
Printing Process: Pressure cylinder system
Original Type: Sheets, Books
Original size (Platen Mode): Maximum 304.8 x 432 mm [12.0" x 17.0"]
Thickness: Less than 30 mm
Weight: Do not place objects weighing more
than 10 kg on the exposure glass
Original size (ADF Mode): Maximum 297 x 864 mm [11.7" x 34.0"]
Minimum 105 x 128 mm [4.2" x 5.0"]
Weight: 52.3 – 104.7 g/m2 [14 - 28 lb]
Capacity: 30 sheets (using 20 lb or 80 g/m2paper)
Reproduction Ratios: Inch versions Others
Full Size: 100% 100%
Reduction: 65% 71%
74% 82%
77% 87%
93% 93%
Enlargement: 121% 115%
129% 122%
155% 141%
Zoom: 50 - 200% (in 1% steps) in Platen mode
50 - 155% (in 1% steps) in ADF mode
Directional Magnification:
50 - 200% (in 1% steps)
Image Modes: Letter, Photo, Letter/Photo, Pencil

1 March, 2000 SPECIFICATIONS
1-3
Overall
Information
Printing Area:
(At 20 °C/ 65 % RH) Metric size version models:
290 mm x 409 mm
Inch size version models:
290 mm x 419 mm [11.4" x 16.5"]
With optional A4 drum:
290 mm x 204 mm [11.4" x 8.0"]
Edge Margins: Leading edge:
10 mm (At the "0" position of Image Shift mode)
Trailing edge:
2 mm
Print Paper Size (Paper table): Minimum: 70 mm x 148 mm [2.8" x 5.8"]
Maximum: 325 mm x 447 mm [12.8" x 17.6"]
Print Paper Size (Paper trays): Tray 1 (tandem): A4,LT,B5
Tray 1: B5, A4, LT, LG, B4, A3, DLT
Tray 2: B5, A4, LT, LG, B4, A3, DLT
Print Paper Weight
(Paper table): 47.1 g/m2to 209.3 g/m2[12.5 lb to 55.6 lb]
Print Paper Weight
(Paper trays): 52.3 g/m2to 104.7 g/m2[13.9 lb to 27.8 lb]
Printing Speed: 60, 75, 90, 105, 120 sheets/minute (5 steps)
Master Process Time: Platen mode:
Less than 16 seconds (A3 paper)
Less than 12 seconds (A4 paper)
ADF mode:
Less than 19.5 seconds (A3 paper)
Less than 16 seconds (A4 paper)
Master Eject Box Capacity: 60 masters / A3 size (Normal conditions)
Side Registration Adjustable
Range: ±10 mm
Vertical Registration
Adjustable Range: Inch size version models:
±10 mm
Metric size version models:
±15 mm

SPECIFICATIONS 1 March, 2000
1-4
Paper Feed Table Capacity: 500 sheets (80 g/m2/ 20 lb)
Paper Tray Capacity: Tray 1 (tandem): 1,000 x 2 sheets (80 g/m2/ 20 lb)
Tray 1: 1,000 sheets (80 g/m2/ 20 lb)
Tray 2: 500 sheets (80 g/m2/ 20 lb)
Paper Delivery Table
Capacity: 1,000 sheets (80 g/m2/ 20 lb)
Power Source: 110/120 V, 50/60 Hz:
220 - 240 V, 50/60 Hz:
Power Consumption: 110/120 V version: Maximum: 300 W
Standby: 47 W
Energy Saving: 10 W
220 - 240 V version: Maximum: 310 W
Standby: 55 W
Energy Saving: 10 W
Noise Emission:
(At operation position) At 60 rpm printing speed: 59 dB At 90 rpm printing speed: 61 dB
At 120 rpm printing speed: 64 dB
Weight: 153 kg [337.7 lb]
160 kg [353.2 lb] with ADF
Dimensions:
(Width x Depth x Height) Trays closed: With ADF and paper trays: 625 mm x 700 mm x 1120 mm
With paper trays:
625 mm x 700 mm x 1010 mm
Trays open: With ADF and paper trays:
1405 mm x 700 mm x 1120 mm
With paper trays:
1405 mm x 700 mm x 1010 mm

1 March, 2000 SPECIFICATIONS
1-5
Overall
Information
Master Type: Thermal master roll type:
320 mm width, 110 m / roll
Yield:
200 masters/roll (at A3 size)
Max run length per master:
2,000 prints
Master Storage Conditions: Temperature:
0 °C to 40 °C
Humidity:
10% to 95% RH
Recommended maximum storage period:
One year after production date
* Avoid locations exposed to direct sunlight.
Ink Type: 1000 ml cartridge type
Available colors:
Black, Red, Blue, Green, Brown, Purple, Yellow,
Navy, Marron, Teal, Orange, Gray, Violet, Hunter
green, Burgundy, Gold
Ink Storage Conditions: Temperature:
-5 °C to 40 °C
(Optimum conditions: 15 °C to 25 °C)
Humidity:
10% to 95% RH
(Optimum conditions: 20% to 70% RH)
Recommended maximum storage period:
One year after production date
* Avoid locations exposed to direct sunlight.
Available Options: •A3 Drum
•A4 Drum
•Document Feeder
•Key Counter
•Memory Board (Editing Function)
•PC Controller
•Interface Board (Option for the China and Ricoh
Asia versions, standard for the U.S.A and Europe
versions)

GUIDE TO COMPONENTS AND THEIR FUNCTIONS 1 March, 2000
1-6
1.3 GUIDE TO COMPONENTS AND THEIR FUNCTIONS

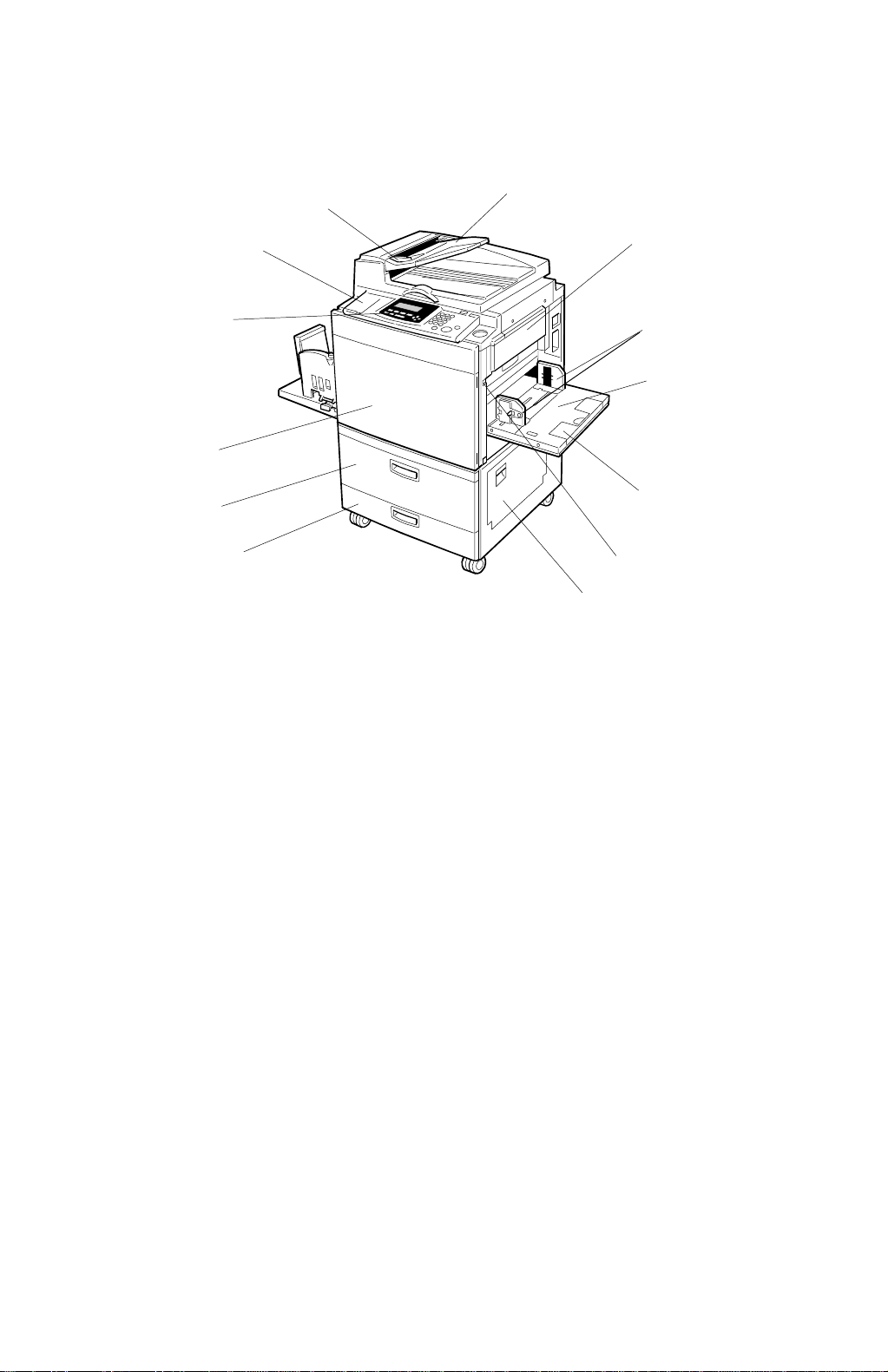

1.3.1 MACHINE EXTERIOR
1. Platen Cover or Document
Feeder (Option) Lower the platen cover over a single original
placed on the exposure glass for copying.
If you have the optional document feeder, insert
a stack of originals here. They will be fed
automatically.
(The illustration shows the document feeder.)
2. Guide Prevents originals being fed skewed.
3. Flip up Cover Flip up to access the keys underneath.
4. Operation Panel See →“1-5 Operation Panel.”
5. Front Door Open to access the inside of the machine.
6. Tray 1 Set paper here.
7. Tray 2 Set paper here.
8. Right Cover Open to remove jammed paper.
9. Paper Tray Down Key Press to lower the paper tray.
10. Extender Pull out this extender when setting paper larger
than A4 , 81/2” x 11”
11. Paper Feed Table Set paper here.
12. Paper Feed Side Plates Prevent paper being fed skewed.
13. Master Tray Open this unit when installing the master.
C232V500.WMF
1
3
2
4
5
6
7
8
9
10
11
12
13

1 March, 2000 MACHINE INTERIOR
1-7
Overall
Information
1.4 MACHINE INTERIOR
C232V502.WMF
C232V503.WMF
1
2
3
4
567
8
9
10
11
12
13
14

MACHINE INTERIOR 1 March, 2000
1-8
1. Main Switch Use to turn the power on or off.
2. Paper Alignment Wing
Knobs Use to lift or lower the paper alignment wings.
3. Paper Alignment Wings Lift or lower the wings depending on the type of
paper being used.
4. Paper Delivery End Plate This plate aligns the leading edge of prints.
5. Paper Delivery Tray Completed prints are delivered here.
6. Paper Delivery Side Plates These plates align the prints on the paper
delivery tray.
7. Handle E1 Use to pull out the master eject unit.
8. Guide Plate Lever Turn to remove misfed paper.
9. Ink Holder Set the ink cartridge in this holder.
10. Drum Unit Lock Lever B1 Lower to unlock and pull out the drum unit.
11. Drum Unit The master is wrapped around this unit.
12. Exposure Glass (also
called the Contact Glass) Position originals here face down for printing.
13. Platen Cover or Document
Feeder (Option) Lower this cover over an original on the
exposure glass.
14. Trailing Edge Guides Swing out these guides when you use A4, 81/2"
x 11" ä, or B5 äpaper.

1 March, 2000 OPERATION PANEL
1-9
Overall
Information
1.5 OPERATION PANEL
1.5.1 KEYS
1. Quality Start key
2. Security key
3. Skip Feed key
Press to select skip feed printing.
4. User Tools key
Press to change the default
settings to meet your
requirements.
5. Stamp key
Press to select the optional
Stamp function.
6. Make-up key
Press to select the optional Make-
up function.
7. Overlay key
Press to select the optional Image
Overlay mode.
8. Edge Erase key
Press to select Edge Erase mode.
9. Image Density key
Press to make prints darker or
lighter.
10. Tint key
Press to reproduce tinted images.
11. Economy Mode key
Press to save ink.
12. On Line key
13. Auto Delivery Adjust key
Press to adjust the position of the
paper delivery end plate and paper
delivery side plates.
14. Job Separator key
15. Sorter key
Press to select the optional Sort,
Class Sort or Staple function.
16. Combine key
Press to combine originals onto 1
print.
17. Class key
Press to select All Class, Auto
Class, Manual Class, or Class
mode.
18. Speed keys
Press to adjust the printing speed.
19. Scroll keys
Press to shift the image forward,
backward, right, or left.
Also use to highlight items you
wish to select on the panel display.
C232V506.wmf

OPERATION PANEL 1 March, 2000
1-10
20. Program key
Press to input or recall programs.
21. Number keys
Press to enter the desired number
of prints and data for selected
modes.
22. Clear/Stop key
Press to stop printing.
23. [#] key
Use to enter data in selected
modes.
24. Clear Modes/Energy Saver key
Press to clear any previously
entered job settings.
25. Start key
Press to make a master.
26. Auto Cycle key
Use to process the master and
make prints in one operation.
27. Proof key
Press to make a proof print.
28. Print key
Press to start printing.

1 March, 2000 OPERATION PANEL
1-11
Overall
Information
1.5.2 INDICATORS
1. Special Feature indicators
Light to indicate the special
features that have been selected.
To access the special features, lift
the cover on the left side of the
operation panel.
2. Monitor indicators
These indicators light to inform
you of the status of the machine.
3. A3/11" x 17" Drum indicator
Lights when the A3, 11” x 17”
drum unit is installed.
4. A4/81/2" x 11" Drum indicator
Lights when the A4, 81/2” x 11”
drum unit is installed.
5. Color Drum indicator
Lights when the color drum unit is
installed.
6. Counter
Displays the number of prints
entered. While printing, it shows
the number of prints remaining.
7. Panel Display
C232V510.wmf

PRINTING PROCESS OVERVIEW 1 March, 2000
1-12
1.6 PRINTING PROCESS OVERVIEW
1. Master Ejecting: Ejects the used master wrapped around the drum
into the master eject box.
2. Scanning: Scans the original image with the CCD through the
mirrors and the lens.
3. Master Feeding: Converts the image signal read by the CCD into
digital signals and sends them to the thermal head
to develop the image on the master. The master
then wraps around the drum.
4. Paper Feeding: Sends paper to the drum section.
5. Printing: Presses the paper fed from the paper feed section
against the drum. This transfers ink to the paper
through the drum screen and the master.
6. Paper Delivering: Peels off the printed paper with the exit pawls and
air knife, and ejects the paper onto the paper
delivery table.
NOTE: Some parts of the master eject, scanning, and master feeding processes
are carried out at the same time. Paper feeding also starts before the
master feeding process has finished.
C232V505.WMF
1
23
4
5
6

1 March, 2000 MECHANICAL COMPONENT LAYOUT
1-13
Overall
Information
1.7 MECHANICAL COMPONENT LAYOUT
C232V505.WMF
12 45
3
67
8
9
10
11
12
13
14
22
24
2
28
29
30
31
32
33
34
35
36
38
39
40 41 42 43
37
15
16
17
19
21 2023
25
26
18

MECHANICAL COMPONENT LAYOUT 1 March, 2000
1-14
1. Master Feed Control Rollers
2. Lens
3. CCD
4. SBU
5. Tension Rollers
6. Platen Roller
7. Master Set Roller
8. Master Roll
9. Thermal Head
10. Master Buffer Duct
11. Paper Table
12. Paper Pick-up Roller
13. Paper Feed Roller
14. Registration Rollers
15. 3rdRelay Rollers
16. Tray Registration Rollers
17. 2nd Relay Rollers
18. 1st Relay Rollers
19. Paper Feed Rollers
20. Paper Pick-up Rollers
21. Right Tandem Tray
22. Doctor Roller
23. Tray 2
24. Pressure Cylinder
25. Left Tandem Tray
26. Back Plate (Tandem Tray)
27. Ink Roller
28. Idling Roller
29. Transport Belts
30. Job Separator Unit
31. Paper Delivery Table
32. Master Eject Rollers
33. Master Eject Box
34. Master Pick-up Rollers
35. 2nd Scanner
36. 1st Scanner
37. DF Exposure Glass
38. 1st Transport Rollers
39. 2nd Transport Rollers
40. Original Feed Belt
41. Separation Roller
42. Pick-up Roller
43. Original Exit Rollers
