Ridekick 900r Installation instructions

Discover what’s beyond.

Ridekick™power trailer

assembly, installation and safety instructions

Congratulations on purchasing the Ridekick™

power trailer. Now, you can rev up every

ride and discover what’s beyond – no matter

where you’re going, what you’re taking with

you, or what you’ll be bringing back.

Ridekick will get you there.

DMK Colorado, LLC dba Ridekick International PO Box 1486 Fort Collins, CO 80522 877-974-4440, ext 1 info@ridekick.com

Weight Without battery = 25 lbs (11.34 kg)

Dimensions 24” wide x 39” long* x 17” tall (61 x 99 x 43 cm)

*unit length w/o hitch arm is 22” (56 cm)

Motor 500-watt brush motor

Battery Pack Sealed Lead-Acid – 24v, 12 Ah, +18.8 pounds (8.5 kg) or

LiFePO4 – 24v, 20 Ah, +13 pounds (5.9 kg), or LiFePO4 - 24v, 30 Ah, + 17 lbs (8 kg)

Controller  Efcientpowercontrol,LEDdiagnosticsystem,battery-drainandmotordamageprotection

Speed Control Regulated by hand-operated throttle. 19 mph (30.5 kph) maximum speed

Charger  ULCertiedSmartCharger

SLA full charge time = 6 hours. Temp best 41°F – 95°F (5°C – 35°C)

LiFe full charge time = 3.5 hours. Temp best at 0° – 110°F (-17°C – 43°C)

Distance SLA = 8 - 10 miles, LiFePO4 LR20 = 25 – 30 miles LiFEPO4 LR30 = 35 - 40 miles:

Dependent on 1) weight of rider, cycle and , 2) terrain, 3) tire pressure on bike and Ridekick

power trailer, 4) air temperature, 5) wind speed, 6) amount of pedaling assist

Fuse 40 amps (ACT/ATO 40 amp - found at auto parts stores)

Tire Size 12.5” x 3” (31.75 cm x 7.6 cm)

Tire Pressure Best at 15 – 20 psi, max. 35 psi

Cargo Space Holding capacity of 41.8 liters, weight capacity of 75 lbs (34 kg)

Cost to Charge Based on average energy rates, it costs about 2 cents per full SLA battery charge, 4 cents

for the LR20, and 6 cents for the LR30.

Recycling United States Federal law does not allow the disposal of lead-acid batteries in

   landlls.Sealedlead-acidbatteriesare60-80%madefromrecycledmaterials. 

The Ridekick power trailer SLA battery packs themselves are recyclable,

becoming part of a positive sustainability cycle. Please call Ridekick International

for more information of recycling your SLA or LiFePO4 battery back.

Warranty 1 year for the frame and all mechanical and electrical parts, except parts that

undergo change due to normal wear and tear. 6 months for the SLA battery

(maintained according to Ridekick International instructions.) 1 year for LiFePO4 battery

Ridekick Trailer Facts

Parts List

•1hitcharmwithhitchpin

and keeper wire, hitch

plate, and safety strap

•1shortAllenhead

screw(A)

•1self-lockingnut(B)

•1longAllenheadscrew(C)

•1or2spacers(D)

•1acornnut(E)

•1throttle with cord and

straps attached

•10hookandloop straps

•1batterywithbag

•1batterycharger

•1Ridekickpowertrailer

base unit with lid

hitch arm

hook and loop straps

security loop

3throttle cable

Warning

Adding an electric assist to your 2-wheel, 3-wheel, 4-wheel cycle or other rolling conveyance can be dangerous to

use. The user assumes all risk of personal injuries, damage, or failure of the system and all other losses or damages

to themselves and others and to any property arising as a result of using the power trailer.

The mechanical and electrical components on the power trailer are subjected to wear and high stresses that react in

different ways. If the life of a component has been exceed, it may suddenly fail, possibly causing injuries to the rider.

Any type of crack, bend, or change in coloring in high-stress areas may indicate compromise in the component safe

performance ability, and the component should be repaired or replaced.

•When cycling with the Ridekick power trailer, be aware of any increased braking distances. The Ridekick power trailer and

your load may provide additional force or speed that you must compensate for when calculating braking action.

•TheRidekickpowertrailerisdesignedtobeusedonatstablesurfaces.Useondirtorgravelroadsisnotrecommended.

Warranty

NOTICE: Register your product at: www.ridekick.com/register.

Warranty Disclaimer - Ridekick International provides limited warranty to international customers.

RIDEKICK INTERNATIONAL warrants that all new Ridekick International power trailers (“Trailers”) and components, exclusive

of batteries, therein are warranted to the original retail buyer (“Buyer”) against manufacturing defects in materials and/or

workmanship for a period of one (1) year from the date of original retail purchase.

In consideration of the above promises by RIDEKICK INTERNATIONAL, the buyer agrees to and accepts the following

conditions:

• That this warranty is in lieu of all other warranties, expressed or implied;

• Thatallwarrantiesofmerchantabilityoroftnessforaparticularpurposeareherebyexcludedand/orwaived;

• That the buyer’s sole remedy shall be to obtain replacement or repair of the product or part(s) and

• That this remedy is in lieu of all other remedies or claims for damages, consequential or otherwise, which the buyer may

have against RIDEKICK INTERNATIONAL.

RIDEKICK INTERNATIONAL shall have no liability for ANY loss or injury caused, in whole or in part, by its actions,

omissions, or negligence, or for contingencies beyond its control;

The warranty extends only to the original purchaser. It is not transferable to anyone who subsequently purchases the

Ridekick power trailer from the original owner.

How the warranty applies

As the manufacturers, we guarantee against possible material or construction defects according to the following details:

• Owner provides proof of purchase and ownership or has registered at ridekick.com. The warranty begins on the date

of purchase. We strongly recommend that the owner register the product with Ridekick International to be informed

about product updates, and to establish proof of purchase. Registration may be completed online at our website: www.

ridekick.com/register

• We will guarantee 1 year for the frame, and all mechanical and electrical parts, except in parts that undergo change due

to normal wear and tear.

• 6monthsfortheSLAbattery(over80%ofcapacity.)And12monthsfortheLiFePO4battery(over85%capacity).

How the warranty does not apply

• WhentheRidekickisusednegligentlyorhasdamageresultingfromatrafcaccident.

• IfanymodicationsaremadetotheRidekickpowertrailerbyanyoneotherthanRidekickInternational.

• If any motor, chain, hitch, wheel, battery or charger is used, other than those approved by Ridekick International.

• Normal wear and tear.

• Poormaintenanceormodicationsthatnolongercomplywithregulationsororiginalspecications.

• Damage due to external causes or from use other than that described in the user manual.

• The Ridekick power trailer is used for rental.

• The battery pack is used incorrectly or damaged. This also applies to improper charging.

• Compensatory costs arising from damages or accidents, or costs incurred by loss of Ridekick power trailer usage.

How the warranty works

• Original defective parts that are sent or returned to the dealer for assessment will be replaced.

• Labor and transportation charges are not included.

• Our goal is for you to ride more and with a smile. Treat your Ridekick power trailer with care and we will support it along

with you.

Email - [email protected] Phone - 877-974-4440 Website - www.ridekick.com/support

Tools Required for Assembly

• 4mmAllenwrench(included)

• 10mmboxwrenchorpliers

(notincluded)

• If your bike/trike does not have

aquick-releaseaxleontherear

wheel, a wrench is required to

removerearaxlenut.

• Delta-styletrikesrequirea

hitchadapter-self-madeorone

available at ridekick.com/shop.

• If any parts are missing

or damaged, please contact

Ridekickat877.974.4440or

[email protected].

Assembly Instructions

(C)

(B)

(A)

(D) (E)

26”or

larger

wheel

20”or

smaller

wheel

UNPACKING NOTE: Remove protective packing materal from front

of lid. Keep all trailer and battery packing material for 30 days.

Step 1: Secure Hitch Arm

Stand Ridekick trailer upright. On the hitch arm, determine which

holes (based on wheel size) you need to align with the hitch arm

connector hole on the Ridekick trailer. Insert the hitch arm into the

tube-ﬁtting and align the pair of holes that best ﬁt your wheel size.

Place the short Allen head screw (A) into the top hole and attach the

self-locking nut (B). Only tighten after step E. Insert the long Allen

head screw (C) into the bottom hole. Tip the trailer downward so the

trailer is in riding position. Unlatch the combination lock, and open

the lid. Locate where the long Allen head screw (C) is protruding

inside the pan compartment and place the spacer(s) - 1 or 2 to make

a snug connection (D) onto the screw. Then attach the acorn nut

(E) and tighten. Close the lid, and stand the Ridekick power trailer

upright. Snugly tighten the nut (B) on the short Allen head screw (A).

Step 2: Attach Throttle Cable

Run the throttle cable along the top of the hitch arm and secure

the cable to the hitch arm using 3 hook and loop straps. Thread

the plug of the throttle cable through the security loop on the

hitch arm.

Maintenance

Lubricate the drive chain with a bicycle chain lubricant every 100 miles or once a month, whichever is more frequent.

Always disconnect the battery before working with the drive train.

‘Kickin’ Tips

General

• Reduce the Ridekick trailer tire pressure to 15 - 20 psi to get the best grip and smooth ride.

• Spin the combination cylinder one number to secure the lid while riding on bumpy surfaces.

• Whenturningcorners,don’tusetheboost,andswingwidetoavoidhittingcurbs(ippingcanresult.)

• Two-way Radio Interference - Using walkie-talkies or 2-way radios anywhere near the Ridekick trailer can possibly

affect the controller. DO NOT use these devices while operating the Ridekick power trailer!

Hills - When climbing hills with the Ridekick power trailer, it is necessary to pedal along to maintain a speed of no

less than 7 miles per hour. If your speed drops below 7 mph, the controller will become warm, and automatically turn

off the system so the motor doesn’t overheat. It will cool off in a minute and automatically reset (turn on) for use again.

To Go Farther on a Charge - Use it to start from a stop and to get you up to your desired speed, then pedal at

speed without power. OR only use it to go up hills and into the wind. OR only use it AFTER you get to speed (~12

mph/19 km/h) to move you faster than average pedal speed. OR use it at half-power rather than full. OR change your

power setting (see below!)

Power Settings to Extend Range - There are three power settings, P0, P1 and P2, in the controller. P0 and P1

will be less power in torque, but will give better range. P2 gives you more power starting from a stop and climbing hills,

but will use the battery quicker. P0 is low torque like P1, and speed is limited to 15 mph. The controller comes preset to

P2. To change between P0, P1 and P2:

• Turn on the controller

• Press and hold the BATTERY button AND the arrow (>) button simultaneously. P2 will appear.

• Press the ARROW button to toggle between P0, P1 and P2.

• Press the BATTERY button to save the power setting and get back to the battery level mode.

Battery Settings

The Ridekick power trailer display is calibrated for SLA (LA) or LiFePO4 (Li) batteries. To change the setting:

1) Turn on controller.

2) Press and hold the BATTERY button.

3) While still pressing the BATTERY button, press the PLUS button (LA or Li should appear in the display window)

4) Release all buttons.

5) Press the ARROW button to toggle between LA and Li.

6) When you are at the desired setting, press the BATTERY button.

Wrap a small piece of

cellophane tape around

end of bolt. This will

create friction to help

secure the acorn nut.

D-ring

safety strap

bike frame

If needed,

insert star

washer here.

Installation Instructions

throttle

hook and loop straps

Step 2: Attach Throttle

Attach the throttle to one of the handlebars/grips,

keeping your comfort in mind. Avoid interference with

braking and shifting operations, and use the hook and

loop straps attached to the throttle to secure the throttle

to the handlebar. After installation, test the throttle to

ensure it stays in place and that the brakes and gear

shifters function properly.

throttle

cord

throttle

cable

Step 3: Connect Throttle Cord

and Cable

Returning to the rear axle, connect the throttle cord

to the throttle cable on the hitch arm.

keeper wire

hitch arm

hitch plate

quick-release lever

hitch pin

bike frame

skewer

Small screw

goes

IN THE

BACK SIDE

of the hitch

plate.

Step 1: Attach Ridekick Power Trailer

Unsnap the keeper wire from the hitch pin on the end of the hitch arm and remove the pin and hitch plate from

the hitch arm. Open and unscrew the quick-release lever* on the rear axle of your bike/trike. Hold the lever and

pull the axle skewer all the way out. Unscrew the small screw on the back of the hitch plate and set it aside as

you position the hitch plate over the axle hole/drop-out. Note which hole on the hitch plate is not blocked by

the frame of the bike/trike, and screw the small screw snugly back into that hole ON THE BACK of the hitch

plate. The screw is designed to stop rotation of the hitch plate.

Thread the skewer through the hole in the hitch plate and through the rear axle. Angle hitch plate at the “3:00”

position and securely tighten the quick-release lever. It should be snug enough that there is NO movement

when you push down ﬁrmly on the hitch plate. If it moves, either tighten the skewer/nut more, or change the

location of the small screw on the hitch plate. If it is still able to move, you may insert a star washer between

the bike/trike frame and the hitch plate.

*Note: if there is no quick-release lever, remove rear axle nut, thread hitch plate onto bolt, and retighten nut.

Slide the hitch arm onto the hitch plate aligning the hole in the hitch arm to the hole in the hitch plate. Insert

the hitch pin through both holes and snap the keeper wire closed. Loop the safety strap around the bike frame*

and clip it to the D-ring. *Note: If there is excess safety strap that may interfere with your biking operations,

wrap it around the hitch arm or bike frame so it does not get caught in your spokes. Go to www.ridekick.

com/installation to watch Ridekick power trailer installation video.

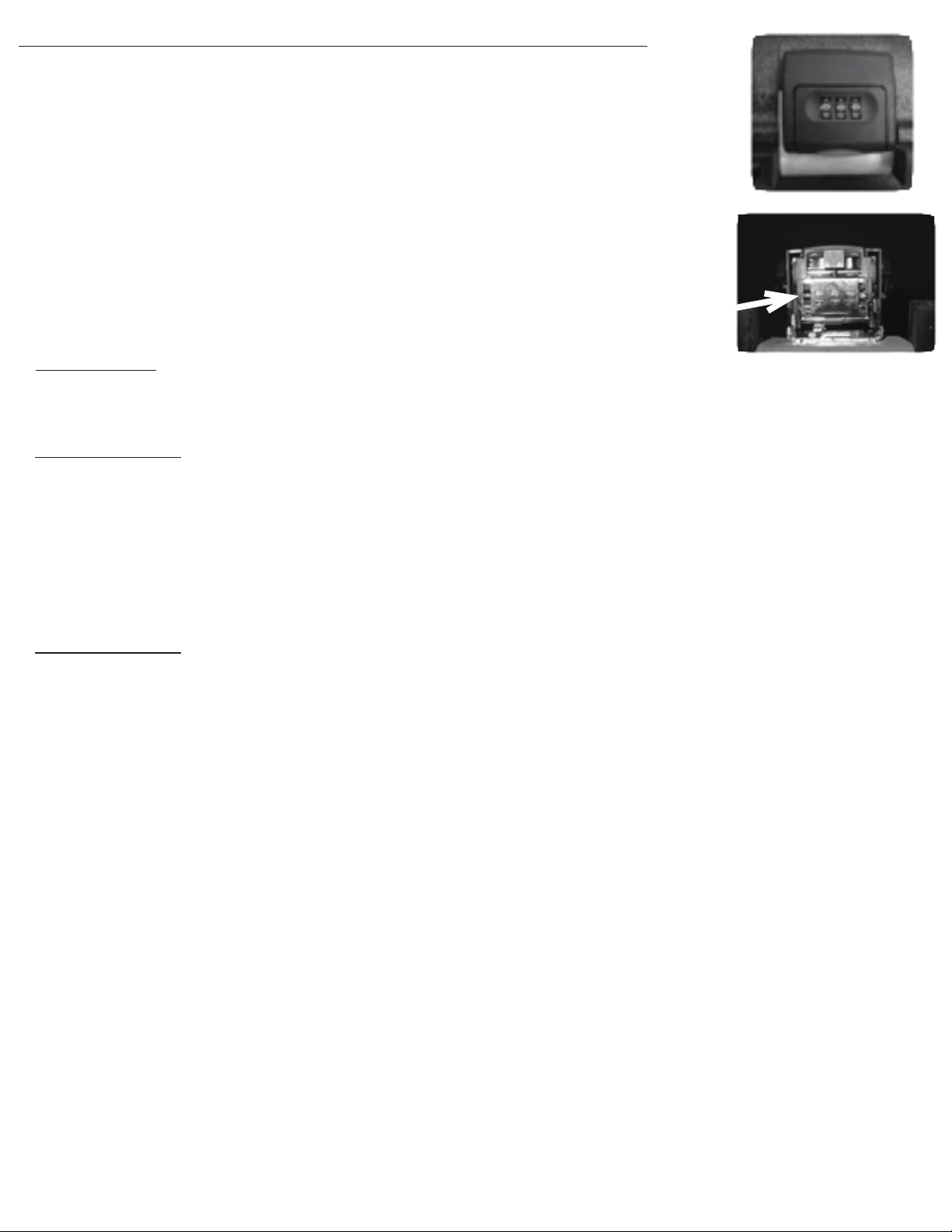

Setting Your Latch Combination (see www.bit.ly/RKLatchCombo)

When you receive the Ridekick power trailer, the latch combination will be set to

“0-0-0”. You can select and set a different number that is easy for you to remember.

1. Remove the Ridekick lid by opening the lid to about 45 degrees.

2. Remove battery.

3. Detach trailer from bike/trike.

4. Turn trailer over.

5. Now you can see the underside of the latch. The “coder” looks like a tiny gear and is

on the left side as you look at the underside of the latch.

6. With a pen, push the coder to the right, then away from you. It should stay in position.

7. Spin the cylinders to the desired numbers. If they don’t spin, check to see if there’s a

plastic red tab next to the cylinder. Remove it, then set the numbers.

8. Return the coder to the original position.

9. Turn the trailer back over, attach to the hitch plate, return the battery and lid, and test

the latch.
