RIDGID SeeSnake LT1000 User manual

SeeSnake®LT1000
•Français – 19
•Castellano – pág. 37
SeeSnake®LT1000 Manual
WARNING!
Read this Operator’s Manual
carefully before using this
tool. Failure to understand
and follow the contents of
this manual may result in
electrical shock, fire and/or
serious personal injury.

ii
Table of Contents
Recording Form for Machine Serial Number..............................................................................................................1
Safety Symbols..............................................................................................................................................................2
General Safety Rules
Work Area Safety........................................................................................................................................................2
Electrical Safety ..........................................................................................................................................................2
Personal Safety ..........................................................................................................................................................2
Equipment Use and Care............................................................................................................................................3
Battery Tool Use and Care ........................................................................................................................................3
Service........................................................................................................................................................................3
Specific Safety Information..........................................................................................................................................3
LT1000 Safety ............................................................................................................................................................4
Description, Specifications And Standard Equipment
Description..................................................................................................................................................................4
Specifications..............................................................................................................................................................5
Laptop System Requirements ....................................................................................................................................5
Standard Equipment ..................................................................................................................................................5
Optional Equipment ....................................................................................................................................................5

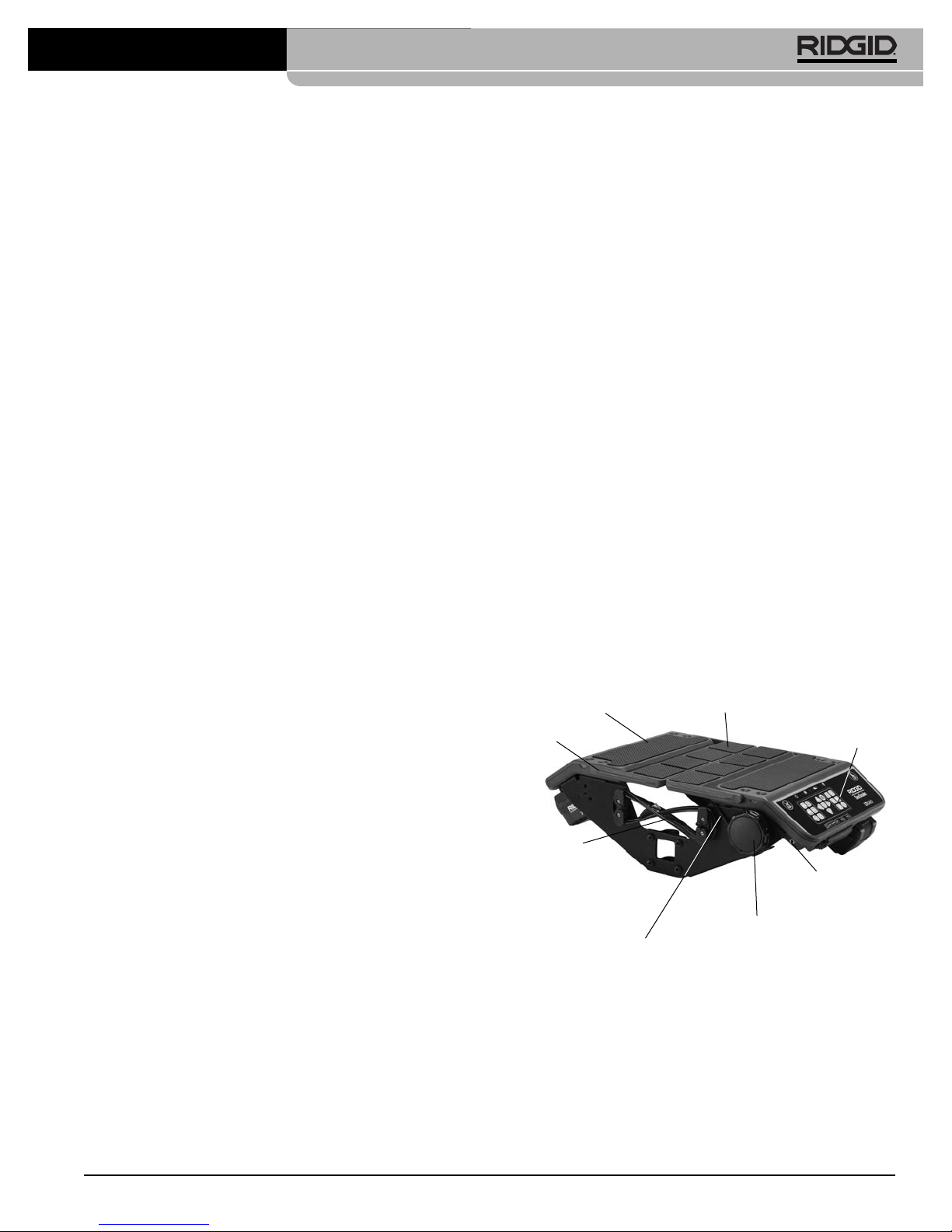

LT1000 Components ....................................................................................................................................................5
Icons ..............................................................................................................................................................................6
Assembly

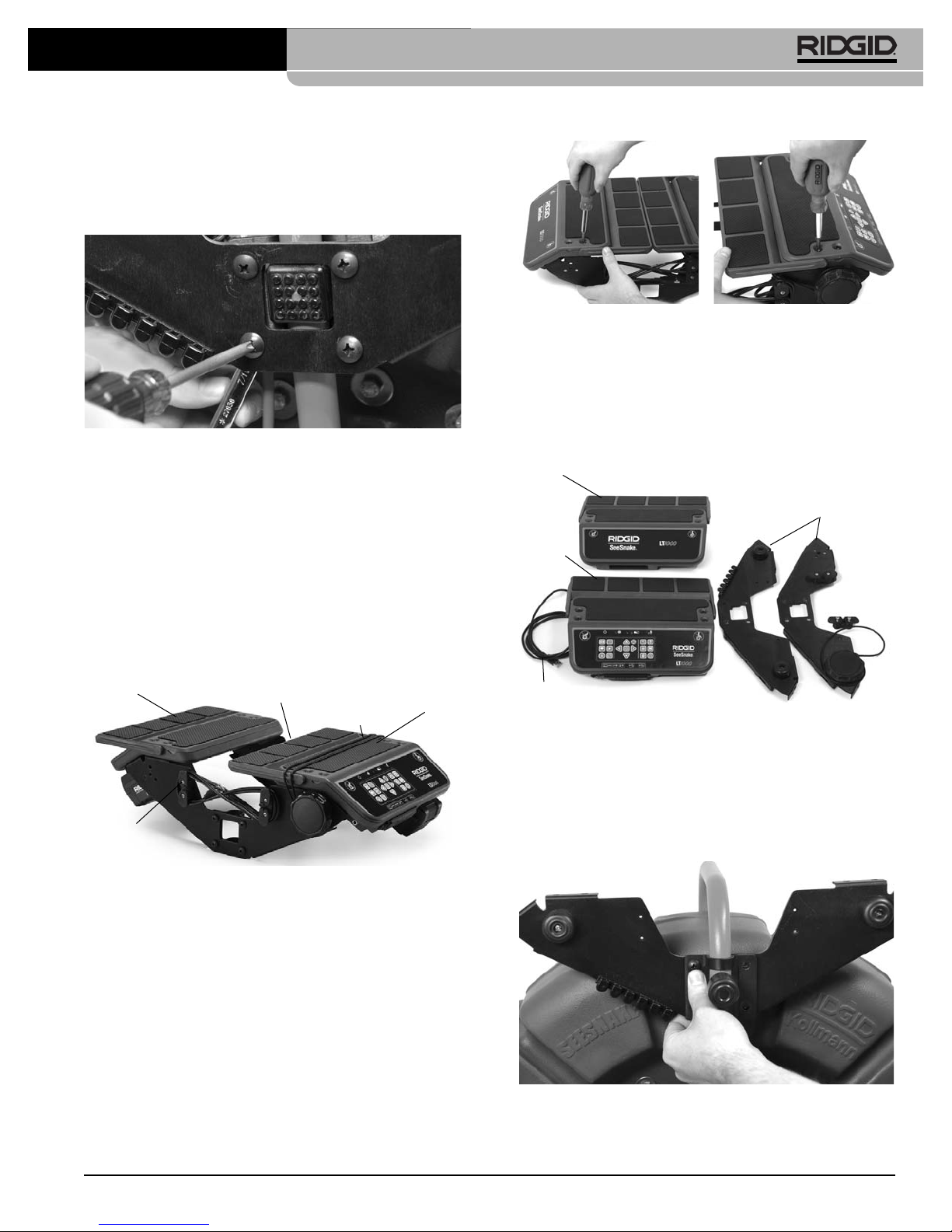

Mounting the LT1000..................................................................................................................................................6

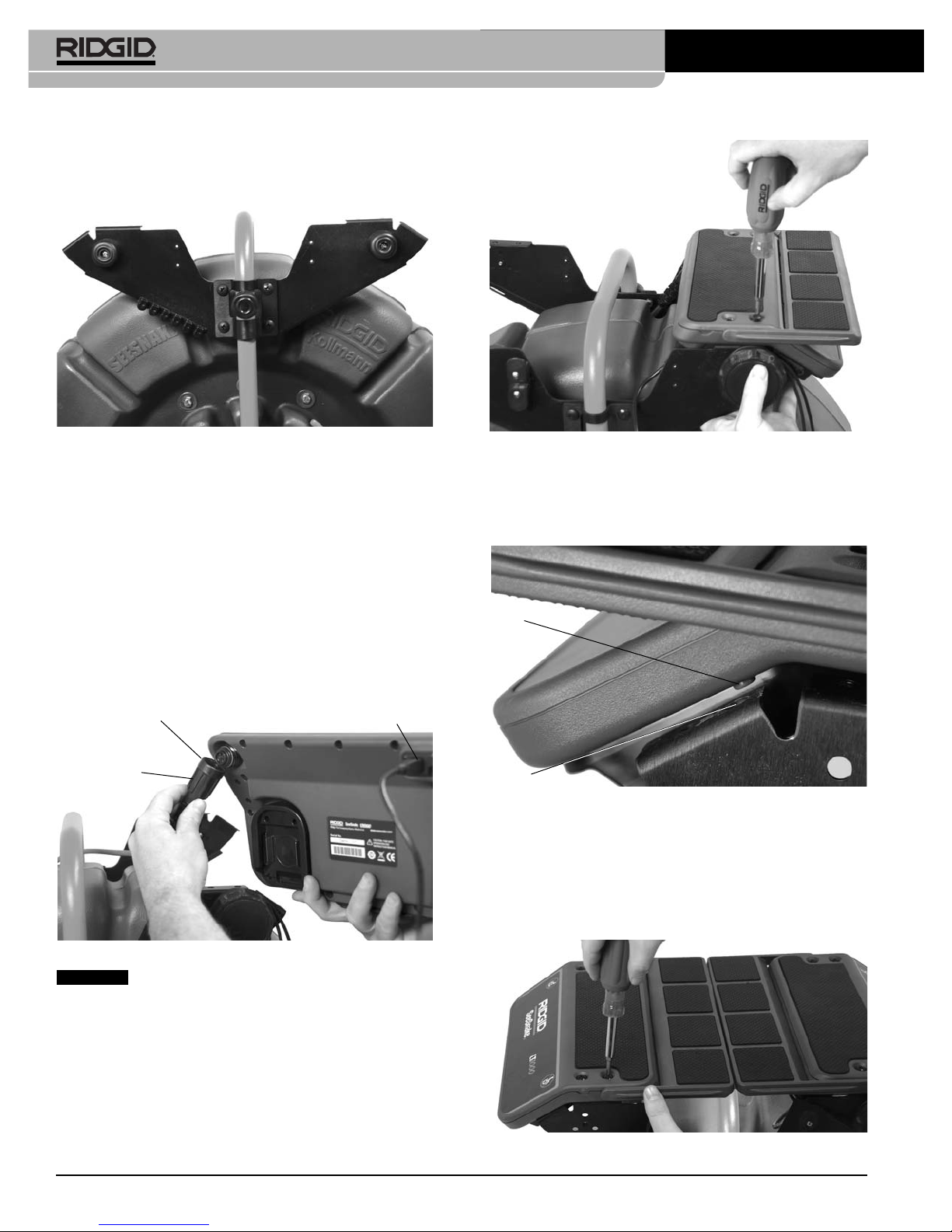

Mounting the LT1000 to the SeeSnake Mini Reel ......................................................................................................6
Mounting the LT1000 to the SeeSnake Standard Reel ..............................................................................................7

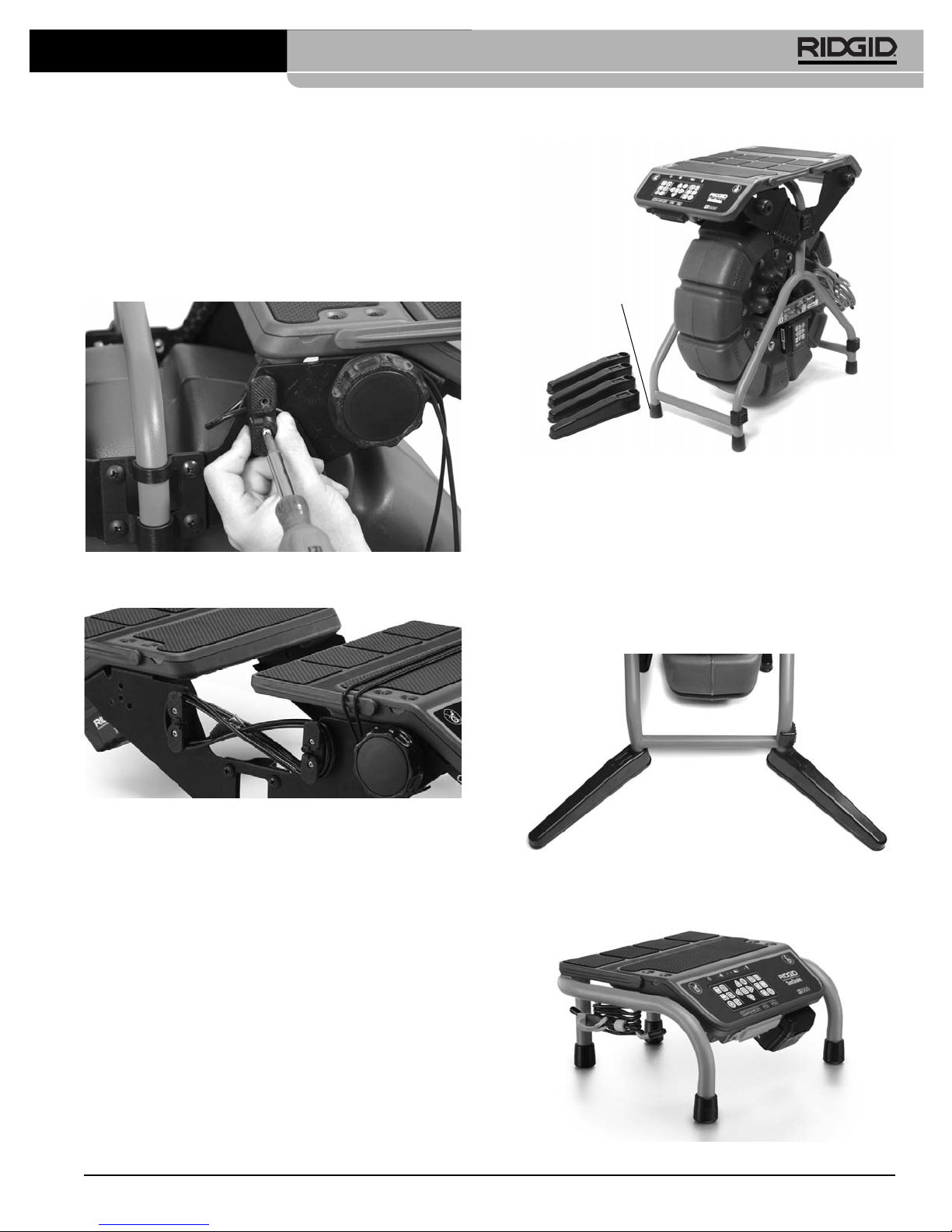

Installing the Stabilizers ..............................................................................................................................................9
LT1000 Mini ................................................................................................................................................................9
Preparing the Laptop ................................................................................................................................................10
Pre-Operation Inspection ..........................................................................................................................................10
Work Area and Equipment Set Up
LT1000 Placement....................................................................................................................................................11
Mounting the Laptop ................................................................................................................................................11

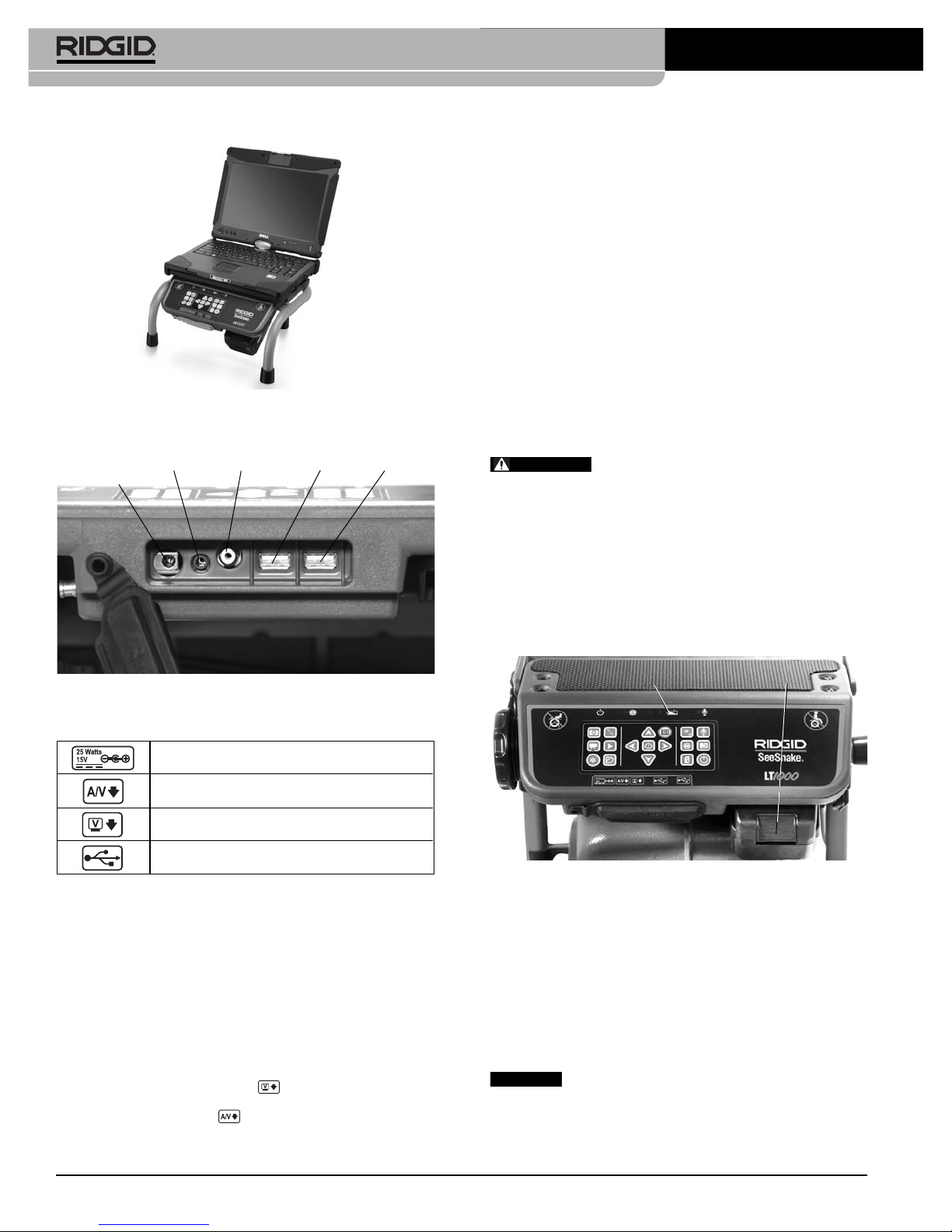

Connecting the LT1000 ............................................................................................................................................12
Powering the SeeSnake LT1000 ..............................................................................................................................12
LT1000 Controls
Keypad Controls ......................................................................................................................................................13
About HQ Software ..................................................................................................................................................13
Operating Instructions
Starting Up................................................................................................................................................................14
Inspecting the Line....................................................................................................................................................14
Brightness Adjustment............................................................................................................................................14
Image Rotation........................................................................................................................................................14
Count
Plus Control ..................................................................................................................................................14

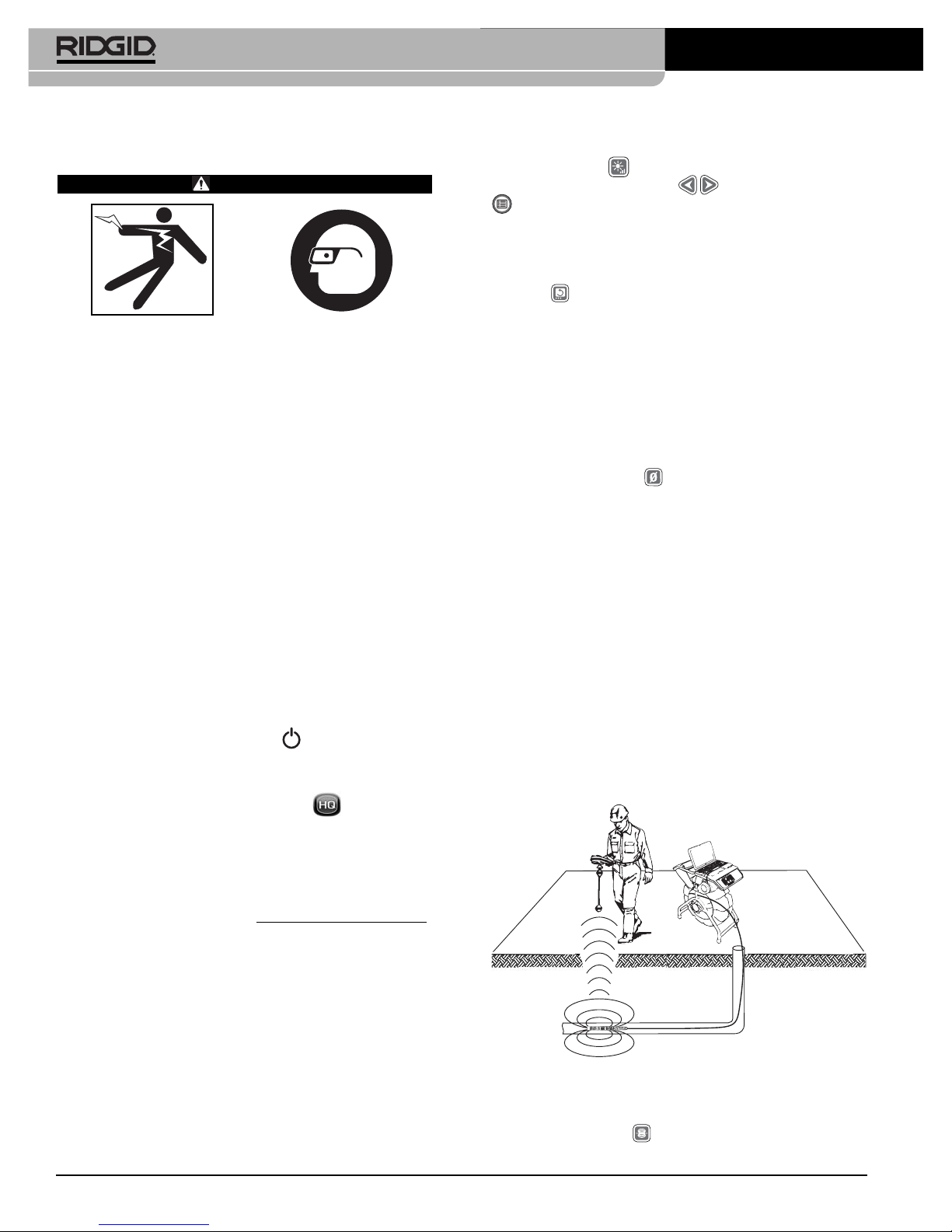

Locating the Camera Using the Sonde ....................................................................................................................14
Line Tracing the SeeSnake Pushrod ........................................................................................................................15
Maintenance Instructions
Cleaning....................................................................................................................................................................15
Accessories ................................................................................................................................................................15
Transport And Storage ..............................................................................................................................................16
Service And Repair ....................................................................................................................................................16
Disposal ......................................................................................................................................................................16
Battery Disposal..........................................................................................................................................................16
Troubleshooting..........................................................................................................................................................17
Lifetime Warranty ........................................................................................................................................Back Cover
*Original Instructions - English
SeeSnake®LT1000

SeeSnake®LT1000
SeeSnake®LT1000
SeeSnake®LT1000
Record Serial Number below and retain product serial number which is located on nameplate.
Serial
No.

2
SeeSnake®LT1000
General Safety Rules
WARNING
Read all safety warnings and instructions. Failure to follow
the warnings and instructions may result in electric shock,
fire and/or serious injury.
SAVE ALL WARNINGS AND INSTRUCTIONS
FOR FUTURE REFERENCE!
Work Area
•Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
•Do not operate equipment in explosive atmo-
spheres, such as in the presence of flammable
liquids, gases or dust. Equipment can create sparks
which may ignite the dust or fumes.
•Keep children and by-standers away while oper-
ating equipment. Distractions can cause you to lose
control.
Electrical Safety
•Double-insulated tools are equipped with a polar-
ized plug (one blade wider than the other). This
plug will fit in a polarized outlet only one way. If the
plug does not fit fully in the socket, reverse the
plug. If it still does not fit, contact a qualified elec-
trician to install a polarized outlet. Do not change
the plug in any way. Double insulation eliminates
the need for the three-wire grounded power cord and
grounded supply system.
•Avoid body contact with earthed or grounded sur-
faces such as pipes, radiators, ranges and refrig-
erators. There is an increased risk of electrical shock
if your body is earthed or grounded.
•Do not expose equipment to rain or wet condi-
tions. Water entering equipment will increase the risk
of electrical shock.
•Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the equipment.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electric shock.
•If operating equipment in a damp location is un-
avoidable, use a ground fault circuit interrupter
(GFCI) protected supply. Use of a GFCI reduces
the risk of electric shock.
•Keep all electrical connections dry and off the
ground. Do not touch equipment or plugs with
wet hands. This reduces the risk of electrical shock.
Personal Safety
•Stay alert, watch what you are doing and use com-
mon sense when operating equipment. Do not
use equipment while you are tired or under the in-
fluence of drugs, alcohol or medication. A moment
of inattention while operating equipment may result in
serious personal injury.
•Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
Safety Symbols
In this operator’s manual and on the product, safety symbols and signal words are used to communicate important safety
information. This section is provided to improve understanding of these signal words and symbols.
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this
symbol to avoid possible injury or death.
DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
NOTICE indicates information that relates to the protection of property.
This symbol means read the operator’s manual carefully before using the equipment. The operator’s manual contains important
information on the safe and proper operation of the equipment.
This symbol means always wear safety glasses with side shields or goggles when handling or using this equipment to reduce
the risk of eye injury.
This symbol indicates the risk of electrical shock.
NOTICE
DANGER
WARNING
CAUTION

3
SeeSnake®LT1000
protection used for appropriate conditions will reduce
personal injuries.
•Do not overreach. Keep proper footing and balance
at all times. This enables better control of the equip-
ment in unexpected situations.
•Dress properly. Do not wear loose clothing or jew-
elry. Keep your hair, clothing, and gloves away
from moving parts. Loose clothes, jewelry, or long
hair can be caught in moving parts.
Equipment Use and Care
•Do not force equipment. Use the correct equipment
for your application. The correct equipment will do the
job better and safer on the job for which it is designed.
•Do not use equipment if the switch does not turn it
ON and OFF. Any equipment that cannot be con-
trolled with the switch is dangerous and must be re-
paired.
•Disconnect the plug from the power source and/or
the battery pack from the equipment before making
any adjustments, changing accessories, or storing.
Such preventive safety measures reduce the risk of in-
jury.
•Store idle equipment out of the reach of children
and do not allow persons unfamiliar with the equip-
ment or these instructions to operate the equip-
ment. Equipment can be dangerous in the hands of
untrained users.
•Maintain equipment. Check for misalignment or bind-
ing of moving parts, missing parts, breakage of parts
and any other condition that may affect the equip-
ment’s operation. If damaged, have the equipment
repaired before use. Many accidents are caused by
poorly maintained equipment.
•Use the equipment and accessories in accordance
with these instructions, taking into account the
working conditions and the work to be performed.
Use of the equipment for operations different from
those intended could result in a hazardous situation.
•Use only accessories that are recommended by
the manufacturer for your equipment. Accessories
that may be suitable for one piece of equipment may
become hazardous when used with other equipment.
•Keep handles dry and clean; free from oil and
grease. Allows for better control of the equipment.
Battery Tool Use And Care
•Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of fire when used with
another battery pack.
•Use equipment only with specifically designated
battery packs. Use of any other battery packs may
create a risk of injury and fire.
•Do not probe battery with conductive objects.
When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause
burns or a fire.
•Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact acciden-
tally occurs, flush with water. If liquid contacts
eyes, additionally seek medical help. Liquid ejected
from the battery may cause irritation or burns.
•Use and store batteries and chargers in dry, ap-
propriate temperature areas. Extreme temperatures
and moisture can damage batteries and result in leak-
age, electrical shock, fire or burns.
See charger man-
ual for more information.
•Do not cover charger while in use. Proper ventilation
is required for correct operation. Covering charger in
use could result in fire.
•Properly dispose of batteries. Exposure to high
temperatures can cause the batteries to explode, so do
not dispose of in a fire. Some countries have regula-
tions concerning battery disposal. Please follow all
applicable regulations.
Service
•Have your equipment serviced by a qualified repair
person using only identical replacement parts. This
will ensure that the safety of the equipment is main-
tained.
• Remove the batteries and refer servicing to qualified
service personnel under any of the following conditions:
• If liquid has been spilled or objects have fallen into
product;
• If product does not operate normally by following
the operating instructions;
• If the product has been dropped or damaged in
any way; or,
• When the product exhibits a distinct change in
performance.

4
SeeSnake®LT1000
Specific Safety Information
WARNING
This section contains important safety information that is
specific to this equipment.
Read these precautions carefully before using the LT1000
to reduce the risk of electrical shock or other serious per-
sonal injury.
SAVE THESE INSTRUCTIONS!
Keep this manual with the machine for use by the operator.
The EC Declaration of Conformity (890-011-320.10) will
accompany this manual as a separate booklet when re-
quired.
If you have any question concerning this RIDGID®product:
– Contact SeeSnake HQ Support Department at
[email protected] for questions relating
to HQ.
– Contact your local RIDGID®distributor.
– Visit www.RIDGID.com or www.RIDGID.eu to find
your local RIDGID contact point.
– Contact RIDGID Technical Services Department at
[email protected], or in the U.S. and
Canada call [phone].
LT1000 Safety
•An improperly grounded electrical outlet can cause
electrical shock and or severely damage equip-
ment. Always check work area for a properly grounded
electrical outlet. Presence of a three prong or GFCI out-
let does not insure that the outlet is properly grounded.
If in doubt, have the outlet inspected by a licensed elec-
trician.
•Use only a battery or the included isolated power
supply to power the LT1000. Use batteries or an
isolated power supply with any laptop used with the
LT1000. This minimizes the risk of electrical hazards
from moisture or faulty electrical outlets.
•Do not operate this equipment if operator or ma-
chine is standing in water. Operating machine while
in water increases the risk of electrical shock.
•The LT1000 is not waterproof. It is dust-resistant
and splash-resistant. Do not expose the equipment to
water or rain. This increases the risk of electrical shock.
•Do not use where a danger of high voltage contact
is present. The equipment is not designed to pro-
vide high voltage protection and isolation.
•Read and understand this operator’s manual, the
reel operators’ manual and the instructions for
any other equipment in use and all warnings be-
fore operating the LT1000. Failure to follow all in-
struction may result in property damage and/or serious
personal injury.
•Always use appropriate personal protective equip-
ment while handling and using equipment in drains.
Drains may contain chemicals, bacteria and other sub-
stances that may be toxic, infectious, cause burns or
other issues. Appropriate personal protective equip-
ment always includes safety glasses, and may include
equipment such as drain cleaning gloves or mitts, latex
or rubber gloves, face shields, goggles, protective cloth-
ing, respirators and steel-toed footwear.
•If using drain cleaning equipment at the same time
as using drain inspection equipment, only wear
RIDGID Drain Cleaning Gloves. Never grasp the ro-
tating drain cleaning cable with anything else, including
other gloves or a rag. They can become wrapped
around the cable, causing hand injuries. Only wear
latex or rubber gloves under RIDGID Drain Cleaner
Gloves. Do not use damaged drain cleaning gloves.
•Practice good hygiene. Use hot, soapy water to wash
hands and other exposed body parts exposed to drain
contents after handling or using drain inspection equip-
ment. Do not eat or smoke while operating or han-
dling drain inspection equipment. This will help prevent
contamination with toxic or infectious material.
Description, Specifications And
Standard Equipment
Description
The SeeSnake®LT1000 is a convenient interface and
platform which allows any standard laptop to serve as a
SeeSnake Inspection monitor, and can be used to auto-
matically capture photos, motion clips and sound record-
ings from a SeeSnake Pipe Inspection System. It provides
a convenient interface to SeeSnake HQ report generating
and video managing software to make creating and man-
aging customer reports quick and easy.
The LT1000 also provides a robust laptop platform to
which the laptop can be rapidly secured and connected,
and easily removed when needed. Two platform wings
may be used to increase the work platform area. The in-
dividual platform wings may be separately folded in, to pro-
vide platform support across the center of the SeeSnake,
or they may be folded out to extend platform support at ei-
ther end of the LT1000.

5
SeeSnake®LT1000
Figure 1 – Platform Wings Folded In
USB Cord
Keypad
Side Plate
Transmitter Clip-On
Terminal
Capstan
Specifications
LT1000
Weight ...........................6.4 lbs (2.9kg) w/o Battery
7.35 lbs. (3.3 kg) with Battery
(without Laptop)
Dimensions:
Length,
platform wings closed ...20.6" (52.3 cm)
Length,
platform wings open ....21.7" (55.1 cm)
Width, Standard...........12.8" (32.5 cm)
Width, Shipping ...........11.9" (30.2 cm)
Height..........................6.5" (16.5 cm)
Power Source................100-240VAC/50-60Hz, AC or
18 VDC Rechargeable Battery
Battery Type..................18 V Li-Ion, 2.2 Ah
Power Rating.................14-16 VDC 40W
Operating Environment:
Temperature................-4°F to 167°F (-20°C to 75°C)
Humidity ......................5% to 95% RH
Altitude ........................13120 feet (4000 meters)
LT1000 Mini
Weight ...........................6.1 lbs (2.78 kg) w/o Battery
7.4 lbs. (3.4 kg) with Battery
(without Laptop)
Dimensions:
Length .........................13.6" (34.5 cm)
Width ...........................11.9" (30.2 cm)
Height..........................6.5" (16.5 cm)
Laptop System Requirements
• Windows®7, Windows Vista®(SP2),Windows XP
(SP3) (Windows 7 is recommended)
• Intel®Pentium®or AMD Athlon™ 1.8 GHz (2.4 GHz or
higher recommended) or Intel Core™ 2 Duo 2.4 GHz
• GB system memory (2 GB recommended)
• DirectX®9 or 10 compatible graphics card with
128MB (256 MB or higher recommended)
• DirectX®9 or higher compatible sound card
• 30 GB of disk space
• CD-ROM drive or Internet connection to install soft-
ware
• 1 USB 2.0 port
• Optional: - DVD burner for creating DVD reports
Internet connection for emailing reports, uploading
reports to Ridgid Connect, etc.
Recommended minimum screen resolution: 1024 x
768.
LT1000 Components
Standard Equipment
• LT1000
• 100-220VAC to 15VDC Power Converter and Supply
• Operator’s Manual
• Instructional DVD
• Stabilizers (4)
• USB Cable
Optional Equipment
Other auxiliary equipment used with the SeeSnake LT1000
may include:
• Rechargeable battery
• A RIDGID®locator/receiver (such as the SR-20, the
SR-60, the Scout®or the NaviTrack®II).
• A RIDGID®transmitter (such as the ST-510, the
ST-305, ST-33Q, the NaviTrack®Brick or the
NaviTrack®10-watt transmitter).
• The CountPlus Cable Counter cable-measurement
system, normally built in to SeeSnake Pipe Inspec-
tion Systems
The LT1000 is protected under U.S. and international
patents.
Laptop Platform Folding Platform Wing
Retaining Cord

Mounting the LT1000 to the SeeSnake
Mini Reel
1. Remove the two mounting brackets from the sides of
the LT1000.
2. Before mounting the LT1000 on the frame, lead the
SeeSnake System Cable up to the SeeSnake System
Connector. The SeeSnake System Cable has a guide
ridge molded into the top of the cable connector.
With the guide ridge aligned with the guide pin at the
top of the receptacle, insert the System Cable into the
System Connector firmly and turn the locking sleeve
clockwise to tighten it in position.
When connecting/disconnecting the SeeSnake
system cable, turn only the locking sleeve. To prevent
damage, do not bend or twist the connector or cable.
Figure 4 – Connecting System Cable Before Mounting
3. The Mini SeeSnake has the curved portions of the
mounting brackets face inward. Position the LT1000
with the opening in the side plate seated over the
“foot” on the SeeSnake Reel frame and hold it in its
approximate position while starting the attaching
machine screws on one side of the LT1000. The
SeeSnake may be laid on its back for easier instal-
lation of the front side panel.
Figure 5 – First Machine Screw
Do not sit on the LT1000.
Do not stand on the LT1000.
Assembly
Mounting the LT1000
The LT1000 mounts to any Standard or Mini SeeSnake
reel quickly and easily. Assembly requires a Phillips
head screwdriver and a 7/16" box wrench. The mounting
sequence for the SeeSnake Mini is different than the se-
quence for the SeeSnake Standard.
Note that for the Standard SeeSnake reel, the curved
portions of the mounting brackets are oriented to the out-
side of the LT1000 while for the Mini’s narrower frame,
the curved portions of the brackets point inward.
6
SeeSnake®LT1000
Figure 3 –LT1000 Keypad
Power
Key
Sonde
Key
Video
Key
Job
Management
Key
Brightness
Key Microphone
Mute Key
Figure 2 – LT1000 Components
Side Plate
Laptop Platform
SeeSnake
System
Cable
Platform
Wing
Zero
Key
Select
Key
Autolog
Key
Playback
Key
Mounting
Brackets
Platform Wings Extended
Platform
Wing
18V
Battery
Flip Key
Menu
Key
Arrow
Keys
Tag
Key
Key
NOTICE
Guide
Locking
Sleeve
Icons

Figure 8 – Removing the Platform Screws (SeeSnake
Standard)
3. Lift off the two platform halves and set them to one
side close to the SeeSnake frame. Save all screws
carefully.
4. The two side plates will then be free from the platform
halves and may be individually installed.
Figure 9 – Parts of the LT1000
5. Move the front side plate under the upper handle of
the SeeSnake Standard. Be careful not to scrape
against the frame.
6. Place the mounting bracket over the outer bumper on
the side of the SeeSnake and align the side plate to
match the holes in the mounting bracket.
Figure 10 – Aligning the Bracket to the Side Plate
7
SeeSnake®LT1000
4. With one side loosely bolted into position, align the op-
posite side and start the four machine screws on the
opposite side. The screw-heads should be on the
outer face of the LT1000 and the nuts on the inner
face.
Figure 6 – Tightening Screws
5. Align the LT1000 so it is straight and level and hand-
tighten down the four machine screws on each side.
With the folding wings closed there should be about a
1" gap between the reel and the wings. Tighten all
four machine screws down on each side with a
Phillips head driver.
6. Rotate the capstan handle clockwise to loosen the
laptop retaining cord and unhook the retaining cord
from the cord hooks on the opposite side.
7. Fold the two platform wings in to the center posi-
tion.
Figure 7 – Lowering the Platform Wings
Mounting the LT1000 to the SeeSnake
Standard Reel
Mounting the LT1000 on a Standard SeeSnake reel re-
quires removing the two laptop platform surfaces and the
right-hand USB cord wrap from the LT1000 frame.
1. With a Phillips screwdriver, remove two screws from
the USB cable wrap on the right side (the one which
holds down the USB cable where it enters the
LT1000). Unwind the USB cable from the cord wraps.
2. Remove the four screws from each platform half.
Laptop
Retaining
Cord
USB Cord Wrap
Left
Platform Right
Platform
Wings
Left
Platform
Right
Platform
USB Cord
Side
Plates

Ridge Tool Company
8
SeeSnake®LT1000
7. Insert the four screws through the mounting bracket
and side plate into their individual nuts and hand
tighten.
Figure 11 – Near Side-Plate Mounted
8. Repeat the process with the other side plate and
mounting bracket. The two side plates should be
level.
9. Route the SeeSnake System Cable from the See-
Snake between the side plates and connect it to the
SeeSnake Connector on the bottom of the right-
hand platform. The SeeSnake System Cable has a
guide ridge molded into the top of the cable con-
nector. With the guide ridge aligned with the guide pin
of the receptacle, insert the System Cable into the
System Connector firmly and turn the locking sleeve
clockwise to tighten it in position.
Figure 12 – Attaching the SeeSnake System Cable
When connecting/disconnecting the SeeSnake
system cable, turn only the locking sleeve. To prevent
damage, do not bend or twist the connector or cable.
Figure 13 – Mounting Right-Hand Platform
10. Mount the right hand (keyboard) platform by aligning
it with the mounting holes in the flanges of the side
plates and screw it hand tight with four screws. Adjust
the platform so it is level.
Figure 14 – Alignment Pin and Hole
A small alignment pin at each end of each platform should
fit into a matching hole to seat the platform side fully.
11. Locate the left hand laptop platform, which is the
one without the keyboard. Align it to the four holes (in
the flanges of the side plates) and insert the four
screws and hand-tighten them.
Figure 15 – Mounting the Left-Hand Platform
NOTICE
Locking Sleeve USB Connector
Guide Ridge
Pin
Hole

12. Adjust the platforms and side plates so the platforms
are aligned and level. Fully tighten down the screws
on the brackets and the mounting screws for the
laptop platforms.
13. Replace the right-hand cord-wrap and fasten it into
place with two screws. Note that the USB cable is
captured under the cord-wrap post as it exits the
LT1000.
Figure 16 – Mounting the Cord-Wrap (Note USB Cable cap-
tured under Cord-Wrap)
Figure 17 – Cord-wrap and USB Cable
Installing the Stabilizers
Stabilizers are supplied with the LT1000 which provide
greater reel stability when they are rotated out. Each sta-
bilizer has a spring-loaded plate inside it which holds the
stabilizer in place when installed.
Figure 18 – Stabilizers with Mini Reel
To install the stabilizers:
1. Remove the rubber foot from a leg of the frame.
2. Slide the stabilizer onto the leg of the frame, with
the solid face toward the top of the frame.
3. Replace the rubber foot and seat it firmly.
4. Repeat for all four legs. On the larger Standard unit,
install stabilizers only on the legs without wheels.
Figure 19 – Stabilizers installed
LT1000 Mini
Figure 20 – LT1000 Mini
Ridge Tool Company 9
SeeSnake®LT1000
Rubber Foot

Pre-Operation Inspection
WARNING
Before each use, inspect your SeeSnake LT1000
and correct any problems to reduce the risk of se-
rious injury from electrical shock or other causes
and prevent machine damage.
1. Confirm that the power is OFF, any external power
and cords are disconnected and the battery is re-
moved. Inspect the cords, cables and connectors
for damage or modification.
2. Clean any dirt, oil or other contamination from the
SeeSnake LT1000 to aid in inspection and to prevent
the unit from slipping from your grip while transporting
or using.
3. Inspect the LT1000 for any broken, worn, missing, mis-
aligned or binding parts, or any other condition which
might prevent safe, normal operation. Ensure the
LT1000 mounting brackets are securely tightened.
4. Inspect any other equipment being used per its in-
structions to make sure it is in good usable condition.
5. If any problems are found, do not use the unit until the
problems are corrected.
Work Area and Equipment
Set Up
WARNING
Set up the LT1000 and work area according to
these procedures to reduce the risk of injury from
electrical shock, fire and other causes, and to pre-
vent damage to the LT1000.
1. Check work area for:
• Adequate lighting.
• Flammable liquids, vapors or dust that may ignite.
If present, do not work in area until sources have
been identified and corrected. The LT1000 is not
10
SeeSnake®LT1000
The LT1000 Mini is a sturdy portable frame supporting an
LT1000 unit. It is light-weight, easy-to-carry and can be
used with any SeeSnake reel simply by connecting the
SeeSnake System Cable. It is an economical alterna-
tive if you need to shift your LT1000 between SeeSnake
reels frequently. The LT1000 Mini is shipped with the
LT1000 unit already installed on the portable frame.
Preparing the Laptop
To operate correctly with the LT1000, the laptop to be
used must have SeeSnake HQ software installed on it.
HQ software enables you to create, manage and store im-
ages, audio and video from the LT1000. The software is
on the CD that ships with the LT1000. To load the soft-
ware from the CD:
You must install SeeSnake HQ and its drivers before
connecting the LT1000 to your computer.
1. Insert the CD into the computer’s CD drive.
2. The laptop should auto-detect the CD and begin the
installation process. It may ask for an admin password
before installing the HQ software.
3. When the software installation is complete, eject the
CD and store it in a safe place.
NOTE! Software update checks will occur automatically
when the laptop is connected to the Internet. If an
update is detected you will be asked if you want
to install it, and the update will occur automatically
if you indicate you want it installed. The latest ver-
sion can be checked for manually by placing the
laptop on-line and pointing an Internet browser to
http://www.hq.ridgid.com/product-hq.php .
4. Alternatively the software may be installed by brows-
ing to the updates website given above and following
the instructions found there.
5. For detailed instructions on using HQ software to
manage your video clips, still photos, reports, cus-
tomer information and formats, direct a web-con-
nected browser to http://www.hq.ridgid.com/. You
will find on-line user instructions for every aspect of
HQ’s capabilities there.

11
SeeSnake®LT1000
explosion proof. Electrical connections can cause
sparks.
• Clear, level, stable dry place for operator. Do not use
the machine while standing in water.
• Clear path to electrical outlet, that does not contain
any potential sources of damage for the power
cord, when using external power.
2. Inspect the work to be done if possible, determine the
drain access point(s), size(s) and length(s), pres-
ence of drain cleaning chemicals or other chemicals,
etc. If chemicals are present, it is important to under-
stand the specific safety measures required to work
around those chemicals. Contact the chemical man-
ufacturer for required information.
3. Determine the correct equipment for the application.
The SeeSnake LT1000 is made to view inspections
done with an inspection camera. Inspection equipment
for other applications can be found by consulting the
Ridge Tool Catalog, online at www.RIDGID.com or
www.RIDGID.eu.
4. Make sure all equipment has been properly inspected.
5. Evaluate the work area and determine if any barriers
are needed to keep bystanders away. Bystanders
can distract the operator during use. If working near
traffic, erect cones or other barriers to alert drivers.
6. If needed, remove fixture (water closet, sink, etc.) to
allow access.
LT1000 Placement
Position the SeeSnake Reel at the work site before
mounting the laptop onto the LT1000. To access the car-
rying handle for the SeeSnake Reel, fold the platform
wings back on both sides of the LT1000. The retaining
cord may be routed under the platform and hooked to the
cord hooks for transport.
Place the reel and LT1000 to allow easy access and
viewing while manipulating the camera and pushrod for an
inspection. Make sure that the location is not wet and will
not let the LT1000 and other equipment get wet during
use. The LT1000 is not waterproof and exposure to wet
conditions can cause electrical shock or equipment dam-
age.
Mounting the Laptop
1. Loosen the retaining cord by turning the capstan
clockwise.
2. Place the laptop squarely on the laptop platform with
the keyboard toward the LT1000 keypad.
3. Route the elastic retaining cord over the laptop and
hook it over the cord hooks, routing the cord so as not
to interfere with the laptop’s operation.
4. Rotate the capstan handle counter-clockwise to
tighten the retaining cord firmly.
5. Lead the LT1000 USB cord to the laptop’s USB port
and plug it into the port. Wrap any excess cord onto
the USB cord wraps.
(See Figure 7).
Figure 21 – Keypad, Capstan and USB Cord
Note that in constrained locations or on slanted surfaces
or roofs, you may prefer to lay the SeeSnake on its side,
unwrap the USB cord connecting the laptop and place the
laptop in another secure location.
Figure 22 – Alternate Configuration For Constrained
Spaces
USB Cord
Retaining Cord
Transmitter Clip-On Terminal
Capstan Handle Keypad

12
Figure 23 – LT1000 Mini with Laptop
Connecting the LT1000
Figure 24 – LT1000 Connections
Connection Icons
The USB ports may be used to connect an external
keyboard if desired.
The front AV out jack will work even when HQ is not
being used.
External Monitor Options
1. The LT1000 may be used with an external SeeSnake
monitor by connecting an RCA cable from the Video
IN port on the monitor. Connect the other end of the
cable to the LT1000 video OUT port on the back of
the LT1000, marked with .
2. The A/V OUT port will pass through live video
from the SeeSnake camera connected to the LT1000
SeeSnake®LT1000
and live audio from the microphone out to a DVDR or
monitor. (If connected to a monitor which has speak-
ers it may cause a feedback squeal; this can be pre-
vented by turning the DVDR or monitor volume to
minimum.)
The USB connection from the LT1000 only functions
when connected to a device running SeeSnake HQ.
Powering the SeeSnake LT1000
The SeeSnake LT1000 can either be powered with a
RIDGID Li-Ion rechargeable battery or plugged into an
outlet using a supplied AC/DC power converter. Battery
power is the preferred powering method to reduce the
risk of electrical shock. Additionally, the power con-
verter is not rated for outdoor use and should only
be used indoors.
Use only a battery or an isolated power
supply to power the LT1000 and any laptop used with it to
reduce the risk of Electrical shock.
Battery Power
With dry hands, insert a charged 18V battery into the bat-
tery holder under the right side of the keypad. A spare
battery may also be stored in the spare battery holder
under the opposite end of the LT1000 on the opposite
side. (The storage slot has no electrical connections
and is for convenient storage only.)
Figure 25 – LT1000 Connections
Make sure that the battery locks onto the dock. See
the Battery Charger operator’s manual for more infor-
mation.
Batteries supplied for the LT1000 are rated at 2.2 amp-
hours. When fully charged, depending on use (recording
time, etc.) the LT1000 will run for approximately 2.5 to 3
hours. Battery Status LEDs above keypad indicate battery
charge level. (See Battery Status LED chart . )
Turn the LT1000 power OFF before chang-
ing or removing the battery. Removing the battery with
the power ON may cause loss of camera recordings.
USB
USB
Video OutA/V Out
External
Power Jack
External Power Jack
A/V Out Jack (External DVDR, etc.)
Video Out Jack (External Monitor)
USB Port (Thumb Drives, etc)
WARNING
NOTICE
Battery
Battery
Status Battery

13
Battery Status LEDs Chart
Outlet Power
For plug in operation, a double-insulated AC/DC power
supply is supplied to reduce wall outlet voltage to the cor-
rect voltage for the LT1000.
The external power supply is intended for in-
door use only.
To power the system up with the power cord, locate the
power supply. The power supply cord has two sections,
one of which plugs into a standard 110-120V two-bladed
outlet (US) at one end and plugs into a power supply at
the other end. The second section runs from the power
supply to the back of the LT1000 and plugs into the jack
marked at the far left side front panel of the unit
(Figure 24) .
With dry hands, connect the two sections together and in-
sert the jack plug into the jack on the LT1000. Route
the cord along a clear path and with dry hands plug the
power supply into a matching outlet. If using an extension
cord ensure it is of adequate wire gauge. For cords of 25
feet, a minimum gauge of 18AWG is required. For cords
greater than 25 feet, a minimum gauge of 16 AWG is re-
quired.
If external power is unreliable and produces
transient voltage spikes, the LT1000 video may freeze. In
this case simply power cycle the LT1000 off and then on.
Job data will not be lost, but current distance count may be
reset.
If the laptop is plugged into AC and the
laptop AC adapter is not isolated, then a hot ground
could damage a laptop via the USB grounding connection.
Use only a battery or an isolated power supply to power
the LT1000 and any laptop used with it
SeeSnake®LT1000
BATTERY EXTERNAL POWER EXTERNAL POWER
STATUS NOT CONNECTED CONNECTED
FULL Solid green LEDs OFF
MED Solid green and red LEDs OFF
LOW Solid red, 4 beeps LEDs OFF
DEAD Solid red for 5 sec, LEDs OFF
5 sec long beep
and shutdown
NOTICE
NOTICE
Arrow Keys: Used to move among menu choices and adjust
variables (such as contrast) up and down. Used to rotate
screen image.
Keypad Controls
Select Key: Used to choose options in the Units menu (Auto,
Meters and Feet).
Menu Key: Used to bring up a menu of display options such
as Color, Brightness, Contrast, Units.
Brightness Key: Used to directly control the camera LED’s
brightness up or down.
Microphone Mute Key: Used to mute the microphone while
recording or activate it to record comments during an inspec-
tion.
Sonde Key: Used to activate the built-in Sonde for tracing
the location of the camera head.
*Image Flip Key: Used to flip the image on the display ver-
tically
LT1000 Controls
Zero Key: Used to establish a temporary zero-point for the
distance counter for units equipped with the Count Plus .
Power Key: Used to power the LT1000 display ON or OFF.
WARNING
*Photo Key: Captures a still photo of the camera image as
shown.
*Video Key: Starts or stops the capture of a video clip.
*Autolog Key: Starts Autologging capture of a series of still
photos stored with the current job.
*Photo Tag Key: Creates a new still photo and allows you
to apply custom comments or stored tags to it.
*Job Management Key: Accesses a menu of job and report
management options.
*Playback Key: Plays back current recording, if any.
*Some of the keypad controls will have no effect unless the HQ
Software is running.
About HQ Software
HQ software enables you to create, manage and store im-
ages, audio and video from the LT1000. You can use HQ
to quickly and automatically create reports which can be
emailed to a customer, or created in HTML form and
handed to the customer on a thumb drive, or burned to
DVD. HQ software also makes it easy to organize and
store job records for future reference if needed.
HQ software is described in detail in the HQ built-in help
files found at http://www.hq.ridgid.com/ .

14
Operating Instructions
WARNING
Always wear eye protection to protect your eyes
against dirt and other foreign objects.
When inspecting drains that might contain hazard-
ous chemicals or bacteria, wear appropriate pro-
tective equipment, such as latex gloves, goggles,
face shields or respirators, to prevent burns and in-
fections.
Do not operate this equipment if operator or ma-
chine is standing in water. Operating machine while
in water increases the risk of electrical shock.
Rubber soled, non-slip shoes can help prevent slip-
ping and electric shock, especially on wet surfaces.
Follow operating instructions to reduce the risk of
injury from electrical shock and other causes.
Starting Up
1. Check that the unit is properly set up.
2. Ensure the laptop is in place and properly connected
and that the laptop has the HQ Software installed on
it. Turn the laptop ON.
3. Place the camera head into the reel’s guide hoop and
turn the LT1000’s power ON .
4. When the LT1000 starts up, the laptop will detect
the SeeSnake device and will start HQ running. If it
does not, double-click the HQ icon on your desk-
top to launch it.
5. By default it will start a new Job which will come up
showing the image from the camera head.
6. For detailed instructions on the HQ software see the
built-in help files found at http://www.hq.ridgid.com/.
Inspecting the Line
1. Power up the LT1000 if it is OFF.
2. Put the camera head in the line. Zero the counter if
desired.
3. Proceed with pipe inspection as described in your
SeeSnake manual.
Brightness Adjustment
You may find you need to increase or decrease the
camera LED brightness while inspecting the inside of a
line, depending on conditions. To do so simply press the
Brightness Key and raise or lower the brightness
level using the Arrow Keys . Press the Menu Key
when done.
Image Rotation
While doing an inspection the camera may become ro-
tated in the line and present an inverted image. The
Flip Key will rotate the image on the screen (flip it ver-
tically) for easier viewing. The HQ software will also
allow you to straighten the camera image by degrees.
Count Plus Control
If you are using a SeeSnake reel equipped with the
Count Plus distance counter, the measured distance will
appear on the display connected to the LT1000. If you
want to set an interim zero-point to measure distance
from some location (such as a junction or pipe-head)
pressing the Zero Key will start a temporary distance
count, with the number displayed in square brackets [0.0].
For details on using the Zero Key see the CountPlus
manual .
Count Plus parameters such as date and time are set
using the Count Plus menu key and going to the Count Plus
Tools menu. Count Plus text overlays are managed with
the Count Plus keypad as described in the Count Plus
Operator's Manual.
Locating The Camera Using The Sonde
Many SeeSnake pipe inspection systems have a built-in
Sonde which transmits a locatable 512 Hz signal. When
the Sonde is turned ON, a locator such as the RIDGID
SR-20, SR-60, Scout™ or NaviTrack®II set to 512 Hz will
be able to detect it, allowing you to detect the camera’s lo-
cation underground.
Figure 26 – Locating the Sonde
To turn the SeeSnake Sonde ON while using the LT1000 ,
press the Sonde Key . A Sonde icon will appear on the
SeeSnake®LT1000

15
display while the Sonde is ON. The display may also
show some lines of interference from the Sonde’s trans-
mission. These will vanish when the Sonde is turned
OFF by again pressing the Sonde Key .
The most workable approach to tracking the Sonde is to
run the pushrod into the pipe about five or ten feet (1.5
to 3 meters) and use the locator to find the Sonde’s po-
sition. If desired, you can then extend the pushrod a sim-
ilar distance further down-pipe and locate the Sonde
again starting from the previous located position. To
locate the Sonde, turn the locator ON and set it to
Sonde mode. Scan in the direction of the Sonde’s prob-
able location until the locator detects the Sonde. Once
you have detected the Sonde, use the locator indications
to zero in on its location precisely.
For detailed instruc-
tions on Sonde locating, consult the Operator’s Manual
for the locator model you are using.
Line Tracing The SeeSnake Pushrod
The LT1000 also enables you to trace the line of the
pushrod underground, using a standard RIDGID locator
such as the NaviTrack®II, the Scout™, the SR-20 or the
SR-60. To line-trace the SeeSnake pushrod, simply con-
nect a line transmitter with one connector well-grounded
to the grounding stake and the other connector clipped to
the Transmitter Clip-on Terminal. The Transmitter Clip-on
Terminal is a metal lug located just under the left end of
the keyboard area as shown in Figure 27 .
Figure 27 – LT1000 Transmitter Clip-on Terminal
Set the line transmitter and the locator to the same fre-
quency, such as 33 kHz and use the locator to trace the
line (Figure 28). The camera’s built-in 512 Hz Sonde
may be on at the same time, and if your locator is
equipped with SimulTrace™ dual-frequency capability, you
can follow the pushrod all the way to the camera’s location
and then detect the Sonde in the camera as you ap-
proach it above ground.
If you don’t have the SimulTrace™ feature, use a line
transmitter and a locator to line-trace the pushrod. When
the signal fades, switch the locator to Sonde mode at
the frequency of the in-line Sonde, usually 512 Hz. Pick the
signal up from where the line-trace frequency started to
weaken and zero in on the in-line Sonde. Because locat-
ing frequencies from transmitters can cause distortion of
the image on the monitor, it is best to turn Sonde and line
transmitters OFF while inspecting the interior of a line
and turn them ON only when ready to do a locate.
Figure 28 – Line Tracing the Pushrod
Maintenance Instructions
Cleaning
WARNING
Make sure all cords and cables are disconnected
and the battery removed prior to cleaning the
LT1000 to reduce the risk of electrical shock.
Do not use liquid or abrasive cleaners on the LT1000.
Clean with damp cloth. Do not allow liquid to enter
LT1000.
Accessories
WARNING
The following accessories have been designed to
function with the LT1000. Other accessories suit-
able for use with other equipment may become
hazardous when used with the LT1000. To reduce
the risk of serious injury, only use accessories
specifically designed and recommended for use
with the L1000, such as those listed in the following
chart.
SeeSnake®LT1000
Catalog # Description
US EU
32743 32743 18 V Li-Ion rechargeable battery
27958 27963 Battery charger

16
Transport And Storage
Remove batteries before shipping. Do not expose to
heavy shocks or impacts during transport. If storing for an
extended period, remove batteries. Store within temper-
ature range of 14°F to 158°F (-10°C to. 70°C).
Store electrical devices in a dry place to reduce the risk of
electrical shock.
Protect against excessive heat. The unit should be situ-
ated away from heat sources such as radiators, heat
registers, stoves or other products (including amplifiers)
that produce heat.
Service And Repair
WARNING
Improper service or repair can make the LT1000 un-
safe to operate.
Service and repair of the SeeSnake LT100 and LT1000
Mini must be performed by a RIDGID Independent Auth-
orized Service Center.
For information on your nearest RIDGID Independent
Service Center or any service or repair questions:
• Contact your local RIDGID distributor.
• Visit www.RIDGID.com or www.RIDGID.eu to find
your local Ridge Tool contact point.
• Contact Ridge Tool Technical Services Department
at [email protected], or in the U.S. and
Canada call [phone].
E-mail SeeSnake HQ Support Department at
[email protected]
Disposal
Parts of the unit contain valuable materials and can be re-
cycled. There are companies that specialize in recycling
that may be found locally. Dispose of the components in
compliance with all applicable regulations. Contact your
local waste management authority for more information.
For EC Countries: Do not dispose of elec-
trical equipment with household waste!
According to the European Guideline
2002/96/EC for Waste Electrical and
Electronic Equipment and its implementation
into national legislation, electrical equipment
that is no longer usable must be collected
separately and disposed of in an environmentally cor-
rect manner.
Battery Disposal
For USA and Canada: The RBRC™
(Rechargeable Battery Recycling Cor-
poration) Seal on the battery packs
means that RIDGID has already paid
the cost of recycling the lithium-ion
battery packs once they have reached
the end of their useful life.
RBRC™, RIDGID®, and other battery suppliers have de-
veloped programs in the USA and Canada to collect and
recycle rechargeable batteries. Normal and recharge-
able batteries contain materials that should not be di-
rectly disposed of in nature, and contain valuable materials
that can be recycled. Help to protect the environment
and conserve natural resources by returning your used
batteries to your local retailer or an authorized RIDGID ser-
vice center for recycling. Your local recycling center can
also provide you with additional drop off locations.
RBRC™ is a registered trademark of the Rechargeable
Battery Recycling Corporation.
For EC countries: Defective or used battery packs/bat-
teries must be recycled according to the guideline
2006/66/EC.
SeeSnake®LT1000

17
SeeSnake®LT1000
Camera video image not
seen.
Flashing Battery
Warning appears.
LT1000 video freezes.
No video.
No power to SeeSnake.
Connections faulty.
Batteries Low.
LT1000 18 V batteries low.
Low-quality AC power or voltage spike.
If your computer doesn’t recognize the USB
connection.
Do not start your computer with the LT1000 turned
ON.
Check power is correctly plugged in or battery is
charged.
Check Power Key on LT1000 by pressing.
Check connection to LT1000 unit from SeeSnake.
Check seating and pin condition in the SeeSnake
System connection. Clean if needed.
Recharge batteries or connect external power sup-
ply.
Recharge LT1000 batteries. Switch to AC power
(110/240VAC).
Power cycle the LT1000 OFF and then ON.
Restart your computer, power cycle LT1000 or
close HQ and restart it to see if this corrects the
problem.
The LT1000 should be turned OFF, though it’s ok
to have the USB cable plugged in.
NOTE: The USB connector
(see Figure 12) on the
LT1000 was designed to be a water-resistant seal,
so it is a tight fit. Your LT1000 was tested and
shipped with this cable firmly connected. If you
need to disconnect and reconnect this cable (for ex-
ample, if you break your USB cable), make sure
you push the connector in all the way. If you don’t,
the HQ software might not recognize the LT1000.
If so, make sure you have pushed the connector in
all the way. You may have to restart HQ to recog-
nize the connection.
PROBLEM PROBABLE FAULT LOCATION SOLUTION
Chart 1 Troubleshooting

18
