RIDGID R4010TR User manual

Your tile saw has been engineered and manufactured to our high standards for dependability, ease of operation, and opera-
tor safety. When properly cared for, it will give you years of rugged, trouble-free performance.
WARNING:
To reduce the risk of injury, the user must read and understand the operator’s manual before using this
product.
Thank you for buying a RIDGID®product.
OPERATOR’S MANUAL
10 in. TILE SAW
R4010TR
SAVE THIS MANUAL FOR FUTURE REFERENCE
89
10 11 12 13 14

2 — English
TABLE OF CONTENTS
INTRODUCTION
This product has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability
have been given top priority in the design of this product making it easy to maintain and operate.
Introduction ...................................................................................................................................................................... 2
General Safety Rules.....................................................................................................................................................3-4
Specific Safety Rules........................................................................................................................................................ 5
Symbols............................................................................................................................................................................ 6
Electrical........................................................................................................................................................................7-8

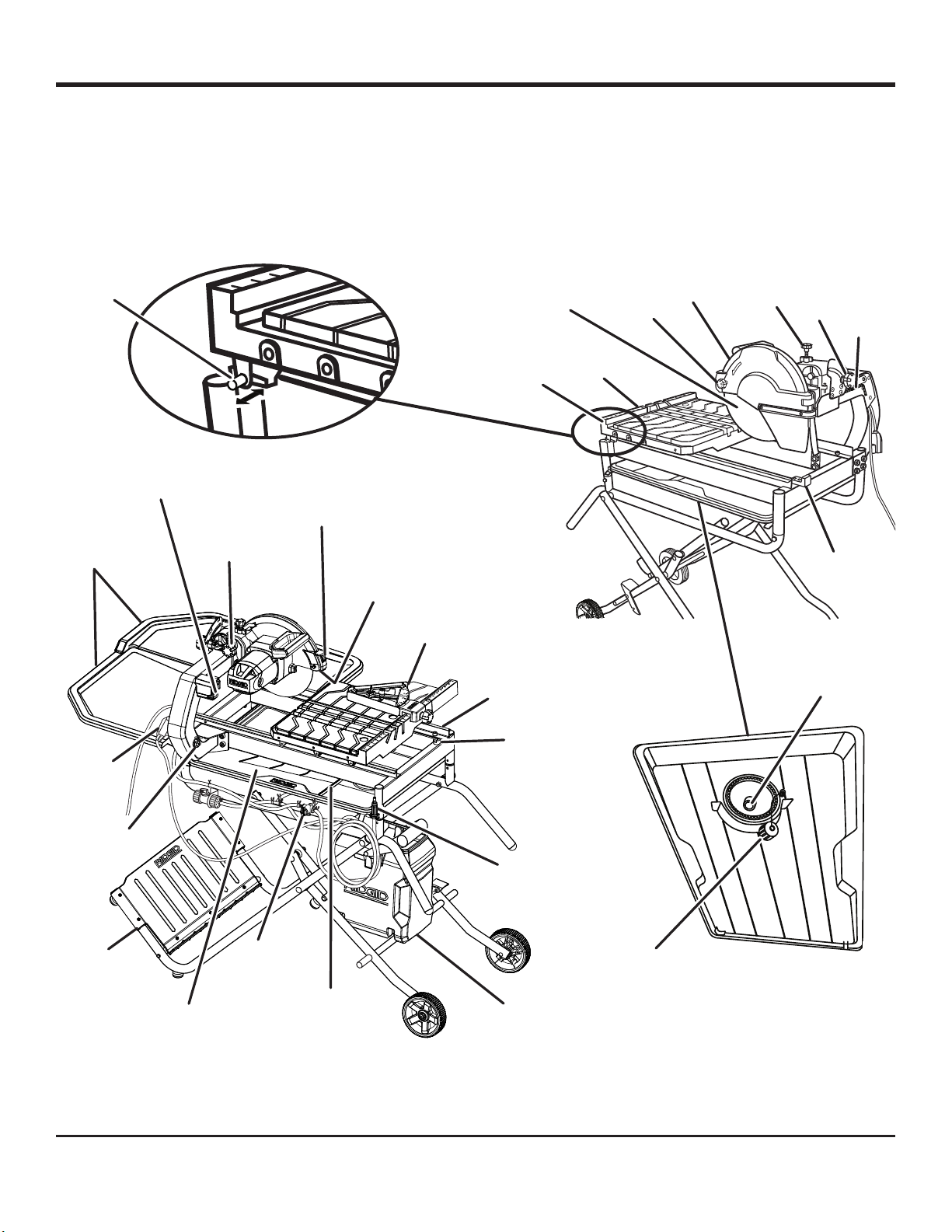

Features.......................................................................................................................................................................9-10

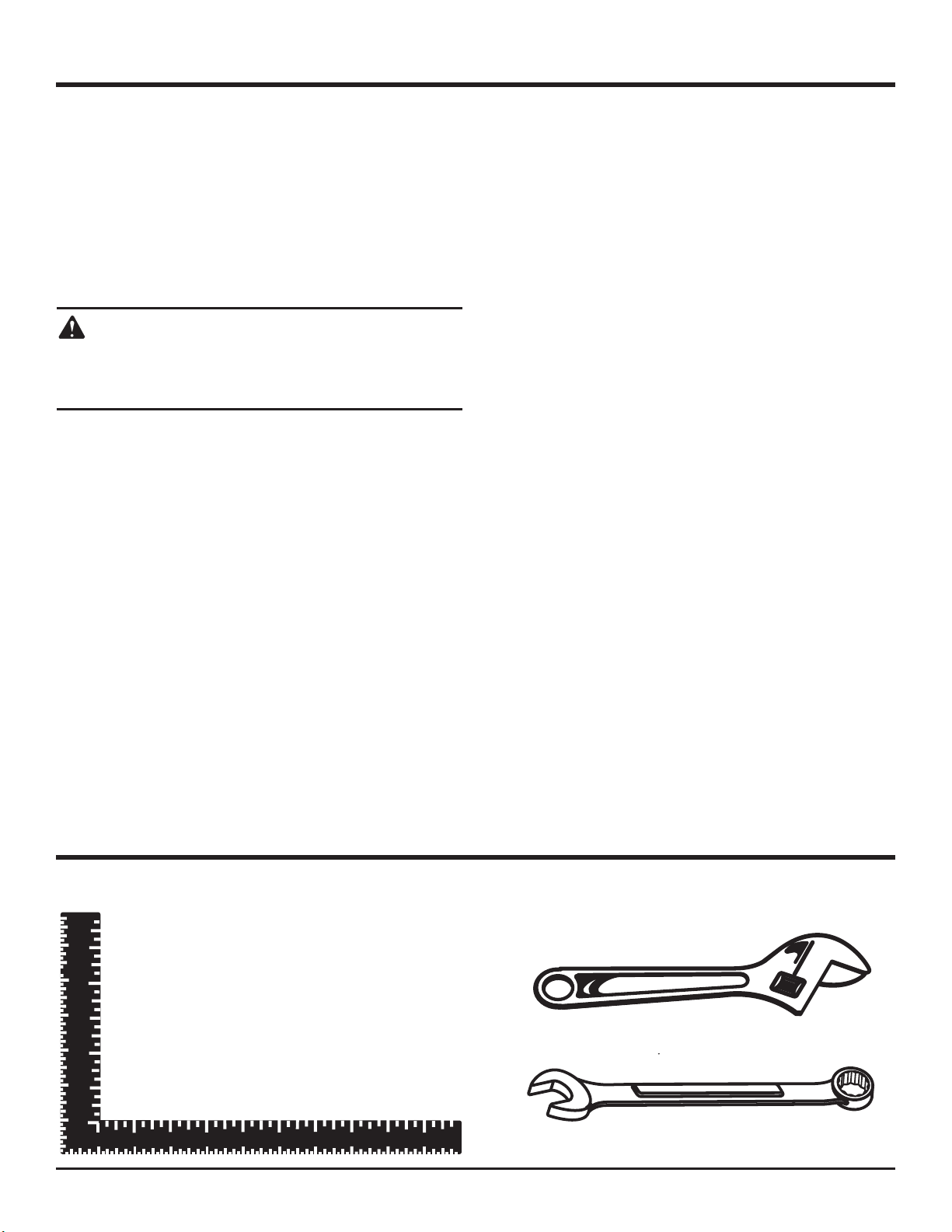

Tools Needed.................................................................................................................................................................. 10

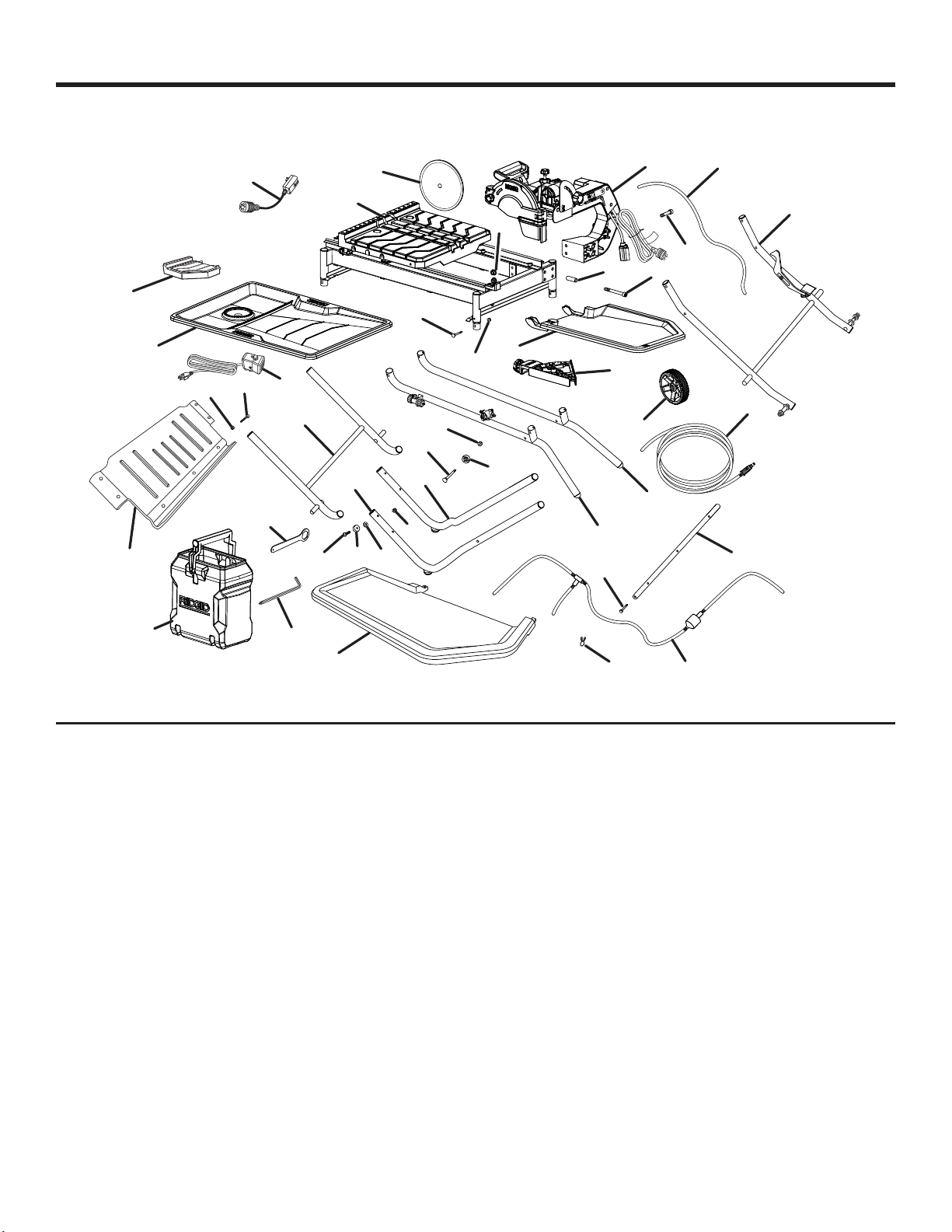

Loose Parts .................................................................................................................................................................... 11
Assembly...................................................................................................................................................................12-19
Operation...................................................................................................................................................................20-24
Adjustments...............................................................................................................................................................25-26
Maintenance..............................................................................................................................................................26-27
Warranty ......................................................................................................................................................................... 28
Parts Ordering and Service ...............................................................................................................................Back page

3 — English
GENERAL SAFETY RULES
WARNING:
Read and understand all instructions. Failure to
follow all instructions listed below, may result in
electric shock, fire and/or serious personal injury.
READ ALL INSTRUCTIONS
KNOW YOUR POWER TOOL. Read the operator’s
manual carefully. Learn the saw’s applications and
limitationsas wellas thespecific potentialhazardsrelated
to this tool.
GUARDAGAINST ELECTRICAL SHOCKBYPREVENT-
ING BODY CONTACT WITH GROUNDED SURFACES.
For example, pipes, radiators, ranges, refrigerator enclo-
sures.
KEEP GUARDS IN PLACE and in good working order.
REMOVE ADJUSTING KEYS AND WRENCHES. Form
habit of checking to see that keys and adjusting wrenches
are removed from tool before turning it on.
KEEPWORKAREACLEAN.Clutteredareasandbenches
invite accidents. DO NOT leave tools or pieces of tile on
the saw while it is in operation.
DO NOT USE IN DANGEROUS ENVIRONMENTS. Do
not use power tools in damp or wet locations or expose
to rain. Keep the work area well lit.
KEEP CHILDREN AND VISITORS AWAY. All visi-
tors should wear safety glasses and be kept a safe
distance from work area. Do not let visitors contact
tool or extension cord while operating.
MAKE WORKSHOP CHILDPROOF with padlocks and
master switches, or by removing starter keys.
DON’T FORCE TOOL. It will do the job better and safer
at the feed rate for which it was designed.
USE RIGHT TOOL. Don’t force the tool or attachment to
do a job it was not designed for. Don’t use it for a purpose
not intended.
USE THE PROPER EXTENSION CORD. Make sure your
extensioncordis ingood condition.Use onlya cordheavy
enough to carry the current your product will draw. An
undersized cord will cause a drop in line voltage result-
ing in loss of power and overheating. A wire gauge size
(A.W.G.) of at least 14 is recommended for an extension
cord 25 feet or less in length. If in doubt, use the next
heavier gauge. The smaller the gauge number, the heavier
the cord.
DRESS PROPERLY. Do not wear loose clothing, gloves,
neckties, or jewelry. They can get caught and draw you
into moving parts. Rubber gloves and nonskid footwear
(rubber soled boots) are recommended when working
outdoors. Also wear protective hair covering to contain
long hair.
ALWAYS WEAR SAFETY GLASSES WITH SIDE
SHIELDS. Everyday eyeglasses have only impact-
resistant lenses, they are NOT safety glasses.
SECURE WORK. Use clamps or a vise to hold work
when practical, it is safer than using your hand and frees
both hands to operate the tool.
DON’T OVERREACH. Keep proper footing and
balance at all times.
MAINTAIN TOOLS WITH CARE. Keep tools sharp
andclean for betterandsafer performance. Followinstruc-
tions for lubricating and changing accessories.
DISCONNECT TOOLS. When not in use, before
servicing, or when changing attachments, wheels, bits,
cutters, etc., all tools should be disconnected.
AVOID ACCIDENTAL STARTING. Be sure switch is off
when plugging in any tool.
USE RECOMMENDED ACCESSORIES. Consult the
operator’s manual for recommended accessories. The
use of improper accessories may risk injury.
NEVER STAND ON TOOL. Serious injury could occur if
the tool is tipped or if the cutting tool is unintentionally
contacted.
CHECK DAMAGED PARTS. Before further use of the
tool, a guard or other part that is damaged should be
carefullycheckedto determinethat itwill operate properly
and perform its intended function. Check for alignment
of moving parts, binding of moving parts, breakage of
parts, mounting and any other conditions that may affect
its operation. A guard or other part that is damaged must
be properly repaired or replaced by an authorized service
center to avoid risk of personal injury.
USE THE RIGHT DIRECTION OF FEED. Feed work into
a wheel or cutter against the direction of rotation of wheel
or cutter only.
NEVER LEAVE TOOL RUNNING UNATTENDED. TURN
THE POWER OFF. Don’t leave tool until it comes to a
complete stop.
PROTECT YOUR LUNGS. Wear a face or dust mask if
the cutting operation is dusty.
PROTECT YOUR HEARING. Wear hearing protection
during extended periods of operation.
DO NOT ABUSE CORD. Never yank cord to disconnect
from receptacle. Keep cord away from heat, oil, and sharp
edges.
ALWAYS USE AN OUTDOOR EXTENSION CORD
MARKED “W-A” OR “W”. These cords are rated for
outdoor use and reduce the risk of electric shock.
ALWAYS KEEP THE WHEEL GUARD IN PLACE and in
working order.

4 — English
GENERAL SAFETY RULES
KEEP HANDS AWAY FROM CUTTING AREA. Keep
hands away from wheels. Do not reach underneathwork
or around or over the wheel while wheel is rotating. Do not
attempt to remove cut material when wheel is moving.
WHEEL COASTS AFTER BEING TURNED OFF.
NEVER USE IN AN EXPLOSIVE ATMOSPHERE.
Normal sparking of the motor could ignite fumes.
INSPECT TOOL CORDS PERIODICALLY. If dam-
aged, have repaired by a qualified service technician at
anauthorizedservicefacility.Theconductorwithinsulation
havingan outersurface thatis greenwith orwithout yellow
stripes is the equipment-grounding conductor. If repair
or replacement of the electric cord or plug is necessary,
do not connect the equipment-grounding conductor to a
live terminal. Repair or replace a damaged or worn cord
immediately. Stay constantly aware of cord location and
keep it well away from the rotating wheel.
INSPECT EXTENSION CORDS PERIODICALLY and
replace if damaged.
GROUND ALL TOOLS. If tool is equipped with three-
prong plug, it should be plugged into a three-hole electri-
cal receptacle.
ONLY POWER THE TOOL WITH A GFCI (GROUND
FAULT CIRCUIT INTERRUPTOR) PROTECTED
OUTLET.
CHECK WITH A QUALIFIED ELECTRICIAN or service
personnel if the grounding instructions are not completely
understood or if in doubt as to whether the tool is properly
grounded.
USE ONLY CORRECT ELECTRICAL DEVICES: 3-wire
extension cords that have 3-prong grounding plugs and
3-pole receptacles that accept the tool's plug.
DO NOT MODIFY the plug provided. If it will not fit the
outlet, have the proper outlet installed by a qualified
electrician.
KEEP TOOL DRY, CLEAN, AND FREE FROM OIL AND
GREASE. Always use a clean cloth when cleaning. Never
use brake fluids, gasoline, petroleum-based products, or
any solvents to clean tool.
STAY ALERT AND EXERCISE CONTROL. Watch what
you are doing and use common sense. Do not operate
tool when you are tired. Do not rush.
DO NOT USE TOOL IF SWITCH DOES NOT TURN IT
ON AND OFF. Have defective switches replaced by an
authorized service center.
USEONLY CORRECTWHEELS. Donot usewheels with
incorrect size holes. Never use washers or arbor nuts that
are defective or incorrect. The maximum wheel capacity
of your saw is 10 in. (254 mm).
BEFORE MAKING A CUT, BE SURE ALL ADJUST-
MENTS ARE SECURE.
NEVER TOUCH WHEEL or other moving parts during
use.
NEVER START A TOOL WHEN ANY ROTATING COM-
PONENT IS IN CONTACT WITH THE WORKPIECE.
DO NOT OPERATE A TOOL WHILE UNDER THE
INFLUENCE OF DRUGS, ALCOHOL, OR ANY
MEDICATION.
WHEN SERVICING use only identical replacement parts.
Use of any other parts may create a hazard or cause
product damage.
USE ONLY RECOMMENDED ACCESSORIES listed in
this manual or addendums. Use of accessories that are
not listed may cause the risk of personal injury. Instruc-
tions for safe use of accessories are included with the
accessory.
DOUBLE CHECK ALL SETUPS. Make sure wheel is tight
and not making contact with saw or workpiece before
connecting to power supply.

5 — English
SECURE WORK firmly against the miter guide or
fence.
NEVER stand or have any part of your body in line with
the path of the wheel.
NEVER attempt to free a stalled wheel without first turning
the saw OFF and disconnecting the saw from the power
source.
IF THE POWER SUPPLY CORD IS DAMAGED, it must
be replaced only by the manufacturer or by an authorized
service center to avoid risk.
AVOID AWKWARD OPERATIONS AND HAND
POSITIONS where a sudden slip could cause your hand
to move into the cutting tool.
MAKE SURE THE WORK AREA HAS AMPLE LIGHTING
to see the work and that no obstructions will interfere with
safe operation BEFORE performing any work using the
saw.
ALWAYS TURN OFF SAW before disconnecting it, to
avoid accidental starting when reconnecting to power
supply.
THIS TOOL should have the following markings:
a) Wear eye, hearing, and breathing protection.
b) Use wheel guard for every operation for which it can
be used.
c) Disconnect saw before servicing, when changing
cutting wheels, and cleaning.
d) Use tool only with smooth edge cutting wheels free
of openings, grooves, and teeth.
e) Replace damaged cutting wheel before operating.
f) Do not fill water bath above water fill line.
SAVE THESE INSTRUCTIONS. Refer to them
frequently and use to instruct other users. If you loan
someone this tool, loan them these instructions too.
SPECIFIC SAFETY RULES
WARNING:
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemi-
cals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:
 •leadfromlead-basedpaints,
 •crystallinesilicafrombricksandcementandothermasonryproducts,and
 •arsenicandchromiumfromchemically-treatedlumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your
exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as
those dust masks that are specially designed to filter out microscopic particles.

6 — English
Some of the following symbols may be used on this tool. Please study them and learn their meaning. Proper interpreta-
tion of these symbols will allow you to operate the tool better and safer.
Read Operator’s Manual
Safety Alert
No Hands
SYMBOL NAME DESIGNATION/EXPLANATION
Voltage
Current
Frequency (cycles per second)
Time
Type of current
Rotational speed, at no load
Revolutions, strokes, surface speed, orbits etc., per minute
To reduce the risk of injury, user must read and understand
operator’s manual before using this product.
Eye, Ear, & Breathing
Protection
Indicates a potential personal injury hazard.
Failure to keep your hands away from the wheel will result in
serious personal injury.
.../min Per Minute
n
o
No Load Speed
Alternating Current
min Minutes
Hz Hertz
A Amperes
V Volts
Electrocution Failure to properly ground can result in electrocution.
SYMBOLS
Always wear eye protection with side shields marked to comply
with ANSI Z87.1 along with hearing and breathing protection.
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL SIGNAL MEANING
DANGER: Indicates an imminently hazardous situation, which, if not avoided, will result
in death or serious injury.
WARNING: Indicates a potentially hazardous situation, which, if not avoided, could result
in death or serious injury.
CAUTION: Indicates a potentially hazardous situation, which, if not avoided, may result in
minor or moderate injury.
CAUTION: (Without Safety Alert Symbol) Indicates a situation that may result in property
damage.
Do not expose to rain or use in damp locations.
Wet Conditions Alert

7 — English
ELECTRICAL
ELECTRICAL CONNECTION
This tool is powered by a precision built electric motor. It
should be connected to a power supply that is 120 V, AC
only (normal household current), 60 Hz. Do not operate
this tool on direct current (DC). A substantial voltage drop
will cause a loss of power and the motor will overheat. If the
saw does not operate when plugged into an outlet, double
check the power supply.
SPEED AND WIRING
The no-load speed of this tool is approximately 4,000 rpm.
This speed is not constant and decreases under a load or
with lower voltage. For voltage, the wiring in a shop is as
important as the motor’s horsepower rating. A line intended
only for lights cannot properly carry a power tool motor. Wire
that is heavy enough for a short distance will be too light for
a greater distance. A line that can support one power tool
may not be able to support two or three tools.
GROUNDING INSTRUCTIONS
See Figure 1.
This tool must be grounded. In the event of a malfunction or
breakdown, grounding provides a path of least resistance
for electric current to reduce the risk of electric shock. This
tool is equipped with an electric cord having an equipment-
grounding conductor and a grounding plug. The plug must
be plugged into a matching outlet that is properly installed
and grounded in accordance with all local codes and ordi-
nances.
Do not modify the plug provided. If it will not fit the outlet,
have the proper outlet installed by a qualified electrician.
WARNING:
Improper installation of the grounding plug can
result in a risk of electric shock. When repair or
replacement of the cord is required, do not con-
nect the grounding wire to either flat blade terminal.
The wire with insulation having an outer surface
that is green with or without yellow stripes is the
grounding wire.
Check with a qualified electrician or service personnel if the
grounding instructions are not completely understood, or if
in doubt as to whether the tool is properly grounded.
Repair or replace a damaged or worn cord immediately.
This product is for use on a nominal 120 volt circuit and
has a grounding plug similar to the plug illustrated in
figure 1. Only connect the product to an outlet having the
same configuration as the plug. Do not use an adapter with
this product.
EXTENSION CORDS
Use only extension cords with twist-lock connectors that
accept the tool’s plug. When using a power tool at a con-
siderable distance from the power source, use an extension
cord heavy enough to carry the current that the tool will
draw. An undersized extension cord will cause a drop in line
voltage, resulting in a loss of power and causing the motor
to overheat. Use the chart provided below to determine
the minimum wire size required in an extension cord. Only
round jacketed cords listed by Underwriter’s Laboratories
(UL) should be used.
**Ampere rating (on tool data plate)
0-2.0 2.1-3.4 3.5-5.0 5.1-7.0 7.1-12.0 12.1-16.0
Cord Length Wire Size (A.W.G.)
25' 16 16 16 16 14 14
50' 16 16 16 14 14 12
100' 16 16 14 12 10 —
**Used on 12 gauge - 20 amp circuit.
NOTE: AWG = American Wire Gauge
Always use an extension cord that is designed for outside
use. This is indicated by the letters “W-A” or “W” on the
cord’s jacket.
Before using an extension cord, inspect it for loose or
exposed wires and cut or worn insulation.
Use only extension cords that are intended for outdoor use.
These extension cords are identified by a marking “Accept-
able for use with outdoor appliances; store indoors while not
in use”. Use only extension cords having an electrical rating
not less than the rating of the product. Do not use damaged
extension cords. Examine extension cord before using and
replace if damaged. Do not abuse extension cords and do
not yank on any cord to disconnect. Keep cord away from
heat and sharp edges. Always disconnect the extension
cord from the receptacle before disconnecting the product
from the extension cord.
WARNING:
Keep the extension cord clear of the working area.
Position the cord so that it will not get caught on
lumber, tools or other obstructions while you are
working with a power tool. Failure to do so can
result in serious personal injury.
WARNING:
Check extension cords before each use. If damaged
replace immediately. Never use tool with a dam-
aged cord since touching the damaged area could
cause electrical shock resulting in serious injury.

8 — English
ELECTRICAL
Ground Fault Circuit Interrupter (GFCI) protection should be
provided on the circuit(s) or outlet(s) to be used for the tile
saw. Outlets are available having built-in GFCI protection
and may be used for this measure of safety.
If the saw is used with an extension cord, ensure the con-
nection of the tool’s power cord and the extension cord are
not on the ground.
If a protected outlet is not available, do not use the saw
until an outlet can be changed or auxiliary protection can
be obtained. These auxiliary protection devices are available
at your local retailer.
POSITION OF THE TILE SAW
See Figure 2.
To avoid the possibility of the tool plug or outlet getting
wet, position tile saw to one side of a wall-mounted outlet
to prevent water from dripping onto the outlet or plug. The
operator should arrange a “drip loop” in the cord connecting
the saw to the outlet. The “drip loop” is that part of the cord
below the level of the outlet, or the connector if an extension
cord is used, to prevent water traveling along the cord and
coming in contact with the outlet.
If the plug or outlet does get wet, DO NOT unplug the cord.
Disconnect the fuse or circuit breaker that supplies power
to the tool then unplug and examine for the presence of
water in the outlet.
WARNING:
To reduce the risk of electrocution, keep all
connections dry and off the ground. Do not touch
the plug with wet hands.
Fig. 1
GroundinG
Pin
Ground fault
outlet
Power
cord driP
looP
Fig. 2
extension
cord
reset
button

9 — English
PRODUCT SPECIFICATIONS
Wheel Diameter..........................................................10 in.
Wheel Arbor.............................................................. 5/8 in.
Throat Capacity..........................................................13 in.
Rip Capacity (tile size) ................................................24 in.
Diagonal Capacity (tile size) .......................................18 in.
Maximum Depth of Cut .........................................3-3/4 in.
Rating ...........................................120 V~, 15 Amps, 60 Hz
No Load Speed .....................................4,000 r/min. (RPM)
FEATURES
89
10 11 12 13 14
Fig. 3
readY
racK™
rubber
boot
water traY
extensions
beVel
locK
Knob wrench
storaGe
dePth
stoP
Knob
exactline™ adJustable
laser aliGnMent
sYsteM
on/off
switch
locK
Knob
led
worKliGht
Miter
Guide
water
traY
diVerter
ValVe drain
PluG
drainaGe
sediMent
seParation
sYsteM™ water
tanK
cleaninG
noZZle
water traY
fraMe
table stoP
bY-Pass
wheel
Guard
wheel
Guard
locK
table
stoP
tile cuttinG
wheel
slidinG
table
Micro-cut
fence suPPort
slidinG table
locK leVer
Variable
flow ValVe

10 — English
FEATURES
KNOW YOUR TILE SAW
See Figure 3.
The safe use of this product requires an understanding of
the information on the tool and in this operator’s manual as
well as a knowledge of the project you are attempting. Before
use of this product, familiarize yourself with all operating
features and safety rules.
10 in. TILE CUTTING WHEEL - A 10 in. tile cutting wheel
is included with your saw.
WARNING:
Do not use wheels rated less than the speed of
this tool. Failure to heed this warning could result
in personal injury.
BEVEL LOCK KNOB - The bevel lock knob securely locks
the saw head at 0º, 22.5º or 45º bevel angles.
CLEANING NOZZLE - Rinse away sediment and debris mak-
ing clean up quick and easy using the cleaning nozzle.
DIVERTER VALVE - With the diverter valve turned to the
left, water runs through the clear tube and onto the cutting
wheel. Turn the diverter valve to the right and use the clean-
ing nozzle to wash debris from the saw.
ELECTRIC BRAKE - An electric brake has been provided to
quickly stop wheel rotation after the switch is released.
EXACTLINE™ ADJUSTABLE LASER ALIGNMENT
SYSTEM - For more accurate cuts, a laser guide is included
with the tile saw. When used properly, the laser guide makes
accurate, precision cutting simple and easy. Simply push the
button to turn the laser on or off.
GFCI TWIST-LOCK PLUG - This saw can only be turned
ON after the GFCI twist-lock plug has been connected
to the tool’s power cord. It is necessary to push the reset
button each time the saw is plugged into a power source.
LED WORKLIGHT - Your saw comes equipped with an LED
worklight that lights the work area for more accurate cuts.
The worklight turns on when the saw is plugged in.
MICRO-CUT FENCE SUPPORT - This fence support helps
prevent tile from cracking.
MITER GUIDE - The easy-to-read indicator on the miter
guide shows the exact angle for a miter cut with detents at
0°, 22.5°, and 45°.
ON/OFF SWITCH - This saw has an easy access power
switch located on the saw arm. To lock the switch, install a
padlock (not included) through the hole in the switch trigger.
When the lock is installed and locked, the switch is inoper-
able. Store the padlock key in another location.
READY RACK™ TILE SUPPORT- Provides a convenient
location to stack and dry tiles.
SEDIMENT SEPARATION SYSTEM™ - This system
separates sediment and debris filtering the water before it is
recycled into the water tank.
SLIDING TABLE - The sliding table allows the user to slide
the workpiece into the cutting wheel for accurate cuts.
SUBMERSIBLE PUMP - The submersible pump (not shown)
provide water to the cutting wheel or cleaning nozzle.
VARIABLE FLOW VALVE - Adjusts the flow of water to the
cutting wheel.
WATER TANK - Using the universal pump and water tank
together keeps water circulating to the tool eliminating the
need for frequent water changes.
WATER TRAY EXTENSIONS - When cutting larger tile, the
extensions keeps work area cleaner and drier.
WRENCH STORAGE - The tile saw has a convenient stor-
age area specifically designed for wrenches.
WSUV™ WET SAW UTILITY VEHICLE - Attached to the
saw base, the leg stand opens and closes with ease making
transportation simple.
TOOLS NEEDED
The following tools (not included or drawn to scale) are needed for assembly and alignment:
adJustable wrench
10 mm wrench
fraMinG sQuare
Fig. 4

11 — English
LOOSE PARTS
The following items are included with your tile saw:
Fig. 5
A - Water tray frame assembly..............................................1
B - Tile cutting wheel.............................................................1
C - Motor head assembly ...................................................... 1
D - Cap bolt (short) ...............................................................2
E - Long clear tube................................................................ 1
F - Inner leg assembly ..........................................................1
G - Cap bolt (long) ................................................................ 4
H - Sleeve.............................................................................. 4
I - Hex nut............................................................................ 2
J - Short cap screw...............................................................4
K - Lock nut .......................................................................... 4
L - Water tray extensions...................................................... 2
M - Miter guide ...................................................................... 1
N - Wheel .............................................................................2
O - Long clear tube with cleaning nozzle ............................... 1
P - Right upper tube.............................................................. 1
Q - Left upper tube ................................................................ 1
R - Lower brace..................................................................... 1
S - Long tube assembly ........................................................1
T - Ready Rack™.................................................................. 1
U - Left outer tube................................................................. 1
V - Right outer tube...............................................................1
W - Spacer .............................................................................8
X - Lock nut .......................................................................... 8
Y - Carriage bolt.................................................................... 8
Z - Hex head bolt................................................................... 2
AA - Wheel wrench..................................................................1
BB - Hex key (4 mm, 6 mm, 8 mm) ........................................ 3
CC - Center brace .................................................................... 1
DD - Water tank ....................................................................... 1
EE - Hose clamps....................................................................8
FF - Water pump..................................................................... 1
GG - Water tray.........................................................................1
HH - Sliding table extension......................................................1
II - Rubber foot ......................................................................2
JJ - Cap screw (long) ..............................................................2
KK - Washer .............................................................................2
LL - Nut....................................................................................2
MM- Hex head bolt (short)........................................................5
NN - Hex nut.............................................................................5
OO - GFCI twist-lock plug .........................................................1
a
bc
d
e
f
G
h
l
M
no
r
s
Z
K
i
J
uVw
x
Y
l
bb
aa
cc
dd
ff
Q
P
GG
t
hh
ee
ii
JJ KK
ll
MM
nn
oo

12 — English
UNPACKING
See Figure 5.
This product requires assembly.
Carefully lift the saw from the carton and place on a level
work surface.
WARNING:
Do not use this product if any parts on the Loose
Parts List are already assembled to your product
when you unpack it. Parts on this list are not as-
sembled to the product by the manufacturer and
require customer installation. Use of a product that
may have been improperly assembled could result
in serious personal injury.
Inspect the tool carefully to make sure no breakage or
damage occurred during shipping.
Do not discard the packing material until you have care-
fully inspected and satisfactorily operated the tool.
The saw is factory set for accurate cutting. After
assembling it, check for accuracy. If shipping has influ-
enced the settings, refer to specific procedures explained
in this manual.
If any parts are damaged or missing, please call
1-866-539-1710 for assistance.
WARNING:
If any parts are damaged or missing do not oper-
ate this tool until the parts are replaced. Use of
this product with damaged or missing parts could
result in serious personal injury.
WARNING:
Do not attempt to modify this tool or create acces-
sories not recommended for use with this tool. Any
such alteration or modification is misuse and could
result in a hazardous condition leading to possible
serious personal injury.
WARNING:
Do not connect to power supply until assembly is
complete. Failure to comply could result in ac-
cidental starting and possible serious personal
injury.
ASSEMBLY

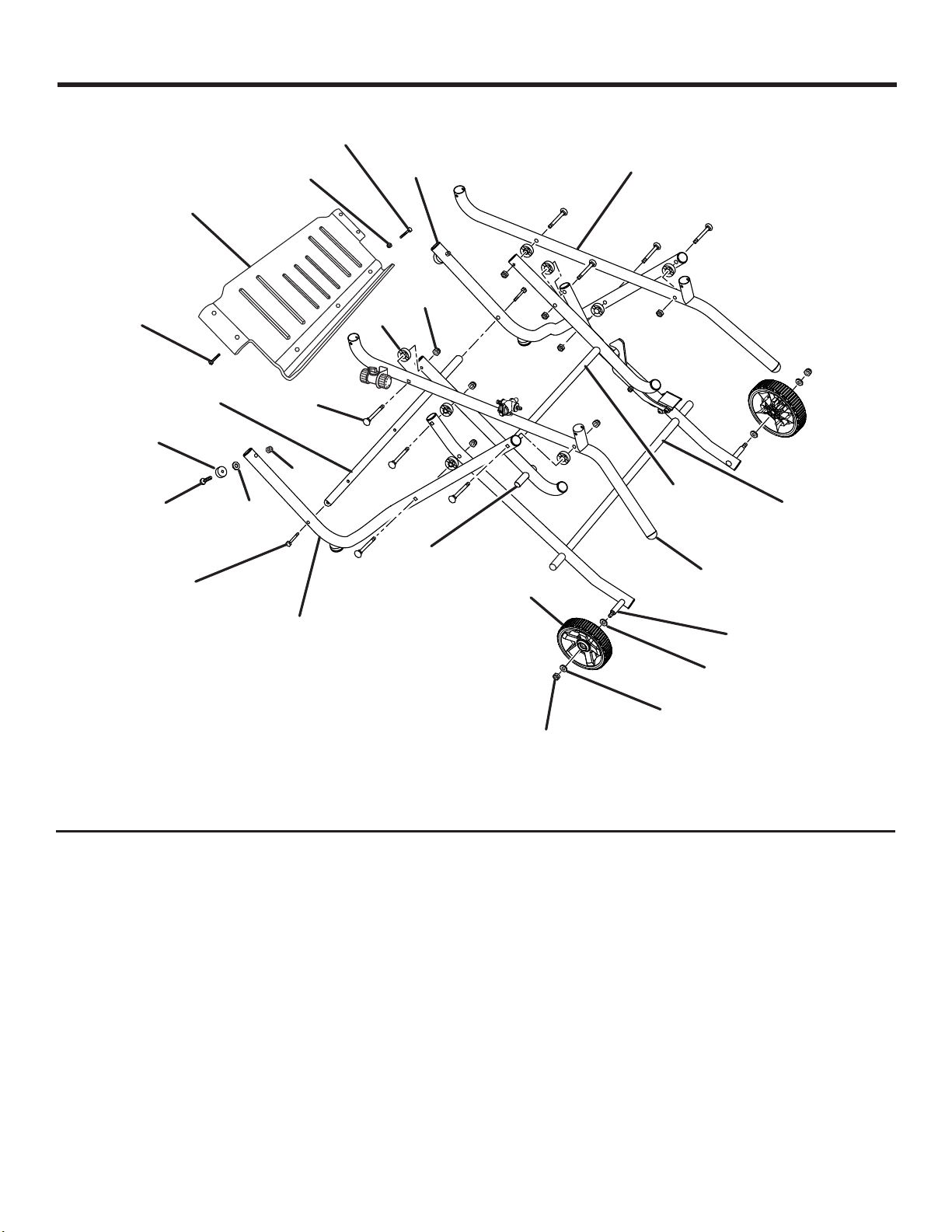

ASSEMBLING THE WSUV™ WET SAW
UTILITY VEHICLE / LEG STAND
See Figure 6.
Many of the WSUV™ / leg stand parts are movable. All
hardware must be tightened securely but not so tight that
the utility vehicle / leg stand won’t open and close. For easier
assembly, match letter to letter.
Insert a hex head bolt through the hole at the bend on the
right outer tube (G) and into the lower brace (F). Tighten
securely. Repeat for the other side.
Place a carriage bolt through the center hole in the outer
tubes (G) then place a spacer on the bolt.
Slide the bolt/spacer into the inner leg assembly (G) and
secure in place using a lock nut. Do not overtighten.
Repeat for the other side.
Place the center brace on top of the inner leg assembly
(curve side up) with the stop pin under the pedal assembly
latch.
NOTE: The stop pins rest on top of inner leg assembly.
Insert a carriage bolt through the top hole of the inner leg
assembly then slide a spacer on the bolt. Repeat for the
other side.
Slide the center brace onto the bolt (F) and secure in
place using a lock nut. Repeat for the other side.
Place a washer and long cap screw through the rubber
foot. From the underside of the right outer tube, slide
the bolt/foot into the last hole (curved side) of the tube.
Repeat for other side.
Lay the Ready Rack™ on top of the outer tube and onto
the cap screw / foot. Using a hex key, secure in place
using a nut.
(NOTE: Use long bolts on the outer tubes to secure the
Ready Rack™ to the leg stand and short bolts on the
lower brace.)
With the curve handle turned downward, secure the up-
per tubes (E and H on the right side, and A and D on the
left side) to the leg stand using carriage bolts, spacers,
and lock nuts. The tube with the diverter valve attached
should be placed on the left side of the leg stand.
Remove the lock nut and two flat washers from the axles
on each side of the leg stand.
Slide the flat washer, wheel, and flat washer onto the
axle through the hole in the center of the wheel. Secure
in place using lock nut.
Repeat with the second wheel.

13 — English
Fig. 6
ASSEMBLY
riGht
outer
tube
left
uPPer
tube
sPacer
locK
nut
riGht uPPer
tube
inner leG
asseMblY
center
brace
axle
locK
nut
flat washer,
sMall
stoP
Pin wheel
left
outer tube
hex head
bolt
lower
brace carriaGe
bolt
flat washer,
larGe
hex head
bolt
locK
nut
hex head
bolt
readY
racK™
rubber
foot
caP screw
(lonG)
flat
washer
nut

14 — English
INSTALLING THE WATER TRAY FRAME
ASSEMBLY TO THE LEG STAND
See Figure 7.
Lock the table stop by-pass by pulling up on the stop
and turning it until the slot in the center of the lock is
horizontal (left to right).
To lock sliding table: Pull the sliding table to the front
of the frame. From under the right side of the table, align
the hole in the rail with the pin in the sliding table lock
lever. Push the pin into the rail locking the table.
Slide the tubes on the water tray frame assembly into the
tubes on the leg stand.
Insert short carriage bolts into holes and tighten securely
using lock nuts.
INSTALLING MOTOR HEAD ASSEMBLY TO
WATER TRAY FRAME
See Figure 8.
Align the holes in the motor head assembly with the holes
on the side of the water tray frame.
Insert short cap bolts. Finger tighten using nuts.
Slide long cap bolts into sleeve. Insert into holes. Finger
tighten.
Tighten all cap bolts using an 8 mm hex key.
INSTALLING CLEAR TUBES, CLEANING
NOZZLE, AND WATER PUMP TO THE SAW
See Figure 9.
NOTE: Hose clamps secure clear tubes to valves, connec-
tors, etc. To attach a hose clamp, squeeze the ends of the
clamp together then slide the clamp over one end of a short
clear tube. Once the tube has been attached to a valve, con-
nector, etc., squeeze the clamps ends together and slide the
clamp over the tube covering the connector.
Grasp the diverter valve firmly then push the end of the
short clear tube over the left connector. Secure with a
hose clamp.
Slip the tube onto the valve assembly in the saw arm by
pushing the tube over the connector. Secure with a hose
clamp. Attach the clear tube to leg stand using the tube
clips on top of the leg stand.
Holding the diverter valve, connect the long clear tube
(with the cleaning nozzle) to the right side of the diverter
valve by pushing the tube over the connector. Secure
with a hose clamp. Store the nozzle in the cleaning nozzle
storage.
Fill the water tank two-thirds full.
Center the water tank on the lower brace of the leg stand
and push the tank firmly against the center brace until it
locks into place.
Push clear tube of the T-connector assembly over the
garden hose attachment on the leg stand. Secure with a
hose clamp.
ASSEMBLY
Fig. 7
Fig. 8
leG
stand
locK
nut
short
carriaGe
bolt
water
traY
fraMe
asseMblY table stoP
bY-Pass
Motor
head
asseMblY
caP bolt
(short)
caP bolt
(lonG)
sleeVe
water traY
fraMe
hex
nut
slidinG table
locK leVer

15 — English
Fig. 9
connector clear
tube ValVe
asseMblY
rubber
boot
clear tube
with cleaninG
noZZle
checK
ValVe
water
fill
line
inner leG
asseMblY
water
suPPlY
ValVe
cleaninG
noZZle
storaGe
clear
tube
ASSEMBLY
Push the short clear tube of the T-connector assembly
over the connector on the back of the diverter valve (as
shown in figure 9). Attach the long clear tube (with the
check valve) to the submersible water pump and set the
pump in the bottom of the water tank. Secure tube with
hose clamps.
Push back rubber boot on electrical cord and plug pump
into an outlet or extension cord. Pull boot over cord con-
nections to help keep water off the plug.

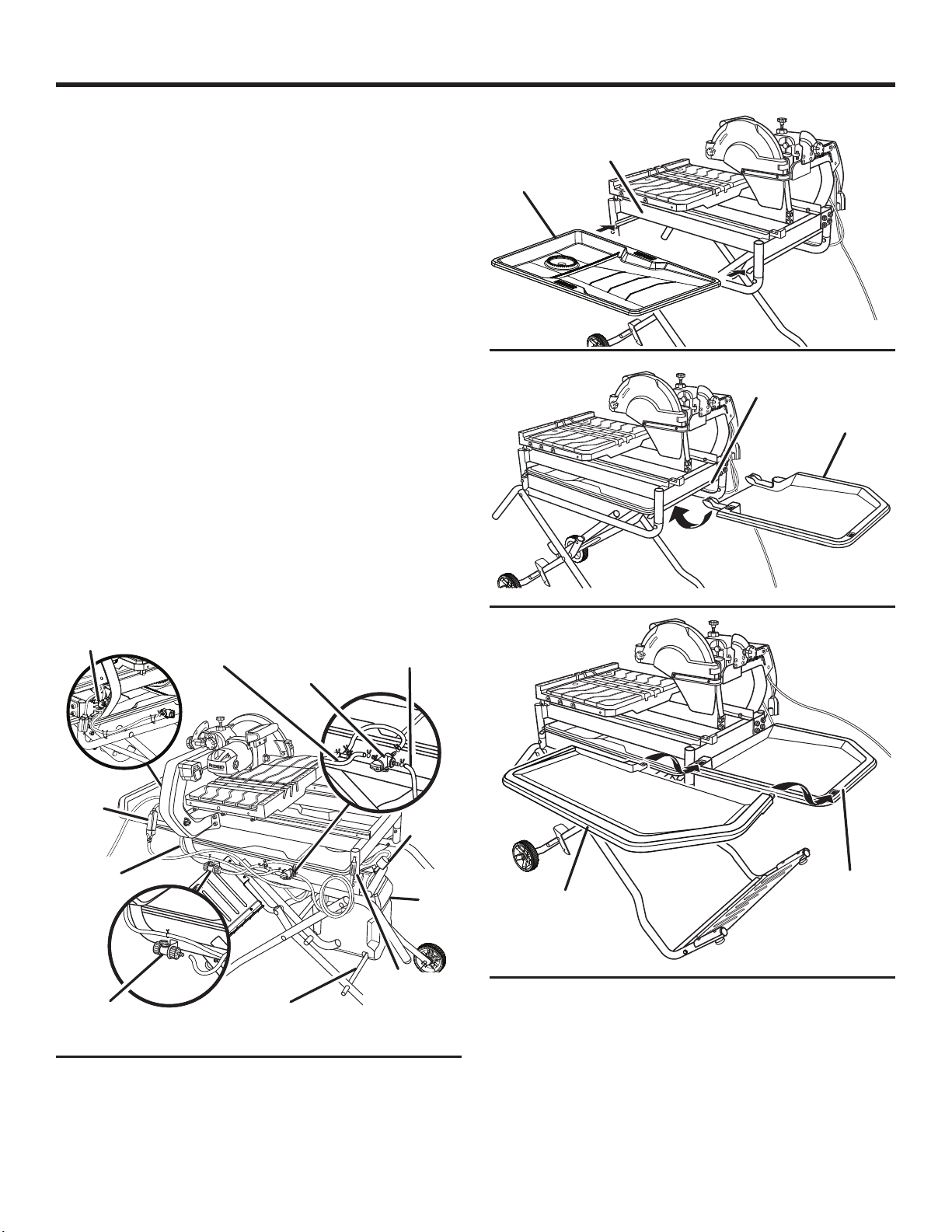

INSTALLING TH E WATER TRAY AND TRAY
EXTENSI ONS
See Figures 10 - 12.
From the right side of the saw, place the water tray (drain
plug end to the left) on the lip at the bottom of the water
tray frame. Slide the water tray in under the sliding table.
Standing at the back of the saw, hold the water tray exten-
sion at an angle. Tilt the tray and slip the guide between
the frame top and frame bottom.
Once the extension slides into place, lower the water tray
extension until the tray tabs fit into the holes under water
tray frame.
From the left side of the saw, slide the second (or side)
water tray extension into the slots on the back water tray
extension. Fig. 11
Fig. 12
water traY
fraMe
water traY
extension
water traY
extension
water traY
extension
water traY
fraMe
water
traY
Fig. 10

16 — English
ASSEMBLY
INSTALLING THE MITER GUIDE
See Figure 13.
The miter guide can be used from both the left and right side
of the cutting wheel.
Place the slot on the underside of the miter guide on the
sliding table fence.
Lock the miter guide securely to the table by turning the
miter guide knob clockwise.
To adjust angles:
Loosen the lock knob.
Set to the desired angle by moving the guide left or
right.
Tighten the knob securely before turning on the saw.
INSTALLING SLIDING TABLE EXTENSION
See Figure 14.
From the side of the saw, align the pins on the sliding table
extension with the holes in the sliding table frame.
Secure in place by turning the table extension lock knob
underneath the extension clockwise..
CONNECTING THE GARDEN HOSE
See Figure 15
The water supply must come from a fresh water main. NEVER
turn the water supply on high (fully opened).
The water supply valve provides a convenient on/off for
adjusting the water flow onto the cutting wheel. When used
properly, the water supply valve adjusts the water flow to
the perfect, optimal rate.
Uncoil the garden hose.
With the water main faucet turned completely off, attach
the end of the garden hose to the water supply valve.
Tighten by hand.
Fig. 13
Fig. 14
slidinG
table
slidinG
table
extension
table extension
locK Knob
Miter
Guide
Knob
locK
Knob
Miter
Guide
slidinG
table
fence

17 — English

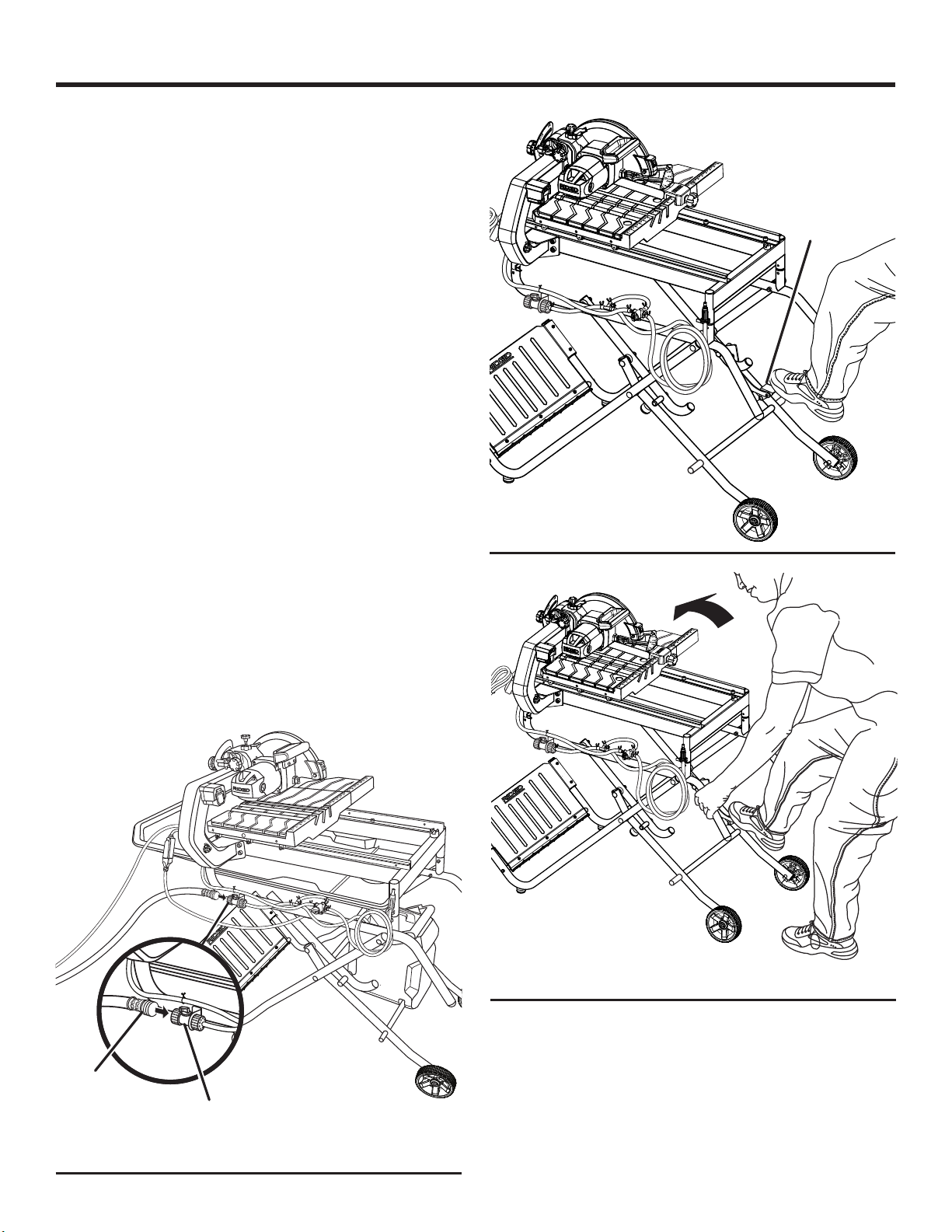

TO CLOSE / OPEN THE WSUV™ WET SAW
UTILITY VEHICLE / LEG STAND
See Figures 16 - 18.
Remove water tray, water tray extensions and the water
tank, and any workpieces from the tool. Store.
Place the sliding table in the center of the frame and lock
the table in place.
Lower the wheel and secure by locking the saw head in
place using the lock knob.
To close the leg stand:
At the same time, step on the release lever, grasp the
grips, and lift the handles up and away from the body.
Push the saw until the release lever clicks and locks into
place.
To move the leg stand:
Holding the grips firmly, pull the handles toward you until
the leg stand and saw are balanced on the wheels.
Push the saw to the desired location then either open
the leg stand for saw operation or store the saw in a dry
environment.
To open the leg stand:
Step on the release lever and pull the grips toward you
at the same time.
Once the leg stand is released from the release lever,
ease the leg stand toward the floor by pushing the grips
toward the floor.
With your hands on the grips, push the leg stand towards
the ground until the saw is in an open position.
NOTE: The release lever will close over the center brace
locking the leg stand in an open position.
ASSEMBLY
Fig. 15
Garden
hose Garden
hose
connector
89
10 11 12 13 14
Fig. 16
release
leVer
89
10 11 12 13 14
Fig. 17

18 — English
ASSEMBLY
TILE CUTTING WHEEL
For maximum performance and safety, it is recommended
that you use the 10 in. cutting wheel provided with your
saw. Additional cutting wheels of the same high quality are
available at your local dealer.
WARNING:
Do not use cutting wheels rated less than the no
load speed of this tool. Failure to heed this warning
could result in personal injury. Do not use wheel
with cracks, gaps, or teeth.
WARNING:
To prevent possible electrical hazards, have a
qualified electrician check the line if you are not
certain that it is properly wired.
INSTALLING TILE CUTTING WHEEL
See Figures 19 - 20.
WARNING:
A 10 in. tile cutting wheel is the maximum wheel
capacity of the saw. Never use a wheel that is too
thick to allow wheel washer to engage with the
flats on the spindle. Larger wheels will come in
contact with the wheel guard, while thicker wheels
will prevent the wheel nut from securing the wheel
on the spindle. Either of these situations could
result in a serious accident and can cause serious
personal injury.
Unplug the saw.
Turn the wheel guard lock counterclockwise to unlock.
Pull the wheel guard open to expose the spindle.
Using the wheel wrench provided, remove the wheel nut.
Release the spindle lock button.
Remove the outer washer.
Slide the cutting wheel onto spindle.
WARNING:
If the washer has been removed, replace it before
placing wheel on spindle. Failure to do so could
cause an accident since the wheel will not tighten
properly. Never use wheels that have openings,
grooves, or teeth on this tool.
Wipe a drop of oil onto the washer where it contacts the
cutting wheel.

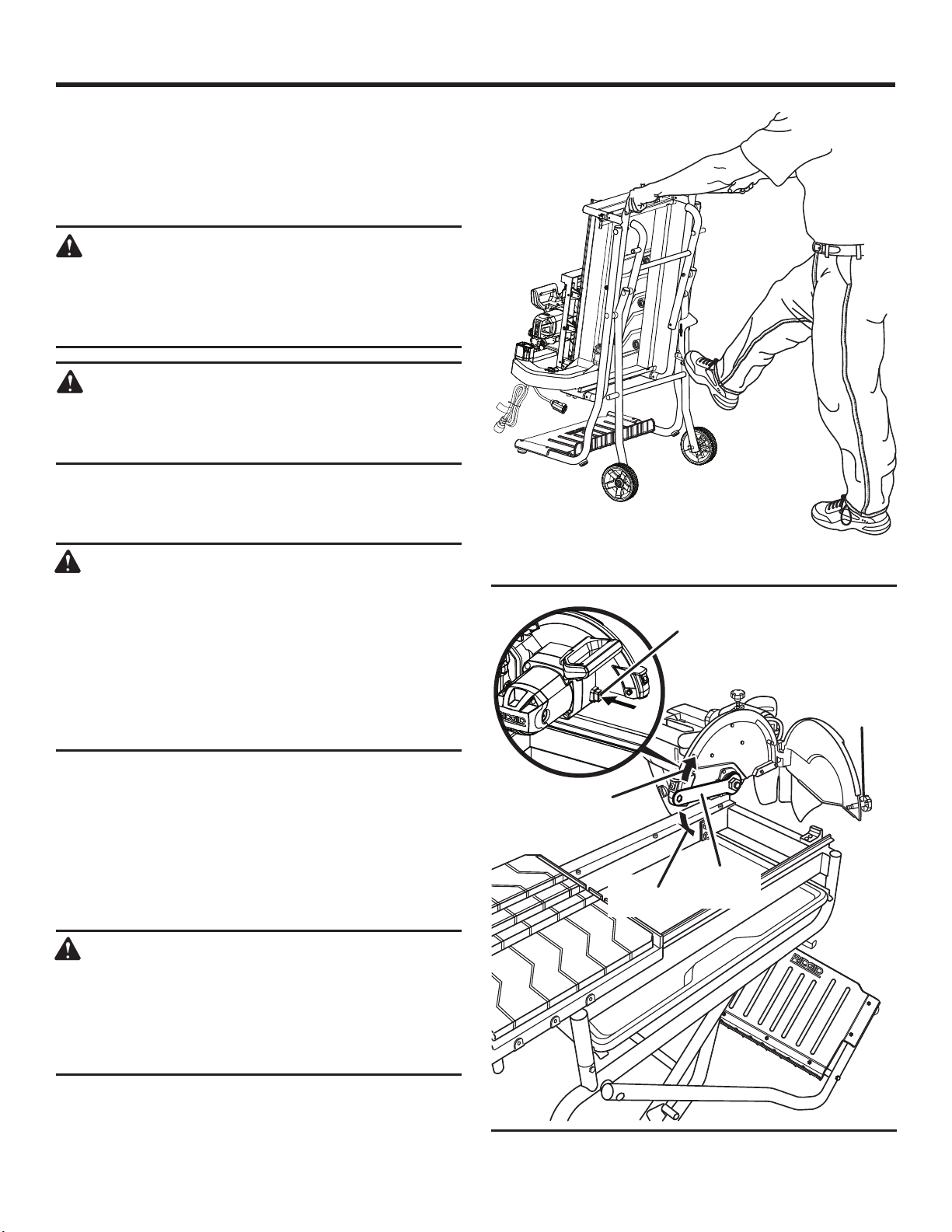

Fig. 18
Fig. 19
sPindle
locK
wheel
Guard
locK
to
tiGhten
wheel
wrench
to
loosen

19 — English
ASSEMBLY
Place an outer washer onto the spindle. The double “D”
flats on the washer align with the flats on the spindle. Be
sure the hollow side of the washer is against the cutting
wheel.
Place wheel nut on spindle.
Depress the spindle lock button and rotate the cutting
wheel until the spindle locks.
Using the wheel wrench provided, tighten nut securely.
Release the spindle lock button.
Close and lock the wheel guard.
ALIGNING THE LASER GUIDE LINE
See Figure 21.
DANGER:
Laser radiation. Avoid direct eye contact with light
source.
WARNING:
Use of controls or adjustments or performance of
procedures other than those specified herein may
result in hazardous radiation exposure.
Draw a line on the tile. When the laser guide switch is turned
on it will generate a red line on the work surface. This line will
let you see your mark and the laser guide line at the same
time, and will assist you in lining up the mark for more ac-
curate cutting of the tile.
Align the laser line and the mark with the wheel in the
cutting position using the laser adjustment dial. Once both
lines are in alignment, do not move the tile.
Make several practice cuts on different styles and thickness
of material. Repeat the steps above as necessary.
Follow the directions below for using the laser guide:
Removing Your Mark:
Position the laser line near the left edge of your mark on the
work surface in order to remove the mark.
To Cut Your Mark:
Position the laser line near or over your mark on the work
surface in order to cut the mark.
To Leave Your Mark:
Position the laser line near the right edge of your mark on
the work surface in order to leave the mark.
After you have become familiar with using the laser guide,
you will be able to remove, cut, or leave your mark on the
work surface. Practice will teach you the correct position for
aligning the laser line with your mark.

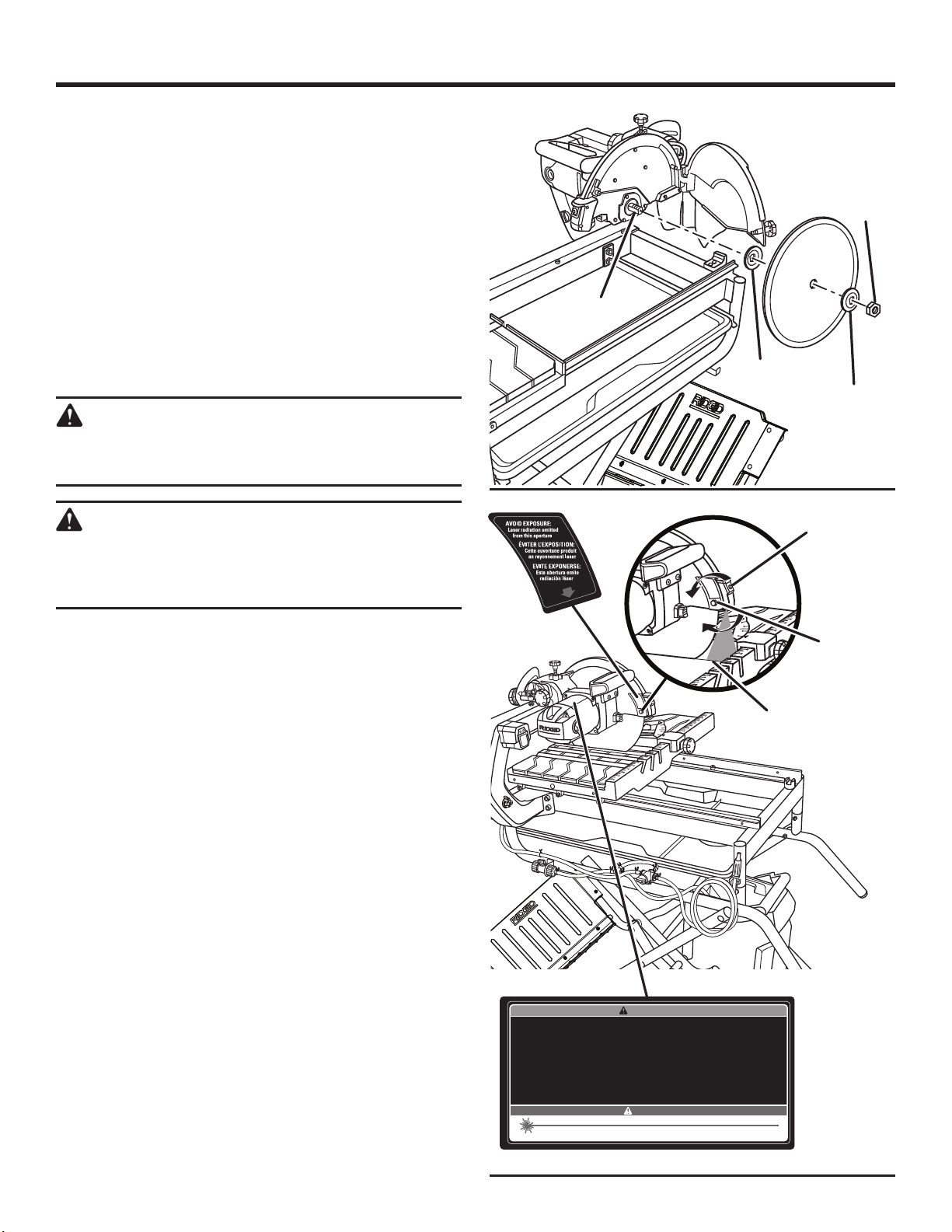

Fig. 20
inner
washer
sPindle
outer
washer
wheel
nut
Fig. 21
red
line
laser
adJustMent
dial
laser Guide
switch
•
To reduce the risk of injury, the user must read and understand operator’s manual.
•Do not fill water bath above maximum water fill line.
•Do not stack or store tiles on water trays.
•Do not expose to rain or other damp locations.
•Always inspect and replace damaged cutting wheels before operating the tool.
•Never use wheels that have openings, grooves, or teeth on this tool.
•Turn off tool, wait for the wheel to stop moving and disconnect the power
to the tool before servicing, when changing cutting wheels, or cleaning.
•Never operate the tool without the wheel guard securely closed.
•Do not remove the wheel guard.
•Wear eye, hearing, and respiratory protection when operating the tool.
WARNING
DANGER
LASER RADIATION AVOID DIRECT EYE EXPOSURE
MAXIMUM OUTPUT: <5mW WAVELENGTH: 630-660nm
CLASS IIIa LASER PRODUCT

20 — English
WARNING:
Do not allow familiarity with tools to make you
careless. Remember that a careless fraction of a
second is sufficient to inflict serious injury.
WARNING:
Always wear eye protection with side shields
marked to comply with ANSI Z87.1. Failure to do
so could result in objects being thrown into your
eyes, resulting in possible serious injury.
WARNING:
Do not use any attachments or accessories not
recommended by the manufacturer of this tool.
The use of attachments or accessories not recom-
mended can result in serious personal injury.
APPLICATIONS
You may use this tool for the purposes listed below:
Straight line cutting operations such as cross cutting,
mitering, ripping, and beveling
NOTE: This saw is designed to cut man-made tile, pavers,
and stone tile products only.
USING THE PUMP SWITCH
See Figure 22.
The pump switch on the saw arm, has three positions:
A) With the pump switch in position A (button up), the pump
will start when the on/off switch is turned on.
B) With the pump switch in position B (button down), the
pump switch is always on and the pump is always
running.
C) With the pump switch in position C (button in the middle),
the pump is always off.
USING THE PUMP AND CLEANING NOZZLE
See Figure 23.
To use the submersible pump:
Unscrew the drain plug located under the water tray.
Fill the water tank two-thirds full.
Center the water tank on the lower brace of the leg stand
and push the tank firmly against the center brace until it
locks into place.
Turn the diverter valve to the left to run water through the
saw arm and over the cutting wheel.
To use the cleaning nozzle:
Remove the cleaning nozzle from the storage holder, and
use the nozzle to clean the wheel, water tray, etc.
Turn the diverter valve to the right.
OPERATION
Fig. 22
Fig. 23
PuMP switch
on with
on/off switch
PuMP switch
alwaYs on
PuMP switch
alwaYs off
PuMP
switch
for PuMP
usaGe
for
cleaninG
noZZle
usaGe
diVerter
ValVe
cleaninG
noZZle
