RIDGID TS3650 User manual

Your new table saw has been engineered and manufactured to our high standards for dependability, ease of operation, and
operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.
WARNING:
To reduce the risk of injury, the user must read and understand the operator’s manual before using this
product.
Thank you for buying a RIDGID product.
OPERATOR’S MANUAL
10 in. CAST IRON TABLE SAW
TS3650
SAVE THIS MANUAL FOR FUTURE REFERENCE
Æ
®
®

2
3
nIntroduction ...................................................................................................................................................................... 2
n General Safety Rules .....................................................................................................................................................3-4
n Specific Safety Rules.....................................................................................................................................................4-5
nSymbols.........................................................................................................................................................................6-7
nElectrical ......................................................................................................................................................................8-10
nGlossary of Terms........................................................................................................................................................... 11
nFeatures.....................................................................................................................................................................12-13
n Tools Needed ................................................................................................................................................................. 14
nLoose Parts................................................................................................................................................................15-16
n Assembly ...................................................................................................................................................................17-27
n Operation ...................................................................................................................................................................28-39
n Adjustments...............................................................................................................................................................40-46
nMaintenance ................................................................................................................................................................... 47
n Accessories .................................................................................................................................................................... 47
nTroubleshooting .........................................................................................................................................................48-49
nWarranty ......................................................................................................................................................................... 51
n Parts Ordering/Service ................................................................................................................................................... 52
TABLE OF CONTENTS
This tool has many features for making the use of this product more pleasant and enjoyable. Safety, performance, and
dependability have been given top priority in the design of this product making it easy to maintain and operate.
INTRODUCTION

2
3
WARNING:
Read and understand all instructions. Failure
to follow all instructions listed below, may result
in electric shock, fire and/or serious personal
injury.
READ ALL INSTRUCTIONS
n KNOW YOUR POWER TOOL. Read the operator's
manual carefully. Learn the tool’s applications and
limitations as well as the specific potential hazards
related to this tool.
n GUARD AGAINST ELECTRICAL SHOCK BY
PREVENTING BODY CONTACT WITH GROUNDED
SURFACES. For example: pipes, radiators, ranges,
refrigerator enclosures.
n KEEP GUARDS IN PLACE and in working order. Never
operate the tool with any guard or cover removed.
Make sure all guards are operating properly before
each use.
n REMOVE ADJUSTING KEYS AND WRENCHES.
Form habit of checking to see that keys and adjusting
wrenches are removed from tool before turning it on.
n KEEP WORK AREA CLEAN. Cluttered areas and
benches invite accidents. DO NOT leave tools or
pieces of wood on the saw while it is in operation.
n AVOID DANGEROUS ENVIRONMENT. Don't use
power tools in damp or wet locations or expose to
rain. Keep work area well lit.
n KEEP CHILDREN AND VISITORS AWAY. All visitors
should wear safety glasses and be kept a safe distance
from work area. Do not let visitors contact tool or
extension cord while operating.
n MAKE WORKSHOP CHILDPROOF with padlocks or
master switches, or by removing starter keys.
n DON'T FORCE TOOL. It will do the job better and
safer at the feed rate for which it was designed.
n USE RIGHT TOOL. Don't force tool or attachment
to do a job it was not designed for. Don't use it for a
purpose not intended.
n MAKE SURE YOUR EXTENSION CORD IS IN GOOD
CONDITION. When using an extension cord, be sure
to use one heavy enough to carry the current your
product will draw. An undersized cord will cause a
drop in line voltage resulting in loss of power and
overheating. A wire gauge size (A.W.G.) of at least 14
is recommended for an extension cord 25 feet or less
in length. If in doubt, use the next heavier gauge. The
smaller the gauge number, the heavier the cord.
GENERAL SAFETY RULES
n DRESS PROPERLY. Do not wear loose clothing, gloves,
neckties, or jewelry. They can get caught and draw you
into moving parts. Rubber gloves and nonskid footwear
are recommended when working outdoors. Also wear
protective hair covering to contain long hair.
n ALWAYS WEAR SAFETY GLASSES WITH SIDE
SHIELDS. Everyday eyeglasses have only impact-
resistant lenses; they are NOT safety glasses.
n SECURE WORK. Use clamps or a vise to hold work
when practical. It's safer than using your hand and
frees both hands to operate tool.
n DON'T OVERREACH. Keep proper footing and balance
at all times.
n MAINTAIN TOOLS WITH CARE. Keep tools
sharp and clean for better and safer performance.
Follow instructions for lubricating and changing
accessories.
n DISCONNECT TOOLS. When not in use, before
servicing, or when changing attachments, blades,
bits, cutters, etc., all tools should be disconnected.
n AVOID ACCIDENTAL STARTING. Be sure switch is
off when plugging in.
n USE RECOMMENDED ACCESSORIES. The use of
improper accessories may cause risk of injury.
n NEVER STAND ON TOOL. Serious injury could occur if
the tool is tipped or if the cutting tool is unintentionally
contacted.
n CHECK DAMAGED PARTS. Before further use of the
tool, a guard or other part that is damaged should
be carefully checked to determine that it will operate
properly and perform its intended function. Check for
alignment of moving parts, binding of moving parts,
breakage of parts, mounting and any other conditions
that may affect its operation. A guard or other part that
is damaged must be properly repaired or replaced by
an authorized service center to avoid risk of personal
injury.
n USE THE RIGHT DIRECTION OF FEED. Feed work
into a blade or cutter against the direction of rotation
of blade or cutter only.
n NEVER LEAVE TOOL RUNNING UNATTENDED.
TURN POWER OFF. Don't leave tool until it comes
to a complete stop.
n PROTECT YOUR LUNGS. Wear a face or dust mask
if the cutting operation is dusty.
n PROTECT YOUR HEARING. Wear hearing protection
during extended periods of operation.
n DON'T ABUSE CORD. Never yank cord to disconnect
from receptacle. Keep cord from heat, oil, and sharp
edges.

4
5
n USE OUTDOOR EXTENSION CORDS. When tool is
used outdoors, use only extension cords with approved
ground connection that are intended for use outdoors
and so marked.
n KEEP BLADES CLEAN AND SHARP. Sharp blades
minimize stalling and kickback.
n BLADES COAST AFTER TURN OFF.
n NEVER USE IN AN EXPLOSIVE ATMOSPHERE.
Normal sparking of the motor could ignite fumes.
n INSPECT TOOL CORDS PERIODICALLY. If damaged,
have repaired by a qualified service technician at an
authorized service facility. The conductor with insulation
having an outer surface that is green with or without
yellow stripes is the equipment-grounding conductor.
If repair or replacement of the electric cord or plug is
necessary, do not connect the equipment-grounding
conductor to a live terminal. Repair or replace a
damaged or worn cord immediately. Stay constantly
aware of cord location and keep it well away from the
rotating blade.
n INSPECT EXTENSION CORDS PERIODICALLY and
replace if damaged.
n KEEP TOOL DRY, CLEAN, AND FREE FROM OIL AND
GREASE. Always use a clean cloth when cleaning.
Never use brake fluids, gasoline, petroleum-based
products, or any solvents to clean tool.
n STAY ALERT AND EXERCISE CONTROL. Watch what
you are doing and use common sense. Do not operate
tool when you are tired. Do not rush.
n DO NOT USE TOOL IF SWITCH DOES NOT TURN
IT ON AND OFF. Have defective switches replaced by
an authorized service center.
n USE ONLY CORRECT BLADES. Do not use blades
with incorrect size holes. Never use blade washers or
bolts that are defective or incorrect. The maximum
blade capacity of your saw is 10 in. (254 mm).
n BEFORE MAKING A CUT, BE SURE ALL
ADJUSTMENTS ARE SECURE.
n AVOID CUTTING NAILS. Inspect for and remove all
nails from lumber before cutting.
n NEVER TOUCH BLADE or other moving parts during
use.
n NEVER START A TOOL WHEN ANY ROTATING
COMPONENT IS IN CONTACT WITH THE WORK-
PIECE.
n DO NOT OPERATE THIS TOOL WHILE UNDER
THE INFLUENCE OF DRUGS, ALCOHOL, OR ANY
MEDICATION.
n GROUND ALL TOOLS. If tool is equipped with three-
prong plug, it should be plugged into a three-hole
electrical receptacle.
n WHEN SERVICING use only identical replacement
parts. Use of any other parts may create a hazard or
cause product damage.
n CHECK WITH A QUALIFIED ELECTRICIAN or
service personnel if the grounding instructions are not
completely understood or if in doubt as to whether the
tool is properly grounded.
n DO NOT MODIFY the plug provided. If it will not fit the
outlet, have the proper outlet installed by a qualified
electrician.
n USE ONLY RECOMMENDED ACCESSORIES listed
in this manual or addendums. Use of accessories that
are not listed may cause the risk of personal injury.
Instructions for safe use of accessories are included
with the accessory.
n DOUBLE CHECK ALL SETUPS. Make sure blade is
tight and not making contact with saw or workpiece
before connecting to power supply.
n MAKE SURE THE WORK AREA HAS AMPLE LIGHT-
ING to see the work and that no obstructions will
interfere with safe operation BEFORE performing any
work using the table saw.
GENERAL SAFETY RULES
SPECIFIC SAFETY RULES
n ALWAYS KEEP THE BLADE GUARD AND SPREADER
(SPLITTER) IN PLACE and in working order.
n KEEP HANDS AWAY FROM CUTTING AREA. Keep
hands away from blades. Do not reach underneath
work or around or over the blade while blade is rotating.
Do not attempt to remove cut material when blade is
moving.
n GUARD AGAINST KICKBACK. Kickback occurs when
the blade stalls rapidly and workpiece is driven back
towards the operator. It can pull your hand into the
blade resulting in serious personal injury. Stay out of
blade path and turn switch off immediately if blade
binds or stalls.
n USE RIP FENCE. Always use a fence or straight edge
guide when ripping.

4
5
WARNING:
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemi-
cals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your ex-
posure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as
those dust masks that are specially designed to filter out microscopic particles.
SPECIFIC SAFETY RULES
n SUPPORT LARGE PANELS. To minimize risk of blade
pinching and kickback, always support large panels.
n REMOVE ALL FENCES AND AUXILIARY TABLES
before transporting saw. Failure to do so can result in
an accident causing possible serious personal injury.
n ALWAYS USE BLADE GUARD, SPREADER, AND
ANTI-KICKBACK PAWLS on all "through-sawing"
operations. Through-sawing operations are those in
which the blade cuts completely through the workpiece
as in ripping or crosscutting. Keep the blade guard
down, the anti-kickback pawls down, and the spreader
in place over the blade.
n ALWAYS SECURE WORK firmly against rip fence or
miter fence.
n ALWAYS USE A PUSH STICK FOR RIPPING
NARROW STOCK. A push stick is a device used to
push a workpiece through the blade instead of using
your hands. Size and shape can vary but the push
stick must always be narrower than the workpiece to
prevent the push stick from contacting the saw blade.
When ripping narrow stock, always use a push stick,
so your hand does not come close to the saw blade.
Use a featherboard and push blocks for non-through
cuts.
n NEVER perform any operation "freehand" which
means using only your hands to support or guide the
workpiece. Always use either the rip fence or miter
fence to position and guide the work.
n NEVER stand or have any part of your body in line
with the path of the saw blade.
n NEVER reach behind, over, or within three inches of
the blade or cutter with either hand for any reason.
n MOVE THE RIP FENCE out of the way when cross-
cutting.
n NEVER use rip fence as cutoff gauge when
crosscutting.
n NEVER attempt to free a stalled saw blade without
first turning the saw OFF and disconnecting the saw
from the power source.
n AVOID KICKBACKS (work thrown back toward you)
by:
A. Keeping blade sharp.
B. Keeping rip fence parallel to the saw blade.
C. Keeping spreader, anti-kickback pawls, and
blade guard in place and operating.
D. Not releasing the work before it is pushed
all the way past the saw blade using a push
stick.
E. Not ripping work that is twisted or warped or
does not have a straight edge to guide along
the fence.
n PROVIDE ADEQUATE SUPPORT to the rear and sides
of the saw table for wide or long workpieces. Use a
sturdy "outrigger" support if a table extension more than
24 inches long is attached to the saw.
n AVOID AWKWARD OPERATIONS AND HAND
POSITIONS where a sudden slip could cause your hand
to move into the cutting tool.
n ALWAYS TURN OFF SAW before disconnecting it, to
avoid accidental starting when reconnecting to power
supply.
n SAVE THESE INSTRUCTIONS. Refer to them frequently
and use to instruct other users. If you loan someone this
tool, loan them these instructions also.

6
7
SYMBOLS
Some of the following symbols may be used on this tool. Please study them and learn their meaning. Proper interpreta-
tion of these symbols will allow you to operate the tool better and safer.
Read The Operator’s Manual
Safety Alert
No Hands Symbol
No Hands Symbol
No Hands Symbol
No Hands Symbol
SYMBOL NAME DESIGNATION/EXPLANATION
Voltage
Current
Frequency (cycles per second)
Power
Time
Type of current
Type or a characteristic of current
Rotational speed, at no load
Double-insulated construction
Revolutions, strokes, surface speed, orbits etc., per minute
Do not expose to rain or use in damp locations.
To reduce the risk of injury, user must read and understand
operator’s manual before using this product.
Eye Protection Always wear safety goggles or safety glasses with side shields
and a full face shield when operating this product.
Precautions that involve your safety.
Failure to keep your hands away from the blade will result in
serious personal injury.
Failure to keep your hands away from the blade will result in
serious personal injury.
Failure to keep your hands away from the blade will result in
serious personal injury.
Failure to keep your hands away from the blade will result in
serious personal injury.
Wet Conditions Alert
.../min Per Minute
Class II Construction
n
o
No Load Speed
Direct Current
Alternating Current
min Minutes
W Watt
Hz Hertz
A Amperes
V Volts
Hot Surface To reduce the risk of injury or damage, avoid contact with
any hot surface.

6
7
SYMBOLS
Indicates an imminently hazardous situation, which, if not avoided, will
result in death or serious injury.
Indicates a potentially hazardous situation, which, if not avoided, could
result in death or serious injury.
Indicates a potentially hazardous situation, which, if not avoided, may
result in minor or moderate injury.
(Without Safety Alert Symbol) Indicates a situation that may result in
property damage.
SYMBOL SIGNAL MEANING
SERVICE
Servicing requires extreme care and knowledge and should
be performed only by a qualified service technician. For
service we suggest you return the product to your nearest
AUTHORIZED SERVICE CENTER for repair. When servic-
ing, use only identical replacement parts.
WARNING:
To avoid serious personal injury, do not attempt to
use this product until you read thoroughly and un-
derstand completely the operator’s manual. Save
this operator’s manual and review frequently for
continuing safe operation and instructing others
who may use this product.
The operation of any power tool can result in foreign objects being thrown into your eyes, which can re-
sult in severe eye damage. Before beginning power tool operation, always wear safety goggles or safety
glasses with side shields and a full face shield when needed. We recommend Wide Vision Safety Mask
for use over eyeglasses or standard safety glasses with side shields. Always use eye protection which is
marked to comply with ANSI Z87.1.
WARNING:
SAVE THESE INSTRUCTIONS
DANGER:
CAUTION:
CAUTION:
WARNING:
The following signal words and meanings are intended to explain the levels of risk associated with this product.

8
9
ELECTRICAL
EXTENSION CORDS
Use only 3-wire extension cords that have 3-prong ground-
ing plugs and 3-pole receptacles that accept the tool's plug.
When using a power tool at a considerable distance from the
power source, use an extension cord heavy enough to carry
the current that the tool will draw. An undersized extension
cord will cause a drop in line voltage, resulting in a loss of
power and causing the motor to overheat. Use the chart
provided below to determine the minimum wire size required
in an extension cord. Only round jacketed cords listed by
Underwriter's Laboratories (UL) should be used.
**Ampere rating (on tool faceplate)
0-2.0 2.1-3.4 3.5-5.0 5.1-7.0 7.1-12.0 12.1-16.0
Cord Length Wire Size (A.W.G.)
25' 16 16 16 16 14 14
50' 16 16 16 14 14 12
100' 16 16 14 12 10 —
**Used on 12 gauge - 20 amp circuit.
NOTE: AWG = American Wire Gauge
When working with the tool outdoors, use an extension cord
that is designed for outside use. This is indicated by the
letters “WA” on the cord’s jacket.
Before using an extension cord, inspect it for loose or
exposed wires and cut or worn insulation.
WARNING:
Keep the extension cord clear of the working
area. Position the cord so that it will not get
caught on lumber, tools or other obstructions
while you are working with a power tool. Failure
to do so can result in serious personal injury.
WARNING:
Check extension cords before each use. If dam-
aged replace immediately. Never use tool with
a damaged cord since touching the damaged
area could cause electrical shock resulting in
serious injury.
ELECTRICAL CONNECTION
This tool is powered by a precision built electric motor. It
should be connected to a power supply that is 120 volts,
60 Hz, AC only (normal household current). Do not operate
this tool on direct current (DC). A substantial voltage drop
will cause a loss of power and the motor will overheat. If the
saw does not operate when plugged into an outlet, double
check the power supply.
SPEED AND WIRING
The no-load speed of this tool is approximately 3450 rpm.
This speed is not constant and decreases under a load or
with lower voltage. For voltage, the wiring in a shop is as
important as the motor’s horsepower rating. A line intended
only for lights cannot properly carry a power tool motor. Wire
that is heavy enough for a short distance will be too light for
a greater distance. A line that can support one power tool
may not be able to support two or three tools.
GROUNDING INSTRUCTIONS
In the event of a malfunction or breakdown, grounding
provides a path of least resistance for electric current to
reduce the risk of electric shock. This tool is equipped
with an electric cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged
into a matching outlet that is properly installed and grounded
in accordance with all local codes and ordinances.
Do not modify the plug provided. If it will not fit the outlet,
have the proper outlet installed by a qualified electrician.
Improper connection of the equipment-grounding conductor
can result in a risk of electric shock. The conductor with
insulation having an outer surface that is green with or with-
out yellow stripes is the equipment-grounding conductor. If
repair or replacement of the electric cord or plug is neces-
sary, do not connect the equipment-grounding conductor
to a live terminal.
Check with a qualified electrician or service personnel if the
grounding instructions are not completely understood, or if
in doubt as to whether the tool is properly grounded.
Repair or replace a damaged or worn cord immediately.
This tool is intended for use on a circuit that has an outlet
like the one shown in figure 1. It also has a grounding pin
like the one shown.
Fig. 1
GROUNDING
PIN COVER OF GROUNDED
OUTLET BOX

8
9
ELECTRICAL
WARNING:
To prevent possible electrical hazards, have a
qualified electrician check the line if you are not
certain that it is properly wired.

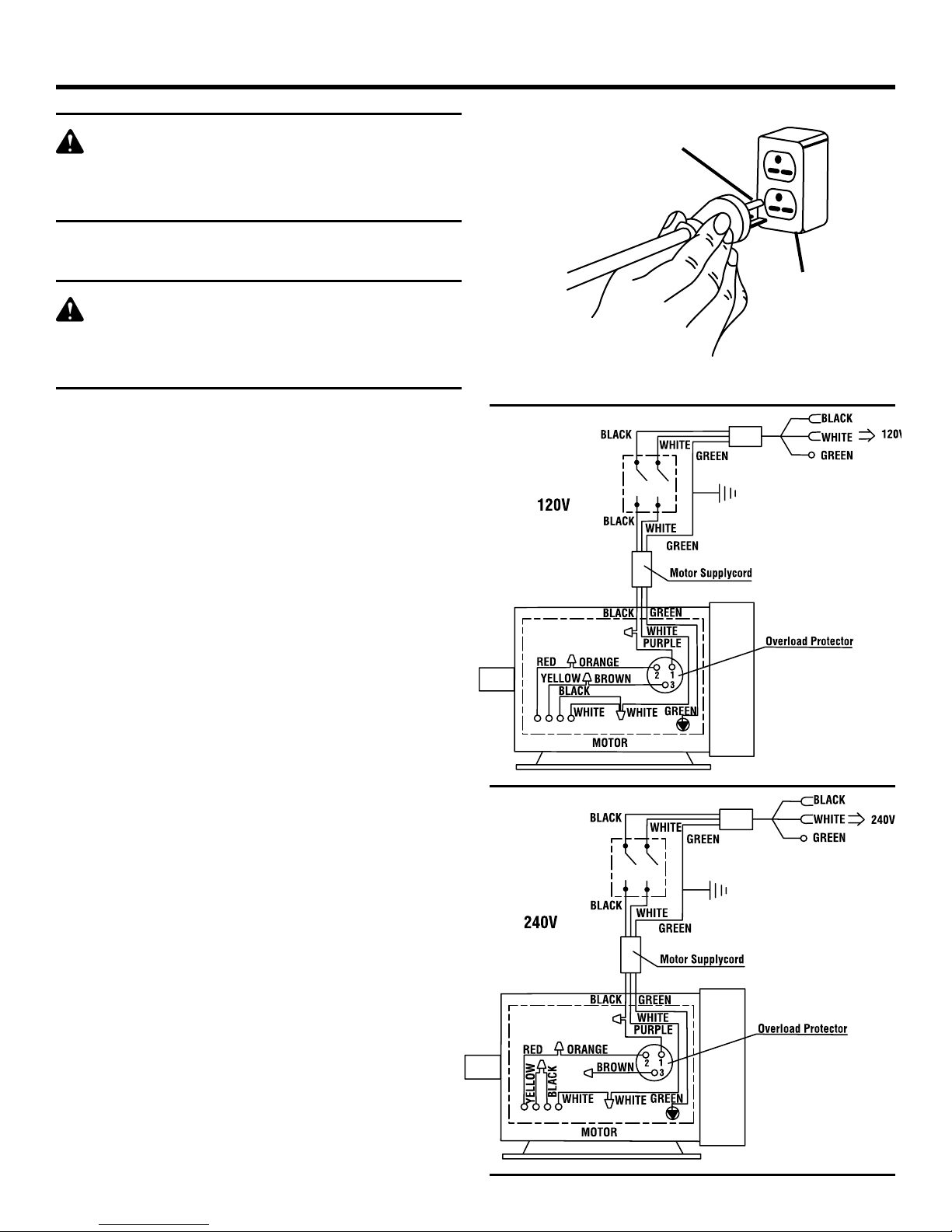

CHANGING MOTOR VOLTAGE
See Figures 2 - 4.
WARNING:
Electric shock can kill. To reduce the risk of seri-
ous personal injury, never connect plug to power
source until all assembly steps are completed.
NOTE: The table saw is prewired at the factory for 120 volts,
60 Hz. Use the following procedures to change motor voltage
from 120 volts to 240 volts.
n Unplug the saw.
n Located on the top of the motor is the junction box.
Remove the phillips screw at the back of the junction
box then lift off the cover.
n Remove and discard the electrical tape from the wire
connectors. Remove wire connectors.
n Reconnect the leads.
n Reinstall the wire connectors and wrap each wire with
two layers of new UL listed electrical tape.
n Recheck your wiring with the wiring diagrams.
n Reinstall the junction box cover using the phillips
screw.
n Cut off the 120 volt power cord plug and replace it with
a 3-prong 240 volt, 15 amp. UL listed plug.
n Connect the power cord white and black leads,
respectively, to the "hot" plug blade terminals. Connect
the power cord green grounding wire to the plug ground
prong terminal.
n Plug your table saw into a 220-240 volt, 15 amp., 3-prong
receptacle. Make certain the receptacle is connected to
a 240 volt, AC power supply through a 240 volt branch
circuit having at least a 15 amp capacity and protected
by a 15 amp time-delay fuse or circuit breaker.
Fig. 4
Fig. 2
Fig. 3
FOR USE WITH 220-240 VOLT
GROUNDING
PIN
COVER OF GROUNDED
OUTLET BOX

10
11
ELECTRICAL
MOTOR THERMAL OVERLOAD PROTECTOR
See Figure 5.
Your table saw comes equipped with a manual-reset thermal-
overload protector designed to open the power line circuit
when the motor temperature exceeds a safe level, when motor
is overloaded, or when a low voltage condition exists.
NOTE: This motor should be blown out or vacuumed fre-
quently to prevent sawdust buildup which can interfer with
normal motor ventilation.
WARNING:
To reduce the risk of serious personal injury from
thrown objects or blade contact from unexpected
starting, immediately turn off the table saw if the
protector stops the table saw motor. Remove the
switch key and allow the motor time to cool.
n Once the motor is cooled to a safe operating temperature,
reset the thermal overload protector by pushing the red
button on the front of the junction box. An audible click
will indicate the thermal overload protector is reset. Once
the button is reset, the table saw may be started and
operated as normal.
NOTE: If the red button won't click into place immediately,
the motor is still too hot and must be allowed to cool.
Frequent “blowing” of fuses or tripping of circuit breakers
may result if:
n Motor is overloaded. Overloading can occur if a workpiece
is fed too rapidly or if the table saw is misaligned.
n Motor circuit is fused differently from recommendations.
Always follow instructions for the proper fuse/breaker.
Do not use a fuse/breaker of greater capacity without
consulting a qualified electrician.
n Low voltage. Although the motor is designed for operation
on the voltage and frequency specified on the motor,
normal loads will be handled safely on voltage no more
than ten percent above or below that figure. Heavy loads,
however, require that voltage at motor terminals equal the
voltage specified on the motor.
NOTE: Always check the connections, the load and the supply
circuit whenever the motor fails to perform satisfactorily.
Fig. 5
MANUAL RESET
BUTTON
JUNCTION
BOX

10
11
GLOSSARY OF TERMS
Non-Through Cuts
Any cutting operation where the blade does not extend
completely through the thickness of the workpiece.
Push Blocks and Push Sticks
Devices used to feed the workpiece through the saw blade
during cutting operations. A push stick (not a push block)
should be used for narrow ripping operations. These aids
help keep the operator's hands well away from the blade.
Pilot Hole (drill presses)
A small hole drilled in a workpiece that serves as a guide for
drilling large holes accurately.
Resaw
A cutting operation to reduce the thickness of the work-piece
to make thinner pieces.
Resin
A sticky, sap-based substance that has hardened.
Revolutions Per Minute (RPM)
The number of turns completed by a spinning object in one
minute.
Ripping or Rip Cut
A cutting operation along the length of the workpiece.
Riving Knife (table saws)
Also known as a spreader or splitter. A metal piece, slightly
thinner than the saw blade, which helps keep the kerf open
and also helps to prevent kickback.
Saw Blade Path
The area over, under, behind, or in front of the blade. As it
applies to the workpiece, that area which will be or has been
cut by the blade.
Set
The distance that the tip of the saw blade tooth is bent (or
set) outward from the face of the blade.
Snipe (planers)
Depression made at either end of a workpiece by cutter
blades when the workpiece is not properly supported.
Throw-Back
The throwing back of a workpiece usually caused by the
workpiece being dropped into the blade or being placed
inadvertently in contact with the blade.
Through Sawing
Any cutting operation where the blade extends completely
through the thickness of the workpiece.
Workpiece or Material
The item on which the operation is being done.
Worktable
Surface where the workpiece rests while performing a
cutting, drilling, planing, or sanding operation.
Anti-Kickback Pawls (radial arm and table saws)
A device which, when properly installed and maintained,
is designed to stop the workpiece from being kicked back
toward the front of the saw during a ripping operation.
Arbor
The shaft on which a blade or cutting tool is mounted.
Bevel Cut
A cutting operation made with the blade at any angle other
than 90° to the table surface.
Chamfer
A cut removing a wedge from a block so the end (or part of
the end) is angled rather than at 90°.
Compound Cut
A cross cut made with both a miter and a bevel angle.
Crosscut
A cutting or shaping operation made across the grain or the
width of the workpiece.
Cutter Head (planers and jointers)
A rotating piece of adjustable blades. The cutter head
removes material from the workpiece.
Dado Cut
A non-through cut which produces a square-sided notch or
trough in the workpiece (requires a special blade).
Featherboard
A device used to help control the workpiece by guiding
it securely against the table or fence during any ripping
operation.
FPM or SPM
Feet per minute (or strokes per minute), used in reference
to blade movement.
Freehand
Performing a cut without the workpiece being guided by a
fence, miter gauge, or other aids.
Gum
A sticky, sap-based residue from wood products.
Heel
Alignment of the blade to the fence.
Kerf
The material removed by the blade in a through cut or the
slot produced by the blade in a non-through or partial cut.
Kickback
A hazard that can occur when the blade binds or stalls,
throwing the workpiece back toward operator.
Leading End
The end of the workpiece pushed into the tool first.
Miter Cut
A cutting operation made with the workpiece at any angle
to the blade other than 90°.

12
13
Æ
®
®
FEATURES
RIP FENCE
SWITCH
LEG STAND
LOCKING
LEVER
SAW
BLADE
ANTI-KICKBACK
PAWLS
BLADE GUARD
ASSEMBLY
FRONT
RAIL
LEVELING
FOOT
SEPARATOR
(SPLITTER)
HEIGHT
ADJUSTING
HANDWHEEL
BEVEL
SCALE
MITER GAUGE
Fig. 6
RIP FENCE
STORAGE
HOOKS MITER GAUGE
STORAGE HOOKS
HERC-U-LIFT™
MOBILE BASE
BEVEL LOCK LEVER
BEVEL ADJUSTING
HANDWHEEL
BLADE HEIGHT
LOCK KNOB
PRODUCT SPECIFICATIONS
Blade Diameter...........................................10 in. (254 mm)
Blade Arbor ................................................ 5/8 in. (16 mm)
Cutting Depth at 0°............................... 3-3/8 in. (85.7 mm)
Cutting Depth at 45°........................... 2-1/4 in. (57.15 mm)
Rating ................... 120 Volts, 60 Hz, AC Only, 13 Amperes
240 Volts, 60 Hz, AC Only, 6.5 Amperes
Output Speed.....................................................3,450/min.
Net Weight............................................... 287 lbs. (130 kg.)

12
13
FEATURES
BLADE GUARD - Always keep the guard down over the
blade for through-sawing cuts.
BLADE HEIGHT LOCK KNOB - This knob, in the center of the
height adjusting handwheel, locks the handwheel into place
and must be unlocked before turning the handwheel.
BEVEL LOCK LEVER - This lever, placed just under the
worktable surface on the front of the cabinet, locks the angle
setting of the blade. Be sure the lever is unlocked before
tilting the blade. If it is not unlocked, it may jam and bend
the locking bolt.
HEIGHT ADJUSTING HANDWHEEL - Use this handwheel
to lower and raise the blade for adjustments or replacement.
It is located on the front of the cabinet.
HERC-U-LIFT MOBILE BASETM - This saw comes with a
mobile base that allows for easy mobility.
IND-I-CUT™ ALIGNMENT DISC - A plastic insert on which
marks may be made to indicate the location of the cut on
the workpiece.
LOCKING LEVER - The lever on the front of the rip fence
releases the rip fence or locks it in place.
MITER GAUGE - This miter gauge aligns the wood for a
crosscut. The easy-to-read indicator shows the exact angle
for a miter cut, with positive stops at 90° and 45°.
MITER GAUGE GROOVES - The miter gauge rides in these
grooves on either side of the blade.
MOTOR - The powerful induction motor, with capacitor start
and poly V-belt drive, is housed in a sturdy steel base.
RAILS - Front and rear rails provide support for the rip fence
and extension tables.
RIP FENCE - A sturdy metal fence guides the workpiece and
is secured with the locking lever. Grooves run along the top
and sides of the rip fence for use with clamps and jigs.
SCALE - Found on the front rail, the easy-to-read scale
provides precise measurements in rip cuts.
SEPARATOR OR SPLITTER - A metal piece, slightly thin-
ner than the saw blade which helps keep the kerf open and
prevent kickback.
SWITCH ASSEMBLY - Your table saw has an easy access
power switch located below the front rail. The yellow switch
key must be removed from the blister pack and inserted
into the switch before the saw can be operated. To lock the
switch in the OFF position, remove the switch key from the
switch. Place the key in a location that is inaccessible to
children and others not qualified to use the tool.
KNOW YOUR TABLE SAW
See Figure 6.
Before attempting to use this product, familiarize yourself
with all operating features and safety rules.
OVERVIEW
The upper portion of the blade projects up through the table,
surrounded by an insert called the throat plate. The height
of the blade is set with a height adjusting handwheel on the
front of the cabinet. Detailed instructions are provided in the
Operation section of this manual for the basic cuts: rip cuts,
cross cuts, miter cuts, bevel cuts, and compound cuts.
For cuts with the blade straight up and cutting across the
grain (cross cuts or miter cuts), use the miter gauge to set
the angle and push the wood into the blade. To cut with the
blade straight up, along the grain of the wood (rip cuts), use
the rip fence to guide the wood. Push smaller pieces with
a push block or push stick.
To tilt the blade for a bevel cut, use the bevel adjusting hand-
wheel on the side of the cabinet. A bevel scale on the front
of the cabinet shows the blade angle. Inside the cabinet,
adjustable positive stops control the degree of tilt which
can be adjusted with the screws in the top of the saw table.
Use the miter gauge for a bevel cross cut (compound cut)
and the rip fence for a bevel rip cut.
Your saw is designed to perform as a versatile, accurate,
precision cutting tool that is easy to operate. It is equipped
with the following features for convenience, ease of use, and
high-quality performance:
ANTI-KICKBACK PAWLS - Kickback is a hazard in which the
workpiece is thrown back toward the operator. The toothed
pawls are designed to snag the workpiece to prevent or
reduce injury should kickback occur.
BEVEL ADJUSTING HANDWHEEL - Use this handwheel
to set the angle of the blade for bevel cuts. It is located on
the side of the cabinet.
BEVEL SCALE - The easy-to-read scale on the front of the
workstand shows the exact blade angle.
BLADE - For maximum performance, it is recommended
that you use the 40-tooth, 10 in. (254 mm) carbide tipped
combination blade provided with your saw. Additional blade
styles of the same high quality are available for specific op-
erations such as ripping. Your local dealer can provide you
with complete information.
WARNING:
Do not use blades rated less than the speed of
this tool. Failure to heed this warning could result
in personal injury.

14
15
TOOLS NEEDED
The following tools (not included) are needed for assembly and alignment:
COMBINATION WRENCH (9)
(10 mm, 11 mm, 12 mm,
13 mm, 14 mm,17 mm,
1/2 in., 9/16 in. 11/16 in.)
FRAMING SQUARE
Fig. 7
PLIERS
HAMMER
PHILLIPS SCREWDRIVER
SCREWDRIVER (2)
(SMALL AND MEDIUM)
ADJUSTABLE WRENCH
HEX KEYS (4)
(2.5 mm, 1/8 in.,
5/32 in., 3/16 in.)
COMBINATION SQUARE

14
15
®

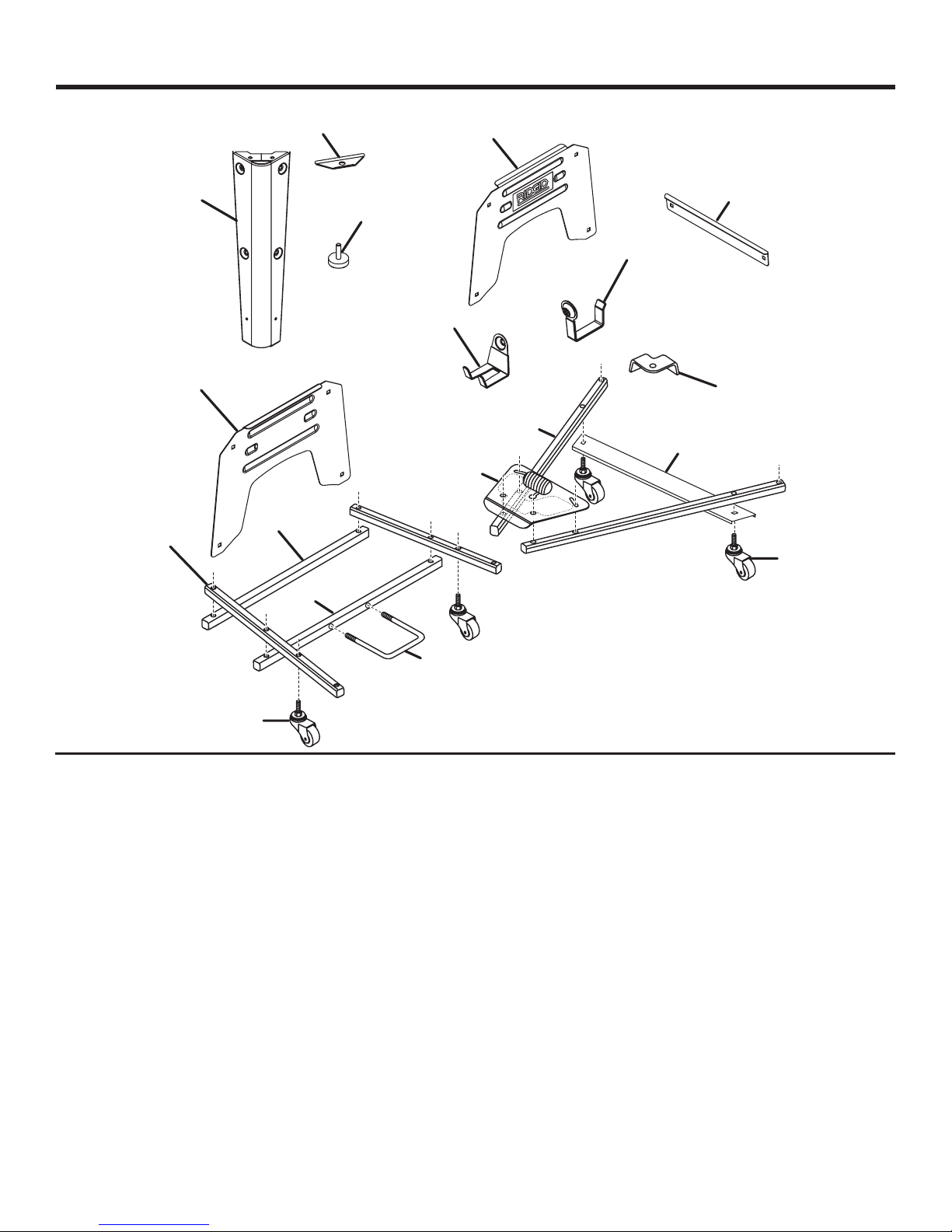

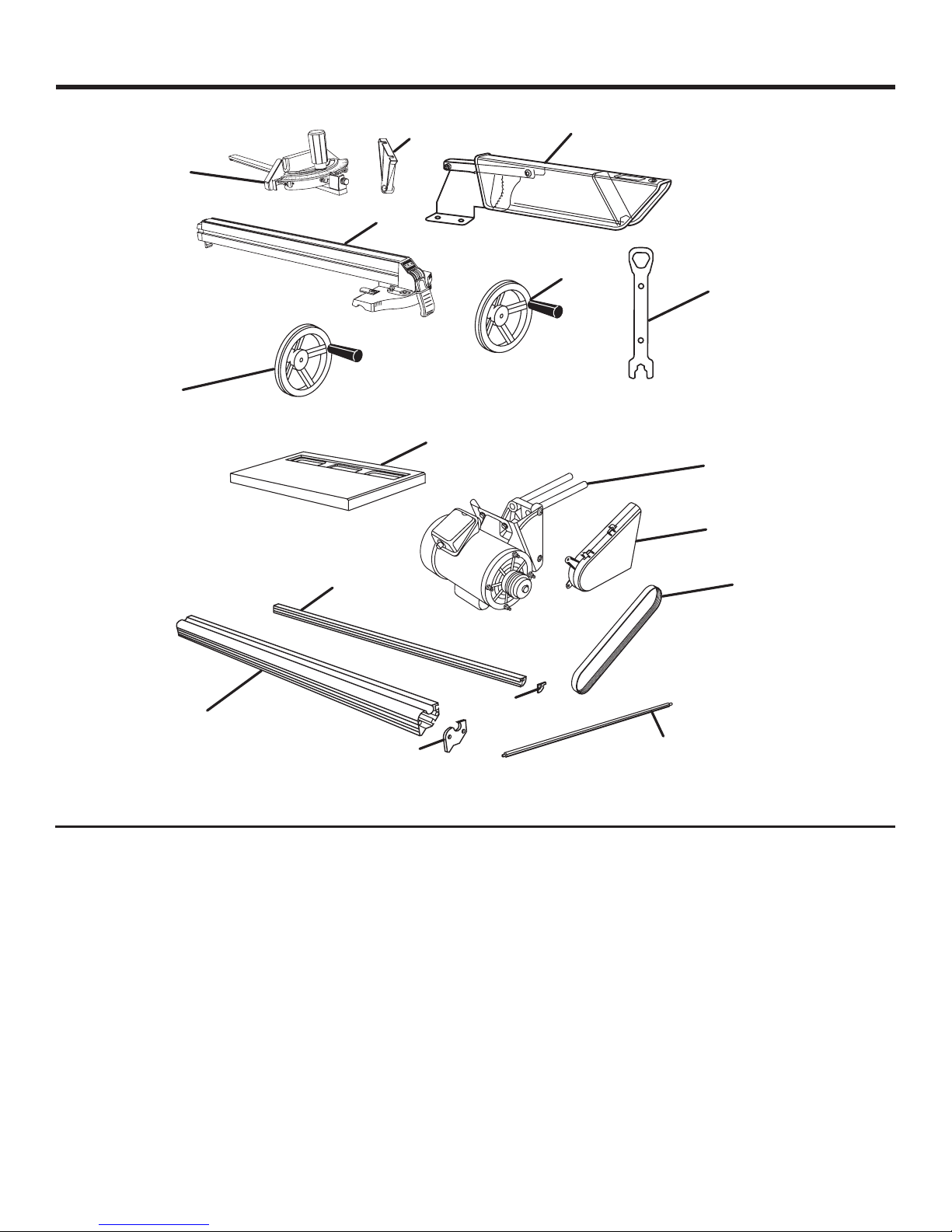

LOOSE PARTS LIST
Fig. 8
Key
No. Description Qty.
1 Miter Gauge .......................................................1
2 Guard Support Assembly...................................1
3 Blade Guard Assembly.......................................1
4 Blade Wrench.....................................................2
5 Rip Fence ...........................................................1
6 Bevel Adjusting Handwheel ...............................1
7 Height Adjusting Handwheel..............................1
8 Back End Cap (left and right) .............................2
9 Front Rail ............................................................1
1
3
4
2
6
11
7
9
Key
No. Description Qty.
10
15
12
14
13
16
8
10 Back Rail ............................................................1
11 Table Extension ...................................................2
12 Motor...................................................................1
13 Belt Guard ...........................................................1
14 Drive Belt.............................................................1
15 Spacer Bar ..........................................................1
16 Front End Cap (left and right)..............................2
17 Blister Hardware Pack
(contents noted on blister pack) - not shown......1
5

16
17
LOOSE PARTS LIST
1 Leg ........................................................................................................................................................................4
2 Front Brace ...........................................................................................................................................................1
3 Back Brace............................................................................................................................................................1
4 Side Brace ............................................................................................................................................................2
5 Leveling Feet.........................................................................................................................................................4
6 Foot Brace ............................................................................................................................................................4
7 Rear Tube..............................................................................................................................................................2
8 Front Tube .............................................................................................................................................................2
9 Swivel Caster ........................................................................................................................................................4
10 Leg Bracket...........................................................................................................................................................4
11 Rip Fence Storage Hooks.....................................................................................................................................2
12 Miter Gauge Storage Hook ...................................................................................................................................1
13 Center Brace .........................................................................................................................................................1
14 Unlock Pedal Assembly ........................................................................................................................................1
15 U-Bolt....................................................................................................................................................................1
16 U-Bolt Tube...........................................................................................................................................................1
17 Tube Support ........................................................................................................................................................1
18 Blister Hardware Pack, small (contents noted on blister pack) - not shown.........................................................1
19 Blister Hardware Pack, large (contents noted on blister pack) - not shown .........................................................1
Key
No. Description Qty.
Fig. 9
1
2
3
13
6
5
7
8
10
12
11
9
14
15
9
17
16
4

16
17
ASSEMBLY
UNPACKING
This product requires assembly.
n Remove the packing materials from around your tool. Do
not discard the packing material until you have carefully
inspected and satisfactorily operated the tool.
n Separate and remove all loose parts from the carton.
Check parts against the list of loose parts.
n Carefully lift the tool from the carton and place it on a
level work surface.
NOTE: This tool is heavy. To avoid back injury, lift with
your legs, not your back, and get help when needed.
n Remove the protective oil that is applied to all unpainted
metal surfaces. Use any ordinary household type grease
and spot remover.
n Apply coat of paste wax to the table and table extensions.
n Inspect the tool carefully to make sure no breakage or
damage occurred during shipping.
n The saw is factory set for accurate cutting. After assem-
bling it, check for accuracy. If shipping has influenced
the settings, refer to specific procedures explained in
this manual.
n If any parts are damaged or missing, please call
1-866-539-1710 for assistance.
WARNING:
If any parts are missing do not operate this tool
until the missing parts are replaced. Failure to
do so could result in possible serious personal
injury.
WARNING:
Do not connect to power supply until assembly is
complete. Failure to comply could result in ac-
cidental starting and possible serious personal
injury.
TO ASSEMBLE LEG STAND AND STORAGE
BRACKETS
See Figures 10 - 11.
n Separate the following: side panel (2), front brace (1), back
brace (1), legs (4), miter gauge storage hook (1), rip fence
storage hooks (2), and foot braces (4).
n Remove the following hardware from the blister hardware
pack:
8 hex nuts (3/8-16)
4 leveling feet
4 foot braces
16 carriage bolts (5/16-18 x 5/8 in.)
16 hex nuts, flanged (5/16-18)
n Place front brace inside first leg piece. Align holes on the
front brace with the holes on the leg piece. Insert two
carriage bolts and hand tighten using flanged hex nuts.
Fig. 10
Fig. 11
LEG STAND ASSEMBLED
LEG FRONT BRACE
SIDE
BRACE
STORAGE
BRACKET(S)
n Attach a second leg piece to the other side of the front
brace using two carriage bolts and flanged hex nuts.
n Repeat the above steps once for the back brace.
n Secure the miter gauge storage hook to the leg on the
left side of the leg stand using a carriage bolt and flanged
hex nut.
n Secure the two rip fence storage hooks to the leg on the
right side of the leg stand using carriage bolts and flanged
hex nuts.
This completes two of the four sides of the leg stand.
n Place side brace inside leg piece. Align holes on side
brace with the holes on the leg piece. Insert two carriage
bolts and hand tighten using flanged hex nuts.
n Repeat the above step on the opposite side.

18
19
ASSEMBLY
n Thread one hex nut on the screw on the leveling foot and
turn until it stops.
n Slip a foot brace onto the leveling foot before placing the
leveling foot in the hole in the bottom of the leg. Secure
with another hex nut.
n Adjust the feet all the way to the bottom of the leg. Using
a wrench, securely tighten all hex nuts.
This completes the leg stand.
TO MOUNT THE TABLE SAW TO THE LEG
STAND
See Figure 12.
WARNING:
Do not lift the saw without help. Hold it close to
your body. Keep your knees bent and lift with
your legs, not your back. Ignoring these precau-
tions can result in back injury.
n Locate the following hardware:
8 screws (5/16-18 x 5/8 in.)
8 hex nuts (5/16-18)
n Place the saw table upside down on a smooth surface,
such as cardboard, on the floor.
n Place the leg stand on the table saw base. Align the holes
in the table with the holes in the legs.
NOTE: The front panel is the one with the Ridgid logo
and must be on the front of the saw base.
n Insert a screw through the hole in the saw base and the
hole in the leg stand. Add a hex nut. Hand tighten.
n Repeat for remaining holes. Tighten all hardware with a
wrench. You may find it helpful to use one wrench to hold
the head of the bolt and one to tighten the hex nut.
TO INSTALL EXTENSION TABLES
See Figure 13.
n With the table saw still in the upside down position, place
a table extension against the table top.
n Insert four screws (5/16-18 x 3/4 in. with washer) through
the holes in the table extension and screw into the table
top. Do not tighten.
NOTE: The holes in the table top are threaded.
n Repeat above step on the other table extension.
n Stand saw upright on leg stand.
NOTE: Do not lift the saw without help. This saw is
heavy.
n Line up the front edge of the extension table with the
front edge of the table top. Using a combination square,
check the alignment of the table top edge to the extension
rail edge. Tighten the two corner nuts only with a 1/2 in.
wrench.
n Check the center of the table top and extension table.
If necessary, use a C-clamp to align the edges. Tighten
the center nuts with a 1/2 in. wrench.
nRepeat steps for the other extension table.
Fig. 13
®
Fig. 12
®
SCREW
WITH
WASHER

18
19
ASSEMBLY
TO INSTALL THE HERC-U-LIFT™ MOBILE
BASE TO THE LEG STAND
See Figures 14 - 16.
WARNING:
Do not lift the saw without help. Hold it close to
your body. Keep your knees bent and lift with
your legs, not your back. Ignoring these precau-
tions can result in back injury.
n Locate the following hardware (see page 16):
2 rear tubes
1 center brace
1 unlock pedal assembly
2 front tubes
1 tube support
1 U-bolt tube
1 U-bolt
4 swivel casters
To assemble the lower section:
n Thread flange nuts (nuts face the U-bolt) onto the U-bolt
as far as they will go.
n Slide the U-bolt into the center holes on the U-bolt tube
and secure in place using hex nuts.
n Place the front tube on top of the U-bolt tube. Insert
screws (from blister pack) into the aligned holes on both
the tube and support. Fingertighten using flanged nuts.
NOTE: The small holes on the front tube must be facing
up.
n Place the tube support under the front tube and secure in
place with the screws and lock nuts from blister pack.
n Repeat for other side of the lower section.
To assemble the upper section:
n Place the unlock pedal assembly on top of the rear tube.
Secure in place using the screws and lock nuts.
n Place the caster up through the hole in the center brace
then through the rear tube as shown in figure 14. Secure
caster using the hex nut with serrated washer. Repeat for
other side.
To assemble the Herc-U-Lift™ to the leg stand:
n Place the caster up through the hole in the lower section
as shown in figure 14. Secure caster using the hex nut
with serrated washer. Repeat for other side.
n Follow above step for attaching the casters to the upper
section.
n Install the four leg brackets on the inside of each leg using
hex head screws (1/4-20 x 1/2 in.) and lock nuts. Tighten
securely.
n Place the lower section under the leg stand with the ends
of the tube under the leg brackets. Place a hex head
screw with washer through the leg bracket and the end
CASTER
Fig. 14
Fig. 15
LEG
BRACKET
HERC-U-LIFT™, LOWER SECTION
HERC-U-LIFT™, UPPER SECTION
UNLOCK PEDAL
ASSEMBLY
SMALL HOLE
ON TOP
SMALL HOLE
ON TOP
SMALL HOLE
ON TOP
HEX NUT
U-BOLT
TUBE
SUPPORT
FRONT
TUBE
CENTER
BRACE
CASTER
REAR TUBE
HEX
NUT
HEX NUT
SCREW
(1/4-20 x 1- 5/8 in.)
SCREW
(1/4-20 x 2 in.)
U-BOLT
TUBE
SCREW
(1/4-20 x 1- 1/2 in.)

20
21
ASSEMBLY
Fig. 16
Fig. 17
Fig. 18
UNLOCK
PEDAL
CENTER U-BOLT WITHIN THE LATCH MECHANISM
®
0
5
10
15
20
25
30
35
40
45
®
0
5
10
15
20
25
30
35
40
45
HEIGHT
ADJUSTING
HANDWHEEL
BEVEL
ADJUSTING
HANDWHEEL
LOCK
TUBE
BLADE
HEIGHT
LOCK KNOB
SCREW
of the tube of the lower section as shown in figure 15.
Secure using the flat washer and lock nut.
NOTE: Tighten the lock nuts until flush with the bottom
of the screw. The screw should freely pivot.
n Repeat above step for the upper section of the Herc-U-
Lift™.
n Check to insure the upper and lower sections are centered.
If required, loosen frame hardware and adjust the frames
side to side to center. Retighten all hardware.
n Press down on the unlock pedal to check alignment of
the U-bolt. The U-bolt should be centered within the latch
mechanism as shown in figure 16. Release the unlock
pedal and adjust the U-bolt as necessary. Retighten all
hardware.
NOTE: With the tool on a level surface, check to make sure
the tool does not move. If tool moves, adjust all four leveling
feet supporting the tool.
TO INSTALL BEVEL HANDWHEEL
See Figure 17.
n Locate the following parts:
1 bevel handwheel
1 pan head screw (1/4-20 x 5/8 in.)
1 star lock washer
n Push bevel handwheel onto the bevel shaft aligning
flats on the bevel shaft with the flats on the bevel
handwheel.
n Secure using star lock washer and screw.
TO INSTALL HEIGHT ADJUSTING HAND-
WHEEL
See Figure 18.
n Remove blade height lock knob by turning the knob
counterclockwise.
n Slide the height adjusting handwheel onto the rod and
against the lock tube.
n Secure the height adjustment handwheel by reinstalling
the blade height lock knob.
