Riello ricloud User manual

QUICK START GUIDE
ThermosTaT
Ricloud_ EN rev. 0 07/19
WPS/Smartlink Outputs Boiler

2

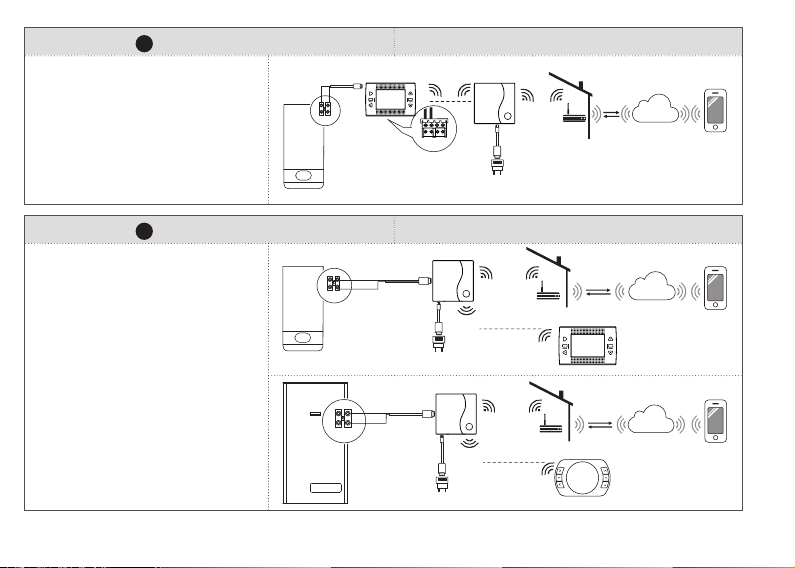

INSTALLATION A
Ricloud: Wired ON/OFF
WiFi Box: Wireless (only main sup-
ply)
In this installation the OTBus con-
guration is not working.
WiFi Box
RF
internet
WiFi WiFi
230 V
BeSMART
server
TA
TA
RiCLOUD
INSTALLATION B
Ricloud: NOT cabled (Wireless)
WiFi Box: Wired
WiFi Box
BeSMART
serverinternet
WiFi WiFi
RF
RF
230 V
TA
RiCLOUD
WiFi Box
BeSMART
RF
SET
PROG
RESET
ESC
MODE
BeSMART
serverinternet
WiFi WiFi
230 V
RF
OT
Note: for all other types of different installation refer to the installer manual.

3

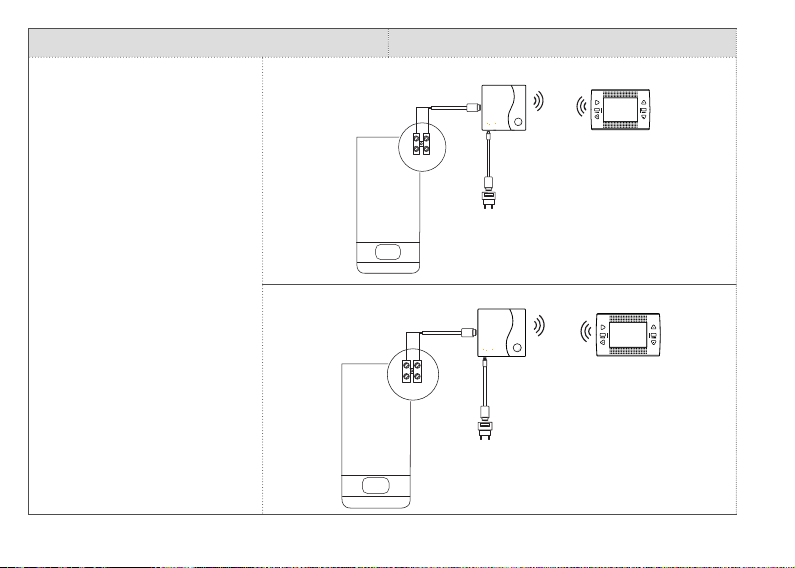

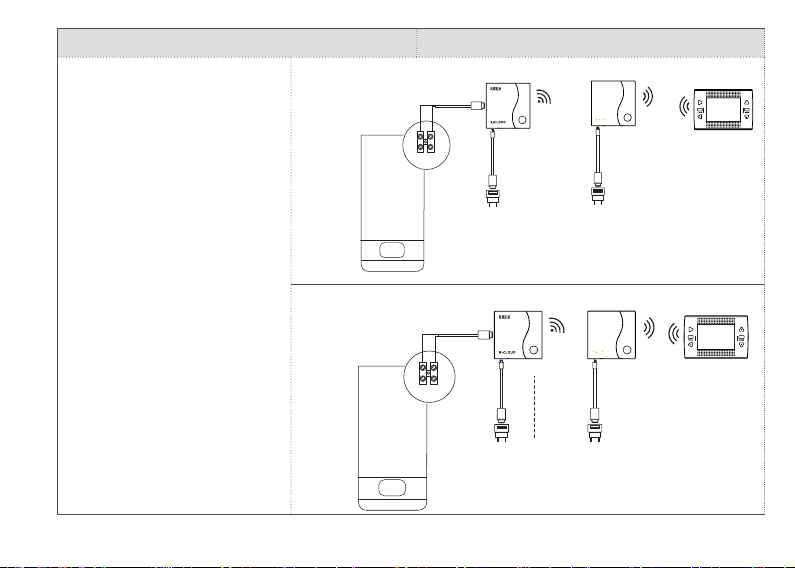

WIRELESS INSTALLATION
Ricloud: Wireless boiler control
WiFi Box: Wireless (only main
supply)
TA
WiFi Box
230 V
RiCLOUD
WiFi
OT
WiFi Box
WiFi
230 V
RiCLOUD

4
WIRELESS INSTALLATION
Ricloud: Wireless boiler control
WiFi Box: Wireless (only main
supply)
TA
Boiler RF receiver
230 V
RiCLOUD
RF
OT
Boiler RF receiver
230 V
RiCLOUD
RF

5
WIRELESS INSTALLATION
Ricloud: Wireless boiler control
WiFi Box: Wireless (only main
supply)
TA
WiFi Box
230 V
RiCLOUD
WiFi
Boiler RF receiver
230 V
RF
OT
WiFi Box
WiFi
230 V
RiCLOUD
Boiler RF receiver
230 V
RF

6
WIRELESS INSTALLATION
Ricloud: Generic wireless heating
system
WiFi Box: Wireless (only main
supply)
Ricloud: Generic wireless Cooling
system
WiFi Box: Wireless (only main
supply)
TA
RF single
230 V
RiCLOUD
zone heating
coupling
RF single
230 V
RiCLOUD
zone cool
coupling
TA

7
RF single
230 V
RiCLOUD
zone fan
coupling
TA
HEAT
COOL
FA NC OI L
FA N

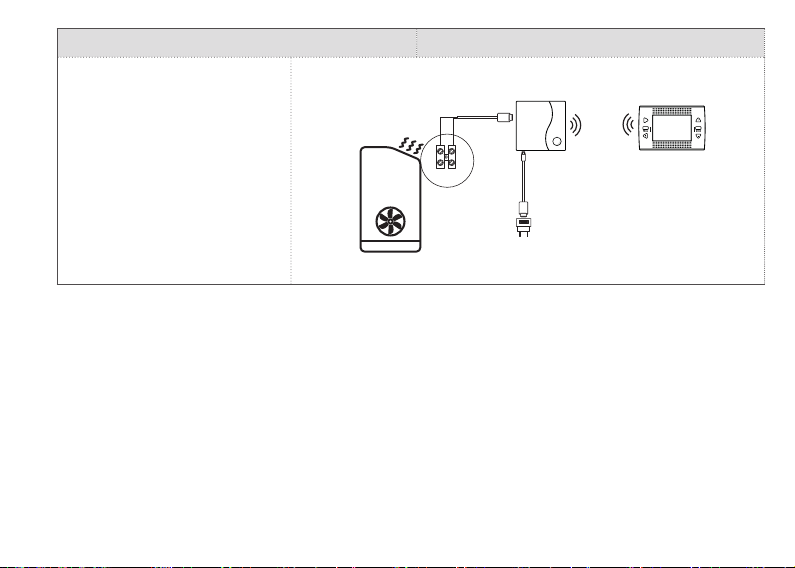

WIRELESS INSTALLATION
Ricloud: Generic Ventilation
system
WiFi Box: Wireless (only main
supply)

8
WIRED INSTALLATION
Wired ON/OFF Ricloud to control a
generic heat source
OTBus OTBus G W Y R Rc
Wireless ON/OFF Ricloud, single RF
receiver to control a heat zone
OTBus OTBus G W Y R Rc
Wired ON/OFF Ricloud, to control
a generic fan source
OTBus OTBus G W Y R Rc
OTBus OTBus G W Y R Rc OT= OTbus communication wires
G= Fan/ventilation connection wire
W= Heating connection wire
Y= Cooling connection wire
R= External power wire
Rc= (cabled as default to R pin) redirection of external
power to other pin

9
HEAT
COOL
FA NC OI L
FA N
Rc
R
Y
W
G
WIRED INSTALLATION

10
GENERAL NOTICES
A Avoid draughty areas
B Do not install above heat sources
C Avoid direct sunlight
D Install at the correct height
Before installation
• Refer to the appliance manual to ensure that the Ricloud
thermostat is compatible with your boiler.
• The Ricloud wireless thermostat can be installed almost
everywhere within the home, however please refer to
the adjacent diagrams for guidance when deciding on
a suitable location.
• The Ricloud thermostat can also be used to replace an
existing hard-wired thermostat (please check appliance
manual to ensure compatibility).
• Switch off and isolate the appliance and any external
controls from the electrical supply, before carrying out
the installation.
Tools required for the installation
• Phillips screwdriver
• Small at blade screwdriver
• Combination pliers
1,5m
A B
C D
