INSTRUCTION MANUAL
ONE PIECE WC SUITE, S-TRAP C/W MOUNTING
SCREW & FLUSHING MECHANISM, U-SLOT
ONE PIECE WC SUITE, P-TRAP C/W MOUNTING
SCREW & FLUSHING MECHANISM, U-SLOT
RL-WO1180S-U
RL-WO1180P-U
RL-WO9030S-U
RL-WO9030P-U

DIMENSION
WEIGHT 46kg
825 X 705 X 370mm
ROUGH-IN TRAP DISTANCE
MIN WATER PRESSURE 100kPa (FLOWING)
DISCHARGE VOLUME
RL-WO1180S-U
W1-R-WO1180S-U
W2-R-WO1180S-U
W3-R-WO1180S-U
SEAT & COVER FT-SC0039PS
FULL FLUSH 6.0L / REDUCED FLUSH 3.0L
FULL FLUSH 4.5L / REDUCED FLUSH 3.0L
FULL FLUSH 4.0L / REDUCED FLUSH 3.0L
FULL FLUSH 3.5L / REDUCED FLUSH 2.5L
The instructions contained herein are for the safe and correct use, care and maintenance of the
product, to minimize the risk of injury and damage to yourself, other persons, or property.
Please read the following safety information thoroughly and retain this document for future use
and reference.
IMPORTANT SAFETY, INSTALLATION AND OPERATING INSTRUCTIONS
Please read this manual and ensure that you understand the instructions and procedures stated
within before installing or operating the product.
Rigel products have been designed and tested to be safe and risk-free when installed, operated
and maintained in good working order, in accordance with the instructions and
recommendations found i this document.
There are no user-serviceable parts in this product. Please contact a qualified and licensed
trades person should the product require dismantling and/or repairs.
Supervision should be given to any persons who may have difficulty understanding or operating
the controls of the product. Extra consideration should be given to the young, infirm, elderly, or
any person inexperienced in the correct operation of the product's controls.
While every effort has been made to ensure that the information contained within this document
was accurate and complete at the time of printing, Rigel Technology (S) Pte Ltd shall not be
held responsible for any errors, omissions or inaccuracies. By installing or using the product,
the user agrees that no responsibility for the consequences resulting from any misinformation
shall be incurred on Rigel Technology (S) Pte Ltd. Rigel Technology (S) Pte Ltd reserves the
right to change the specifications and functions of the product described herein at any time
without prior notice.
No part of this guide may be reproduced, stored in a retrieval system, or trans-mitted, in any
form or by any means, electronic, mechanical, recording, or otherwise, without the prior written
permission of Rigel Technology (S) Pte Ltd.
Instructions accompanied by this symbol could lead to death
or serious injury if they are ignored or followed improperly.
IMPORTANT SAFETY INFORMATION
P = 185mm
S = 150mm - 280mm

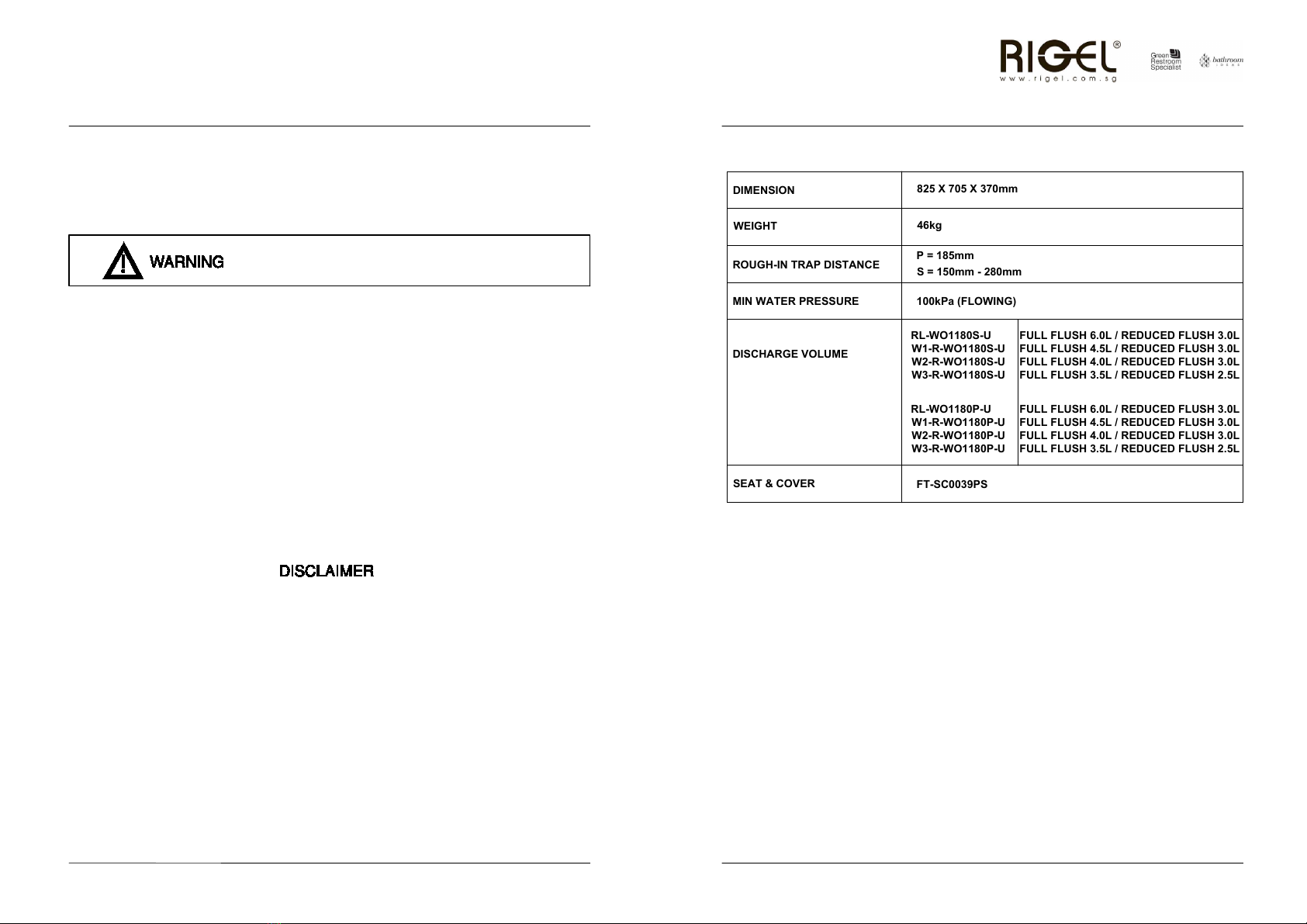

GENERAL SPECIFICATIONS
RL-WO1180P-U
W1-R-WO1180P-U
W2-R-WO1180P-U
W3-R-WO1180P-U
FULL FLUSH 6.0L / REDUCED FLUSH 3.0L
FULL FLUSH 4.5L / REDUCED FLUSH 3.0L
FULL FLUSH 4.0L / REDUCED FLUSH 3.0L
FULL FLUSH 3.5L / REDUCED FLUSH 2.5L

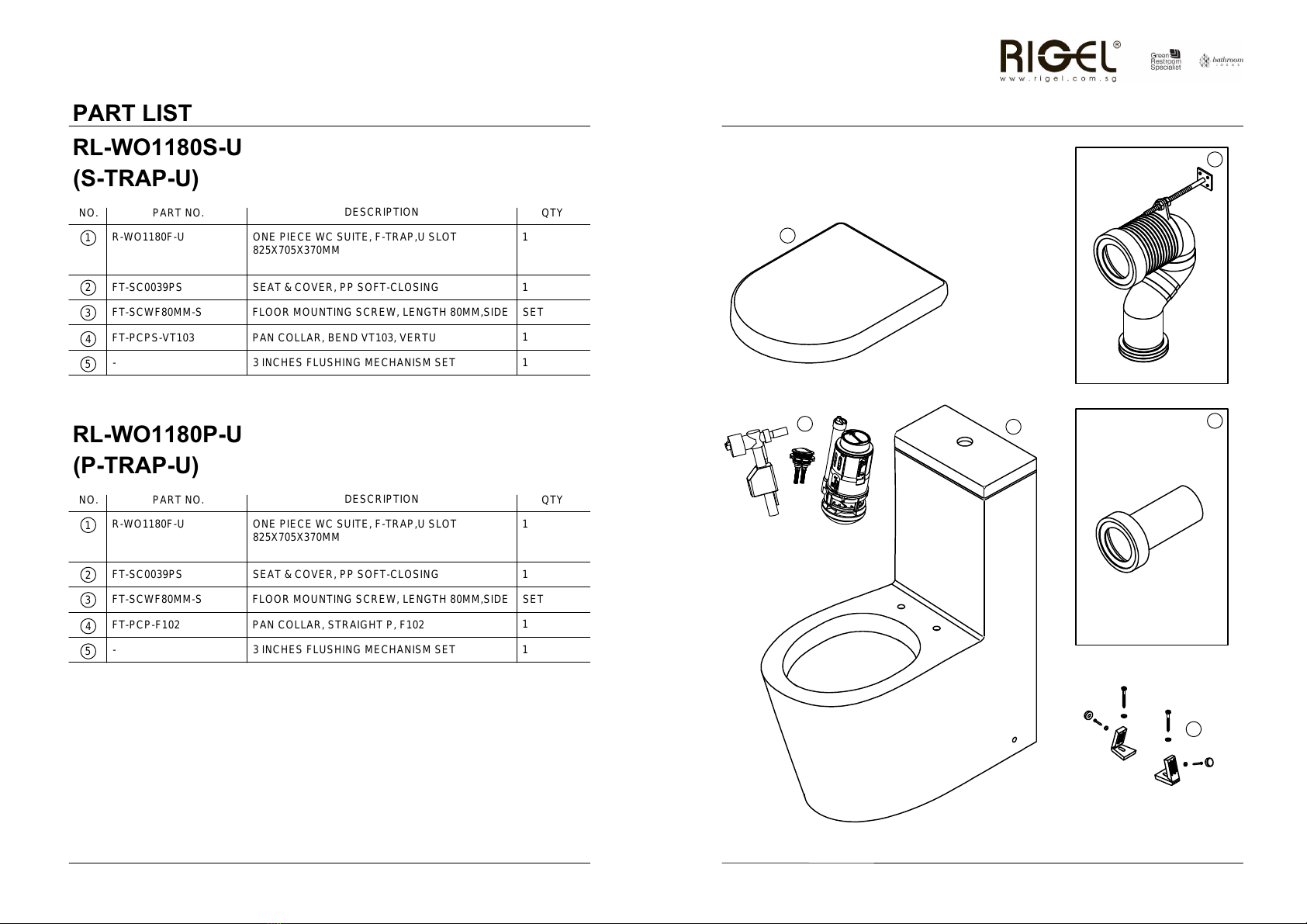

NO. DESCRIPTION QTYPART NO.
1
3
4
PART LIST ILLUSTRATIONPART LIST
2
ONE PIECE WC SUITE, F-TRAP,U SLOT
825X705X370MM
R-WO1180F-U 1
FT-SC0039PS
FT-SCWF80MM-S
FT-PCPS-VT103
SEAT & COVER, PP SOFT-CLOSING
FLOOR MOUNTING SCREW, LENGTH 80MM,SIDE
PAN COLLAR, BEND VT103, VERTU
1
SET
1
NO. DESCRIPTION QTYPART NO.
1
3
4
2
R-WO1180F-U 1
FT-SC0039PS
FT-SCWF80MM-S
FT-PCP-F102
SEAT & COVER, PP SOFT-CLOSING
FLOOR MOUNTING SCREW, LENGTH 80MM,SIDE
PAN COLLAR, STRAIGHT P, F102
1
SET
1
RL-WO1180S-U
RL-WO1180P-U
FOR RL-WO1180S-U
FOR RL-WO1180P-U
FT-PCPS-VT103
FT-PCP-F102
1
2
3
4
4
5
5- 1
5- 1
3 INCHES FLUSHING MECHANISM SET
3 INCHES FLUSHING MECHANISM SET
ONE PIECE WC SUITE, F-TRAP,U SLOT
825X705X370MM
(S-TRAP-U)
(P-TRAP-U)

Nut
Push rod
A
DO NOT USE OR DROP ANY CHLORINE OR ANY CHEMICAL RELATED
COMPONENTS. USE OF SUCH PRODUCTS WILL
(1) RESULT IN DAMAGE TO TANK COMPONENTS AND MAY CAUSE
FLOODING AND PROPERTY DAMAGE AND (2) VOID WARRANTY.
DO NOT OVERTIGHTEN NUTS, OR TANK/BOWL MAY CRACK.
WARNING
Low
Water level
Refill tube connector
Refill tube Overflow mouth
Correct if higher than water level
Error if lower than water
level !
×Error!!

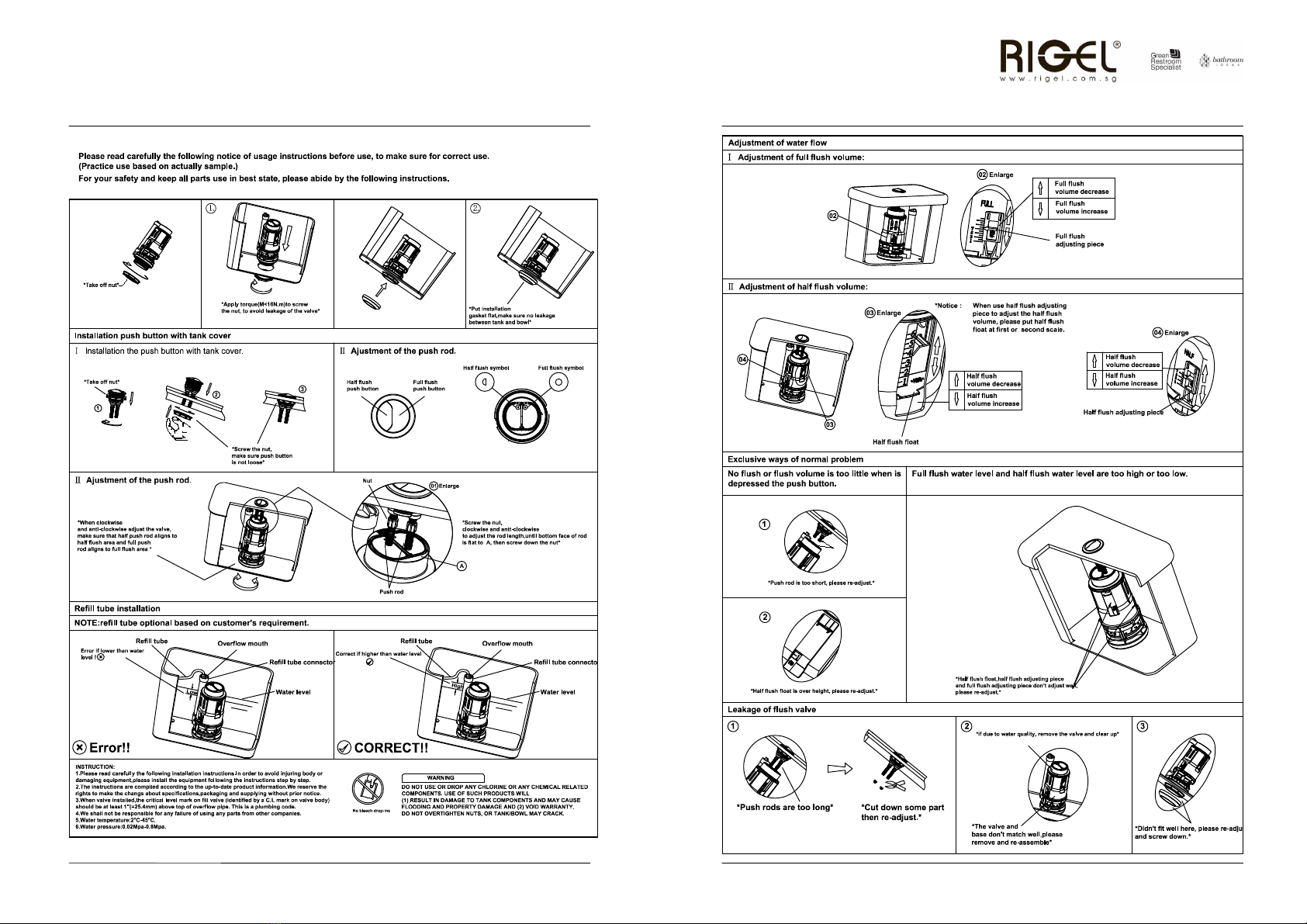

INSTRUCTION:
1.Please read carefully the following installation instructions.In order to avoid injuring body or
damaging equipment,please install the equipment following the instructions step by step.
2.The instructions are compiled according to the up-to-date product information.We reserve the
rights to make the changs about specifications,packaging and supplying without prior notice.
3.When valve installed,the critical level mark on fill valve (identified by a C.L mark on valve body)
should be at least 1"(=25.4mm) above top of overflow pipe. This is a plumbing code.
4.We shall not be responsible for any failure of using any parts from other companies.
5.Water temperature:2°C-45°C.
6.Water pressure:0.02Mpa-0.8Mpa.
NOTE:refill tube optional based on customer's requirement.
Refill tube installation
Ⅰ Installation the push button with tank cover.
*Screw the nut,
make sure push button
is not loose*
Half flush
push button
Full flush
push button
Ⅱ Ajustment of the push rod.
Half flush symbol
*Screw the nut,
clockwise and antt-clockwise
to adjust the rod length,until bottom face of rod
is flat to A, then screw down the nut*
Enlarge01
Installation push button with tank cover
*Take off nut*
*Put installation
gasket flat,make sure no leakage
between tank and bowl*
*Apply torque(M<16N.m)to screw
the nut, to avoid leakage of the valve*
Please read carefully the following notice of usage instructions before use, to make sure for correct use.
(Practice use based on actually sample.)
For your safety and keep all parts use in best state, please abide by the following instructions.
1
2
3
*Take off nut*
Ⅱ Ajustment of the push rod.
*When clockwise
and anti-clockwise adjust the valve,
make sure that half push rod aligns to
half flush area and full push
rod aligns to full flush area *
×
High
Water level
Refill tube connector
Refill tube Overflow mouth
CORRECT!!
No bleach drop-ins
Full flush symbol
1. 2.
*Push rod is too short, please re-adjust.*
1
2
*Half flush float is over height, please re-adjust.*
Full flush water level and half flush water level are too high or too low.No flush or flush volume is too little when is
depressed the push button.
Leakage of flush valve
Half flush
volume decrease
Half flush
volume increase
Half flush adjusting piece
02
Full flush
adjusting piece
Enlarge
Full flush
volume decrease
Full flush
volume increase
Ⅰ Adjustment of full flush volume:
Half flush float
Half flush
volume increase
Half flush
volume decrease
*Notice : When use half flush adjusting
piece to adjust the half flush
volume, please put half flush
float at first or second scale.
Ⅱ Adjustment of half flush volume:
Adjustment of water flow
02
Enlarge04
Enlarge03
03
04
Exclusive ways of normal problem
*Half flush float,half flush adjusting piece
and full flush adjusting piece don't adjust well,
please re-adjust.*
*Cut down some part
then re-adjust.*
*Push rods are too long*
*if due to water quality, remove the valve and clear up*
*The valve and
base don't match well,please
remove and re-assemble*
*Didn't fit well here, please re-adjust
and screw down.*
1 2 3
INSTALLATION GUIDE INSTALLATION GUIDE

L
A
A = 30MM
L + A = TOTAL LENGTH
LA
SILICONE
HX
H
H + X = TOTAL HEIGHT
X
H
L

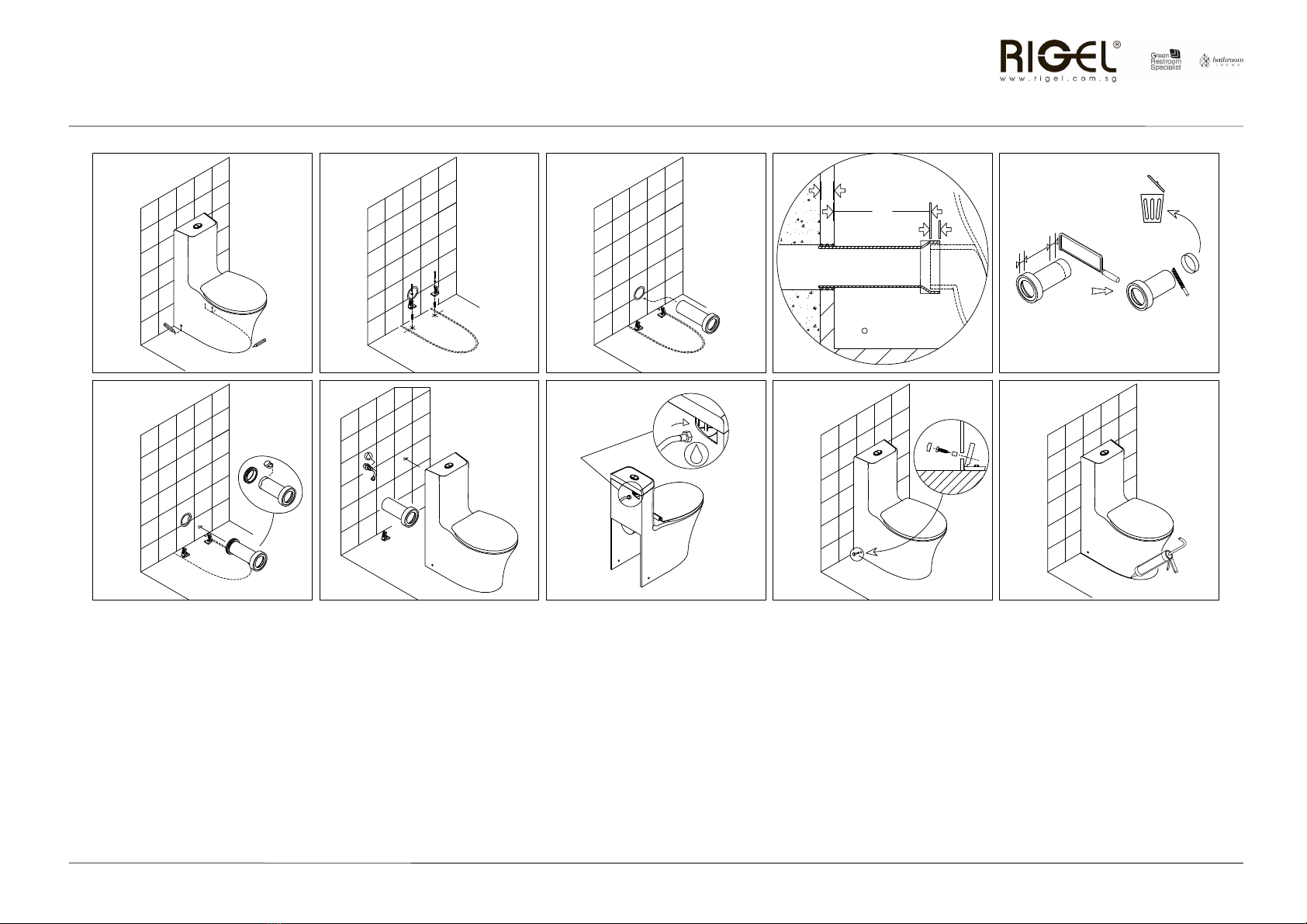

INSTALLATION GUIDE FOR S-Trap-U
-Item shown are illustrations only,and therefore may not reflect actual model supplied.
-Please read the instructions carefully before doing any installations
1 2 3 4 5
6 7 8 9 10
11 12 13 14 15

SILICONE
L
X
A
A = 30MM
L
L + X+A = TOTAL LENGTH
X
A
INSTALLATION GUIDE FOR P-Trap-U
-Item shown are illustrations only,and therefore may not reflect actual model supplied.
-Please read the instructions carefully before doing any installations
1 2 3 4 5
67 8 9 10

PRODUCT DIMENSION INSTALLATION DIAGRAM
FRONT VIEW SIDE VIEW
FRONT VIEW
BOTTOM VIEW
SIDE VIEW
235 558
230 2XØ12
185 730
825
105
370 165
30
705
475
365
270
360
145
2XØ16 150-280
235
Ø70
Ø100
405
WO1180F-U
FT-PCP-F102 FT-PCPS-VT103

OUT-OF-BOX FAILURE
If the product does not function as specified or reasonably expected upon first use after installation,
please contact your contractor or trades person to check if the installation and commissioning are
performed satisfactorily and in accordance with the instructions in the Installation Manual. You or
your installer may contact Rigel for any advise and we will be glad to be of assistance.
Should this still not resolve the issue, please contact our Customer Support Department and we will
arrange for a visit by a Rigel service technician if necessary.
PERFORMANCE DECLINE
If the product is exhibiting a noticeable decline in performance after substantial use, please refer to
the Product Care and Cleaning section of this Manual to check if simple home maintenance is
required.
Should product performance not improve after simple home maintenance is performed as per the
instructions in the Product Care and Cleaning section, please contact our Customer Support
Department to discuss the issue you are facing, and to request for service under warranty if
applicable.
RIGEL TECHNOLOGY (S) PTE LTD (HQ)
RIGEL INNOVATION CENTRE
20 Changi Business Park Central 2 Singapore 486031
CUSTOMER SUPPORT DEPARTMENT
Tel: [phone] Fax: [phone]
Office Working Hours: 8:30am - 6.00pm (Monday to Thursday)
8:30am - 5.30pm (Friday)
E-mail: [email protected]
TROUBLE SHOOTING GUIDE
The instructions contained herein are for the proper care and maintenance of the
product, to ensure optimal function.
Please read the following care and cleaning information thoroughly and retain this
document for future use and reference.
CARE AND CLEANING INSTRUCTIONS
Before commencing on the cleaning of your Rigel product with any cleaning agents,
please read the directions on the cleaning agent to ensure that it is safe for use with the
materials on your Rigel product.
Always test any new cleaning agents on a small, inconspicuous spot on your Rigel
product
before applying it on the entire surface.
Clean the product regularly with a soft material (e.g. sponge) dipped in a mild,
non-abrasive detergent to avoid scratches or corrosion.
Avoid prolonged exposure to the sun and contact with corrosive chemical solvents.
Do not use hard objects to pound on the product as this may damage or scratch the
surface.
Situation Recommended Cleaning Agents Instructions
Routine cleaning - Soap
- Mild detergent
- Warm water
Sponge along the polish
lines and rinse with clean
water. Wipe dry.
Fingerprint stains - Soap
- Warm water
- Organic solvents (e.g. acetone,
alcohol, methylated spirits)
Sponge the stains following
the polish lines and rinse
with clean water. Wipe dry.
Stubborn stains or
discolouration
- Mild abrasive cleaning products
- Specialty stainless steel cleaning
products
Use a rag, sponge or soft
brush to apply the cleaning
agent, rubbing or brushing
along the polish lines.
Rinse
well with clean water and
wipe dry.
NOTE : Avoid the use of harsh chemicals and/or abrasive materials to clean your Rigel
product as they may void your warranty.
PRODUCT CARE & CLEANING GUIDE

CUSTOMER SUPPORT
AFTER SALES SERVICE
Rigel's Customer Support Team can provide you with service visits, sale of spare parts, and
general product help and advise.
SPARE PARTS
Spare parts for all Rigel products are available for up to 10 years after the product's date of final
manufacture. You should only purchase spare parts directly from our Customer Support
Department, or from Rigel's approved stockists or merchants to ensure authenticity and to
maintain validity of your warranty.
NOTE: As a safety precaution, spare parts that require exposure to voltage from the power grid
mains will only be send to qualified personnel.
SERVICE GUARANTEE
All servicing provided by Rigel will be performed by a trained technician or agent, with genuine
spare parts, and will come with a 6-month warranty on the repair. Servicing outside of the
product's warranty will be charged at a reasonable cost.
CONTACT US
RIGEL TECHNOLOGY (S) PTE LTD
RIGEL INNOVATION CENTRE (HEADQUARTER & SHOWROOM)
20 Changi Business Park Central 2 Singapore 486031
Tel: [phone] Fax: [phone]
Office Working Hours : 8:30am - 6.00pm (Monday to Thursday)
8:30am - 5.30pm (Friday)
E-mail: [email protected]
Website: www.rigel.com.sg
RIGEL TECHNOLOGY (M) SDN BHD
Wisma Rigel, 16 & 18, Jalan 3 / 33B, MWE Commercial Park, 6 1/2 Miles, Off Jalan Kepong, 52000
Kuala Lumpur, Malaysia
Tel: [phone] Fax: [phone]
Office Working Hours: 8:30am - 6.00pm (Monday to Friday)
E-mail: [email protected]
Website: www.rigel.com.my
RIGEL TECHNOLOGY (NINGBO) CO. LTD
No 6, Chuangye Road, West Of Bonded Zone, Beilun, Ningbo, Zhejiang, China
Tel: [phone] Fax: [phone]
RIGEL TECHNOLOGY CERAMICS (SICHUAN) CO. LTD
Shuanghechang. Anfu Town, Naxi District, 646300 Luzhou City, Sichuan, China
Tel: [phone] Fax: [phone]
Please read the following warranty information thoroughly and retain this document for future use
and reference.
Rigel Technology (S) Pte Ltd ("Rigel") warranties the products against any defect of materials or
workmanship for a period of 1 year from the date of purchase.
Within the warranty period, all defective parts will be repaired and/or replaced free of charge.
To be eligible for free repair and/or replacement, any service work on the product must be
undertaken by Rigel or our approved agents.
Service under this warranty will not affect the warranty expiry date, and any warranty on exchanged
parts or products will end when the warranty expires.
This warranty is only applicable for products properly installed and operated in accordance to the
operating procedures stated in the instruction manual.
This warranty does not extend to washroom accessories or other peripheral items.
Rigel's responsibility under this warranty does not apply to damage/defects caused by:
·Misuse, negligence, or accidents.
·Public abuse or vandalism.
·Repairs or alterations not authorized by or performed without consultation from Rigel.
·Repairs or alterations that do not comply with Rigel's installation instruction.
·Repairs or alterations that were not performed with genuine parts supplied by Rigel.
Rigel will not be held liable for any incidental or consequential damages, including loss of profits
or savings, arising from the use or misuse of the products.
The terms in this warranty are only valid after:
·Full payment has been made.
·The official Warranty Card is completely and correctly filled out in ink and returned to Rigel
within 14 days of purchase. Loss or misplacement of the Warranty Card, or unauthorized
amendments to the Warranty Card, shall render the warranty null and void.
This warranty is in addition to your statutory and other legal rights.
WARRANTY
