Riger DB108-WL User manual

DB108-WL
WIRELESS ADSL MODEM
USER’S MANUAL
(V3.0)

DB108-WL wireless ADSL MODEM manual
- 1 -
CONTENTS
1 OVERVIEW ................................................................................................................................................. 3
1.1 ABOUT ADSL..........................................................................................................................................................................3
1.2 DEVICE INTRODUCTION ....................................................................................................................................................3
1.3 PROTOCOLS ............................................................................................................................................................................4
1.4 FEATURES ...............................................................................................................................................................................4
2 HARDWARE INSTALLATION AND BASIC CONFIGURATION ............................................................ 5
2.1 SYSTEM REQUIREMENT .......................................................................................................................................................5
2.2 HARDWARE INSTALLATION.................................................................................................................................................5
2.2.1 BASIC CONNECTTION..................................................................................................................................................5
2.2.2 INSTALLATION STEPS ..................................................................................................................................................5
2.3 SOFTWARE CONFIFURATION...............................................................................................................................................6
2.3.1 PREPARATION BEFORE SOFTWARE INSTALLATION...............................................................................................6
2.3.2 COMPUTER CONFIGURATION ....................................................................................................................................6
2.3.3 WIRELESS ADSL MODEM CONFIGURATION ...................................................................................................6
2.3.4 ADSL MODEM WORK MODEL CONFIGURATION ...............................................................................................7
2.3.5 WIRELESS work model configuration……...……………………………………………………………….7
2.3.6 DEFAULT CONFIGURATION ......................................................................................................................................9
3 PROTOCOL CONFIGURATION................................................................................................................. 10
3.1 RFC1483 BRIDGE CONFIGURTION .................................................................................................................................10
3.2 STATIC ROUTING CONFIGURATIONRFC1483ROUTING/RFC1577SETTING.............................................................. 11
3.3 PPPOAANDPPPOECONFIGURATION ............................................................................................................................13
4 DHCP FUNCTION APPLICATION…………………………………...………………………………...….16
4.1 TCP/IP PROTOCOL CONFIGURATION .......................................................................................................................16
4.2 DB108-WL SETTINGS ...............................................................................................................................................16
5 OTHER FUNCTIONS AND CONFIGURATION ....................................................................................... 19
5.1 BRIDGE FILTERING .............................................................................................................................................................19
5.2 STATUS BAR.........................................................................................................................................................................19
5.3 CONFIGURATION OF DB108-WL’S IP ADDRESS AND PASSWORD......................................................20
6 SOFTWARE UPGRADE................................................................................................................................22
7 RESET TO DEFAULT SETTING ................................................................................................................. 22
8 SPECIFICATIONS ......................................................................................................................................... 22
A TROUBLESHOOTING................................................................................................................................. 23
B CONNECTION OF SPLITTER ................................................................................................................... 25
C SHIPPING LIST............................................................................................................................................. 26

DB108-WL wireless ADSL MODEM manual
- 2 -
1. OVERVIEW
1.1 ABOUT ADSL
An ADSL MODEM is a broadband Internet access devicewhich utilizes the high frequency segment of the
phone line to transmit high-speed data without affecting the voice transmission. The frequency of the ADSL signal
is higher than that of voice, so voice and ADSL signal can coexist in one line by using a splitter to insulate each
from the other. ADSL data transfer adapts the asymmetry model. It supports upload transmission speed up to
1Mbps and download speed up to 8 Mbps. ADSL is an ideal device for broadband access.
But the ADSL users are also limited by the wire and can’t move freely. DB108-WL wireless ADSL Modem is
a new device that integrates WLAN and ADSL functions. Users can slip the leash to visit Internet even in moving
as long as they install WLAN cards into their computers. DB108-WL can be utilized in companies, hotels, cafés,
airports, stations, financial institution and personal homes where there are many mobile users and the network
infrastructures are difficult to establish. The wireless data rate varies among 1, 2, 5.5 and 11Mbps.

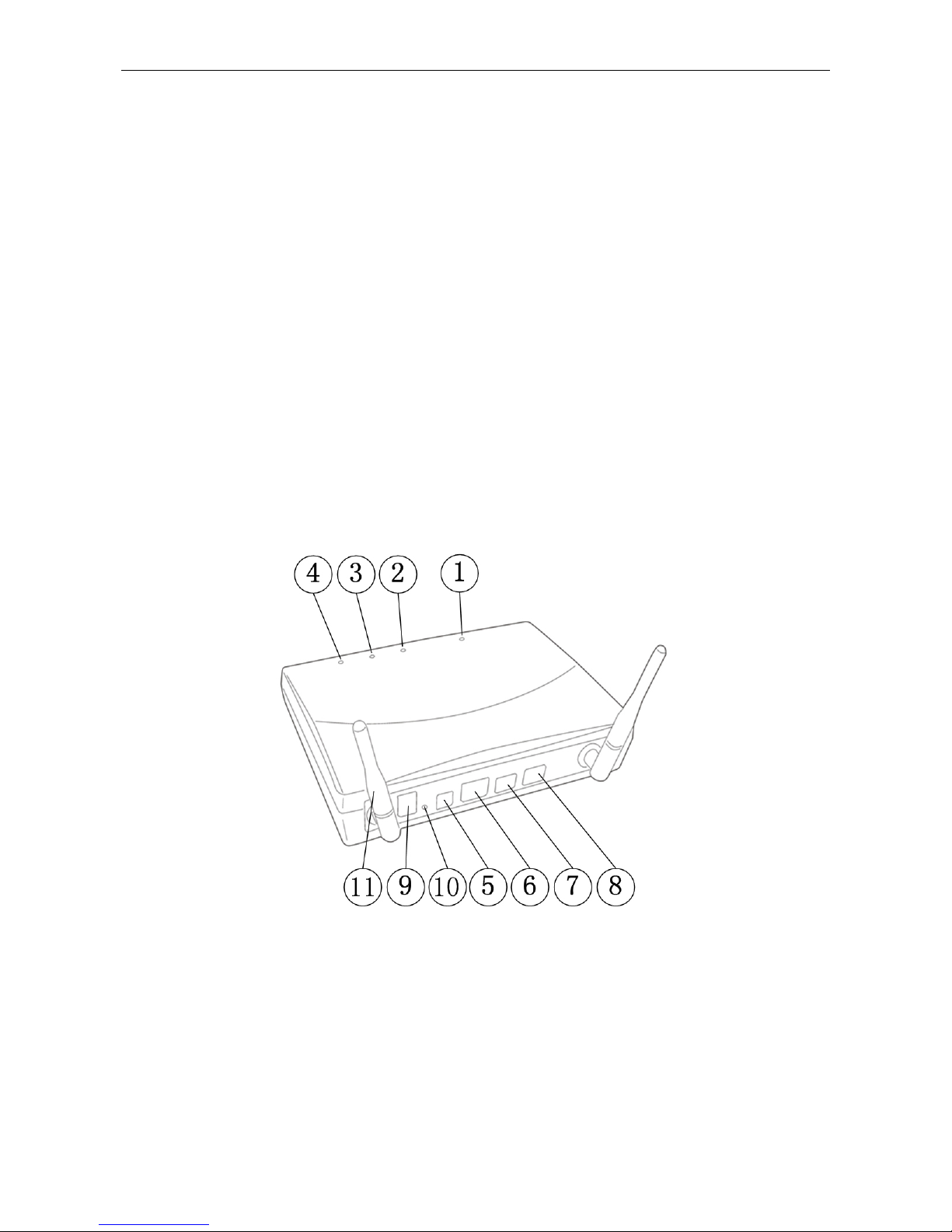

1.2 DEVICE INTRODUCTION
Power Indicator Link Indicator PC Indicator Data Indicator Power Interface
Ethernet Interface USB Interface Line Interface Power Switch Reset button
Antenna
Figure 1.1
Interface introduction:
Link Indicator (yellow): Shows ADSL cable status, flashing means connecting, steady means connection is
OK, ready for use.
PC Indicator (green): Indicates connection status on PC network card. Steady means connection is OK.

DB108-WL wireless ADSL MODEM manual
- 3 -
Data Indicator (green): Flash means the Modem is transmitting or receiving data.
Power Interface 11VDC700mA.
Ethernet InterfaceUsing CAT 5 twisted parallel cable to connect with PC or HUB. When connecting with PC
network card, use direct network cable; connect with UP LINK interface of HUB by the
crossover network cable.
Usb InterfaceFor Modem connection on program upgrade or alternative internet access.
Line InterfaceConnect to telephone.
Reset button: Reset the configuration to default
1.3 PROTOCOLS
DB108-WL ADSL Modem supports ADSL protocols below:
1. PPPoAPPP over ATM LLC encapsulation or VCMUX encapsulation (RFC2364)
2. PPPoE (PPP over Ethernet) LLC encapsulation or VCMUX encapsulation (RFC2516)
3. 1483 bridge1483 Bridged IP over ATMLLC encapsulation or VCMUX encapsulation (RFC1483)
4. 1483 routing1483 Routing IP over ATMLLC encapsulation or VCMUX encapsulation (RFC1483)
5. Classical IP over ATM (RFC1577)
1.4 FEATURES
1. Supports ANSI T1.413 ISSUE 2ITU G.992.1 (G.DMT)ITU G.992.2 (G.LITE).
2. Supports data transportation among ADSL, Ethernet and WLAN
3. Web-based configuration and monitoring.
4. Supports up to 8 PVCs.
5. Routing function.
6. NAPTDHCP function.
7. Maximum upstream transmission rates of 1Mbps
8. Maximum downstream transmission rates of 8 Mbps
9. Software upgradeable.
10. ADSL transmission distance up to 5 km.
11. Wireless access distance more than 100m
12. ATM management function.

DB108-WL wireless ADSL MODEM manual
- 4 -
2. HARDWARE INSTALLATION AND BASIC SOFTWARE
CONFIGURATION
2.1 SYSTEM REQUIREMENT
The computer used must be equipped with a network card or WLAN card
2.2 HARDWARE INSTALLATION

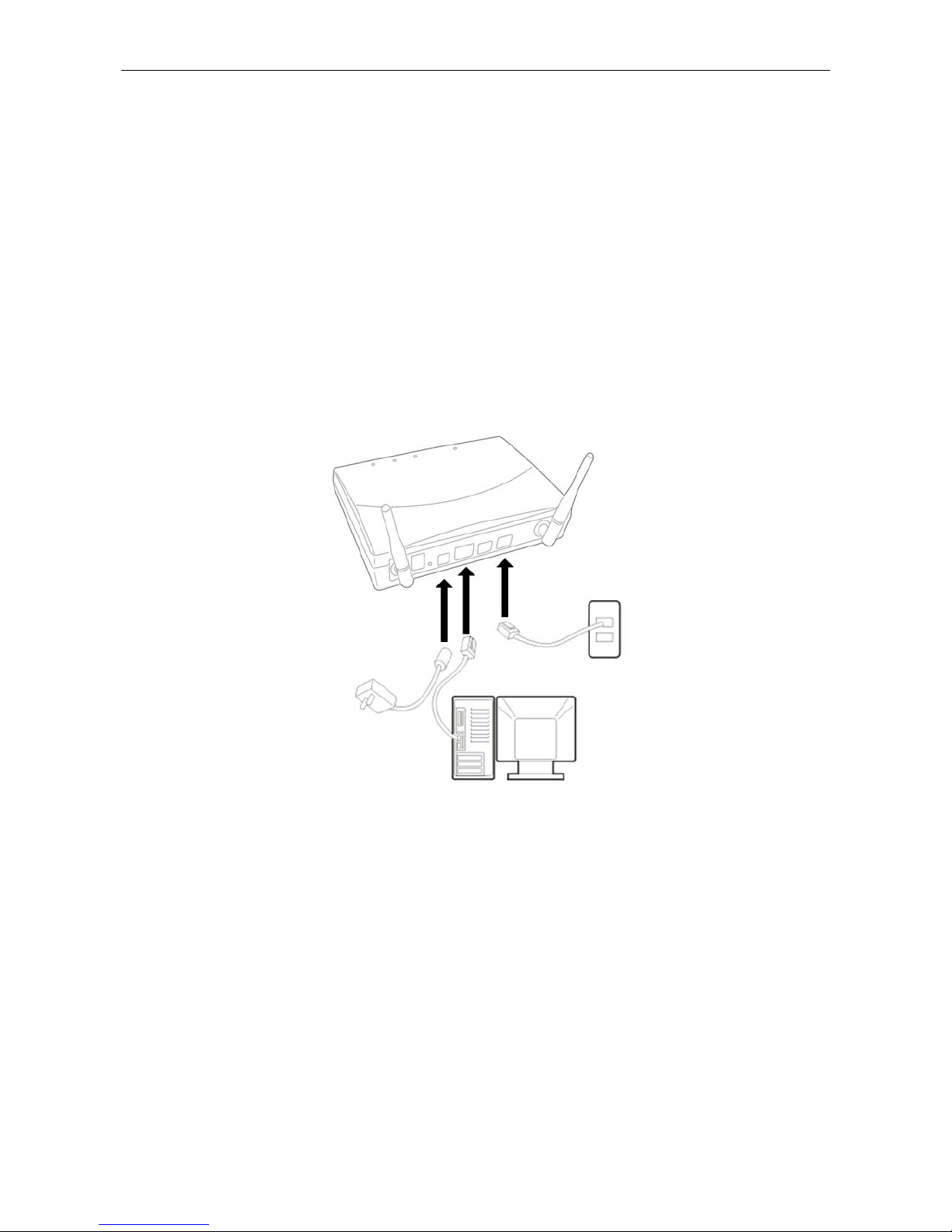

2.2.1 BASIC CONNECTTION
Figure 2.1
For using the Splitter to surf on the Internet and to make phone calls simultaneously, please refer to Appendix
B: SPLITTER CONNECTION.
2.2.2 INSTALLATION STEPS
1. Connect ADSL MODEM line port with telephone socket using the phone cord that comes with the modem.
2. Connect ADSL MODEM Ethernet port with 10BASE-T port on the computer using the network cable.
3. Plug in the power cord, turn on the power switch .
2.3 SOFTWARE CONFIGURATION
2.3.1 PREPARATION BEFORE SOFTWARE INSTALLATION

DB108-WL wireless ADSL MODEM manual
- 5 -
Before the installation starts, please confirm information below or consult ADSL service provider. Table 2.1
shows all the information needed to configure according to different protocols.
Table 2.1
VIRTUAL DIAL
MODE
PRIVATE LINE MODE
PROTOCOL PPPoE PPPoA 1483 BRIDGE
CONNECT
1483
ROUTING
1577 PRIVATE
LINE
VPI VPI VPI VPI LINE VPI
VCI VCI VCI VCI VCI
LLC/VCMUX LLC/VCMUX LLC/VCMUX LLC/VCMUX LLC/VCMUX
USER NAME USER NAME IP ADDRESS/
MASK
IP ADDRESS/
MASK
NECESSARY
INFORMATION
PASSWORD PASSWORD GATEWAY GATEWAY
INSTALLATION
GUIDE 33 33 31 32 32
2.3.2 COMPUTER CONFIGURATION
The default factory-set IP Address for the ADSL MODEM is 192.168.1.1. The Subnet Mask is 
255.255.255.0Users can configure ADSL MODEM through an Internet browser. ADSL MODEM can be used as
gateway and DNS server; users need to set the computer’s TCP/IP protocol as follow:
1 Set the computer at same Internet segment with ADSL MODEMenter ADSL MODEM configuration
interface through a browser.
2 Set the computer’s gateway the same as the ADSL Modem’s IP address.
3 Set computer’s DNS server the same as the ADSL Modem’s IP address or that of an effective DNS server.
4. Wireless configurations are detail discussed in 2.3.5.
2.3.3 ADSL MODEM CONFIGUTATION
Open the browser; input http://192.168.1.1 at the address column. Press “Enter” key then the entry dialog box
will show up as Figure 2.1, Input username: admin, and password: dareadsl (Note that this is capital sensitive),
then the language selection page will appear. Please choose the “English” and click “OK”. The login pages are
shown as Figure 2.2.
(a) (b)
Figure2.2
2.3.4 ADSL MODEM WORK MODEL CONFIGURATION
1 According to the different protocols, Users need to set ADSL Modem as listed below:

DB108-WL wireless ADSL MODEM manual
- 6 -
Table 2.2
PAGE ITEM PPPoE PPPoA 1483
BRIDGE
CONNECT
1483ROUTING 1577
PRIVATE
LINE
VPI √√√√√
VCI √√√√√
STATIC IP
ADDRESS
√√
SUBNET MASK √√
ENCAPSULATION
FORMAT
PPPoE PPPoA 1483 Bridged
IP
1483 Bridged IP Classical IP
over ATM
BRIDGE Disabled Disabled Enabled Disabled Disabled
USERNAME √√
WAN
PASSWORD √√
DEFUALT
GATEWAY
√√
NAT NAT NAPT NAPT Disabled NAPT NAPT
RECOMMEND
DNS
√√√√
DNS
STANDBY DNS √√√√
DETAIL CONFIGERATION
AND CHAPTER
3.3 3.3 3.1 3.2 3.2
NOTE√means configure according to ADSL service provider’s instructed value
means no need to configure.
PPPoE can also be realized via third party dial software.
2 After getting through every page for parameters set-sup, click “Submit” to store the value in ADSL MODEM

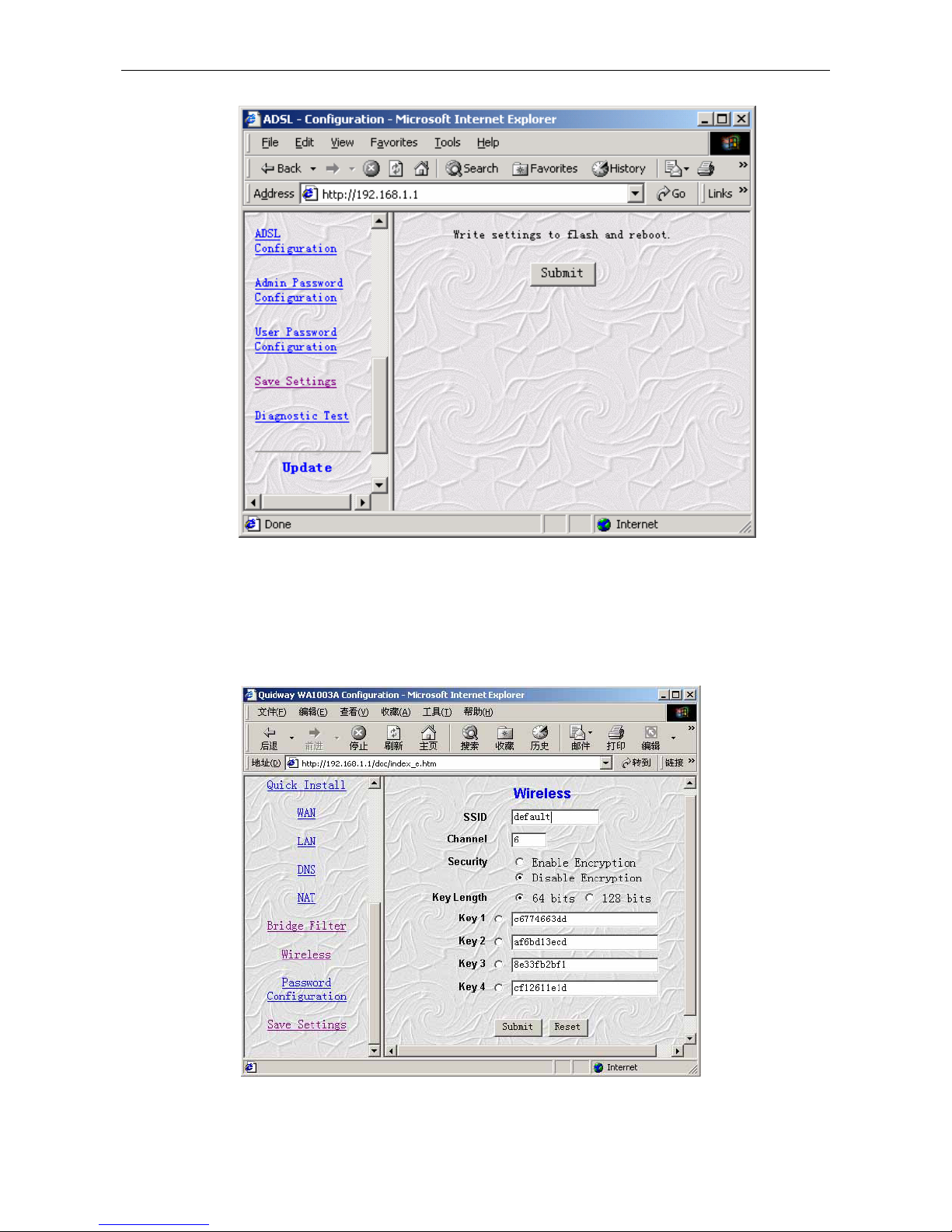

3 Click “Save setting” to enter the “save configuration” page as Figure2.3.

DB108-WL wireless ADSL MODEM manual
- 7 -
Figure 2.3
4. Click “Submit” button to save the parameters, then ADSL will restart automatically and the MODEM will run
on the set parameters.
2.3.5 Wireless work mode configuration
1 Click the “Wireless”. Wireless configuration page will appear as figure2.4.
Figure 2.4
2 SSID (Service Set Identifier): the mobile users cannot access WLAN until their SSIDs are set same as that of

DB108-WL wireless ADSL MODEM manual
- 8 -
modem. The default SSID of modem is “default”
3 Channelto denote the different frequency of wireless signals whose value is from 1 to 11. The default value
is”6”. If there are more than one APs located in the same area, each of them must works at different channels to
reduce interference. For Example: Three APs are install in the same place, the channels should be 1,6 and 11
respectively.
4 Security: to enable or disable WEP Encryption mode.
Key length: 64 bits or 128 bits
Key1-4: up to four keys that are all in form of hex digitals could be set. Mobile users can’t access the AP if they
haven’t the same key as AP when WEP encryption mode is enabled.
5 After all parameters are finished setting, click the “submit” at the end of configuration page.
6 Then click “Save setting” to enter the “save configuration” page as Figure2.3 and click “Submit” button to
save the parameters. The modem will restart automatically with the new parameters.
2.3.6 DEFAULT CONFIGURATION
DB108-WL have pre-configuration the follow VCI/VPI
Table 1
VCI VPI
PVC 0 0 32
PVC 1 8 35
PVC 2 0 35
PVC 3 8 81
PVC 4 14 24
PVC 5 0 100
The default configuration is 1483 bridge LLC encapsulationIf you only use this modethere is no need to
configure. But if you want the routed modefor example PPPoEPPPoA1483routedthe other PVC must be
closed in advance.
Steps are as follow (close the PVC1) 

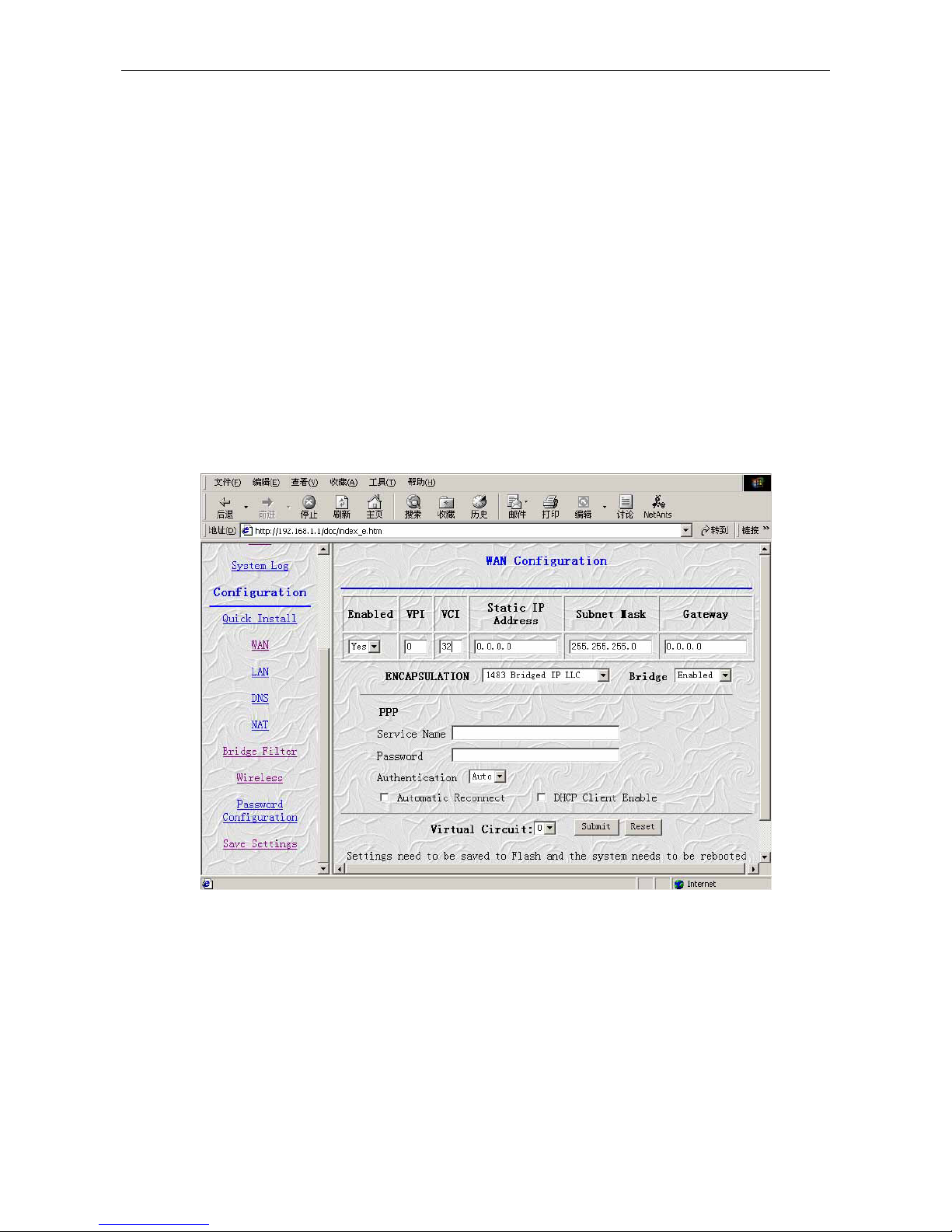

1 click“wan”select the “Per VC Setting” 1 on the right frame
2 click“Submit”.
3 Set the “enabled” item to “No” on the top as figure2.5.
4 click“Submit”again to activate the seeting.
5 Close the other PVCs similarly.
6 Click “Save Settings” in configuration item. Click “Submit” to save all the above settings. Then ADSL will
restart automatically and run under new parameters.

DB108-WL wireless ADSL MODEM manual
- 9 -
Figure 2.5

DB108-WL wireless ADSL MODEM manual
- 10 -
3. PROTOCOL CONFIGURATION
Different protocols should be set in “WAN ”,“LAN”,“NAT”and “DNS”columns in the configuration page.
Click on the relevant icons to enter the right page accordingly. The detail is listed below.

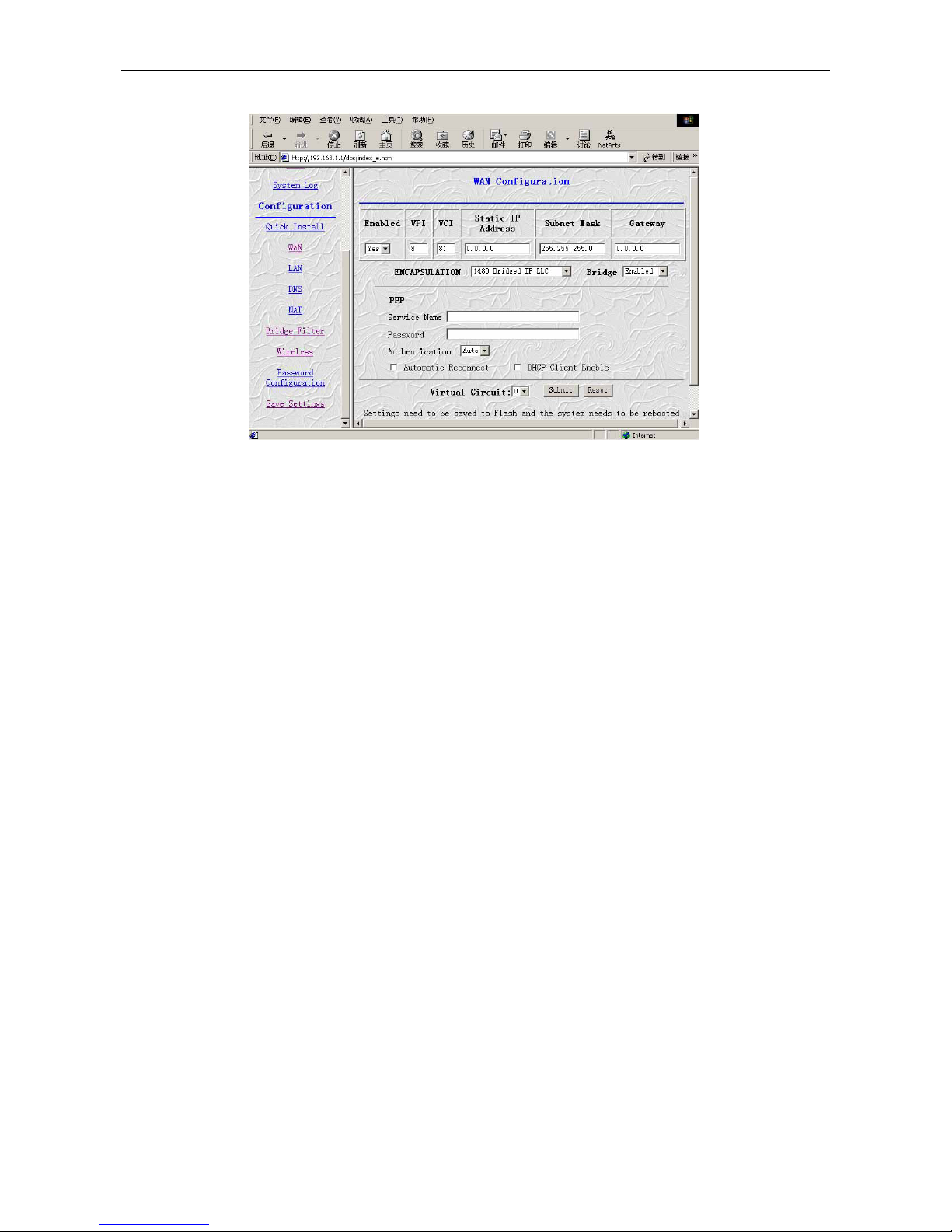

3.1 RFC1483 BRIDGE CONFIGURATION
1. WAN SETTINGS
zSet “Enabled” as “Yes ”
zSet value of VPI, VCI (For example VPI=0,VCI=32)
zSelect “1483 Bridged IP LLC” or “1483 Bridged IP VCMUX” in “encapsulation ” (some data need to be
provided by DSL service provider);
zSelect “Enabled”in “BRIDGE ” item
zClick “Submit” on the bottom of the page to save the parameters.
zThe result is as figure 3.1.
Figure 3.1
2 LAN SETTINGS
Keep the default configuration.
3 NAT SETTINGS

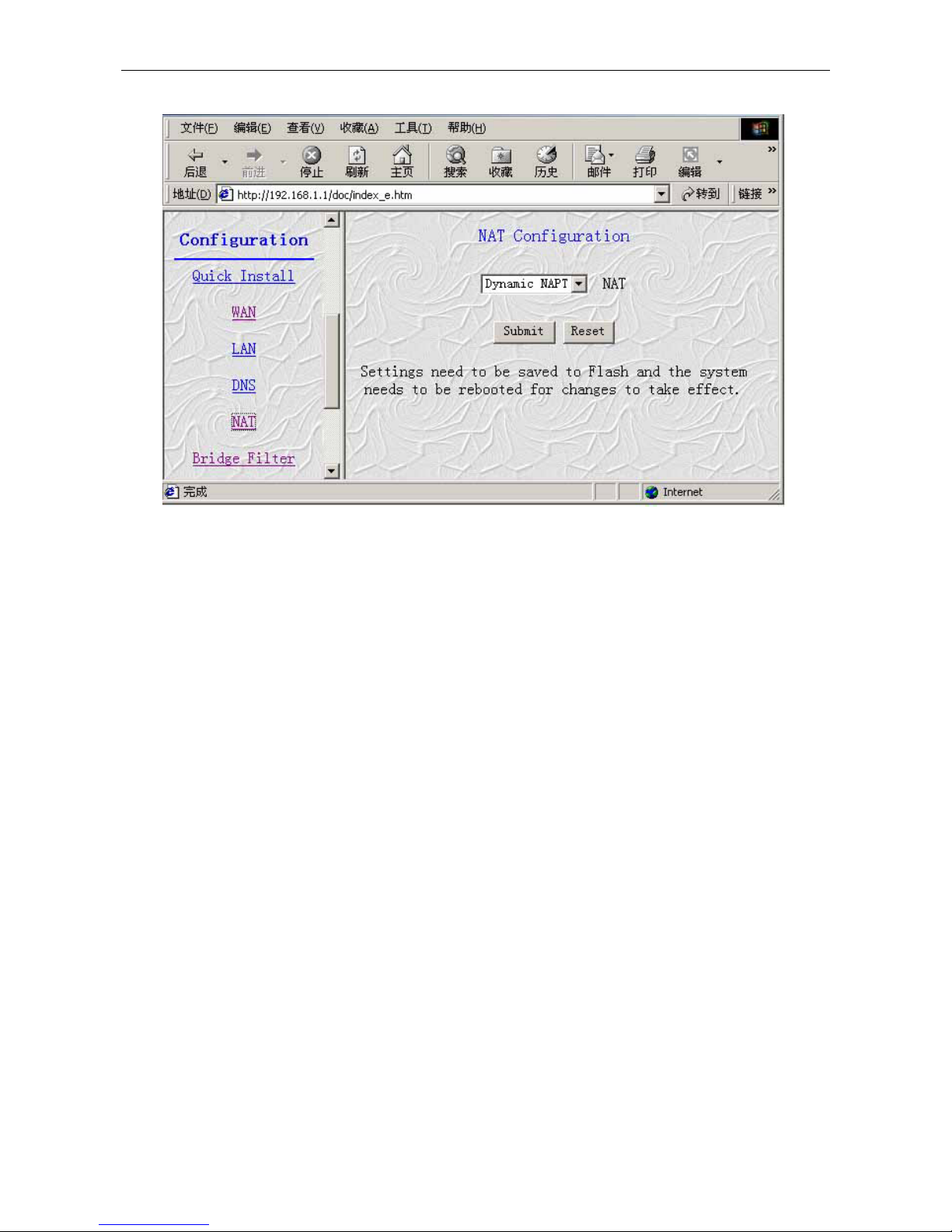

Set “NAT”item as “Dynamic NAPT” or “Disabled”as in Figure 3.2, click “Submit” to save the
configuration.

DB108-WL wireless ADSL MODEM manual
- 11 -
Figure 3.2
4 DNS SETTINGS
Keep the default configuration.
Click “Save Settings” button in configure item as Figure 2.3. Click “Submit” to save all the above settings.
Then modem will restart automatically and run under new parameters
3.2 STATIC ROUTING CONFIGURATIONRFC1483ROUTING/RFC1577CONFIGURATION
1 WAN SETTINGS
zSet “Enabled” as “Yes ”
zSet the value of VPI, VCI (For example VPI=0, VCI=32)
zSet“Static IP Address ”and “Subnet Mask ”(For example set IP Address 202.1.136.254Subnet Mask
255.255.255.0)
zFor 1483 routedselect “1483 Bridged IP LLC” or “1483 Bridged IP VCMUX” in “encapsulation ”
(certain value need be provided by DSL provider);
zFor 1577 private line select “Classical IP over ATM” in “encapsulation”
zSelect “Disabled”in “Bridge” item
zInput gateway IP Address in “default gateway” (For example IP Address as 202.1.136.1)
zClick “Submit” button on the bottom of the page to save the parameters.
zThe result is as figure 3.3.

DB108-WL wireless ADSL MODEM manual
- 12 -
Figure 3.3
2 LAN SETTINGS
Keep the configuration as default
3 NAT SETTINGS
Select “Dynamic NAPT” or “NAPT”as Figure 3.4 , then click “Submit” to save the settings
Figure 3.4
4 DNS SETTINGS

DB108-WL wireless ADSL MODEM manual
- 13 -
Set DNS Proxy selection at“Use Auto Discovered DNS servers only”then click “Submit” to save the settings.
OR
Set DNS Proxy selection at “Use user configured DNS servers only”, at Preferred DNS Server (202.96.209.133)
and“Alternate DNS server”enter (202.96.209.5) shown as Figure 3.5then click “Submit” to save the settings.
Figure 3.5
5 Click “Save Settings” in the configuration. Click “Submit” to save all the above settings. Then ADSL will
restart automatically and run under new parameters.
3.3 PPPoE CONFIGURATION
There are two ways for PPPoE configuration: 1483 bridge plus third-party dialing software; and internal virtual
dial-up.
1483 bridge plus third-party dialing software
zSet RFC1483 BRIDGE.
zInstall “dialing software” such as Enternet300, WinPoet and RasPPPoE. For more detail consult with the
DSL provider.
zUse the” dialing software” to dial up.
Internal virtual Dial-up function in DB108-WL
1 WAN SETTING
zSet “Enabled” as“Yes ”
zSet the value of VPI, VCI (For example VPI=0,VCI=32)

DB108-WL wireless ADSL MODEM manual
- 14 -
zFor PPPoEselect “PPPoE LLC” or“PPPoE VCMUX” in “ENCAPSULATION ” (some values need to
be provided by DSL provider ) ;
zFor PPPoAselect “PPPoA LLC” or“PPPoA VCMUX” in “ENCAPSULATION” (some value need to
be provided by DSL provider )
zSelect “Disabled”in “BRIDGE” item
zAt PPP “User Name” and “Password”, input appropriate User Name and Password. (some value need to be
provided by DSL provider, here we use “ADSL” for example )
zResults as Figure 3.6.
Note
zThe selection of “Automatic Reconnect“will make the ADSL MODEM to dial-up automatically when
the CO disconnects the dial-up
z“Disconnect Timeout“can be set at your preference. The value ”0“means never disconnect.
zAuthentication can be set either“PAP“or ”CHAP“. Consult with DSL provider for detail.
Figure 3.6
2 LAN SETTINGS
Keep the default configuration.
3 NAT SETTINGS
Set “NAT”as “Dynamic NAPT” or “NAPT”as Figure 3.4 ,then click “Submit” to save the settings
4 DNS SETTINGS
Set DNS Proxy selection at“Use Auto Discovered DNS servers only”then click “Submit” to save the settings.

DB108-WL wireless ADSL MODEM manual
- 15 -
OR
Set DNS Proxy selection at “Use user configured DNS servers only”, at Preferred DNS Server (202.96.209.133)
and“Alternate DNS server”enter (202.96.209.5) shown as Figure 3.5then click “Submit” to save the settings.
5 Click “Save Settings” in configuration. Click “Submit” to save all the above settings. Then ADSL will restart
automatically and run under new parameters.

DB108-WL wireless ADSL MODEM manual
- 16 -
4. Application of DHCP and DNS Features
Not only can the DB108-WL be used as an ADSL Modem, it also has routing, DHCP and DNS features,
which are especially applicable for small LAN such as cyber cafés and/or small companies.
When DB108-WL is used in LAN, the connection is shown as Figure 4.1
Figure4.1
Router and proxy server are not always necessary in the LAN. You can use DB108-WL as the router, and
DHCP, DNS as the server. The configuration is as follows:
4.1 TCP/IP PROTOCOL CONFIGURATION
1. Set IP address as “Automatically obtain IP address”
2. Set gateway same as IP of DB108-WL
3. Set DNS’s address at DB108-WL’s IP address or validated DNS address
4.2 DB108-WL SETTINGS
1. Set protocol referring to chapter 3
2. DHCP server settings
Using DB108-WL you can dynamically manage up to 253 IP addresses, as described below.
zSelect“DHCP SERVER”
zSet “DHCP address pool selection” to “user defined”
zDefine the “Start IP address” and the “End IP address” of DHCP server (for example, from 192.168.1.2
to 192.168.1.254).
zInput the value of lease (Measure by the second, zero indicates permanently valid)

DB108-WL wireless ADSL MODEM manual
- 17 -
zSet “User mode” to “Muti-User”

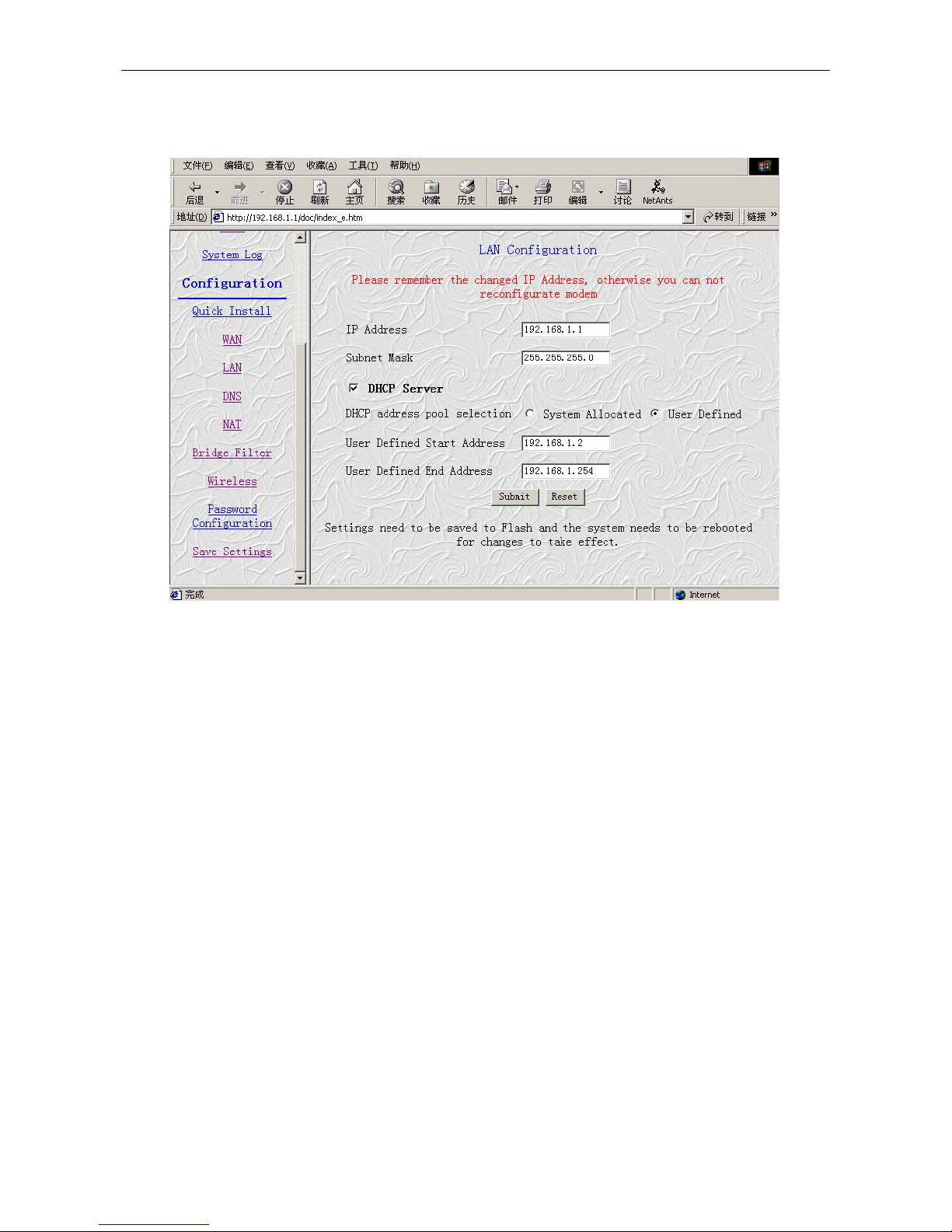

zClick “Submit” to save the configuration. Result is as shown in the figure 4.2.
Figure 4.2
3. DNS SETTINGS
Set DNS Proxy selection at“Use Auto Discovered DNS servers only”then click “Submit” to save the settings.
OR
Set DNS Proxy selection at “Use user configured DNS servers only”, at Preferred DNS Server (202.96.209.133)
and“Alternate DNS server”enter (202.96.209.5) as shown in Figure 3.5then click “Submit” to save the settings.
4. Click “Save Settings” button in configuration. Click “Submit” to save all the above settings. Then ADSL will
restart automatically and run under new parameters.
After configuration, restart DB108-WL first and then restart computers in LAN

DB108-WL wireless ADSL MODEM manual
- 18 -
5. OTHER FUNCTIONS AND CONFIGURATION
5.1 Bridge filtering
1. This function can forbid any MAC addresses through the modem.
Step: (1) Select the “Enable Bridge filtering” to Yes;
(2)Input the MAC address that should be filtered in correct place accord to source or destination.
(3)Clickthe“Add”
Figure5.1
2. Users can modify or delete the MAC addresses that have been input. Just as Figure 5.2.
Figure 5.2
52 STATUS
The working status of DB108-WL can be monitored over through the items of status.

DB108-WL wireless ADSL MODEM manual
- 19 -
1 ADSL
As shown in figure 5.3, the line status of ADSL, working time, connection speed, signal noise ratio and the line
attenuation can be obtained from this page.
Figure 5.3
2 SYSTEM LOG
The system log page is shown in figure 5.4. You can examine the working status of system or save the system
log for later diagnostic.
Figure 5.4
