Rigol RP1000D Series User manual

User Guide
RP1000D Series High Voltage
Differential Probe
Apr. 2021
RIGOL TECHNOLOGIES. CO., LTD.

RIGOL
RP1000D User Guide I
Guaranty and Declaration
Copyright
© 2021 RIGOL TECHNOLOGIES CO., LTD. All Rights Reserved.
Trademark Information
RIGOL®is the trademark of RIGOL TECHNOLOGIES CO., LTD.
Publication Number
UGE18108-1110
Notices
RIGOL products are covered by P.R.C. and foreign patents,
issued and pending.
RIGOL reserves the right to modify or change parts of or all
the specifications and pricing policies at the company’s sole
decision.
Information in this publication replaces all previously released
materials.
Information in this publication is subject to change without
notice.
RIGOL shall not be liable for either incidental or consequential
losses in connection with the furnishing, use, or performance of
this manual, as well as any information contained.
Any part of this document is forbidden to be copied,
photocopied, or rearranged without prior written approval of
RIGOL.
Product Certification
RIGOL guarantees that this product conforms to the national and
industrial standards in China as well as the ISO9001:2015 standard
and the ISO14001:2015 standard. Other international standard
conformance certifications are in progress.
Contact Us
If you have any problem or requirement when using our products or
this manual, please contact RIGOL.
E-mail: [e-mail]
Website: www.rigol.com

RIGOL
II RP1000D User Guide
General Safety Summary
Please review the following safety precautions carefully before
putting the instrument into operation so as to avoid any personal
injury or damage to the instrument and any product connected to it.
To prevent potential hazards, please follow the instructions specified
in this manual to use the instrument properly.
Ground the Instrument.
The instrument is grounded through the Protective Earth lead of the
power cord. To avoid electric shock, connect the earth terminal of
the power cord to the Protective Earth terminal before connecting
any input or output terminals.
Observe All Terminal Ratings.
To avoid fire or shock hazard, observe all ratings and markers on the
instrument and check your manual for more information about
ratings before connecting the instrument.
Do Not Operate Without Covers.
Do not operate the instrument with covers or panels removed.
Avoid Circuit or Wire Exposure.
Do not touch exposed junctions and components when the unit is
powered on.
Do Not Operate with Suspected Failures.
If you suspect that any damage may occur to the instrument, have it
inspected by RIGOL authorized personnel before further
operations. Any maintenance, adjustment or replacement especially

RIGOL
RP1000D User Guide III
to circuits or accessories must be performed by RIGOL authorized
personnel.
Provide Adequate Ventilation.
Inadequate ventilation may cause increasing of temperature or
damages to the device. So please keep well ventilated and inspect
the intake and fan regularly.
Do Not Operate in Wet Conditions.
To avoid short circuit inside the instrument or electric shock, never
operate the instrument in a humid environment.
Do Not Operate in an Explosive Atmosphere.
To avoid personal injuries or damage to the instrument, never
operate the instrument in an explosive atmosphere.
Keep Product Surfaces Clean and Dry.
To avoid dust or moisture from affecting the performance of the
instrument, keep the surfaces of the instrument clean and dry.
Prevent Electrostatic Impact.
Operate the instrument in an electrostatic discharge protective
environment to avoid damage induced by static discharges. Always
ground both the internal and external conductors of cables to
release static before making connections.

RIGOL
IV RP1000D User Guide

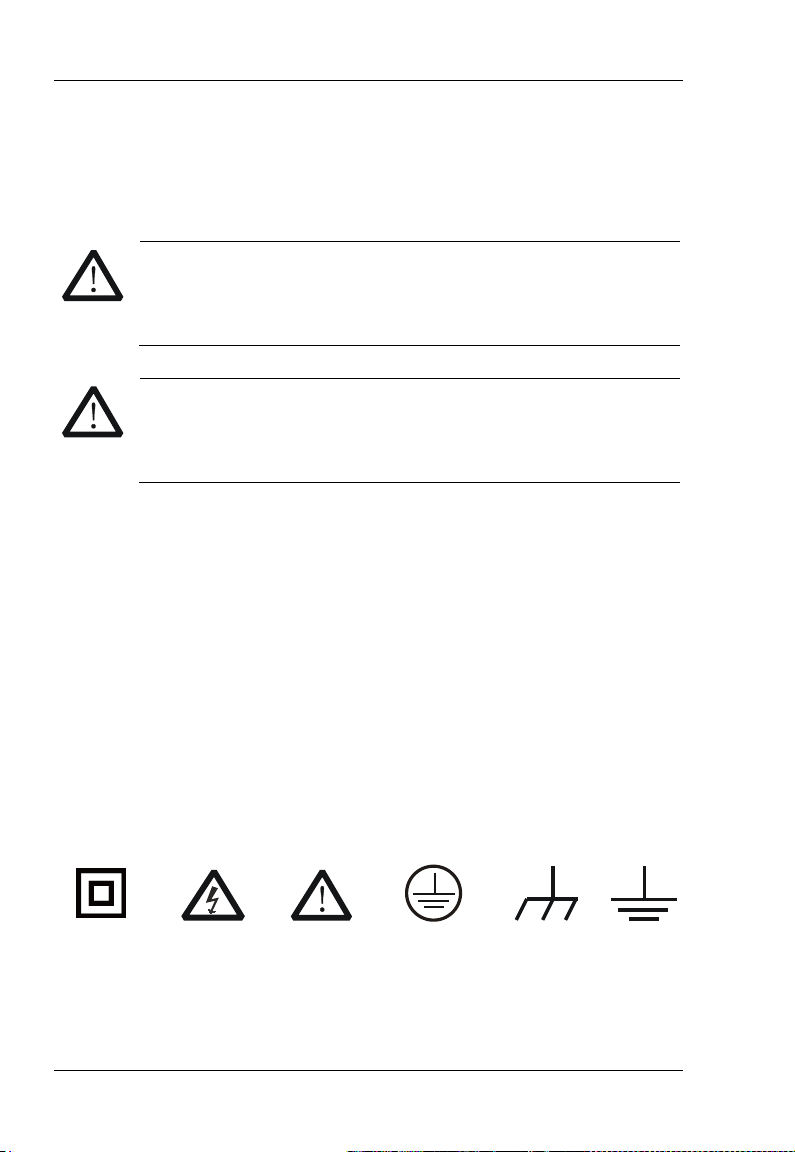

Safety Terms and Symbols
Safety Notices in this Manual:
WARNING
Indicates a potentially hazardous situation or practice
which, if not avoided, will result in serious injury or
death.
CAUTION
Indicates a potentially hazardous situation or practice
which, if not avoided, could result in damage to the
product or loss of important data.
Safety Terms on the Product:
DANGER
It calls attention to an operation, if not correctly
performed, could result in injury or hazard
immediately.
WARNING
It calls attention to an operation, if not correctly
performed, could result in
potential injury or hazard.
CAUTION
It calls attention to an operation, if not correctly
performed, could result in damage to the product or
other devices connected to the product.
Safety Symbols on the Product:
Double
Insulation
Hazardous
Voltage
Safety
Warning
Protective
Earth
Terminal
Chassis
Ground
Test
Ground

RIGOL
RP1000D User Guide V
Contents
Guaranty and Declaration.................................................. I
General Safety Summary..................................................II
Safety Terms and Symbols .............................................. IV
RP1000D Overview ...........................................................1
Basic Operations ...............................................................5
Cleaning and General Care ................................................7
Warranty ...........................................................................7
Specifications ....................................................................8
Technical Specifications ..................................................... 8
Operation Environment.................................................... 11
General Specifications...................................................... 11
Accessories......................................................................12

RIGOL
RP1000D User Guide 1
RP1000D Overview
RP1000D series high voltage differential probe can convert high
differential input voltage to low voltage and display the waveforms
on the oscilloscope. Its working frequency is up to 25MHz
(RP1025D), 50MHz (RP1050D) and 100MHz (RP1100D) and it is
rather suitable for large electricity test and R&D.
RP1000D series high voltage differential probe is applicable to
general purpose oscilloscope and the labeled attenuation ratios are
those when the input impedance of the oscilloscope is 1MΩ. The
attenuation ratios will double when the input impedance of the
oscilloscope is 50Ω.

RIGOL
2 RP1000D User Guide
Figure 1 RP1025D High Voltage Differential Probe
BNC Interface
Input Terminal
Power Adaptor
Interface
Attenuation Ratio and
Power Button
Overload Indicator
Power Indicator

RIGOL
RP1000D User Guide 3

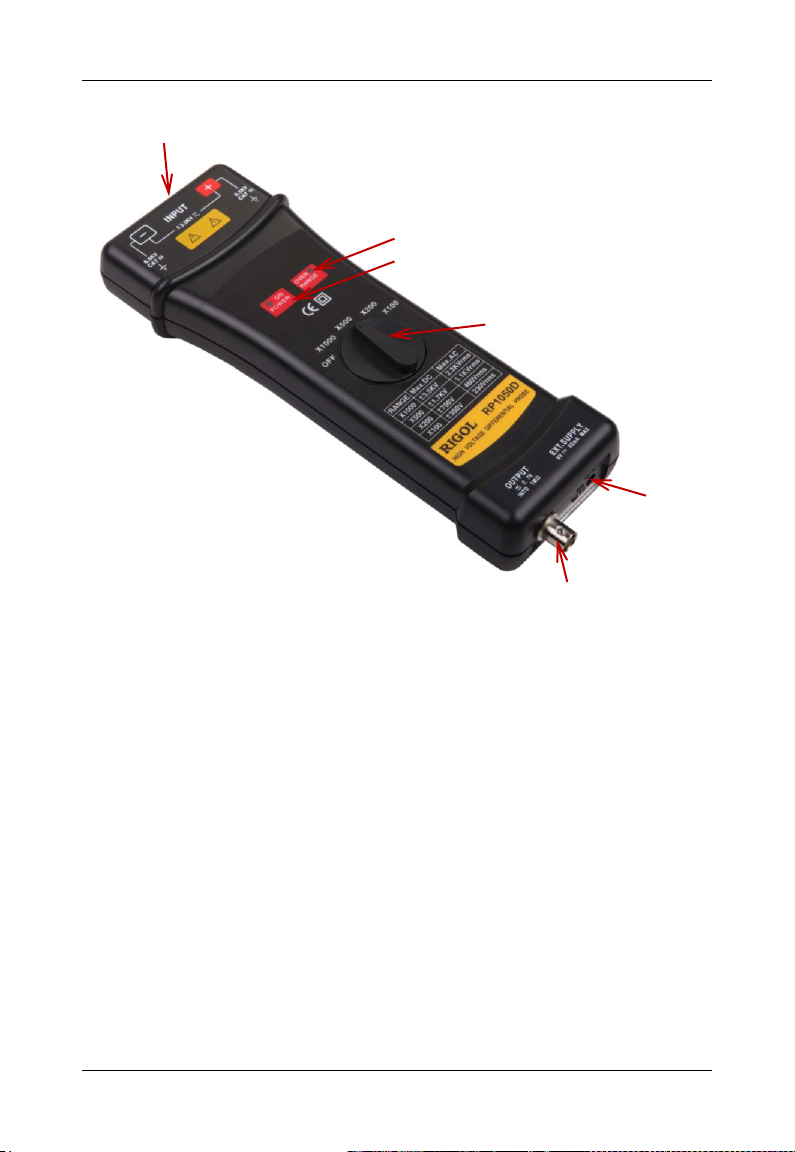

Figure 2 RP1050D High Voltage Differential Probe
BNC Interface
Input Terminal
Power Adaptor
Interface
Attenuation Ratio and
Power Button
Overload Indicator
Power Indicator

RIGOL
4 RP1000D User Guide

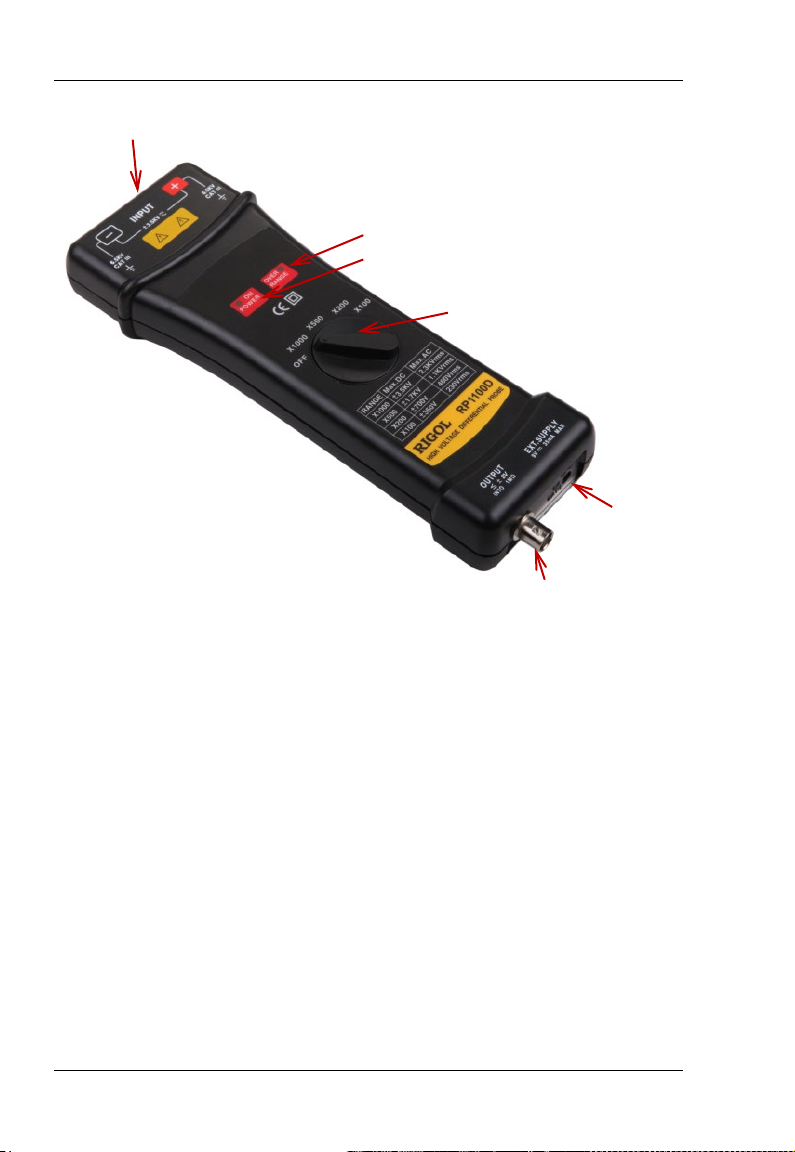

Figure 3 RP1100D High Voltage Differential Probe
BNC Interface
Input Terminal
Power Adaptor
Interface
Attenuation Ratio and
Power Button
Overload Indicator
Power Indicator

RIGOL
RP1000D User Guide 5
Basic Operations
1. Connect the red safety IC clip with one end of the red
dual-banana plug silicon cable and the black safety IC clip with
one end of the black dual-banana plug silicon cable provided in
the accessories. Then, connect the red dual-banana plug silicon
cable with the red (+) input terminal of the high voltage probe
and the black dual-banana plug silicon cable with the black (-)
input terminal of the high voltage probe.
Note:
a) The safety IC clip can be replaced by the high voltage
dedicated IC clip, safety alligator clip or safety contact
probe prod;
b) The dual-banana plug silicon cable can be replaced by high
voltage dedicated dual-banana plug silicon cable.
2. Connect one end of the dual-BNC coaxial cable to the BNC
interface of the high voltage differential probe and the other
end to the input terminal of the oscilloscope.
3. Turn on the channel switch on the oscilloscope and adjust the
attenuation of the high voltage probe to make it match that of
the oscilloscope. If the attenuation ratio of the oscilloscope
does not match that of the high voltage probe, the actual
vertical scale equals the attenuation ratio of the high voltage
probe divided by the attenuation ratio of the oscilloscope and
then times the vertical scale of the oscilloscope.
For example, when the attenuation ratio of the oscilloscope is

RIGOL
6 RP1000D User Guide
set to 1X, the attenuation ratio of the high voltage probe is set
to X200 and the vertical scale of the oscilloscope is 0.5V/div,
the actual vertical scale is 200X0.5V/div=100V/div. When the
input impedance of the oscilloscope is 50Ω, the actual vertical
scale is 2X200X0.5V/div =200V/div.
Note: When the attenuation ratio of the oscilloscope matches
the attenuation ratio of the high voltage probe, the vertical
scale displayed on the oscilloscope is the actual scale.

RIGOL
RP1000D User Guide 7
Cleaning and General Care
Cleaning:
This product has no particular requirement for cleaning. To clean the
probe, please wipe the probe surface using soft and clean cloth
dampened with detergent.
General Care:
Please store this product in anti-humidity case if the product will not
be used for more than 60 days.
Warranty
RIGOL TECHNOLOGIES CO., LTD. (hereinafter referred to as
RIGOL) warrants that the product will be free from defects in
materials and workmanship within the warranty period. If a product
proves defective within the warranty period, RIGOL guarantees
free replacement or repair for the defective product.
To get repair service, please contact with your nearest RIGOL sales
or service office.
There is no other warranty, expressed or implied, except such as is
expressly set forth herein or other applicable warranty card. There is
no implied warranty of merchantability or fitness for a particular
purpose. Under no circumstances shall RIGOL be liable for any
consequential, indirect, ensuing, or special damages for any breach
of warranty in any case.

RIGOL
8 RP1000D User Guide
Specifications
Technical Specifications
RP1025D:
Bandwidth
DC - 25MHz (-3dB)
Attenuation Ratio
X20, X50, X200
Accuracy
±2%
Input Voltage
Range (DC + AC
peak-peak value)
X20 attenuation ratio: ≤ 140Vpp, about
50Vrms or DC
X50 attenuation ratio: ≤ 350Vpp, about
125Vrms or DC
X200 attenuation ratio: ≤ 1400Vpp, about
500Vrms or DC
Maximum Input
Voltage
Maximum differential voltage: 1400V
(DC+AC peak-peak value) or 500Vrms
Voltage to ground at the input terminal:
600Vrms
Input Impedance
Differential: 4MΩ/1.2pF
Single-ended and to ground: 2MΩ/2.3pF
Output Voltage
≤±6.5V
Output
Impedance
50Ω
Rise Time
14ns
Common-mode
Rejection
60Hz: > 50dB
100Hz: > 50dB
1MHz: > 50dB
Power Supply
Specified external 9V DC power supply
(must be specified products acknowledged
by
RIGOL
)
Power
Consumption
<300 mA

RIGOL
RP1000D User Guide 9
RP1050D:
Bandwidth
DC - 50MHz (-3dB)
Attenuation Ratio
X100, X200, X500, X1000
Accuracy
±2%
Input Voltage
Range (DC + AC
peak-peak value)
X100 attenuation ratio: ≤ 700Vpp, about
230Vrms or DC
X200 attenuation ratio: ≤ 1400Vpp, about
460Vrms or DC
X500 attenuation ratio: ≤ 3500Vpp, about
1140Vrms or DC
X1000 attenuation ratio: ≤ 7000Vpp,
2300Vrms or DC
Maximum Input
Voltage
Maximum differential voltage: 7000V
(DC+AC peak-peak vale) or 2300Vrms
Voltage to ground at the input terminal:
6500Vrms
Input Impedance
Differential: 16MΩ/1pF
Single-ended and to ground: 8MΩ/2pF
Output Voltage
≤±7.0V
Output
Impedance
50Ω
Rise Time
7ns
Common-mode
Rejection
60Hz: > 50dB
100Hz: > 50dB
1MHz: > 50dB
Power Supply
Specified external 9V DC power supply
(must be specified products acknowledged
by RIGOL)
Power
Consumption
<300 mA

RIGOL
10 RP1000D User Guide
RP1100D:
Bandwidth
DC - 100MHz (-3dB)
Attenuation Ratio
X100, X200, X500, X1000
Accuracy
±2%
Input Voltage
Range (DC + AC
peak-peak value)
X100 attenuation ratio: ≤ 700Vpp, about
230Vrms or DC
X200 attenuation ratio: ≤ 1400Vpp, about
460Vrms or DC
X500 attenuation ratio: ≤ 3500Vpp, about
1140Vrms or DC
X1000 attenuation ratio: ≤ 7000Vpp,
about 2300Vrms or DC
Maximum Input
Voltage
Maximum differential voltage: 7000V
(DC+AC peak-peak value) or 2300Vrms
Voltage to ground at the input terminal:
6500Vrms
Input Impedance
Differential: 16MΩ/1.2pF
Single-ended and to ground: 8MΩ/2.3pF
Output Voltage
≤±8.0V
Output
Impedance
50Ω
Rise Time
3.5ns
Common-mode
Rejection
60Hz: > 50dB
100Hz: > 50dB
1MHz: > 50dB
Power Supply
Specified external 9V DC power supply
(must be specified products acknowledged
by RIGOL)
Power
Consumption
<300 mA

RIGOL
RP1000D User Guide 11
Operation Environment
General Operation Storage
Temperatur e +20℃to
+30℃
0℃to +50℃-30℃to
+70℃
Humidity ≤70%RH 10% to
85%RH
10% to
90%RH
General Specifications
Probe Dimensions
RP1025D: about 214mm x 60mm x
35mm
RP1050D: about 240mm x 85mm x
36mm
RP1100D: about 240mm x 85mm x
36mm
Weight
RP1025D: 280g
RP1050D: 280g
RP1100D: 280g
Safety IEC 1010-1, CAT III, pollution degree 2
Electromagnetic
Compatibility
Conform to EN50081-1 and 50082-1
standards
Maximum Voltage to
Ground
RP1025D: 600Vrms
RP1050D: 6500Vrms
RP1100D: 6500Vrms
Using Environment Indoor environment
Insulation Category Double insulation

RIGOL
12 RP1000D User Guide
Accessories
RP1025D:
Accessories Explanation Quantity
1. User Guide Chinese & English 1
2.
AC power adaptor
conforming to the
standard of the
destination country
-- 1
3. Dual-BNC coaxial cable
50Ωimpedance
RG58C UL
100cm length
1
4. Dual-banana plug silicon
cable
UL 6KV
18AWG
60cm length
Red: 1; Black: 1
5. Safety IC clip UL 1000V CAT III Red: 1; Black: 1
6. Safety alligator clip UL 1000V CAT II，10A Red: 1; Black: 1
