ring Spotlight Cam User manual

Spotlight Cam Mount

WARNING: Risk of
electrical shock.
If your local laws require
it, installation and wiring
must be performed by a
licensed electrician.

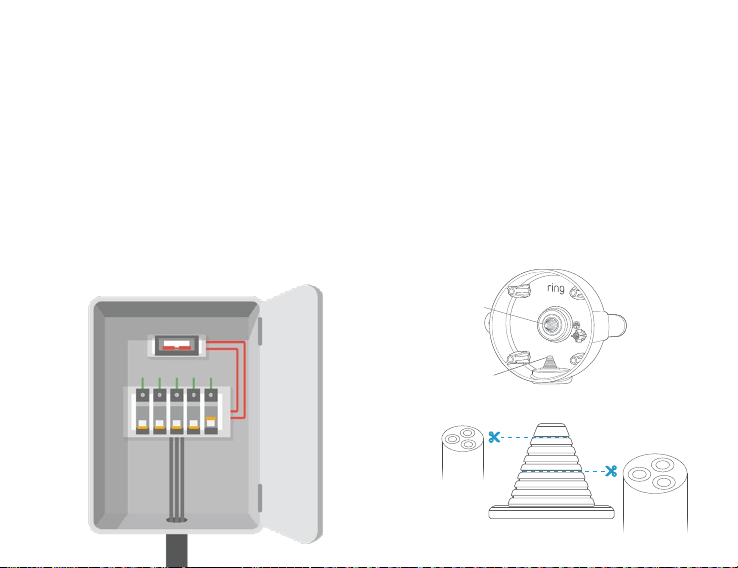

Disconnect power at the
fusebox or consumer
unit before installing.
Verify that the supply voltage is correct. Connect
fixture to a 100 VAC~240 VAC 50/60 Hz power
source.
Always follow electrical code standards when
installing wired connections.
CAUTION: Risk of fire
Do not install near combustible or flammable
surfaces.
NOTICE
Do not connect this light fixture to a dimmer
switch or timer.
1. Install
your
Spotlight
Cam.
3

Screwdriver & Phillips Bit
Use to install the mounting
hardware and tighten the
security screw.
Mounting Screws
Use this hardware to mount
the backbox to your wall
and secure the cover to
the backbox.
Wire Clips
Use to secure and protect
wire connections.
Drill Bit and Wall Anchors
If installing on concrete,
stucco or brick, use the drill
bit in a power drill to pre-drill
the holes, then insert the
wall anchors.
What’s in the box?
Everything you need to install your
Spotlight Cam is included.
Backbox Cover with Gasket
Secures your Spotlight Cam
to the included backbox.
Comes attached to your
Spotlight Cam and its wiring
harness.
Wiring Harness and
Mounting Nut
Connects your Spotlight
Cam to your home’s power
wires and secures it to the
backbox cover.
Backbox
Acts as a mounting base for
Spotlight Cam and protects
its wiring connections.
Security Screw
Secures your Spotlight
Cam to prevent
unwanted removal.
9 9
9
Mounting Screws
For securing the included
backbox to your home
Cover Screws
For securing the cover
to the backbox
9
Anchors
For installing on concrete,
stucco or brick
54

Backbox
Backbox Cover
Mounting Screws
Backbox Mounting Screws
Spotlight Cam
Security
Screw
Status Light &
Motion Sensors
White Wire
(unused, cap
with wire clip)
Backbox Cover

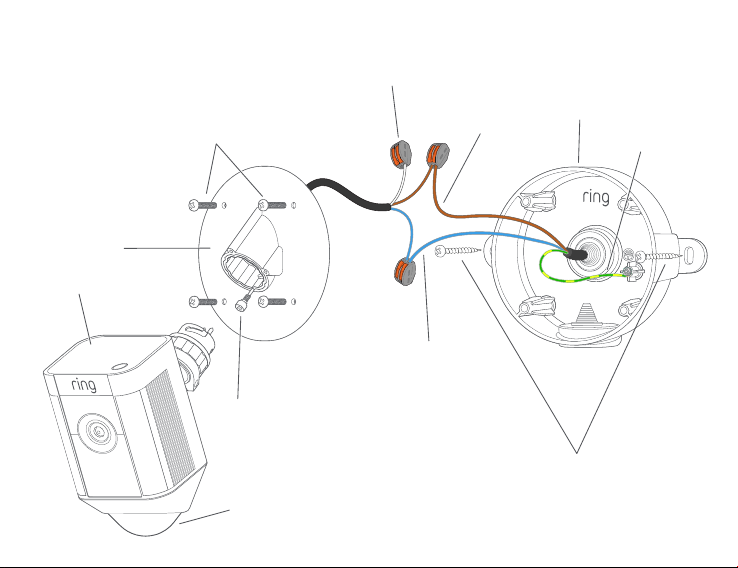

How it All Fits Together
Brown/Live
Wire Earth
Wire
Blue/Neutral
Wire
76

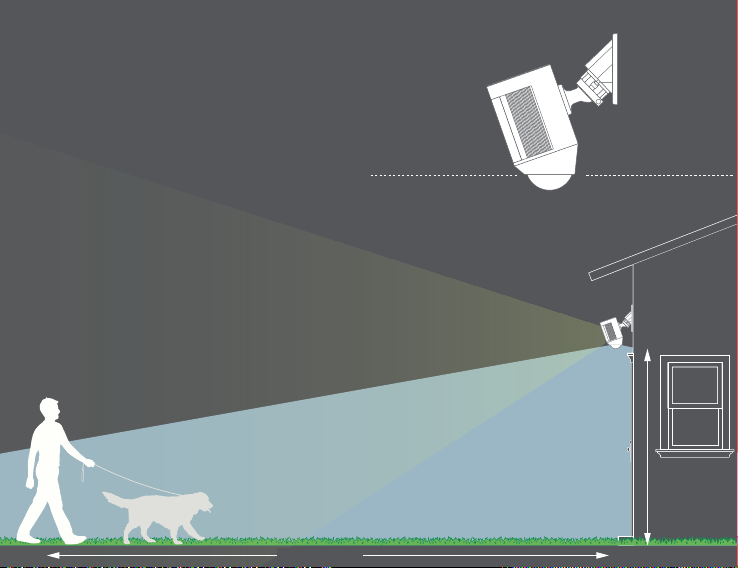

9 feet
(3 Meters)
Parallel to ground
30 feet (10 Meters)
Installation Height
and Motion
Detection
When mounted at the recommended
height (9 feet up, with the motion
sensor parallel to the ground), your
Spotlight Cam is optimized to detect
human-sized objects at up to 30 feet.
