Rinnai INFINITY R1385 User manual

INFINITY pipe cover
Installation guide
Rinnai New Zealand Ltd (0800 746 624) INF pipe cover installation 9509-F I06-201 of 2
Before installation check for damage, do not install any damaged items, and check all components
have been supplied. Read these instructions to get an overview of the steps required before
starting.
With Rinnai’s current range of water heaters, assembly can be done by the homeowner—this is
because assembly does not require taking the cover o󰀨 the water heater.
The pipe cover is approximately the same width and depth of the water heater and conceals
approximately 450 mm of pipework below the unit.
Pipe cover Suitable for
R1385 Rinnai INF A16-A26
Rinnai INF VT16-VT26*
R1402SC Rinnai INF HD250
R1408 Rinnai INF EF24
R1408SC Rinnai INF HD200 / HDi200
R1416 Rinnai INF EF26
* Discontinued models

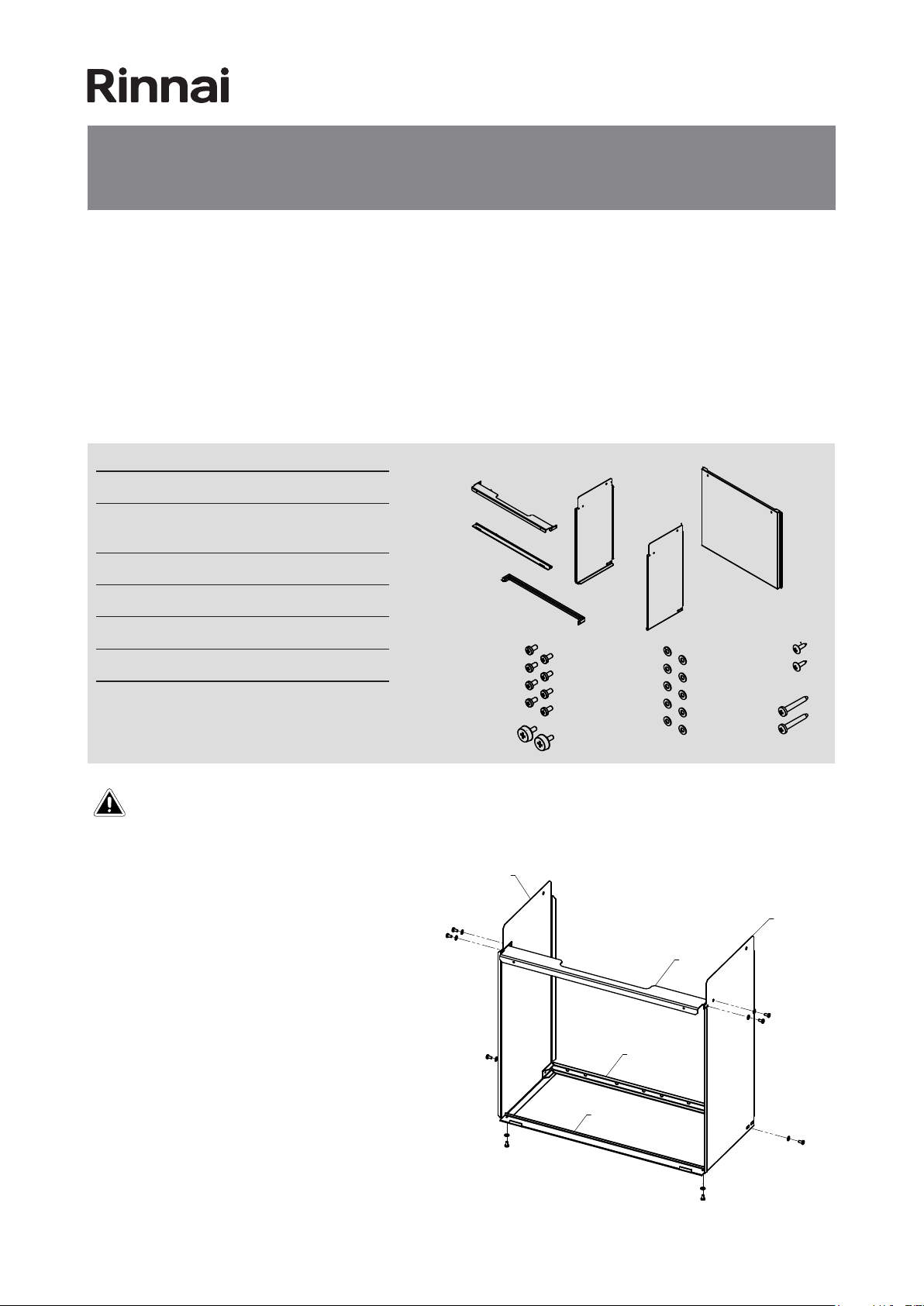

Top frame
Side panel RH
Side panel LH
Bottom bracket
Rear bracket
Front panel
Screw M4 x 8
SS (x8)
Nylon washer M4
(x10)
Screw M4 INF
pipe cover (x2)
PK screw #8 x 6
SS (x 2)
PK screw #10 x 40
ZP (x 2)
Important
Before installing the pipe cover turn o󰀨 the power, water, and gas to the water heater.
Assembly
1. Assemble the top frame to the right and
left side panels with four M4 screws and
washers.
2. Secure the bottom bracket to the left
and right panels with two M4 screws and
washers.
3. Secure the rear bracket to the left and right
panels with two M4 screws and washers.
IMPORTANT
Side panel LH
Side panel RH
Top frame
Rear bracket
Bottom bracket

Rinnai New Zealand Ltd (0800 746 624)
INFINITY pipe cover
Installation guide
INF pipe cover installation 9509-F I06-202 of 2
Pipe cover installation
1. Fit the pipe cover to the water heater using
the two short stainless steel PK screws and
nylon washers.
2. Use the #10 x 40 ZP PK screws to fasten
the rear bracket to the wall. Use suitable
anchors for the wall if required (not
supplied).
Fitting the front panel
1. Fit the two slots in the lower edge of the
front panel onto the tabs of the bottom
bracket. Where necessary readjust the
pipe cover assembly to align with the water
heater and that all components are still
square.
2. Use the two M4 INFINITY pipe cover
screws (M4 plastic capped thumbscrews) to
fasten the front panel to the top frame.
3. Turn on the power, water, and gas to the
water heater.
Locating tab
