Installation Instructions
For
ULTRAFOUNT
MODEL:ES1&ES2
Congratulations, you have just purchased the finest watering fountain on the
market. This unit is built to give you excellent service when properly installed
and maintained. Please follow instructions carefully. Read and understand all
instructions before installing.
Part # 24076
August 13, 2022

Fountain Installation Instructions
A. Location - Installing the fountain in a location that offers protection from the wind will enhance the
performance. Livestock will tend to gather in this protected area, enticing them to drink more. Access panel should
be opposite of prevailing winter wind to give additional protection to the supply line.
B. Water Supply Line - Horizontal underground water line should be sized to account for pressure drop, relating
to distance, and placed one foot below frost line. A one-inch vertical supply pipe is recommended. A shut-off valve
should be installed under fountain to allow for easier servicing. For optimum serviceability, a stop and waste valve
can be installed below frost level to drain water when unit is not in use. Vertical supply line must be centered in
riser tube to provide an air space between the line and frozen ground outside of tube. Flush water supply line
thoroughly before connection to fountain. Water supplies with foreign material such as sand, rust, etc. may require
a filter to keep fountain valve working properly.
C. Electric Supply – It is generally most cost effective to run your electrical supply line at the same time you are
trenching for your water supply.
Item No.
Description
Watts
Amps
18780
Ultrafount ES1 120V
173W
1.4A@120V
18730 Ultrafount ES2 120V 298W 2.5A@120V
ULTRA-Fount Instruction Manual
1
August 13, 2022

D. Riser Tube - Install a riser tube and extend it at least one foot below frost line or
down to horizontal underground water line. For optimum water line protection, use
the 12” diameter insulated Ritchie Thermal Tube, part numbers and sizes are shown
to the right. Tube opening must be kept clear.
NOTE: The supply line touching the riser tube is the most common cause of
the supply line freezing. Do not surround the supply line with insulation, wood,
or other foreign material. Any foreign material in the tube may cause frost to
migrate to the supply line causing it to freeze.
E. Mounting Platform - A concrete platform (see diagram) must be provided for all fountains. Use a minimum
of 4” thick, (6” recommended thickness), large enough to accommodate fountain, and additional 4-6” step (on top
of the platform) extending 18” out from each side of the unit. This will protect the unit from manure handling
equipment, as well as discouraging animals from defecating in the fountain. Extending the platform provides
animals a place to stand while drinking, consider the size of your animals when determining the dimensions of your
platform. The concrete step and platform should slope away from the fountain for drainage. A rough broom finish
to concrete surface provides better footing for livestock.
F. Hose Connection - Connect hose fitting to shut-off valve at top of concrete. Slip on barb fitting with furnished
clamps. Hose should not touch insulation or outside surface of fountain. Place the hose under the fountain as you
move the unit in place over the riser tube.
G. Preparing the Bottom - Apply the provided foam weather stripping to the bottom of the fountain, following
along the outside edge of the fountain.
H. Anchoring Fountain - Your fountain has four built-in hold-down locations to anchor your unit securely to the
concrete pad. The use of 3/8” x 5” stainless steel expansion anchor bolts (not included) is recommended for concrete
installations. Anchor bolts are available from Ritchie in a two pack, part # 16555. Fender washers are supplied for
use with anchors.
I. Assemble Standpipe– Install standpipe into hole in
trough. Rubber O-ring is to be on inside of trough. Tighten
nut securely to prevent leaks. Do not overtighten or O-ring
may become dislodged.
Ritchie Thermal Tube
Part # Description
18158
1’ Top Section
16417
2’ Top Section
16612
4’ Top Section
16416
2’ Extension
ULTRA-Fount Instruction Manual
2
August 13, 2022

J. Cable Heater – (Complete after attaching valve on
Ultrafount ES2) Uncoil cable heater and loop around the
valve. Attach the remaining part of the cable heater to the
water supply, as far down the riser tube as possible with the
cable twist ties provided. This heater is water tight, but
should not be immersed in water.
CAUTION: Installation must not cause any strain on
heater wiring connections. Do not cross the cable over
itself along the water line. Avoid heater damage
caused by hot spots due to its leads lying close to each
other. Also, do not wrap additional insulation around
heater.
K. Electrical Connection - The electrical installation should be made and maintained by a qualified electrician
conforming to national and local codes. A means for disconnection must be incorporated in the fixed wiring in
accordance with the wiring rules. For wiring connections, see wiring diagram. Make connections according to the
wiring diagram below.
WARNING: ANY ELECTRICAL SERVICE MUST BE INSTALLED AND MAINTAINED BY A
QUALIFIED ELECTRICIAN.
WARNING: DISCONNECT POWER IF THE WATER SUPPLY IS TO BE SHUT OFF FOR AN
EXTENDED AMOUNT OF TIME. FAILURE TO TURN OFF POWER CAN RESULT IN DAMAGE TO
THE WATERING FOUNTAIN.
WARNING: THIS INSTALLATION MUST BE MADE AND MAINTAINED IN STRICT CONFORMITY
WITH NATIONAL/LOCAL PLUMBING CODES AND NATIONAL/LOCAL ELECTRICAL CODES (CSA
IN CANADA). THE APPLICABLE PROVISIONS OF THESE CODES TAKE PRECEDENT. FAILURE
TO MAKE AND MAINTAIN ALL INSTALLATIONS PROPERLY MAY RESULT IN LOSS OF
LIVESTOCK, PERSONAL INJURY, OR DEATH.
NOTE: National/Local electrical codes mayrequire livestock waterersinstalled in feedlotsin openfeeding
area to be grounded by a separate stranded copper grounding conductor or at least no.6 AWG
terminating at a point where the branch circuit receives its supply. Check with local authorities.
L. Disc Thermostat – The disc thermostat is mounted in a
bracket under the trough, which allows it to be moved relative
to the heater. To ease movement of thermostat, turn ¼ turn. To
lock in position after adjustment, turn ¼ turn back. As the
thermostat is moved toward the heater, the water
temperature in the trough is lowered. The best location is
determined by checking the trough temperature several times
during the heating season.
ULTRA-Fount Instruction Manual
3
August 13, 2022

M. Valve Cover –Before installing the valve cover the weather seal must be installed. The seal is installed by
removing the paper backing from the adhesive side and then, starting at the midpoint of one of the legs, attach the
seal to the frame. Work your way around the frame with the seal as close to the inside edge as possible and then up
the other leg to the halfway point. At this time cut any extra foam seal as needed. Repeat for other side on ES2.
N. Attaching Valve – (Ultrafount ES2 only) Installing the valve assembly before attaching the cover is preferred.
(See Diagram) To attach the valve, you will need a 3/8” socket with driver. Align holes of white valve bracket with
the holes on the trough tab, as shown at right. Securely tighten the screw being careful to not over tighten and strip
out plastic valve bracket.
O. Attaching the Cover – (Ultrafount ES2 only) Install the cover assembly as shown in picture on right. Align
holes of the cover with holes in casing behind the valve. Using the supplied 3/16” hex wrench tighten the screws
until there is a 1/8” gap between the cover and the base on both sides of the cover. Some adjustment may be required
if the thumb screw does not align with the locking groove on the front of the fountain.
Figure
1. Ultrafount ES2
Figure 2. Ultrafount ES1
ULTRA-Fount Instruction Manual
4
August 13, 2022

P. Final Water Connection – Connect the top of the supplied hose to the valve, cut hose to proper length and slip
onto the barb fitting of the valve assembly. Clamps and fittings are furnished to secure the connection.
Q. Seal the Base - After the unit is completely installed, apply a bead of caulking around the base of the fountain
to ensure no wind enters through the base of the unit.
NOTE: Sealing the bottom of the unit from cold air is an important aspect of the unit's thermal
performance.
R. Drain Plug – Insert the drain plug firmly into the drain hole in the center of the trough.
S. Float Adjustment – Open water-supply shut-off valve, check for and fix any leaks. Adjust float for a water
depth of 1-2 inches below top of trough or overflow pipe by adjusting the wing-nut. With the valve functioning
properly and the water level set at the proper level, you may install the valve cover.
T. Install Side Access Panel – Once all water line connections have been checked for leaks and electrical hook-
up is complete, the side access door may be installed.
U. Children should be supervised to ensure that they do not play with the appliance – This appliance is not
intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance
by a person responsible for their safety.
V. Cleaning Your Fountain – To clean your watering fountain you will need a good stiff bristled brush. Open
the cover then brush the tank to remove any build-up. Remove the plug that is located in the valve chamber area
under the float to drain out the water and debris. You can shut off the water with the shut-off valve located under
the unit or by holding the float in the up position. After the water and debris has drained reinstall the plug and let
the tank refill. Now is a good time to readjust the float if needed. Close cover and you are done.
Ritchie Valves
Ritchie valves come in various sizes and pressure ratings as shown below - green for high supply line pressure, red
for moderate supply pressure, and white forlow-pressure applications. Differences in the size of trough also impacts
valve choice. Your individual situations may require a change from the standard valve supplied with your fountain,
see your Ritchie Dealer if this is needed.
NOTE: The red ½” valve is standard on the Ultrafount ES1 and ES2
1/2”
Part #
GPM
Pressure Range
White
12574
4.8
Low, 5-40 psi. (34-275 kPa)
Red
12575
3.4
Moderate, 40-60 psi. (275-414 kPa)
Green
13597
1.45
High, 60-80 psi. (414-552 kPa)
NOTE: Maximum inlet water pressure for each valve is shown above. If water pressure is extremely high,
and if the valve does not shut off, a pressure-reducing valve may be needed.
ULTRA-Fount Instruction Manual
5
August 13, 2022

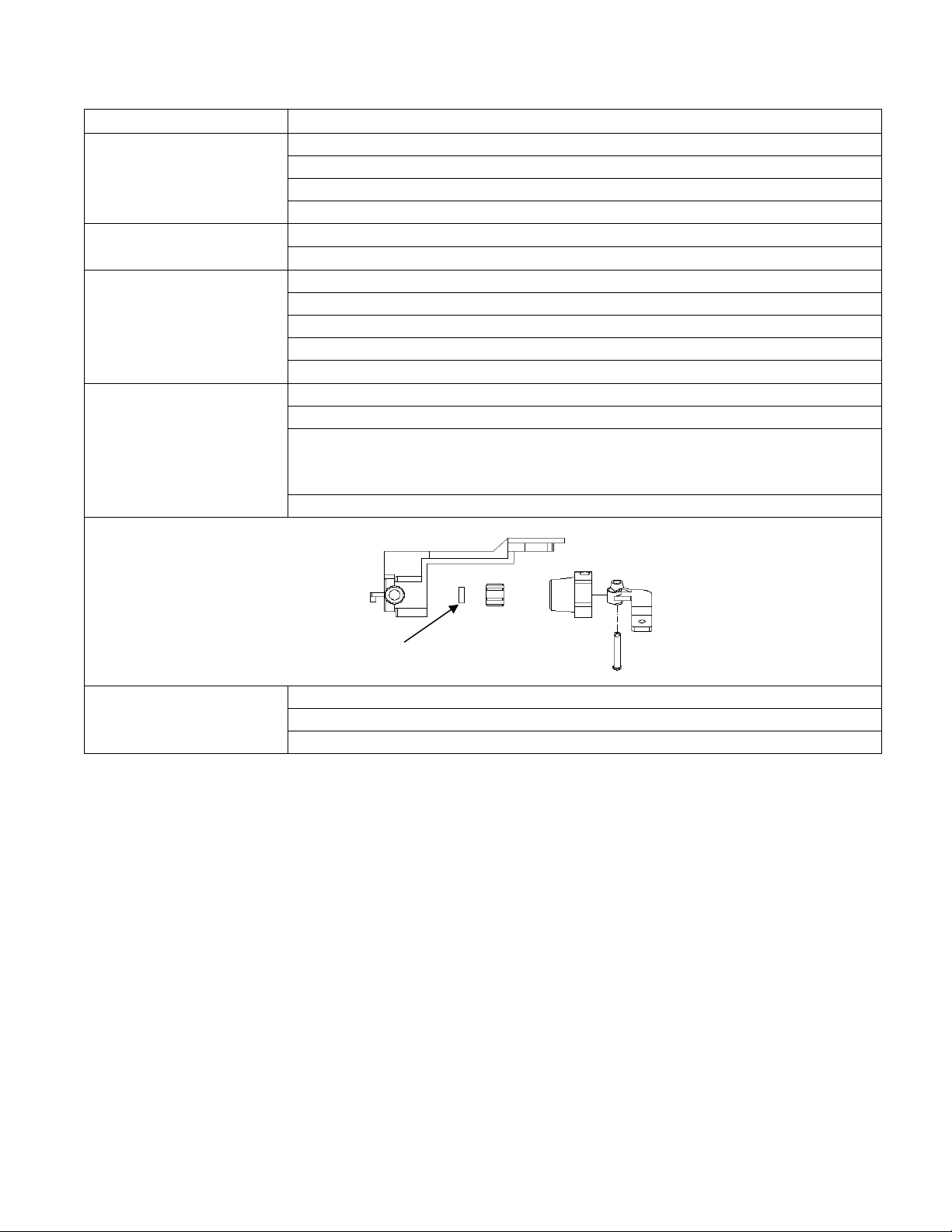

Trouble Shooting
Problem
Solution
Ice in Trough
Check fuses or circuit breakers.
Check all heating elements to make sure they are heating.
Adjust thermostat to higher temperature.
Check for voltage to fountain.
Valve Freezing
Check that cable heater is installed properly and fastened around valve.
Check for air gaps where a cold wind can reach the valve.
Supply line Freezing
Check that the cable heater is uncoiled and fastened around valve and supply line.
Check that supply piping is centered in riser tube and not touching the sides.
Check that riser tube is free of water and mud that may cause freezing.
Check that flexible hose does not touch side of casing or frame.
Check for air gaps between casing and concrete floor.
Valve won’t stop dripping
Check the float adjustment. Check that float is not water logged or rubbing sides.
Check for excessive water supply pressure.
Disassemble valve and check for sand or mineral build-up on valve rubber. Check
valve orifice outlet for wear and damage. A screen or filter may be required with
sandy or scaly water.
Turn valve rubber over and re-assemble.
Low water flow
Check that valve inlet is not plugged or supply hose is not kinked.
Check system pressure and water flow from supply line.
Check that shutoff valves are fully open.
1/2” Valve:
Valve Rubber
Pin must be pushed
out of valve to disassemble
ULTRA-Fount Instruction Manual
6
August 13, 2022

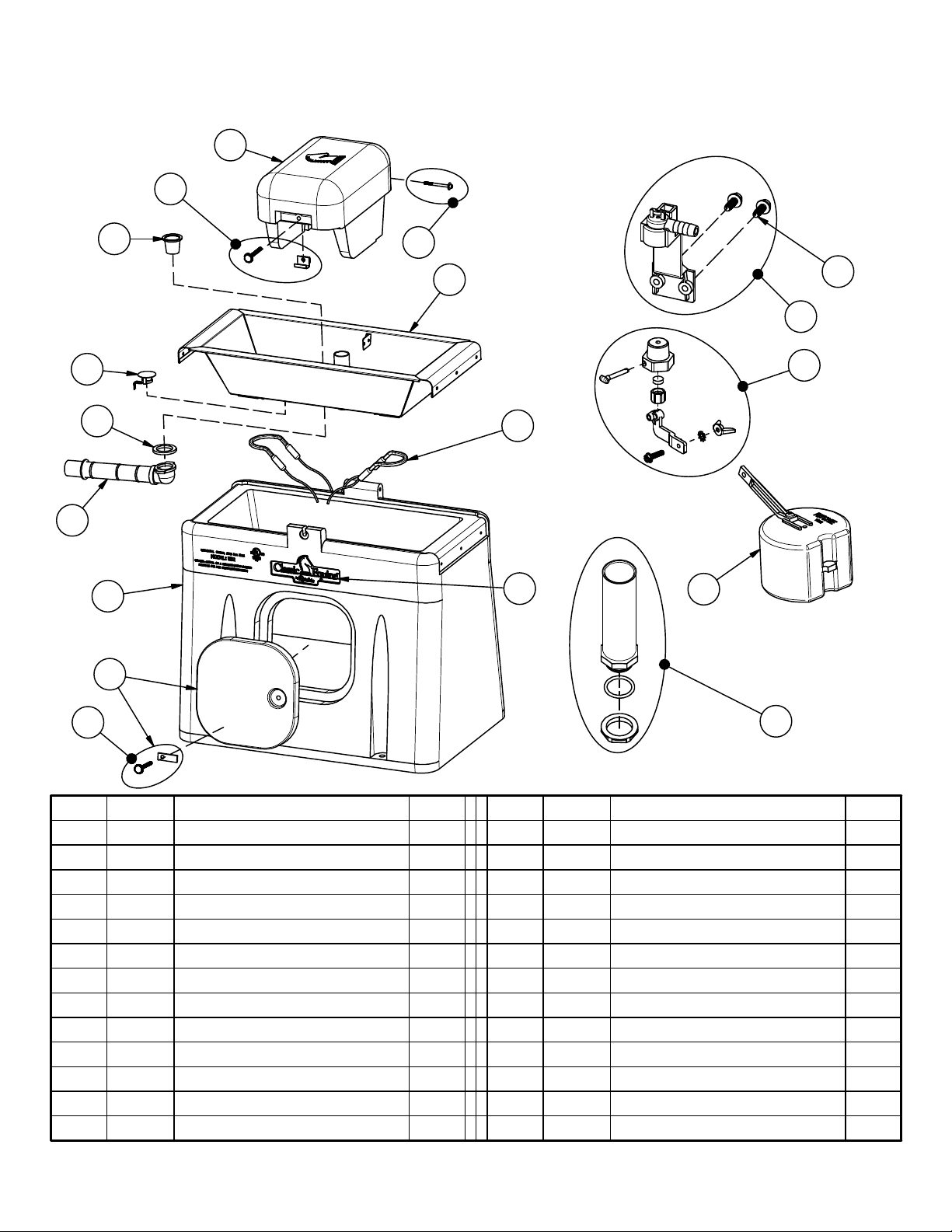

Classic Equine
ULTRAFOUNT
MODEL: ES1
Part # 18780
Item Part # Description Qty . . Item Part # Description Qty
118778 U L T R A F O U N T E S 1 C o v e r 1 1 4 1 6 8 6 6 S ta n d p ip e p k g 1 p k g
218776 U L T R A F O U N T E S 1 C a sin g 1 1 5 1 1 5 1 5 V a lve B ra cke t w /sc re w s p k g 1 p k g
3 1 8 7 2 6 A c c e s s P a n e l w /H a r d w a re 1 1 6 1 5 1 5 4 S c re w s V a lv e B rac k e t (1 0 /p k g ) 1 p k g
418775 U L T R A F O U N T E S 1 T rou g h 1 1 7 1 2 5 7 5 R e d V a lv e 1 /2 " p k g 1 p k g
5 1 8 7 5 3 A c c e s s P a n e l H a rd w a re P k g 1 p k g 1 8 1 3 6 1 3 F lo a t w ith S h o rt A rm p k g 1 p k g
6 1 8 7 1 8 C o v er L a tc h H a rd w a re P k g 1 p k g N S 1 3 8 3 0 C a b le H tr 1 2 0 V 4 8W (1 /pk g ) 1 p k g
7 1 1 8 8 5 D is c T h e rm o s ta t p k g 1 p k g N S 1 8 7 5 1 U L T R A F O U N T A c c e s s o ry p k g 1 p k g
8 1 8 7 1 6 C la s sic E q uin e H in g e B o lt (2 /p kg ) 1 p k g N S 1 6 5 2 3 S e a l F o a m 1 /4 "x 3 /4 "x 2 5 ' R o ll 1
9 1 8 7 1 9 C la s sic E q uin e L o g o P k g (2 /p k g) 1 p k g N S 1 4 8 6 6 S e a l F o a m 1 /2 "x 3 /4 "x 1 0 ' R o ll 1
10 18628 D ra in P lu g (2 /p k g ) 1 p k g
1 1 14150 H e a te r 1 2 0 V 1 2 5 W (1 /p kg ) 1 p k g
1 2 18075 D ra in W a s h e r (6 /p k g )
1 3 11472 D ra in P ip e w ith E lb o w 1 p k g
1
10
7
6
8
4
13
12
11
3
5
2
9
16
18
14
15
17

Classic Equine
ULTRAFOUNT
MODEL: ES2
Part # 18730
Item Part # Description Qty . . Item Part # Description Qty
118734 ULTRAFOUNT Cover 114 16866 Standpipe pkg 1 pkg
218732 ULTRAFOUNT Casing 115 11515 Valve Bracket 1/2" w/ Scrws pkg 1 pkg
3 18726 Access Panel w/Hardware 116 15154 Screws Valve Bracket (10/ pkg) 1 pkg
4 18737 ULTRAFOUNT Trough 117 12575 Red Valve 1/2" pkg 1 pkg
5 18753 Access Panel Hardware Pkg 1 pkg 18 13613 Float with Short Arm pkg 1 pkg
6 18718 Cover Latch Hardware Pkg 1 pkg NS 13830 Cable Htr 120V 48W (1/pkg) 1 pkg
7 11885 Disc Thermostat pkg 1 pkg NS 18751 ULTRAFOUNT Accessory pkg 1 pkg
8 18716 Classic Equine Hinge Bolt (2/pkg) 1 pkg NS 16523 Seal Foam 1/4"x3/4"x25' Roll 1
9 18719 Classic Equine Logo Pkg (2/pkg) 1 pkg NS 14866 Seal Foam 1/2"x3/4"x10' Roll 1
10 18628 Drain Plug (2/pkg) 1 pkg
11 14150 Heater 120V 125W (1/pkg) 2 pkgs
12 18075 Drain Washer (6/pkg)
13 11472 Drain Pipe with Elbow 1 pkg
6
8
11
7
10
5
13
12
3
4
2
1
9
14
15
17
18
16
ULTRA-Fount Instruction Manual
8
August 13, 2022

RITCHIE INDUSTRIES, INC.
LIMITED WARRANTY
Ritchie Industries, Inc., hereinafter referred to as Ritchie Industries, gives a LIMITED WARRANTY
for the period of time(s) stated herein, subject to certain limitations, on your new watering system
against defects in material or workmanship when properly installed, set up, operated, and maintained
in accordance with the instructions and recommendations set forth by Ritchie Industries, including in
the Installation Instructions. The warranty excludes labor and shipping charges.
The warranty is transferable to the next purchaser of the watering system prior to expiration of the
warranty period, but any such transfer will not extend the original warranty term. Proof of purchase must be submitted with
any warranty claim, and all warranty claims shall be processed through an Authorized Ritchie Dealer or Distributor.
Ritchie Industries’ liability for any defects in material or workmanship with respect to accepted goods shall be limited to
repairing the goods or replacing them as Ritchie Industries shall elect. Parts used in warranty repairs will be warranted for the
balance of the water system’s warranty period, with all parts replaced under warranty becoming the property of Ritchie
Industries.
The limited warranty periods begin upon delivery ofthe watering system to the original purchaser. Upon delivery of the goods,
purchaser assumes all liability, including but not limited for all personal injury and property damage, resulting from the
handling, possession, or use of the goods.
WARRANTY COVERAGE AND LIMITATIONS
Limitations of Warranties and Remedies
Ritchie Industries’ watering systems are designed and manufactured to provide years of reliable use when installed and operated
consistent with Ritchie Industries’ instructions and recommendations. However, the potential for improper installation,
modifications and misuse of the goods exists. Therefore, the limited warranty provided shall be as follows:
This limited warranty shall not apply to any appearance items and shall not apply to any product which has been subject to
misuse, abuse, abnormal service or handling, negligence, or accident, nor to any product that is installed and/or used contrary
to Ritchie Industries’ installation instructions and instructions for use. The limited warranty shall also not apply to any product
whose exterior has been damaged or otherwise defaced, that has been repaired, altered, or modified by anyone, other than
Ritchie Industries, in a way so as in Ritchie Industries’ judgment it adversely affects the product’s operation, performance,
durability, or intended use, nor to any product where removal of parts, modification(s) or use of parts or accessories not
manufactured or approved by Ritchie Industries has caused damage.
Coverage and Warranty Periods
Unit Type Coverage and Warranty Period
Poly Units Base, top, and ball closures. Ten-year limited warranty: 100% for first five years,
then declining 20% per year for remainder of the 10-year period.
Stainless Steel Units Stainless trough and stainless valve chamber frame. Ten-year limited warranty,
plus ten years of corrosion coverage, at 100% for entire 10-year period.
Component Parts One-year limited warranty on all component parts, such as floats, valves, and
heating elements.
Exclusions of Liability
EXCEPT AS OTHERWISE EXPRESSLY STATED HEREIN, RITCHIE INDUSTRIES MAKES NO OTHER WARRANTY OR REPRESENTATION OF
ANY KIND, EXPRESSED OR IMPLIED. THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE EXCLUDED FROM THIS LIMITED WARRANTY. TO THE EXTENT THEY CANNOT BE DISCLAIMED, THE IMPLIED
WARRANTIES ARE LIMITED IN DURATION TO THE LIFE OF THE EXPRESS WARRANTY. THIS LIMITED WARRANTY EXCLUDES
INCIDENTAL, CONSEQUENTIAL, AND SPECIAL DAMAGES. THIS EXCLUSION OF CONSEQUENTIAL, INCIDENTAL, AND SPECIAL
DAMAGES IS INDEPENDENT FROM AND SHALL SURVIVE ANY FINDING THAT THE EXCLUSIVE REMEDY FAILED OF ITS
ESSENTIAL PURPOSE. THE REMEDIES SET FORTH IN THIS LIMITED WARRANTY ARE THE ONLY REMEDIES AVAILABLE TO ANY
PERSON UNDER THIS WARRANTY. SOME STATES/PROVINCES DO NOT ALLOW FOR THE DISCLAIMERS, LIMITATIONS, AND
EXCLUSIONS IDENTIFIED ABOVE AND, AS A RESULT, THEY MAY NOT APPLY TO YOU.
No agent, employee or representative of Ritchie Industries, and no Ritchie Industries Dealer/Distributor, is authorized to bind Ritchie Industries to any
representation or warranty regarding the goods except as specifically included in this limited warranty.
ULTRA-Fount Instruction Manual
9
August 13, 2022

This page intentionally left blank
ULTRA-Fount Instruction Manual
10
August 13, 2022

Part #24076
August 13, 2022
