Ritron LoudMouth RIT-LM-600Analog User manual

User Manual
LM-600Analog
Wireless PA Receiver System
- 1 Channel, Dual Band Receiver, VHF/UHF,
Configurable Supports:
VHF and UHF Business Band
VHF MURS USA
VHF and UHF Business Band CANADA
UHF GMRS CANADA
- NOAA Weather Radio Alert
- Relay Trigger Feature for Optional Strobe Light
- Delay Message Playback Feature
- Repeat Message Playback Feature
- Switch Input w/ pre-recorded message
Ritron Pub. 14500097 Rev. D 01/20
© 2019 Ritron, Inc. All rights reserved. Loudmouth, Ritron, Patriot, Jobcom, OutPost, GateGuard, Quiet Call and
Quick Assist are registered trademarks of Ritron, Inc. Quick Talk, Liberty and RadioNexus are trademarks of Ritron,
Inc.
Call 800-872-1872
For the right Wireless for your communication needs.
P.O. Box 1998 ·Carmel, Indiana 46082-1998 · 317-846-1201 · Fax: [phone] · Email: [e-mail] · www.ritron.com
Strobe light
(pn R-STROBE-DC) and
relay cable assembly
(pn 60201136) are optional
accessories, not included as
standard.

Table of Contents
1Getting Started
1.1 Loudmouth®receiver and PA speaker equipment......................................................................................................1
1.2 Loudmouth®receiver assembly..................................................................................................................................2
1.3 Paging the Loudmouth®receiver and PA speaker......................................................................................................3
1.4 Compatibility with other RITRON model radios ..........................................................................................................4
1.5 Determine the volume setting.....................................................................................................................................5
1.6Operating Conditions and Limitations.........................................................................................................................6
2Installation

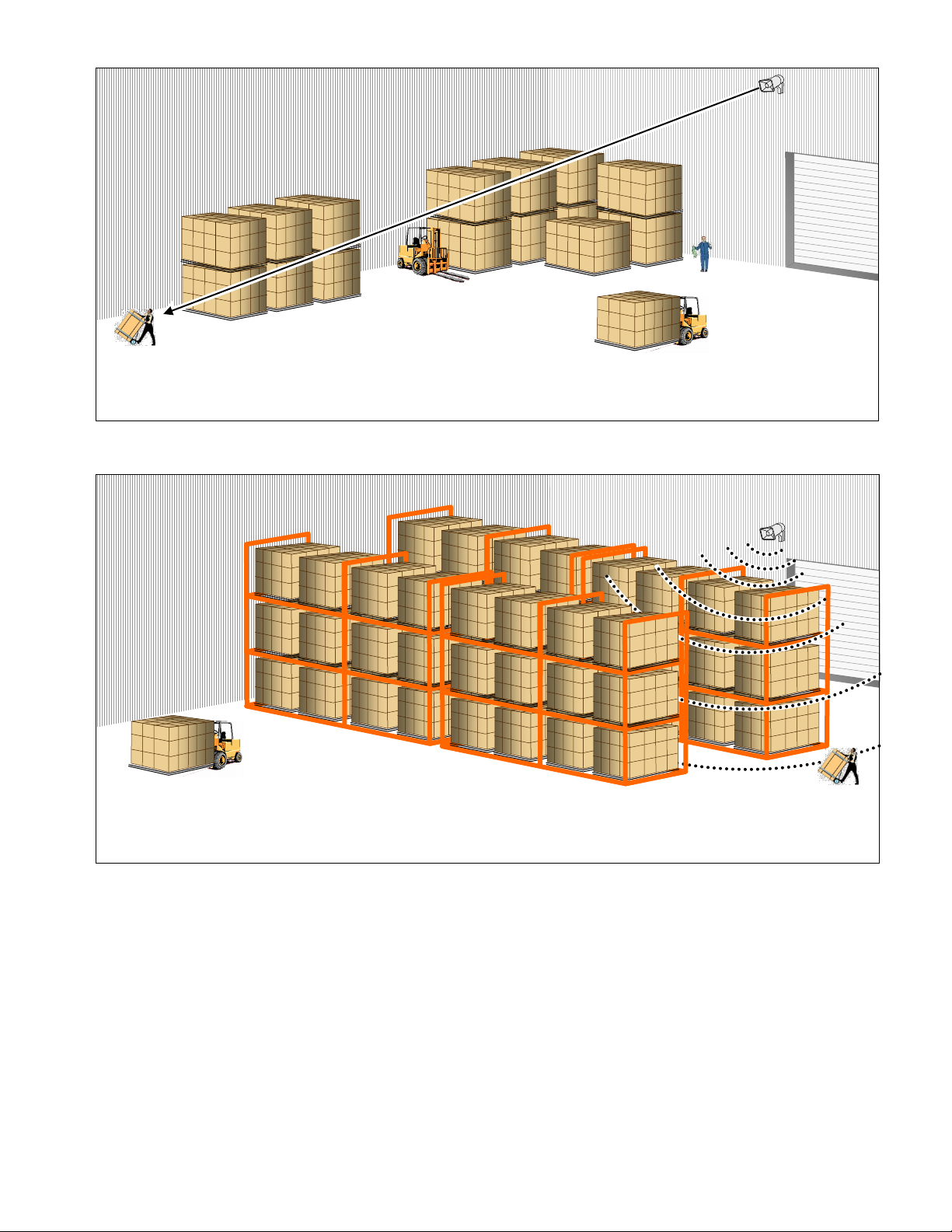

2.1 Selecting the PA speaker location..............................................................................................................................7
2.2 PA speaker installation...............................................................................................................................................9
2.3 Loudmouth®radio receiver installation.....................................................................................................................10
2.4 Installing two PA speakers with a single Loudmouth®receiver.................................................................................11
2.5 Installing multiple Loudmouth®receivers and PA speakers......................................................................................12
2.6 Vehicular installation.................................................................................................................................................13
2.7 Temporary outdoor installation.................................................................................................................................13

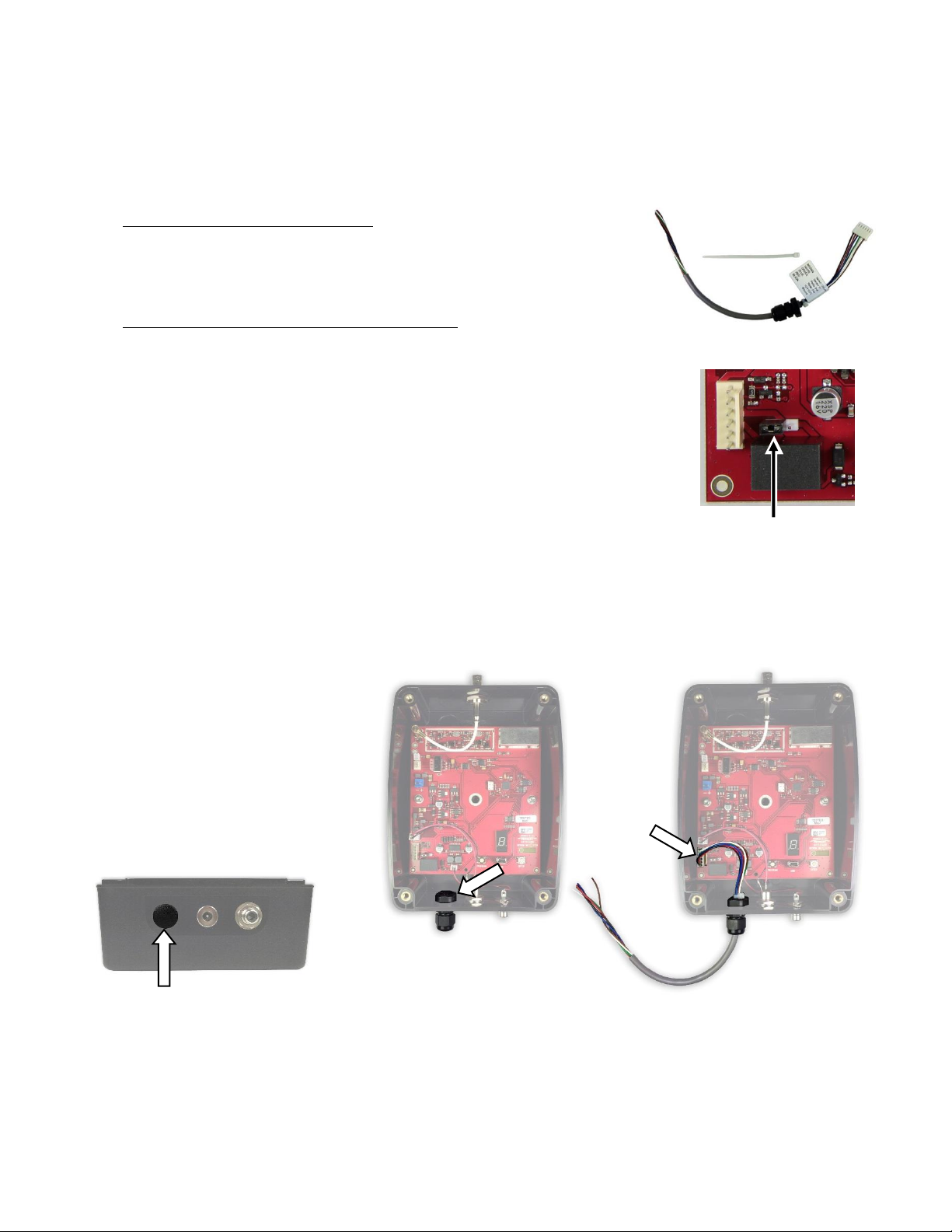

2.8Installation of Optional Interface Cable Assembly 60201136 ...................................................................................14
3Programming
3.1 PC Programming Software LM-PCPS......................................................................................................................15

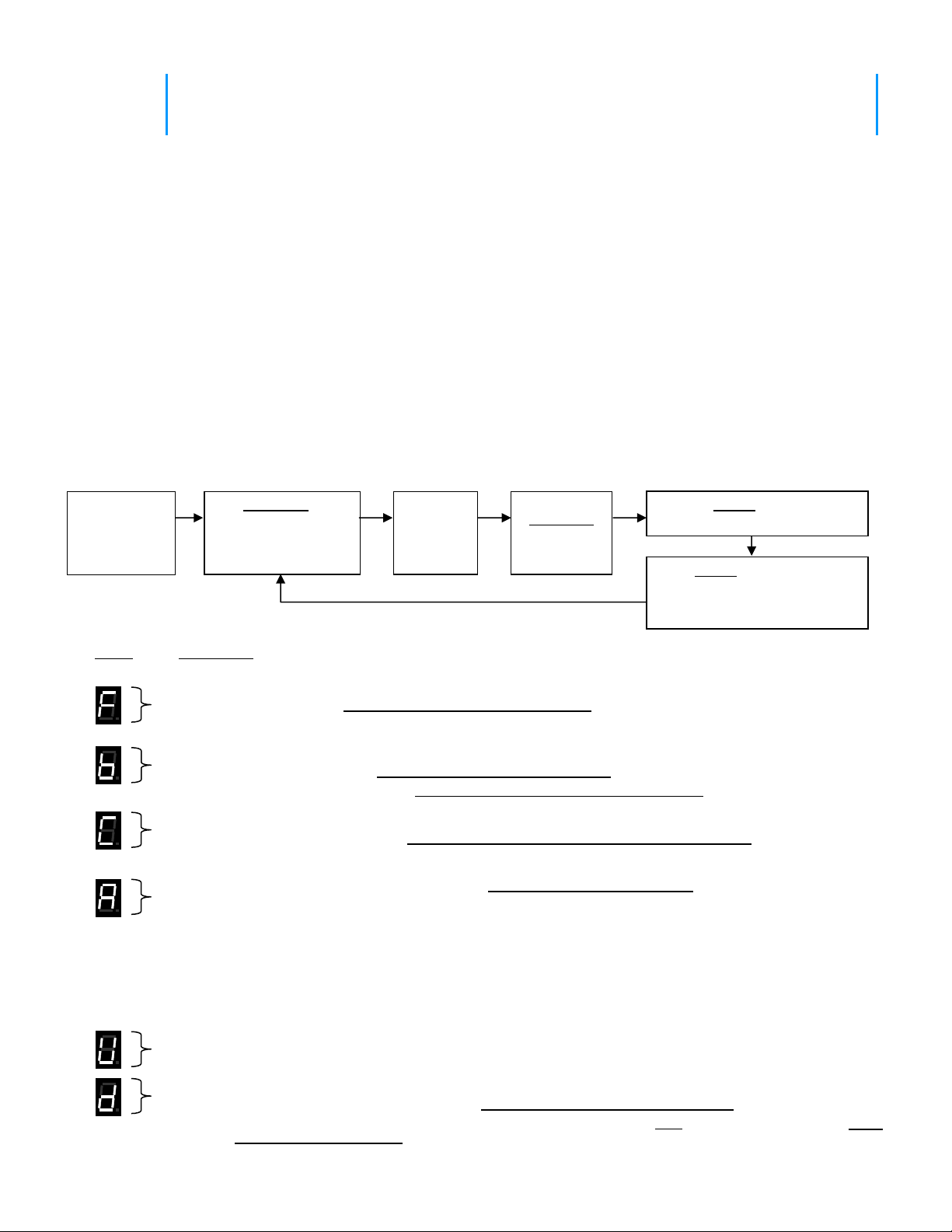

3.2Loudmouth®Field Programming Overview...............................................................................................................15

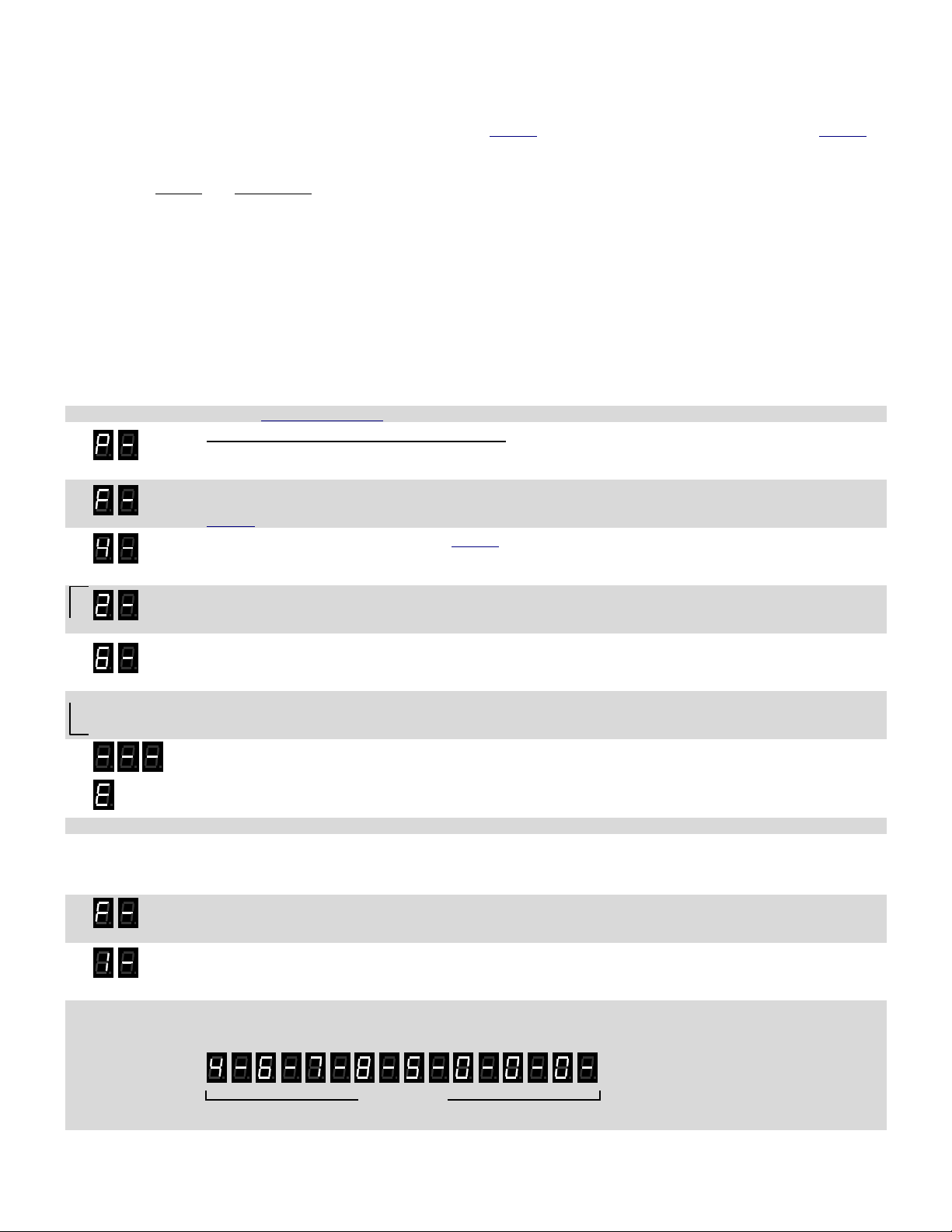

3.3Readout and Field Program Frequency Codes ........................................................................................................16
Table F: Programmable Frequency Codes .......................................................................................................18
3.4Readout and Field Program QC or DQC Tone Codes..............................................................................................19
Table b: Interference Eliminator Programmable QC Tone Codes.....................................................................20
Table b: Digital Interference Eliminator Programmable DQC Tone Codes .......................................................20
Table C: Programmable 2-Tone, DTMF and Selcall Codes...............................................................................20
3.5Readout and Field Program 2-Tone, DTMF or Selcall Decode Operation................................................................21
3.6Field Program Advanced Feature Codes .................................................................................................................22
Table A: Advanced Feature Codes ...................................................................................................................22
3.7Readout and Field Program Loudmouth®Speaker Volume .....................................................................................24
3.8Readout and Field Program the NOAA Weather Frequency....................................................................................25
Table d: NOAA Weather Frequency Codes......................................................................................................25
3.9Field Programming Flow Chart.................................................................................................................................26
4Operation
4.1 Basic Operation........................................................................................................................................................27
4.2 DTMF and Selcall Paging.........................................................................................................................................27
4.3 2-Tone Paging..........................................................................................................................................................28
4.4 Record and Play (20 seconds of record time MAXIMUM) ........................................................................................28
4.5 Weather Alert............................................................................................................................................................29

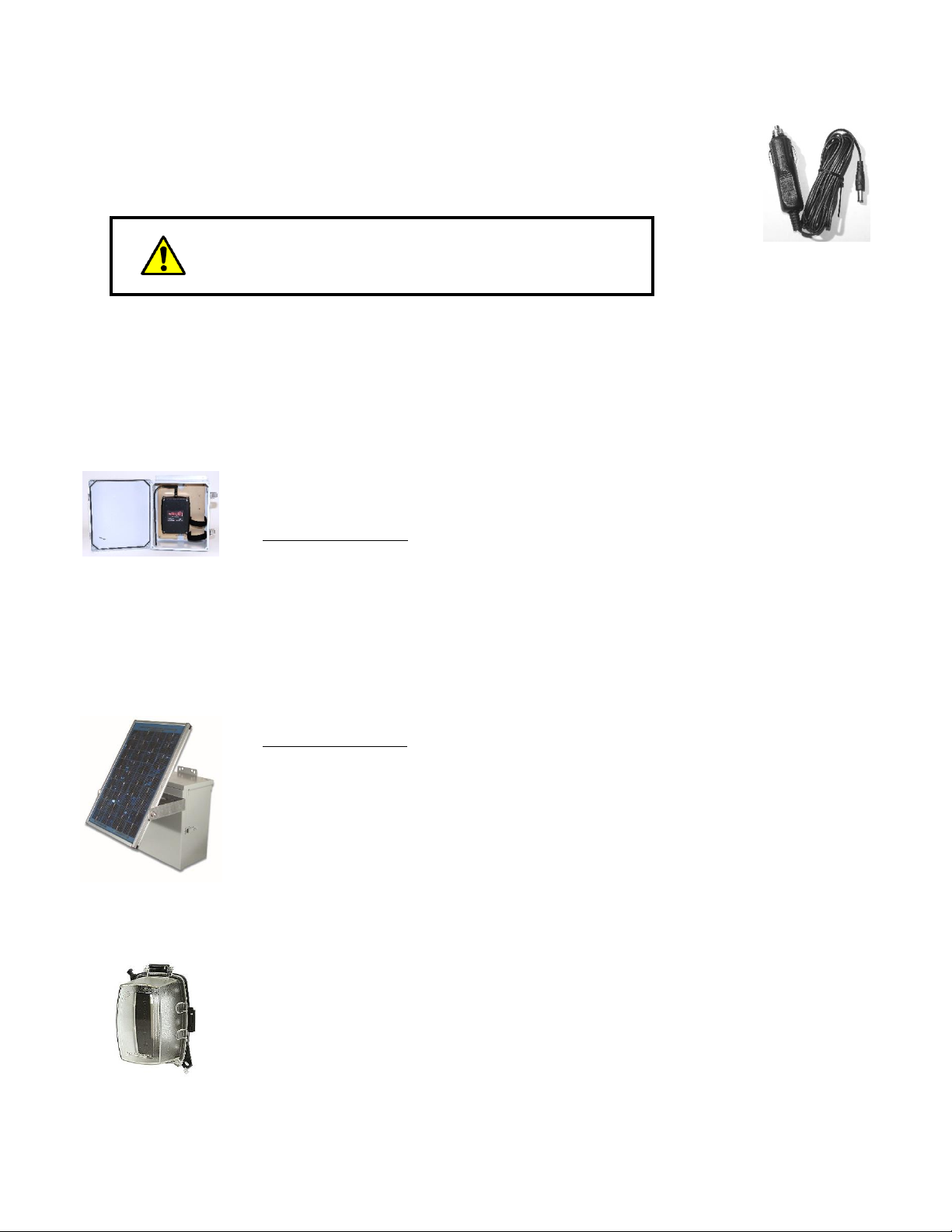

4.6 Battery Powered Operation ......................................................................................................................................29
4.7 Loudmouth®Options ................................................................................................................................................30
4.8 How to Minimize Feedback.......................................................................................................................................30
4.9Switch Input Operation.............................................................................................................................................31
4.10 Relay Operation........................................................................................................................................................32
Radio Operation Timeline .....................................................................................................................................32
Strobe Light Operation..........................................................................................................................................32
Connecting the Relay Switch to a Strobe Light.....................................................................................................33
5Specifications
5.1 Audio Output.............................................................................................................................................................34
5.2 Power Requirements................................................................................................................................................35
5.3 Loudmouth®Speaker ...............................................................................................................................................35
5.4 RPS-1B Power Cube................................................................................................................................................35
5.5 Loudmouth®Receiver...............................................................................................................................................36
6Warranty.......................................................................................................................................................................37

Section 1 Getting Started 1
1 Getting Started
The Loudmouth®is a radio receiver that allows you to use your portable, base station or
mobile 2-way radio to deliver voice messages directly to a PA speaker up to 2 miles away.
The receiver and PA speaker is the ideal solution where hard-wired PA installation is simply
impossible, too expensive, or temporary.
Your Loudmouth®receiver and PA speaker has been designed so that you can set it up
quickly and start using it right away.

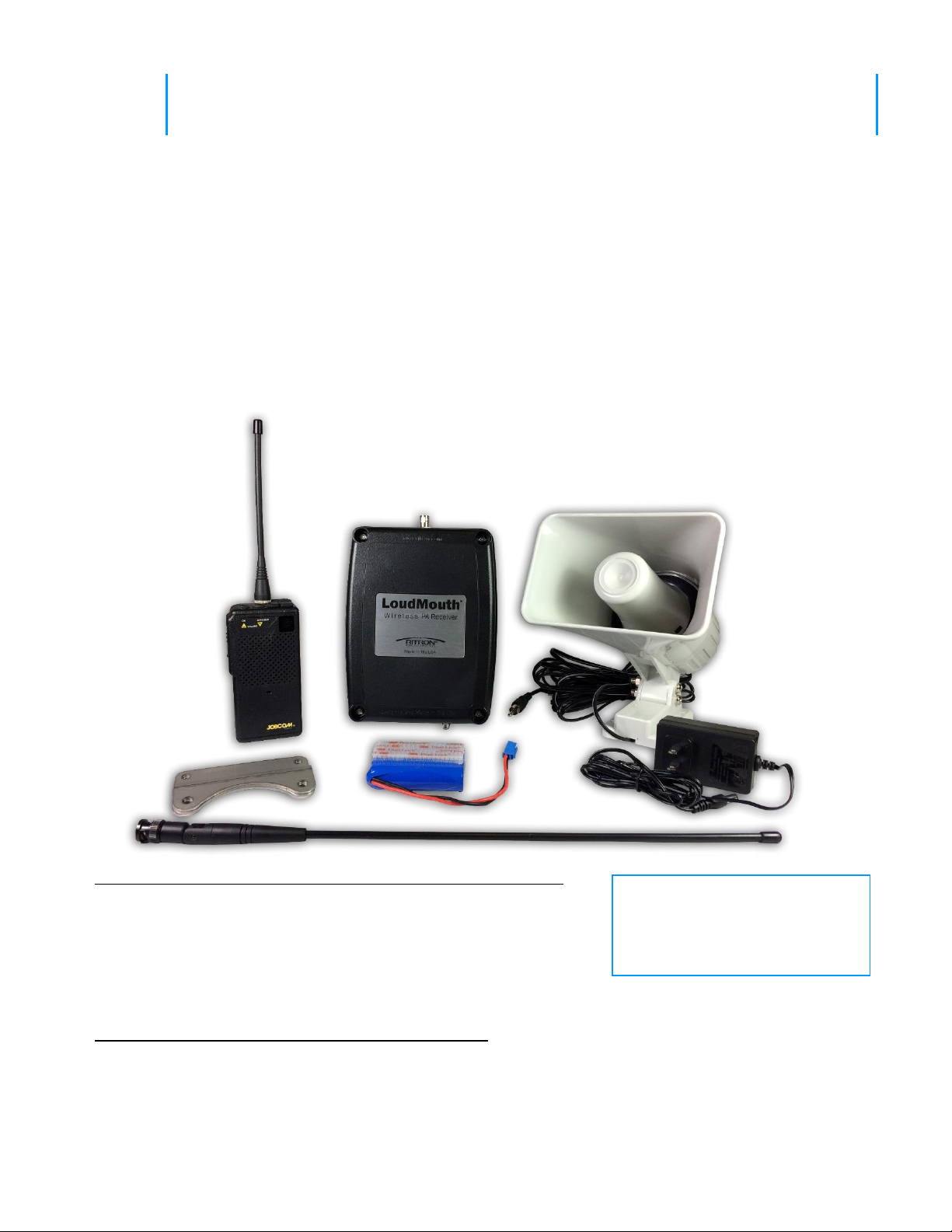

1.1 Loudmouth®receiver and PA speaker equipment
Check to be sure you received all the equipment necessary to install the Loudmouth®receiver and PA horn speaker.
List of items included with your Loudmouth®receiver and PA speaker:
LM-600Analog..................Loudmouth®Radio Receiver with 5W audio amplifier
05500040 ..........................Horn Speaker with RCA phono plug and 25 ft. cable
RPS-1B.............................Power Cube, 1.5A with 2.1mm coaxial DC connector
AFB-1545..........................Dual-Band Antenna with BNC connector
RK-RQX-Q-MB .................Mounting Brackets
25107400 ..........................T-25 Torx Security Bit
Optional Items you can use with your Loudmouth®receiver
RYCONN...........................“Y” Adapter Connect, Allows 2 PA Speakers (#05500040) to be attached to 1 LM Receiver
BP-LM-Li22.......................Backup Battery, Rechargeable, 11.1V Li-Ion, 2200mAH
* Ritron portable JMX-446D is also included when ordering the LM-U450SYSTEM, and the JMX-144D portable is included
when ordering the LM-V150SYSTEM.
* Portable Radio
(Optional)
Loudmouth®Receiver
Antenna
Power Cube
Horn Speaker
Mounting
Brackets
Backup
Battery
(Optional)
Need replacement items?
Contact your Ritron dealer, or
Ritron directly at
800-872-1872

Section 1 Getting Started 2

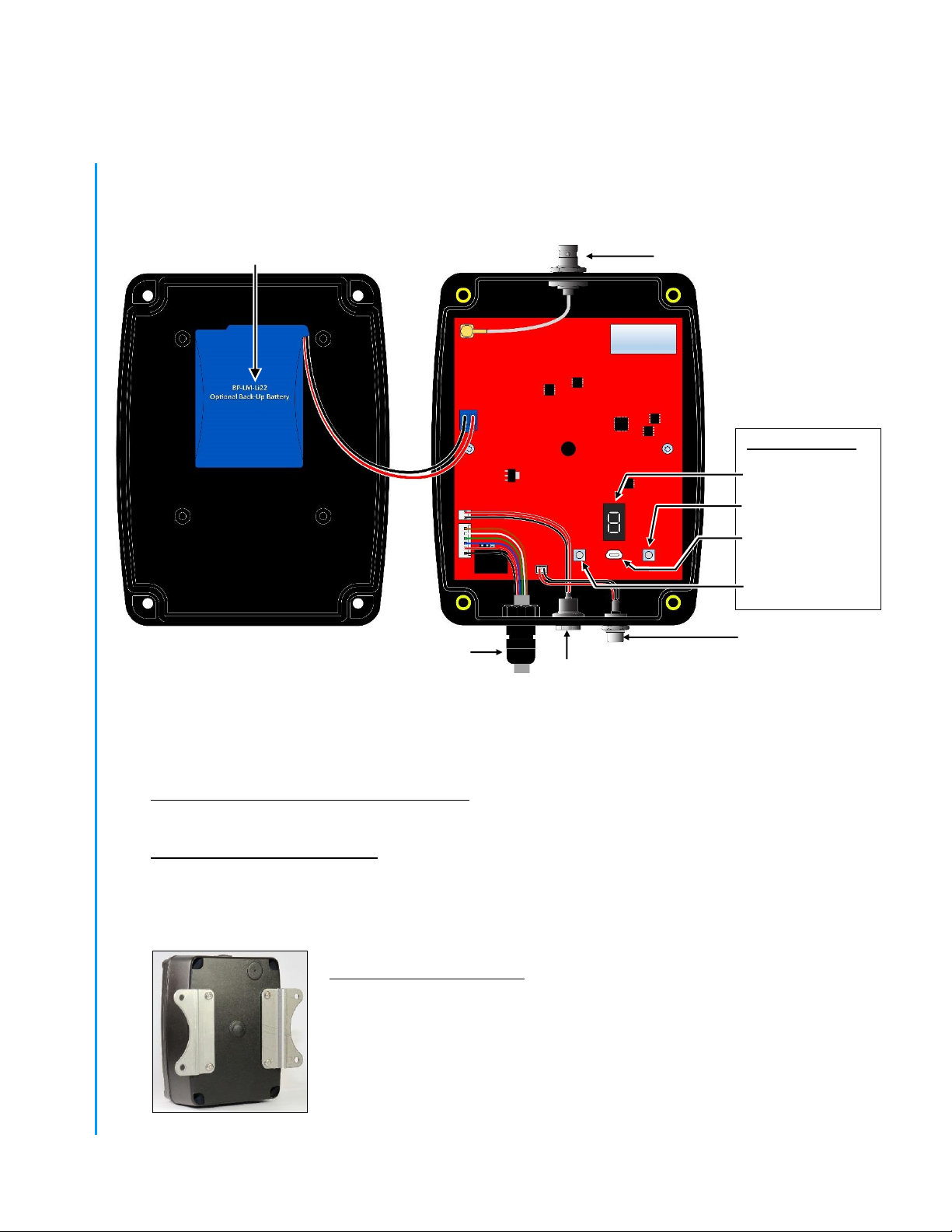

1.2 Loudmouth®receiver assembly
The Loudmouth®receiver and PA speaker is on any time power is applied to the receiver.
The Loudmouth® receiver must be opened to connect an optional BP-LM-Li22 battery
or to program the Loudmouth®.
1. Loosen the 4 screws in the front corners of the case using the T-25 Torx security bit included with the radio. These
screws are retained to the housing with rubber O-rings, DO NOT remove the screws from the housing.
2. Separate the case front from the case back.
3. Connect an optional BP-LM-Li22 backup battery to the Loudmouth®receiver using the blue mating connectors
shown above. The BP-LM-Li22 is secured to the case front with interlocking mushroom-head fastener strips. Press
firmly on the battery to interlock the strips, snapping it into position as shown.
4. Program the Loudmouth® receiver per the instructions in the Programming section of this manual, leaving the RPS-
1B power supply or BP-LM-Li22 backup battery connected to the radio. Press the Enter button twice before re-
assembling the case to be sure the Loudmouth®is reset and ready for operation.
5. Carefully position the case front onto the case back. Secure the case halves by tightening the 4 screws in the front
corners of the case.
BNC Antenna Connector
for AFB-1545
BP-LM-Li22
Optional Backup Battery
PROGRAMMING
Program Display
Enter Button
USB Program
Cable Connector
Program Button
DC Power Connector
for RPS-1B
RCA Phono Jack for
Speaker Connection
Optional 60201136 Interface
Cable with strain relief
Install the Mounting Brackets
Install the RK-RQX-Q-MB mounting brackets included with the product to the
Loudmouth®case back. Installation can be with the brackets on each side as
shown, or with the brackets top and bottom.

Section 1 Getting Started 3
1.3 Paging the Loudmouth®receiver and PA speaker
The Loudmouth®receiver and PA speaker can be paged with 2-way radios programmed for Quiet Call (CTCSS), Digital Quiet
Call (DCS), 2-Tone Paging, DTMF, or Selcall paging formats. Each format offers a unique method of paging the Loudmouth®
receiver and PA speaker.
Refer to the Programming section of this manual for specific instructions on programming your Loudmouth®receiver and PA
speaker to one of these selective signaling formats.
Ritron strongly recommends operation of the Loudmouth®receiver and PA speaker
with one of the following selective signaling formats enabled.
Paging the Loudmouth®with Quiet Call (CTCSS) only:
To page the loudspeaker a user simply presses the 2-way radio’s PTT and speaks while on the Loudmouth®
channel.
Your 2-way radio must be programmed for a channel dedicated to Loudmouth® operation. Only those radios
programmed with the Loudmouth® channel will be able to access the loudspeaker.
The 2-way radio’s Loudmouth® channel and the Loudmouth® receiver must be programmed for the same QC code.
All Ritron radios offer 50 different field-programmable QC codes from which to choose.
Paging the Loudmouth®with Digital Quiet Call (DCS) only:
To page the loudspeaker a user simply presses the 2-way radio’s PTT and speaks while on the Loudmouth®
channel.
Your 2-way radio must be programmed for a channel dedicated to Loudmouth® operation. Only those radios
programmed with the Loudmouth® channel will be able to access the loudspeaker.
The 2-way radio’s Loudmouth® channel and the Loudmouth® receiver must be programmed for the same DQC code.
All Ritron radios offer 104 different field-programmable DQC codes from which to choose.
Paging the Loudmouth®with 2-Tone Paging:
To page the Loudmouth® the 2-way radio must first send the correct 2-Tone Paging code. Once access to the
loudspeaker is accomplished, the user simply presses the 2-way radio’s PTT and speaks while on the Loudmouth®
channel. After a period of inactivity the Loudmouth® is automatically reset, and will then require the correct 2-Tone
Paging code to re-gain access.
Only 2-way radios programmed to send the correct 2-Tone code on the Loudmouth®channel can access the
Loudmouth®wireless PA speaker. However, once access is gained, any 2-way radio that operates on the
Loudmouth®channel can access the loudspeaker up until the time that the Loudmouth®has automatically reset.
Can be used in conjunction with QC or DQC for added security. The 2-way radio and the Loudmouth® receiver must
be programmed for the same QC or DQC code.
Paging the Loudmouth®with DTMF or Selcall:
To page the Loudmouth® the 2-way radio must first send the correct 3-7 digit DTMF or Selcall code. Once access to
the loudspeaker is accomplished, the user simply presses the 2-way radio’s PTT and speaks while on the
Loudmouth® channel. After a period of inactivity the Loudmouth® is automatically reset, and will require the DTMF or
Selcall code to re-gain access.
Only 2-way radios programmed to send the correct 3-7 digit DTMF or Selcall code on the Loudmouth®channel can
access the Loudmouth®wireless PA speaker.
Can be used in conjunction with QC or DQC for added security. The 2-way radio and the Loudmouth® receiver must
be programmed for the same QC or DQC code.

Section 1 Getting Started 4
Ritron recommends the use of a dedicated channel frequency for Loudmouth®
operation.
When operating on unique frequencies dedicated to loudspeaker operation:
Your 2-way radios must be programmed for a channel dedicated to loudspeaker operation.
Loudspeaker operation is limited to radios programmed with the dedicated Loudmouth®channel.
The use of 2-tone, DTMF, or Selcall paging to address the Loudmouth®is not required, but can still be used if
additional access security is desired.
Without 2-tone, DTMF, or Selcall paging the loudspeaker can be addressed by simply selecting the Loudmouth®
channel on your 2-way radio and pressing the PTT button to talk.
You may need to license additional frequencies for your 2-way radios (not necessary when programmed for MURS
frequencies, see Table F in the Programming section).
When operating on your normal 2-way communication frequencies:
Messages broadcast on the Loudmouth®are also heard on your 2-way radios.
Loudspeaker messages are not possible when the channel is being used for 2-way communications.
The use of 2-tone, DTMF, or Selcall paging is required to address the Loudmouth®, otherwise all 2-way
communication is heard on the loudspeaker.
Any user on your 2-way channel can broadcast over the loudspeaker once it is activated, even if their 2-way radio is
not programmed with the correct 2-tone, DTMF or Selcall paging code.
There is no need to license additional frequencies.
1.4 Compatibility with other RITRON model radios
The Loudmouth®model LM-600Analog receiver and PA speaker can operate on both VHF and UHF business band
frequencies. Loudmouth®can be accessed with radios programmed for Quiet Call (CTCSS), Digital Quiet Call (DCS), 2-Tone
Paging, DTMF, or Selcall paging formats. The following chart can be used to determine compatibility with existing Ritron
radios.
VHF models UHF models
Model
Type
QC
DQC
2-Tone
Selcall
DTMF
Model
Type
QC
DQC
2-Tone
Selcall
DTMF
JMX-141D
Portable

JMX-441D
Portable

JMX-144D
Portable



JMX-444D
Portable



JMX-146D
Portable

JMX-446D
Portable



JBS-146D
Base



JBS-446D
Base



JBS-147D
Base





JBS-447D
Base





JBS-147M
Base





* JV-110
Portable



* JU-410
Portable



RPM-160
Mobile




RPM-460
Mobile




RQX-111
Callbox




RQX-411
Callbox




RQX-117
Callbox




RQX-417
Callbox




RQX-151
Callbox


RQX-451
Callbox


RQX-156
Callbox



RQX-456
Callbox



RQX-157
Callbox



RQX-457
Callbox



RQX-127-XT
Callbox




RQX-427-XT
Callbox




RQX-127M-XT
Callbox




PT-150
Portable





PT-450
Portable





PT-150M
Portable




PT-450-S
Portable





NT-174
Portable





NT-470
Portable





** NT-174M
Portable





*2-Tone paging available with Rev 6.0 or greater Firmware Only. See label inside radio battery compartment for firmware
revision.
** Pending

Section 1 Getting Started 5
1.5 Determine the volume setting
Selecting the correct volume level is critical to the performance of the Loudmouth®receiver and PA speaker. Carefully consider
the following before deciding on the appropriate volume setting. Refer to the Programming section of this manual for specific
instructions on programming the Volume Level.
Ambient noise level should be considered first when selecting the volume level.
Increasing the volume level in an effort to cover a wider area will result in:
Undesirably high volume when near the speaker.
Low volume at the outer edges of the coverage area.
A calling radio must be a greater distance from the Loudmouth®speaker to prevent feedback. (Feedback is the
result of Loudmouth®speaker audio getting into the calling radio’s microphone.)
When coverage of a large area is required, additional Loudmouth®speakers may be necessary for satisfactory
performance. See the Installation section of this manual for details on how to install 2 speakers using a single Loudmouth®
receiver, or multiple receivers and speakers.
1. Refer to the horizontal shaded bars on the chart below to
determine the sound level that best represents your location. This
should be the ambient, or average sound level. We will consider
the maximum sound level when we locate the speaker.
2. Estimate the maximum distance (in feet) that the loudspeaker
must be heard. Locate that distance on the chart below and
follow it up to find the line that is in the middle of your shaded bar.
This line indicates the optimum Loudmouth®volume level setting.
Loudmouth®Volume
Setting
Rock Music
Concert
Subway Train
Industrial Factory
Warehouse
Busy Restaurant
Large Office
Hospital
Doctors Office
0 10 20 30 40 50 60 70 80 90 100
Distance (Feet)
120
110
100
90
80
70
60
50
40
SPL
(dB)
10%
25%
50%
75%
100%
EXAMPLE: In the Ritron factory we need to
cover a maximum distance of 50 feet on the
factory floor with an ambient sound level similar
to a warehouse. I find the vertical line at the
bottom of the chart indicating 50 feet, and follow
it up to the shaded bar indicating Warehouse.
The 50% and 75% lines are in the middle of the
Warehouse bar, indicating a required
Loudmouth®volume setting between 50 - 75%.

Section 1 Getting Started 6
1.6 Operating Conditions and Limitations
FCC Part 15
The Ritron Model LM-600Analog receiver has been tested according to FCC requirements, and found compliant with FCC
Part 15 Subpart B Unintentional Radiator. Changes or modifications not expressly approved by Ritron, Inc. could void the
user's authority to operate the equipment.
Supplier's Declaration of Conformity
47 CFR § 2.1077 Compliance Information
Unique Identifier: Ritron Model LM-600Analog
Responsible Party –U.S. Manufacturer
Ritron, Inc.
505 W. Carmel Dr.
Carmel, IN 46032
[phone]
www.ritron.com
FCC Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
CAN RSS-Gen/CNR-Gen
Ritron model LM-600Analog is stand-alone receiver that operates in the bands 150-174MHz and 450-470MHz. The LM-
600Analog complies with the limits for receiver–spurious emissions and AC power-line emissions set out in RSS-GEN
section 7, therefore equipment certification is not required. Each unit shall bear the label “CAN RSS-Gen/CNR-Gen”.
This device contains a license-exempt receiver that complies with Innovation, Science and Economic Development
Canada’s license-exempt RSS(s). Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the
device.
2013 FCC Narrowband Mandate
On January 1, 2013, pursuant to the FCC Narrowband mandate, you will no longer be allowed to operate wideband
transmitters (25 kHz) in the frequency bands from 150 MHz to 512 MHz.
Ritron will begin manufacturing narrowband compatible Loudmouth®starting in December 2012. At that time, customer
orders will begin to be filled with radios manufactured for FCC narrowband compatibility. Specifically, table frequencies will
be converted to narrowband. Since Part 15 receivers are not subject to the narrowband mandate, you will still be able to
set the Loudmouth®for wideband operation via field programming (See Section 3.6 –Field Program Advanced Feature
Codes), or by using the PC Programmer. These radios will be clearly marked as “FCC Narrowband Compatible”.
For a complete list of all Ritron radios capable of narrowband operation; a Ritron FAQ on the subject, and various links on
the FCC website dealing with Narrowbanding go to:
www.ritron.com/narrowband
If you have any questions contact us at 1-800-872-1872.

Section 2 Installation 7
2 Installation
Proper installation of the Loudmouth®wireless PA speaker is critical to the performance and
overall satisfaction with your system. With careful consideration and planning Loudmouth®
can cover up to 7500 square feet with a single speaker, and can cover an even wider range
with multiple speakers and receivers. The actual coverage area is subject to factors such as
ambient noise level, obstructions and radio range. This section will help you plan an
installation that is best suited for your environment.
2.1 Selecting the PA speaker location
Speaker location is critical to the performance of the Loudmouth® receiver and PA speaker. Consider the following factors
before selecting a speaker location.
The speaker can be installed either indoors or outdoors.
Be sure there is a convenient source of 110VAC power for the RPS-1B power cube and that the radio receiver box can be
located inside, out of the elements. The speaker has a 25 ft. cable, if you need more a standard RCA phono cable
extension can be used (ie. Radio Shack Catalog #: 4202362).
The speaker should not be in an area where the 2-way radio user addressing the speaker will typically be located. If the
radio user is too close to the Loudmouth®speaker, feedback can occur due to loudspeaker audio getting into the radio
microphone. This is a problem related to the 2-way radio, not the Loudmouth®speaker. The use of the Record & Play
feature will eliminate this problem.
The speaker must be located at least 10 feet above head level.
At near range the Loudmouth®speaker is capable of sound levels that can cause permanent
hearing loss and should never be installed in a location where a person could be directly in
front of the speaker.
Install the Loudmouth® speaker close to the noisiest area you plan to cover.
If there is an area with a significantly higher ambient noise level, the Loudmouth® speaker should
be located as close as possible to this area. The speaker volume must be 6 db higher than the
ambient noise level in order to be heard. If the speaker is not close to the highest source of noise,
the volume level will be too loud for the quieter areas.

Section 2 Installation 8
The Loudmouth®speaker should be mounted as high as practical and pointed toward
the farthest location you need to cover.
Large obstructions will significantly reduce the coverage area.
Do not place the speaker behind large, tall objects.
