Ritron Radio-To-Intercom Bridge RIB-600Analog User manual

User Manual
RIB-600Analog
Radio-To-Intercom Bridge
™
Wireless PA Receiver Interface System
The RIB-600Analog Radio-To-Intercom Bridge receiver is designed to
interface to an existing wired Public Address Intercom system and allow
PA or intercom announcements using your Analog two-way radio. Each
model can operate on VHF LMR business band, UHF LMR business band,
or VHF MURS 2-way radios, and can work through radio repeaters.
- 1 Channel, Dual Band Receiver, VHF/UHF, Configurable
Supports:
VHF and UHF Business Band
VHF MURS USA
VHF and UHF Business Band CANADA
UHF GMRS CANADA
- NOAA Weather Radio Alert
- Relay Trigger Feature for Optional Strobe Light
- Delay Message Playback Feature
- Repeat Message Playback Feature
- Switch Input w/ pre-recorded message
- Provides interconnection to the Public Address
amplifier through a high impedance, unbalanced
AUX input OR a 600Ω, balanced MIC input.
Ritron Pub. 14500098 Rev. B06/19
© 2019 Ritron, Inc. All rights reserved. Loudmouth, Ritron, Patriot, Jobcom, OutPost, GateGuard, Quiet Call and
Quick Assist are registered trademarks of Ritron, Inc. Quick Talk, Liberty and RadioNexus are trademarks of Ritron,
Inc.
Call 800-USA-1-USA
505 W. Carmel Drive ·Carmel, Indiana 46032 · 800-872-1872 · Fax: [phone] · Email: [e-mail] · www.ritron.com

Table of Contents
1Getting Started
1.1Overview .....................................................................................................................................................................1
1.2RIB-600Analog receiver assembly .............................................................................................................................. 2
1.3Paging the RIB-600Analog receiver ............................................................................................................................ 3
1.4Compatibility with other RITRON model radios ........................................................................................................... 4
1.5Operating Conditions and Limitations..........................................................................................................................5
2Installation
2.1 Radio coverage site survey ......................................................................................................................................... 6
2.2RIB-600Analog radio receiver installation.................................................................................................................... 9
2.3RIB-600Analog AUX IN installation ........................................................................................................................... 10
2.4RIB-600Analog 600BALANCED installation .......................................................................................................... 11
2.5RIB-600Analog RELAY installation............................................................................................................................ 12
3Programming
3.1 PC Programming Software LM-PCPS....................................................................................................................... 13
3.2RIB-600Analog Field Programming Overview........................................................................................................... 13
3.3Readout and Field Program Frequency Codes ......................................................................................................... 14
Table F: Programmable Frequency Codes ........................................................................................................ 16
3.4Readout and Field Program QC or DQC Tone Codes............................................................................................... 17
Table b: Programmable QC Tone Table............................................................................................................ 18
Table b: Programmable Digital DQC Tone Table............................................................................................... 18
Table C: Programmable 2-Tone, DTMF and Selcall Codes................................................................................ 18
3.5Readout and Field Program 2-Tone, DTMF or Selcall Decode Operation................................................................. 19
3.6Field Program Advanced Feature Codes .................................................................................................................. 20
Table A: Advanced Feature Codes .................................................................................................................... 20
3.7Readout and Field Program RIB-600Analog Audio Level.......................................................................................... 22
Typical Audio Level Output.................................................................................................................................... 22
3.8Readout and Field Program the NOAA Weather Frequency..................................................................................... 23
Table d: NOAA Weather Frequency Codes....................................................................................................... 23
3.9Field Programming Flow Chart.................................................................................................................................. 24
4Operation
4.1 Basic Operation......................................................................................................................................................... 25
4.2 DTMF and Selcall Paging.......................................................................................................................................... 25
4.3 2-Tone Paging........................................................................................................................................................... 26
4.4 Record and Play (20 seconds of record time MAXIMUM) ......................................................................................... 26
4.5 Weather Alert............................................................................................................................................................. 27
4.6RIB-600Analog Options............................................................................................................................................. 28
4.7How to Minimize Feedback........................................................................................................................................ 28
4.8Switch Input Operation .............................................................................................................................................. 29
4.9Relay Operation......................................................................................................................................................... 30
Radio Operation Timeline..................................................................................................................................... 30
Strobe Light Operation......................................................................................................................................... 30
Connecting the Relay Switch to a Strobe Light.................................................................................................... 31
5Specifications
5.1 General...................................................................................................................................................................... 32
5.2RPS-1B Power Cube................................................................................................................................................. 32
5.3RIB-600Analog Receiver........................................................................................................................................... 33
6Warranty........................................................................................................................................................................ 34

Section 1 Getting Started 1
1 Getting Started
The RIB-600Analog receiver is designed for interface to an existing wired Public Address
Intercom system to allow PA announcements using VHF or UHF business band, FRS, or
MURS radios.
1.1 Overview
The RIB-600Analog receiver allows all the wired speakers in a PA/Intercom system to be immediately accessible via a 2-way
radio/base station/ etc. The RIB-600Analog receiver can be connected to an existing wired system. An LM-Series and RIB-
600Analog receiver system can be used side-by-side on the same frequency.

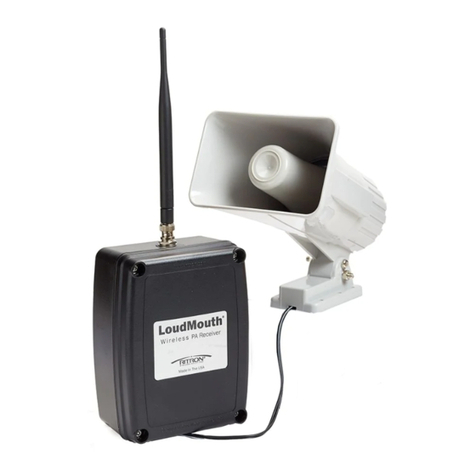

What is the difference between the LM-Series Loudmouth®receiver and the RIB-
600Analog receiver?
The LM-Series Loudmouth®has a built-in audio amplifier. The built-in audio amplifier allows the LM-Series receiver by
itself to drive up to 2 Ritron PA horn speakers. The LM-Series receiver and an included PA Horn speaker is what we
call a stand-alone wireless PA system.
The RIB-600Analog does not have a built-in PA amplifier. The RIB-600Analog receiver is designed to be connected to
an existing PA/intercom system with its own PA amplifier and wired speakers.
The RIB-600Analog Receiver does not include provisions for a back-up battery since it is merely a component of a
larger system usually powered by AC and its own battery back-up system.
Features and Benefits
The RIB-600Analog is designed to operate in both VHF (150-174 MHz) and UHF (450-470MHz) frequency bands.
Provides compatibility with business band 2-way radios, License-FREE VHF business band radios (MURS), Family
Radio Service and GMRS radios.
Provides interconnection to the Public Address amplifier through a high impedance, unbalanced AUX input OR a
600, balanced MIC input. Allows personnel to remain mobile while providing access via 2-way radio access to
existing PA speakers located throughout the facility.
“Record and Play” allows use of radios in close proximity to PA speakers without feedback. The RIB-600Analog
records/buffers received messages up to 20 seconds in length, then plays them over the PA immediately after
releasing the PTT button on the radio.
Provides a relay switch closure whenever the RIB-600Analog receives a valid incoming message. This can be used
to trigger or “key” the PA/Intercom amplifier.
Provides a Switch Input that will play a pre-recorded voice message when a change in the Switch Input is detected.
Programmable audio level control adjusts audio output level 5-99%. Allows custom adjustment for most applications.
Easy “Plug and Play” installation.
Selective signaling includes QC, DQC, DTMF, Selcall, 2-Tone to provide an added layer of access control to the PA
system.
Pre-announce tone (similar to existing PA systems) with programmable on/off and audio level.
NOAA Weather Alert.
Field or PC programmable to frequencies within the respective band (i.e. 150-174 MHz, 450-470 MHz).
The RIB-600Analog is for interface only to an existing PA system, it cannot drive a loudspeaker by itself.
The RIB-600Analog is for indoor use ONLY.

Section 1 Getting Started 2
1.2 RIB-600Analog receiver assembly
The RIB-600Analog receiver is on any time power is applied. The receiver case must be opened to program the RIB-
600Analog receiver.
1. Loosen the 4 screws in the front corners of the case using the T-25 Torx Security Bit included with the radio. These screws
are retained to the housing with rubber O-rings, DO NOT remove the screws from the housing.
2. Separate the case front from the case back.
3. Program the RIB-600Analog receiver per the instructions in the Programming section of this manual, leaving the RPS-1B
power supply connected to the radio. Press the Enter button twice before re-assembling the case to be sure the RIB-
600Analog receiver is reset and ready for operation.
4. Carefully position the case front onto the case back. Secure the case halves by tightening the 4 captive screws in the front
corners of the case.
PROGRAMMING
Program Button
Program Display
Enter Button
USB Program
Cable Connector
DC Power Connector
for RPS-1B
BNC Antenna Connector
for AFB-1545
Captive Case
Screws (4 corners)
9-Conductor Interface Cable
Orange 600Balance Audio
Gray 600Ground
Yellow 600Balance Audio
Brown Switch Input Ground
White Switch Input
Green Relay Out
Blue Relay Out
Red 10.5 VDC
Black Ground
AUX OUT
Phono Jack
Install the Mounting Brackets
Install the RK-RQX-Q-MB mounting brackets included with the product to the
RIB-600Analog case back. Installation can be with the brackets on each side
as shown, or with the brackets top and bottom.

Section 1 Getting Started 3
1.3 Paging the RIB-600Analog receiver and PA speaker
The RIB-600Analog receiver can be paged with 2-way radios programmed for Quiet Call (CTCSS), Digital Quiet Call (DCS), 2-
Tone Paging, DTMF, or Selcall paging formats. Each format offers a unique method of paging the RIB-600Analog receiver.
Refer to the Programming section of this manual for specific instructions on programming your RIB-600Analog to one of these
selective signaling formats.
Ritron strongly recommends operation of the RIB-600Analog receiver with one of the
following selective signaling formats enabled.
Paging the RIB-600Analog with Quiet Call (CTCSS) only:
To page the receiver a user simply presses the 2-way radio’s PTT and speaks while on the RIB-600Analogchannel.
Your 2-way radio must be programmed for a channel dedicated to RIB-600Analog operation. Only those radios
programmed with the RIB-600Analog channel will be able to access the receiver.
The 2-way radio’s RIB-600Analogchannel and the RIB-600Analogreceiver must be programmed for the same QC
code. All Ritron radios offer 50 different field-programmable QC codes from which to choose.
Paging the RIB-600Analog with Digital Quiet Call (DCS) only:
To page the receiver a user simply presses the 2-way radio’s PTT and speaks while on the RIB-600Analogchannel.
Your 2-way radio must be programmed for a channel dedicated to RIB-600Analog operation. Only those radios
programmed with the RIB-600Analog channel will be able to access the receiver.
The 2-way radio’s RIB-600Analog channel and the RIB-600Analog receiver must be programmed for the same DQC
code. All Ritron radios offer 104 different field-programmable DQC codes from which to choose.
Paging the RIB-600Analog with 2-Tone Paging:
To page the RIB-600Analogthe 2-way radio must first send the correct 2-Tone Paging code. Once access to the
receiver is accomplished, the user simply presses the 2-way radio’s PTT and speaks while on the RIB-600Analog
channel. After a period of inactivity the RIB-600Analogis automatically reset, and will then require the correct 2-
Tone Paging code to re-gain access.
Only 2-way radios programmed to send the correct 2-Tone code on the RIB-600Analog channel can access the
RIB-600Analog receiver. However, once access is gained, any 2-way radio that operates on the RIB-600Analog
channel can access the receiver up until the time that the RIB-600Analog has automatically reset.
Can be used in conjunction with QC or DQC for added security. The 2-way radio and the RIB-600Analog receiver
must be programmed for the same QC or DQC code.
Paging the RIB-600Analog with DTMF or Selcall:
To page the RIB-600Analog the 2-way radio must first send the correct 3-7 digit DTMF or Selcall code. Once
access to the receiver is accomplished, the user simply presses the 2-way radio’s PTT and speaks while on the
RIB-600Analog channel. After a period of inactivity the RIB-600Analogis automatically reset, and will require the
DTMF or Selcall code to re-gain access.
Only 2-way radios programmed to send the correct 3-7 digit DTMF or Selcall code on the RIB-600Analog channel
can access the RIB-600Analog receiver.
Can be used in conjunction with QC or DQC for added security. The 2-way radio and the RIB-600Analog receiver
must be programmed for the same QC or DQC code.

Section 1 Getting Started 4
Ritron recommends the use of a dedicated channel frequency for RIB-600Analog
operation.
When operating on unique frequencies dedicated to RIB-600Analog operation:
Your 2-way radios must be programmed for a channel dedicated to RIB-600Analog operation.
Receiver operation is limited to radios programmed with the dedicated RIB-600Analog channel.
The use of 2-tone, DTMF, or Selcall paging to address the RIB-600Analog is not required, but can still be used if
additional access security is desired.
Without 2-tone, DTMF, or Selcall paging the receiver can be addressed by simply selecting the RIB-600Analog
channel on your 2-way radio and pressing the PTT button to talk.
You may need to license additional frequencies for your 2-way radios (not necessary when programmed for MURS
frequencies, see Table F in the Programming section).
When operating on your normal 2-way communication frequencies:
Messages broadcast on the RIB-600Analog are also heard on your 2-way radios.
Receiver messages are not possible when the channel is being used for 2-way communications.
The use of 2-tone, DTMF, or Selcall paging is required to address the RIB-600Analog, otherwise all 2-way
communication is heard by the receiver.
Any user on your 2-way channel can broadcast through the receiver once it is activated, even if their 2-way radio is
not programmed with the correct 2-tone, DTMF or Selcall paging code.
There is no need to license additional frequencies.
1.4 Compatibility with other RITRON model radios
The Ritron model RIB-600Analog receiver can operate on both VHF and UHF business band frequencies. RIB-600Analog can
be accessed with radios programmed for Quiet Call (CTCSS), Digital Quiet Call (DCS), 2-Tone Paging, DTMF, or Selcall
paging formats. The following chart can be used to determine compatibility with existing Ritron radios.
VHF models UHF models
Model
Type
QC
DQC
2-Tone
Selcall
DTMF
Model
Type
QC
DQC
2-Tone
Selcall
DTMF
JMX-141D
Portable

JMX-441D
Portable

JMX-144D
Portable



JMX-444D
Portable



JMX-146D
Portable

JMX-446D
Portable



JBS-146D
Base



JBS-446D
Base



JBS-147D
Base





JBS-447D
Base





JBS-147M
Base





* JV-110
Portable



* JU-410
Portable



RPM-160
Mobile




RPM-460
Mobile




RQX-111
Callbox




RQX-411
Callbox




RQX-117
Callbox




RQX-417
Callbox




RQX-151
Callbox


RQX-451
Callbox


RQX-156
Callbox



RQX-456
Callbox



RQX-157
Callbox



RQX-457
Callbox



RQX-127-XT
Callbox




RQX-427-XT
Callbox




RQX-127M-XT
Callbox




PT-150
Portable





PT-450
Portable





PT-150M
Portable





PT-450-S
Portable





NT-174
Portable





NT-470
Portable





** NT-174M
Portable





*2-Tone paging available with Rev 6.0 or greater Firmware Only. See label inside radio battery compartment for firmware
revision.
** Pending

Section 1 Getting Started 5
1.5 Operating Conditions and Limitations
FCC Part 15
The Ritron Model RIB-600Analog receiver has been tested according to FCC requirements, and found compliant with FCC
Part 15 Subpart B Unintentional Radiator. Changes or modifications not expressly approved by Ritron, Inc. could void the
user's authority to operate the equipment.
Supplier's Declaration of Conformity
47 CFR § 2.1077 Compliance Information
Unique Identifier: Ritron Model RIB-600Analog
Responsible Party –U.S. Manufacturer
Ritron, Inc.
505 W. Carmel Dr.
Carmel, IN 46032
[phone]
www.ritron.com
FCC Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
CAN RSS-Gen/CNR-Gen
Ritron model RIB-600Analog is stand-alone receiver that operates in the bands 150-174MHz and 450-470MHz. The RIB-
600Analog complies with the limits for receiver–spurious emissions and AC power-line emissions set out in RSS-GEN
section 7, therefore equipment certification is not required. Each unit shall bear the label “CAN RSS-Gen/CNR-Gen”.
This device contains a license-exempt receiver that complies with Innovation, Science and Economic Development
Canada’s license-exempt RSS(s). Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the
device.
2013 FCC Narrowband Mandate
On January 1, 2013, pursuant to the FCC Narrowband mandate, you will no longer be allowed to operate wideband
transmitters (25 kHz) in the frequency bands from 150 MHz to 512 MHz.
Ritron began manufacturing narrowband compatible radios starting in December 2012. At that time, customer orders were
filled with radios manufactured for FCC narrowband compatibility. Specifically, table frequencies were converted to
narrowband. These radios will be clearly marked as “FCC Narrowband Compatible”.
Since Part 15 receivers are not subject to the narrowband mandate, you will still be able to set the RIB-600Analog for
wideband operation via field programming (See Section 3.6 –Field Program Advanced Feature Codes), or by using the PC
Programmer.
For a complete list of all Ritron radios capable of narrowband operation; a Ritron FAQ on the subject, and various links on
the FCC website dealing with Narrowbanding go to:
www.ritron.com/narrowband
If you have any questions contact us at 1-800-872-1872.

Section 2 Installation 6
2 Installation
Proper installation of the RIB-600Analog receiver is critical to the performance and overall
satisfaction with your system. With careful consideration and planning the RIB-600Analog
can receive a radio signal from up to a mile away and broadcast it over your wired PA system.
This section will help you plan an installation that is best suited for your environment.
2.1 Radio coverage site survey
Ritron recommends that you do a “radio coverage site survey” before permanently
installing the RIB-600Analog receiver.
This will require 2 people and 2 charged portable radios.
Every building is different, and therefore, no “single” rule applies when it comes to where to install the RIB-600Analog receiver
and antenna for optimal coverage. Ideally, you would like to install the RIB-600Analog receiver in close proximity to the wired
PA amplifier for easy installation. Begin your site survey by locating person #1 at the wired PA amplifier to see if a simple
installation is possible. If that is not possible, an alternative site must be found where:
1. AC power is available for the RIB-600Analog receiver.
2. A shielded, twisted pair cable can be routed from the RIB-600Analog receiver to the PA amplifier.
In general, the antenna of the RIB-600Analog receiver is the “pivot” point for all communication. We’re trying to optimize the
location of the antenna in order to reduce the obstructions and distance the radio signal must travel in order to get from any
point in the desired coverage area to the antenna connected to the RIB-600Analog receiver. By attempting to install the
ANTENNA for the RIB-600Analog receiver “in the center” of the desired coverage area, we reduce the distance the radio signal
must travel by ½. If you’re attempting to cover a high rise building (e.g. 15 floors), go to a location half way up (e.g. 7th floor),
and in the center of the building.
Preparing for the radio coverage site survey:
1. Charge the radio batteries for at least 12 hours.
2. When charged, make sure both radios are set to the same channel.
Note: If you do not intend to route RIB-600Analog communications through a repeater, the portable radios should be set to a
channel programmed for direct radio-to-radio communication, NOT through the repeater.
Radio range can be extended with the use of an external antenna.
The antenna can be installed at a higher elevation than is possible with the attached
antenna.
The Ritron RAM-1545 VHF/UHF magnet-mount antenna has a 25 ft. cable to
allow optimum antenna location.

Section 2 Installation 7
Conducting the radio coverage site survey:
1. Person #1 will take one portable radio and go to the location you would “most likely” install the antenna for the RIB-
600Analog receiver (see FIG-2). This person will “simulate” the type of coverage you can expect, IF, the antenna for the
RIB-600Analog receiver was installed in this location. If necessary, position this person on a ladder to more accurately
mimic the height you intend to mount the antenna.
BE ADVISED –you may have to try several heights and/or locations before settling on the best location.
2. While person #1 remains stationary, person #2 will take the second radio and “walk the site”. While “walking the site”
person #2 must attempt to maintain radio contact periodically with person #1. This survey process will reveal whether or
not radio coverage is acceptable IF you install the antenna at the person #1 location. Generally speaking, coverage will be
slightly better when the RIB-600Analog receiver and antenna are permanently installed.
3. If coverage is inadequate, Person #1 will need to relocate to a new location and repeat the process until range and
coverage are optimized.
Hints: Typically, the higher the antenna the better but, NOT always. Every site is different. Thick, reinforced concrete, steel
walls and vertical fire panels in ceilings can work to block the penetration of radio signals creating dead spots. You may
want to gradually lower the height of the antenna and/or its location and repeat your site survey to see if coverage
improves. It is best to change one variable at a time e.g. antenna height, location and then repeat the process.
4. For sites where coverage is desired in multiple buildings, such as an office complex, an external mounted antenna may be
required. Before considering an external installation of the antenna, a site survey should be attempted with person #1
positioned inside a centrally located building at the highest possible elevation (see FIG-3). Person #2 will “walk the site”,
communicating with person #1 from inside all buildings and at all outside areas where radio coverage is desired.
FIG-2: Conducting a radio site survey
Person #2 “walks the site”, stopping
frequently to communicate with person
#1 at the fixed, central location.
2
2
2
2
2
2
Person #1 remains at the
location you will install the
RIB-600Analog receiver,
possibly on a ladder to
simulate the location of an
external mounted
antenna.

Section 2 Installation 8
Person #1 remains in a
fixed location, probably
located on a floor about
½ way up the building.
Person #2 “walks the site”,
stopping frequently on each
floor to communicate with
person #1 at the fixed location.
2
2
2
2
2
2
Alternative
locations for
person #1
Alternative locations
for person #1
Person #1 remains in a fixed
location on the top floor of a
centrally located building.
FIG-3: Multiple building site survey
2
2
2
2
2
2
2
2
1
Person #2 “walks
the site”, talking
to person #1
from within each
building and from
the perimeter of
the outside
coverage area.
2
