Riverlea Duratuf KIWI KS2 User manual

Quality – Built In
ASSEMBLY INSTRUCTIONS
KS2
BASE SIZE 2545mm x 876mm

CHECK OUT OUR ASSEMBLY VIDEO
2
Let Keith and Justin show you how to build your
Kiwi shed like a professional.
When used in conjunction with these assembly instructions, Keith’s practical tips and tricks will
make your assembly experience that much simpler, giving you visual guidance through sections
that seem tricky on paper, and help you achieve a flawless end result.
To view the video visit www.duratuf.co.nz/kiwi-assembly
Note: Assembly video features a MK2. But can be used for reference for any other Kiwi model.

• Drill
• Drill Bit 3.5mm
• Drill Bit 6mm (for clear roof panel only)
• Hex Drive 5/16
• Riveter (free Duratuf riveter supplied in kit)
• Hammer
• Nail Punch
• Tape Measure
• Ladder or Saw stool
• Spanners x 2
• String Line
• Tin Snips
• Skillsaw and Jigsaw (for floor only)
• Masonry Drill and 10mm Masonry Bit (for Bolt Down Kit only)
• Read all instructions carefully.
• Identify all parts and check quantities against checklist.
• If you are making your own floor refer to Raised Base Plate section
now.
• Do not attempt to build your shed in high winds.
• Beware of sharp edges.
• Protect your eyes and ears.
• Use electric tools with care. Use a Safety Trip Switch.
• It is easier and quicker if this shed is erected by two people.
• Your shed must be level. Achieve this by either levelling the ground
or by using blocks.
• If you shed is to be positioned on wet or damp ground, we recom-
mend that your shed is raised up off the ground slightly.
Tools Required:
Select your site:
Safety:
Before you start:
ASSEMBLY INSTRUCTIONS
3

4
7
3
1
1
1
1.890m
1.016m
Wall Sheets
Door - Standard Security
Instruction Booklet
Hardware Pack
Touch-up Paint & Brush
0.580m
0.603 x 0.603m
0.588 x 0.150m
1
Fixed Window Frame
Glaze Beads
Glass
Louvre Window Frame
Glass
Window Hardware Pack
1.016m Clear Roof Panel
Security Single Door Hardware Pack
Alarm - MA20
Shed light
Bolt Down Kit
Peg Down Kit
Roof Sheets
1.016m Roof Sheet
100
6
50mm
75mm
Flooring Nails
Flooring Nails
Duratuf Riveter
1

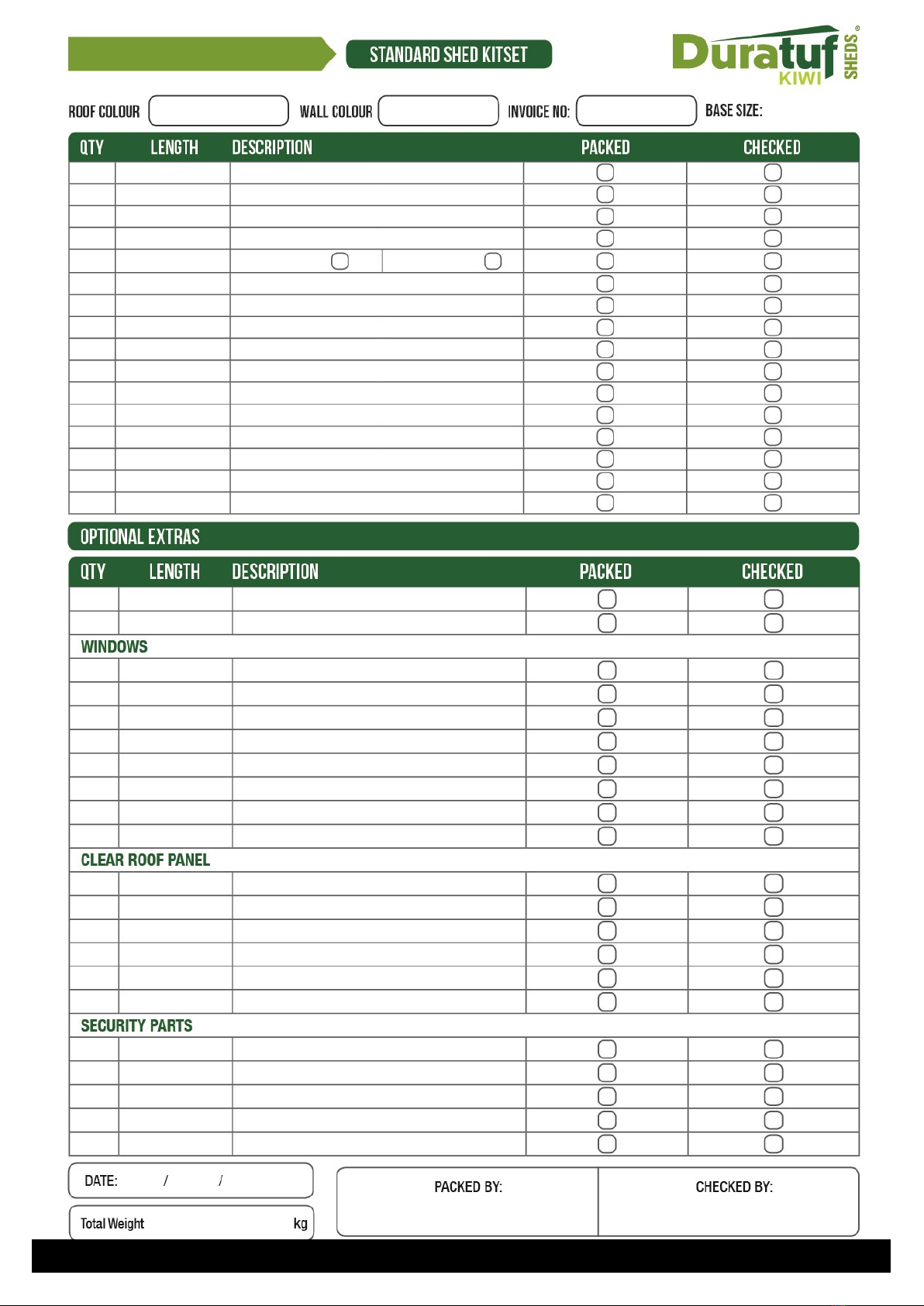

KIWI KS2 PARTS LIST

KS2 TIMBER FRAME
5
45 45
786
876
45
45 45
END WALL
883
1900 (or 1870 for Raised Base Plate only) 1900 (or 1870 for Raised Base Plate only)
1.810
YELLOW
YELLOW
YELLOW
YELLOW
YELLOW
YELLOW
YELLOW
45 45
785
2545
45
45 45
FRONT WALL
883
45 795 45
785

KS2 TIMBER FRAME
6

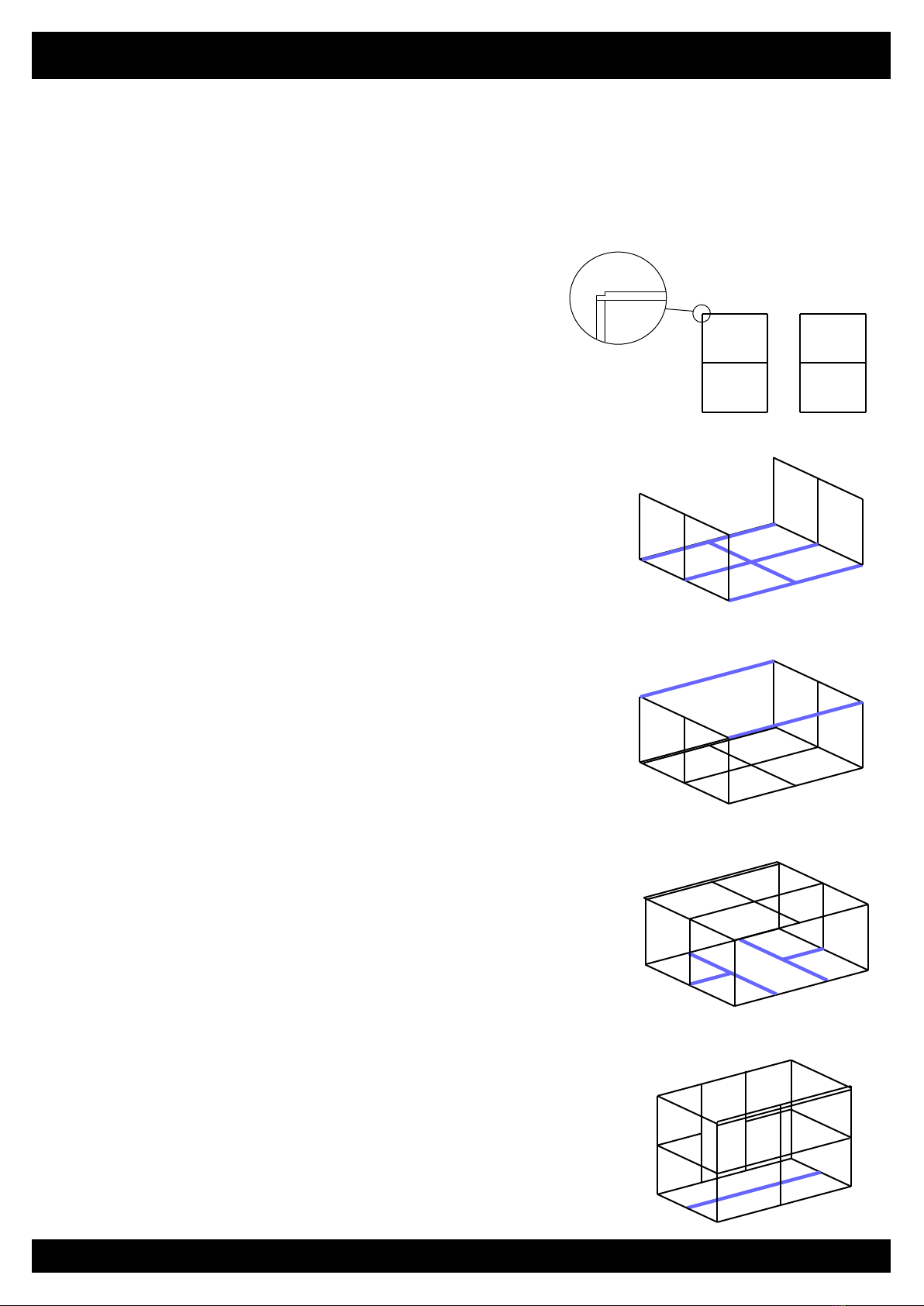

Step 2: Select one 2.545m Base Plate (Green), one
2.545m Ridge Beam (90 x 45). Stand up End
frame with the Stud side of the frame on the
ground. Nail 2.545m plates to frame using two
nails per join. Ensure Green joins to Green and
Red joins to Red. Repeat with other end frame.
Nail in back wall centre stud using 1.205m Nogs
to get correct position. Position Nogs .883m
down from the bottom of the Top Plate and nail in
place.
4
3
2
5
Step 1: End Walls: Select 1 x 0.876m End Base Plate
(Green), 1 x 0.876m End Top Plate (Red) and 2 x
Studs (Yellow). Lay out Plates and two Studs on
a flat surface and nail together using two 75mm
nails per join. Position 0.786m Nog 0.883m down
from Top Plate and nail in place. Repeat with
other end wall.
Step 3: Select one 2.545m Base Plate (Green) and one
2.545m Top Plate (45 x 45). Nail in place. Ensure
Green joins to Green.
Step 4: Carefully roll the frame over so that the Ridge
Beam and Base Plate (Green) are off the
ground. Select two studs (Yellow) and two .785m
Nogs. Nail in Studs using the .785m nogs to get
the correct position top and bottom. Position
nogs .883m down from the bottom of the Top
Plate and nail in place.
Step 5: Carefully roll frame over onto its base. If fitting a
Kiwi Floor, fit Floor Joist now. Place the joist cen-
trally and nail in place using three 75mm nails
per end.
1
Note: If fitting a window in the Back Wall, there will be no centre stud on that side. Instead nail in a full length Nog
(2.455) using Window Studs (.883) to get correct height. Position one Window Stud centrally beneath the Nog
and nail in place. Further window studs and Nogs are fitted after the cladding is on.
Note: For sheds with the Raised Floor Modification option the studs will be 1.780m long to allow the Wall Sheets to pro-
trude 20mm below the Bottom Plate. Refer to Raised Floor Modification section (Page 15).

KS2 WALL CLADDING
TO AVIOD CORROSION:
• Where at all possible try not to trap metal filings between two sheets. Remove all metal filings before riveting.
• Carbon in pencils reacts with the Zinc/Aluminium coating on steel. Use either crayon or ink to mark steel.
TERMS EXPLANATION
• To Tack: To Tack on a wall sheet means to use minimum nails hammered partly in to hold Wall Sheets in position. Should a Wall
Sheet need to be re-positioned, the nails can easily be prized out.
• If a window is required, identify Wall Sheet(s) with window hole pre-cut. Lean up Wall Sheets where window(s) are to be located.
7

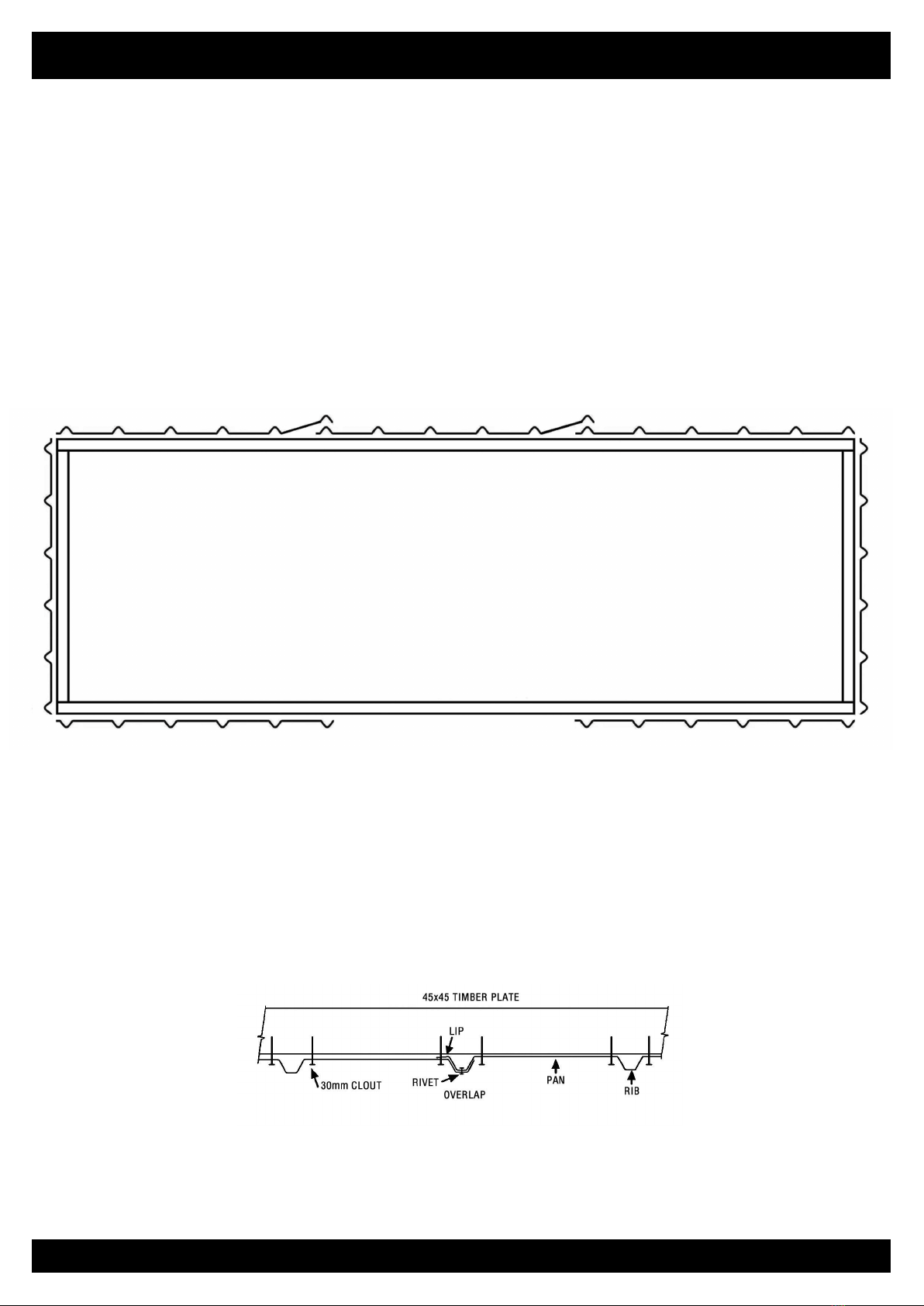

fig. 1
CLADDING DETAIL
Birds Eye View

KS2 WALL CLADDING
Step 2: Back Wall: Position the first Wall Sheet with
the LIP on the right hand side. Ensuring the LIP
is flush with the side of the corner Stud and the
top of the Wall Sheet is 45mm down from the
top plate, tack in place. Position the next Wall
Sheet with the LIP on the right hand side. Over-
lap as shown in fig 1 pg 6. Ensuring Wall Sheet
is 45mm down form the top plate, tack in place.
Repeat with remaining Wall Sheets.
Step 4: Nailing Off: Nail one 30mm Clout each side of the Rib (two per Pan) into the Top Plates and Bottom Plates. Nail
Wall Sheets to mid wall Nogs (one per pan). Nail each corner Wall Sheet to Studs using two 30mm Clouts evenly
spaced.
Step 3: End Walls: Position wall sheet with the LIP
flush with the side of the stud and the top of
the Wall Sheet is flush with the top of the Top
Plate, tack in place. Repeat with the other end.
If fitting a window, nail in Window Studs and
Nog now. Refer to Window instructions.
8
Step 1: Front Wall: Start at the left hand side. Position the
Wall Sheet with the LIP on the left hand side. Ensur-
ing the LIP is flush with side of the Stud and the top of
the Top Plate, tack in place. Repeat with Wall Sheet
on the right hand side of doorway.
EDGE
TOP

9

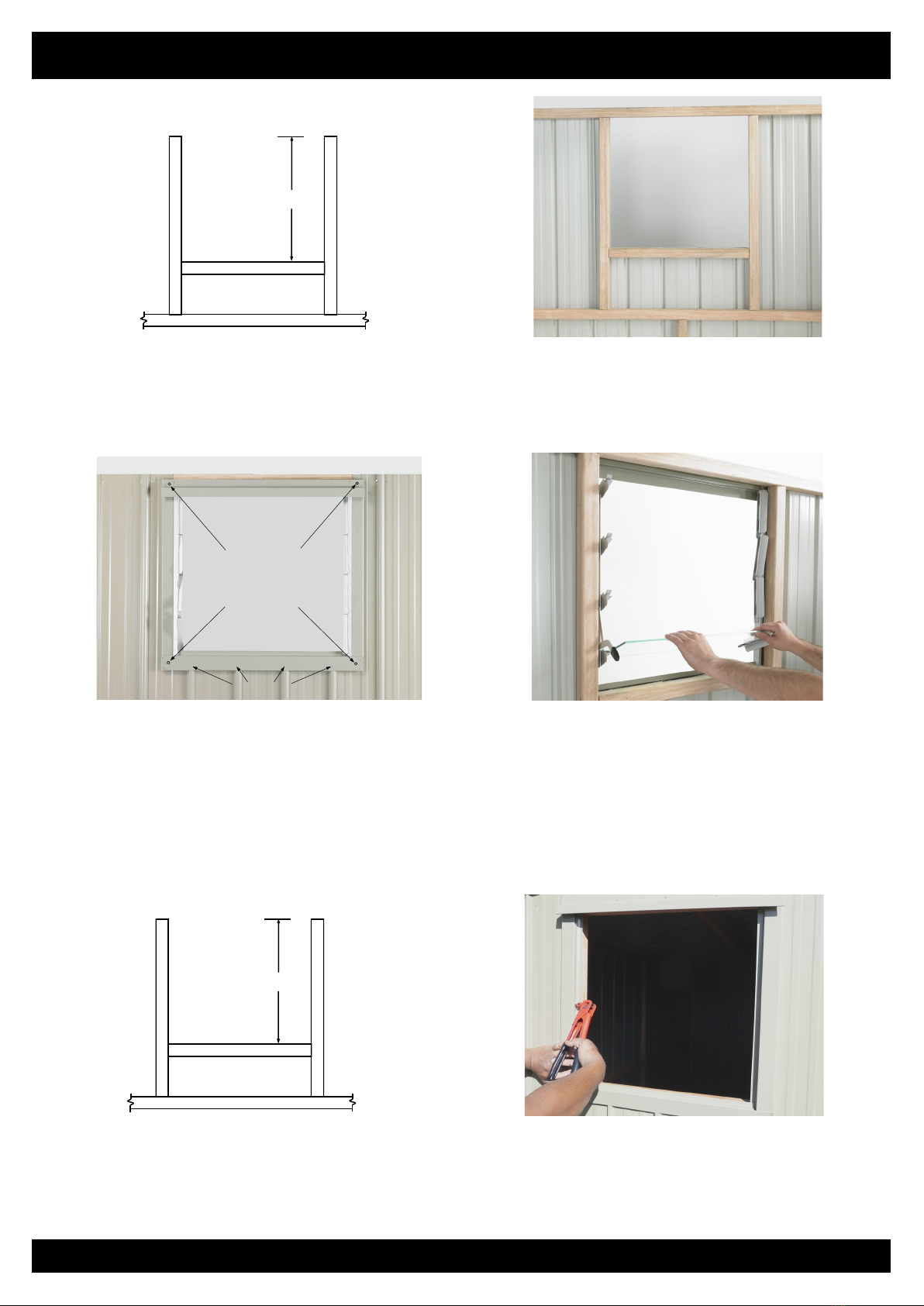

KS2 WINDOW (Optional)
Step 2: On the inside of the shed, position studs
and Nog centrally on window opening.
Make sure the studs are parallel and nail
into Top Plate and End Wall Nog.
Step 3: Nail wall Sheets to window framing using
30mm clouts. (return to step 4 on page 7
and complete). Then fit Window Frame).
Position Window Frame centrally on win-
dow opening and rivet it to ribs. Pre-drill
holes in each corner and nail Window
Frame to framing, using 50mm nails.
588mm
Step 1: Lay out the two window studs (883mm) and
Nog (634mm) on a flat surface. Position
Nog and nail in place using 2x 75mm nails
at each end.
Step 6: From the inside of the shed, slide Louvre
Glass into Louvre Units attached to the
Window Frame. Bend up tabs to keep
Glass in position.
570mm
Step 6: From the outside of the shed, place glass
in Window Frame. Attach a Glazing Bead
(G100) with three rivets to each side of the
Window Frame to hold glass in place. Pre-
drilling Glazing Beads is recommended.
Step 1: Lay out the two window studs (883mm) and
Nog (590mm) on a flat surface. Position
Nog and nail in place using two 75mm nails
at each end.
FIXED WINDOW
LOUVRE WINDOW
50mm
NAILS
RIVITS

10
KS2 DOOR JAMB & CORNER FLASHINGS
Step1: Fit Door Jamb Flashing (104) in between
Top and Bottom Plates and hard against
Stud. Attach Door Jamb Flashing with
three rivets into Rib on the outside and
three 30mm clouts into studs on the in-
side. Repeat with the other Door Jamb.
Step2: Measure and cut Doorstep Flashing (106) to
fit in between Door Jambs. Position the Door-
step Flashing in between the Door Jambs at
bottom of doorway, nail through top of flashing
using three 30mm Clouts. Repeat with the
Overdoor Flashing (105).
Step 4: Fit the two short front Corner Flashings over corner
Ribs and rivet in place using six rivets per flashing.
Fit the two longer back Corner Flashings over cor-
ner Ribs and rivet in place using six rivets ensuring
the flashing is flush with the top plate. When fitting
right hand Corner Flashing on the front wall, ensure
it is parallel with the Door Jamb.

11

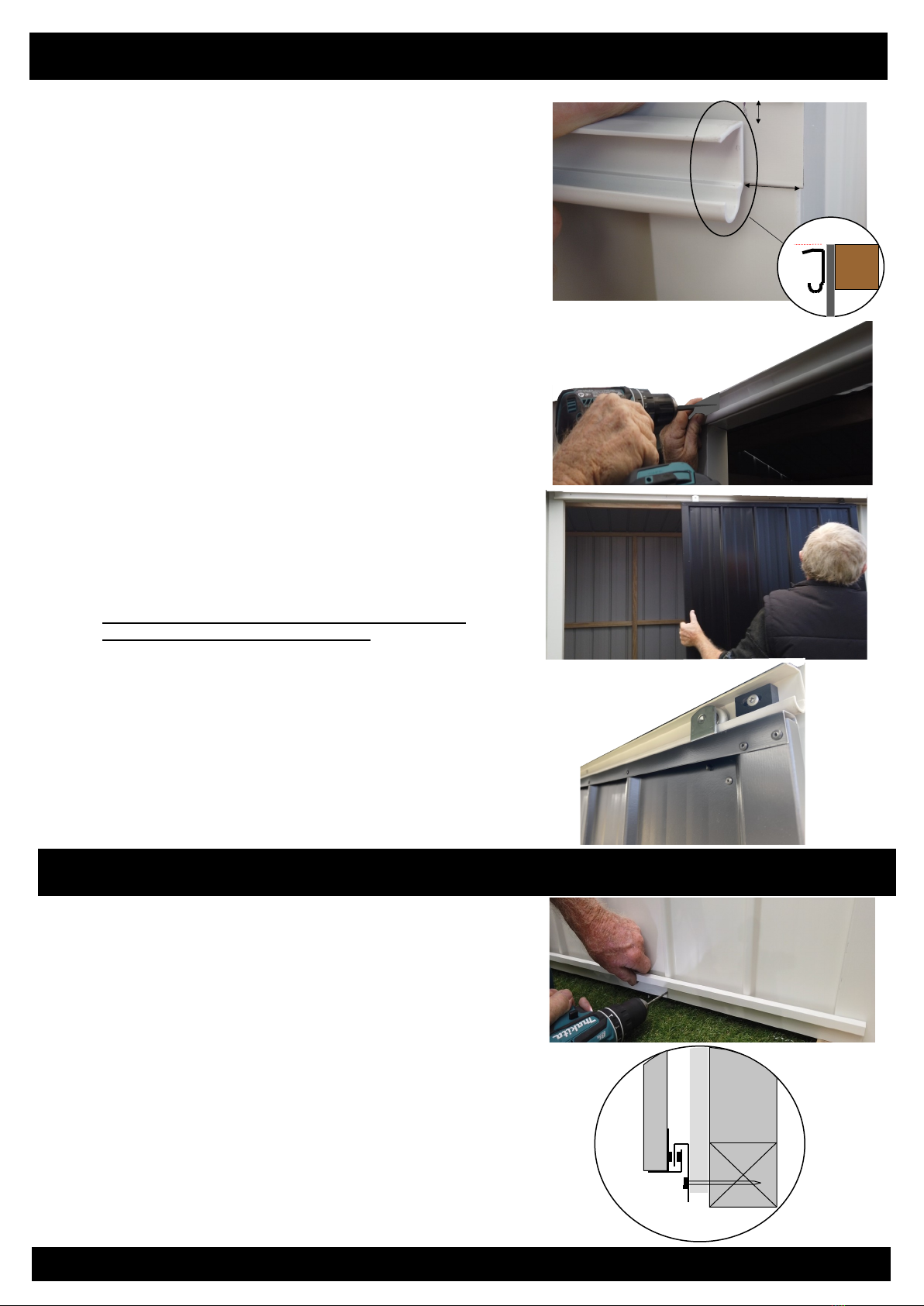

KS2 DOOR
Step 3: Remove the Door. Pre-drill and screw another 2 screws
between the centre screw and the rivets at each end
(5 screws per track). Screw track using 45mm door track
screws.
Step 2: Hang the door in the Door Track. At the right hand end of
Door Track, adjust up or down so that the Door hangs
parallel with shed. Fit one rivet at right hand end to hold in
place. Repeat with left hand end of track.
Note: Only use rivets at each end of track.
Step 1: Position the Door Track (107) on the front wall with the top
of the track 7mm below the top of the timber frame. The
end of the door track should be 20mm in from
outside of the right-hand corner flashing.
Pre-drill a hole in the centre of the track and screw in place
using one 45mm door track screw. Remove ALL drill
filings
Note: Ensure Door Track screws are screwed in horizontal and
screwed hard into flashing. Protruding screw heads
can cause door rollers to bind on the screw heads.
Step 4: Clean out ALL drill filings. Also make sure the Wheels
are cleaned of drill filings. Re-hang Door.
Door Stops: Predrill a hole in right-hand end of track,45mm
in from outside edge of Corner Flashing.
Predrill hole in left-hand end of track, 45mm from outside of
door jamb. (60mm for Security door option.)
Screw door stops in using 1 x Roofing screw per stop.
Check door doesn't protrude past outside edge of shed.
KS2 DOOR
Step 5: Bottom Door Guide: Slide the Door to the corner of the shed.
Place the Door Guide (108) over the Guide Brackets on the
door and align the end of the Door Guide 20mm in from outside
of the right-hand corner flashing.
Step 6: Lift the door guide up approximately 3mm so that the Door will
Slide freely. Pre-drill a hole through the door guide and the end
rib of the cladding and screw in place using a 45mm screw.
Step7: Slide the door to the centre, ensuring that it slides freely. Pre-
drill and insert a screw in the other end of the Door Guide.
Check that the Door is not binding in the middle then pre-drill
and fix with 3 more screws, one in the centre of the guide and
the other 2 evenly spaced between (5 screws per guide) into
the door step flashing and rib.
Note: For sheds with Raised Base Plate option the Door Step Flash-
ing will protrude down past the Bottom Plate.
Attach Door Guide with rivets.
7mm
20mm
DOOR
GUIDE
DOOR
CLADDING
BOT-
PLATE
GUIDE BRACKET

12
KS2 ROOF
Note: Condensation can form on the under side of shed roof. If building paper is required, fit now. Building paper will need to be
supported by netting or roofing twine.
Roof with Clear Panel: Handle Clear Panel with care. The Clear Panel will crack if not fitted correctly.
Riveting: Pre-drill 3.5mm hole through Clear Panel and Steel. Enlarge hole in Clear Panel with drill to allow for expansion
and contraction.
Screwing: Pre-drill a 6mm hole through the Clear panel.
Step 1: Check that the diagonal measurements of the shed are the same. If building on unlevel ground it may be necessary to
temporarily brace the shed with pieces of timber from the packaging.
Step 3: Position Roof Sheets. They should overhang
the back top plate by 20mm. Ensure timber
plates are straight then screw roof to Top
plates using one 50mm Roofing Screw on
each Rib at the front. Repeat along the back
wall using 50mm clouts, instead of Roofing
Screws to allow Ridge Cap Flashing to sit
correctly on roof sheets.
Step 2: Position first Roof Sheet on the right hand
side of the shed with the LIP on the left hand
side. Position the next Roof Sheet. Ensure it
overlaps correctly (when fitting a Clear Roof
Panel, ensure it OVERLAPS Roof Sheet).
Rivet sheet joins 500mm from edge, front and
back. Position and rivet remaining sheet.

13
KS2 BARGE & SPOUTING
Step 1: Position Barge Flashing on End walls. Ensure
that the front of the Barge is flush with the front of
the Roof sheets. Rivet Barge through the Roof
sheet Rib at the front, middle and back of the
Barge.
Step 2: Position Spouting at the front of the roof en-
suring that the ends are flush with the End of
the Barge flashings. Rivet spouting onto the
Roof at every second Rib. Use 2 rivets per
end and rivet into Barge Flashing.
Step 3: Position Ridge Cap at the back of the roof
ensuring that the ends are flush with the End
of the Barge flashings. Rivet Ridge Cap onto
the Roof and onto the Back Wall sheet
through every second Rib. Use 2 rivets per
end and rivet into Barge Flashing.

14
KS2 FLOOR (Optional)
Step 1: Place shed in final position. Check the di-
agonal measurements are the same and
the shed is level before fitting Floor. It is
recommended that the shed is anchored
down with either a Duratuf Bolt Down Kit or
Duratuf Peg Down Kit depending on what
the shed is sited on.
Step 2: Lay a Floor Board on top of Bottom Plates
and Joist and push up against end wall.
Mark out where Studs are. Cut checkouts
with Electric Jigsaw so Floor Board will fit
around Studs.
Step 3: Re-position Floor Board. Lay out remain-
ing Floor Boards checking around Studs
as you go. The last Floor Board may
have to be cut to size.
Step 4: Nail in each Floor Board, two 50mm
nails in each end and two into Joist.
Measure and cut Floor Flashing (110) to
fit in between Door Jamb Flashings and
nail in place using 50mm Clouts.

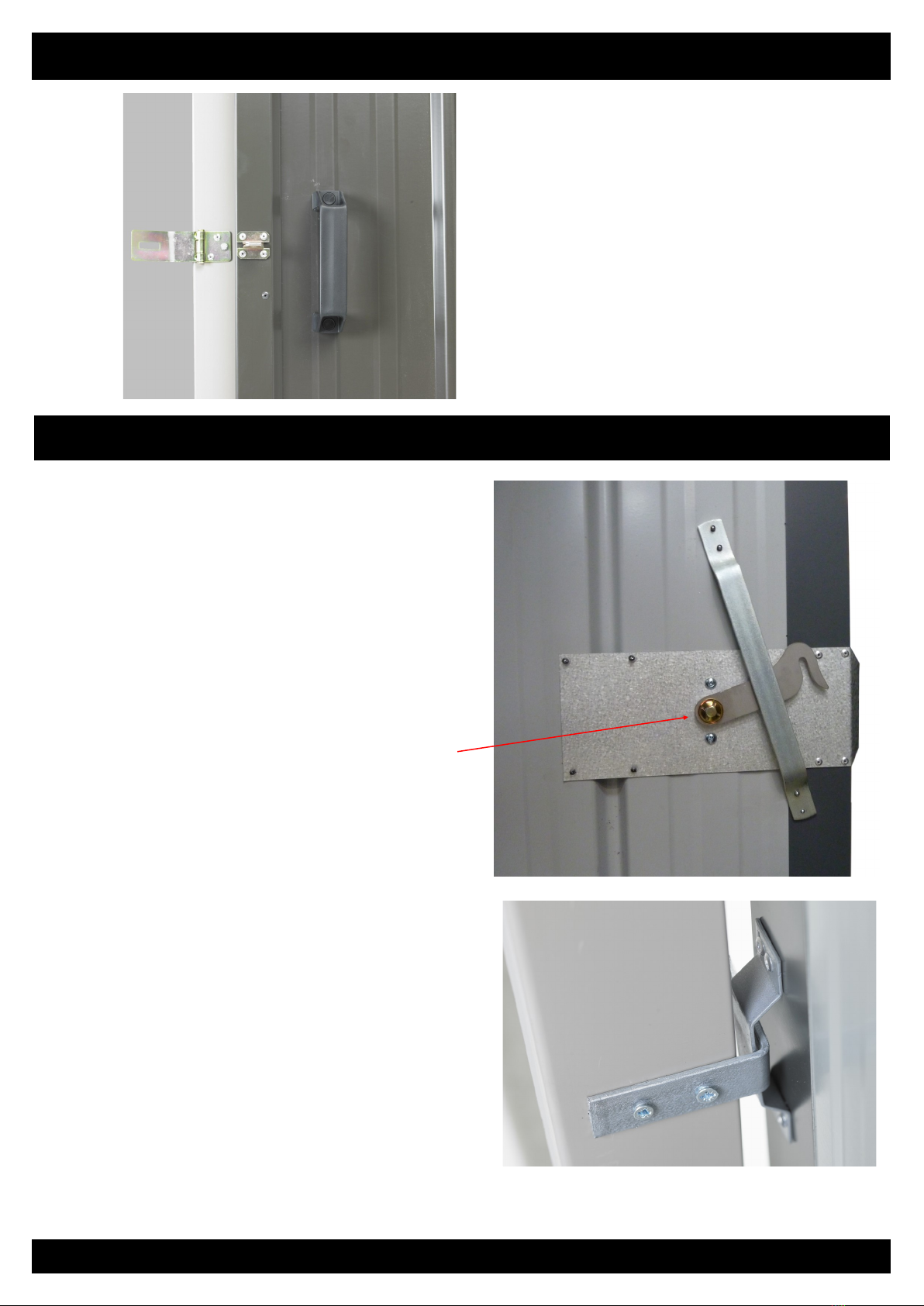

KS2 HASP & STAPLE
Using six rivets and one 50mm clout
attach hasp to Door Jamb Flashing and
the staple to the Door as shown.
(Note: See below for security
option.)
15
SECURITY DOOR (Optional)
Step 2: Once door is hung, position the Locking Stays so
they slide into the Locking Brackets easily. Screw
Locking Stays to Door Jamb.
Step 1: Attach “ T” locking handle with two 8x10mm
screws. Slide hook onto square shaft and
secure with a lock washer.
Hook
Lock Washer

RAISED FLOOR MODIFICATION
For sheds being placed on a purpose built floor, (concrete, cob-
bles, ply etc.), the Wall Sheets will protrude 20mm below the
Base Plate. This will stop water flowing in between the Base
Plate and Floor.
The Floor should be made 15mm smaller than Base Size.
Note: Although it is not essential, fitting Damp Proof Course
in between the Base Plate and the Floor will give add-
ed protection against moisture.
CLEAN UP
• Remove all swarf (drill filings) with a soft brush or rag.
• Hose down roof and walls thoroughly.
• For Coloursteel sheds use touch-up paint provided on all nail heads, rivets and exposed cuts.
Step 3: On the left hand Door Jamb, position latch as
shown, at correct height to door handle. Rivet
in place with four rivets.
SECURITY DOOR (Optional)
16

COMPLETE OUR CUSTOMER SURVEY
Thank you for investing in a Duratuf Garden Shed.
We are sure that it will provide excellent long-term storage and add value to your property. To continually improve our products and
service, we would love to hear about your Duratuf experience and why you chose us.
Further to that, we would also love to see a picture or a short video of your shed installed and doing its job so that we can share this
with others for their inspiration. Thank you in advance and we look forward to receiving your feedback!
To complete the survey please visit
www.duratuf.co.nz/customer-survey
Complete the survey for your chance to
WIN a $100 Prezzy Card!

DURATUF PREMIUM SHED WARRANTY
GUARANTEE TO CUSTOMER
Congratulations on purchasing a Duratuf Storage Shed. With proper care and attention, this product will last many years.
For your benefit PLEASE READ THE FOLLOWING INFORMATION CAREFULLY.
WARRANTY ON METAL CLADDING
Riverlea Group Ltd guarantee that the metal roofing and wall cladding on Kiwi and Fortress Garden Sheds may be used in moderate and
inland corrosion zones or areas where the first year mild steel corrosion rate is less than 200g/m2, and that in these conditions, they will
not perforate due to corrosion within 30 years of date of manufacture.
TERMS AND CONDITIONS
1. Damage or corrosion due to the following circumstances is not covered by this warranty.
 Mechanical, chemical or other damage sustained during or after installation.
NOTE: Clean swarf off shed IMMEDIATELY after assembly
Do NOT mark cladding with pencil
Do NOT allow manures, chemicals or other corrosive materials to have direct contact with cladding
Chemical damage will result if these instructions are not carried out
 Force majeure or other causes beyond the control of Riverlea Group Ltd.
2. This warranty does not cover material installed in severe and very severe environmental situations, or in any area where the mild
steel corrosion rate (as published by BRANZ) exceeds 200g/m2.
Please visit www.duratuf.co.nz/warranty to validate the Warranty on your shed.
Click on the Warranty Registration Link and complete all details.
If you are unable to access the computer, please phone us on 0800 438 274 and one of the customer services team will help you to acti-
vate the warranty on your garden shed.
Many thanks, from the Team at Riverlea Group.
WARRANTY REGISTRATION
