Operator's Manual

MODEL RE658

JUMBO JACK

1-MAN

Ladder Stand

WE ARE HUNTERS

Maximum Height

17’ 1” to shooting rail

Wear Your

Harness!

Maximum Field Rating

300 lbs

Tree Diameter Range

12” to 20”

Check for parts online at www.HuntRiversEdge.com or call 800-345-6007

Operator's Manual

JUMBO JACK 1-MAN Ladder Stand

INTRODUCTION

Rivers Edge® Treestands are engineered with you the hunter in mind. We appreciate your purchase of one of our world class

treestands. Follow these few simple instructions and your stand will provide you many years of trouble-free pleasure. Instructions

should be kept in a safe place and reviewed at least annually.

If for any reason you have a problem with your product or are missing any parts, DO NOT return to the retailer, contact Rivers

Edge® Customer Service Department at 800-345-6007 for assistance.

CONTENTS

Introduction/Warranty ..................................................................................................................................................................................................................2

Warnings.........................................................................................................................................................................................................................................3-4

Inspection and Maintenance ......................................................................................................................................................................................................4

Hardware Identication Chart................................................................................................................................................................................................5-7

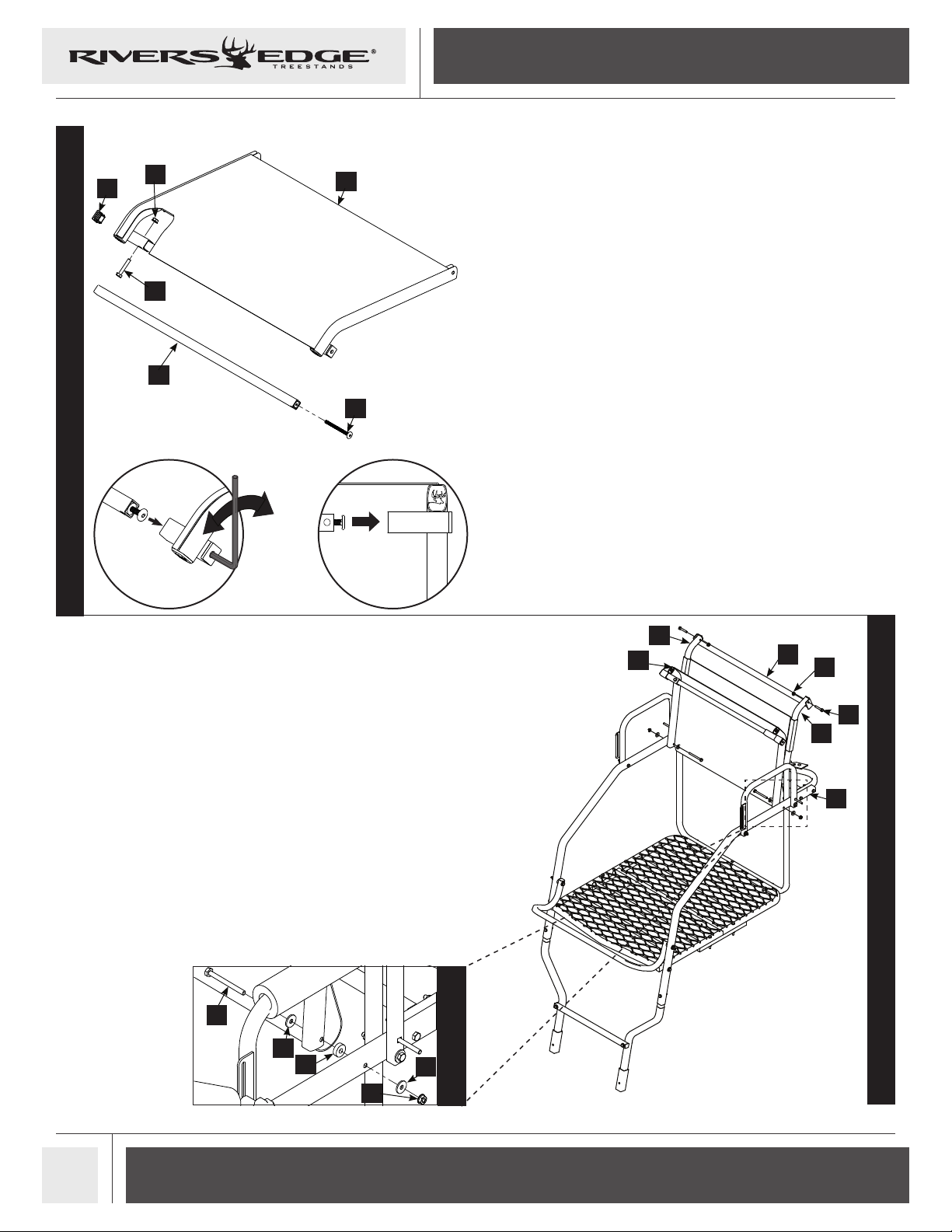

Assembly Instructions ............................................................................................................................................................................................................ 8-13

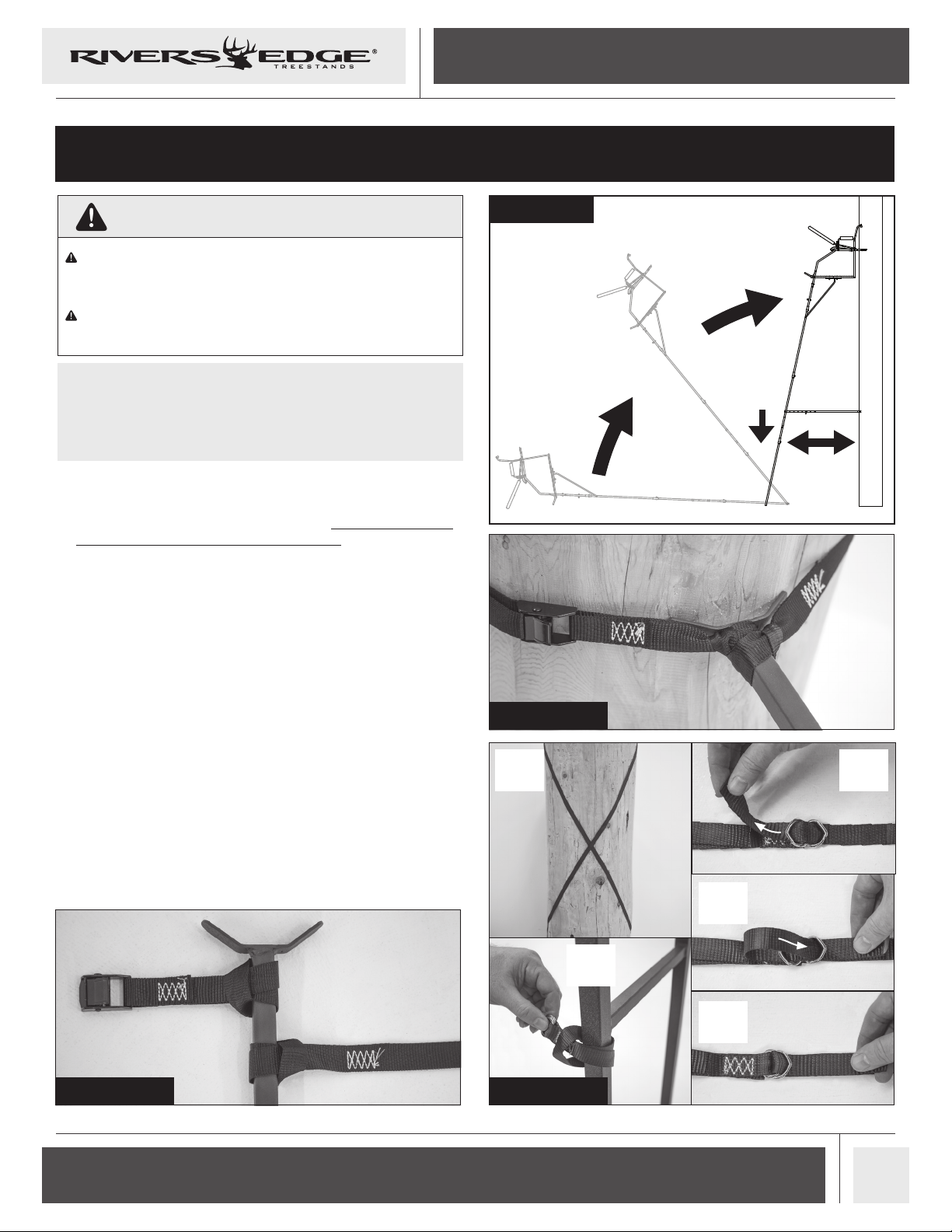

Setup and Use Instructions.................................................................................................................................................................................................15-16

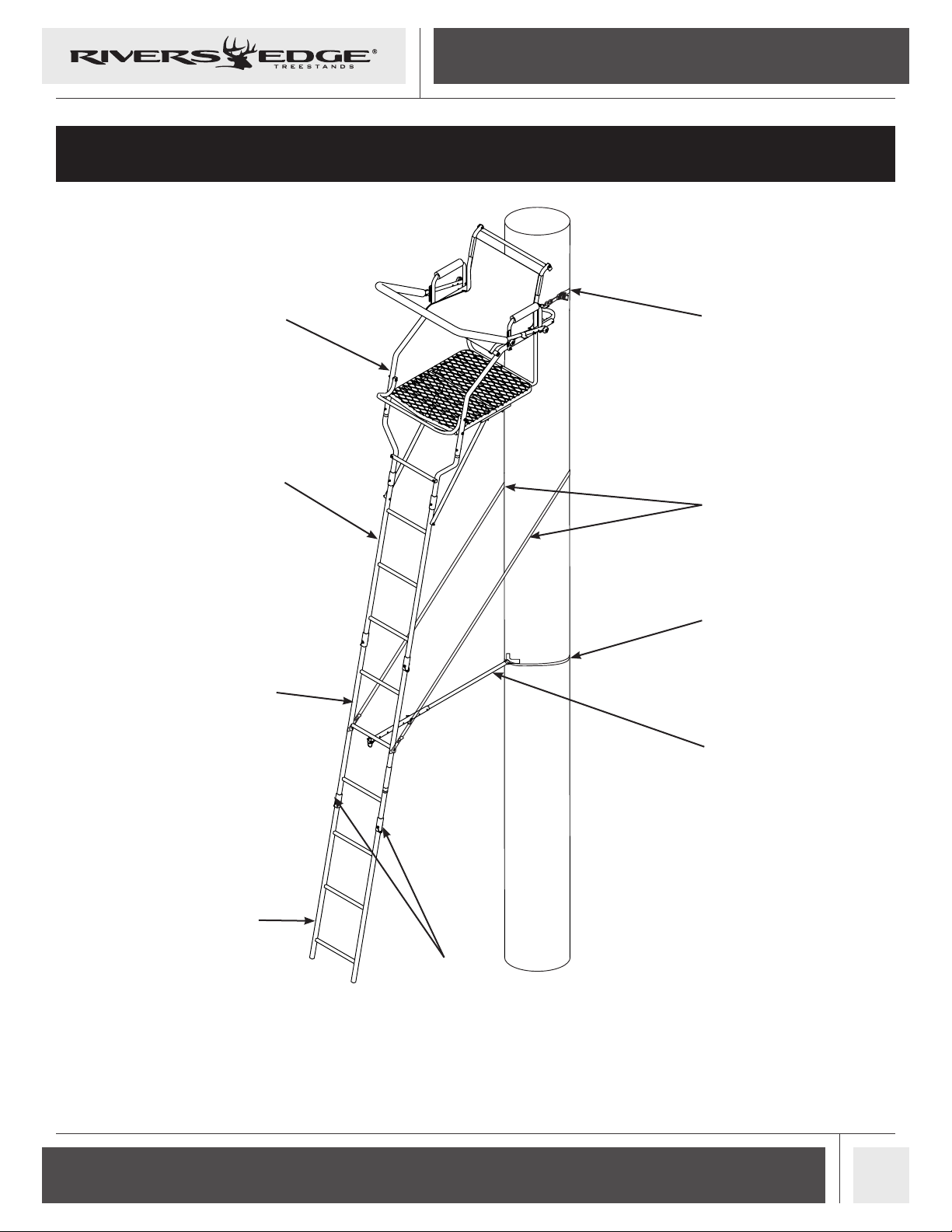

Finished Ladder............................................................................................................................................................................................................................. 17

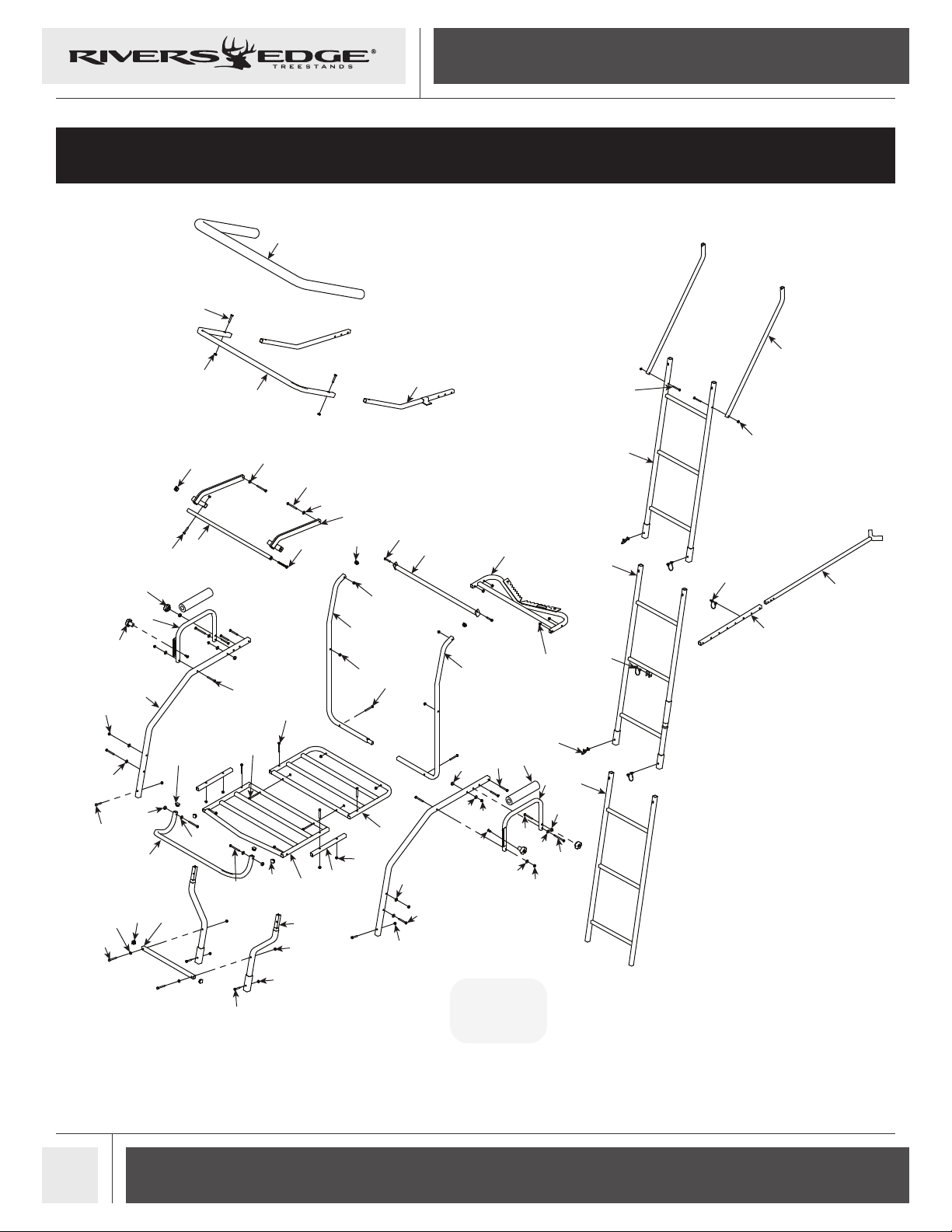

Illustrated Parts Breakdown................................................................................................................................................................................................18-19

WARRANTY

RETI oers a one-year warranty for all components of the treestand. These warranties apply to the original owner with a proof of purchase. These warranties

begin on the date of purchase by the rst retail consumer and continue for the period specied above. These warranties apply to products that are not modied,

abused or used in a manner that deviates from the product’s intended usage. Minor fading in color is normal and is not covered by warranty. Any corrosion

of painted surfaces that occurs as a result of paint being removed or damaged is also not covered by warranty. RETI oers no other warranty expressed or

implied. Products for which warranty work has been approved must be sent directly to RETI and performed by RETI. To obtain warranty service and/or

replacement instructions, you must obtain prior approval from RETI before shipping your package to us by calling our customer service department

at 800-345-6007 or by writing to: Ardisam, Inc., P.O. Box 755, 1160 Eighth Avenue, Cumberland,WI 54829 for a return material authorization number

(RMA#). All items must be shipped prepaid. RETI will, at no charge, repair or replace, in RETI’s sole discretion, any product that satises the conditions stated

above. RETI retains the right to change models, specications and price without notice.

This equipment has been manufactured under strict quality and safety guidelines. As with any equipment of this type, full understanding of the instructions and

its use is mandatory and imperative for the safety of its user. RETI is not responsible for any damages or injuries sustained due to improper use or modication

of any of its products, or resulting from any use which deviates from the product’s intended usage. RETI is not responsible for any injuries sustained due to

failure to read and adhere to the instructions for use. Any misunderstanding or questions regarding the products of their use should be directed to RETI prior to

any use. All RETI treestands are sold with a full body harness (“Fall Arrest System”) that meets standards recognized by theTreestand Manufacturer’s

Association (“TMA”). It is the owner's sole responsibility to inspect the product regularly for damage, improper installation, or conditions that could jeopardize

the ultimate safety of the product. Failure to use or improper use of the provided Fall Arrest System may result in serious injury or death. ALWAYS wear the

provided Fall Arrest System while using this product. Owner is responsible to understand and follow product eld weight rating and must never

exceed maximum weight rating. RETI is not responsible for any malfunction or injury resulting from normal wear and tear, damage caused by improper use,

improper maintenance, negligence or accidents. This product, if used safely as intended, will provide trouble free service for the useful life of the product. We

hope you will enjoy the quality of our products for years to come, and have a safe hunt.

Check for parts online at www.HuntRiversEdge.com or call 800-345-6007 3

Operator's Manual

JUMBO JACK 1-MAN Ladder Stand

READ AND UNDERSTAND THE FOLLOWING WARNINGS BEFORE ASSEMBLY

STOP

MODEL RE658

MAXIMUM USE HEIGHT  17’1”TO SHOOTING RAIL

MAXIMUM OCCUPANCY  ONE 1 PERSON

TOTAL WEIGHT LIMIT  300 LB

TREE DIAMETER RANGE  12”TO 20”

WARNING

This product carries strict height and weight restrictions.

Do Not use this product if you exceed the total weight

limit. Please note that the total weight limit includes the

user(s) and their equipment.

WARNING

When hunting from a treestand falls can occur any

time after leaving the ground causing injury or death.

Always wear a Fall Arrest System (FAS) comprising a full

body harness at all times after leaving the ground. You

must stay connected at all times after leaving the ground

while using climbing and hang-on treestands. Single

safety belts and chest harnesses are no longer allowed

and shall never be used. If you are not wearing a full body

harness properly attached to the tree that is protecting

you from a fall, do not leave the ground.

Read and understand all of the manufacturer’s Warnings

and Instructions and use all safety devices provided by

the manufacturer. Contact the manufacturer for any

questions. Failure to do so could result in injury or death.

Never exceed the total weight limit of the treestand.

Never use a treestand during inclement weather such as

rain, lightning, windstorms or icy conditions and end your

hunt and return to the ground if inclement conditions arise.

Never use a treestand while using drugs (even

prescription drugs) or alcohol.

Never use a treestand while feeling ill, nauseous or dizzy,

or if you have a prior medical condition that could cause

a problem, that is, heart condition, joints that lock-up,

spinal fusions, etc., or if you are not well rested. Never

sleep in stand.

Never use a treestand on a dead, leaning, diseased or

loose barked tree, or a utility pole. Always avoid electrical

power lines.

Never rely on a tree branch for support.

WARNING

Never jump or bounce on a treestand to seat it to the tree.

Pull up a bow, backpack, or rearm or other equipment

only after being secure in the treestand and a rearm

must be pulled up with it unloaded, chamber open, and

muzzle down.

Always inform someone of the hunting location, where

the treestand will be located and the expected duration

of the hunt.

A signal device such as a mobile phone, radio, whistle,

signal are or personal locator device (PLD) must be on

your person and readily available at all times.

Inspect the treestand and all safety devices each time

before use and Do Not store a treestand outdoors when

not in use.

Never modify your treestand in any way by making

repairs, replacing parts, or altering it except if explicitly

authorized in writing by the manufacturer.

Practice installing, adjusting and using your treestand at

ground level prior to using it at elevated positions. Study

your new stand to become familiar with all of its features

and design. Doing so will conrm that the product is

manufactured, assembled and installed correctly.

Instructions (written and video) shall be kept in a safe place

and reviewed at least annually. It is the responsibility of

the treestand owner to furnish the complete instructions

to any person who borrows or purchases the treestand.

Use at least three (3) people to install or take down a

ladder treestand.

The criss-cross straps/ropes and stabilization devices

must be attached before climbing to the platform.

When installing a ladder stand, always bounce on the

rst rung to set the ladder into the ground according to

manufacturer’s instructions before proceeding to climb

any higher.

Check every ladder section connection every time you

use the stand before you leave the ground. If ladder

sections are separating, do not use the stand.

Check the ground under the stand to make sure it is rm

and level. Sloping ground or uneven surface (one side on

a rock) can cause your ladder to tilt or shift o the tree as

you climb.

Always maintain three (3) points of contact when

climbing a ladder treestand. Proper three-point contact

means having either two feet with one hand or one foot

with two hands on the step portion of the ladder or

climbing aid at all times.

Check for parts online at www.HuntRiversEdge.com or call 800-345-6007

Operator's Manual

JUMBO JACK 1-MAN Ladder Stand

BEFORE EACH USE PERFORM THE FOLLOWING:

• Inspect all webbing, rope, cord, and strap assemblies for

wear or damage.

• Inspect cables and/or cable ends for damage or kinking.

• Inspect all hardware and chain components for damage or

wear.

• Inspect for any structural damage to product. (If any exists

stop use immediately and call RETI Customer Service.)

• Inspect all nut and bolt assemblies to be certain none are

loose.

• Inspect for any missing parts.

• Lubricate all pivot and slide together points with powder

graphite, petroleum jelly or silicone spray to prevent noise,

wear and rust.

• Inspect entire product for any rust, corrosion, cracks,

freezing, excessive heat or rotting damage that may eect

the safety of your product. Discard any questionable

product.

• Inspect entire product for any structural damage - pay

close attention to all weld locations. (Discard product if any

damage is found.)

• Using correct wrenches inspect all nut & bolt assembly

locations and snug up any that may be loose. Be careful not

to crush tubing when tightening!

• Inspect and check operation of all cables, cable ends, cord,

rope, webbing, and strap or chain assemblies. Replace

with RETI original replacement parts any item or assembly

that shows signs of wear, damage, kinking, or functions

incorrectly.

• Inspect seat for damage or wear. Replace any seat with

factory new that shows signs of structural damage or wear.

• Never modify your stand in any way by making repairs,

replacing parts, or altering by adding or attaching anything

to it except if explicitly authorized in writing by the

manufacturer.

INSPECTION AND MAINTENANCE

WARNING

Always lean forward as you climb and attach your harness

to the tree before securing the platform to the tree and

stepping onto the platform.

Never exceed the stated maximum use height.

Do Not use this product until you have watched the

online safety video, understand it, and practiced the

techniques for safe hunting discussed in this video. Video

can be found with the QR code and/or URL shown on

front cover of this manual.

Read and perform all inspection and maintenance tasks

before each and every use. Replace any questionable

components immediately with RETI original replacement

parts.

Do Not crush tubing when tightening bolt assemblies!

Identify and familiarize yourself with all parts before you

start. Bolt identication chart can be found in the back.

Double check assembly steps to be certain you have

correctly assembled this product.

Never use any product that has not been maintained or

inspected properly - Your life depends on it!

Replace any and all treestand straps every two years or

when any signs of damage or wear exist before.

Always wear the appropriate footwear when using a

ladder treestand. A good non-slip safety boot is important

to your personal safety. Be especially careful that boot

laces do not get hooked on the stand or any of its

components (tuck shoelaces into boots before climbing).

WARNING

Only use approved RETI parts. Failure to do so may result

in serious injury or death!

Check for parts online at www.HuntRiversEdge.com or call 800-345-6007 5

Operator's Manual

JUMBO JACK 1-MAN Ladder Stand

- - 7/16”WRENCHES 2

- # 27477

4MM ALLEN

WRENCH

INCLUDED

TOOLS REQUIRED

HARDWARE LIST

Item Part No. Description Image Qty

24 #19847 LOCKPIN 6

25 # 48240B BOLT

1/4 X 11/2 IN 9

26 # 48271B BOLT

1/4 X 21/4 IN 18

27 # 67540B BOLT

1/4 X 23/4 IN 6

28 # 48280B BOLT

1/4 X 3 IN 2

29 # 48261B WASHER 1/4 IN 2

Check for parts online at www.HuntRiversEdge.com or call 800-345-6007

Operator's Manual

JUMBO JACK 1-MAN Ladder Stand

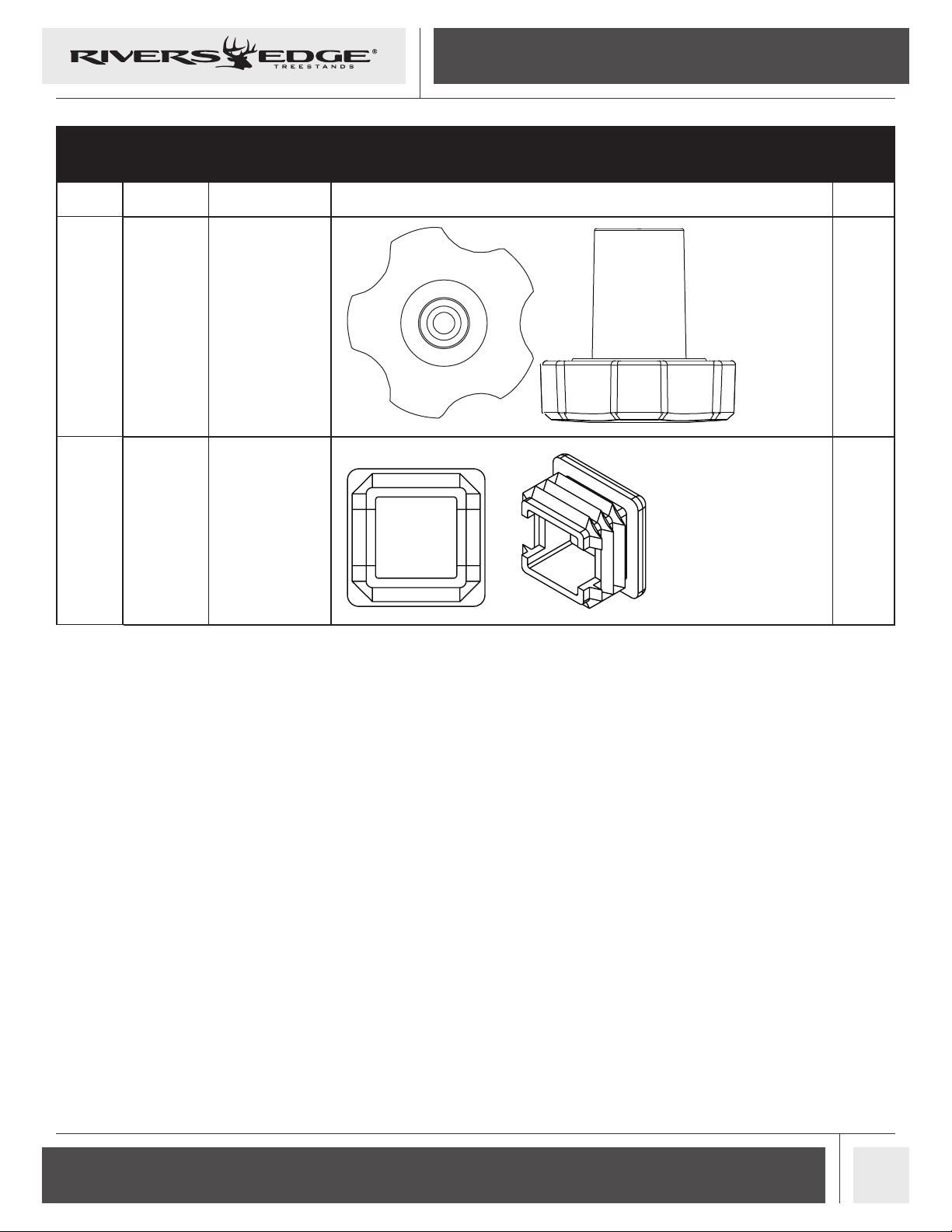

HARDWARE LIST CONTINUED

Item Part No. Description Image Qty

30 # 48752B NUT 1/4 IN 35

31 # 26813 BOLT

M6 X 20 MM 2

32 # 29727 BOLT

M6 X 60 MM 2

33 # 26959 BOLT

M6 X 70 MM 1

34 #23572 WASHER YELLOW

PLASTIC 2 MM 14

35 # 26913 SPACER YELLOW

PLASTIC 6 MM 6

36 #23604 KNOB

M6 X 10 MM 2

Check for parts online at www.HuntRiversEdge.com or call 800-345-6007 7

Operator's Manual

JUMBO JACK 1-MAN Ladder Stand

HARDWARE LIST CONTINUED

Item Part No. Description Image Qty

37 28839 KNOB

M6 X 29MM 2

38 #29712 SQ PLUG END

22 MM 1

Check for parts online at www.HuntRiversEdge.com or call 800-345-6007

Operator's Manual

JUMBO JACK 1-MAN Ladder Stand

ASSEMBLY INSTRUCTIONS

IMPORTANT ASSEMBLY TIP:

Do not tighten any nut and bolt combinations completely

until all parts are assembled together! Finger tighten plus

one turn of a wrench only! This will temporarily hold the

lock- nut on the bolt while helping alignment of all parts!

After all parts are assembled together, all nut and bolt

combinations must be completely tightened.

All assembly must be done in this order at ground

level before uprighting.

Do not remove labels/warnings from product, they are

there for your safety.

Recommended for adult use only.

STEP 1

STEP 2

NOTE: When selecting a tree to install the treestand in, never

use a treestand on a dead leaning, diseased or loose barked

tree, or a utility pole. Always avoid electrical power lines.

1. Attach seat side rails (15) to tree blade (22) using four 1/4-20 x

2-1/4 IN bolts (26) and nuts (30).

Insert ared platform rails (10) into the seat side rails (15) and

secure using two 1/4-20 x 1-1/2 IN bolts (25) and nuts (30).

2. Attach the left and right armrests (4 and 5) to the seat side rails

(15) through only the front hole using a 1/4-20 x 2-1/4 IN bolt (26),

a yellow washer (34) and nut (30) for each armrest.

Insert the right rear seat support (19) into the left rear seat

support (18). Then attach to the inside of the seat side rails (15)

while also attaching the back of left and right armrests (4 and 5)

to the outside of the seat side rails (15) using two 1/4-20 x 3 IN

bolts (28), two yellow washers (34), and nuts (30).

Attach the bolt on step (9) to the ared platform rails (10) using

two 1/4-20 x 2-1/4 IN bolts (26), two 1/4 IN steel washers (29) and

nuts (30).

Insert the M6 x 60 MM carriage bolts (32) into the square holes in

the armrests before moving on to the next step.

26 30

5 32 19

26 30

Check for parts online at www.HuntRiversEdge.com or call 800-345-6007 9

Operator's Manual

JUMBO JACK 1-MAN Ladder Stand

STEP 3

STEP 4

3. Assemble the platform by attaching the platform supports (23) to

the bottom of the front and rear platform sections (12 and 13)

using four 1/4-20 x 2-1/4 IN bolts (26) and nuts (30).

4. Attach the rear platform (13) to the left and right seat supports (18

and 19) using two 1/4-20 x 2-1/4 IN bolts (26) and nuts (30).

Attach the front platform (12) to the seat side rails (15) using two

1/4-20 x 2-1/4 IN bolts (26), two yellow washers (34) and nuts (30).

Attach the footrest (14) to the seat side rails (15) using two 1/4-20

x 2-3/4 IN bolts (27), four yellow washers (34), two yellow spacers

(35) and nuts (30).

DETAIL 4A

mesh hidden

for clarity

Check for parts online at www.HuntRiversEdge.com or call 800-345-6007

Operator's Manual

JUMBO JACK 1-MAN Ladder Stand

STEP 5

STEP 6

5. Thread the M6 x 70 MM bolt (33) all the way into the seat

tensioner (6).

To assemble the seat (16), slide the seat tensioner (6) through the

right seat tube and into the left seat tube so that the head of the

M6 x 70mm bolt (33) bottoms out on the inside of the capped seat

tube.

Secure the seat tensioner (6) to the seat (16) using one 1/4-20 x

1-1/2 IN bolt (25) and nut (30).

Insert the 22 MM plug (38) into the end of the right seat tube.

Using the provided allen wrench, tension the seat slightly by

inserting the wrench through the hole in the capped seat tube

and into the M6 x 70 MM bolt (33). Turn counter-clockwise to

tension the seat. Final desired seat tension can be done once the

seat is assembled onto the rest of the treestand.

6. Attach the seat assembly to the rest of the treestand using two

1/4-20 x 2-3/4 IN bolts (27), four yellow washers (34), two yellow

spacers (35) and nuts (30).

Attach the backrest spreader (17) to the left and right seat

supports (18 and 19) using two 1/4-20 x 1-1/2 IN bolts (25) and

nuts (30).

17 30

VIEW A VIEW B

Turn Counter

Clockwise to

Tension Seat

FIGURE 6A

Check for parts online at www.HuntRiversEdge.com or call 800-345-6007 11

Operator's Manual

JUMBO JACK 1-MAN Ladder Stand

STEP 8

STEP 7

7. Assemble the shooting rail (3 and 20) by inserting the two

shooting rail parts (3) into the shooting rail part (20). Align the

holes and secure together using two 1/4-20 x 1-1/2 IN bolts (25)

and nuts (30).

Attach the two shooting rail adjustment knobs (37) to the

adjustment plates on left and right armrests (4 and 5) using two

M6 x 20 MM bolts (31).

8. Attach the shooting rail assembly to the armrests using the

previously installed M6 x 60MM bolts (32), two yellow spacers (35)

and knobs (36).

DETAIL 8A

336

Check for parts online at www.HuntRiversEdge.com or call 800-345-6007

Operator's Manual

JUMBO JACK 1-MAN Ladder Stand

STEP 10

STEP 9

ground

10. Ladder sections are assembled on the ground in the following

order: bottom ladder section (8), middle ladder section (7) and

the top ladder section (21) with the treestand top assembly.

Connect all sections together using four lockpins (24).

9. Insert the top ladder section (21) into the pockets on the ared

platform rails (10) and secure using two 1/4-20 x 1-1/2 IN bolts (25)

and nuts (30).

Attach the bent end of the platform braces (11) to the rear

platform (13) using two 1/4-20 x 2-3/4 IN bolts (27) and nuts (30).

The bolts must go through the front platform section (12), rear

platform section (13) and then the platform brace (11).

Attach the opposite end of the platform braces (11) to the top

ladder section (21) using two 1/4-20 x 2-1/4 IN bolts (26) and nuts

(30).

mesh hidden

for clarity

Check for parts online at www.HuntRiversEdge.com or call 800-345-6007 13

Operator's Manual

JUMBO JACK 1-MAN Ladder Stand

STEP 12

STEP 11

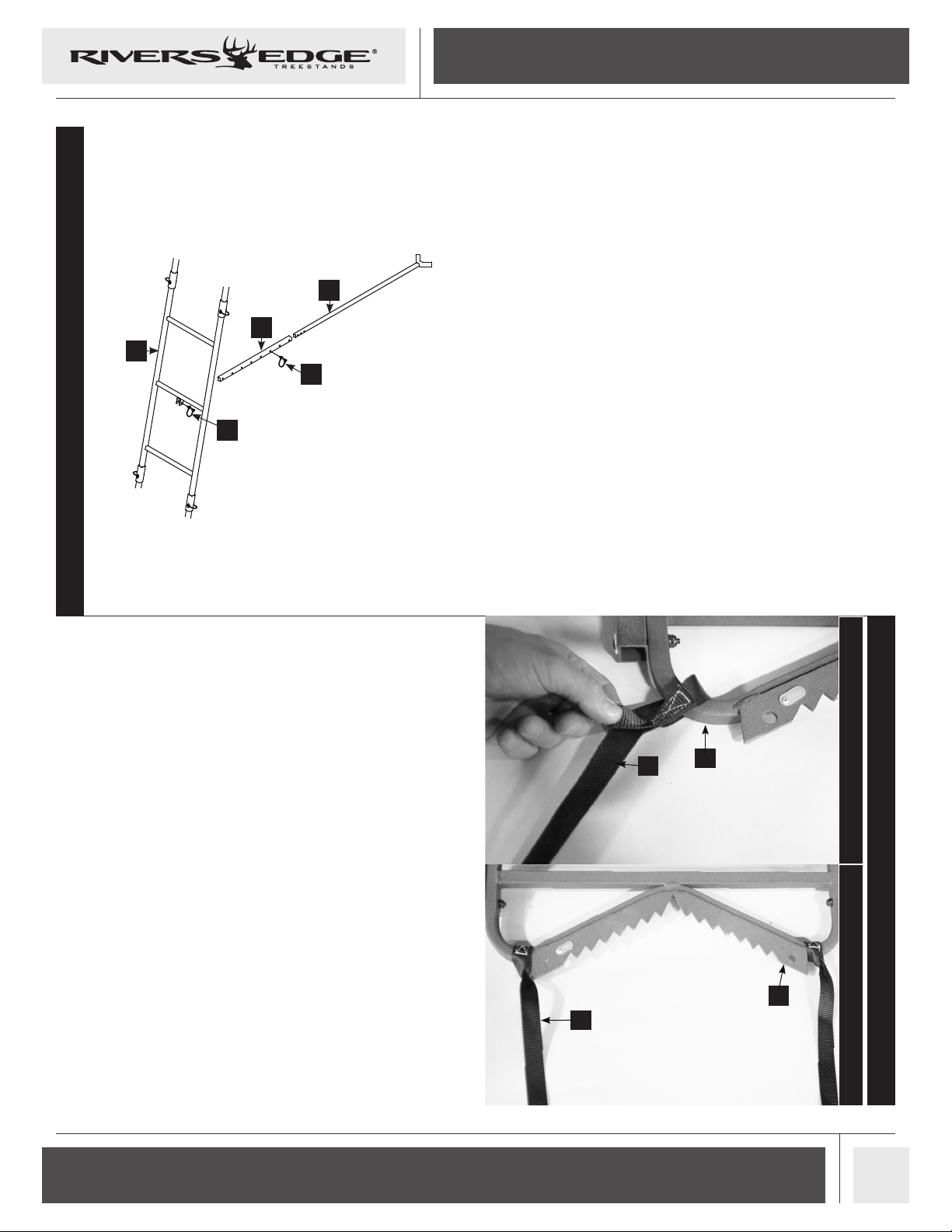

11. Attach the stabilizer bar extension (1) to the bracket on the

middle ladder section (7) using a lockpin (24).

Slide the stabilizer bar (2) into the extension (1) and secure using

a lockpin (24). Make sure lockpin passes through support tube

and stabilizer bar at appropriate hole to achieve desired distance

from tree. Adjustment in length may be needed when ladder is

uprighted later in the Setup and Use Instructions.

FIGURE 11B FIGURE 11A

45 22

12. Attach the two long ends of the 16’criss-cross straps (45) to the

tree blade (22). These long stabilizer straps should be attached by

pulling the free end of the strap through the loop end of the strap

to create a cinch knot around the frame tube.

Check for parts online at www.HuntRiversEdge.com or call 800-345-6007

Operator's Manual

JUMBO JACK 1-MAN Ladder Stand

READ AND UNDERSTAND THE FOLLOWING WARNINGS BEFORE SETUP AND USE

STOP

WARNING

Double check assembly steps to be certain you have

correctly assembled this product.

Study your new stand to become familiar with all of its

features and design. At ground level, following provided

use instructions, practice attaching stand to tree and

removing stand from tree. Practice sitting, standing, and

using this product before attaching overhead. Save these

instructions for future reference. You must always use the

provided Fall Arrest System (FAS) while using this product.

Always use at least three (3) people to install or take down

a ladder treestand. Always have two people stabilize the

ladder before climbing to the platform the rst time after

every set-up.

Be absolutely sure the tree blade(s) on stand and the

stabilizer bar are contacting tree before climbing ladder.

Stabilizer bar must always be correctly and securely

attached to ladder and tree before climbing ladder.

Make sure ladder bottom is rmly seated on dry, level

ground. Attach your harness tether to the tree before

securing the platform to the tree and stepping onto

platform. Refer to the Full Body Harness instructions.

Never ascend or descend ladder without criss-cross

straps/ropes securely holding ladder to tree and stabilizer

bar securely attached. Failure to correctly perform these

steps can cause the ladder to collapse/buckle-over

backwards during the initial ascent to attach ratchet strap

resulting in serious injury or death.

Always lean forward as you climb and attach your harness

to the tree before securing the platform to the tree and

stepping onto the platform.

WARNING

Always maintain three (3) points of contact when

climbing a ladder treestand. Proper three-point contact

means having either two feet with one hand or one foot

with two hands on the step portion of the ladder or

climbing aid at all times.

Always wear the appropriate footwear when using a

ladder treestand. A good non-slip safety boot is important

to your personal safety. Be especially careful that boot laces

do not get hooked on the stand or any of its components

(tuck shoelaces into boots before climbing).

Never stand on seat, it is designed for sitting only.

Do Not allow excessive strap buildup in ratchet as this

will prevent the ratchet teeth from engaging causing

slippage.

Always attach ratchet straps securely while using this

product!

If seat is removable, be certain it is securely attached

when in use.

Some models include a shooting rail. Never lean against,

lean over, or sit on shooting rail. It is designed as a

shooting rest only. Always be aware that the shooting rail

can swing to one side or pivot up and down.

Some models include a footrest, which is designed as a

footrest only. Never stand on footrest! Always be fully

aware of foot placement.

Some models include a multi-piece stabilizer bar system.

Be sure attachment hardware goes through both the

extension tube and the stabilizer bar.

Check for parts online at www.HuntRiversEdge.com or call 800-345-6007 15

Operator's Manual

JUMBO JACK 1-MAN Ladder Stand

SET UP AND USE INSTRUCTIONS

During installation and removal of ladder treestands,

you must always and properly use the included Full Body

Harness (Fall Arrest System). Refer to the Full Body Harness

instructions included with this product for proper use. A

FIGURE 13

1. Select a straight, healthy tree. Do Not attempt to install on a tree

that is not healthy.

2. With assembled product lying on the ground, position one person

at bottom end of ladder lying on the ground. This person has to

prevent the ladder end from tilting up when platform end is lifted

and prevent the ladder from skidding across ground.

3. a. Position two people at the platform end of the ladder, lift the

platform end and continue uprighting by walking toward bottom

end of ladder and moving hands along ladder legs. Stand ladder

up against chosen straight tree on dry, level ground. Use

caution when ladder comes over center against the tree. SEE

FIGURE 13(A).

b. Step back and look at the ladder top to see that it is level. Adjust

as needed to achieve a level platform top. Make sure tree blade is

contacting tree. SEE FIGURE 13(B).

c. Step down hard on bottom step to push ladder legs into the

ground. SEE FIGURE 13(C).

4. While two people hold the stand in place, the third person should

connect the horizontal stabilizer bar to the tree. Adjust the length

of the stabilizer bar as need so it contacts the tree and is level to

the ground. Then secure it to the tree with the 6' cam strap (44) by

forming a cinch knot with both ends of the strap and running the

long end of the strap through the cam buckle. SEE FIGURES 14

AND 15.

FIGURE 14

FIGURE 15

FIGURE 16

WARNING

Never use a treestand on a dead, leaning, diseased or

loose barked tree, or a utility pole. Always avoid electrical

power lines.

Bring ratchet strap(s) up with you in a pocket - Do Not

carry in your hands!

Check for parts online at www.HuntRiversEdge.com or call 800-345-6007

Operator's Manual

JUMBO JACK 1-MAN Ladder Stand

5. a. Loop the D-loop end of the two 16' criss cross straps (45)

through the loop end to form a cinch knot around the ladder

rail tube. Secure beneath a step rung, at the stabilizer bar height

location. SEE FIGURE 16A.

b. With the stand level and being held in place by two people,

the third person must cross one of the 16' criss cross straps (45)

behind the tree and feed the free end through the opposite

D-loop. SEE FIGURES 16B-E.

c. Criss cross the other 16' stabilizer strap (45), forming an "X"

pattern on the of the tree and feed the free end through the

opposite D-loop. SEE FIGURES 16B-E.

6. Make sure the criss cross straps and stabilizer bar strap are snug

and the tree blade is still contacting the tree.

NOTE: This ground level ladder-to-tree attachment will prevent

the ladder from pulling away from the tree while ascending to the

top for nal 6' ratchet strap (44) attachment. The same holds true

when the ladder is removed.

7. With two people securely holding the ladder, use the three point

contact climbing method to slowly climb the ladder and carefully

keep a constant hand grip on the ladder at all times. Always lean

forward, toward tree, to keep top section tree blades against the

tree. Be certain ladder bottom is rmly seated on dry, level

ground. Attach your harness tether to the tree before securing

the platform to the tree and stepping onto platform. Refer to

the Full Body Harness instructions included with this product.

NOTE: Bring ratchet strap up with you in a pocket. DO NOT carry

in your hand!

8. a. Standing on ladder step, lean toward tree with ratchet strap

now in hand, hook "S" hook with long strap through hole

provided on tree blade. Feed the long strap through the center

(slot) of ratcheting mechanism and back around through

tightening lever. SEE FIGURES 17A, 17B AND 18.

NOTE: Be sure you feed the long strap correctly so there are no

twists in the strap.

b.Wrap entire ratchet assembly around tree and hook other "S" hook

through opposite upper tree blade hole. Pull tail of long strap until

most of the slack is taken out. Be sure entire strap is even and at the

same level all around tree. "Ratchet" tight to tree, this will securely

attach ladder to tree and prevent movement. SEE FIGURES 17B

AND 17C.

NOTE: Make sure there is at least two full revolutions of strap on the

ratchet spool before the strap tightens. Proper tension will ensure

the stand is secured to the tree. Do not allow excessive strap to

build up in the ratchet as this will prevent the ratchet teeth from

engaging and can cause slippage.

To release ratchet, simply pull therelease lever andopen tightening

lever wide open (at). SEE FIGURE 17D.

9. If necessary, re-check and adjust the 6' ratchet strap (44), 16' criss

cross straps (45) and horizontal stabilizer bar assembly to securely

attach the treestand to the tree. The tree blade must be touching

the tree. SEE FIGURE 18.

10. You are now ready to use your ladder stand.

FIGURE 17A FIGURE 17B

FIGURE 17C FIGURE 17D

IMPORTANT

Reverse the Set-Up and Use Instructions to take the

ladder stand down.

FIGURE 18

Criss Cross

Strap

Ratchet Strap

Check for parts online at www.HuntRiversEdge.com or call 800-345-6007 17

Operator's Manual

JUMBO JACK 1-MAN Ladder Stand

FINISHED LADDER

RATCHET STRAP

CRISS CROSS

STRAPS

STABILIZER BAR

CAM STRAP

STABILIZER BAR

MIDDLE LADDER

SECTION

TOP LADDER

SECTION

ASSEMBLED

PLATFORM

SECTION

LOCKPINS

BOTTOM LADDER

SECTION

Check for parts online at www.HuntRiversEdge.com or call 800-345-6007

Operator's Manual

JUMBO JACK 1-MAN Ladder Stand

ILLUSTRATED PARTS BREAKDOWN

633

30 18

15 26

12 23

27 39

29 39 9

35 26

34 30

mesh hidden

for clarity

Check for parts online at www.HuntRiversEdge.com or call 800-345-6007 19

Operator's Manual

JUMBO JACK 1-MAN Ladder Stand

NO EXTENSIONS AVAILABLE FOR THIS MODEL.

NEVER MODIFY OR EXCEED ORIGINAL STATED USE HEIGHT!

ITEM # PART # DESCRIPTION QT Y.

1 1ML23 STABILIZER BAR EXTENSION 1

2 27397 STABILIZER BAR 39 IN 1

3 28678 SHOOTING RAIL “A” 2

4 28680 ARMREST LEFT 1

5 28681 ARMREST RIGHT 1

6 29365 FRONT SEAT TENSIONER 1

7 31739 MIDDLE LADDER SECTION 1

8 31740 BOTTOM LADDER SECTION 1

9 33436 BOLT ON STEP 1

10 35922 FLARED PLATFORM RAIL 2

11 35923 PLATFORM BRACE 2

12 35926 FRONT PLATFORM 1

13 35929 REAR PLATFORM 1

14 35930 FOOTREST 1

15 35931 SEAT SIDE RAIL 2

16 35932 TEARTUFF SEAT ASSY 1

17 35935 BACKREST SPREADER 1

18 35945 REAR SEAT SUPPORT LEFT 1

19 35946 REAR SEAT SUPPORT RIGHT 1

20 35949 SHOOTING RAIL“B” 1

21 35952 TOP LADDER SECTION 1

22 36181 TREE BLADE 1

23 36182 PLATFORM SUPPORT 2

24 35948 LOCKPIN 6

25 48240B BOLT 1/420 X 11/2 IN 9

26 48271B BOLT 1/420 X 21/4 IN 18

27 67540B BOLT 1/420 X 23/4 IN 6

28 48280B BOLT 1/420 X 3 IN 2

29 48261B WASHER 1/4 IN 2

30 48752B 1/420 NUT 35

ITEM # PART # DESCRIPTION QT Y.

31 26813 BOLT M6 X 20 MM 2

32 29727 BOLT M6 X 60 MM 2

33 26959 BOLT M6 X 70 MM 1

34 23572 WASHER YELLOW PLASTIC

2 MM

35 26913 SPACER YELLOW PLASTIC 6

36 23604 KNOB M6 X 10 MM 2

37 28839 KNOB M6 X 29 MM 2

38 29712 SQ PLUG END 22 MM 1

39 29713 SQ PLUG END 19 MM 8

40 35948 FOAM SLEEVE 71 IN 1

41 48736 FOAM SLEEVE 9 IN 2

ITEMS BELOW NOT SHOWN

42 40697 FALL ARREST SYSTEM FAS 1

43 48415 STRAP W/RATCHET AND

SHOOKS

44 MK021-1401 6’ CAM BUCKLE STRAP 1

45 MK034-4511 16’CRISS CROSS STRAP 2

PARTS LIST

*All weights, specications and features are approximate and are subject to change without notice. Due to continuous product improvements, product images may not be exact. Warning labels in some product
