RJG Lynx MCSG-B-159-4000 User manual

PRODUCT MANUALPRODUCT MANUAL
Training and Technology for Injection Molding
L™ M-C S
G 4,000-P B
S
MCSG‑B‑159‑4000

PRINT DATE 12.02.2021
REVISION NO. 0

i
Product Manual | Lynx™ Multi‑Channel Strain Gage 4,000‑Pound Button Sensor MCSG‑B‑159‑4000
PRODUCT MANUAL
L™ M-C S G
4,000-P B S
MCSG‑B‑159‑4000
INTRODUCTION
DISCLAIMER V
PRIVACY V
ALERTS V
ABBREVIATIONS V
PRODUCT DESCRIPTION
APPLICATIONS 1
BUTTONSTYLE SENSORS 1
SENSOR AND EJECTOR PIN SIZE 2
SELECTION CHARTS 2
OPERATION 4
INDIRECT/UNDER PIN 4
STRAIN GAGE SENSORS 4
DIMENSIONS 5
SENSOR 5
CABLE LENGTHS 5
INSTALLATION
INSTALLATION OVERVIEW 8
CLAMP PLATE TYPICAL INSTALLATION 8
CLAMP PLATE HEADTOHEAD INSTALLATION 8
EJECTOR PLATE INSTALLATION 9
ANGLED EJECTOR PINS 9
CONTOURED EJECTOR PINS 9
INSTALLATION SPECIFICATIONS 10
CLAMP PLATE TYPICAL INSTALLATION 10
CLAMP PLATE HEADTOHEAD INSTALLATION 14
COVER PLATECLAMP PLATE INSTALLATIONS 18

ii Lynx™ Multi‑Channel Strain Gage 4,000‑Pound Button Sensor MCSG‑B‑159‑4000 | Product Manual
EJECTOR PLATE INSTALLATION 20
SENSOR CONNECTIONS POCKET 23
SENSOR CABLE CHANNELS 24
SENSOR CABLE RETENTION 25
HIGHTEMPERATURE MCSGB12750/125/500/2000H SENSOR PLATE
INSTALLATION 27
NONSTANDARD INSTALLATIONS 28
STATIC NONMOVING EJECTOR PINS 28
STATIC NONMOVING EJECTOR PINS 29
MULTIPLE EJECTOR PINS 31
STATIC PIN EXAMPLE 32
STATIC TRANSFER PIN EXAMPLES 33
INSTALLATION VALIDATION
SENSOR INSTALLATION CHECKCLAMP PLATE TYPICAL
INSTALLATIONS 35
PREASSEMBLY CHECKS 35
POSTASSEMBLY CHECKS 37
SENSOR INSTALLATION CHECKCLAMP PLATE HEADTOHEAD
INSTALLATIONS 39
PREASSEMBLY CHECKS 39
POSTASSEMBLY CHECKS 41
SENSOR INSTALLATION CHECKEJECTOR PLATE INSTALLATIONS
43
PREASSEMBLY CHECKS 43
POSTASSEMBLY CHECK 43
SENSOR INSTALLATION CHECKSTATIC PIN INSTALLATIONS44
INSTALLATION CONTINUED
PRODUCT MANUAL
L™ M-C S G
4,000-P B S
MCSG‑B‑159‑4000

iii
Product Manual | Lynx™ Multi‑Channel Strain Gage 4,000‑Pound Button Sensor MCSG‑B‑159‑4000
MAINTENANCE
CLEANING 45
TESTING & CALIBRATION 45
TESTING SENSORS 45
CALIBRATION 46
COMMON FACTORS AFFECTING SENSOR RECALIBRATION 46
WARRANTY 47
RJG, INC. STANDARD THREEYEAR WARRANTY 47
PRODUCT DISCLAIMER 47
TROUBLESHOOTING
INSTALLATION ERRORS 49
EJECTOR PIN ISSUES 49
SENSOR HEAD ISSUES 50
CASE AND CABLE ISSUES 51
CUSTOMER SUPPORT 52
RELATED PRODUCTS
LYNX STRAIN GAGE EIGHTCHANNEL SENSOR PLATE SG8 53
CSG/LX8S0.5/1M/2M 53
LYNX STRAIN GAGE EIGHTCHANNEL ADAPTER WITH MOLD ID SG/LX8SID 53
SIMILAR PRODUCTS 54
LYNX MULTICHANNEL STRAIN GAGE SENSORS 54
LYNX EMBEDDED SENSORS 54
PRODUCT MANUAL
L™ M-C S G
4,000-P B S
MCSG‑B‑159‑4000

iv Lynx™ Multi‑Channel Strain Gage 4,000‑Pound Button Sensor MCSG‑B‑159‑4000 | Product Manual
NOTES

v
Product Manual | Lynx™ Multi‑Channel Strain Gage 4,000‑Pound Button Sensor MCSG‑B‑159‑4000
INTRODUCTION
Read, understand, and comply with all
following instructions. This guide must be
kept available for reference at all times.
DISCLAIMER
Inasmuch as RJG, Inc. has no control
over the use to which others may put
this material, it does not guarantee that
the same results as those described
herein will be obtained. Nor does RJG,
Inc. guarantee the effectiveness or safety
of any possible or suggested design
for articles of manufacture as illustrated
herein by any photographs, technical
drawings, and the like. Each user of the
material or design or both should make
his own tests to determine the suitability
of the material or any material for the
design as well as the suitability of the
material, process, and/or design for his
own particular use. Statements concerning
possible or suggested uses of the material
or designs described herein are not to be
construed as constituting a license under
any RJG, Inc. patent covering such use
or as recommendations for use of such
material or designs in the infringement of
any patent.
PRIVACY
Designed and developed by RJG, Inc.
Manual design, format and structure
copyright 2021 RJG, Inc. content
documentation copyright 2021 RJG, Inc. All
rights reserved. Material contained herein
may not be copied by hand, mechanical, or
electronic means, either whole or in part,
without the express written consent of RJG,
Inc. Permission will normally be granted for
use in conjunction with inter‑company use
not in conflict with RJG’s best interests.
ALERTS
The following three alert types are used
as needed to further clarify or highlight
information presented in the manual:
DEFINITIONA definition or clarification of a
term or terms used in the text.
NOTESLA note provides additional
information about a discussion
topic.
CAUTIONaA caution is used to make the
operator aware of conditions that
can cause damage to equipment
and/or injury to personnel.
ABBREVIATIONS
DIA diameter
MIN minimum
MAX maximum
R. radius

vi Lynx™ Multi‑Channel Strain Gage 4,000‑Pound Button Sensor MCSG‑B‑159‑4000 | Product Manual
NOTES

1
Product Manual | Lynx™ Multi‑Channel Strain Gage 4,000‑Pound Button Sensor MCSG‑B‑159‑4000
PRODUCT DESCRIPTION
The MCSG‑B‑159‑4000 sensor from
RJG, Inc. is a multi‑channel, digital strain
gage, 0.625” (15,88mm) button‑style
cavity pressure sensor that can withstand
forces of up to 4,000 lb. (17.79 kN) and
temperatures of up to 250°F (120°C—
standard sensors) or 425°F (220°C—
high‑temperature sensors).
The button‑style sensor has a permanent
cable which connects the sensor head
to the sensor connector. The sensor
connector is housed inside the mold and
plugs into the Eight‑Channel MCSG Sensor
Plate SG‑8 on the outside of the mold.
All sensors are fully functional and properly
named with a single cable connection from
the mold SG‑8 plate to the Eight‑Channel
MCSG Sensor Adapter SG/LX8‑S‑ID and
eDART® or CoPilot® process control and
monitoring systems.
APPLICATIONS
BUTTONSTYLE SENSORS
Button‑style cavity pressure sensors are
suitable for injection molding applications
in which the following conditions are met:
• Sensor will be installed behind an ejector,
blade, or core pin.
• Applied plastic pressure is high enough
to prevent poor sensor resolution, but low
enough to prevent sensor damage.
• Only one point of contact (single pin) to
the sensor.
• Sensor will be kept below 250 °F
(120°C) for standard models or 425°F
(220°C) for high‑temperature models
(MCSG‑B‑127‑XXXX‑H) in the mold; sensor
connectors will be kept below 185 °F
(85°C).
CAUTIONaMCSG-B-127-XXXX model sensors
MUST be used only within the
recommended temperature
ranges; failure to comply will result
in the damage or destruction of
equipment.

2Lynx™ Multi‑Channel Strain Gage 4,000‑Pound Button Sensor MCSG‑B‑159‑4000 | Product Manual
SENSOR AND EJECTOR PIN SIZE
SELECTION CHARTS
The charts below are only a guide. In order to assure correct sensor selection for your
application, please contact RJG.
Locate the pin size that will be used and match it to the location on the part (near the
end of fill or near the gate). The recommended sensor is the intersection of the row and
column.
1. Imperial Units
NORMAL PRESSURE HIGH PRESSURE
Pin Size Sensor Model(s) Sensor Model(s)
3/64 MCSG-B-127-125/500 MCSG-B-127-125/500
1/16 MCSG-B-127-125/500 MCSG-B-127-125/500
5/64 MCSG-B-127-125/500 MCSG-B-127-125/500
3/32 MCSG-B-127-125/500 MCSG-B-127-125/500/2000
7/64 MCSG-B-127-125/500 MCSG-B-127-125/500/2000
1/8 MCSG-B-127-125/500/2000 MCSG-B-127-500/2000
9/64 MCSG-B-127-500/2000 MCSG-B-127-500/2000, MCSG-B-159-4000
5/32 MCSG-B-127-500/2000 MCSG-B-127-500/2000, MCSG-B-159-4000
3/16 MCSG-B-127-500/2000, MCSG-B-159-4000 MCSG-B-127-500/2000, MCSG-B-159-4000
7/32 MCSG-B-127-500/2000, MCSG-B-159-4000 MCSG-B-127-500/2000, MCSG-B-159-4000
1/4 MCSG-B-127-500/2000, MCSG-B-159-4000 MCSG-B-127-2000, MCSG-B-159-4000
9/32 MCSG-B-127-2000, MCSG-B-159-4000 MCSG-B-127-2000, MCSG-B-159-4000
5/16 MCSG-B-127-2000, MCSG-B-159-4000 MCSG-B-127-2000, MCSG-B-159-4000
11/32 MCSG-B-127-2000, MCSG-B-159-4000 MCSG-B-127-2000, MCSG-B-159-4000
3/8 MCSG-B-127-2000, MCSG-B-159-4000 MCSG-B-127-2000, MCSG-B-159-4000
13/32 MCSG-B-127-2000, MCSG-B-159-4000 MCSG-B-127-2000, MCSG-B-159-4000
7/16 MCSG-B-127-2000, MCSG-B-159-4000 MCSG-B-127-2000, MCSG-B-159-4000
1/2 MCSG-B-127-2000, MCSG-B-159-4000 MCSG-B-159-4000
9/16 MCSG-B-159-4000 MCSG-B-159-4000
5/8 MCSG-B-159-4000 MCSG-B-159-4000
11/16 MCSG-B-159-4000 MCSG-B-159-4000
3/4 MCSG-B-159-4000 -
7/8 MCSG-B-159-4000 -

3
Product Manual | Lynx™ Multi‑Channel Strain Gage 4,000‑Pound Button Sensor MCSG‑B‑159‑4000
2. Metric Units
LOW PRESSURE HIGH PRESSURE
Pin Size Sensor Model(s) Sensor Model(s)
1.0 MCSG-B-127-125/500 MCSG-B-127-125/500
1.5 MCSG-B-127-125/500 MCSG-B-127-125/500
2.0 MCSG-B-127-125/500 MCSG-B-127-125/500
2.5 MCSG-B-127-125/500 MCSG-B-127-125/500/2000
3.0 MCSG-B-127-125/500 MCSG-B-127-500/2000
3.5 MCSG-B-127-500/2000 MCSG-B-127-500/2000, MCSG-B-159-4000
4.0 MCSG-B-127-500/2000 MCSG-B-127-500/2000, MCSG-B-159-4000
4.5 MCSG-B-127-500/2000 MCSG-B-127-500/2000, MCSG-B-159-4000
5.0 MCSG-B-127-500/2000, MCSG-B-159-4000 MCSG-B-127-500/2000, MCSG-B-159-4000
5.5 MCSG-B-127-500/2000, MCSG-B-159-4000 MCSG-B-127-500/2000, MCSG-B-159-4000
6.0 MCSG-B-127-500/2000, MCSG-B-159-4000 MCSG-B-127-500/2000, MCSG-B-159-4000
6.5 MCSG-B-127-500/2000, MCSG-B-159-4000 MCSG-B-127-2000, MCSG-B-159-4000
7.0 MCSG-B-127-2000, MCSG-B-159-4000 MCSG-B-127-2000, MCSG-B-159-4000
7.5 MCSG-B-127-2000, MCSG-B-159-4000 MCSG-B-127-2000, MCSG-B-159-4000
8.0 MCSG-B-127-2000, MCSG-B-159-4000 MCSG-B-127-2000, MCSG-B-159-4000
8.5 MCSG-B-127-2000, MCSG-B-159-4000 MCSG-B-127-2000, MCSG-B-159-4000
9.0 MCSG-B-127-2000, MCSG-B-159-4000 MCSG-B-127-2000, MCSG-B-159-4000
9.5 MCSG-B-127-2000, MCSG-B-159-4000 MCSG-B-127-2000, MCSG-B-159-4000
10.0 MCSG-B-127-2000, MCSG-B-159-4000 MCSG-B-127-2000, MCSG-B-159-4000
11.0 MCSG-B-127-2000, MCSG-B-159-4000 MCSG-B-127-2000, MCSG-B-159-4000
12.0 MCSG-B-127-2000, MCSG-B-159-4000 MCSG-B-159-4000
13.0 MCSG-B-127-2000, MCSG-B-159-4000 MCSG-B-159-4000
14.0 MCSG-B-159-4000 MCSG-B-159-4000
15.0 MCSG-B-159-4000 MCSG-B-159-4000
16.0 MCSG-B-159-4000 MCSG-B-159-4000
17.0 MCSG-B-159-4000 MCSG-B-159-4000
18.0 MCSG-B-159-4000 -
19.0 MCSG-B-159-4000 -
20.0 MCSG-B-159-4000 -
21.0 MCSG-B-159-4000 -
22.0 MCSG-B-159-4000 -
23.0 MCSG-B-159-4000 -
SENSOR AND EJECTOR PIN SIZE (continued)

4Lynx™ Multi‑Channel Strain Gage 4,000‑Pound Button Sensor MCSG‑B‑159‑4000 | Product Manual
EXCITATION
Gate 1
Gate 2
Gate 3
Gate 4
OUTPUT

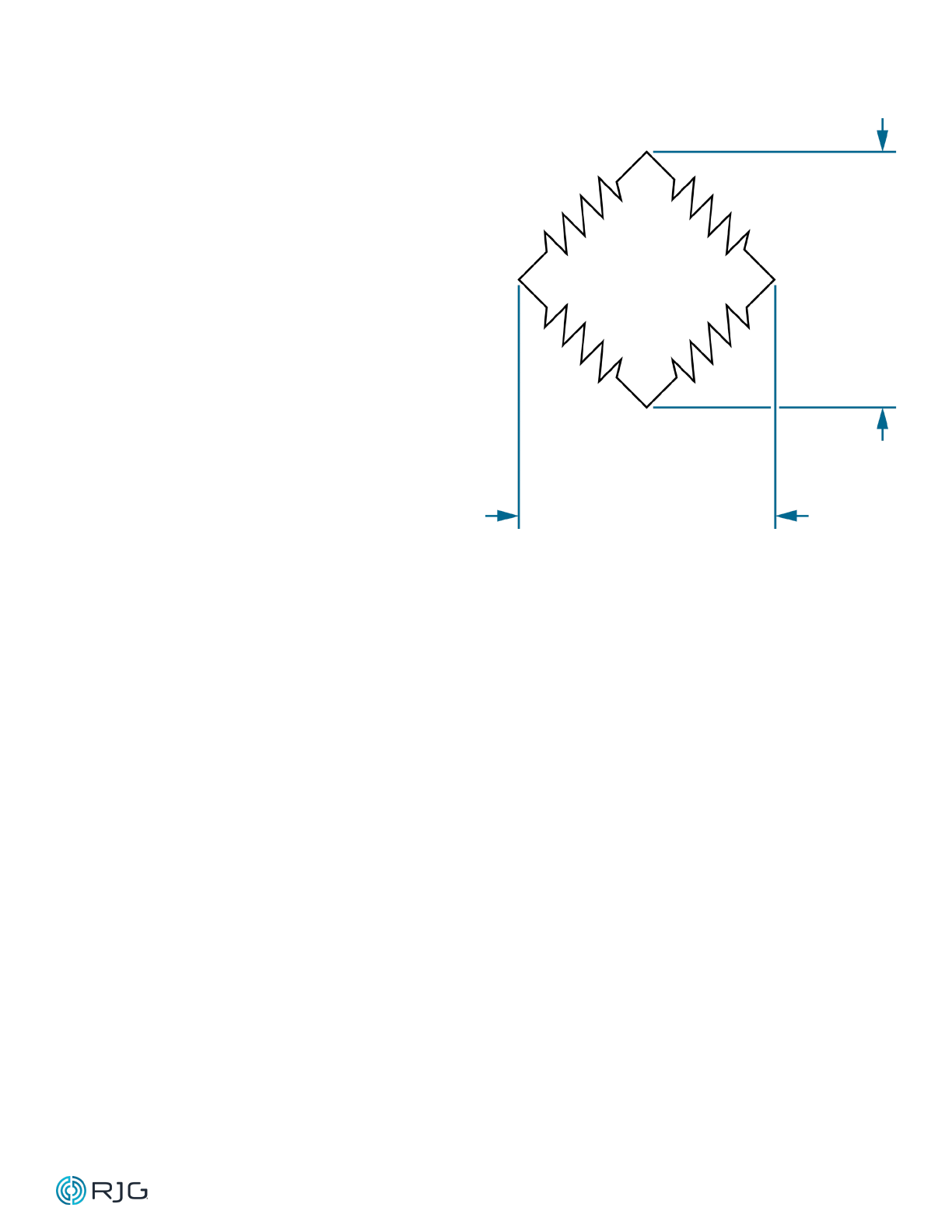

STRAIN GAGE OPERATING PRINCIPLE
OPERATION

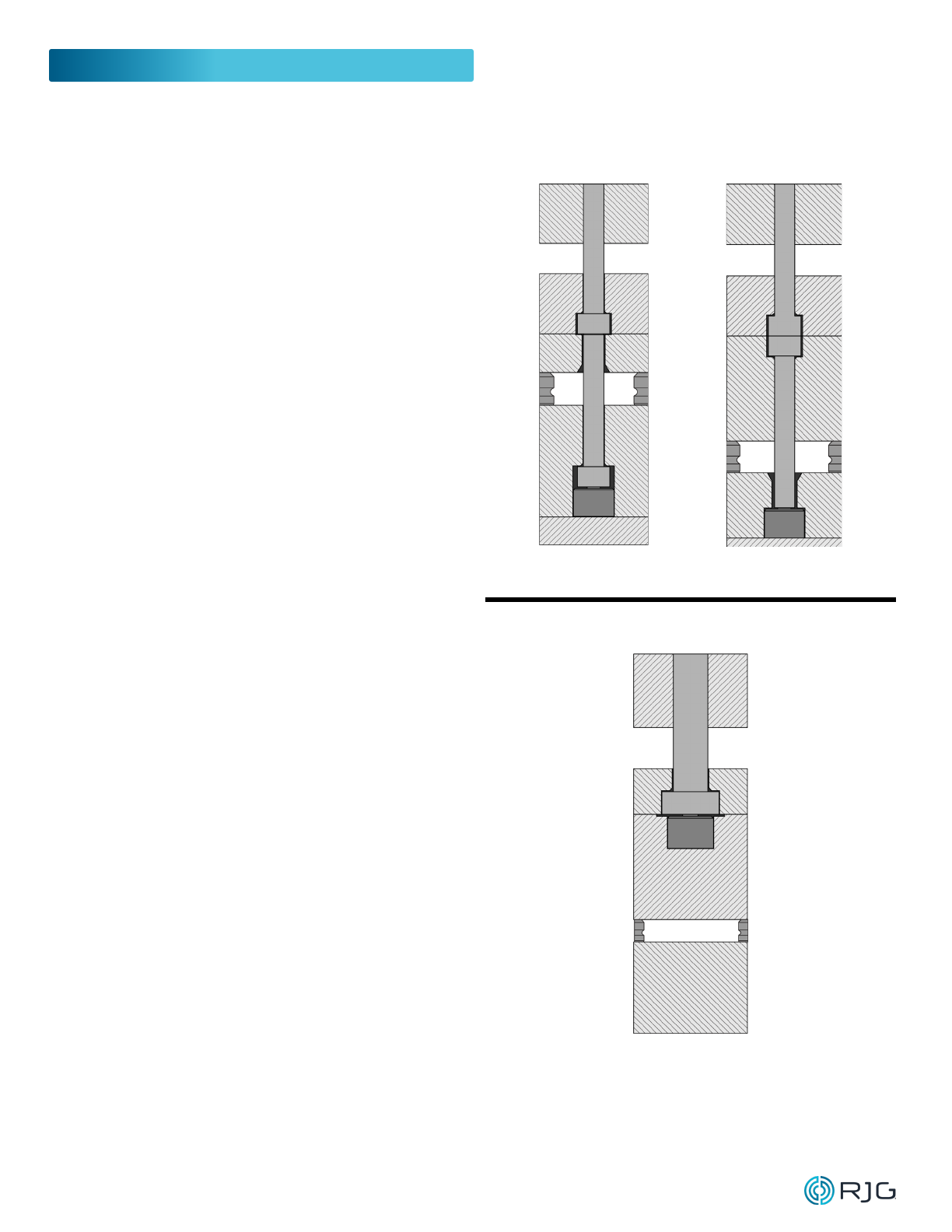

INDIRECT/UNDER PIN
Each Lynx™ multi‑channel strain gage
sensor is placed in the mold behind an
ejector pin. As plastic is injected into
the cavity, the pressure of the plastic
applies force to the ejector pin; the plastic
pressure force is transfered to the strain
gage sensor.
STRAIN GAGE SENSORS
The strain gage sensing element inside the
sensor body converts the applied force to
an electrical signal that can read using the
eDART system or CoPilot system software.
The sensing element uses a Wheatstone
bridge configuration (four strain gage
elements positioned in a circuit) to convert
small amounts of sensor deformation into
a measurable voltage through the change
in resistance of the strain gage sensing
elements. The sensor sends out a low‑level
voltage signal which is proportional to the
amount of force applied by the pressure
placed on the pin and transferred to the
sensor.
The voltage or measurement is carried
through the sensor cable, through the
SG‑8 plate and C‑SG/LX8‑S‑ID cable, to
the SG/LX8‑S‑ID adapter electronics case
mounted outside of the mold. The output
voltage signal is calibrated by the sensor’s
electronics and directly correlates with
pressure from within the cavity.
The SG/LX8‑S‑ID is connected to the
RJG, Inc. eDART system, which records
and displays the sensor’s measurement
for operator aid in process control. In
the eDART and CoPilot™ software, the
sensor model is assigned to each channel
in order to provide correct calibration.
This configuration only needs to be
completed once, after which the software
automatically recalls the configuration each
time the SG‑8 plate is connected.

5
Product Manual | Lynx™ Multi‑Channel Strain Gage 4,000‑Pound Button Sensor MCSG‑B‑159‑4000
DIMENSIONS
SENSOR
CABLE LENGTHS
Cable lengths are determined at time of
order. Each MCSG‑B‑159‑4000 is custom‑fit
for application.
SPECIFY CABLE LENGTH AT ORDER

6Lynx™ Multi‑Channel Strain Gage 4,000‑Pound Button Sensor MCSG‑B‑159‑4000 | Product Manual
NOTES

7
Product Manual | Lynx™ Multi‑Channel Strain Gage 4,000‑Pound Button Sensor MCSG‑B‑159‑4000
INSTALLATION
Sensors may be placed in the clamp plate
behind transfer pins, or in the ejector plate
behind ejector pins. Installation location—in
the clamp plate or ejector plate—depends
upon mold real estate and customer
preference.
Transfer pins protect the sensor from
damaging shock loads that are applied
when the ejector plate moves forward
and backward; the sensor’s cable is also
protected from pinching since it is not
necessary to disassemble the clamp and
backing plates during normal usage or
preventative maintenance.
Ejector pins provide a simple,
straightforward method of installation in
which sensors may be installed; ejector pin
installation requires less machining and
less equipment to achieve.
EJECTOR PLATE INSTALLATION
CLAMP PLATE INSTALLATIONS
Typical Head-to-Head

8Lynx™ Multi‑Channel Strain Gage 4,000‑Pound Button Sensor MCSG‑B‑159‑4000 | Product Manual
INSTALLATION OVERVIEW
CLAMP PLATE TYPICAL INSTALLATION
Apply the clamp plate (typical) installation
to instances where the ejector and transfer
pins are less than 0.28” (7,0 mm) in
diameter.
The sensor connector plate is mounted
on the mold. Pockets and a channel is
machined into the mold for the sensor
connector, cable, and sensor head. The
sensor head is placed under the transfer
pin above the cover plate in the clamp
plate. The transfer pin is retained below
the ejector pin in the clamp plate. The
ejector pin is retained in the ejector
retainer plate and reaches through to the
B‑Plate or cavity insert (refer to figure at
top right).
A minimum of 0.50” (12,0 mm) or one‑third
of the transfer pins length, whichever is
greater, must be fitted to a H7/g6 tolerance
within the clamp plate to ensure proper
pin alignment and to prevent possible
bending. If 0.50” (12,0mm)/one‑third
minimum cannot be achieved, apply the
head‑to‑head clamp plate installation
concept (refer to figure at top right).
CLAMP PLATE HEADTOHEAD
INSTALLATION
Apply the clamp plate (head‑to‑head)
installation to instances where the ejector
and transfer pins are greater than 0.28”
(7,0 mm) in diameter, or those in which a
minimum of 0.50” (12,0 mm)/one‑third of the
transfer pin cannot be contained above the
transfer pin head in the clamp plate.
The sensor connector plate is mounted
on the mold. Pockets and a channel is
machined into the mold for the sensor
connector, cable, and sensor head. The
sensor head is placed under the transfer
pin above the cover plate in the clamp
plate. The transfer pin is retained below
the ejector pin in the ejector plate, while
the ejector pin is retained in the ejector
retainer plate, with both heads resting
against each other. The ejector pin reaches
through to the B‑Plate or cavity insert (refer
to figure at bottom right).
CLAMP PLATE (TYPICAL) INSTALLATION
CLAMP PLATE (HEAD-TO-HEAD) INSTALLATION
B Plate or
Cavity Insert
B Plate or
Cavity Insert
Ejector
Retainer
Plate
Ejector
Retainer
Plate
Ejector Plate
Ejector Plate
Clamp Plate
Clamp Plate
Cover or
Backing
Plate
Cover or
Backing
Plate
Sensor
Sensor
Transfer Pin
Transfer Pin
Ejector Pin
Ejector Pin

9
Product Manual | Lynx™ Multi‑Channel Strain Gage 4,000‑Pound Button Sensor MCSG‑B‑159‑4000
B Plate or
Cavity Insert
EJECTOR PLATE INSTALLATION
Ejector
Retainer
Plate
Ejector Plate
Clamp Plate
Sensor
Ejector Pin
EJECTOR PLATE INSTALLATION
The sensor connector plate is mounted
on the mold. Pockets and a channel is
machined into the mold for the sensor
connector, cable, and sensor head. The
sensor head is placed under the ejector
pin in the ejector plate. The ejector pin is
retained in the ejector retainer plate and
reaches through to the B‑Plate or cavity
insert (refer to figure at right).
INSTALLATION OVERVIEW (continued)
1
2
ANGLED EJECTOR PINS
Ejector pins that are located on angled
surfaces of a part can utilize sensors
depending on the angle of the pin. The
maximum pin angle that can be used with
sensors is 30° ( 1at right). Beyond 30°,
force is lost to friction as the pin is pushed
sideways against the mold steel instead of
directly back onto the sensor, which in turn
can create errors in sensor readings. If
the angle is greater than 30°, contact RJG
customer support for assistance in verifying
suitability for use with an RJG sensor (refer
to “Customer Support” on page 56).
CONTOURED EJECTOR PINS
Ejector pins that are located on contoured
surfaces of a part can be used on either
concave and convex surfaces ( 2at
right) provided the shape of the contour
is symmetric, as this cancels out any
sideways forces generated by cavity
pressure pushing on the pin.
Do not use an asymmetrically‑contoured
ejector pin if the net contour is greater
than a comparable pin with a 30° angle.
If a contour is unique or asymmetrical,
contact RJG customer support for
assistance in verifying suitability for use
with an RJG sensor (refer to “Customer
Support” on page 56).

10 RJG, Inc. Lynx™ Multi‑Channel Strain Gage 4,000‑Pound Button Sensor MCSG‑B‑159‑4000 | Product Manual
INSTALLATION SPECIFICATIONS

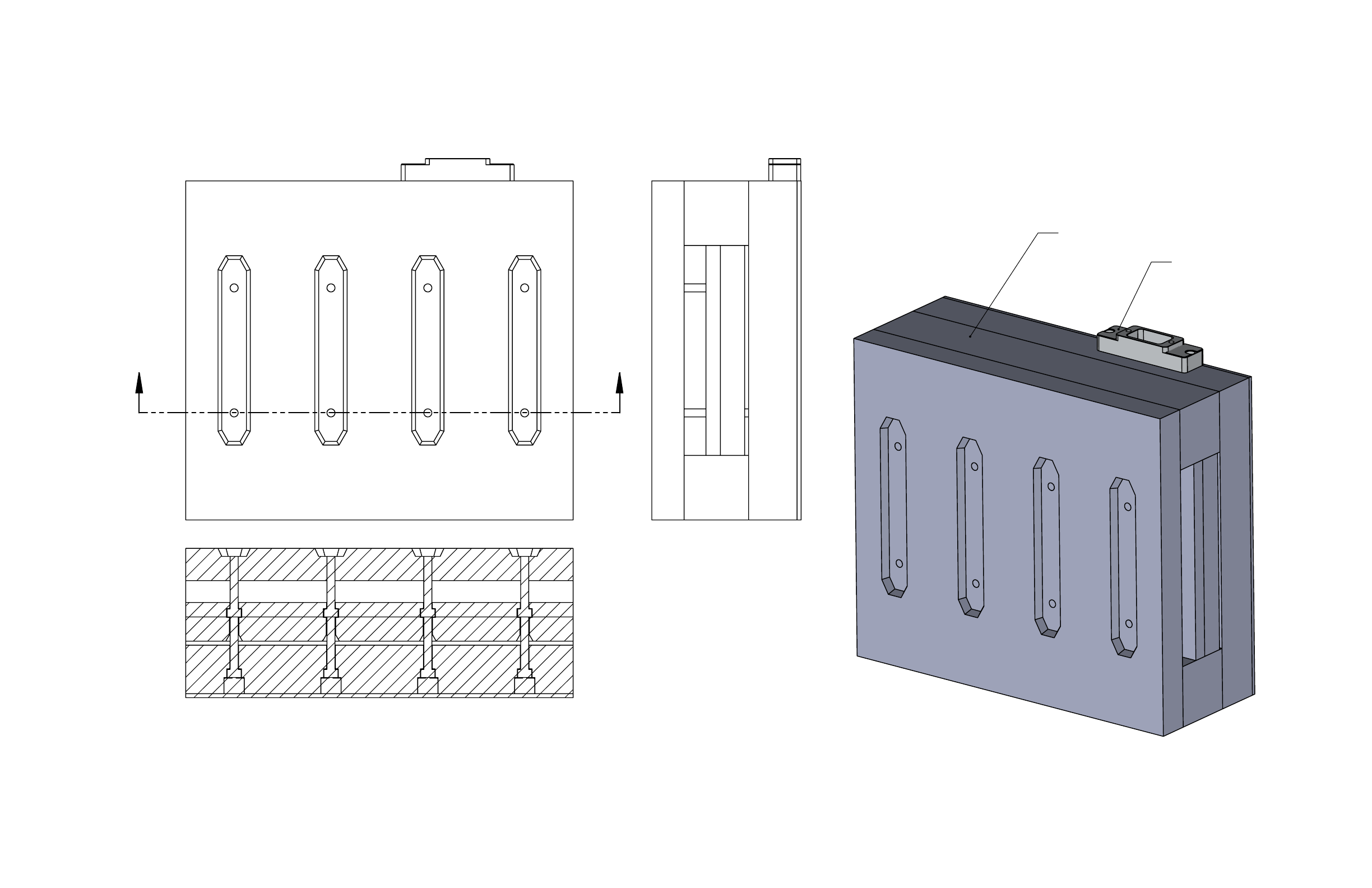

CLAMP PLATE TYPICAL INSTALLATION
Date: 12.02.2021
Drawn: K.J.Brettschneider
Check: M.Groleau
Design:
Description: MCSG-B-159-
4000 Sensor Installation
NOTES:
CLAMP PLATE APPLICATIONS REQUIRE GUIDED EJECTION 1.
EJECTOR AND TRANSFER PIN CONCENTRICITY MUST BE WITHIN 0.030" [0.76] OR 2.
10% OF EJECTOR PIN DIA, WHICHEVER IS SMALLER.
ENCLOSED EJECTOR BOX SUGGESTED. 3.
DO NOT SCALE PRINT 4.
BREAK ALL SHARP EDGES, 0.005 [0.03] R MAX 5.
DIMENSIONS IN INCHES [MM], UNLESS NOTED 6.
TOLERANCES UNLESS SPECIFIED: 7.
XXX =
0.003 [0.08]
XX = 0.01 [0.3]
ANGLES = 3 30
Operator Side
Eight-Channel Strain Gage
Sensor Plate with ID SG-8
AA
SECTION A-A
SCALE 1 : 2.5
Multi-Channel Strain Gage 4,000 lb. Sensor (MCSG-B-159-4000) Installation—Clamp Plate Installation
Drawing Title: MCSG-B-159-4000-02

RJG, Inc. 11
Product Manual | Lynx™ Multi‑Channel Strain Gage 4,000‑Pound Button Sensor MCSG‑B‑159‑4000
INSTALLATION SPECIFICATIONS (continued)
CLAMP PLATE (TYPICAL) INSTALLATION
Date: 12.02.2021
Drawn: K.J.Brettschneider
Check: M.Groleau
Design:
Description: MCSG-B-159-
4000 Sensor Installation
NOTES:
CLAMP PLATE APPLICATIONS REQUIRE GUIDED EJECTION
1.
EJECTOR AND TRANSFER PIN CONCENTRICITY MUST BE WITHIN 0.030" [0.76] OR
2.
10% OF EJECTOR PIN DIA, WHICHEVER IS SMALLER.
ENCLOSED EJECTOR BOX SUGGESTED.
3.
DO NOT SCALE PRINT
4.
BREAK ALL SHARP EDGES, 0.005 [0.03] R MAX
5.
DIMENSIONS IN INCHES [MM], UNLESS NOTED
6.
TOLERANCES UNLESS SPECIFIED:
7.
XXX =
0.003 [0.08]
XX = 0.01 [0.3]
ANGLES = 3 30
Ejector Pin Shoulder Ø and Transfer Pin Ø Equal
0.50 MIN [12 MIN]
Fit Must be 1/3 of Pin Length, Else
**Consider Head-to-Head Installation**
Cover Plate 32HRC
0.25 MIN [6.0 MIN]
B
C
B-Plate or Cavity Insert
Ejector Pin Installed with
Normal Slip-fit Tolerances
H7/g6
Ejector Retainer Plate
Ejector Plate
H7/g6
Clamp Plate
Standard Fit
0.02 MIN
0.5 MIN
Per Side
Part Thickness < 0.05 [1.5], 1/5 of Thickness
Part Thickness > 0.05 [1.5], 0.01 [0.3]
0.01 MIN
0.3 MIN
Counterbore in Ejector Plate
Transfer Pin Flush with Ejector Plate
Counterbore Ø = Pin Head Ø + 0.04 [1.0] MIN
If Pin Ø < 0.12 [3.0], Ø + 0.04 [1.0]
If Pin Ø > 0.12 [3.0], + 0.06 [1.5]
45°
REFER TO
TABLE D
30° Chamfer Depth Equal to Pin Ø
DETAIL B
SCALE 2 : 1
0.010 MIN
0.25 MIN
0.500
+
-
0.002
0.001
[12.7
0.04]
0.635
+
-
0.005
0.000
[16.13
0.1]
45° REFER TO
TABLE D
DETAIL C
SCALE 2.5 : 1
0.001 [0.03] E
0.001 [0.03]
E
Multi-Channel Strain Gage 4,000 lb. Sensor (MCSG-B-159-4000) Installation—Clamp Plate Installation
**CLAMP PLATE INSTALLATION FOR PINS ≤ Ø0.25 [7.0]; PINS > Ø0.25 [7.0] USE HEAD-TO-HEAD INSTALLATION ON SHEET MCSG-B-159-4000-04 & -05.**
TABLE D
Ejector Pin Ø Chamfer Length
0.04–0.08 [1.0–2.0] 0.01 [0.3]
0.10–0.20 [2.5–5.0] 0.02 [0.4]
0.24–0.40 [6.0–10.0] 0.025 [6.0]
Drawing Title: MCSG-B-159-4000-03

12 Lynx™ Multi‑Channel Strain Gage 4,000‑Pound Button Sensor MCSG‑B‑159‑4000 | Product Manual
1. Sensor Head Pocket
Sensor and transfer pin head pockets
are machined into the clamp plate. The
sensor pockets must be centered under
the selected ejector pin measuring 0.635”
+0.005/‑0.0 (16,13mm ±0,10 [ 1at right]) DIA,
and 0.500” +0.002/‑0.001 (12,7 mm ±0,01 [ 2
at right]) deep.
2. Transfer Pin Head Pocket
Choose an ejector and transfer pin
appropriate for the application (refer to
“Sensor and Ejector Pin Size” on page
2). Ejector and transfer pin must be
concentric within 0.030” (0,76 mm) or
10% of ejector pin diameter—whichever is
smaller. Ejector and transfer pin diameter
0.25” (7,0mm) MAX, and must be equal in
diameter.
Transfer pin head pockets must be centered
under the selected ejector pin measuring the
transfer pin head height plus a clearance of
0.01” (0,3 mm [ 3at right]) MIN. Chamfer the
transfer pin head pocket at 45° ( 4at right) to
the lead‑in of clamp plate, and fit the pin with
an H7/g6 fit ( 5Iat right) for at least 0.50”
(12,0mm) MIN.
INSTALLATION SPECIFICATIONS (continued)
1
2
4
5
3
7
6
CLAMP PLATE (TYPICAL) INSTALLATION
NOTESLThere must be 0.50” (12,0 mm) MIN
clamp plate thickness above the
transfer pin head to transfer pin
clearanced exit, equaling 1/3 of the pin
length; if 1/3 pin length not possible in
clamp plate thickness, use head-to-
head concept on page 10.
Chamfer the lead‑in at 30° ( 6at right) to the
ejector plate for a depth which equals the
transfer pin DIA, and provide clearance for
the transfer pin in the ejector plate equal
to pin DIA plus 0.04” (1,0mm) if pin DIA is
<0.12” (3,0mm), or 0.06” (1,5mm) if pin DIA
is >0.12” (3,0mm). Transfer pin must be 0.01”
(0,3 mm) longer than nominal for initial fit,
then adjusted to obtain the correct height.
10.635” +0.005/‑0.0 (16,13 mm ±0,10) DIA
20.500” +0.002/‑0.001 (12,7 mm ±0,01)
30.01” (0,3mm) MIN
445° Chamfer
5H7/g6 for 0.50” (12,0 mm) MIN I
630° Chamfer, Depth=Pin DIA
7If Pin DIA < 0.12” (3,0mm), + 0.04” (1,0mm)
If Pin DIA > 0.12” (3,0mm), + 0.06” (1,5mm)
