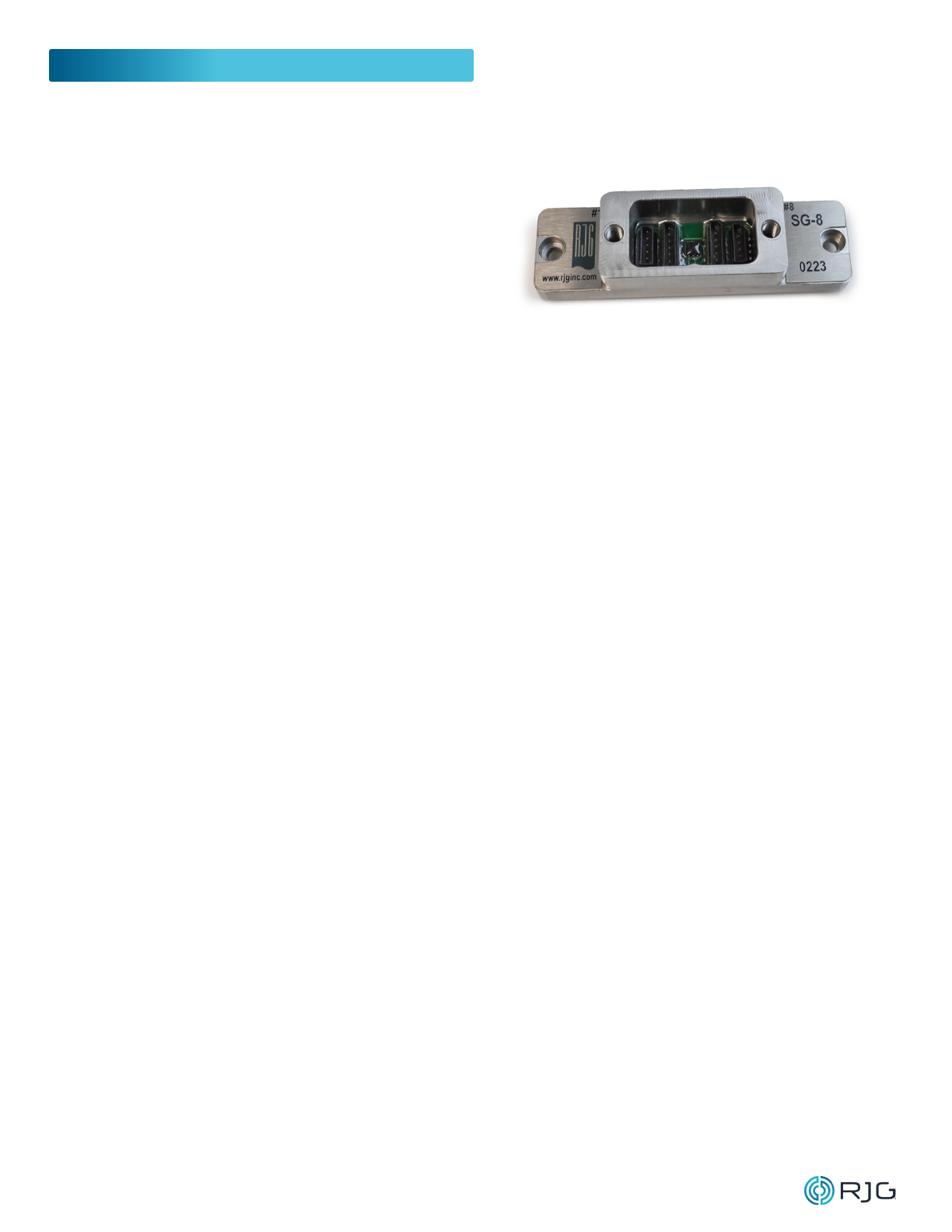

PRODUCT DESCRIPTION
The eight‑channel strain gage sensor
plate with mold ID SG‑8 interfaces up to
eight multi‑channel strain gage (MCSG)
sensors with the RJG, Inc. eight‑channel
strain gage sensor adapter SG/LX8‑S‑ID
and the eDART® or CoPilot® systems. The
built‑in mold identification (ID) enables the
software to automatically identify the mold
for easy setup.
APPLICATIONS
MULTICHANNEL STRAIN GAGE SENSOR
SYSTEM
The Lynx™ MCSG sensor systems provide
quick, convenient connection between
multiple sensors in a mold to a single
sensor adapter outside of the mold and the
eDART system, saving real estate on the
mold and minimizing cabling.
BUTTONSTYLE SENSORS
Button‑style cavity pressure sensors are
suitable for injection molding applications
in which the following conditions are met:
• Sensors will be installed behind ejector,
blade, or core pins.
• Applied plastic is high enough to prevent
poor sensor resolution, but low enough to
prevent sensor damage.
• Only one point of contact (single pin) to
each sensor.
• Sensor will be kept below 250 °F
(120°C) for standard models or 425°F
(220°C) for high-temperature models
(MCSG-B-127-XXXX-H) in the mold;
sensor connectors will be kept below 185
°F (85°C).
CAUTIONaMCSG-B-127-XXXX model sensors
MUST be used only within the
recommended temperature
ranges; failure to comply will result
in the damage or destruction of
equipment.

Eight‑Channel Strain Gage Sensor Plate with ID SG‑8 | Product Manual
2
OPERATION
INDIRECT/UNDERPIN SENSORS
Each Lynx™ multi‑channel strain gage
sensor is placed in the mold behind an
ejector pin. As plastic is injected into
the cavity, the pressure of the plastic
applies force to the ejector pin; the plastic
pressure force is transfered to the strain
gage sensor.
STRAIN GAGE SENSORS
The strain gage sensing element inside the
sensor body converts the applied force to
an electrical signal that can read using the
eDART system or CoPilot system software.
The sensing element uses a Wheatstone
bridge configuration (four strain gage
elements positioned in a circuit) to convert
small amounts of sensor deformation into
a measurable voltage through the change
in resistance of the strain gage sensing
elements. The sensor sends out a low‑level
voltage signal which is proportional to the
amount of force applied by the pressure
placed on the pin and transferred to the
sensor.
The voltage or measurement is carried
through the sensor cable, through the
SG‑8 plate and C‑SG/LX8‑S‑ID cable, to
the SG/LX8‑S‑ID adapter electronics case
mounted outside of the mold. The output
voltage signal is calibrated by the sensor’s
electronics and directly correlates with
pressure from within the cavity.
EXCITATION
Gate 1
Gate 2
Gate 3
Gate 4
OUTPUT

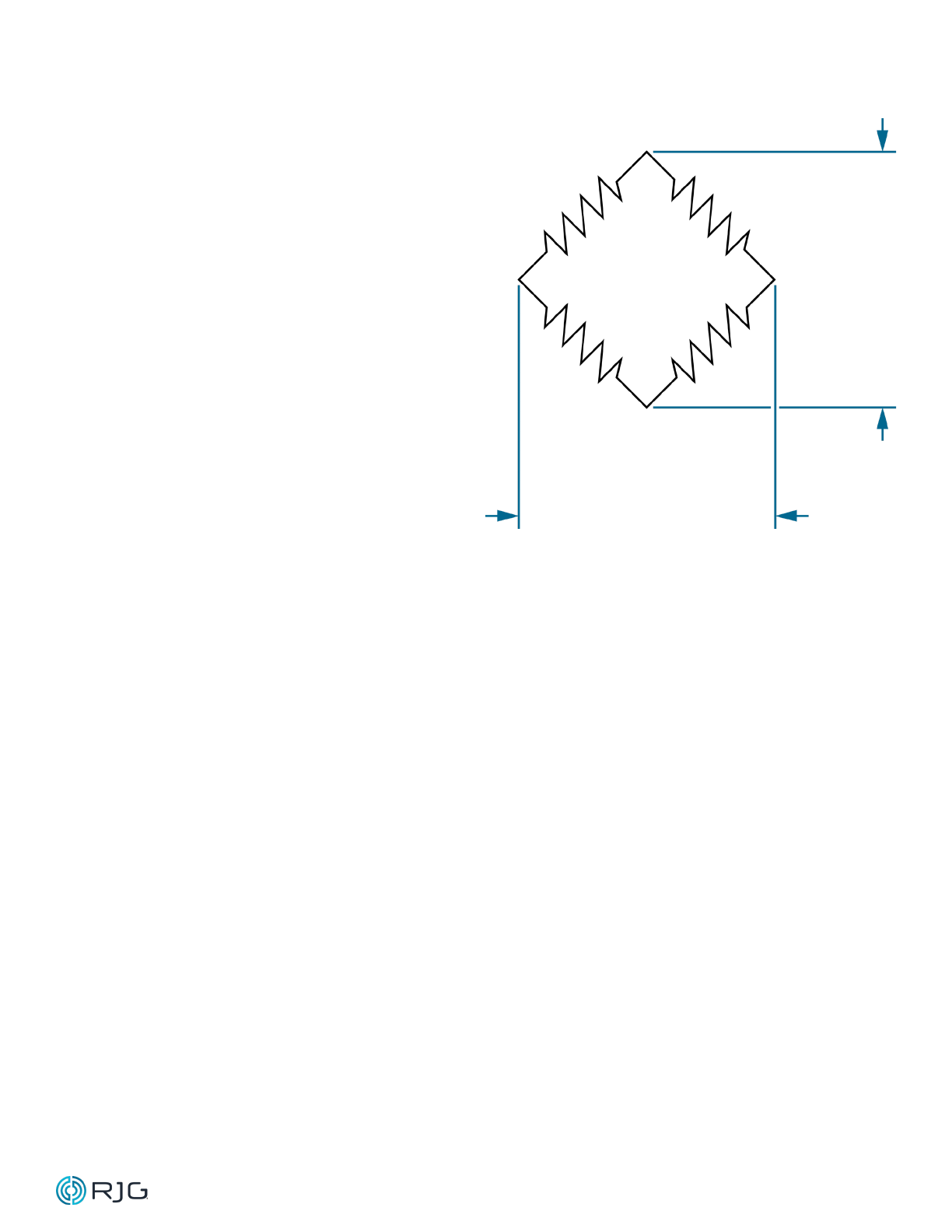

STRAIN GAGE OPERATING PRINCIPLE
The SG/LX8‑S‑ID is connected to the
RJG, Inc. eDART system, which records
and displays the sensor’s measurement
for operator aid in process control. In
the eDART and CoPilot® software, the
sensor model is assigned to each channel
in order to provide correct calibration.
This configuration only needs to be
completed once, after which the software
automatically recalls the configuration each
time the SG‑8 plate is connected.

Product Manual | Eight-Channel Strain Gage Sensor Plate with ID SG-8 3
DIMENSIONS
CABLE LENGTHS
Length must be longer than needed to
facilitate safe installation and removal of
connector from tool to prevent tension on
the lead wire; generally, 2–3” (50–75mm)
of slack is sufficient. Use good sense to
determine the appropriate cable length
required for each application. Length is
specified at time of order.
COMPATIBLE CABLES
CABLE NO. LENGTH
C‑SG/LX8‑S‑0.5M 0.5 m
C‑SG/LX8‑S‑1M 1.0 m
C‑SG/LX8‑S‑2M 2.0 m
Sensor Plate to Sensor Adapter Cable
C‑SG/LX8‑S Length

Eight‑Channel Strain Gage Sensor Plate with ID SG‑8 | Product Manual
4
NOTES

Product Manual | Eight-Channel Strain Gage Sensor Plate with ID SG-8 5
INSTALLATION
INSTALLATION OVERVIEW
CLAMP PLATE INSTALLATIONS
A pocket is machined into the mold clamp
plate—in conjunction with sensor pockets
and cable channels—for the sensor plate
(refer to sensor product manuals for
sensor and cable installation). The plate is
installed in the pocket where the sensor
cables are able to connect to the back of
the plate. A separate cable,
C‑SG/LX8‑S, is installed on the plate
outside of the mold, and joins the plate to
the sensor adapter SG‑LX8‑S‑ID, which is
attached to the eDART system.

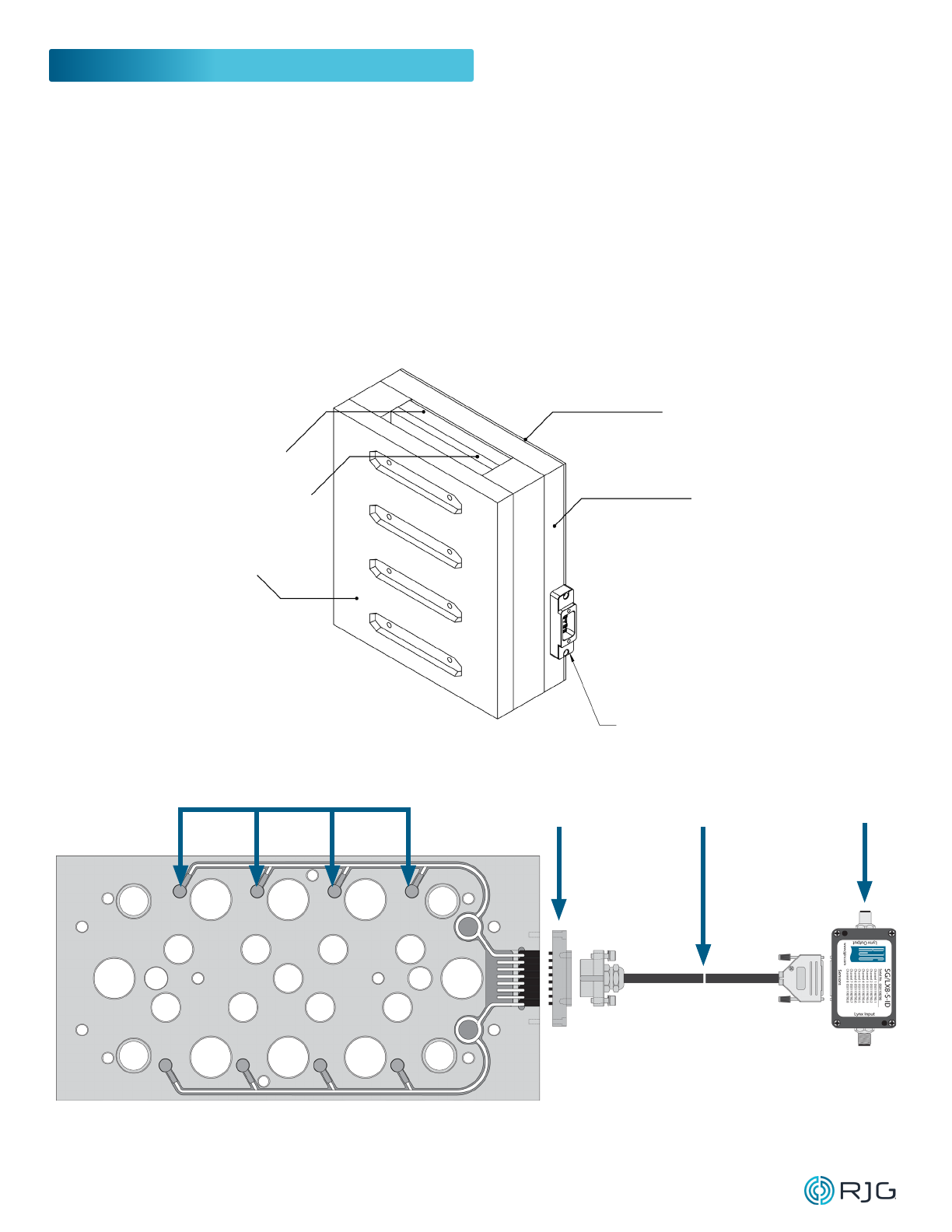

Cover Plate
Clamp Plate
B Plate or Cavity Insert
Ejector Retainer Plate
Ejector Plate
SG-8
SG-8
Plate
Sensors in Mold C-SG/LX8-S-ID
Cable
SG/LX8-S-ID
Adapter

Eight‑Channel Strain Gage Sensor Plate with ID SG‑8 | Product Manual
6
Clamp Plate
B Plate or Cavity Insert
Ejector Retainer Plate
Ejector Plate
SG-8
SG-8
Plate
Sensors in Mold C-SG/LX8-S-ID
Cable
SG/LX8-S-ID
Adapter
EJECTOR PLATE INSTALLATIONS
A pocket is machined into the mold ejector plate—in conjunction with sensor pockets
and cable channels—for the sensor plate (refer to sensor product manuals for sensor and
cable installation). The plate is installed in the pocket where the sensor cables are able
to connect to the back of the plate. A separate cable, C‑SG/LX8‑S, is installed on the
plate outside of the mold, and joins the plate to the sensor adapter SG‑LX8‑S‑ID, which is
attached to the eDART system.
INSTALLATION OVERVIEW (continued)

RJG, Inc. 7
Product Manual | Eight-Channel Strain Gage Sensor Plate with ID SG-8

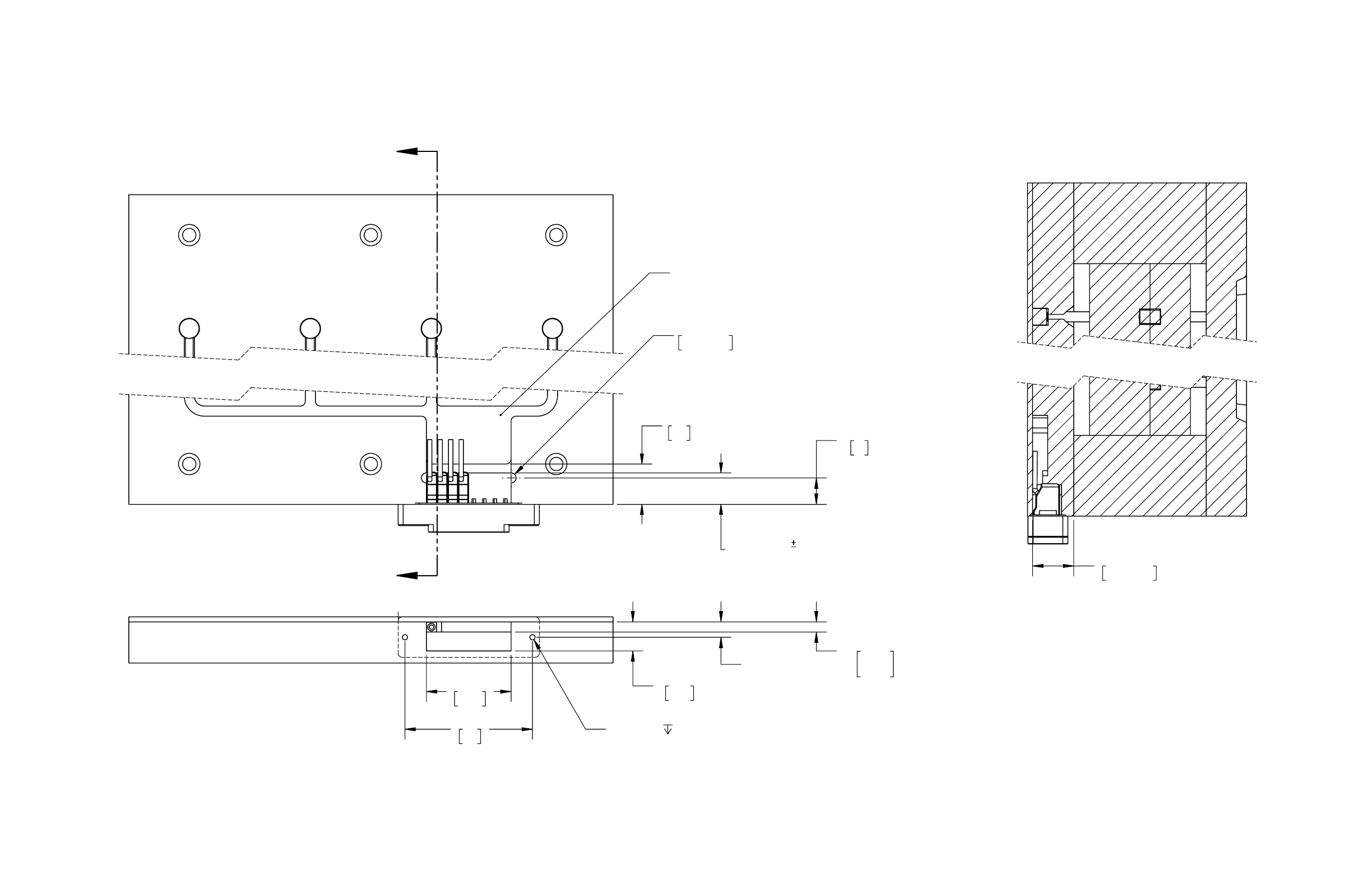

INSTALLATION SPECIFICATIONS
CLAMP PLATE INSTALLATIONS
Date: 06.03.2022
Drawn: K.J.Brettschneider
Check: M.Groleau
Design:
Description:
Eight-Channel Strain
Gage Sensor Plate with ID SG-8
Installation
NOTES:
DO NOT SCALE PRINT 1.
BREAK ALL SHARP EDGES, 0.005 [0.03] R MAX 2.
DIMENSIONS IN INCHES [MM], UNLESS NOTED 3.
TOLERANCES UNLESS SPECIFIED: 4.
XXX =
0.003 [0.08]
XX = 0.01 [0.3]
ANGLES = 3 30

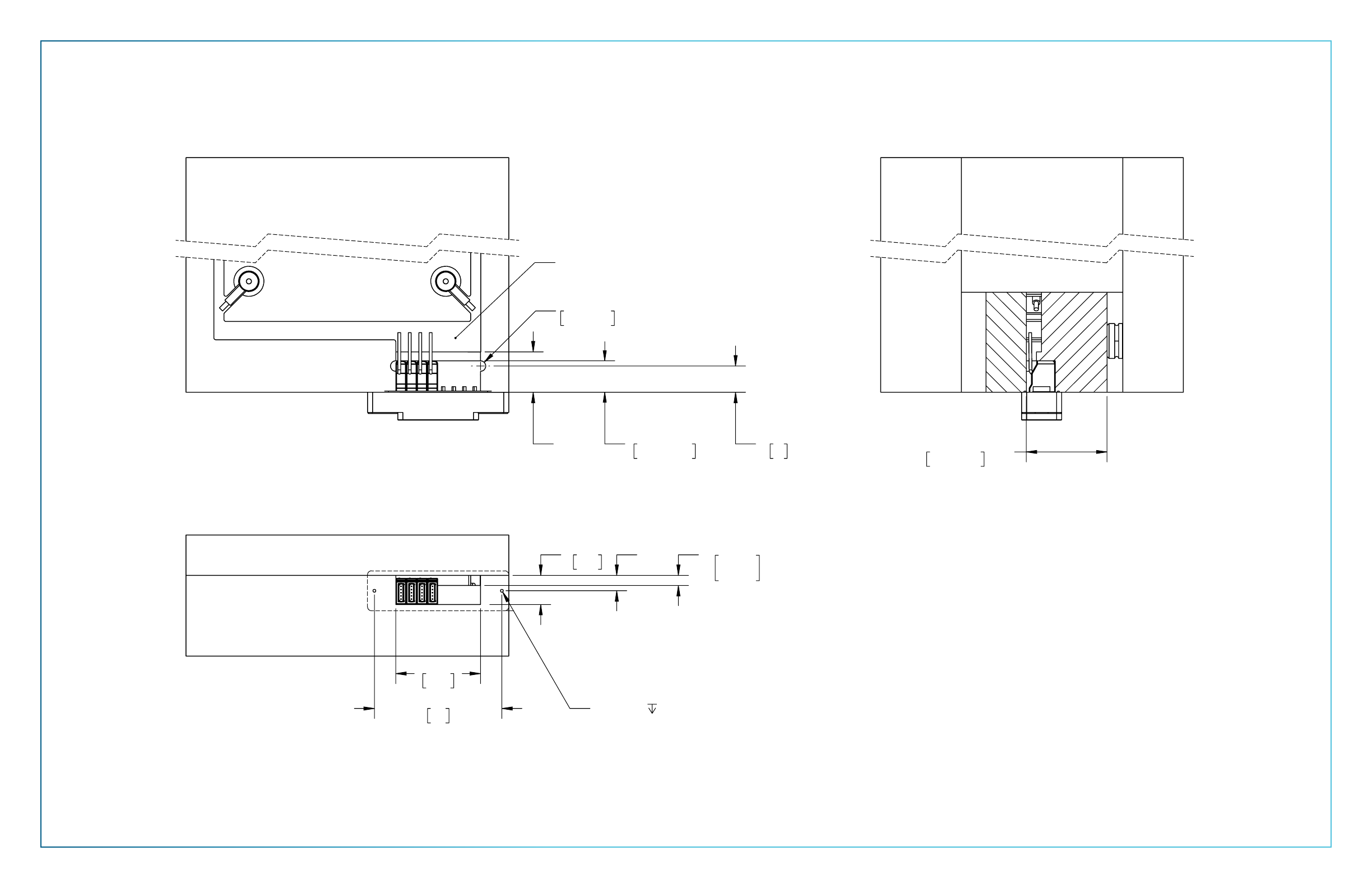

SG-8 Sensor Plate with ID
Top of Mold
CC
SECTION C-C
Lynx™ Eight-Channel Strain Gage Sensor Plate with Mold ID SG-8 Installation—Ejector Plate Installation
Drawing Title: SG-8_02

8 RJG, Inc. Eight‑Channel Strain Gage Sensor Plate with ID SG‑8 | Product Manual
INSTALLATION SPECIFICATIONS (continued)
CLAMP PLATE INSTALLATIONS
Date: 06.03.2022
Drawn: K.J.Brettschneider
Check: M.Groleau
Design:
Description:
Eight-Channel Strain
Gage Sensor Plate with ID SG-8
Installation
NOTES:
DO NOT SCALE PRINT 1.
BREAK ALL SHARP EDGES, 0.005 [0.03] R MAX 2.
DIMENSIONS IN INCHES [MM], UNLESS NOTED 3.
TOLERANCES UNLESS SPECIFIED: 4.
XXX = 0.003 [0.08]
XX = 0.01 [0.3]
ANGLES = 3 30
0.780±0.005
19.81±0.13
R0.125 MIN
3.18 MIN
(2 PL)
1.0
[26]
0.655
17
REF
Excess Cable Pocket
2.10
53.4
3.16
80
0.72
18.3
0.38
[9.5]
0.25
+
-
0.00
0.06
6
-
0.00
1.50
M4 X 0.7
.88 [22.4] (2PL)
0.875 MIN
22.2 MIN
REF

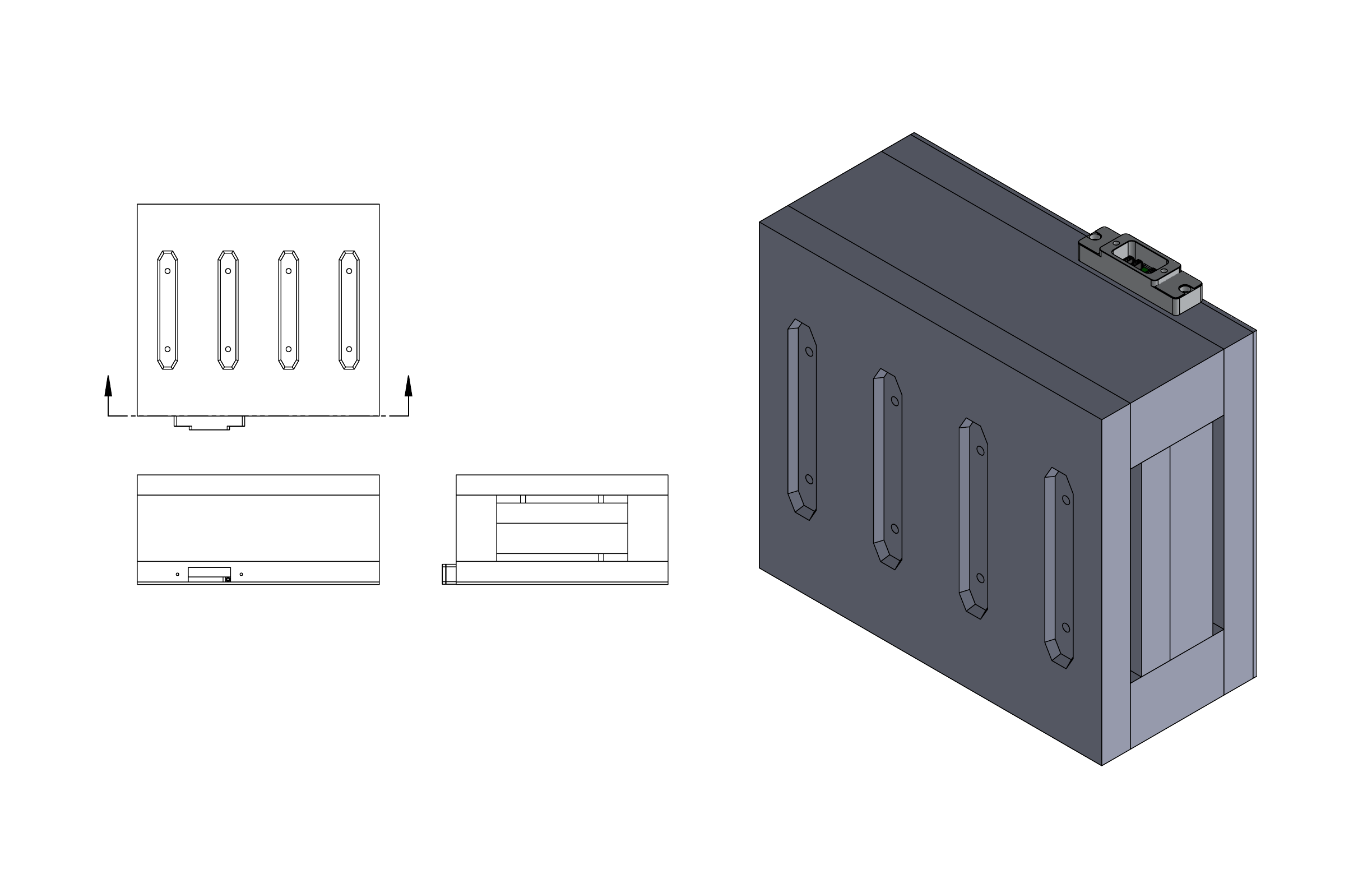

Lynx™ Eight-Channel Strain Gage Sensor Plate with Mold ID SG-8 Installation—Ejector Plate Installation
Drawing Title: SG-8_03

Product Manual | Eight-Channel Strain Gage Sensor Plate with ID SG-8 9
1. Connector Pocket
The SG‑8 requires two pockets for
installation; one pocket provides space for
excess cabling, while the other provides
space for the sensor connections. The
area—or “wall”—between the pockets
provides a supporting compression fit for
the sensor connections to the plate.

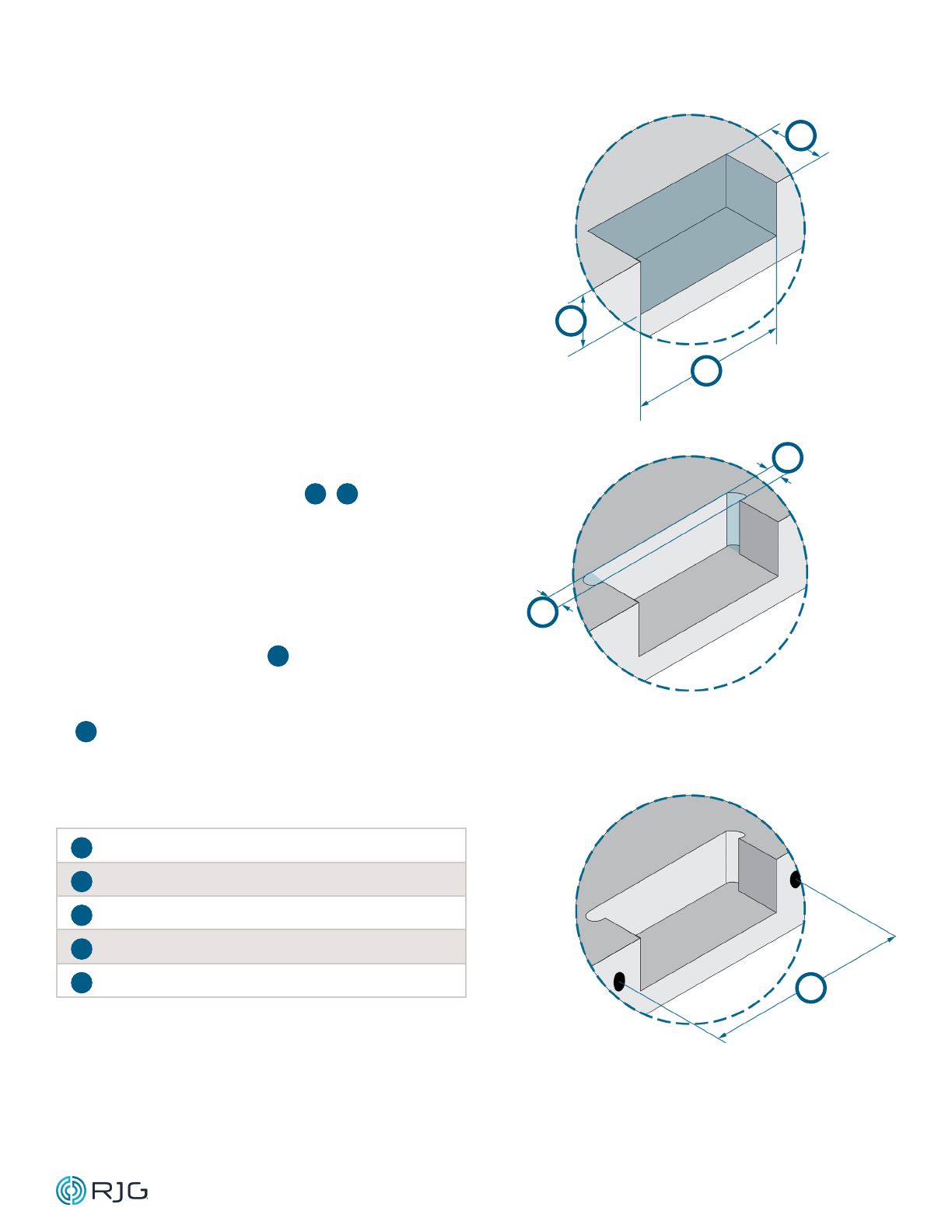

Machine a pocket for the connector
into the mold clamp plate. The SG‑8
plate requires a pocket 2.10” (53,4mm)
wide by 0.8” ±.005 (20,3mm ±0,13) long
by 0.72” (18,3mm) deep for the inner,
sensor‑connections‑side ( 1–3at right).
In addition, the connector pocket must
have two radii added to each side for ease
of installation/removal; machine 0.125”
(3,18mm) two places ( 4at right).
Drill and tap in two locations 3.16” (80mm
[5at right]) on center of the connector
pocket for the included M4 x 0.7 socket
head cap screws 0.88” (22,4 mm) deep.
12.10” (53,3mm)
20.8” ±.005 (20,3mm ±,13)
30.72” (18,3mm)
40.125” (3,18mm) R.
53.16” (80mm)
1
2
3
4
4
5
INSTALLATION SPECIFICATIONS (continued)
CLAMP PLATE INSTALLATIONS

10 RJG, Inc. Eight‑Channel Strain Gage Sensor Plate with ID SG‑8 | Product Manual
INSTALLATION SPECIFICATIONS (continued)
EJECTOR PLATE INSTALLATIONS
Date: 06.03.2022
Drawn: K.J.Brettschneider
Check: M.Groleau
Design:
Description:
Eight-Channel Strain
Gage Sensor Plate with ID SG-8
Installation
NOTES:
DO NOT SCALE PRINT 1.
BREAK ALL SHARP EDGES, 0.005 [0.03] R MAX 2.
DIMENSIONS IN INCHES [MM], UNLESS NOTED 3.
TOLERANCES UNLESS SPECIFIED: 4.
XXX = 0.003 [0.08]
XX = 0.01 [0.3]
ANGLES = 3 30
DD
SECTION D-D
Lynx™ Eight-Channel Strain Gage Sensor Plate with Mold ID SG-8 Installation—Clamp Plate Installation
Drawing Title: SG-8_04

RJG, Inc. 11
Product Manual | Eight-Channel Strain Gage Sensor Plate with ID SG-8
INSTALLATION SPECIFICATIONS (continued)
EJECTOR PLATE INSTALLATIONS
Date: 06.03.2022
Drawn: K.J.Brettschneider
Check: M.Groleau
Design:
Description:
Eight-Channel Strain
Gage Sensor Plate with ID SG-8
Installation
NOTES:
DO NOT SCALE PRINT 1.
BREAK ALL SHARP EDGES, 0.005 [0.03] R MAX 2.
DIMENSIONS IN INCHES [MM], UNLESS NOTED 3.
TOLERANCES UNLESS SPECIFIED: 4.
XXX = 0.003 [0.08]
XX = 0.01 [0.3]
ANGLES = 3 30
0.8±0.005
[20.3
0.13]
FOR CLAMP PLATE
INSTALLATIONS ONLY
0.655
17
REF
1.0
26
R0.125 MIN
3.18 MIN
(2PL)
E
E
Excess Cable Pocket
2.10
53.3
3.16
80
M4 X 0.7
.88 [22.4] (2PL)
0.72
18.3
0.38
[9.5]
0.25
+
-
0.00
0.06
6
-
0.0
1.5
1.50 MIN
38.1 MIN
SECTION E-E
SCALE 1 : 2
Lynx™ Eight-Channel Strain Gage Sensor Plate with Mold ID SG-8 Installation—Clamp Plate Installation
Drawing Title: SG-8_05

Eight‑Channel Strain Gage Sensor Plate with ID SG‑8 | Product Manual
12
1. Connector Pocket
The SG‑8 requires two pockets for
installation; one pocket provides space for
excess cabling, while the other provides
space for the sensor connections. The
area—or “wall”—between the pockets
provides a supporting compression fit for
the sensor connections to the plate.
Machine a pocket for the connector into
the mold ejector plate. The SG‑8 plate
requires a pocket 2.10” (53,4mm) wide
by 0.780” ±.005 (19,8mm ±0,13) long
by 0.72” (18,3mm) deep for the inner,
sensor‑connections‑side ( 1–3at right).
In addition, the connector pocket must
have two radii added to each side for ease
of installation/removal; machine 0.125”
(3,18mm) two places ( 4at right).
Drill and tap in two locations 3.16” (80mm
[5at right]) on center of the connector
pocket for the included M4 x 0.7 socket
head cap screws 0.88” (22,4 mm) deep.
12.10” (53,3mm)
20.780” ±.005 (19,8mm ±,13)
30.72” (18,3mm)
40.125” (3,18mm) R.
53.16” (80mm)
1
2
3
4
4
5
INSTALLATION SPECIFICATIONS (continued)
EJECTOR PLATE INSTALLATIONS
