RM Solar S Class 20 Pro User manual

Instruction Manual
Issue 4
Note: These Instructions Should Be Read Carefully Before
Install, And Before Calling Technical Support.

1
Contents
Table Of Contents:
Introduction - Page 2
Health & Safety Information - Page 2
Post Installation - Page 2
Section 1 - Product Specications - Page 3
S Class 10 Specication - Page 3
S Class 20 Specication - Page 4
S Class 20 Pro Specication - Page 5
Section 2 - Positioning & Piping - Page 6
Positioning The Panels - Page 6
Piping Schematics For Panels - Page 7
Section 3 - On Roof Frames - Page 8
Sharks Fin Frame - Page 10
Slate Bolt Frame - Page 18
A Frame Installation - Page 25
Section 4 - In Roof Frames - Page 34
S Class 20 In Roof Installation - Page 34
S Class 10 In Roof Installation - Page 52
Section 5 - Connections & Components - Page 77
System Piping - Page 77
Insulation - Page 77
Glycol - Page 77
Double Pump Station - Page 78
Expansion Vessel - Page 79
Section 6 - Filling The System - Page 80
Filling The System - Page 80
Section 7 - Controller Setup - Page 81
Setting Up The SHE-02 - Page 82
Setting Up The Solastat - Page 82
Setting Up The Resol (East/West Split) - Page 83
Setting Up The Resol (2 Store System) - Page 83
Section 8 - Commissioning & Maintenance - Page 84
Commissioning Certicate - Page 84
Product Guarantees - Page 85
Maintenance - Page 85
Section 9 - Service Log - Page 86
Service Log - Page 86

2
Introduction, Health & Safety, & Post Installation
Introduction
This installation manual contains essential information for the effective and safe installation of RM
Solar products. It is essential that this kit is tted by someone with relevant training or previous
experience in the eld of Solar Thermal, if this kit is installed without prior training or qualication
your guaranteed may be void and your help limited.
This technical documentation should be available with you at all times during the installation, but
prior to installation please read these instructions as in many cases it will prevent problems from
occurring during the installation process.
Health & Safety Information
RM Solar panels are high quality thermal solar panels using selective coating technology to convert
light into heat. RM Solar panels should only be tted by authorised, trained and qualied personnel.
They are not intended to be a “do it yourself” product. Panels are also sometimes called “solar
collectors”.
When tting the panels installers shall comply with all relevant health and safety regulations and
shall carry out a suitable and sufcient risk assessment before any work commences.
Post Installation
After the correct and full installation and commissioning of the RM Solar system please make sure
you take the following steps:
In The Manual Please:
• Complete the product guarantee form included with the solar kit.
• Complete the product commissioning certicate.
Ensure that you:
• Explain how the system works and how to get the best from the system to the customer.
• Make sure these instructions are left with the customer.
• Service the system in accordance with recommended guidance, and complete the log as
appropriate.
Pre Installation
• Please ensure all equipment is on site, and no parts are damaged.
• Please make a note of any solar panel serial numbers.

3
Section 1 - Product Specications
S Class 10 Specication
RM Solar’s new S Class 10 panel comes in a variety of arrangements, including standard vertical,
oversized vertical, and horizontal panels.
Technical Information
Collector Casing:
Material: Aluminium Prole
Colour: Brown
Back Plate: AlZn 0.5mm
Transparent Cover:
Type: Temperated Glass, 4mm
Standards: prEN 12150, BS6206 Class A
Dimensions: 1000 x 2000 / 1200 x 2000
Young Factor: E=70Gpa
Poisson Factor: μ=0.22
Expansion Factor: 0.000009m/mok
Light Transmittance: >89% +/-0.5%
Glass Sealing: Silicone
Insulation:
Type: Rockwool With Black Fleece
Thickness: 40mm (back)
20mm (side)
Density: 40kgr/m3
Thermal Conductivity: 0.044W/mK (100oC)
S Class 10 S Class 10 Horizontal S Class 10 Pro
Overall Area (m2) 2.09 2.09 2.49
Absorber Area (m2) 1.92 1.92 2.31
Aperture Area (m2) 1.92 1.92 2.31
Length (mm) 2030 1030 2030
Width (mm) 1030 2030 1230
Height (mm) 87 87 87
Overall Weight (kg) 48.20 49.60 50.50
Collectors Installation Vertical Horizontal Vertical
Absorber Type Grid Grid Grid
Absorber Capacity (l) 1.97 1.97 2.23
Coating Selective Selective Selective
Thickness (mm) 0.50 0.50 0.50
Absorption 95% +/-2% 95% +/-2% 95% +/-2%
Emission 5% +/-2% 5% +/-2% 5% +/-2%
Welding Process Laser Laser Laser
Stagnation Temperature 191 191 193
Certications Keymark Keymark Keymark
Max Working Pressure (Bar) 10 10 10
Heat Transfer Medium Glycol Glycol Glycol
Type S Class 10 S Class 10 Horizontal S Class 10 Pro
Efciency (%) 78.6 75.9 74.5
a1 (W/m2K) 3.62 3.038 3.556
a2 (W/m2k2) 0.028 0.042 0.017

4
Section 1 - Product Specications
S Class 20 Specication
RM Solar S Class 20 solar panel is a vertically mounted glazed collector with collection
pipes, intended for applications in systems equipped with circulating pumps.
The RM Solar S Class 20 panel is constructed with a single meander system piping without using
soldering or welding and is folded into the absorber plate; a single piece tray folded into the frame
holding the glazing.
The RM Solar S Class 20 panel is not intended to be used in drain-back systems.
Technical Information
• Floor Space : 2.03 m2
• Dimensions : 1010 x 2010 mm
• Weight empty : 36.5 kg
• Fluid Volume : 1.3 litres
• Recommended ow of heat transfer uid : 30 L/h/m2 collector
• Stagnation temperature : 170°C
• Panel connection : in series
• Maximum number of panels that can be linked in a series : 3
• Maximum number of series : 1
• Maximum number of panels in parallel: 10 - Please see page 20.
• Glazing : 4mm low iron hailstone resistant
Tested to EN 12975 (parts 1 & 2) and to Solar Rating & Certication Corporation Standards for the
United States of America and to all applicable Canadian test standards
Maintenance
The panels have been designed to withstand high temperatures; the glass does not require cleaning.
There are no user serviceable parts inside and due to the heat exchange process the panel does not
contact potable water or water to be heated.
Important
The panels must be covered for a minimum of 1 hour before lling the system with glycol.

5
Section 1 - Product Specications
S Class 20 Pro Specication
The RM Solar S-Class Pro Panel has been specically designed to meet the needs of large
industrial applications. Suitable for both Commercial Buildings, and Private applications, such as
large swimming pool installations.
The S-Class Pro panels are also available as a horizontal variant allowing installation on roofs where
space is a premium.
The RM Solar S-Class Pro panel is not intended to be used in drain-back systems.
Technical Information
• Floor Space : 2.03 m2
• Dimensions : 1010 x 2010 mm
• Weight empty : 36.5 kg
• Fluid Volume : 1.3 litres
• Recommended ow of heat transfer uid : 30 L/h/m2 collector
• Stagnation temperature : 170°C
• Panel connection : in parallel
• Maximum number of panels that can be linked : 10
• Maximum number of series : Innite
• Glazing : 4mm low iron hailstone resistant
Tested to EN 12975 (parts 1 & 2) and to Solar Rating & Certication Corporation Standards for the
United States of America and to all applicable Canadian test standards
Maintenance
The panels have been designed to withstand high temperatures; the glass does not require cleaning.
There are no user serviceable parts inside and due to the heat exchange process the panel does not
contact potable water or water to be heated.
Important
The panels must be covered for a minimum of 1 hour before lling the system with glycol.

6
Section 2 - Panel Positioning
Positioning the Panels
South Facing Roofs
Positioning the collectors is important for optimum performance. Collectors should ideally be
mounting at an angle of between 30 degrees and 60 degrees on a south facing position that is not
shaded by overhanging trees, buildings, or structures. Good results can be obtained by positioning
the panels facing anywhere in an arc between south west and south east but due south facing pro-
vides optimum performance.
North Facing Roofs
It is not generally recommended that you install the panels on North facing roofs in the Northern
Hemisphere. South of the equator, north will provide the optimum performance and south facing the
worst performance.
East / West Facing Roofs
Good results can be obtained by splitting the collector array on East / West elevations but this should
only be used when it is not possible to have a mainly southernly position for the collectors. If you are
installing an East / West split system you have to double the number of panels that would normally
be required, e.g. a 2 panel system would require 2 panels on the east and 2 panels on the west.
East / West Facing Roofs (Alternate Conguration)
Another option is to oversize the collector area on the side of the roof chosen to mount the collec-
tors. E.g. If 2 panels would have been adequate had the roof orientation been south, then 3 collec-
tors would be required on either the east side or the west side depending on which recieved the most
sunlight.

7
Section 2 - Piping Congurations
Piping Schematics For Panels
Typical S Class 10 (Parallel) (Maximum 10 Panels Per Bank)
Typical S Class 20 (Series) (Maximum 3 Panels Per Bank) (Maximum 10m Primary Circuit)
Typical S Class 20 (Parallel) (Maximum 10 Panels Per Bank)
Typical S Class Pro (Parallel) (Maximum 10 Panels Per Bank)
Sensor Cable
Sensor Cable
Sensor Cable
Sensor Cable
Stop End
Airvent
In Out
In Out
In Out
In Out
Stop End

8
Section 3 - On Roof Frames
On Roof Frames
The on roof frames from RM Solar come in the following two styles, choosing the correct frame for
your installation is paramount to an effective install.
Sharks Fin
Primarily suited to tile installs. For installation of this frame please see page 10
Slate Bolt
Primarily suited to slate installs, but will t most roof types. For installation of this frame please see
page 18
Note: It is important to note that the S Class 10 Panel is bigger than the S Class 20 product, so
when using on roof products remember to select the correct hole when locating the ‘Z’ rails.

9
Section 3 - On Roof Frames
Roof Space Required
This is the roof space approximately required to install the panels on roof in millimeters.
8320
9360
10400

10
Section 3 - Sharks Fin Installation
On Roof Sharks Fin
Before attempting to t your equipment on the roof please ensure that you have all the equipment
required to complete the installation. The table below will tell you what pieces are included in each of
the packages.

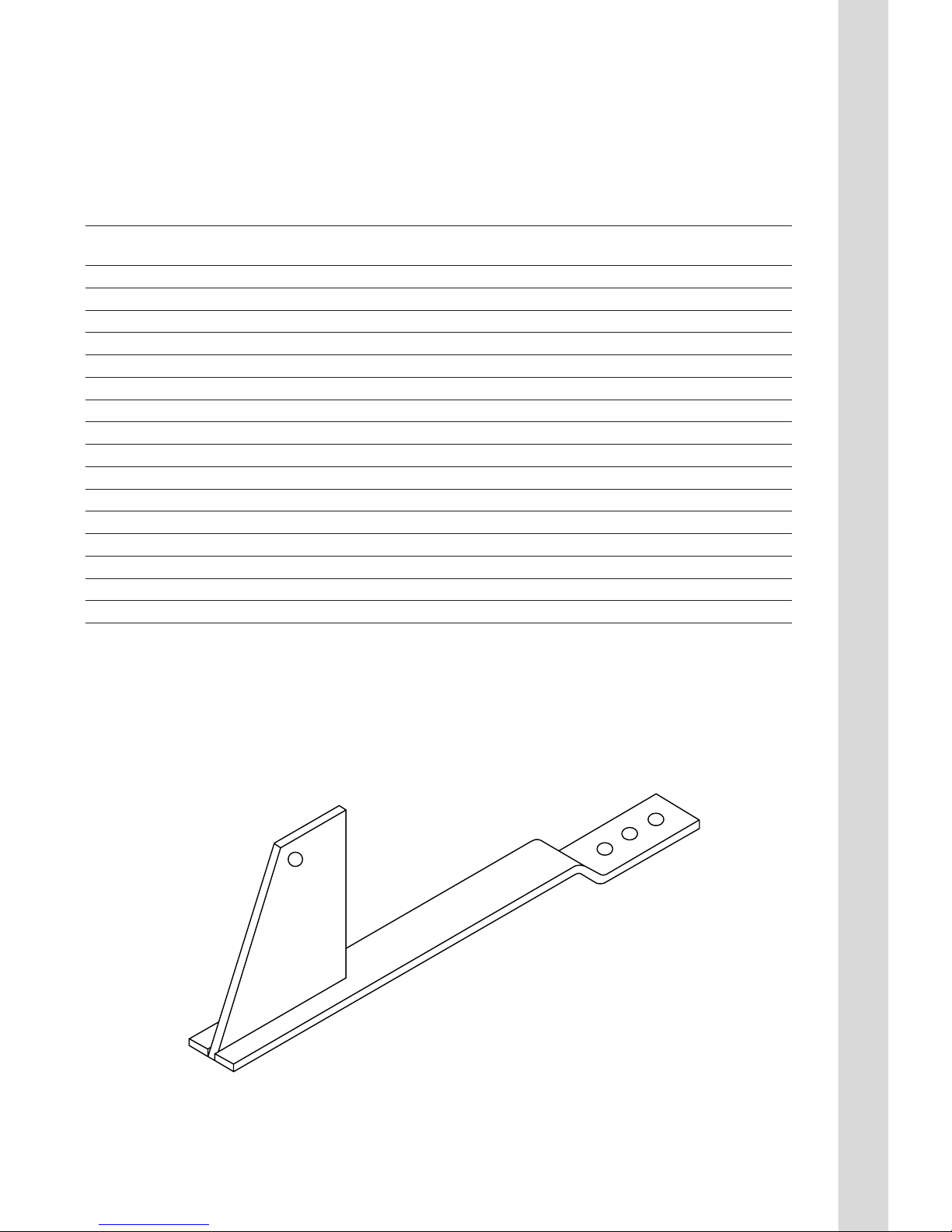

Part Name 1 Panel 1 Panel
Extension 2 Panel Frame Connector
1Steel Pipe = 2000mm - - 2 -
2Steel Pipe = 1000mm 2 2 - -
3Connection Bolt - - - 2
4Pipe Bracket 4 4 6 -
5Shark Tail 4 2 4 -
6U-Bolt Bracket M8 4 2 4 -
7Washer M8 8 4 8 -
8Nut M8 8 4 8 -
9Adjustment Screw M8 5 25-
10 L-Rail 2 1 2 -
11 Z-Rail Long - 2080mm - - 2 -
12 Z-Rail Short - 1040mm 2 2 - -
13 Frame Connector - - - 2
14 Wind Clamp 2 2 4 -
15 Screw M6 x 16 17 9 17 4
16 Wood Screw 14 8 14 -

11
Section 3 - Sharks Fin Installation
11
10
11
1
1
4
17
14
13
15
15
The instructions show the installation of a 3 panel kit, be sure to only make the connections, and
holes in the roof that you require.

12
Section 3 - Sharks Fin Installation

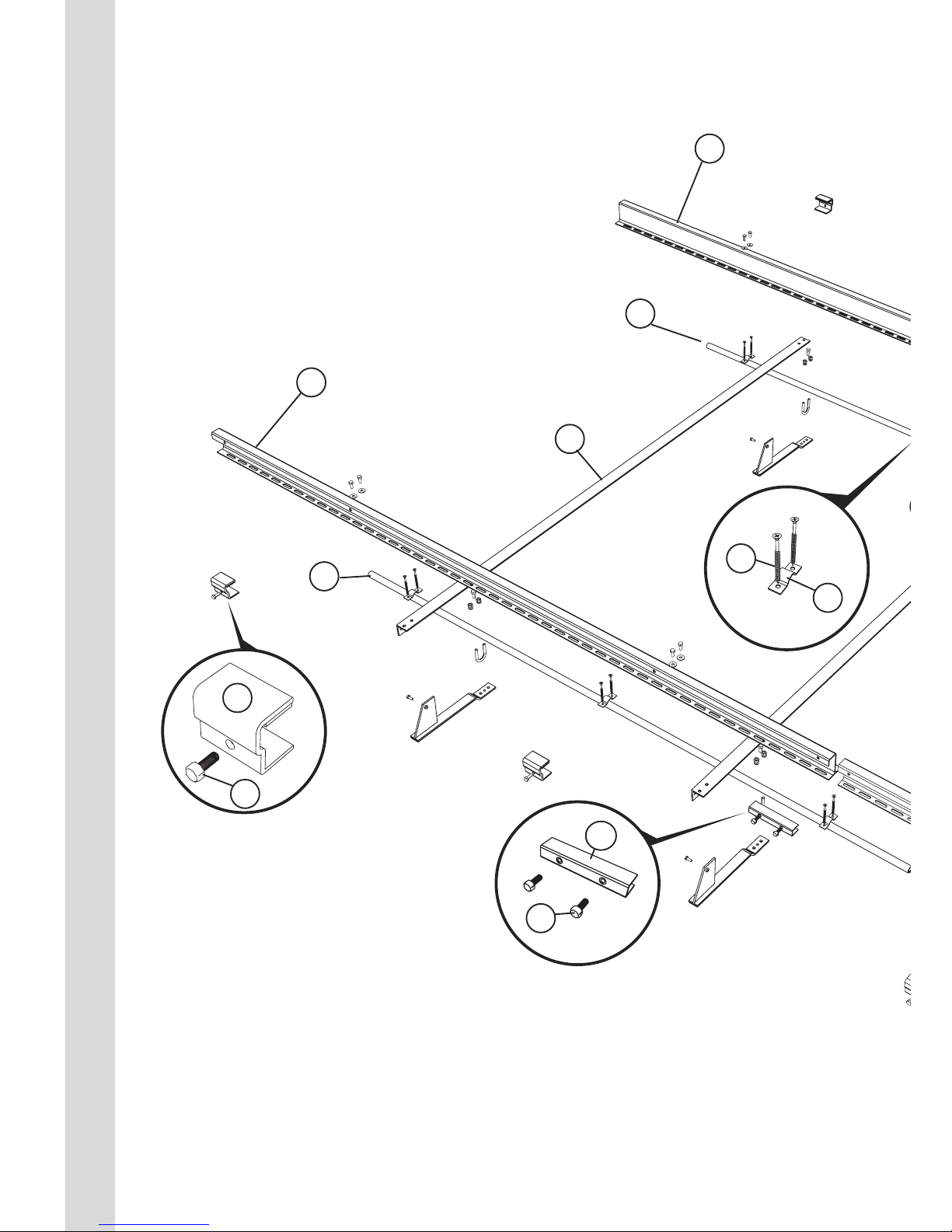

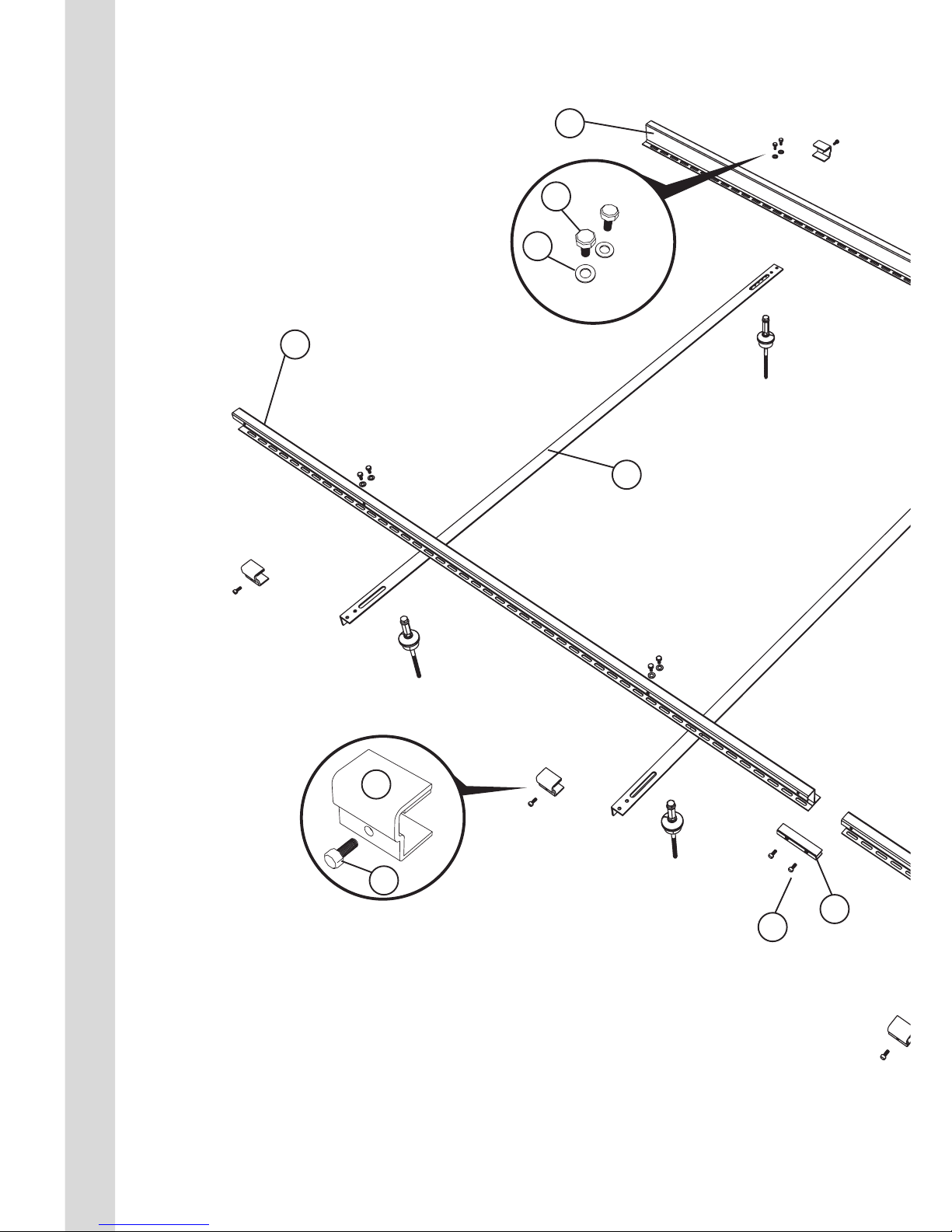

Exploded View
3 Panel On Roof Tile Frame
(Comprising 2 Panel Frame and 1 Extension)
12
12
2
2
6
7
8
9
5
15
3
10
10
3

13
Section 3 - Sharks Fin Installation
ca. 1040 mm ca.1040 mm
1780 - 1980 mm

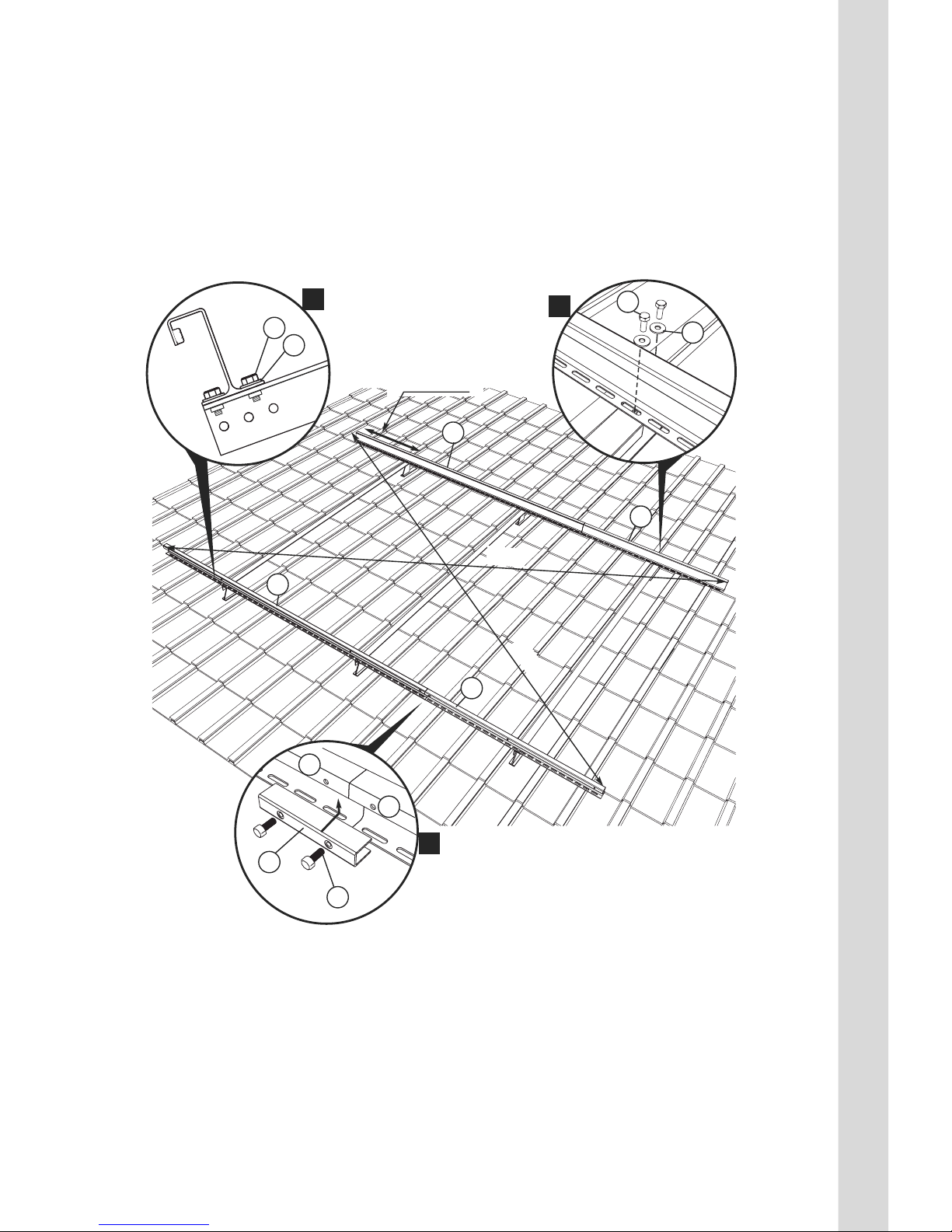

Search for the rafters at the position of the collector eld. Push up or remove tiles on the total length
of the collector eld.
Using the wood screws provided mount the support pipe using the pipe brackets. The distance
between the lower batten and pipe centre should be 90mm. If more panels are added use the
extension bolts to join the pipes. Extensions must be mounted with 2 pipe brackets [4]. The end
brackets should not be more than 500mm from the end of the support pipe.
max 500mm
90 mm
2
2
3
1
1
1
2
4
17

14
Section 3 - Sharks Fin Installation
6
9
9
8
7
Screw the align screw [9] in the centre hole of the shark bracket. Now use the U-Bolt Bracket [6],
washer [7], and nut [8] to x the hooks to the pipes. Choose so that the brackets are placed under
the centre of the panel. Note: The outside Sharks n should not be more than 500mm from the
outer panel edge.
Warning: In areas of heavy snow: please replace roof tile with a metal tile, otherwise the roof
tile might break under heavy snow loads, or use the slate screw installation kit.
500mm Max

15
Section 3 - Sharks Fin Installation
10
15
10
5
10
15
5
Use screw kit M6 x 16 [15] to connect L-Rails [10] to the Sharks Fin. The end with the most predrilled
holes goes to the top of the roof frame.

16
Section 3 - Sharks Fin Installation
A
B
max. 500 mm
13
15
11
11
AB
C
15
16
12
12
15
16
12
11
Screw the Z-Rail [11] [12] to the L-Rail [10] using two screws M6 and two washers [16] on each
connection. Maximum Distance from sharks n to the end of the Z-Rail must not be more than
500mm! If more than 2 panels are to be mounted use the frame connector as shown in g. C. Before
screws are tightened be sure that a cross measurement has been made. A = B.

17
Section 3 - Sharks Fin Installation

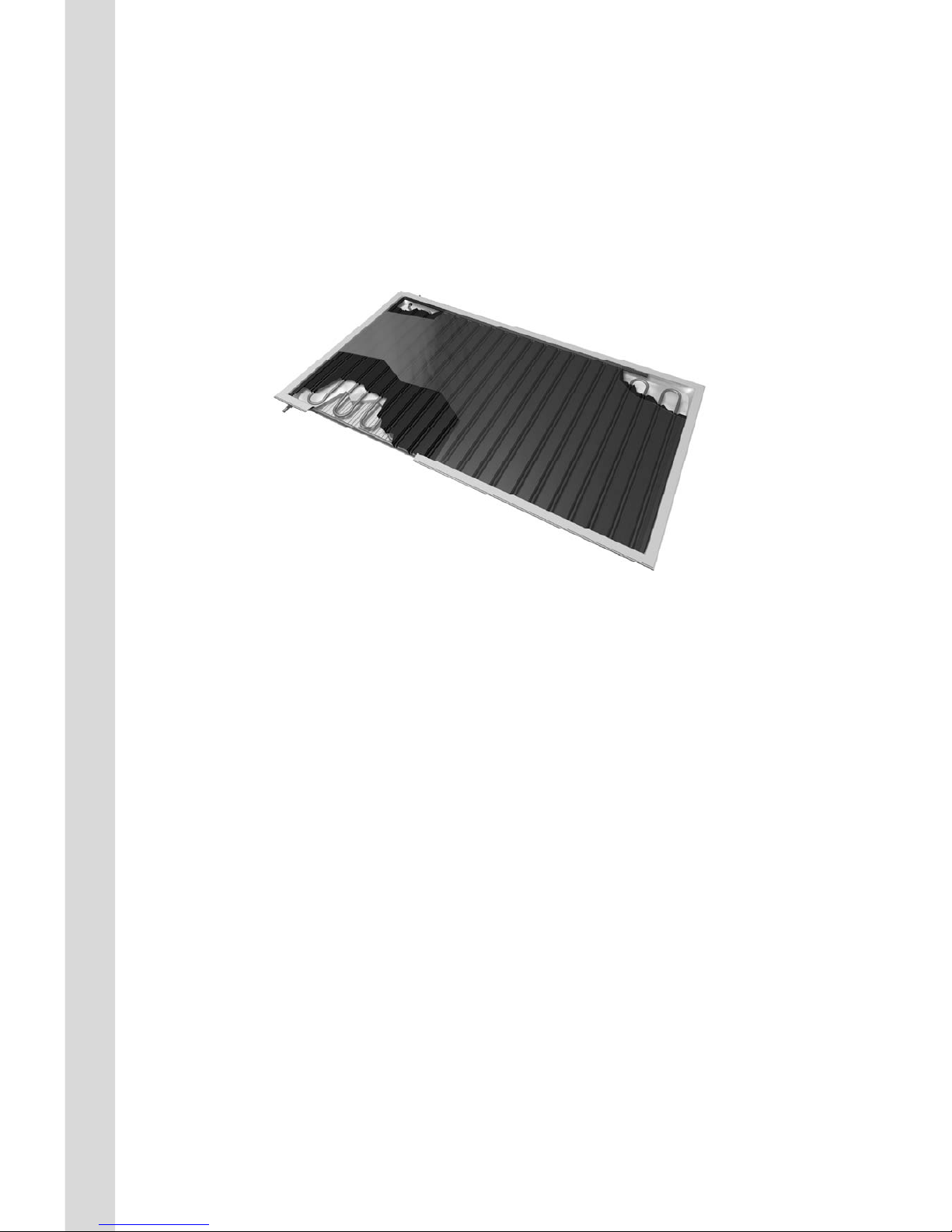

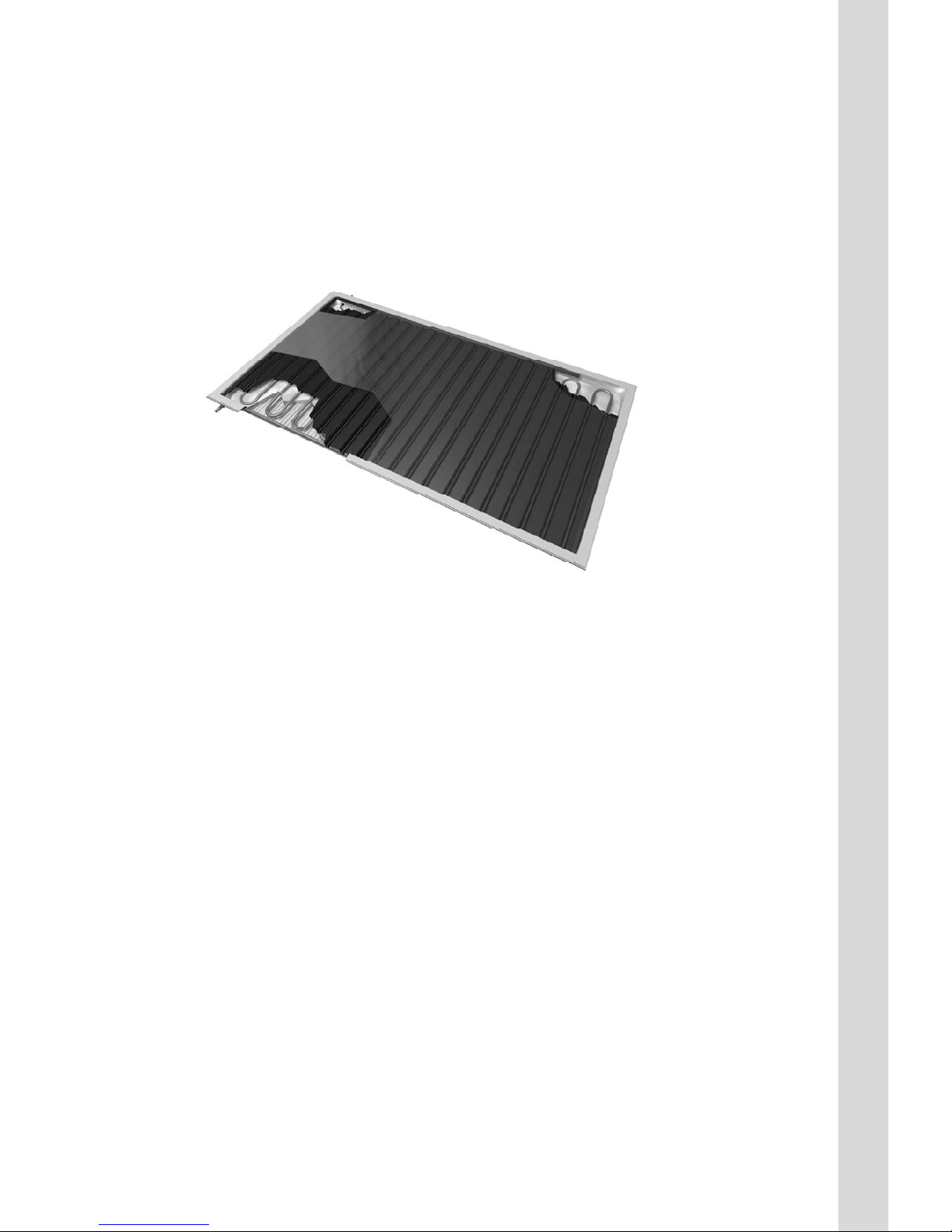

Place the panels in the correct position. In case of systems with more than two panels, mount
the panels starting in the middle. Do not forget to secure the panels together with any straight
connectors required (supplied in panel extension set) Mount the wind clamps [14] and connect the
panels.
Design of the wind clamps may vary - this will not effect the performance of the roof frame.
14
15
14
15

18

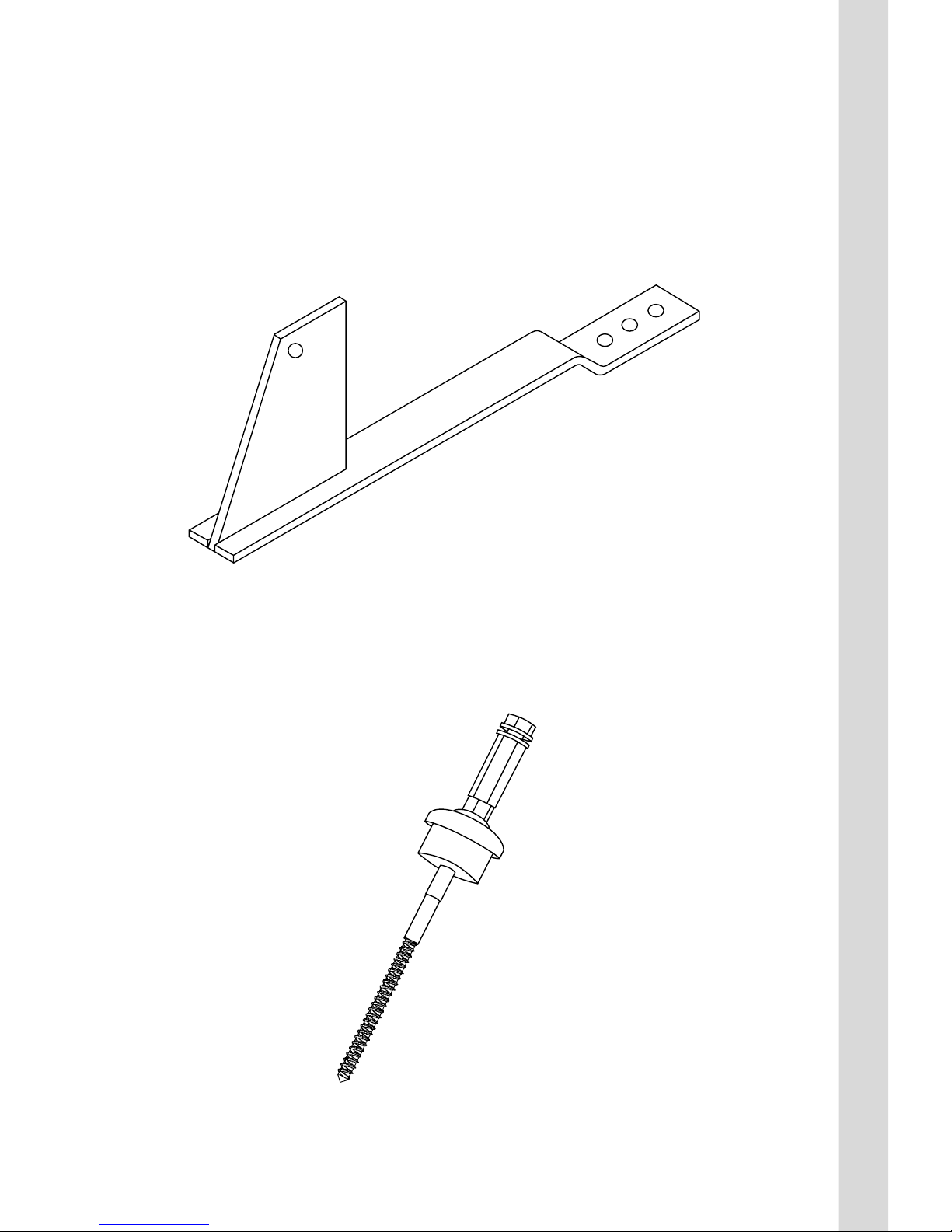

Section 3 - Slate Bolt Installation
On Roof Slate Bolt
Before attempting to t your equipment on the roof please ensure that you have all the equipment
required to complete the installation. The table below will tell you what pieces are included in each of
the packages.
Part Name 1 Panel 1 Panel
Extension 2 Panel Frame Connector
1Slate Bolt 4 2 4 -
2L-Rail 2 1 2 -
3Z-Rail Long - 2080mm - - 2 -
4Z-Rail Short - 1040mm 2 2 - -
5Frame Connector - - - 2
6Wind Clamp 2 2 4 -
7Screw M6 x 16 13 725 -
M10 Bolt
2 x M10 Washers
M10 Spacer Nut
M10 Nut
Seal Cap
Weather Seal (Sponge)
Stainless Bolt

19
3
3
7
8
6
7
7
2
5
Section 3 - Slate Bolt Installation
The instructions show the installation of a 3 panel kit, be sure to only make the connections, and
holes in the roof that you require.
