Road Mate DVR 7202 User manual

1
Key Features
®
Driving Recorder
User’s Manual Model: 7202
©2011 All rights reserved.
Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of Road Mate DVR.
Road Mate DVR makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No
liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein.
Features and specifications are subject to change without notice.
All other products and brand names are trademarks of their respective holders. No part of this user manual may be reproduced or
transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose other
than the purchaser's personal use. Revised : 01-01-2014

2
Table of Contents
1. BEFORE USING YOUR DRIVING RECORDER 3
Package Contents 3
Memory Cards Supported 4
Handling Cautions 4
2. TECHNICAL SPECIFICATIONS AND FUNCTIONS 5
Specifications 5
Functions 5
3. IMPORTANT SAFETY WARNINGS 6
IMPORTANT SAFETY WARNINGS 6
Operating Temperature 7
Battery Warnings 7
Insert SDHC Memory Card 8
Charging your driving recorder 8
4. QUICK START GUIDE 9
3 Easy steps 9
5. CONFIGURATION 11

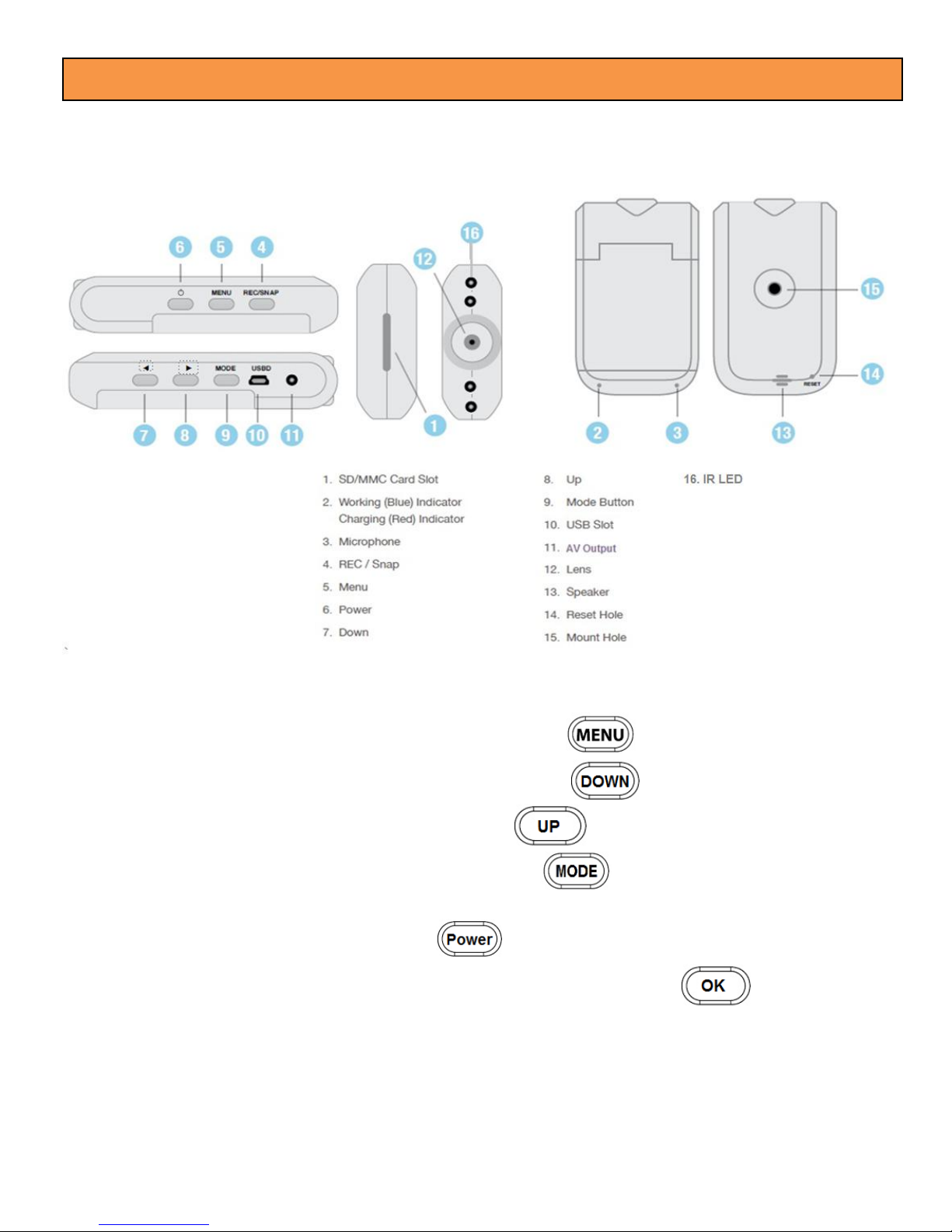

Introducing Your Driving Recorder 11
Operations 12
Power on 12
Auto Recording 12
Manual recording 12
Pause Recording 12
Switch mode and display the Menu 12
Power off 12

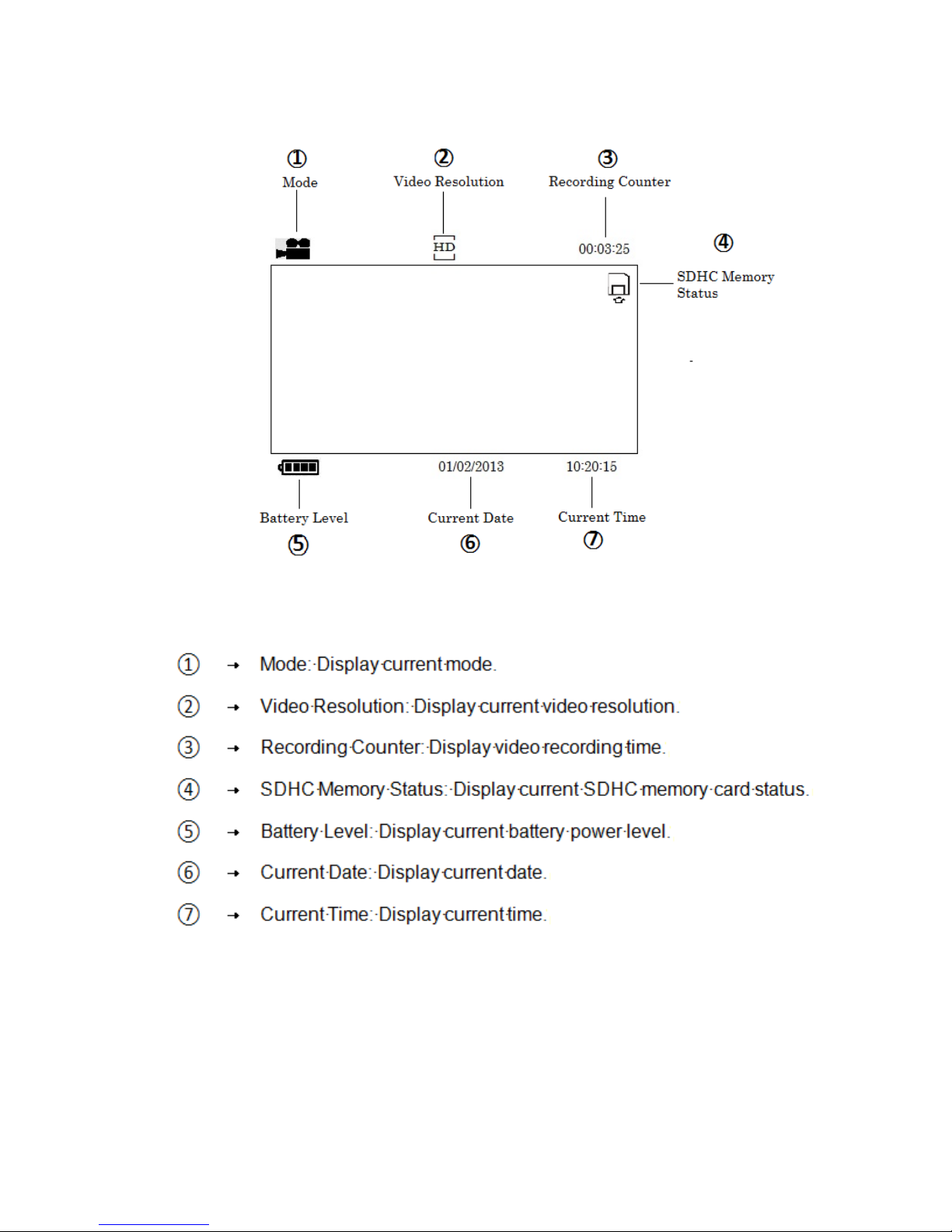

Screen Display Status 13

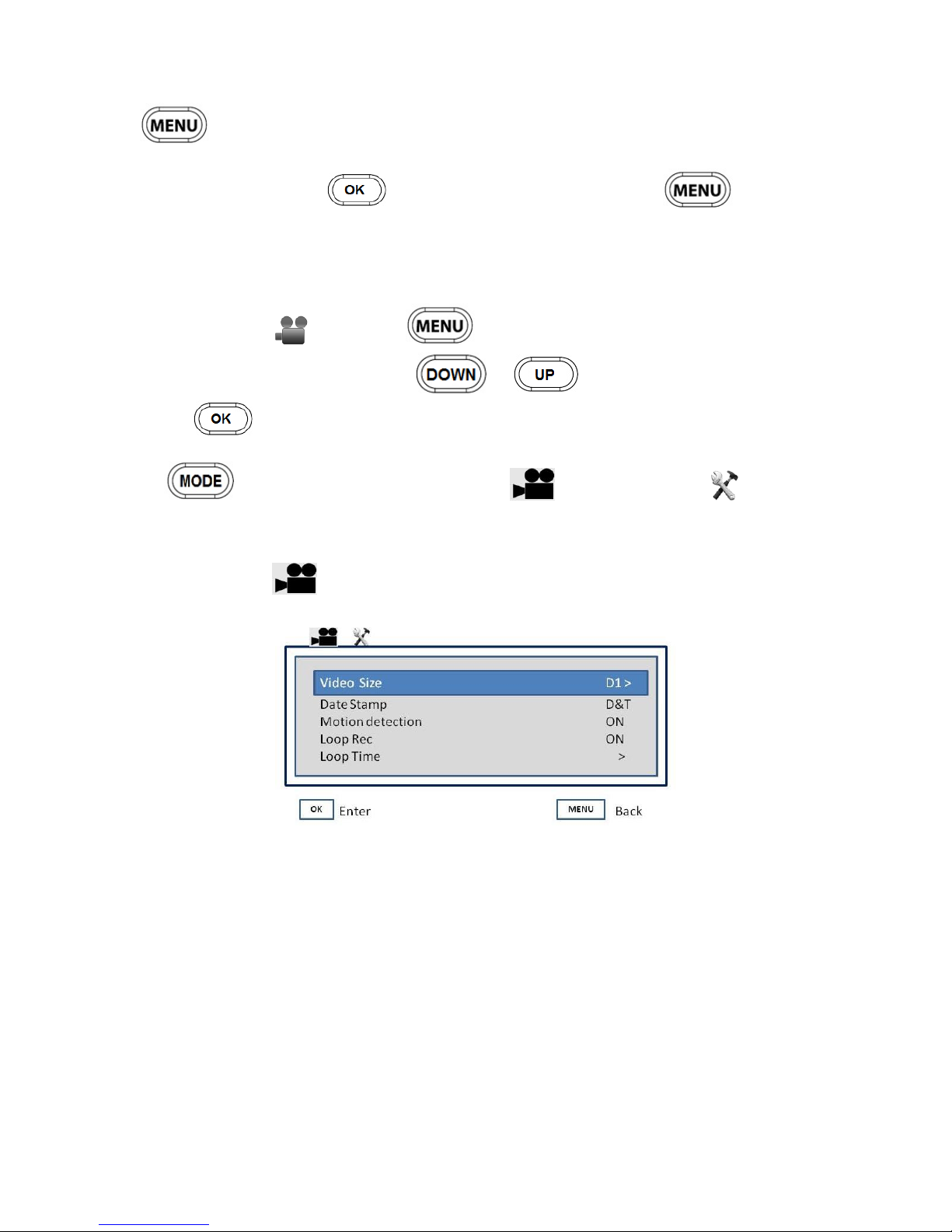

Display the Menu 13
Access the Setting Menu 14
Accessing Video Mode Settings & Configurations 14
Video Mode Settings 14
Video Size 14
Date Stamp 15
Motion detection 15
Loop Rec 15
Loop Time 16
Delay shutdown 16
Audio 16
Video Configurations 17
Sounds 17
Frequency 17
Power saving 18
Screen shut off 18
Date & Time 18
Language 19
Video system 19
Start-up Image 19
Format 20
IR LED 20
Reset All 20
Version 21
Photo Mode Settings 21
Resolution 21
Quality 21
Exposure 22
Timer 22
Date Stamp 22
Playback Mode Settings 22
6. ACCESSING RECORDED VIDEOS 23
7. HOW TO REGISTER MY PRODUCT 25
8. ONE YEAR CONSUMBER LIMITED WARRANTY 29
9. TROUBLESHOOTING AND FAQs 31

3
Thank you for purchasing Road Mate DVR driving recorder. This user manual provides you with
information to get started. Please read carefully and follow the instructions to connect and set up your
new driving recorder. You may review the troubleshooting FAQs on last page.

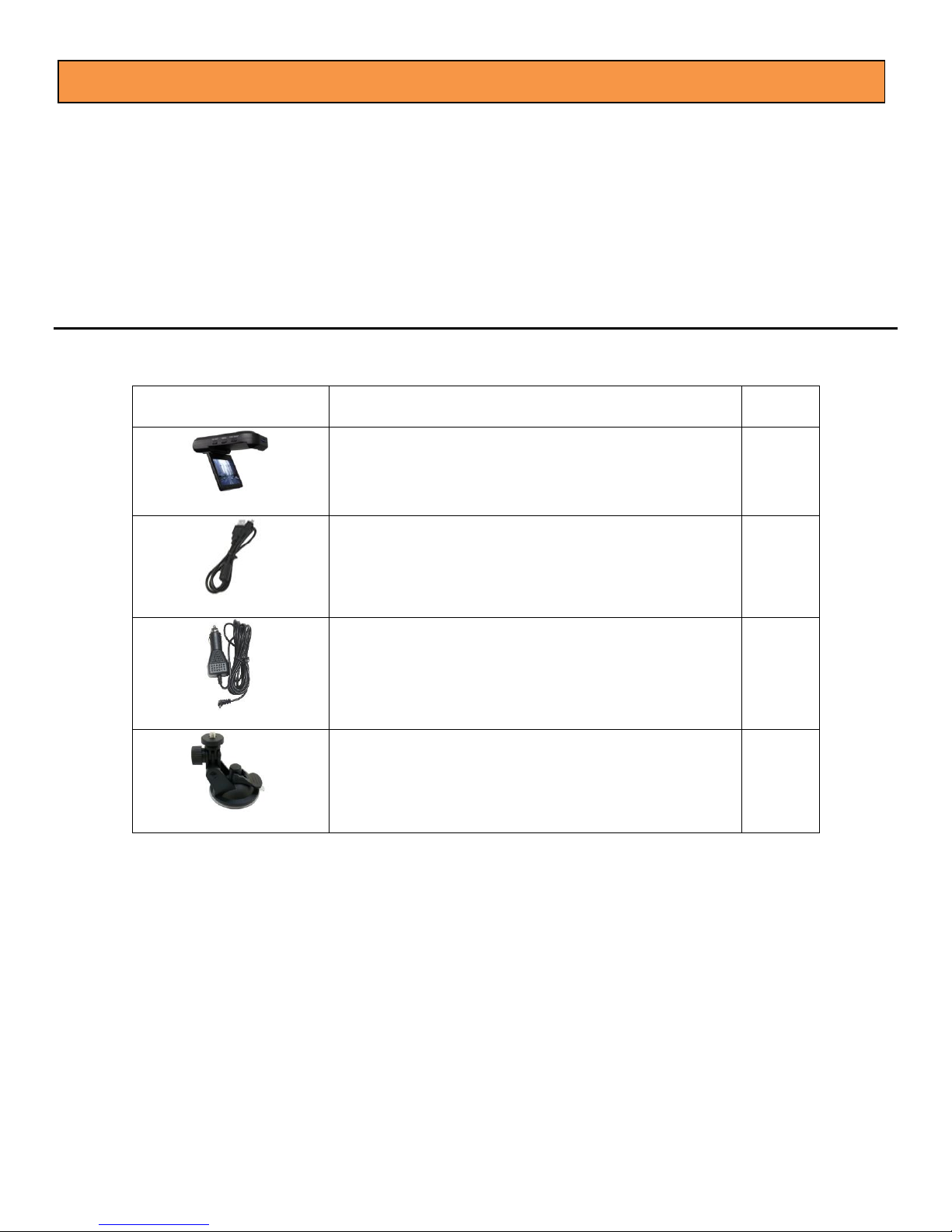

1.1 Package Contents
Please check that the following items have been included with your package. If anything is missing,
please contact your dealer.
Product Photo
Description
Qty.
Road Mate DVR, L-640 Driving Recorder
1
USB Cable
1
USB Car Charger
1
Windshield Suction Mount
1
1. BEFORE USING YOUR DRIVING RECORDER

4

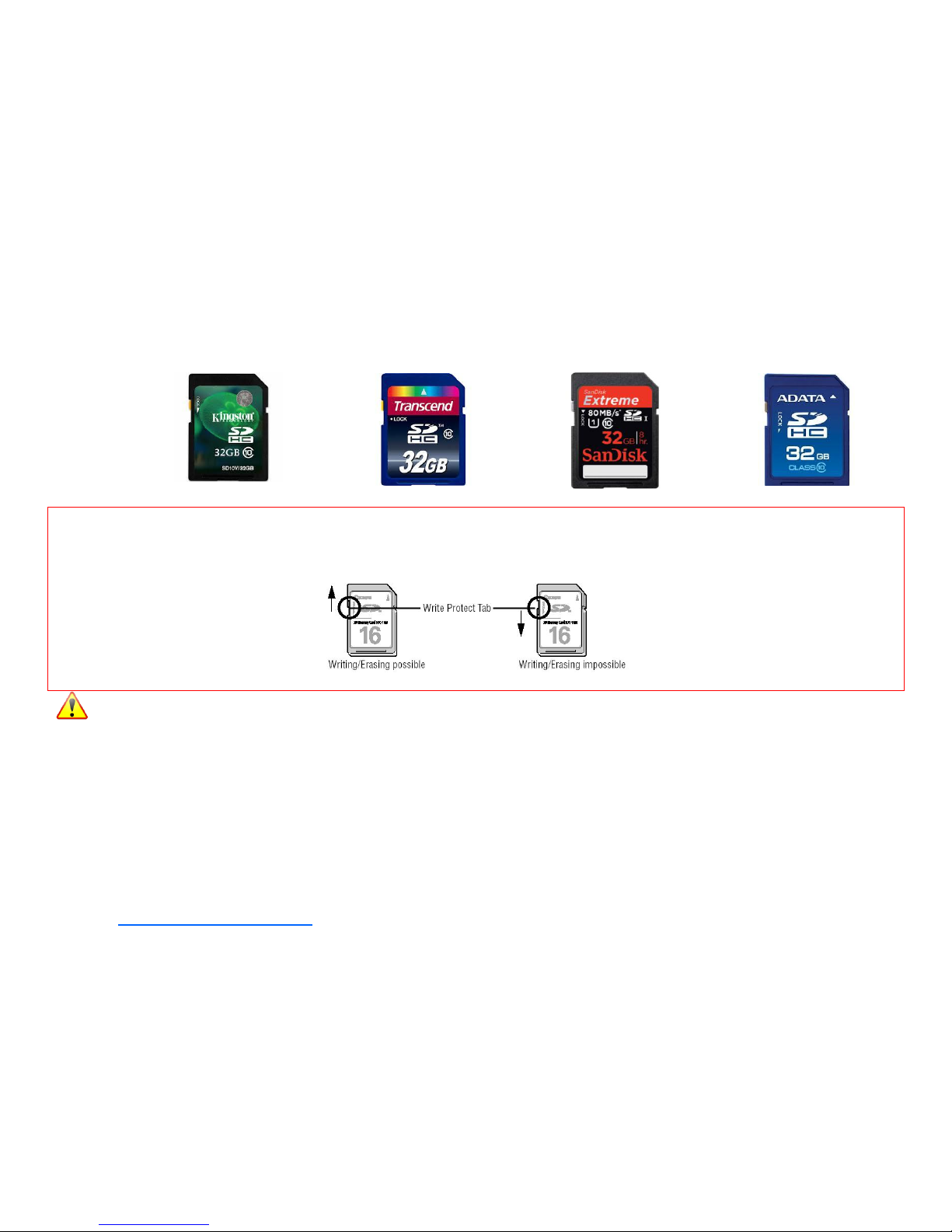

Memory Cards Supported
This package does not ship with a SDHC memory card; you need to purchase one separately. This
device is compatible with Class 4, 6 or 10 SDHC memory card. A 32GB SDHC, class 10 memory
card is recommended to use for this driving recorder. If an accident has occurred, please lock your
SDHC memory card immediately, then remove your SDHC memory card and keep it safe with you for
future evidence.
This device supports up to 32GB SDHC Memory Card, Class 4, 6 or Class 10 (See below
some images for your reference).
A “Card Error” message will appear if SDHC memory cards not compatibility with video
recording on this device.
This package does not include a SDHC memory card for recording videos. Please purchase it separately.
Make sure your SDHC memory cards write protect switch is set upward to enable writing/erasing.
Make sure a SDHC card is inserted before recording video. DO NOT remove your SDHC
memory card during recordings.
Handling Cautions
1. This device is a precision instrument. Do not drop it or subject it to physical shock.
2. This device is not waterproof and cannot be used underwater. If this device gets wet, wipe off
any water droplets with a dry cloth, and promptly consult Road Mate DVR customer service
([email protected]).
3. Do not leave this device in places prone to excessive heat on a sunny day. Excessive heat can
cause this device to malfunction. The operating temperature range is 14°F~158°F (-10°C~70°C).
4. This device contains precision electronic circuitry. Never attempt to disassemble the device.
5. Use only a blower brush to blow away dust or lens cleaner to clean the lens.

5
This cost-effective driving recorder saves you money by preventing false claims towards you. It is a
compact, face-forward digital recording system, records video/audio in case of any accidents or
incidents that may have taken place and prevents false or fraudulent claims. This compact,
lightweight driving recorder is fitted to your vehicle windshield in order to record forward view during
your journey.
This device is designed to record video and audio simultaneously when you drive on the road. It can
also be used as a portable DV, camera, and web cam. The key features are as following:
Specifications
120° wide angle lens.
4 night vision IR LEDs
2.5: TFT full color screen.
150° display angle
Built-in speaker & microphone.
Fixed focus, 50cm ~ infinity lens.
Video format AVI, Video aspect 16:9
¼” Full color CMOS 720p HD sensor
Mode: video/recorder/camera/webcam
Built-in 500 mAh Li-ion rechargeable battery.
Supports SD/SDHC memory card up to 32 GB
Recording resolution: HD 1920 X 1080 (Interpolation), 1280 X 720, 848 X 480 (D1) @ 30 fps.
File format: FAT32; Video Format: AVI; Still Image Storage Format: JPEG
USB 2.0 connectivity: USB port connect to PC; AV out connect to TV.
Package weight: 434g; Product size (folded): 106x62x33mm
Operating temperature range is 14°F ~ 158°F (-10°C ~70°C)
Power supplied by car charger (Input: DC 12V~24V, Output: DC 5V, 1 Amp)
Functions
Parking motion detection.
Adjustable recording time slice
Loop recording video and audio.
Real-time date/time stamp on video
11 international languages user interface.
Supports Real Time & Date stamp on video.
Auto power on/off, when car engine ignites and turns off.
Supports SDHC memory card up to 32GB (SDHC card excluded from the package).
2. TECHNICAL SPECIFICATIONS AND FUNCTIONS

6
IMPORTANT SAFETY WARNINGS
This device is an advanced portable vehicle digital video recorder (also known as driving recorder,
car DVR, dash cam, or car cam etc), it is designed to record video and audio when you are driving on
the road. When you are using the Road Mate DVR driving recorder, the following safety rules must be
followed to prevent accidents that may result in injury to yourself or others.
1. Please check the applicable regulations in your state regarding device mounting on windshield;
some states prohibit the mounting of any items on your windshield. This driving recorder is not
a life-saving device. You may use recorded video/audio files to provide evidence in the event
of an incident or accident. Please consult your legal counselor if you involved in an accident.
2. It is your responsibility to comply with traffic laws and to use or mount the Road Mate DVR in
such a manner that is compliance with applicable laws.
3. When installing this device on your vehicle windshield, make sure it is secure and does not
obstruct the driver’s visibility of the road. It is your responsibility as the vehicle operator to
securely place the device that will not interfere and prevent the operations of the vehicle’s
safety devices (such as air bags) in your vehicle. Do not place or mount this device unsecured
and in a place where the driver or passengers may receive injury during vehicle operation or
collision. For your safety, take care to route all cables away from shifters, pedals, accessory
controls and other control mechanisms.
4. Keep your eyes on the road. The vehicle’s operator should not be distracted by the driving
recorder device or software while driving and always be fully aware of all driving conditions.
Minimize the amount of time spent viewing the device screen while driving. Do not change
settings or access any functions requiring prolonged use of the device controls while driving.
Should there be a distraction with the ability to drive responsibly, please pull over in a safe and
legal manner before attempting such operations.
5. The windshield mount may not stay attached to the windshield in all circumstances. Do not
place the mount where it will become a distraction, if the mount should become detached.
Keep your windshield clean to help ensure that the mount stays on the windshield.
6. Keep the Road Mate DVR driving recorder safe from extreme temperature conditions. For
example, do not leave this device exposed to direct sunlight for an extended period of time.
The operating temperature range of this device is 14°F ~ 158°F (-10°C~70°C). This device is
not designed for outdoor use. Do not place this device in wet and dusty environments in order
to avoid the lens and other components to become dusty and thus, affect the camera effects.
3. IMPORTANT SAFETY WARNINGS

7
7. Do not use harsh chemicals, cleaning solvents or cleaning agents to clean the device. Use a
slightly damp soft cloth to clean the device.
8. Do not use any batteries, power sources, and accessories that do not come with the original
package. Do not use any home-made or modified batteries.
9. Do not short-circuit, disassemble, or modify this device or battery pack.
10.Do not leave any cords near a heat source. It can deform the cord or melt the insulation and
cause a fire or electrical shock.
11.A tinted windshield will cause video clarity or color distortion.
Operating Temperature
This device operating temperature range is 14°F ~ 158°F (-10°C ~70°C). Temperatures
below or over the operating temperature may cause damage. The limited factory warranty
will be voided if your device is subjected to temperatures outside the operating temperature
range.
Battery Warnings
If the guidelines below are not followed, the internal lithium-ion battery may experience a
shortened life span or may present a risk of damage to this device, fire, chemical burn,
electrolyte leak, and/or injury.
The battery in the Road Mate DVR driving recorder is rechargeable and should not be
removed or replaced with other specifications. In the event that it should need to be
replaced, please contact Road Mate DVR technical support ([email protected]).
Do not leave this device exposed to a heat source or in a high temperature location, such
as in the sun in an unattended vehicle. To prevent damage, remove the device from the
vehicle or store it out of direct sunlight.
Do not puncture or incinerate the device or battery.
Do not operate this device outside of the following temperature range from 14°F ~ 158°F
(-10°C ~70°C). When storing the device for an extended time, store within the following
temperature range: 32°F to 77°F (0°C~25°C).
If using an external battery charger, only use the Road Mate DVR accessory approved for
your product.
Only replace the battery with the correct replacement battery. Using another battery
presents a risk of fire or explosion. To purchase a replacement battery, see your Road
Mate DVR dealer or the Road Mate DVR web site.
Do not remove or attempt to remove the non-user-replaceable battery.

8
Insert SDHC Memory Card
Insert your SDHC memory card to the rear of driving recorder (refer photo below).
Adjust suction mount
Charging your driving recorder
No pre-charge needed. Connect the car charger that comes with the package, between the
Road Mate DVR driving recorder and your vehicle cigarette lighter. Using a different type of
adapter or car charger can result in malfunctions and/or possible fire hazard due to battery
overheating.
For safety reasons, the battery in your Road Mate DVR driving recorder will stop charging
when the ambient temperature is less than 32 °F (0° C) or more than 158°F (70° C).
To obtain a fully charged battery, it is recommended that you charge the battery initially for
at least 2 hours. Estimated usage of the Road Mate DVR driving recorder on battery power
is approximately 90 minutes.
When connecting to and using a household power outlet, use only AC/DC Adapter (rated
input: 100~240V AC, 50/60 Hz, rated output: 5V, 1A DC). Using anything else can cause
fire, overheating, or electrical shock.

9

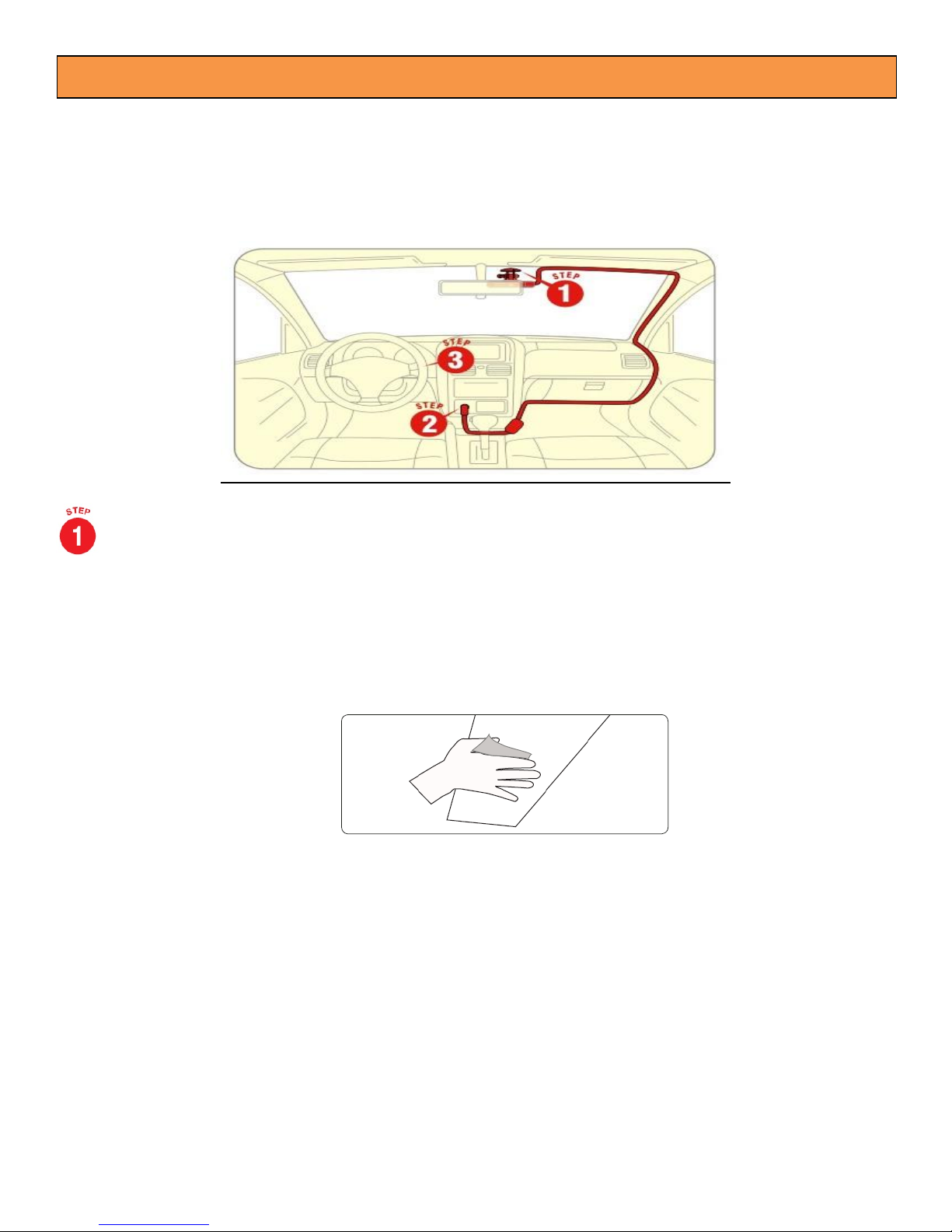

3 easy steps
Installation of the Road Mate DVR is very easy and simple. Please read the safety guidelines
carefully.
Install suction mount
Find a safe location on the interior of vehicle’s windshield to mount the pedestal.
Use windows cleaner or alcohol pad to clean up internal windshield surface that has been
selected for mounting the Road Mate DVR driving recorder. Let the area dry completely before
you mount the pedestal.
Firmly push the suction base against the windshield and flip the base lever down to the locked
position. Adjust the angle of the pedestal arm by tightening the angle adjustment knob to the
desired angle. Be sure it will not interfere with your view of the road.
4. QUICK START GUIDE

10
For your safety, avoid routing the cable from shifters, pedals, accessory controls, and
do not place the suction mount near airbags deployment zone or where it will obstruct your
view.
Route the car charger cable and connecting power.
Plug the car charger into your vehicle power receptacle (cigarette lighter socket), and connect
the USB connector to the driving recorder USB port. Route the car charger power cord along
the windshield edge. Be sure to stay away from the side air bags shifters, pedals, accessory
controls and other control mechanisms.
Note: If the car charger power-on indicator is ON, it means the power is being supplied to the
driving recorder. Otherwise, check the cable connection to the vehicle power receptacle. If the
power-on indicator remains OFF, please turn your vehicle to ignition position.
Starts car engine and get recording.
Ignite your car engine- the driving recorder will automatically turn on by itself.
Note: Some of vehicles apply power to the power receptacle only when the ignition is ON. If
your cigarette lighter socket is always powered on, the Auto power on/off feature will not
function.
Safety Precautions
Follow all safety guidelines for operating your device. Failure to practice safe usage of this
device while driving may result in damage, injury, or death. Road Mate DVR is not responsible
for any damages caused to your car, your device, or yourself due to the installation or use of
this pedestal mount.

11
Introducing Your Driving Recorder
MENU: Indicates a function can be changed by pressing the button to changing the settings.
DOWN: Indicates the navigation down button, by pressing the button.
UP: Indicates the navigation up button, by pressing the button.
MODE: Indicates a mode can be changed by pressing the button and change to “Video
mode”, “Photo mode”, “Voice recorder mode” and “Playback mode.”
POWER: Indicates power on, by pressing the button.
OK: Indicates start/stop recording and to confirm an action by pressing the button.
5. CONFIGURATION

12
Operations
■ Power on
Ignite your car engine. The driving recorder will automatically turn on by itself or press the
button.
■ Auto Recording
Upon driving recorder is powered on, it will automatically start recording.
■ Manual Recording
For manual recording, press the button.
■ Pause Recording
While recording video, you may press button to pause recording.
■ Switch Mode & Display the Menu
■Mode: After powered on, press button to select mode below.
Video mode
Camera mode
Voice recorder mode
Playback mode
■MENU: Once a mode is selected, press button to go to settings.
Note: While video is recording, you may press button to stop recording.
■ Power off
a). Auto power off: the car DVR will auto off when engine turns off.
b). Sleep mode and Wake-up mode:(if cigarette receptacle is consistent hot).
-Sleep mode: Hold [POWER] button 3 seconds to turn off DVR
-Wake-up mode: Hold [POWER] button 3 seconds to turn on DVR

13
Screen Display Status

14
Access the Setting Menu
Press the button to display the Menu.
*. If the video is recording, press button to pause, and then press button to access
Menu.
Accessing Video Mode Settings & Configurations
1. Under video mode ( ), press the button to access setup interface. In the setup
interface, use the navigation buttons or to select the desired mode and then
press the button to access selection.
2. Press button to select “Video Settings” or “Configuration”
Video Mode Settings
■Video Size: Allows you to choose between the different video resolutions.
►[FHD] 1920 X 1080
►[HD] 1280 X 720
►[D1] 848 X 480
►[640] 640 X 480

15
1. To change video resolution, select Video Size, then press navigation button or
to select, and press to confirm your selection.
2. Press to select. Press back to main menu.
■ Date Stamp: Allows you to add a watermark on video file with the date and time.
1. To enable or disable date stamp on video, press or button to select
Date Stamp, and then press .
2. Press to confirm. Press back to main menu.
■ Motion detection: Allows the driving recorder to automatically begin recording when it
detects movement while you parked your vehicle, set it off when you drive.
1. To enable or disable motion detection feature, press or button to
select Motion detection, and then press button.
2. Press to confirm. Press back to main menu.
■ Loop Rec: Allows you to set the loop recording feature.
1. To enable or disable video loop recording feature, press or button to
select Loop Rec, and then press button.
2. Press or button to select “On” or “Off.”

16
3. Press to confirm. Press back to main menu.
■ Loop Time: Allows you to set the length of recording file, up to 2, 5 or 10 minutes long.
1. To set the length of video file segment, press or button to select
Loop Time, and then press button.
2. Press or button to select “2 Min.”, “5 Min.”, “10 Min.”
3. Press to confirm. Press back to main menu.
■ Delay shutdown: Allows you to set the delay shutdown time after power is off.
1. Press or button to select Delay shutdown, and then press .
2. Press or button to select “Off”, “10 Min.”, “20 Min.”
3. Press to confirm. Press back to main menu.
■ Audio: Allows the ability to turn on or off the microphone, while recording video.
1. To enable or disable audio while video is recording. Press or button
to select Audio, and then press button.
2. Press or button to select “On” or “Off”.
3. Press to confirm. Press back to main menu.

17

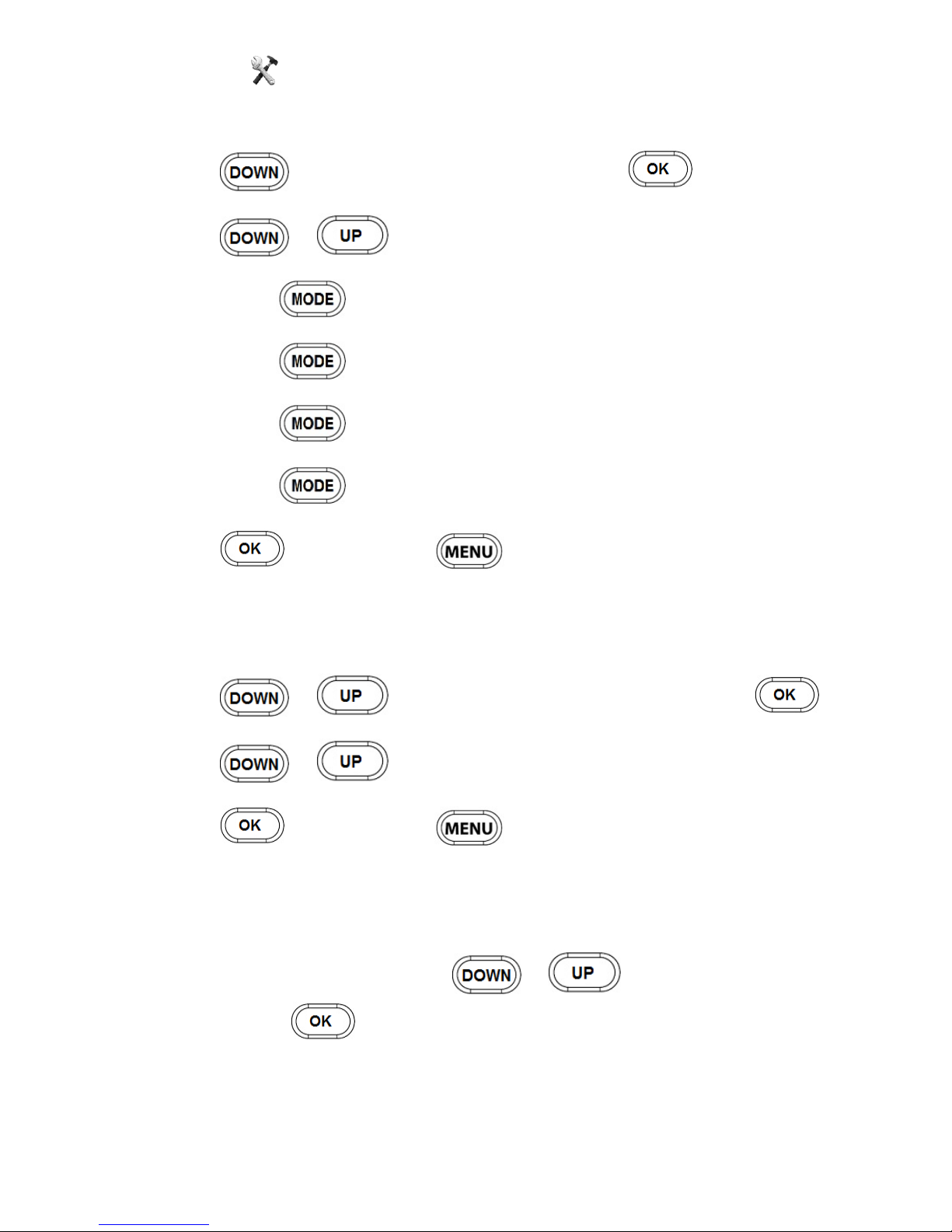

Video Configurations
■ Sounds: To change the chime of power on and power off.
1. Press button to select Sounds, and then press button.
2. Press or button to select
a. Press to select Shutter “On” or “Off”.
b. Press to select Start-up chime “1”,”2”,”3” or “None”
c. Press to select Beep “On” or ”Off”
d. Press to select Volume level “0”, “1”, “2”, or “3”. Volume level 0 is silent.
3. Press to confirm. Press back to main menu.
■ Frequency: To set the frequency of your player system.
1. Press or button to select Frequency, and then press button.
2. Press or button to select “50Hz” or “60Hz”.
3. Press to confirm. Press back to main menu.
■ Power saving: Power saving is the duration of time that this device screen remains idle.
1. To set the system idle time. Press or button to select Power saving,
and then press .

18
2. Press or button to select “1 Min.”, “3 Min.”, “5 Min.” or “Off”.
3. Press to confirm. Press back to main menu.
■ Screen shut off: Allows you to set the screen shut off after X time is displayed.
1. To set the screen shutoff time. Press or button to select Screen
shutoff, and then press button.
2. Press or button to select “30 Sec.”, “1 Min.”, “2 Min.”, or “Off”.
3. Press to confirm. Press back to main menu.
*. While the Screen shut off feature is in effect, press to display the screen.
■ Date & Time: Allows you to set the current date and time.
1. Press or button to select Date & Time, and then press .
2. Press 6 times, to MM/DD/YYY then press or to select your
date format type. Press after you select your Date format.
3. Press or button to set month, date, year, hour, minute, and second.
Press MODE for each section.
4. Press to confirm. Press back to main menu.

19
■ Language: Allows you to select the desired language of user interface.
1. Press or button to select Language, and then press button.
2. Press or button to select your language.
3. Press to confirm. Press back to main menu.
■ Video system: To select your video system.
1. Press or button to select Video system, and then press .
2. Press or button to select “NTSC” or “PAL”.
3. Press to confirm. Press back to main menu.
■ Start-up Image
1. Press or button to select Start-up Image, and then press .
2. Press or button to select “Off” or “System”.
3. Press to confirm. Press back to main menu.
■ Format: Allows you completely erase all data from the SDHC memory card.
1. Press or button to select Format your SDHC memory card, and then
press .
2. Press or button to select “Yes” or “No”.

20
3. Press to confirm. Press back to main menu.
■ IR LED: Allows you to set infrared LED to night vision.
1. To enable or disable IR LED. Press or button to select IR LED
(Infrared LED) on or off, and then press .
2. Press or button to select “On” or “Off”.
3. Press to confirm, press back to main menu.
■ Reset All: Allows you to restore this device back to original factory settings.
1. To reset settings back to factory default, press or button to select
Reset All, and then press button.
2. Press or button to select “Yes” or “No”.
3. Press to confirm. Press back to main menu.
■ Version: Indicates current firmware version of the device.
1. To view firmware version, press or button to select Version, and then
press button.
2. Press to confirm. Press back to main menu.
