secureView OEM-6309 User manual
INSTALLATION INSTRUCTIONS:
The OEM-6309 is a special designed OEM camera with a custom snap-in style mounting
bracket that allows it to be easily mounted to the vehicle. It is designed to be custom mounted
on the license plate bezel for the Toyota Camry 2009-2011 vehicles with minimal installation
time and with no special tools required for the job. Once installed, the camera looks completely
factory and is easy to keep out of sight.
FEATURES:
•Custom design allows it to be mounted in the factory camera location.
•The 170°ultra wide-angle
•Easily snaps into place on the vehicle
•Parking assist lines to help the driver accurately judge distance behind the vehicle
•Constructed of high-grade plastic
•Reverse image
•The OEM cam easily connects with other SecurView products such as any of the LCD
monitors. It can also be integrated with your existing OEM or aftermarket LCD/TFT
displays.
•The Securview™ OEM-6309 is designed specifically for the Toyota Camry vehicle and
may not work well on other vehicles. Please check the vehicle before installing to make
sure the camera can be properly placed
OEM-6309
Wide-Angle
OEM
Camera
INSTALLATION
MOUNTING:
1. The Securview™ OEM-6309 Rear Vision System uses a wide-angle lens for best all around
performance. The Camera will display the full width of most parking spaces up to 8 feet or
even wider.
2. The OEM-6309 is design to be mounted on the License Plate bezel of a Toyota Camry
vehicle. If you wish to mount this camera on any other vehicle, double check the mounting
location to see if the camera will fit on your vehicle in your location of choice.
3. Locate the factory camera mounting location which is usually to the right or left side on the
license plate bezel above the license plate
4. Route the wiring harness into the vehicle. There may be an existing factory rubber grommet
that you can use to run the wiring into the trunk area. If you have to drill a hole, make sure to
double check behind the drilling location before drilling. Once the hole is drilled and the wiring
is run into the vehicle, seal the edges of the hole with silicon or caulking to prevent moisture
damage.
5. Snap the camera securely into place in the mounting location.
SIDE VIEW
License Plate
Camera Lens Mounting
Surface
Cable
CAMERA
CAMERA:
1. The color CMOS camera is maintenance-free, waterproof (IP-68) and vibration resistant.
2. This camera is designed to work well in day time or night time conditions.
3. The camera is completely electronic. There are NO manual adjustments for focus, etc.
WIRING:
1. Carefully choose a hidden out-of-sight location for drilling the cable hole. Some vehicles may
have an existing hidden rubber grommet or plug available to avoid having to drill into the body.
Be sure to double-check for any wiring or obstructions behind the surface where you are going to
drill the cable hole. Make sure to seal the hole using silicon or caulking to prevent moisture
damage.

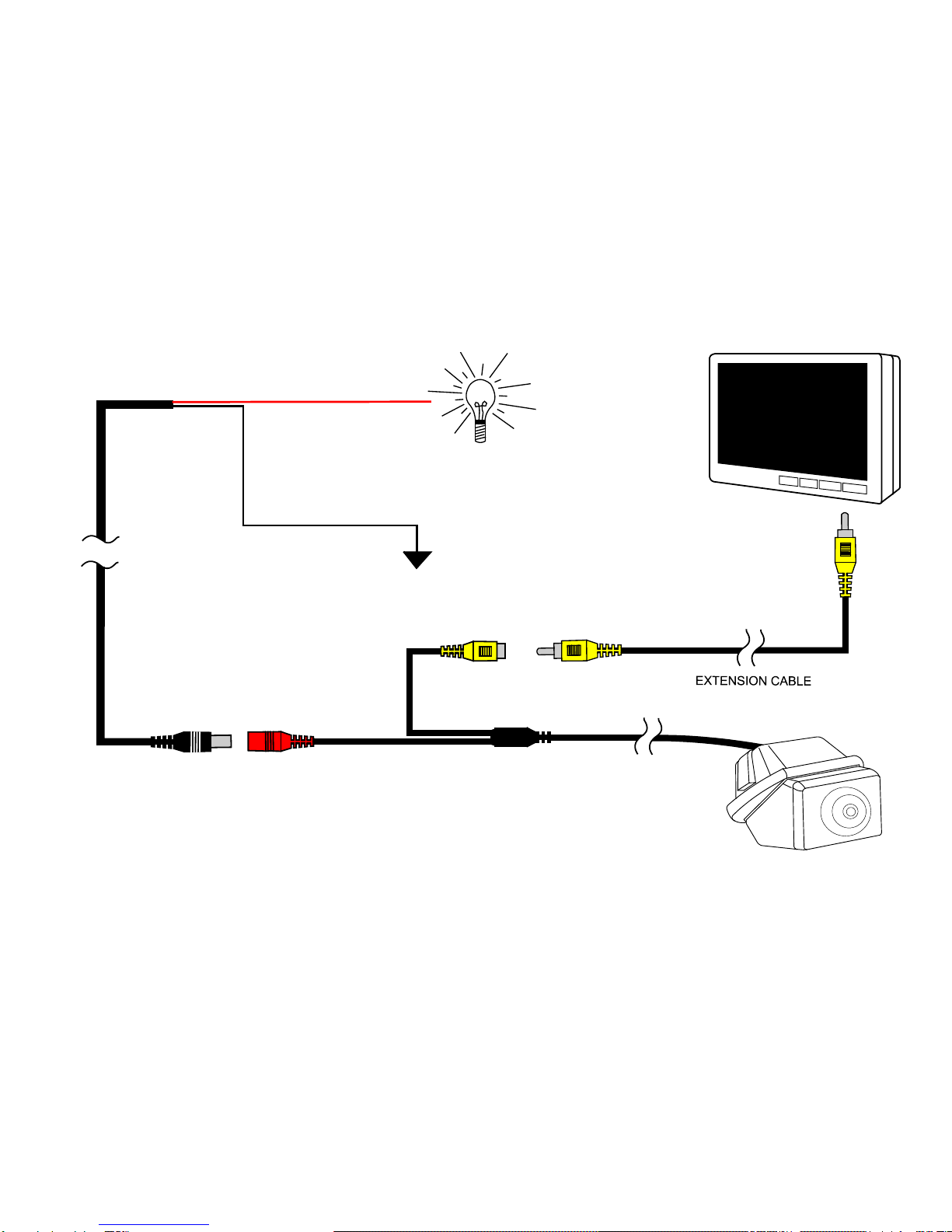

2. Choose a convenient place to run the camera cable up the left, right or center of the vehicle. As
a rule of thumb, try to avoid main factory harness looms that may contain high levels or RF noise
or interference.
3. You can connect the camera power at the rear of the vehicle behind the reverse lights. You may
also connect power inside the vehicle under the dash or in the trunk. The Red power wire goes to
Reverse Light +12V, and the Black wire to Ground.
4. Run the Yellow RCA video cable to the monitor’s video input or reverse camera input.
Connect to +12V
Reverse Light
MONITOR
Chassis Ground
RED WIRE
BLACK WIRE
Connect to Monitor
YELLOW
OEM-6309
RED
POWER CONNECTOR
TECH SUPPORT: (800) 998-6880
SPECIFICATIONS:
1/4 Inch Color CMOS Sensor Video Output: 1.0 V P-P composite (75 Ohm load)
Dimension (In.): 1"(L) × 1⅜"(W) × 1"(D) Supply Voltage: +12VDC
Weight: 4 Oz. Power Consumption: 70mA
Pixels: 656 (H) x 492 (V) Electronic Shutter: 1/50 s – 1/100000s
Resolution: > 250,000 pixels White Balance: Automatic
420 TV lines Gamma Correction: 0.45
Minimum Illumination: 0.5 LUX / F 1.2 S/N Ratio: More than 48dB
Lens Type: Wide Angle Operating Temp: -22° to 176° F (-30° to 80° C)
Horizontal Angle: 170° Gain Control: Automatic
Vertical Angle: 90°
DISCLAIMER:
Under no circumstances shall the manufacturer or distributor of the Securview™ be held liable for
consequential or incidental damages sustained in connection with the use of the Securview™ Rear
Vision System. The Securview™ is designed as a safety enhancement device and is in no way intended
as a replacement for rear-view mirrors, side-view mirrors or physically checking the surroundings when
backing a vehicle. Always check surroundings for safety when backing! Objects on the monitor are
closer than they appear. For the best fit, modification of the vehicle license may or may not be
necessary. It is the sole responsibility of the vehicle owner to check and verify any and all State or
Federal Motor vehicle codes with regards to modifications of vehicle license plates. The manufacturer of
the Securview™ assumes no liability or responsibility whatsoever with regards modifications of the
license plate.
www.crimestopper.com
email@crimestopper.com
Phone (800) 998-6880
FAX (805) 581-9500
© 2011 Crimestopper Security Products
5-11-2011
