FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE POWERING OR INSTALLING YOUR Eminere !
Save it for future reference.
This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure
safe operation, it is absolutely necessary for the user to follow the safety instructions and warnings written in this
manual.
The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual
or any unauthorized modification to the device.
Unauthorized modification will void warranty.
1. Safety instructions
DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT!
This fixture should be operated only from the type of power source indicated on the marking label. If you are not
sure of the type of power supplied, consult your authorized distributor or local power company.
Always disconnect the fixture from AC power before cleaning, servicing or installing.
Do not overload wall outlets and extension cords as this can result in fire or electric shock.
Make sure the power cord is never crimped or damaged by sharp edges. Check the fixture and the power cord
from time to time.
Do not install the unit near an open flame.
During operation the housing becomes hot.
Refer servicing to qualified service personnel.
This fixture falls under protection class I. Therefore this fixture has to be connected to a mains socket outlet with
a protective earthing connection.
Do not connect this fixture to a dimmer pack.
LED light emission. Risk of eye injury. Do not look into the beam from a short distance without suitable protective
eyewear. Do not look at LEDs with magnifiers or similar optical instruments that may concentrate the light
output.
If the fixture has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on
immediately. The arising condensation of water might damage your device. Leave the device switched off until it
has reached room temperature.
Avoid brute force when installing or operating the fixture.
The fixture was designed for outdoor use. This fixture must not be used for underwater installation.

Eminere
4
When choosing the installation spot, please make sure that the fixture is not exposed to extreme heat or dust.
Avoid using the unit in locations subject to possible impacts.
The fixture body never must be covered with cloth or other materials when the fixture is under operation.
Only operate the fixture after having checked that the housing is firmly closed and all screws are tightly fastened.
The fixture becomes hot during operation. Allow the fixture to cool approximately 30 minutes prior to servicing or
maintenance.
Operate the fixture only after having familiarized yourself with its functions. Do not permit operation by persons
not qualified to operate the fixture. Most damages are the result of unprofessional operation!
Please consider that unauthorized modifications on the fixture are forbidden due to safety reasons!
Please use the original packaging if the fixture is to be transported.
If this device will be operated in any way different to the one described in this manual, the product may suffer
damages and the warranty becomes void. Furthermore, any other operation may lead to dangers like short-circuit,
burns, electric shock etc.

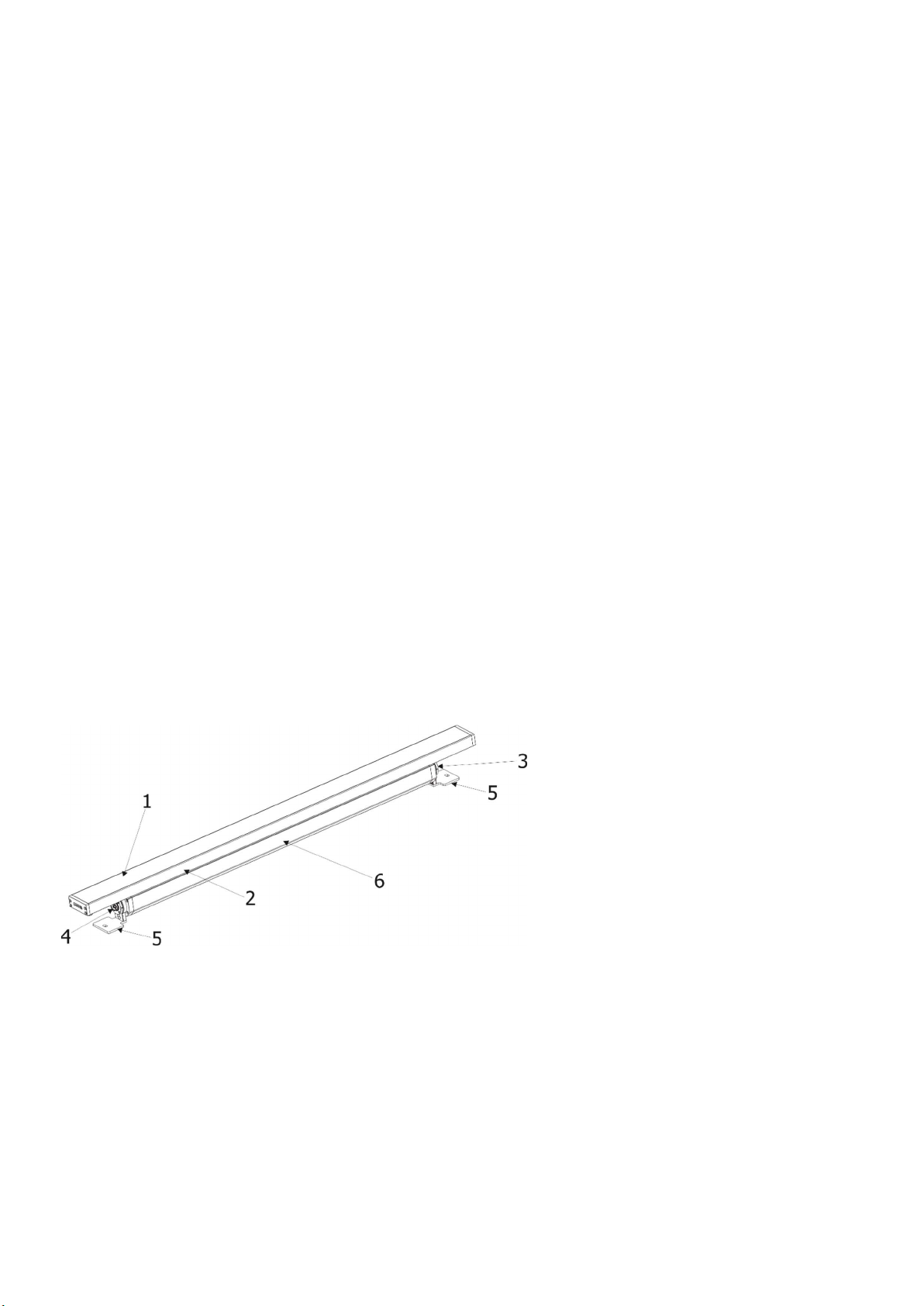

2. Fixture exterior view
1. Transparent
glass
cover
2. Aluminium base
3. Output connector
4. Input connector
5. Mounting brackets
6. LED module

Eminere
5
3. Installation
3.1 Mounting the fixture
The Eminere can be arranged in any orientation on a flat, non-flammable surface by means of two mounting
brackets (5), the LED bar (6) can be tilted (+95°/-95°) to get access to mounting brackets (5).
Ensure that the structure to which you are attaching
the unit is secure.
3.2 Connection to mains
The unit must be installed by a qualified electrician in accordance with all national
and local electrical and construction codes and regulations.
This device falls under class one and must be grounded!
The Eminere is equipped with auto-switching power supply that automatically adjusts to any 50-60Hz AC power
source from 100-277 Volts.
Wiring of input/output connectors:
Input - panel connector Output - panel connector
(rear view - from side of soldering) (rear view - from side of soldering)
Fixture´s Amphenol connectors are dust and water protected according to IP 67 by mating with related Amphenol
connectors.
They cannot stay disconnected outdoor.

Eminere
6
The output panel connector at last fixture in the Eminere chain has to always be covered with the water-tight
cap to keep declared IP rating.
The Eminere modules should be connected to the E-box which allows power supply of the Eminere modules and
their control.
Do not connect (disconnect) Emineres to the E-box and each other when they are under voltage!
When you change any setting of the E-box, disconnect the E-box from power and connect it to power again
to activate changes which you have made.
Examples of connection for various versions of the E-box.
Please read the E-box user manual for more information about its setting and connection to Eminere modules.
Needed cables are stated in the chapter “Technical information“.
E-box Daisy
E-box Star

Eminere
7

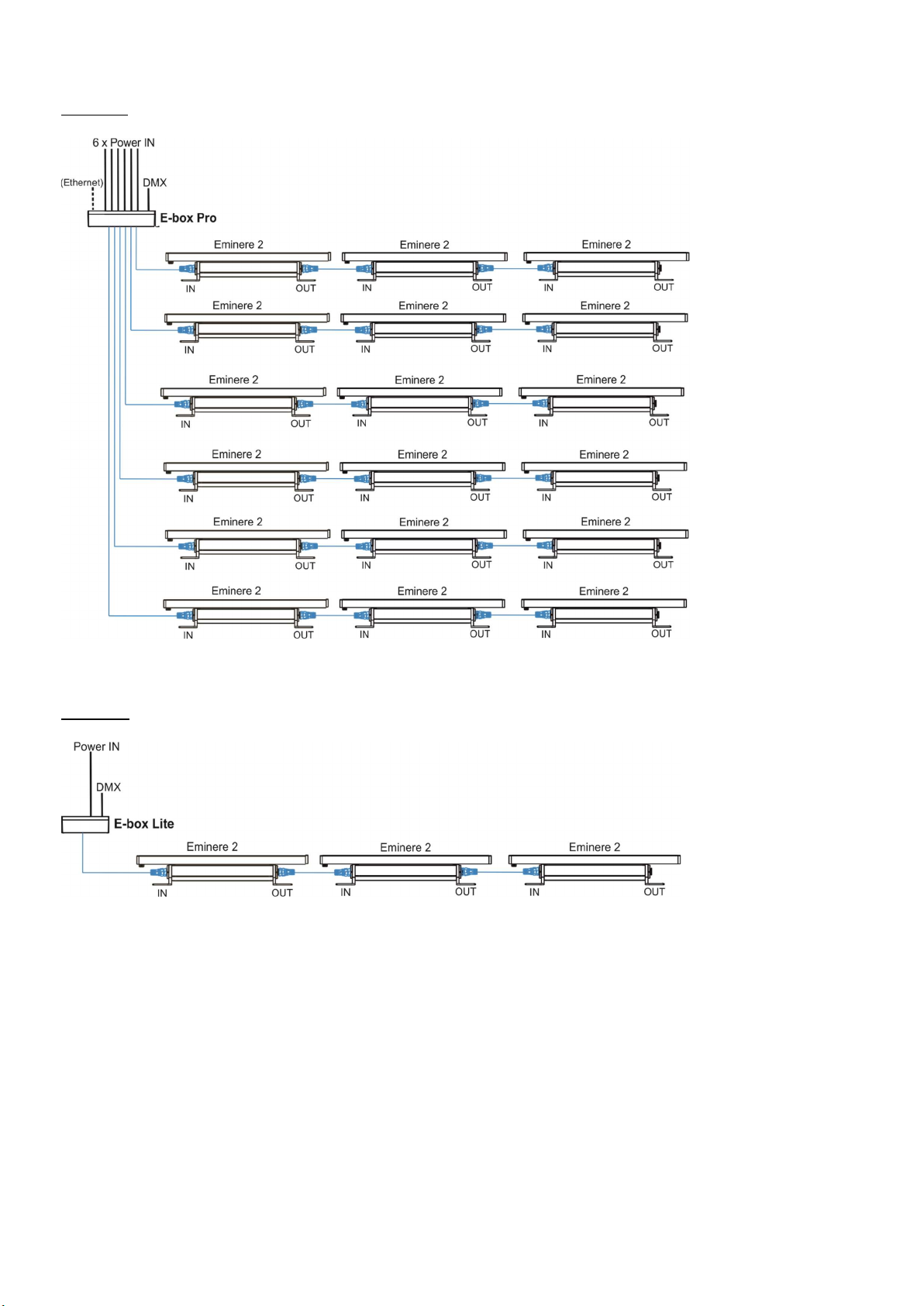

E-box Pro
E-box Lite

Eminere
8
4. Technical specifications
Power supply
• Electronic auto-ranging
• Input voltage: 100 - 277V AC, 50-60 Hz
• Power consumption:
Eminere 1: 25W
Eminere 2: 50W
Eminere 3: 70W
Eminere 4: 90W
• Inrush current:
Eminere 1: 50A/230V AC (cold start)
Eminere 2: 55A/230V AC (cold start)
Eminere 3: 55A/230V AC (cold start)
Eminere 4: 70A/230V AC (cold start)
Optic
• Light source:
Eminere 1: 12 x high power LEDs
Eminere 2: 24 x high power LEDs
Eminere 3: 36 x high power LEDs
Eminere 4: 48 x high power LEDs
• Colour variants: RGBW, RGBA, single colour
• Beam angles: assymetric wallwasher, 9°, 15°, 30°, 50°, 65°, 100°, 10°x30°, 10°x60°, 35°x70°, 15°x90°
• Projected LED Life: 120.000 Hrs (L70@25°C)
Compatible drivers
• E-box Daisy
1 single output
1 Main power Input
Control: DMX, Art-Net, sACN , W-DMX control, RDM
Pixel control (1px= 1ft)
100-277V Input
Connection via screw terminal, inlets via grommet
IP67
• E-box Star
6 outputs
1 Main power Input
Control: DMX, Art-Net, sACN , W-DMX control, RDM
Pixel control (1px= 1ft)
100-277V Input
Connection via screw terminal, inlets via grommet
IP67
• E-box Pro
6 outputs
6 Main power Inputs
Control: DMX, Art-Net, sACN , W-DMX control, RDM
Pixel control (1px= 1ft)
100-277V Input
Connection via screw terminal, inlets via grommet
IP67

Eminere
9
Mounting method
• Via two L-shape brackets
• LED module “tilt” adjustment range: -95°/+95°
Sizes
• Eminere 1 (300mm / 1ft)
• Eminere 2 (600mm / 2ft)
• Eminere 3 (900mm / 3ft)
• Eminere 4 (1200mm / 4ft)
Housing
• Aluminium extruded body with die-casted end caps
• Tempered glass
Cooling system
• Convection
Total heat dissipation
• Eminere 1: 85 BTU/h (calculated)
• Eminere 2: 171 BTU/h (calculated)
• Eminere 3: 256 BTU/h (calculated)
• Eminere 4: 307 BTU/h (calculated)
Weight
•2.5 kg (5.5 lbs)
•4.2 kg (9.3 lbs)
•5.9 kg (13 lbs)
•8.7 kg (19.1 lbs)

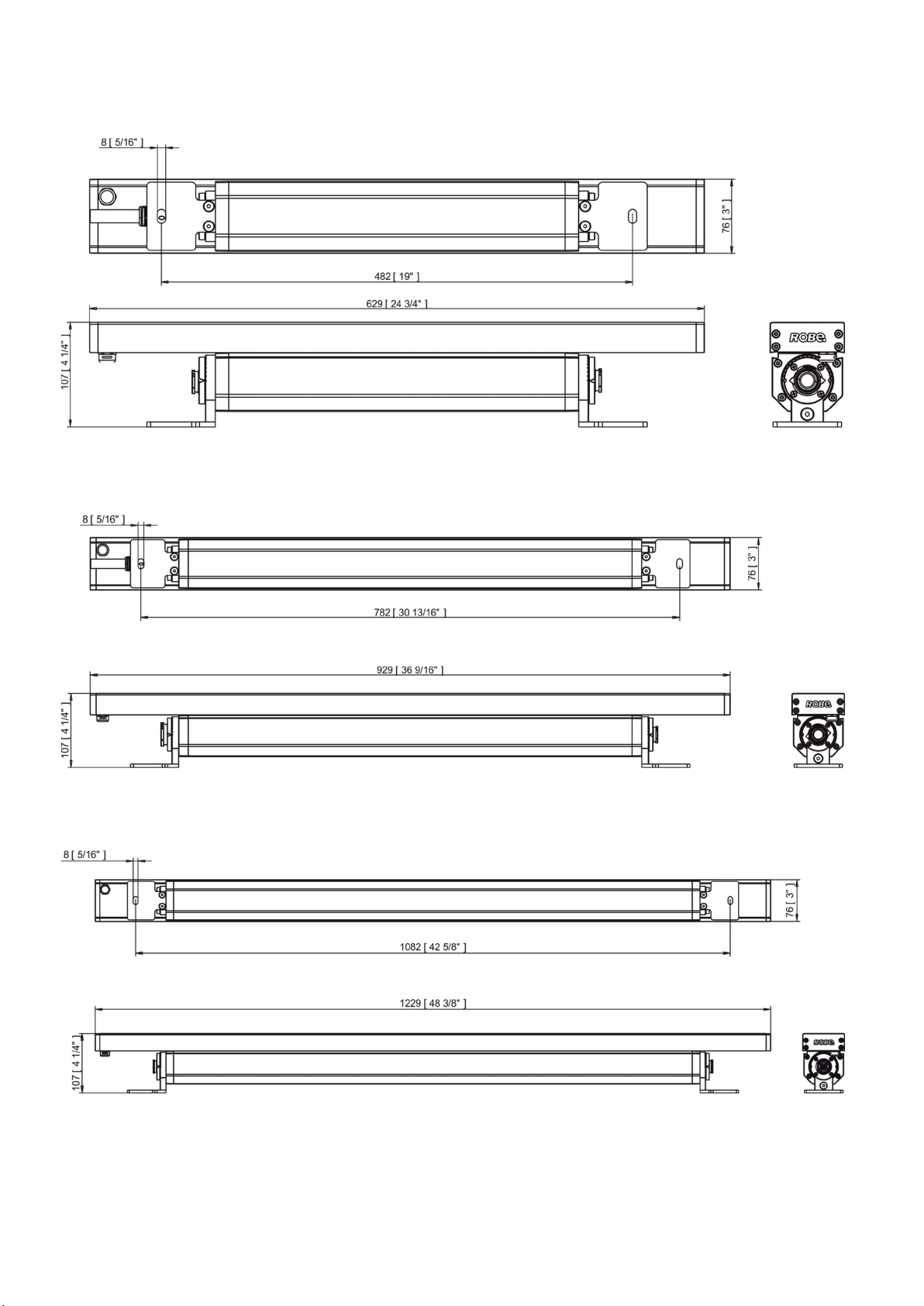

Dimensions (All dimensions in mm [inch])
• Eminere 1

Eminere
10
• Eminere 2
• Eminere 3
• Eminere 4

Eminere
11
Protection factor
• CE: IP 67
• US: Suitable for wet location
Impact rating
• CE: IK06
Operating ambient temperature range
• -20°C /+40°C (-4°F /+104°F)
Operating temperature
• +67°C @ Ambient +40°C (+153°F @ Ambient +104°F)
Connection
• Input: panel connector Amphenol ABAB-DMQ06000021-IN (P/N13052952)
• Output: panel connector Amphenol ABAB-DAQ06000021 (P/N13052953) + water-tight cap
Included items
• 1 x Eminere
• 1 x User manual
Optional accessories
Leader cables
P/N
Name
13053005
Cable CE Leader FF 2m ABB1
-
DFQ06
1
3053006
Cable CE Leader FF 5m ABB1
-
DFQ06
13053007
Cable CE Leader FF 10m ABB1
-
DFQ06
13053008
Cable CE Leader FF 25m ABB1
-
DFQ06
13053009
Cable CE Leader FF 50m
ABB1
-
DFQ06
13053010
Cable US Leader FF 2m ABB1
-
DFQ06
13053011
Cable US Leader FF 5m ABB1
-
DFQ06
13053012
Cable US Leader FF 10m ABB1
-
DFQ06
13053013
Cable US Leader FF 25m ABB1
-
DFQ06
13053014
Cable
US Leader FF 50m ABB1
-
DFQ06
13053015
Cable CE Leader MM 2m ABB1
-
DMQ06
13053016
Cable CE Leader MM 5m ABB1
-
DMQ06
13053017
Cable CE Leader MM 10m ABB1
-
DMQ06
13053018
Cable CE Leader MM 25m ABB1
-
DMQ06
13053019
Cable CE Leader MM 50m ABB1
-
DMQ06
13053020
Cable US Leader MM 2m ABB1
-
DMQ06
13053021
Cable US Leader MM 5m ABB1
-
DMQ06
13053022
Cable US Leader MM 10m ABB1
-
DMQ06
13053023
Cable US Leader MM 25m ABB1
-
DMQ06
13053024
Cable US Le
ader MM 50m ABB1
-
DMQ06
13053025
Cable CE Leader FM 2m ABB1
-
DBQ06
13053026
Cable CE Leader FM 5m ABB1
-
DBQ06
13053027
Cable CE Leader FM 10m ABB1
-
DBQ06

Eminere
12
13053028
Cable CE Leader FM 25m ABB1
-
DBQ06
13053029
Cable
CE Leader FM 50m ABB1
-
DBQ06
13053030
Cable US Leader FM 2m ABB1
-
DBQ06
13053031
Cable US Leader FM 5m ABB1
-
DBQ06
13053032
Cable US Leader FM 10m ABB1
-
DBQ06
13053033
Cable US Leader FM 25m ABB1
-
DBQ06
13053034
Cable
US Leader FM 50m ABB1
-
DBQ06
13053035
Cable CE Leader MF 2m ABB1
-
DAQ06
13053036
Cable CE Leader MF 5m ABB1
-
DAQ06
13053037
Cable CE Leader MF 10m ABB1
-
DAQ06
13053038
Cable CE Leader MF 25m ABB1
-
DAQ06
13053039
Cable
CE Leader MF 50m ABB1
-
DAQ06
13053040
Cable US Leader MF 2m ABB1
-
DAQ06
13053041
Cable US Leader MF 5m ABB1
-
DAQ06
13053042
Cable US Leader MF 10m ABB1
-
DAQ06
13053043
Cable US Leader MF 25m ABB1
-
DAQ06
13053044
Cable US Leader MF 50m ABB1
-
DAQ06
Jumper cables
P/N
Name
13053045
Cable CE Jumper FF/FM 0,25m ABC1
-
DFQ06
13053046
Cable CE Jumper FF/FM 0,5m ABC1
-
DFQ06
13053047
Cable CE Jumper FF/FM 1m
ABC1
-
DFQ06
13053048
Cable CE Jumper FF/FM 2m ABC1
-
DFQ06
13053049
Cable CE Jumper FF/FM 3m ABC1
-
FQ06
13053050
Cable CE Jumper FF/FM 5m ABC1
-
DFQ06
13053051
Cable CE Jumper FF/FM 10m ABC1
-
DFQ06
13053052
Cable US Jumper FF/FM 0,25m ABC1
-
DFQ06
13053053
Cable US Jumper FF/FM 0,5m ABC1
-
DFQ06
13053054
Cable US Jumper FF/FM 1m ABC1
-
DFQ06
13053055
Cable US Jumper FF/FM 2m ABC1
-
DFQ06
13053056
Cable US Jumper FF/FM 3m
ABC1
-
DFQ06
13053057
Cable US Jumper FF/FM 5m ABC1
-
DFQ06
13053058
Cable US Jumper FF/FM 10m ABC1
-
DFQ06
13053059
Cable CE Jumper MF/FM 0,25m ABC1
-
DAQ06
13053060
Cable CE Jumper MF/FM 0,5m ABC1
-
FQ06
13053061
Cable CE
Jumper MF/FM 1m ABC1
-
DFQ06
13053062
Cable CE Jumper MF/FM 2m ABC1
-
DFQ06
13053063
Cable CE Jumper MF/FM 3m ABC1
-
DFQ06
13053064
Cable CE Jumper MF/FM 5m ABC1
-
DFQ06
13053065
Cable CE Jumper MF/FM 10m ABC1
-
DFQ06
13053066
Cabl
e US Jumper MF/FM 0,25m ABC1
-
DAQ06
13053067
Cable US Jumper MF/FM 0,5m ABC1
-
AQ06
13053068
Cable US Jumper MF/FM 1m ABC1
-
DAQ06
13053069
Cable US Jumper MF/FM 2m ABC1
-
DAQ06
13053070
Cable US Jumper MF/FM 3m
ABC1
-
DAQ06
13053071
Cable US Jumper MF/FM 5m ABC1
-
DAQ06
13053072
Cable US Jumper MF/FM 10m ABC1
-
DAQ06

Eminere
13
5. Cleaning and maintenance
DANGER !
Disconnect from the mains before starting any maintenance or cleaning work
Rinse off loose dirt with low pressure water spray. Wash the housing with a soft brush or sponge and a mild, non-
abrasive washing detergent. Rinse it.
Maintenance and service operations are only to be carried out by a qualified person.
Should you need any spare parts, please use ROBE OEM parts.
5.1 Disposing of the product
To preserve the environment please dispose or recycle this product at the end of its life according to the local
regulations and codes.
6. ChangeLog
This section summarizes changes in the user manual.
Version of
the manual
Date of issue
Description of changes
1.1
07
/
10
/2019
Inrush current
added to chapter Technical Specifications
Specifications are subject to change without notice.
October 7, 2019
Copyright © 2019 Robe Lighting - All rights reserved
Made in CZECH REPUBLIC by ROBE LIGHTING s.r.o. Palackeho 416/20 CZ 75701 Valasske Mezirici
