Robe Beam 250XT User manual

1

2

3
Table of contents
1. Safety instructions......................................................................................................... 4
2. Operating determinations ............................................................................................. 5
3. Description of the device .............................................................................................. 6
4.Installation ...................................................................................................................... 7
4.1 Fitting the lamp......................................................................................................... 7
4.2 Lamp adjustment....................................................................................................... 7
4.3 Adjusting beam eangle............................................................................................. 8
4.4 Connection to the mains............................................................................................ 8
4.5 Rigging the fixture ..................................................................................................... 9
4.6 DMX-512 connection/connection between fixtures ................................................. 11
5. DMX PROTOCOL.......................................................................................................... 12
6. Controller mode ........................................................................................................... 14
6.1 DMX addressing ..................................................................................................... 14
6.2 Remotely controllable functions .............................................................................. 14
7. Stand - alone mode...................................................................................................... 15
8. Functions of the control panel.................................................................................... 16
8.1 Addressing .............................................................................................................. 16
8.2 Slave control ........................................................................................................... 17
8.3 Fixture informations................................................................................................. 17
8.4 Personality options.................................................................................................. 19
8.5 Switching On/Off the lamp....................................................................................... 23
8.6Test sequences........................................................................................................ 24
8.7 Stand-alone setting ................................................................................................. 24
8.8 Reset function ......................................................................................................... 26
8.9 Special functions..................................................................................................... 26
9. Error and information messages................................................................................ 28
10.Technical specifications ............................................................................................ 29
11. Maintenance and cleaning ........................................................................................ 32
12. Appendix .................................................................................................................... 33
12.1 Changing the power supply settings ..................................................................... 33
WASH 250 XT

4
CAUTION!
Keepthis deviceawayfromrainand moisture!
Unplugmains leadbeforeopening thehousing!
FORYOUROWNSAFETY,PLEASEREADTHISUSERMANUALCAREFULLY
BEFOREYOU INITIALSTART-UP!
1. Safety instructions
Every person involved with installation and maintenance of this device have to:
-be qualilfied
- follow the instructions of this manual
CAUTION!
Be careful withyouroperations.With ahigh voltageyoucansuffer
adangerous electricshockwhen touchingthe wires!
Thisdevice has leftour premises in absolutely perfect condition. Inorder to maintainthis condition and toensure
asafe operation, itis absolutely necessary for the user tofollow the safetyinstructions and warning noteswritten
in this manual.
Important:
Themanufacturer willnot acceptliability for anyresulting damagescaused by thenon-observance ofthis manual
or any unauthorized modification to the device.
Please consider that damages caused by manual modifications to the device are not subject to warranty.
Neverlet thepower-cord comeinto contact withother cables!Handle thepower-cord and allconnections withthe
mains with particular caution!
Make sure that the available voltage is not higher than stated on the rear panel.
Always plug in the power plug least. Make sure that the power-switch is set to OFF-position before you connect
the device to the mains.The power-plug has to be accessable after installing the device.
Make sure that the power-cord is never crimped or damaged by sharp edges. Check the device and the power-
cord from time to time.
Alwaysdisconnect fromthe mains,when thedevice isnot inuse orbefore cleaningit. Onlyhandle thepower-cord
by the plug. Never pull out the plug by tugging the power-cord.
This device falls under protection class I.Therefore it is essential to connect the yellow/green conductor to earth.
The electric connection, repairs and servicing must be carried out by a qualified employee.
Do not connect this device to a dimmer pack.
Do not switch the fixture on and off in short intervals as this would reduce the lamp’s life.
During the initial start-up some smoke or smell may arise.This is a normal process and does not necessarily
mean that the device is defective.
Donot touch the device’shousing bare hands duringits operation(housing becomes hot)!
For replacement use lamps and fuses of same type and rating only.
CAUTION! EYEDAMAGES!
Avoidlookingdirectlyinto thelight source
(meantespecially forepileptics)!

5
2. Operating determinations
This device is a moving-head spot for creating decorative effects and was designed for indoor use only.
If the device has been exposed to drastic temperature fluctuation (e.g.after transportation), do not switch it on
immediately.The arisingcondensation watermight damage yourdevice.Leavethedeviceswitchedoffuntil it has
reachedroomtemperature.
Never run the device without lamp!
Do not shake the device.Avoid brute force when installing or operating the device.
Never lift the fixture by holding it at the projector-head, as the mechanics may be damaged. Always hold the
fixture at the transport handles.
Whenchoosing the installation-spot, pleasemake sure that the deviceis not exposed to extreme heat, moisture
or dust.There should not be any cables lying around.You endanger your own and the safety of others!
The minimum distance between light-output and the illuminated surface must be more than 1 meter.
Make sure that the area below the installation place is blocked when rigging, derigging or servicing the fixture.
Always fix the fixture with an appropriate safety-rope.Fix the safety-rope at the correct holes only.
Onlyoperate the fixtureafter having checked that the housing isfirmly closed andall screws are tightlyfastened.
The lamp must never be ignited if the objective-lens or any housing-cover is open, as discharge lamps may
explose and emit a high ultraviolet radiation, which may cause burns.
Themaximum ambient temperature ta = 45° C mustnever be exceeded. Otherwise,the lamp is switchedoff and
the fixture is out of operation for 5 minutes.
CAUTION!
Thelens hasto bereplaced whenit isobviously damaged,
sothat itsfunction isimpaired, e.g. dueto cracksordeepscratches!
Operate the device only after having familiarized with its functions. Do not permit operation by persons not
qualifiedfor operating the device.Most damages are theresult of unprofessional operation!
CAUTION!
Thelamp hasto bereplaced whenit isdamaged
ordeformed due tothe heat!
Please use the original packaging if the device is to be transported.
Please consider that unauthorized modifications on the device are forbidden due to safety reasons!
If this device will be operated in any way different to the one described in this manual, the product may suffer
damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short-
circuit, burns, electric shock, burns due to ultraviolet radiation, lamp explosion, crash etc.

6
1-Moving Head
2 -Yoke
3 - Base
4-Carrying handles
Rearpanel:
5-Power-switch
6- DMX output
7- DMX input
8 - Powercord
9 - Fuseholder
Front panel:
10-Mode-button
11 -Enter-button
12-Up-button
13-Down-button
14 - Display
3. Description of the device

7
4. Installation
4.1 Fitting the lamp
DANGER!
Installthe lampswith thedeviceswitchedoff only.
Unplugfrom mainsbefore !
To insert the lamp MSD 250 or MSD 250/2 open the small cover at the rear of head (See the drawings) by
loosening the 3 Phillips screws on the cover.
Gently pull out the lamp assembly.
If changing the lamp, remove the old lamp from the socket.Insert the lamp to the socket.
Do not install a lamp with a higher wattage! A lamp like this generates temperatures the device is not designed
for.
Damages caused by non-observance are not subject to warranty.Please follow the lamp manufacturer‘s notes!
Do not touch the glass-bulb bare hand during the installation! Make sure that the lamp is installed tightly into the
lampholdersystem.
Reinsert the lamp assemby and tighten 3 screws again.
Before striking the lamp, reset the "LAti" counter in the main menu of the Control Board, by pressing the "Up"
and "Down" buttonsin one time and then confirming with the Enter-button.
Donot operatethis fixturewithopenedhousing-cover!
4.2 Lamp adjustment
Thefixturelampholderisalignedatthefactory.Duetodifferences
betweenlamps,fineadjustment may improvelightperformance.
Strike the lamp and focus the light on a flat surface (wall).
Centerthe hot-spot (thebrightest part ofthe beam)using the 3
adjustment screws „A,B,C”.Turn one screw at a time to drag
thehot-spot,diagonallyacrosstheprojectedimage.Ifyoucannot
detect a hot -spot, adjust the lamp until the light is even.
Toreducea hot-spot,pull thelamp inbyturning allthree screws
„A, B, C” clockwise 1/4-turn at a time until the light is evenly
distributed.
If the light is brighter around the edge than it is in the center, or
if light output is low, the lamp is too far back in the reflector.
„Push” the lamp out by turning the screws „A, B, C”
counterclockwise1/4-turn ata timethe lightis brightand evenly
distributed.
Lamp assembly
3 phillips screws
screws „A, B, C”

8
4.3 Adjusting beam eangle
TheFresnel lenssystemcanbeconfigured inthe rangebetween8°and22°.Tosetthedesiredbeamangle,remove
thefrontcover byloosening2 fastenerson this coverand loose 2 adjusting screwson the Fresnel lens unit and
adjust the required beam angle.Tighten the adjusting screws again and fix back the front cover.
Adjustingscrew
Fresnel lens
Fastener
Front cover
4.4 Connection to the mains
Verifythe powersupply settingsbeforeapplyingpower!
If you wish to change the power supply settings,see the chapter Appendix.
Connect the fixture to the mains with the enclosed power cord and plug.
The earth has to be connected!
The occupation of the connection-cables is as follows:
Cable (EU) Cable (US) Pin International
Brown Black Live L
Lightblue White Neutral N
Yellow/Green Green Earth

9
4.5 Rigging the fixture
Dangerof fire !
Wheninstalling thedevice,makesurethere isno highlyinflammable
material(decoration articles,etc.) inbetween adistance of min.0,5 m.
Warning ! Use 2clamps torig the fixtureon the truss.
Followthe instructionsmentioned atthe bottomof thebase.
Makesure thatthe deviceisfixed properly!Ensure that
thestructure (truss)towhich youare attachingthe fixturesissecure.
The installation of the projector has to be built and constructed in a way that it can hold 10 times the weight for 1
hourwithout anyharming deformation.
The installation must always be secured with a secondary safety attachment, e.g.an appropriate catch net.This
secondary safety attachment must be constructed in a way that no part of the installation can fall down if the
main attachment fails.
Whenrigging, derigging orservicing the fixture stayingin the areabelow the installation place,on bridges, under
highworking placesand other endangeredareas isforbidden.
Themoving-head can be placed directlyon the stage floor orrigged in any orientation on a truss without altering
itsoperation characteristics (see thedrawing).
You can fix theWASH 250 XT on a truss via 2 Omega holders or using the mounting plate(it is not the standard
part of delivery) or screw the clamps directly to 2 holes (5) in the base.
For overhead use, always install a safety-rope that can hold at least 10 times the weight of the fixture.You must
only use safety-ropes with screw-on carabines.Pull the safety-rope through the two apertures on the bottom of
the base and over the trussing system etc.Insert the end in the carabine and tighten the fixation screw.

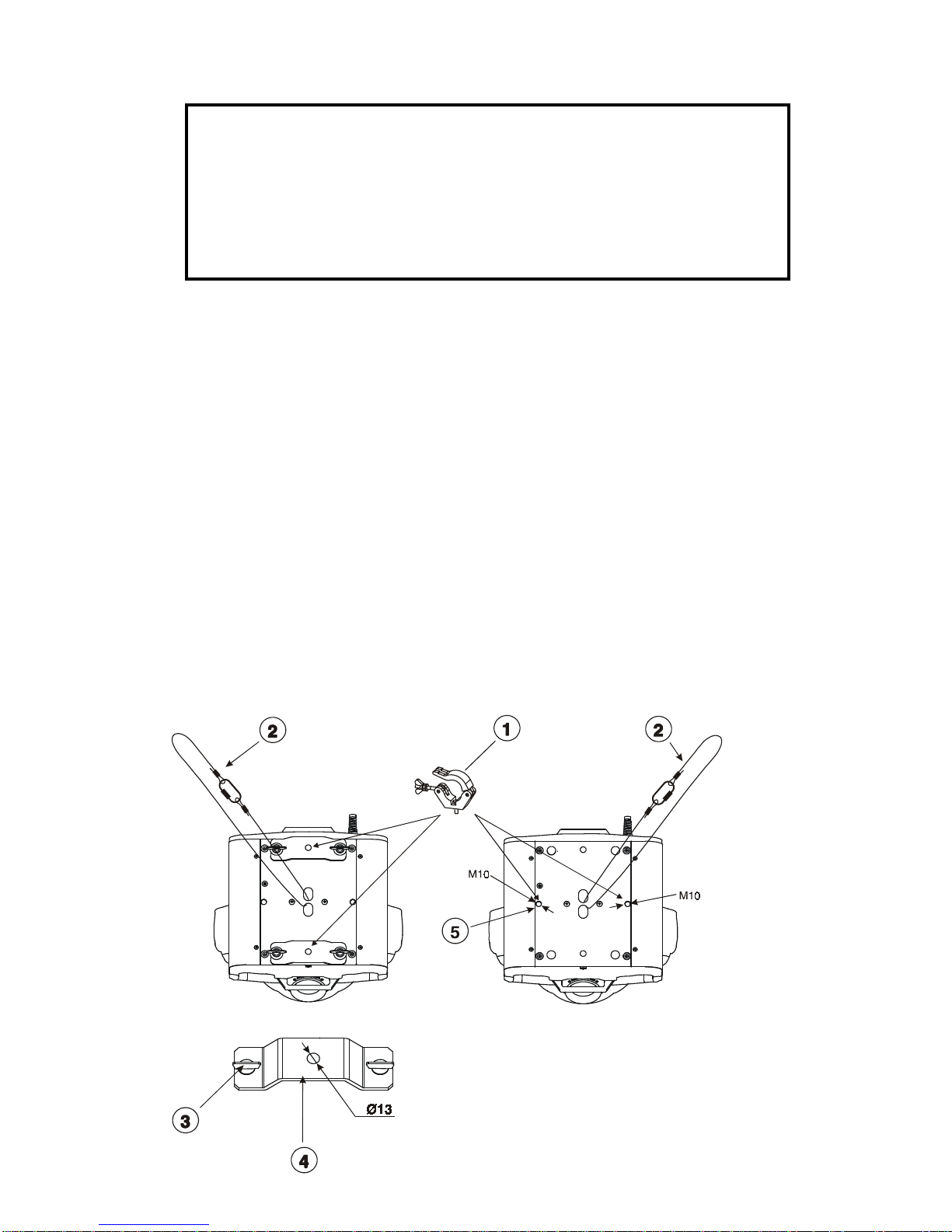

Fixation via Omega holders
1.Bolt each clamp (1) to the omega holder (4) with M12 bolt and lock nut through the hole in the holder.
2.Fasten the omegaholders on thebottom of the baseby inserting both quick-lockfasteners(3)into the holesof
the base and tighten fully clockwise.
3.Fasten the safety-rope (2) through the two apertures on the bottom of the base and over the trussing system.
1-Clamp
2-Safety-rope
3-Quick-lockfastener
4-Omegaholder
5-Mountingholes 2x M10

10

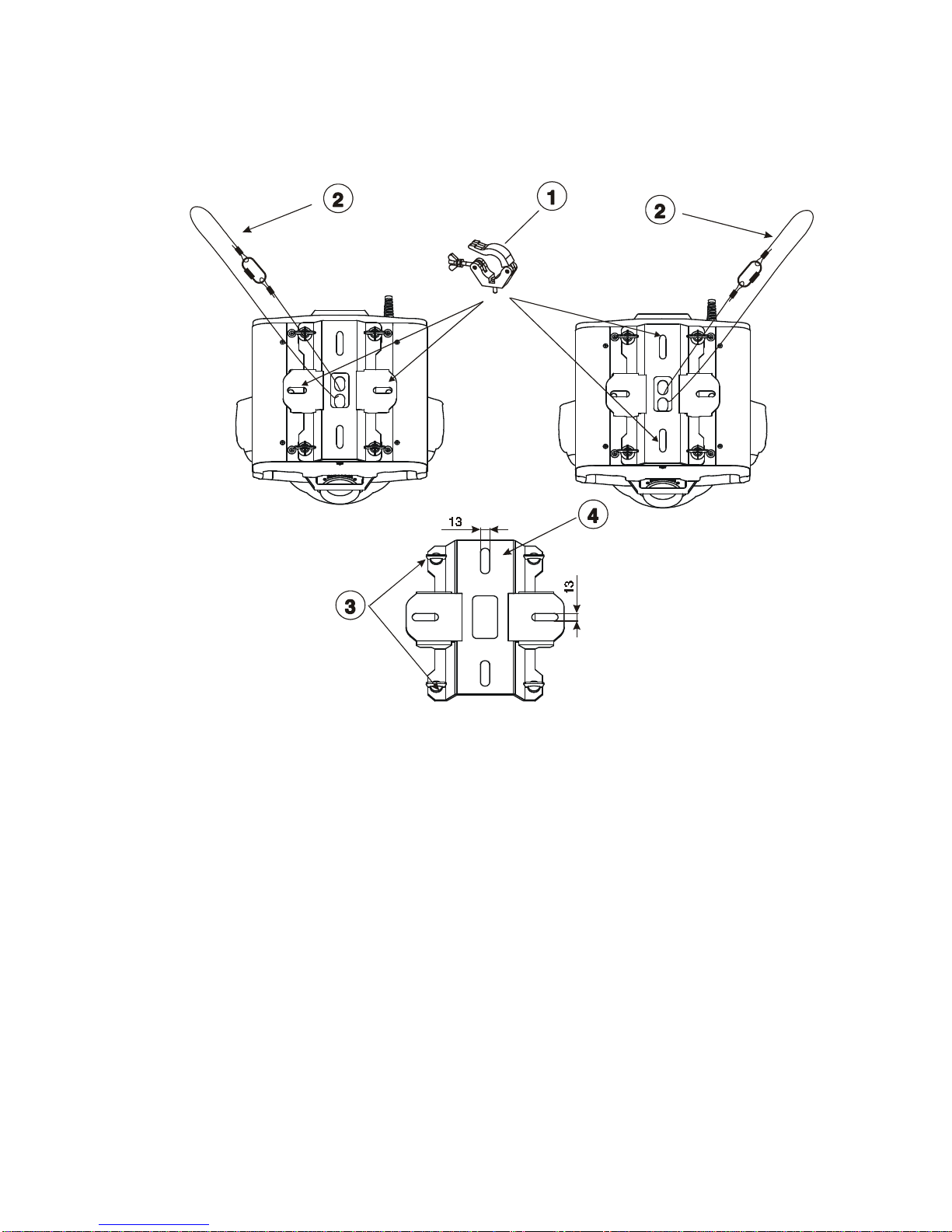

Fixation via a mounting plate
1. Screw 2 clamps (1) to the mounting plate (4) with M12 bolts and lock nuts through the holes in the
mounting plate (4).
2.Insert the 4 quick-lock fasteners (3) into the holes on the bottom of the base and tighten fully clockwise.
3.Fasten the safety-rope (2) through the two apertures on the bottom of the base and over the trussing system.
1-Clamp
2-Safety-rope
3-Quick-lockfasteners
4-Mountingplate

11

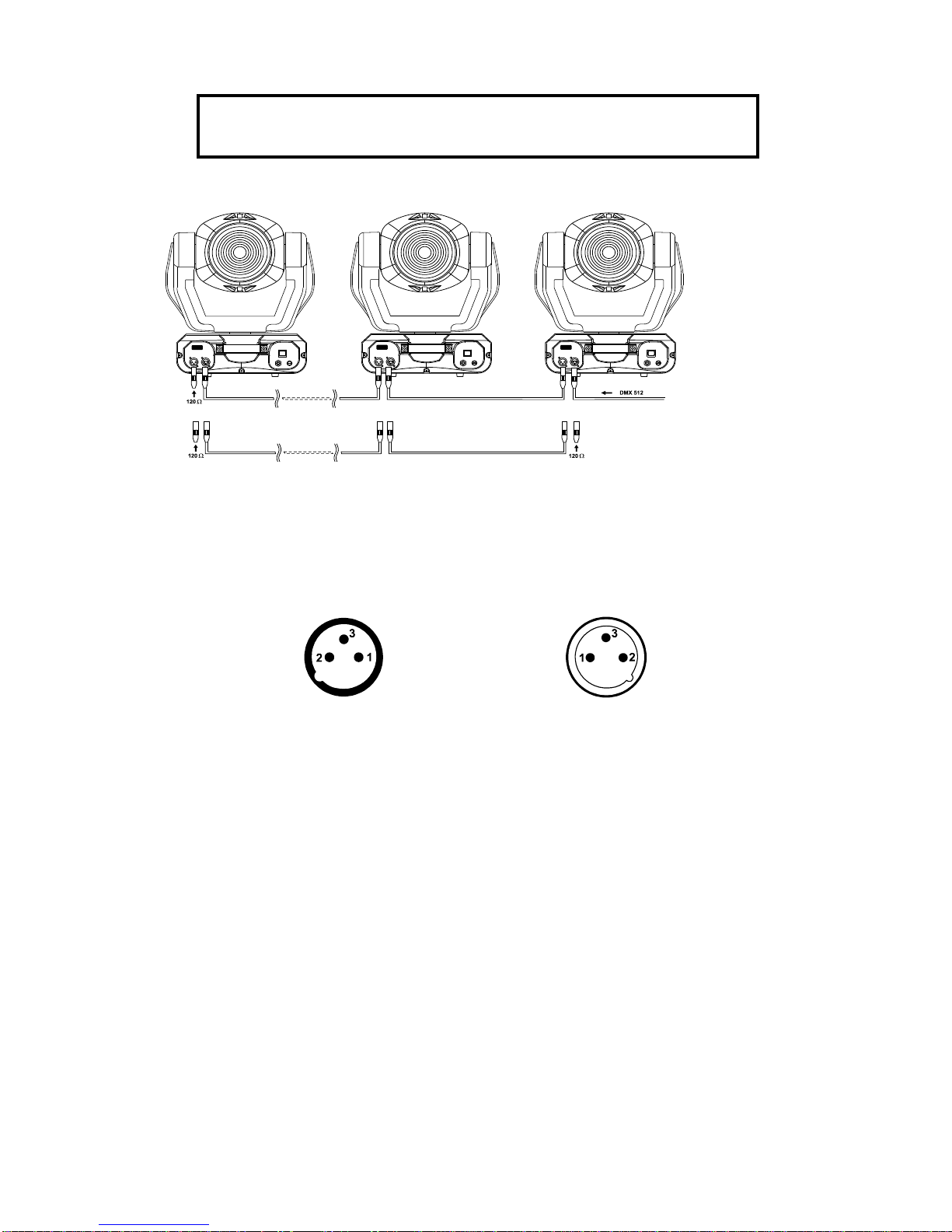

4.6 DMX-512 connection/connection between fixtures
Thewiresmustnot comeinto contactwith eachother,otherwise
thefixtures will notworkat all,or willnotworkproperly.
Only use a stereo shielded cable and 3-pin XLR-plugs and connectors in order to connect the controller with the
fixture or one fixture with another.
Occupation of the XLR-connection:
DMX - output DMX-input
XLR mounting-socket: XLR mounting-plug:
If you areusing the standardDMX-controllers, you canconnect the DMX-outputof the controllerdirectly with the
DMX-input of the first fixture in the DMX-chain. If you wish to connect DMX-controllers with other XLR-outputs,
youneed to useadapter-cables.
Building a serial DMX-chain:
Connect the DMX-output of the first fixture in the DMX-chain with the DMX-input of the next fixture. Always
connect one output with the input of the next fixture until all fixtures are connected.
Caution: At the last fixture, the DMX-cable has to be terminated with a terminator. Solder a 120 Wresistor
between Signal (–) and Signal (+) into a 3-pin XLR-plug and plug it in the DMX-output of the last fixture.
1-Ground
2 - Signal (-)
3 - Signal (+)
1-Ground
2 - Signal (-)
3-Signal (+)
Master/slave operation
Controller operation

12
5. DMX PROTOCOL
Mode 1 Mode 2 8 bit Value Function Type of control
channel channel
1 1 1 Pan
0-255 Pan movement by 530° proportional
2 3 2 Tilt
0-255 Tilt movement by 280° proportional
3 2 Pan fine
0-255 Fine control of pan movement proportional
4 4 Tilt fine
0-255 Fine control of tilt movement proportional
5 5 3 Speed of PAN/TILT movement
0 Max.speed (tracking mode) step
1-249 From max.to min.speed (vector mode) proportional
250-255 Max.speed,black-out while PAN,TILT
moving orcolor changes(tracking mode) step
6 6 4 Lamp on/off,reset,fans speed control
0-127 From max.speed of fan to min. speed of fan proportional
128-139 Lampon,reset step
140-229 Nofunction step
230-239 Lamp off after 3 sec step
240-255 No function step
7 7 5 Colours
0-17 Open/white step
18-35 Red step
36-53 Blue step
54-72 Green step
73-90 CTF3200K step
91-108 CTF5600K step
109-127 UV filter step
128-190 Forwards rainbow effect from fast to slow proportional
191-192 Norotation step
193-255 Backwards rainbow effect from slow to fast proportional
8 8 6 Cyan
0-255 Cyan ( 0- white, 255 - full cyan ) proportional
9 9 7 Magenta
0-255 Magenta (0-white, 255-full magenta) proportional
10 10 8 Yellow
0-255 Yellow (0-white,255-fullyellow) proportional
11 11 9 Speed of CMY and dimmer
0-255 Frommax.speed tomin.speed proportional
12 12 10 Colours macros - CMY and color wheel
0-7 Off step
8-15 Macro1 step
16-23 Macro 2 step
24-31 Macro3 step
32-39 Macro 4 step
40-47 Macro5 step

13
Mode 1 Mode 2 8 bit Value Function Type of control
channel channel channel
12 12 10 Colours macros - CMY and color wheel
48-55 Macro 6 step
56-63 Macro 7 step
64-71 Macro 8 step
72-79 Macro 9 step
80-87 Macro 10 step
88-95 Macro 11 step
96-103 Macro 12 step
104-111 Macro 13 step
112-119 Macro14 step
120-127 Macro15 step
128-135 Macro16 step
136-143 Macro17 step
144-151 Macro18 step
152-159 Macro19 step
160-167 Macro20 step
168-175 Macro21 step
176-183 Macro22 step
184-191 Macro23 step
192-199 Macro24 step
200-207 Macro25 step
208-215 Macro 26 step
216-223 Macro 27 step
224-231 Macro 28 step
232-239 Macro 29 step
240-247 Macro 30 step
248-255 Macro31 step
13 13 11 Effectwheel
0-70 Full beam step
71-180 Beamshaper proportional
181-255 Frost filter proportional
14 14 12 No function
15 15 13 Shutter,strobe
0-31 Shutter closed step
32-63 No function(shutter open) step
64-95 Strobe-effect from slow to fast proportional
96-127 No function (shutter open) step
128-159 Pulse-effect in sequences proportional
160-191 No function (shutter open) step
192-223 Random strobe-effect from slow to fast proportional
224-255 No function (shutteropen) step
16 16 14 Dimmer intensity
0-255 Gradual adjustment of the dimmer intensity proportional
from 0 to 100%

14
6. Controller mode
The fixtures are individually addressed (001-497) on a data link and connected to the controller.The fixtures
respond to the DMX signal from the controller.
6.1 DMX addressing
Thecontrol panel on thefront panel of the fixture allows you to assign theDMX fixture address, whichis defined
as the first channel from which theWASH 250 XT will respond to the controller.
If you set, for example, the address to channel 5, the WASH 250 XT will use the channel 5 to 20 for control.
Please,besure thatyoudon’t have anyoverlapping channelsin orderto controleachWASH250 XTcorrectly and
independently from any other fixture on the DMX data link.
If two, three or more WASH 250 XT are addressed similarly, they will work similarly.
Foraddress setting, please referto the instructions under"Addressing"(menu "A001").
Controlling:
After having addressed allWASH 250 XT , you may now start operating these via your lighting controller.
Note:After switching on, theWASH 250 XT will automatically detect whether DMX 512 data is received or not.If
there is no data received at the DMX-input, the display will start to flash "A001" with actually set address.
This situation can occur if:
-the 3 PIN XLRplug (cablewith DMX signalfrom controller) is notconnected with the inputof theWASH 250XT
- the controller is switched off or defective, the cable or connector is defective or the signal wires are swap in the
inputconnector.
Note:It’s necessary to insert the XLR termination plug (with 120 Ohm) to the last fixture in the link in order to
ensure proper transmission on the DMX data link.
6.2 Remotely controllable functions
Lamp
TheWASH 250 XT is to be operated with a MSD/HSD 250 or MSD 250/2 GY-9,5 lamp.
Arelayinsideof theWASH250XT allowsyoutoswitchon and off thelamp viathe control panel orvia yourDMX-
controller without affecting the rest of the lighting.
To switch On/Off the lamp, please refer to "Switching On/Off the lamp " (menu "LAMP").
Note: It is also important to note, that the discharge lamp is cold restrike types, that means, that they have to be
cold before re-striking. For this reason, you have to wait 5 minutes (max. speed of fan must be adjusted) after
having switched Off the lamp before you can switch it back On again. If you try to switch On the lamp within 5
minutes after having switched it Off, the WASH 250 XT will store this information and automatically ignite the
lampwhen the 5 minutesperiodhas expired.Themessage"HEAt" will appearon thecontrol panel displayof the
WASH 250 XT. If the ignition of the lamp is seven times unsuccessful, on the display will appear "LA.Er",
meaning that the lamp could be damaged or even missed, or there could be a failure on the ignitor or ballast.
Colour wheel
TheWASH 250 XTfeaturesa colour-wheelwith 7 colorpositions - 6of these with dichroic colors and thelast one
open.It isalso possible torotate the color-wheelcontinuously at differentspeeds - theso-called "Rainboweffect“
is created.
CMY - colours mixing system
TheCMY colormixing system isbased on graduatedcyan, magenta, andyellow colorfilters. A continuousrange
of colors may be achieved by varying the amount of each filter from 0 to 100%.
Beam effects
Thebeam shaper allow youto widen and flatten beam.Beam shaper rotates 180°.
Frost filter on the same wheel as beam shaper softens the beam.
Dimmer
Smooth 0 - 100 % dimming is provided by the special dimmer unit.
Shutter/Strobe
Extremely fast shutter may also be used for strobe effect (1 - 10 flashes per second)

15
Fans
TheWASH 250 XT is cooled by free axial fans - two in the projector head and one in the base.The speed of the
fan (and of course the noise) can be continuously reduced if very quiet performance is required.
By the Control Board using the "FAnS” function you can choose 5 types of fan speed operating modes.
7. Stand - alone mode
The fixtures on a data link are not connected to the controller but can execute pre-set programs which can be
different for every fixture.To set the program to be played,see the "Stand-alone setting" ( menu "St.AL.").
"Stand-alone operation" can be applied to the single fixture (the fixture may be set to the master /slave mode or
controller mode ) or to multiple fixtures operating synchronously.
Synchronous operation of multiple fixtures requires that they must be connected on a data link and one of them
is set as a master (master mode) and the rest as the slaves (slave mode).The slaves are assigned to SLA1-
SLA9 and on the certain slave address can be connected only one fixture.To set the fixture as the master or
slave , see the "Addressing" (menu "A001").
If the master fixture runs a reset,switches On/Off the lamp or plays test(program) ,all slaves will execute
these acts too (e.g. if the master fixture has switched the lamp off,no slaves can switch the lamp on)!
You can't play or edit any programs on the slaves by their control panels if the master is switched on and
connected to the master/slave chain.
The master fixture starts simultaneous program start in the other slave fixtures.All fixtures have a definite,
synchronizedstarting pointwhen playingbacktheir programs.Thenumberof runningprogram isthe same in all
slaves and depends on the master's choice (menu "St.AL." ).Every fixture runs its program repeatedly ,starting
the program step No.1 when requested by the master .
Forexample:
If the slave fixture has a shorter program length, it will continously repeat its program until the master fixture
finishes its own program and restarts its program running (slave 1- prog.step 3 will not be finished).
If the slave fixture has a longer program length, it will restart at prog.step 1 before it completes all its prog.steps
(slave 2 - prog.step 5 will not be played)- see the picture bellow.
Note:Disconectthe fixtures fromthe DMXcontroller beforemaster/slave operating ,otherwisedata collisionscan
occur and the fixtures will not work properly!
It’s necessary to insert the XLR termination plug (with 120 Ohm) into the input of the master fixture and into the
output of the last slave fixture in the data link in order to ensure proper transmission on the data link.
From the master's control panel is possible to control any slave in a master/slave chain.
Starting point
Restart

16
8. Functions of the control panel
The control panel situated on the front side of the base offers several features.You can simply set the DMX
address,master/slave mode, read the number of lamp or unit hours, switch On and Off the lamp, run test, make
a reset and also use many functions for setting and service purposes.
The main menu of the control panel is accessed by pressing the [Mode] button - press this one so many times
untilthedisplay showsmessage "A001" (with actuallystored address).Browse throughthe menu bythe pressing
[Up] or[Down] buttons- the displayshowsstep bystep thesemessages:A001,SLCt,InFO,PErS,LAMP,tESt,
StAL,rESE,SPEC.Press [Enter] if you wish to select one of them.The functions are described in the following
sections and the function hierarchy is shown below.
8.1 Addressing
By this menu you can set the DMX address or address the fixture as a master/slave.
DMX addressing
1.Pressthe [Mode]-buttonso manytimesuntil thedisplayshows message"A001" (with actuallystoredaddress).
2.Press [Enter]-buttonand use the [Up] and[down] buttons to select"dM.Ad."-menu.
3.Press[Enter]-button(the letter "A" flashes) and by[Up] and[down] buttons select required address (001-
497), press [Enter]-button to confirm.
4.Select "M.ASL."-menu,press[Enter]-buttonand use[Up] and [down] buttonsto select"d.AbL."(nomaster or
slave),press [Enter] to confirm.
5.Press the [Mode]- button.Choosen address is shown on the display.
If message "A001" (with actually stored address) flashes-no DMX data received at the DMX-input.
Master/slave adressing
1.Pressthe[Mode] button so manytimesuntil thedisplay showsmessage"A001"(withactually stored address).
2. Press [Enter]-button and use the [Up] and [down] buttons to select "MA.SL."-menu.
3. Press[Enter]-button(display flashes) and select"MASt"(to set the fixture as the master in a chain of multiple
fixtures)or "SLA.1"-"SLA.9" (to set thefixture to be the slavein a chain ofmultiple fixtures) and press[Enter]

17
to confirm. If you want address no master or slave, select "d.AbL.".
4.Press the [Mode]- button.Choosen address is shown on the display.
If message "MASt." fast flashes-DMX signal is received at the DMX-input- disconnect DMX controller!
Only one fixture may be the master.Up to the 9 slaves may be connected to the master and on the certain
address can be connected only one slave fixture (SLA1-SLA9).
Note:Disconectthe fixtures fromthe DMXcontroller beforemaster/slave operating ,otherwisedata collisionscan
occur and the fixtures will not work properly!
If the fixture is set as the master and DMX signal is connected to its input,the error massage "MAEr" will appear
onits display and the fixture's address will be set to its DMX address inorder to respond to DMX signal from the
controller.
Forexample:
The master fixture has these address setting:"dM.Ad."-menu.........A017
"MA.SL."-menu........MASt (is displayed)
8.2 Slave control
This function allows you to control the slaves from the master's control panel in a master/slave operation.
Selectthisfunction fromthemain menuandpress [Enter]-button.Browsethelist ofallconnected slaves("SL.C.1"
- "SL.C.9") by pressing [Up] or [Down] button.Select the desired slave and press [Enter]-button.The slave's
control panel is available from the master's control panel.
If no slave is connected to the master,massages "SL.C.1","SL.C.2","SL.C3"..."SL.C.9" still round repeat.
Note:This function is available from the master fixture only.

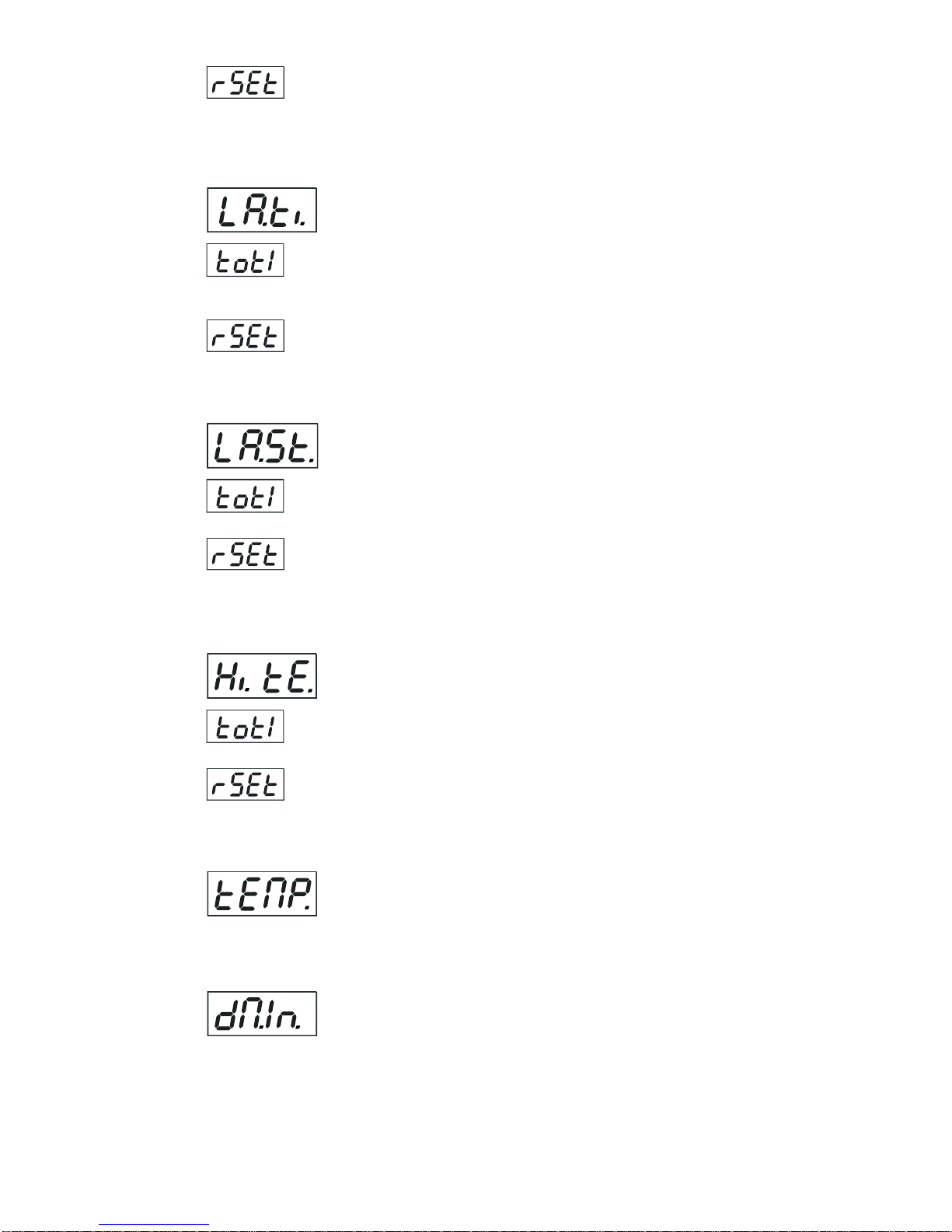

8.3 Fixture informations
The menu allows you to read an useful information about the fixture as the lamp life,head temperature,software
version, etc.
Press[Up] and [Down] buttons to selectthe desired option andpress [Enter] to see thevalue or nextsubmenu.
Power On time
-By this option you can read the total number of the operation hours since the
WASH 250 XT has been fabricated.Press [Enter] or [Mode] to return to the menu.

18
-The number of the hours that theWASH 250 XT has been powered On since the
counter was last reset.Press [Enter] or[Mode] toreturn to the menu.In orderto reset
thiscounter to 0, you have to holdthe [Up] and [Down]-buttonand press the [Enter]-
button.
Lamp On time
-This option enables you to read the total number of the operation hours with the lamp
on since theWASH 250 XT has been fabricated.Press [Enter] or [Mode] to return
to the menu.
-The number of hours that the lamp has been powered On since the counter was last
reset.Press[Enter] or [Mode] to return tothe menu. In orderto reset thiscounter to 0,
youhave to holdthe [Up] and[Down]-button andpress the[Enter]-button.
Lamp strikes
- By this option you can read the total number of the lamp strikes since theWASH
250XThas been fabricated.Press[Enter] or [Mode] to return tothe menu.
-The number of the lamp strikes since the counter was last reset.Press [Enter] or
[Mode] to return to the menu. In order to reset the counter to 0, you have to hold the
[Up]and [Down]-buttonand pressthe [Enter]-button.
Max. fixture head temperature
- By this option you can read the max. temperature of the head inside since the
WASH 250 XT hasbeen fabricated.Press [Enter] or [Mode] to return to the menu.
-Max. temperature ofthe head insidesince the counter was last reset.Press [Enter] or
[Mode] to return to the menu. In order to reset the counter to 0, you have to hold the
[Up]and [Down]-buttonand pressthe [Enter]-button.
Current fixture head temperature
Temperature readoutsof the headinside in Celsius.Inside temperatures below95°C are not critical. 95° C and
more lead to the lamp being switched off. Please note that the outside temperature should not exceed 45° C.

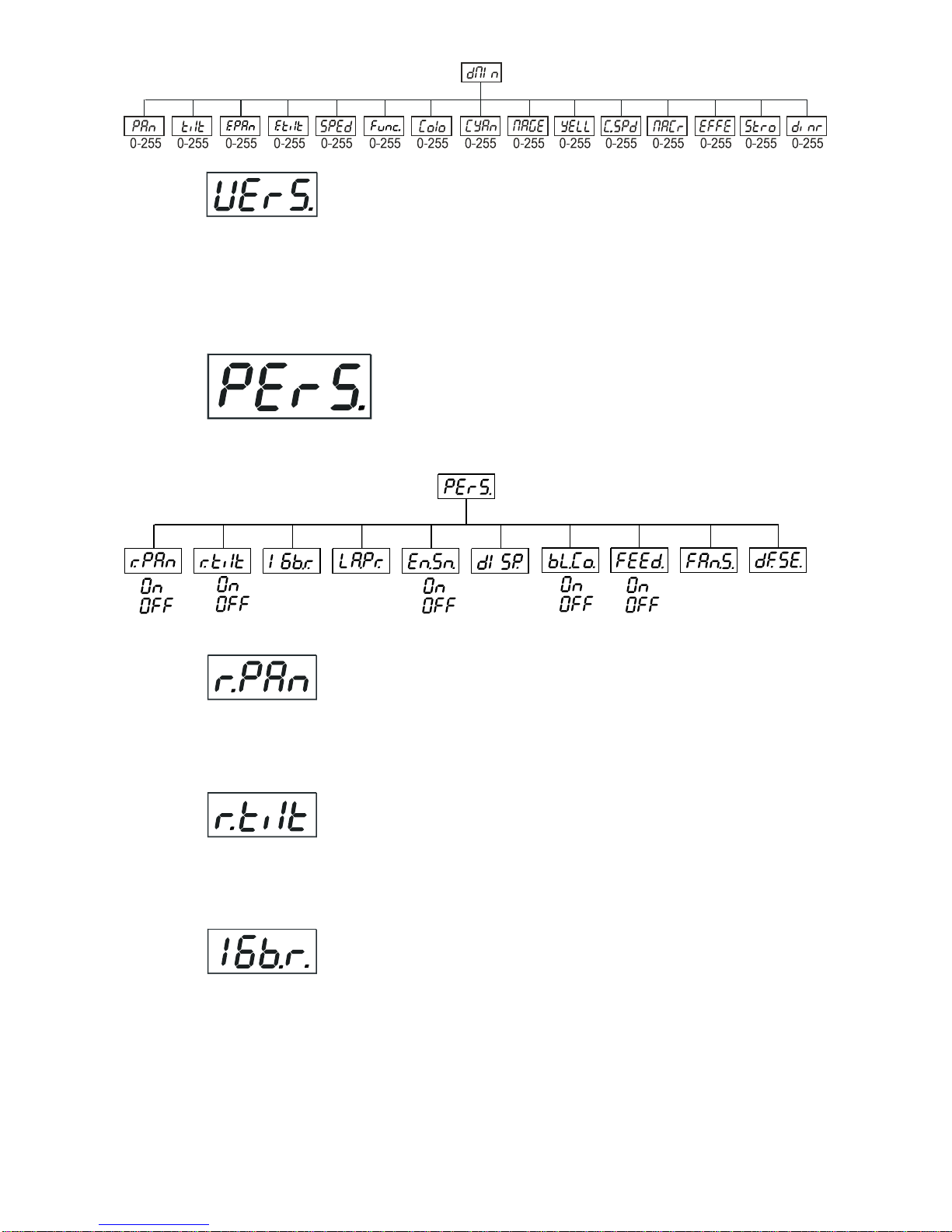

DMX values
ReadoutDMX values ofeach channelreceived by thefixture. Use the [Up] and[Down] buttonsto select desired
channel and press [Enter] to read its value coming to the fixture or [Mode] to cancel and return to the menu.

19
Software version
By this function you can read the software version of the display module. Press [Enter] to read its value or
[Mode] to return to the menu.
8.4 Personality options
These options allow you to modifyWASH 250 XT operating behavior.
Press [Up] and [Down] buttons to select the desired option and press [Enter] to set the value or to see next
submenu.
Pan reverse
This functionallows you to invert the panmovement.Use the [Up]and [Down] buttonstoselect "On" if youwish
this feature or "Off" if you don’t wish this feature and press [Enter] to confirm or [Mode] to cancel and return to
the menu.
Tilt reverse
This function allows you to invert the tilt movement.Use the [Up] and [Down] buttons to select "On" if you wish
thisfeature or "Off" if you don’t wishthis feature and press [Enter] to confirm or[Mode] to cancel and return to
the menu.
Movement resolution
By this function you can adjust the 16-bit movement resolution (Mod.1, Mod. 2) or 8-bit resolution (8bit).
Use the [Up] or [Down] keys to select the desired movement resolution and press [Enter] to confirm or [Mode]
to cancel and return to the menu.

20
List of the channel settings:
Channel Mode 1-16bit (default) Mode 2-16bit 8 bit
1 Pan Pan Pan
2 Tilt FinePan Tilt
3 FinePan Tilt Pan/Tiltspeed
4 FineTilt FineTilt Fans,LampOn/Off
5 Pan/Tilt speed Pan/Tiltspeed Colours
6 Fans, On/Off lamp Fans, On/Off lamp Cyan
7 Colours Colours Magenta
8 Cyan Cyan Yellow
9 Magenta Magenta CMY speed
10 Yellow Yellow Colourmacros
11 Speed of CMY Speed of CMY Effect wheel
12 Colourmacros Colourmacros Nofunction
13 Effect wheel Effect wheel Strobe
14 Nofunction Nofunction Dimmer
15 Shutter, strobe Shutter, strobe
16 Dimmer Dimmer
Please refer to the chapter "DMX- protocol" for detail description.
Note: If you adjust the 16 bit resolution (Mode 1 or Mode 2), the fixture will occupy 16 DMX channels, if you
adjust the 8 bit resolution,the fixture will be operated by only 14 DMX channels.

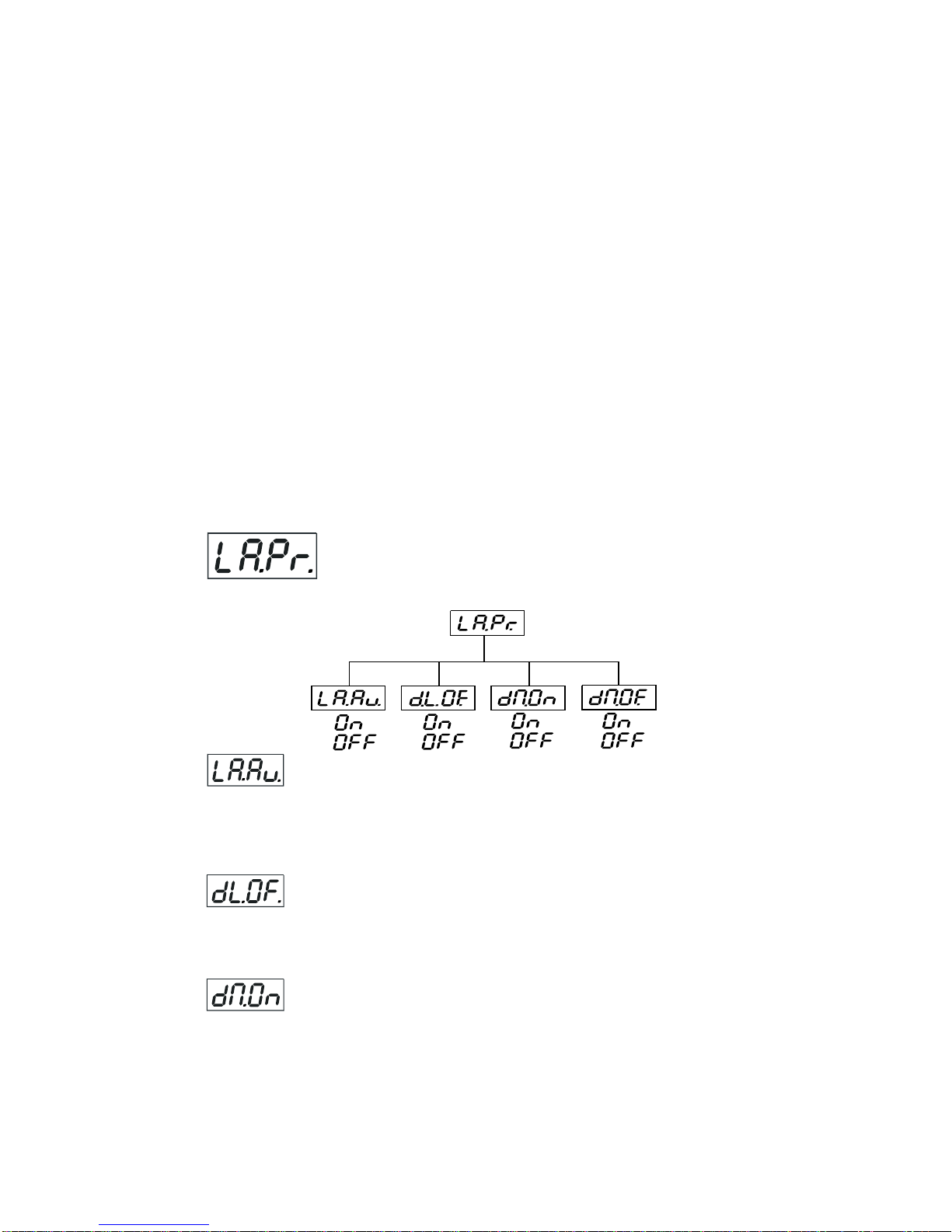

Lamp presetting
This function allows you to adjust the lamp settings:
Lamp On after switching the fixture On
This function enables to turn the lamp on automatically after switching the fixture on. Use the [Up]
and [Down] buttons to select "On" if you wish to turn the lamp on automatically after switching the
fixture on or "Off" if you wish the lamp off after switching on the fixture and press [Enter] to
confirm or [Mode] to cancel and return to the menu.
Lamp Off via DMX
Thisfunction allows you to switch offthe lamp by DMX. Usethe [Up] and [Down] buttons toselect
"On" if you want to switch off the lamp by DMX or "Off" if you don’t want to switch off the lamp by
DMX and press [Enter] to confirm or [Mode] to cancel and return to the menu.
Lamp On if DMX is present
This function allows you to strike the lamp automatically after 26 seconds if DMX signal is present
on the data link.If the ignition is unsuccessfull (e.g.lamp is too hot),the fixture will try to ignite the
lamp after next 26 s.This process will repeat until the lamp lights.Use the [Up] and [Down] buttons
to select "On" if you want to strike the lamp or "Off" if you don’t want to strike the lamp and press
[Enter] to confirm or [Mode] to cancel and return to the menu.
