Robern CURATED CARTESIAN VANITY User manual

1
© 2017 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376 www.robern.com
Installation instructions
Part no. 209-1274-rA rev. 06/06/17
Curated Cartesian H2
CURATED CARTESIAN™VANITY
This instruction manual contains information on how to install the 15" high Cartesian Vanity. This series comes in several sizes and
variations. Electrical option(s) may be provided with your vanity(s).
This vanity series needs special site preparation. Do not install vanities until all framing, plumbing and electrical option rough-ins have
been completed and wall surface has been nished. We recommend using the services of a professional installer. Observe all local
building codes.
Save these instructions for future use and reference. An improper installation voids the warranty. Installed vanities cannot be returned.
If you experience any problems with your vanities, contact your dealer or Robern directly.
CONTENT
Prep the wall - 3
Frame installation - 5
Attaching the side kits - 7
Installing any optional vanity accessories - 7
Sink assembly - 8
Insert the drawer - 10
Attaching glass drawer front - 11
GENERAL INFORMATION

2
© 2017 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376 www.robern.com
Installation instructions
Part no. 209-1274-rA rev. 06/06/17
Curated Cartesian H2

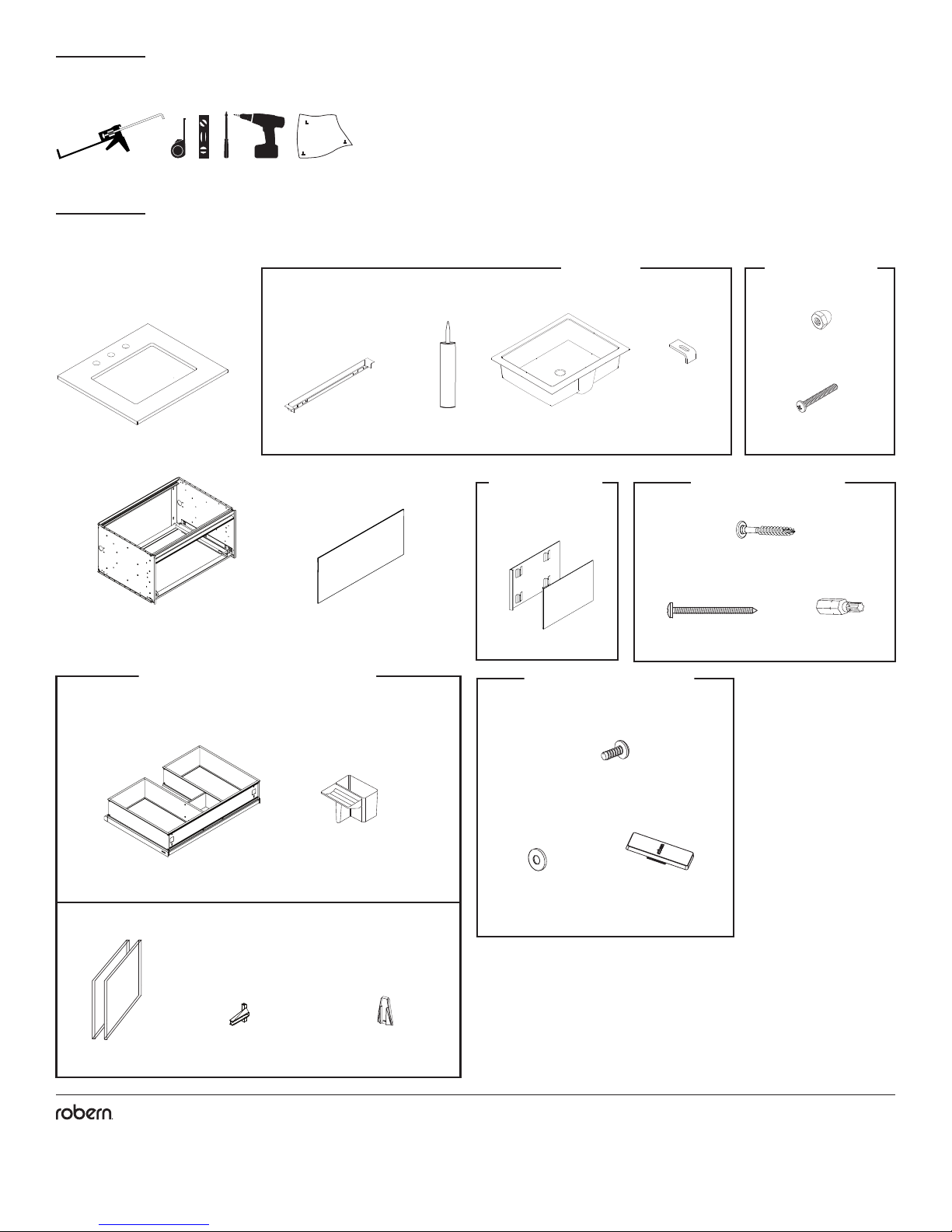

TOOLS NEEDED
PARTS
Cloth
[216-1120]
Sink Hardware Bag
[207-1065]
Silicone Sealant
[210-1100]
(2, 4, or 6) Bracket
Stone Top
[203-1337]
(4) Acorn Nut
[203-1335]
(4) #10-24 x 1.5" Screw
[228-1015]
Sink Box
[1193643]
(4) Bracket
(not needed
for this model)
Sink
[216-1074]
Drawer front Hardware Bag
[216-1073]
Mounting Hardware Bag
[203-1198]
(4) Washer
[SS674]
(5) #10 x 2" Screw
[203-1219]
(4) #8-32 x 1/2" Screw
[211-1095]
(2) Screw cover
[203-1270]
T-30 Driver
[203-1256]
(4) 5/16" x 2-1/2"
Structural Bolt
(1) 24", 30", or 36" Cartesian frame
30" shown here
(1) Drawer front
24", 30", or 36" Plumbing Drawer
[202-1179]
(1) Glass Center Bin
Divider Glass
[211-1073]
(4) Divider Clip
[211-1098]
(4) Divider Clip Shoe
[225-1039] = 24" [225-1040] = 30" [225-1041] = 36"
Divider Set Plumbing Drawer
Side kit
[VM2SKH2D21##]
Side kit

3
© 2017 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376 www.robern.com
Installation instructions
Part no. 209-1274-rA rev. 06/06/17
Curated Cartesian H2
STEP 1 - PREP THE WALL
36-1/2"
(927 mm)
17"(432 mm)
2 x 6

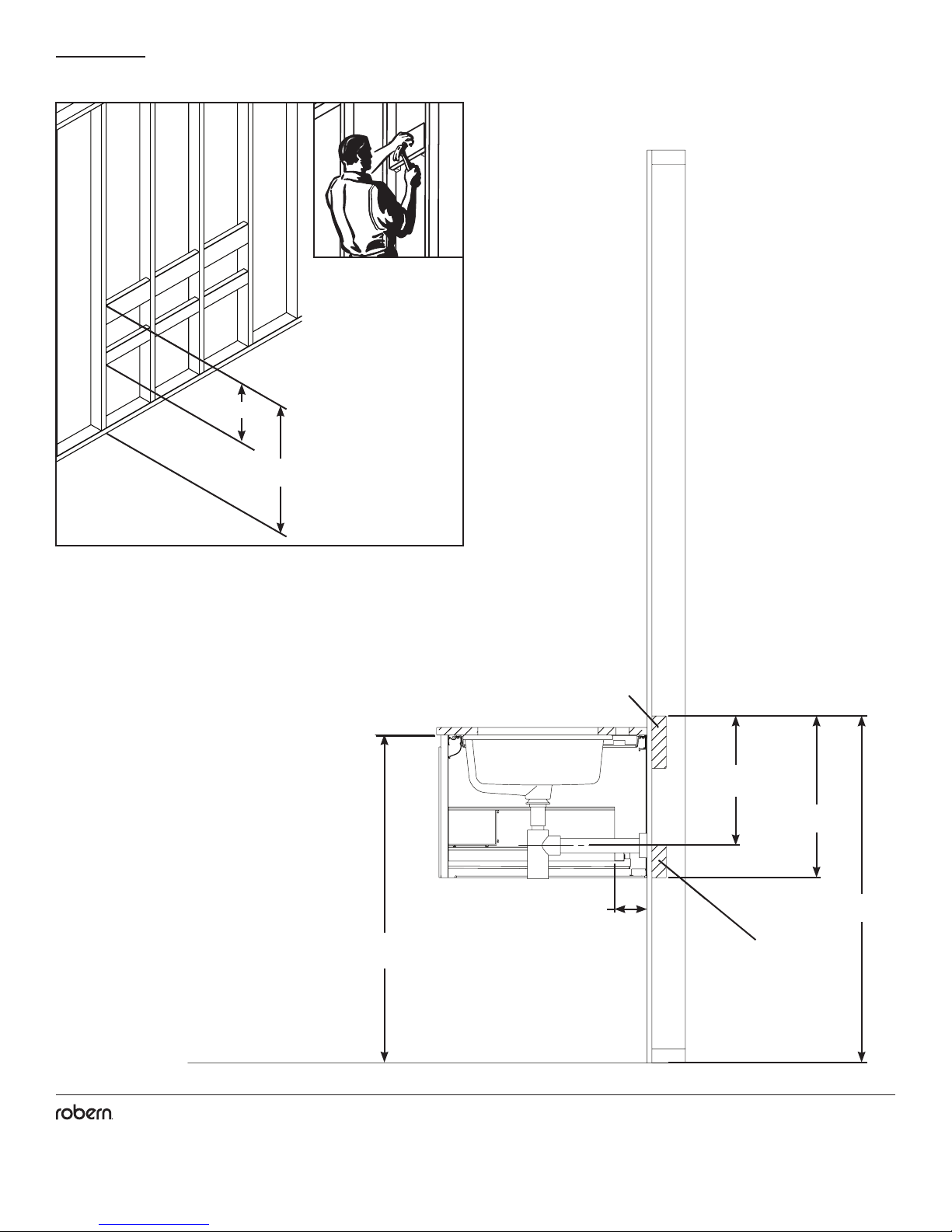

Side view showing blocking location in wall.
2 x 4
Drain
13-5/8"(346 mm)
17"
(432 mm)
3-1/4"
(83 mm)
34-1/2" (876 mm)
Recommended height for undermount sink
36-1/2"
(927 mm)

4
© 2017 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376 www.robern.com
Installation instructions
Part no. 209-1274-rA rev. 06/06/17
Curated Cartesian H2
STEP 1 - PREP THE WALL
There are two types of electrical options available for vanities. The rst is a night light option ordered with the vanity. The second is an
electrical accessory [VAELECTRIC]. Both of these options can be plugged into the same outlet.
The outlet must be wired to a 120vac 20 amp GFCI circuit. We do not recommend using a GFCI outlet because resetting it under the
vanity will be inconvenient.
The night light has no switch. A switch can be wired to one receptacle in the outlet to operate the night light or, for a seamless
experience, an occupancy sensor can be installed near the doorway to the bathroom.
All applicable electrical codes in your area must be followed.
The outlet can be installed to the left or right of center depending on which side the VAELECTRIC accessory will be located.

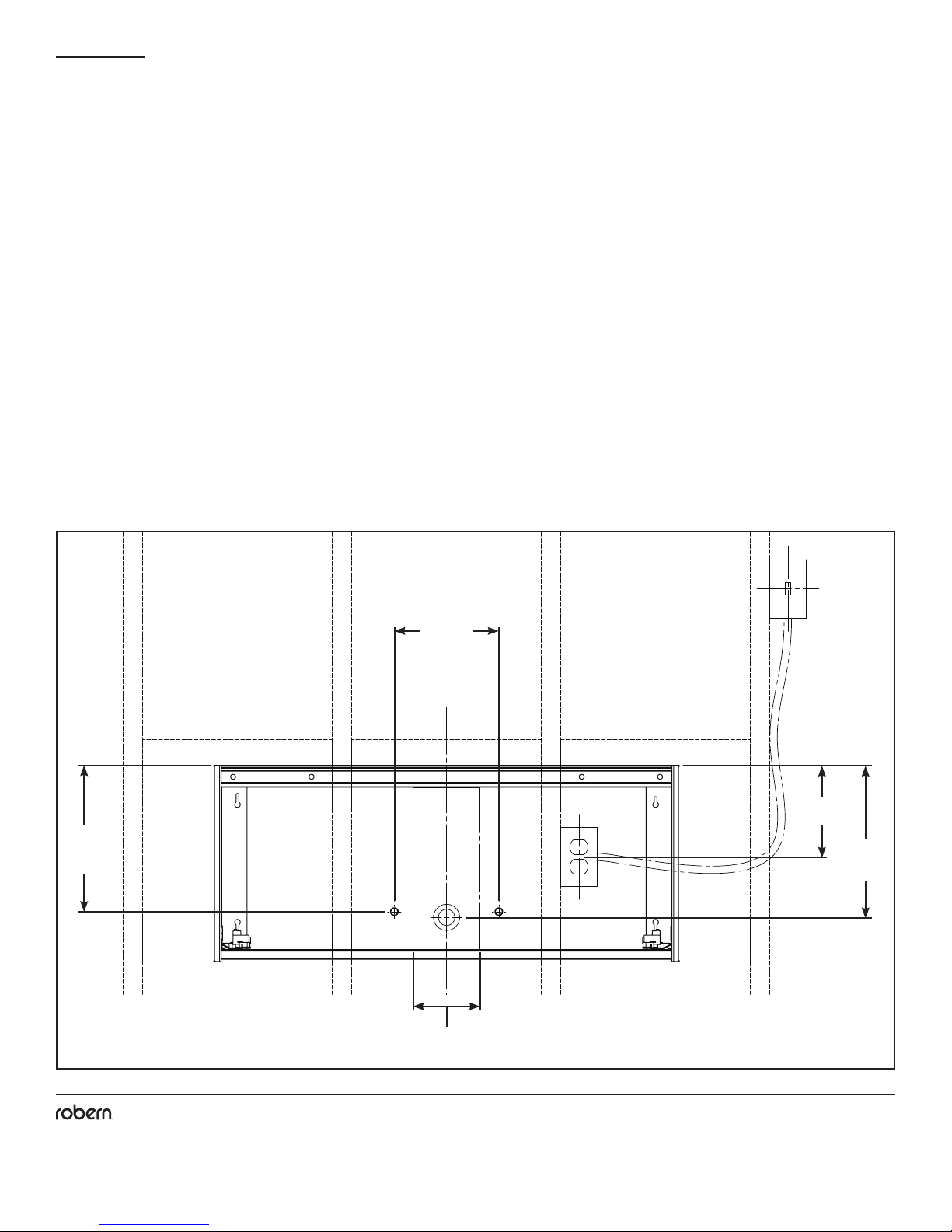

Plumbing should be located as shown to prevent interference with the vanity drawers.
Supply
11-3/16"
(284 mm)
Drain
11-5/8"
(295 mm)
7"
(178 mm)
C
L
5-1/8"(130 mm)
Plumbing drawer clearance
8"
(203 mm)

5
© 2017 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376 www.robern.com
Installation instructions
Part no. 209-1274-rA rev. 06/06/17
Curated Cartesian H2
STEP 2 - FRAME INSTALLATION
The drawer fronts are packed separately. Do not unpack them until the room is clear of hazards.

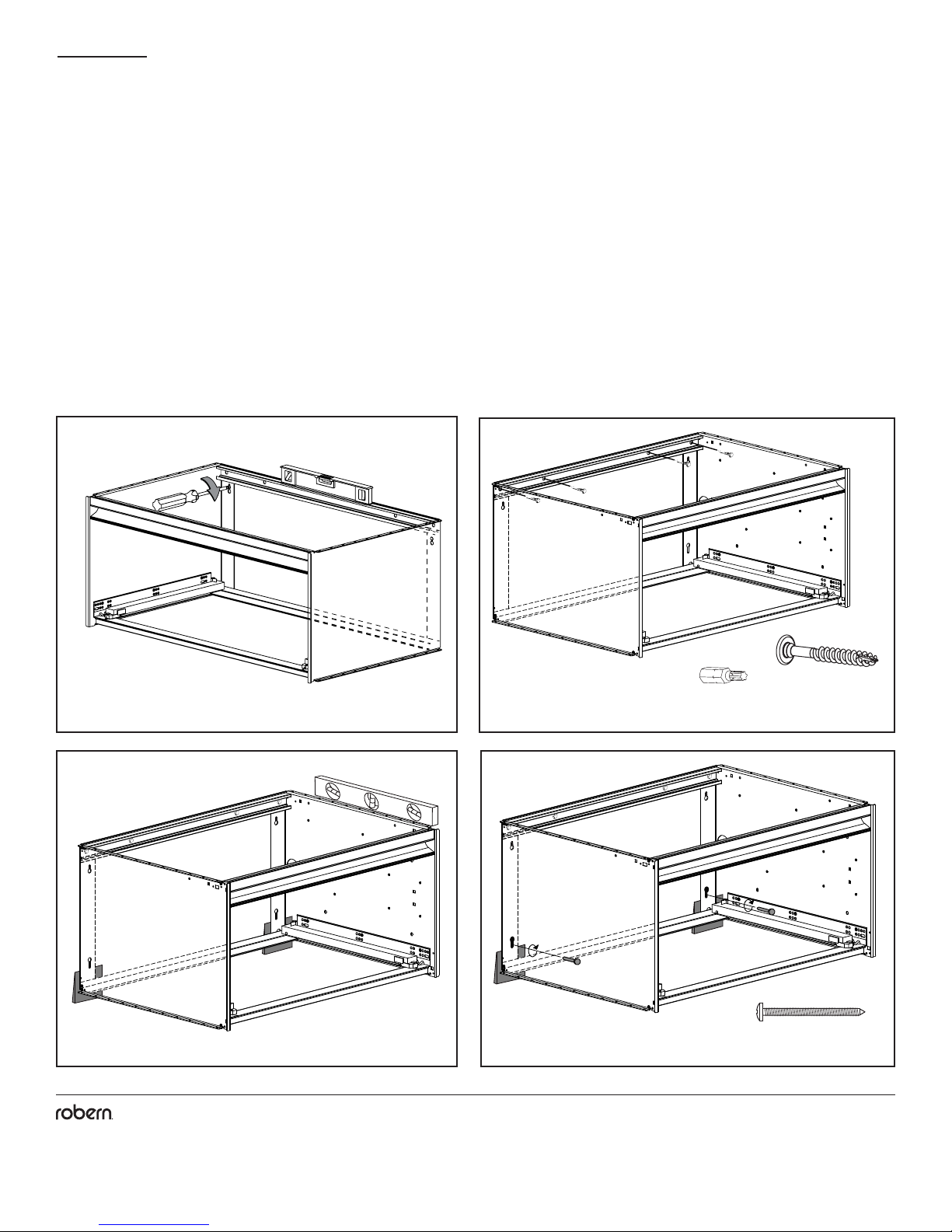

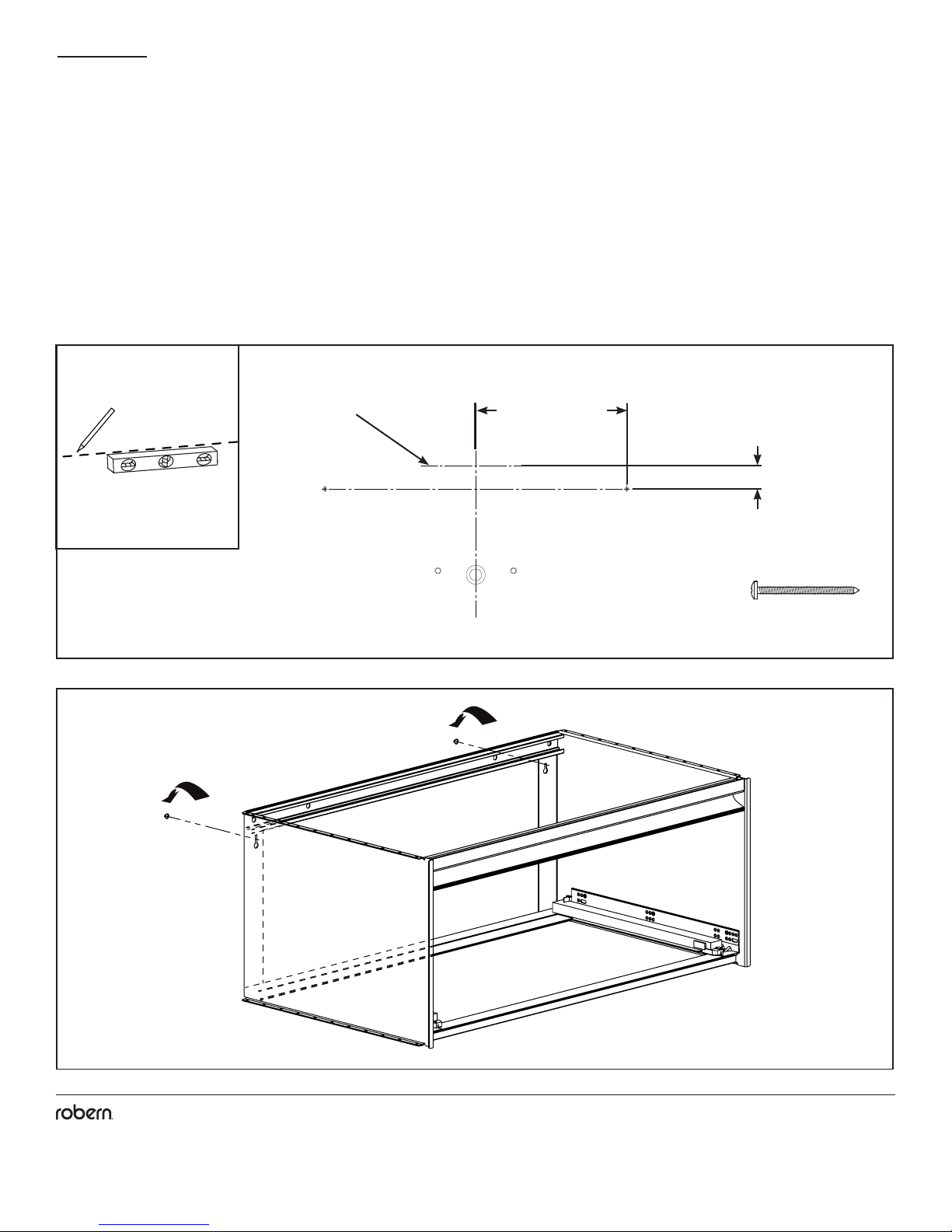

1. Mark the height for the vanity frame install on the nished wall and install two of the #10 x 2” (SS674) at the locations shown in
Figure 1. Do not install tight to the wall, leave 1/8” behind the head.
2. Place the vanity frame on the screws using the top left and right keyholes. See Figure 2. The keyhole on the left allows for up and
down adjustment.
WARNING: THESE SCREWS ARE NOT THE FINAL SUPPORT FOR THE VANITY! SEE NEXT PAGE FOR FINAL BOLT UP.
2-1/2"
(64 mm)
Recommended vanity height
34-1/2"(876 mm)
C
L
1
2
[SS674]
(2) #10 x 2" Screw
24" = 10" (254 mm)
30" = 13" (330 mm)
36" = 16" (406 mm)

6
© 2017 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376 www.robern.com
Installation instructions
Part no. 209-1274-rA rev. 06/06/17
Curated Cartesian H2
STEP 2 - FRAME INSTALLATION
3. Level the frame and tighten to the wall as shown here in Figure 3. The left keyhole is elongated to allow for up and down adjustment.
4. Install the four Structural Bolts (203-1256) into the four top frame holes. Figure 4. A T-30 Torx Bit is provided.
5. If the vanity doesn't sit level, or the wall is bowed, shim the frame as required. Shown in Figure 5.
6. Install two #10 x 2” (SS674) through the narrow slot of the keyhole on the ange to hold the shims in place as shown in Figure 6.
3
5
4
6
[203-1256]
5/16" x 2 1/2"
4-Structural Bolt
4-Boulon
4-Perno estructural
[203-1256]
(4) 5/16" x 2-1/2"
Structural Bolt
[203-1270]
T-30 Driver
[SS674]
(2) #10 x 2" Screw

7
© 2017 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376 www.robern.com
Installation instructions
Part no. 209-1274-rA rev. 06/06/17
Curated Cartesian H2

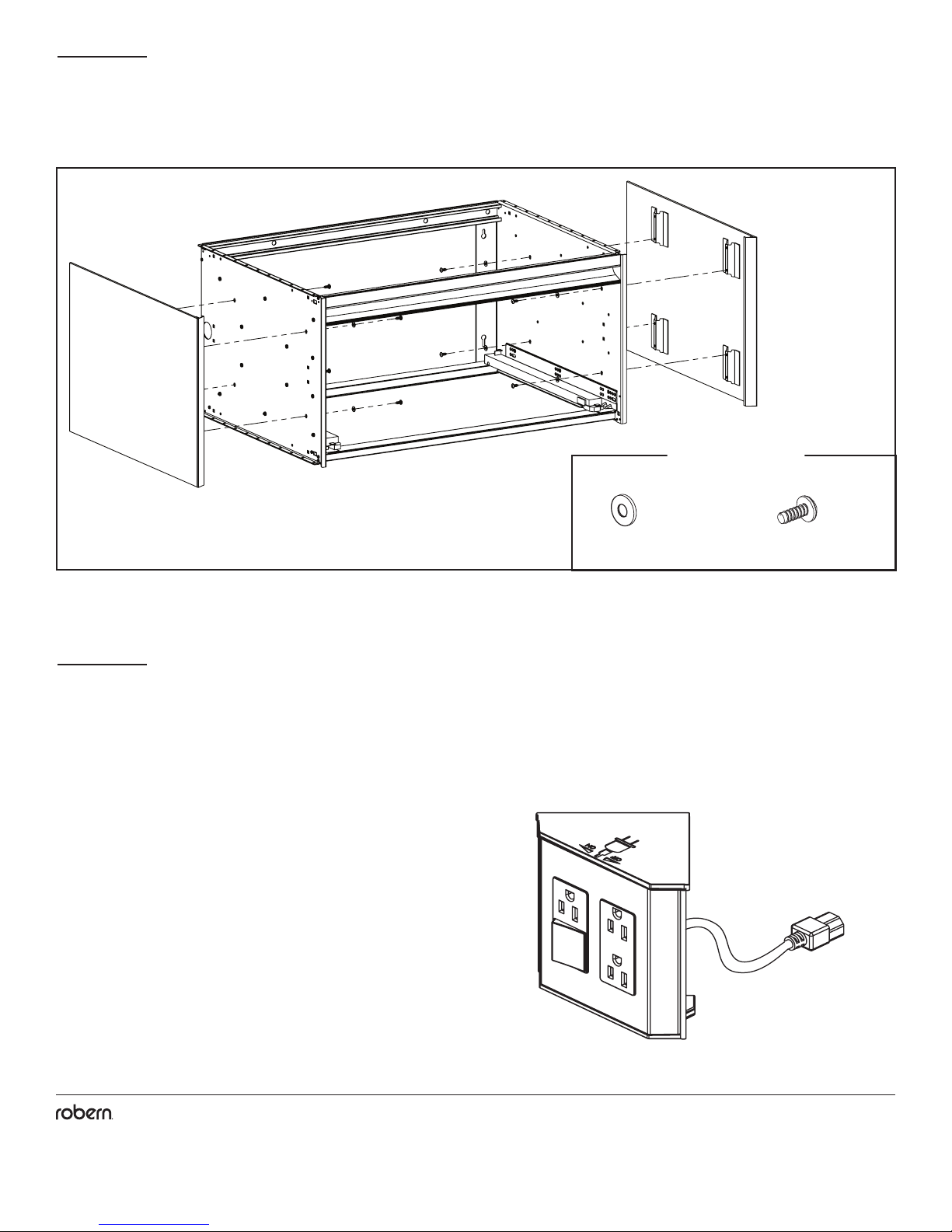

STEP 3 - ATTACHING THE SIDE KITS
STEP 4 - INSTALLING ANY OPTIONAL VANITY ACCESSORIES
Use the #10 CB-SS676 screws and washer CB-203-1198 provided to attach the side glass panels.
If you have the optional night light plug the unit in and test.
See separate instructions for VAELECTRIC accessory.
[216-1077]
Side kit Hardware Bag
[203-1198]
(9) Washer
9 [SS676]
#10 x 1/2" Sheet metal screw

8
© 2017 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376 www.robern.com
Installation instructions
Part no. 209-1274-rA rev. 06/06/17
Curated Cartesian H2
STEP 5 - SINK ASSEMBLY

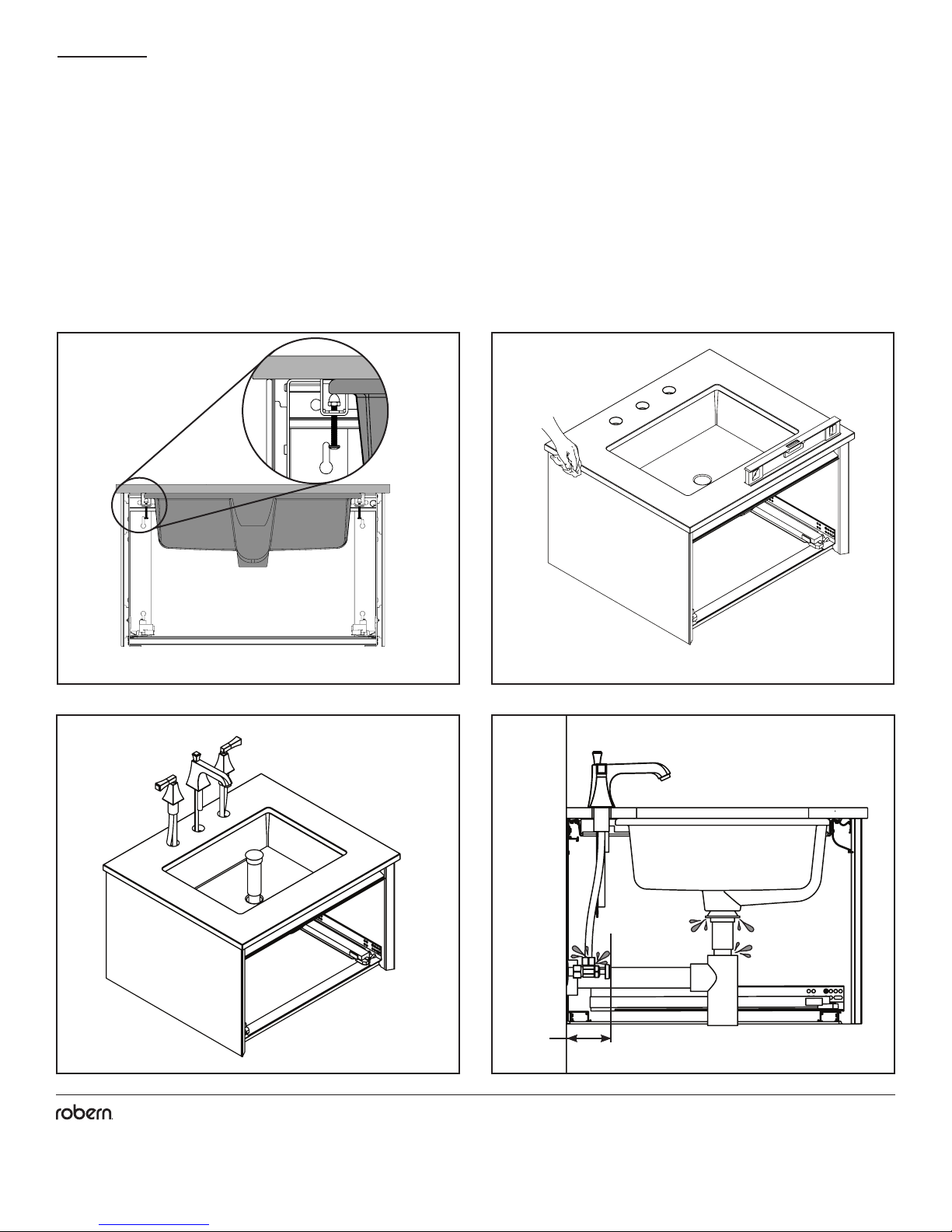

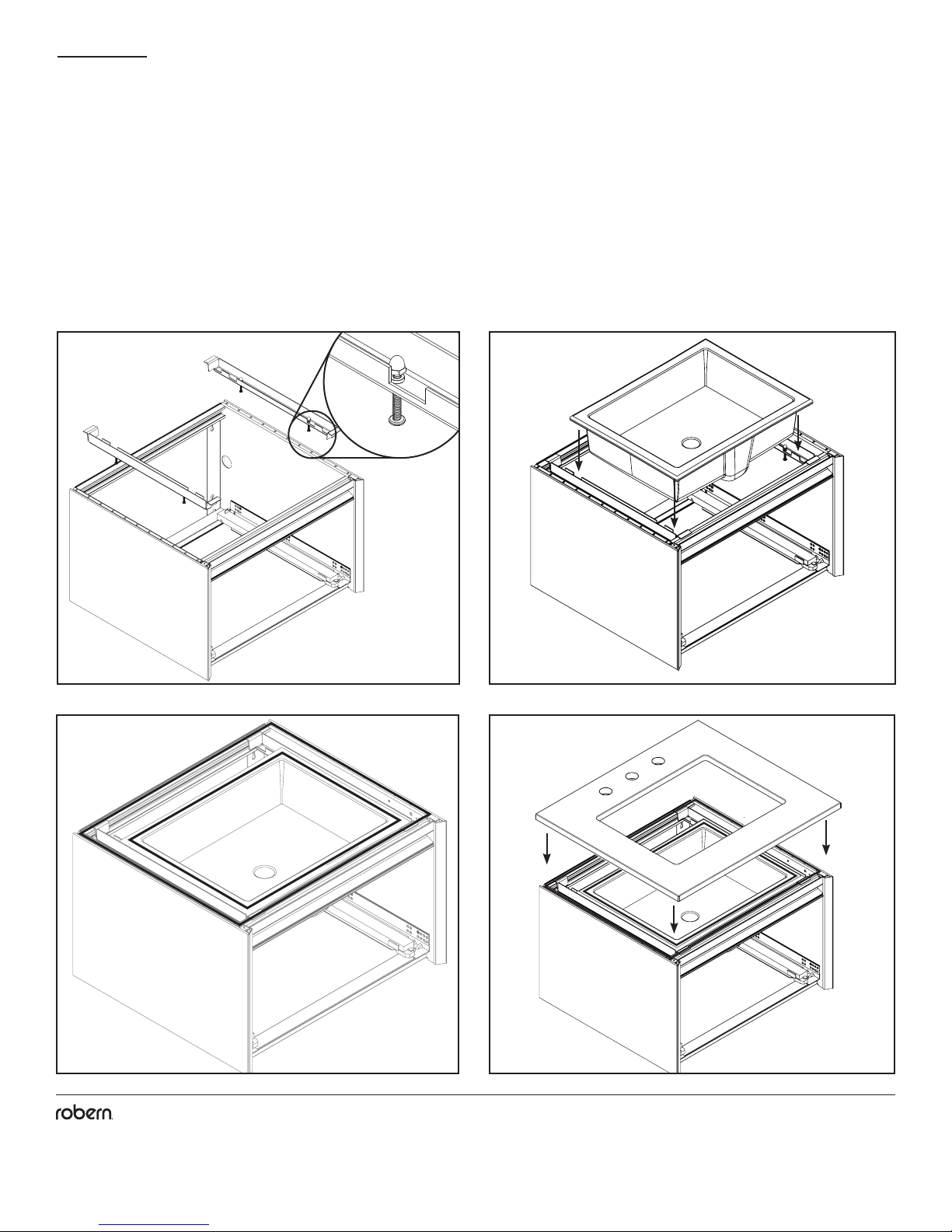

1. Thread the screws [203-1335] into the brackets [210-1100] and thread the acorn nuts [203-1337] onto the screws. Place the
assembled brackets into the vanity opening(s). Brackets should be snug and ush to the top of the vanity.
2. Place the sink(s) into the opening(s) and position the sink(s) at the front of the vanity. Test t the stone top to be sure the sink(s) is
properly located.
3. Apply a 1/4" (6mm) bead of silicone sealant on both vanity and sink ange(s).
4. Carefully place the stone top on the vanity and sink. Note: The back edge of the stone top must be ush against the wall and equal
left and right overhang on each side of the vanity.
34
1 2

9
© 2017 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376 www.robern.com
Installation instructions
Part no. 209-1274-rA rev. 06/06/17
Curated Cartesian H2
STEP 5 - SINK ASSEMBLY
5. Tighten the screws under the bracket so that the acorn nuts raises the sink and secures it to the stone top. Do not overtighten.
6. Verify that the stone top is level and wipe away excess silicone sealant. Allow the sealant to set according to the sealant
manufacturer's instructions.
7. Install the faucet(s) to the stone top and drain(s) to the sink(s). Refer to the faucet and drain manufacturer's instructions.
8. Complete the faucet connections. Run water and check for leaks.
5 6
7 8
3-1/4"
(83 mm)

10
© 2017 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376 www.robern.com
Installation instructions
Part no. 209-1274-rA rev. 06/06/17
Curated Cartesian H2
STEP 6 - INSERT THE DRAWER
If you are installing VAELECTRIC, see separate instructions before proceeding further.

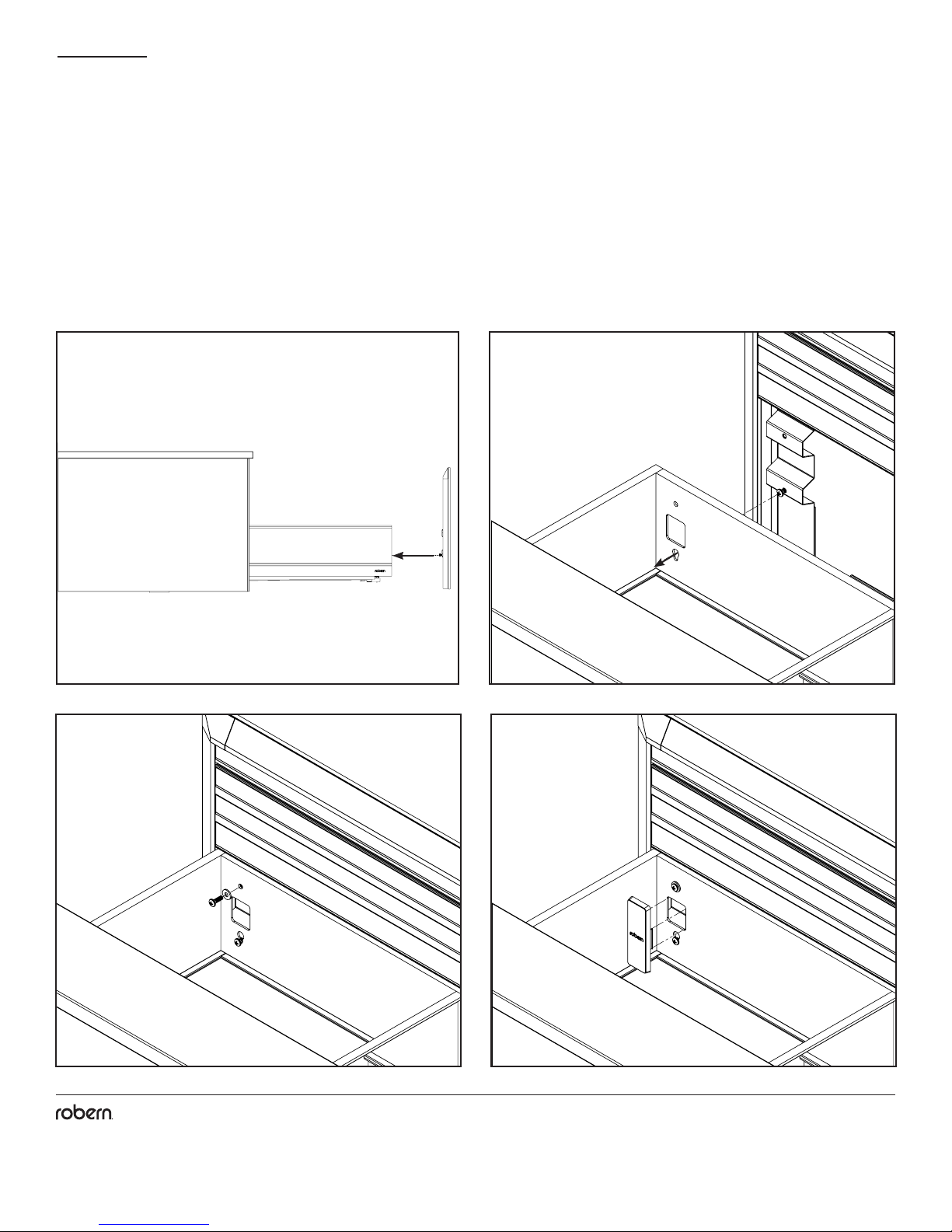

1. Fully extend the slide rails out.
2. Place the drawer into the slide rails.
3. To secure drawer, close the drawer until a series of clicks are heard.
1 2
3

11
© 2017 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376 www.robern.com
Installation instructions
Part no. 209-1274-rA rev. 06/06/17
Curated Cartesian H2
STEP 7 - ATTACHING GLASS DRAWER FRONT
1. Install 2 #8-32 x 1/2” screws (203-1219) WITHOUT washers on the bottom of each bracket in the drawer front. Do not tread all the
way through so that the screw can be hung on the keyhole in the next step, See Figure 1.
2. Hang the drawer front on the two keyholes on each side of the drawer box. See Figure 2.
3. Install the remaining screws WITH washers into the two remaining threads in the drawer front bracket as shown in Figure 3. Tighten
all screws after the drawer front is level and even with the side kits.
4. Snap the screw covers over the screws by squeezing gently at “Robern”.
1 2
34

12
© 2017 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376 www.robern.com
Installation instructions
Part no. 209-1274-rA rev. 06/06/17
Curated Cartesian H2
USE AND MAINTENANCE
WARRANTY
The vanity sides, drawer front and interior are constructed of glass and aluminum. Use only a damp cloth to clean. Ammonia or vinegar-
based cleaners can damage mirrors.
A 50/50 solution of water and isopropyl alcohol is recommended for cleaning the vanity. A mild detergent may be used on the surfaces.
When cleaning, spray the cloth, not the vanity, mirror, or surround surfaces. Do not use abrasive cleansers on any part of the vanity.
Limited Warranty One Year Term
Robern warrants to the original purchaser that, it will, at its election repair, replace, or make appropriate adjustment to products made
by this company shown to have signicant defects in material or workmanship which are reported to Robern in writing within one (1)
year from the date of delivery. Robern is not responsible for installation costs. The warranty is void in the event the product is damaged
in transit, or if damage or failure is caused by abuse, misuse, abnormal usage, faulty installation, damage in an accident, improper
maintenance, or any repairs other than those authorized by Robern. At the expiration of the one year warranty period, Robern shall be
under no further obligation under any warranty, expressed or implied, including the implied warranty of merchantability. Robern shall
not be liable for any consequential damages arising out of or in connection with the use or performance of its products. Some states
do not allow limitations on how long an implied warranty lasts or do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to you. Any liability against Robern under any implied warranty, including
the warranty of merchantability, is expressly limited to the terms of this warranty. Permission to return any merchandise under this
warranty must be authorized by Robern and returned prepaid by the purchaser. Claims under this warranty should be sent directly to
your dealer.
©2016 Robern, Inc.
All rights reserved

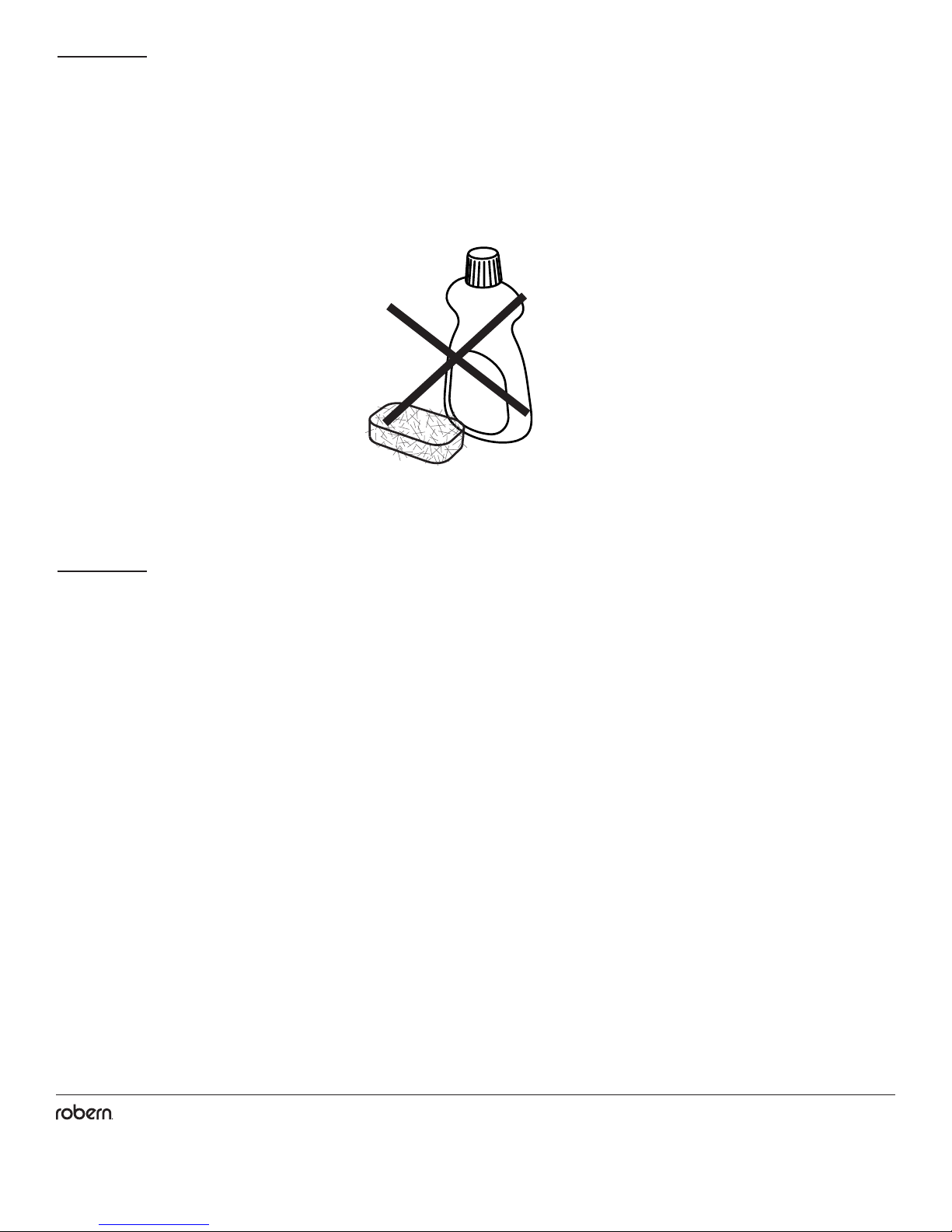

No Ammonia
Sans Ammoniac
Sin Amoniaco
No Vinegar
Sans Vinaigre
Sin Vinagre
