Application
The recommended hight for the rotary knob and the hand shower set on the wall is 1200 mm measured from the finished
floor lever (FFL) for a person with a height of 1750 mm. The recommended distance in height between the display switch
is 300 mm. All measurements can be varied and customized according to the specific needs of the application. The hori-
zontal and vertical distance between the control elements is 90 mm (center to center) and must not be less. The distance
between the maximum height of the tallest user and underside of the rain panel should be at least 400 mm.
1110 - 1290 300
720
90
POSITIONING
RECOMMENDATIONS
Components
Zones of protection
Pre-wall installation
Installation
Data and standards
Product overview
Checklists
APPLICATION
Types of rain
Cold-water mist spray
Shower zone lights
Ambiance lights

Dornbracht Sensory Sky
ATT Planning guide Page 3/38
Types of rain
Head sprayBody sprayRain curtain
POSITIONING
RECOMMENDATIONS
Components
Zones of protection
Pre-wall installation
Installation
Data and standards
Product overview
Checklists
Application
TYPES OF RAIN
Cold-water mist spray
Shower zone lights
Ambiance lights

Dornbracht Sensory Sky
ATT Planning guide Page 4/38
Cold-water mist spray
POSITIONING
RECOMMENDATIONS
Components
Zones of protection
Pre-wall installation
Installation
Data and standards
Product overview
Checklists
Application
Types of rain
COLD-WATER MIST SPRAY
Shower zone lights
Ambiance lights

Dornbracht Sensory Sky
ATT Planning guide Page 5/38
Shower zone lights
POSITIONING
RECOMMENDATIONS
Components
Zones of protection
Pre-wall installation
Installation
Data and standards
Product overview
Checklists
Application
Types of rain
Cold-water mist spray
SHOWER ZONE LIGHTS
Ambiance lights

Dornbracht Sensory Sky
ATT Planning guide Page 6/38
Ambiance lights
POSITIONING
RECOMMENDATIONS
Components
Zones of protection
Pre-wall installation
Installation
Data and standards
Product overview
Checklists
Application
Types of rain
Cold-water mist spray
Shower zone lights
AMBIANCE LIGHTS

Dornbracht Sensory Sky
ATT Planning guide Page 7/38
Control element
display switch
Control element
rotary knob
Hand shower set +
eVALVE
Exposed trim parts installation
Rain panel control
and distribution unit
+ shower board
+ lighting frame
Positioning
recommendations
COMPONENTS
Zones of protection
Pre-wall installation
Installation
Data and standards
Product overview
Checklists
EXPOSED TRIM PARTS INSTALLATION
Concealed rough parts installation
Peripheral Equipment

Dornbracht Sensory Sky
ATT Planning guide Page 8/38
Concealed rough parts installation
Concealed rough
parts for electronic
control elements
Concealed rough parts
for eVALVE
Ceiling installation
enclosure for rain panel
Exposed trim parts installation
CONCEALED ROUGH PARTS INSTALLATION
Peripheral Equipment
Positioning
recommendations
COMPONENTS
Zones of protection
Pre-wall installation
Installation
Data and standards
Product overview
Checklists

Dornbracht Sensory Sky
ATT Planning guide Page 9/38
12 V
5 A
12 V
5 A
12 V
5 A
1 3
ON
OFF
1
2
2 4
1 3
ON
OFF
1
2
2 4
1 3
ON
OFF
1
2
2 4
FI B6
120R
12123 4
Positioning fragrance module (accessible)
– The fragrance modules must be installed outside the wet zone in an area that allows for easy access after installation.
– Ambient temperature 5-30 °C.
– The maximum distance between fragrance modules and ceiling installation enclosure for rain panel is 12 m.
– The maximum vertical height between fragrance modules and ceiling installation enclosure for rain panel is 4 m and must not be exceeded.
– The maximum distance between the fragrance modules and the closest heat source (e.g. steam generator, heating unit) must
not be less than 1 m. A heat shield has to be installed between the heat source and the fragrance modules if the required
distance of min. 1 m cannot be adhered to. The area needs to be well ventilated.
– The fragrance modules and the power supply have to be installed separate from each other.
(Distance: min. 1 m - the power supply cables can be extended on site to max. 2 m). The fragrance modules must not be installed
directly above the electrical installation.
Peripheral Equipment
Sub-distribution board
internal dimensions
min. 500 x 500
Fragrance modules
1000 x 210 x 140
overall dimensions
The fragrance modules must not
be installed directly above the
electrical installation.
Exposed trim parts installation
Concealed rough parts installation
PERIPHERAL EQUIPMENT
Positioning
recommendations
COMPONENTS
Zones of protection
Pre-wall installation
Installation
Data and standards
Product overview
Checklists

Dornbracht Sensory Sky
ATT Planning guide Page 10/38
312
– DIN VDE 0100, PART 701 compliant safety zones. Please conform to national statutory regulations, where different.
– The power supply has to be installed outside of safety zone 2 in a sub-distribution board.
– The protection rating of the individual components has to be noted during installation and is only valid when installed
correctly.
– Control elements, hand shower set and rain panel are operated through safety extra-low voltage (SELV)
and can be installed inside safety zone 1.
Zones of protection
Positioning
recommendations
Components
ZONES OF
PROTECTION
Pre-wall installation
Installation
Data and standards
Product overview
Checklists

Dornbracht Sensory Sky
ATT Planning guide Page 11/38
An installation with a pre-wall system in front of the wall and under the ceiling is mandatory due to the minimum
installation depth and the installation method of the concealed rough parts for electronic control elements. The proper
installation of a pre-wall system enables compliance with on-site requirements with fire protection, heat and noise
insulation. Pre-wall installation systems are available from various manufacturers.
Pre-wall installation
Positioning
recommendations
Components
Zones of protection
PRE-WALL INSTALLATION
Installation
Data and standards
Product overview
Checklists

Dornbracht Sensory Sky
ATT Planning guide Page 12/38
The ceiling installation enclosure for rain panel
has to be installed by 2 persons.
Concealed rough parts
rain panel + hand shower set
The concealed rough parts for
electronic control elements are
mounted to the pre-wall at a later
time.

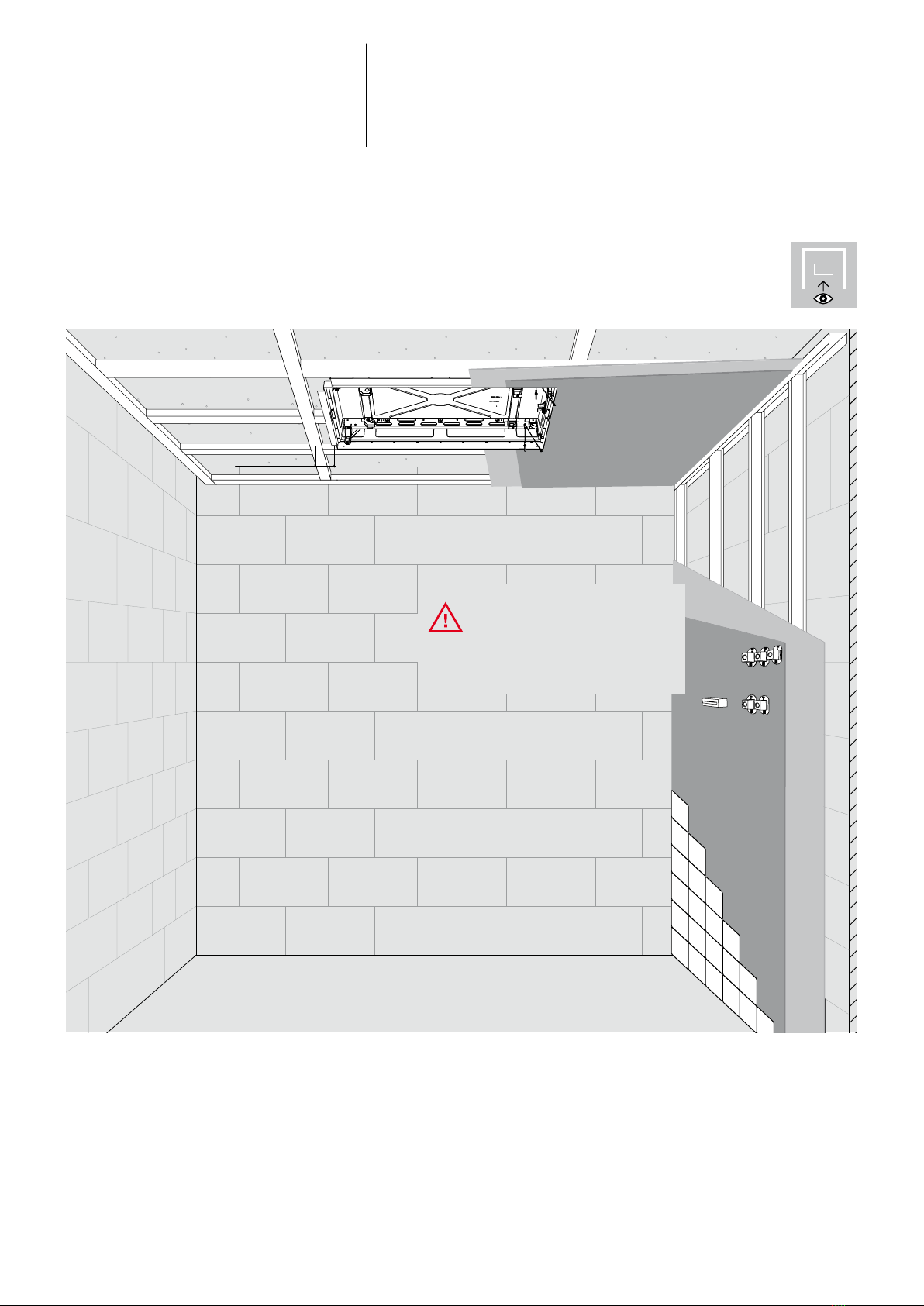

There must be sufficient structural load tolerance for the permanent fixing of SENSORY SKY
ATT (total weight: 60 kg).
There is no means of attachment for ceiling installation included among the items supplied. The structural engineer must
choose the means of attachment for the ceiling construction. M8 threaded bolts are used for connection to the ceiling
(min. strength: 2000 N).
Positioning
recommendations
Components
Zones of protection
Pre-wall installation
INSTALLATION
Data and standards
Product overview
Checklists
CONCEALED ROUGH PARTS
RAIN PANEL + HAND SHOWER SET
Water installation
Water installation - schema
Electrical installation
Electrical installation - schema
Installation pre-wall
Cutouts / anchoring points
Trim installation

Dornbracht Sensory Sky
ATT Planning guide Page 13/38
DN 20 WW
DN 15 Z
DN 20 KW
min. 900
The following components (scope of delivery) have to be positioned to be accessible at all times:
– 4 x Shut off for hot and cold water pipes (DN 20)
– 2 x Filter for hot and cold water pipes (DN 20)
– 2 x Backflow preventer Type BA according to EN 1717 for hot and cold water pipes
- With a circulation pipe, the minimum distance to the eVALVE of the hand shower set must be 900 mm.
- The nominal diameter (DN 20) has to be adhered to for both pipes and fittings.
SEE PLANNING INFORMATION
DN 20
DN 20
Water installation
Positioning
recommendations
Components
Zones of protection
Pre-wall installation
INSTALLATION
Data and standards
Product overview
Checklists
Concealed rough parts rain panel +
Hand shower set
WATER INSTALLATION
Water installation - schema
Electrical installation
Electrical installation - schema
Installation pre-wall
Concealed rough parts for
electronic control elements
Cutouts / anchoring points
Trim installation

Dornbracht Sensory Sky
ATT Planning guide Page 14/38

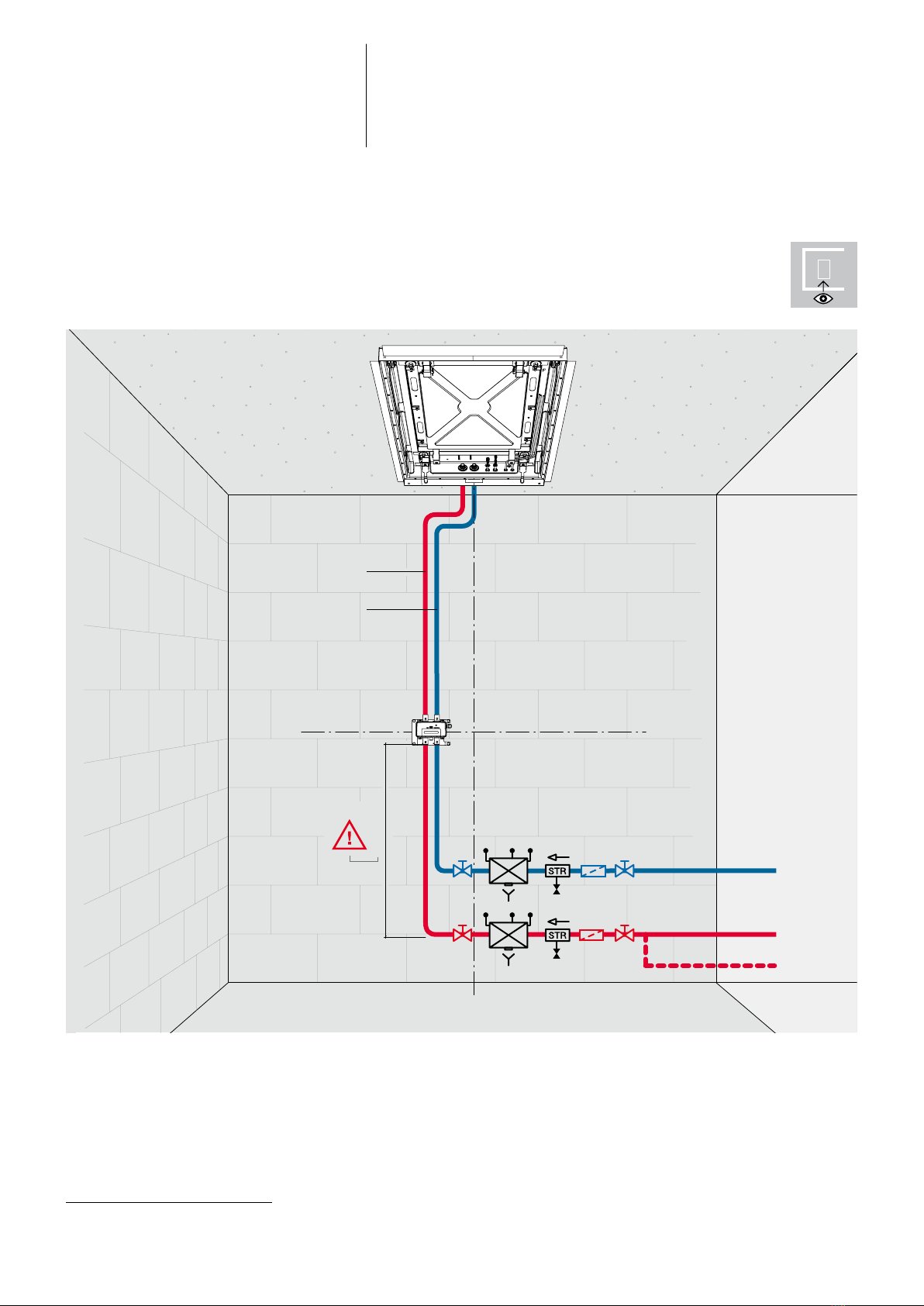

Installation example according to DIN EN 1717. Please conform to national statutory regulations, where different.
Legend (see page 15)
Water installation - schema
EN 1717
max. 60˚ C
Concealed rough parts rain panel +
Hand shower set
Water installation
WATER INSTALLATION - SCHEMA
Electrical installation
Electrical installation - schema
Installation pre-wall
Concealed rough parts for
electronic control elements
Cutouts / anchoring points
Trim installation
Positioning
recommendations
Components
Zones of protection
Pre-wall installation
INSTALLATION
Data and standards
Product overview
Checklists

Dornbracht Sensory Sky
ATT Planning guide Page 15/38
Water installation - schematic page 14

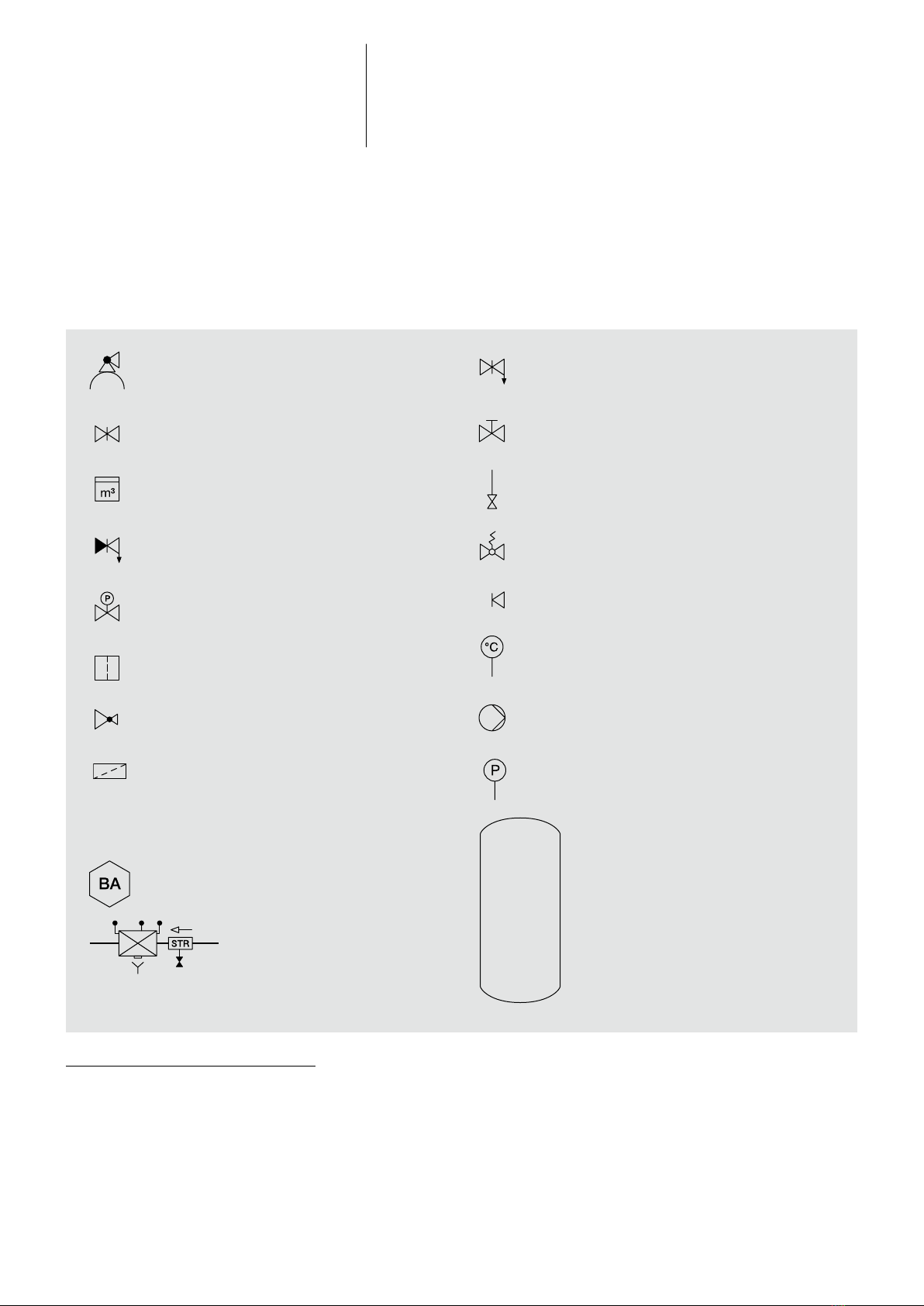

Legend
Main water supply
Boiler
Backflow preventer Type BA
according to EN 1717
Main shut off
Water meter
Backflow preventer with drain
Main shut off with gauge
Main water filter (back-flushable)
Pressure reducing valve
Shut off with drain
Drain
Safety valve
Backflow preventer
Thermometer
Circulation pump
EN 1717
EN 1717
EN 1717
EN 1717
EN 1717
EN 1717
EN 1717
EN 1717
EN 1717
EN 1717
EN 1717
EN 1717
EN 1717
EN 1717
EN 1717
Shut off
Filter Manometer
Concealed rough parts rain panel +
Hand shower set
Water installation
WATER INSTALLATION - SCHEMA
Electrical installation
Electrical installation - schema
Installation pre-wall
Concealed rough parts for
electronic control elements
Cutouts / anchoring points
Trim installation
Positioning
recommendations
Components
Zones of protection
Pre-wall installation
INSTALLATION
Data and standards
Product overview
Checklists

Dornbracht Sensory Sky
ATT Planning guide Page 16/38
12 V
5 A
12 V
5 A
12 V
5 A
1 3
ON
OFF
1
2
2 4
1 3
ON
OFF
1
2
2 4
1 3
ON
OFF
1
2
2 4
FI B6
120R
12123 4
2x Ø32 mm
max. 1 m
12 V
5 A
12 V
5 A
12 V
5 A
1 3
ON
OFF
1
2
2 4
1 3
ON
OFF
1
2
2 4
1 3
ON
OFF
1
2
2 4
FI B6
120R
1 2 1 2 3 4
– Only connect to the electricity supply when the device is turned off
– The customer must provide the following circuit-breakers and electrical components:
Earth leakage circuit breaker (30 mA, 2-pin, type A), safety cutout (6 A, type B), 3 x circuit breaker (16A, Type 1S)
– A network outlet according to TIA 568A is necessary to connect SENSORY SKY
ATT to a network.
The local network has to be behind a router with firewall.
– Electrical installation must be carried out by a professional specialist, in accordance with VDE 0100.
– Please conform to national statutory regulations, where different.
SEE PLANNING INFORMATION
Connecting cable
Connecting cable
2x 12V
230V/
Signal line
3x Fragrance tube
Ethernet
Ø32 mm
max. 12 m
Ø32 mm
max. 12 m
Ø32 mm
max. 12 m

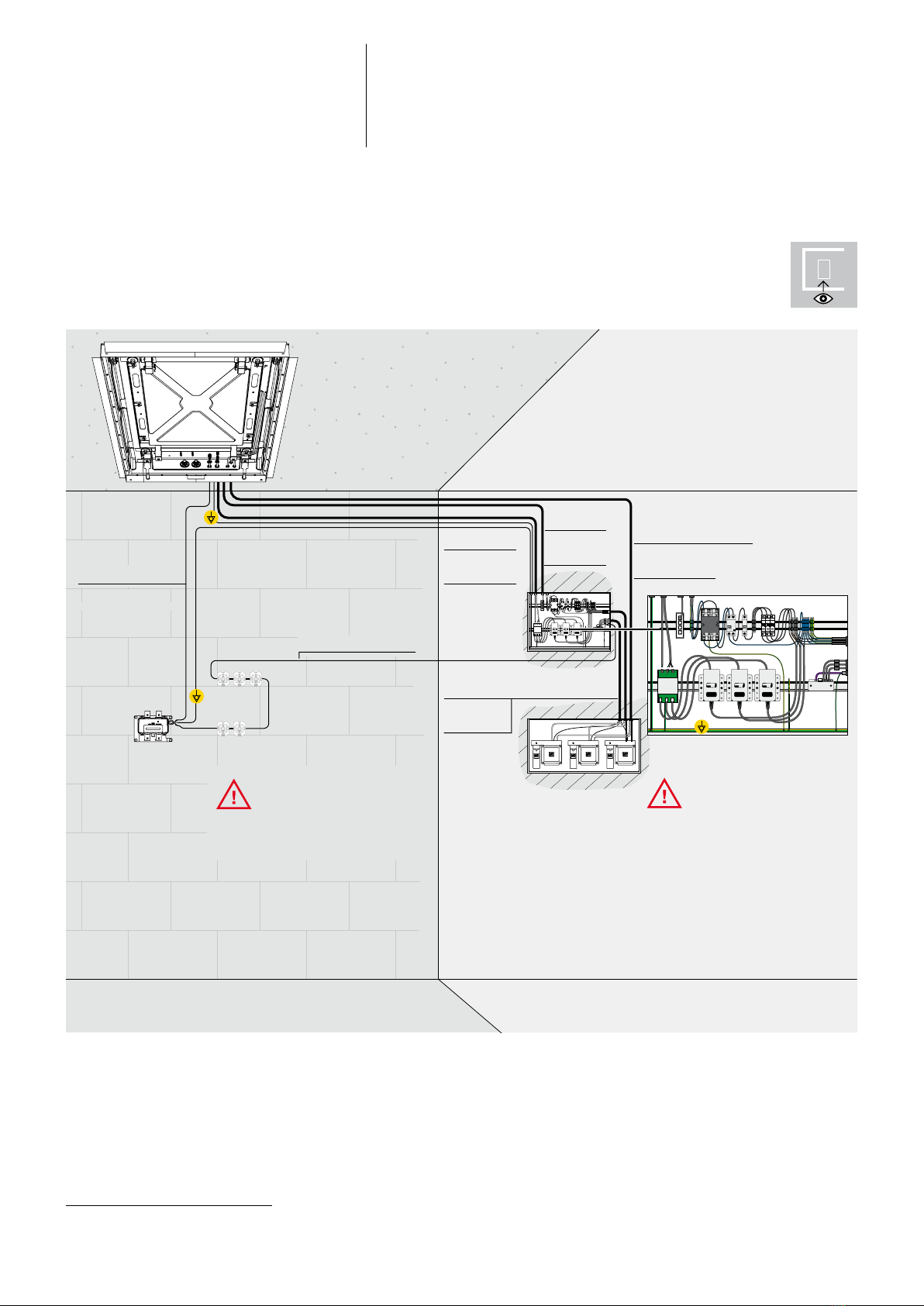

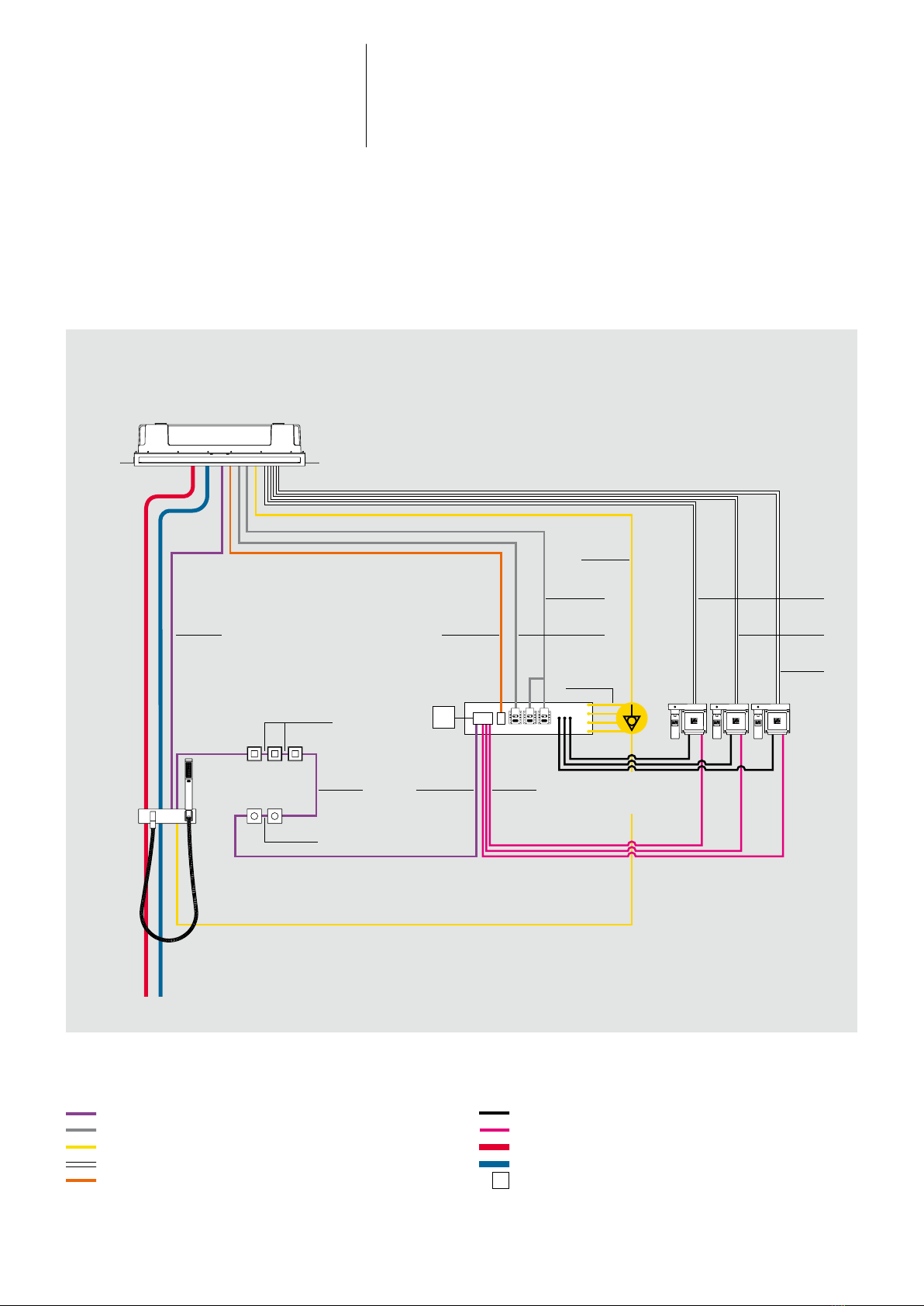

Electrical installation
The installation of the connec-
ting cable and concealed rough
parts for electronic control
elements has to occur at the
same time that the pre-wall is
closed.
Please note the individual
cable length (see next page).
Part of the cable and tubing
length is needed to make the
connections. Max. distance
between ceiling installation
enclosure for rain panel and
sub-distribution board: 12 m;
max. distance between the
fragrance modules and
sub-distribution board: 1 m.
Concealed rough parts rain panel +
Hand shower set
Water installation
Water installation - schema
ELECTRICAL INSTALLATION
Electrical installation - schema
Installation pre-wall
Concealed rough parts for
electronic control elements
Cutouts / anchoring points
Trim installation
Positioning
recommendations
Components
Zones of protection
Pre-wall installation
INSTALLATION
Data and standards
Product overview
Checklists

Dornbracht Sensory Sky
ATT Planning guide Page 17/38
12V
5A
12V
5A
12V
5A
on site
15 m
on site
1 m
(to be extended to max. 2m
on site)
= Connecting cable
= 12 V line
= Equipotential bonding 4 mm²
= Fragrance tube
= Ethernet cable
= 230 V AC line (NYM 3 x 1,5 mm²)
= Signal line fragrance module
= Hot water supply
= Cold water supply
= Terminator
Electrical installation - schema
5 m 15 m 15 m
15 m
15 m 15 m
7,5 m
0,6 m
0,6 m 2 m
0,6 m
15 m
15 m
The cable length shown here are the delivery status. Cables to be provided on site by the customer are marked as such.
The length of the ductwork for cables has to be shorter (see page 16).
T
T
Concealed rough parts rain panel +
Hand shower set
Water installation
Water installation - schema
Electrical installation
ELECTRICAL INSTALLATION
- SCHEMA
Installation pre-wall
Concealed rough parts for
electronic control elements
Cutouts / anchoring points
Trim installation
Positioning
recommendations
Components
Zones of protection
Pre-wall installation
INSTALLATION
Data and standards
Product overview
Checklists

Dornbracht Sensory Sky
ATT Planning guide Page 18/38
12 V
5 A
12 V
5 A
12 V
5 A
1 3
ON
OFF
1
2
2 4
1 3
ON
OFF
1
2
2 4
1 3
ON
OFF
1
2
2 4
FI B6
120R
12123 4
max. 140 mm
min. 139 mm
max. 164 mm
min. 7 mm
max. 35 mm max. 75 mm
min. 185 mm
min. 139 mm
max. 164 mm
min. 7 mm
max. 35 mm max. 75 mm
min. 185 mm
Installation pre-wall
The ceiling installation enclosure for rain panel is to be framed with a metal frame.
Max. distance between mounting bracket of the ceiling installation enclosure for rain panel and the metal frame
of the ceiling structure: 140 mm (center-to-center).
No strain must be transferred from the ceiling structure to ceiling installation enclosure for rain panel.
min. 7 mm
max. 35 mm
min. 139 mm
Concealed rough parts rain panel +
Hand shower set
Water installation
Water installation - schema
Electrical installation
Electrical installation - schema
INSTALLATION PRE-WALL
Concealed rough parts for
electronic control elements
Cutouts / anchoring points
Trim installation
Positioning
recommendations
Components
Zones of protection
Pre-wall installation
INSTALLATION
Data and standards
Product overview
Checklists

Dornbracht Sensory Sky
ATT Planning guide Page 19/38
max. 140 mm
Concealed rough parts for electronic
control elements
– The drywall for the ceiling has to meet quality stardard Q3 (no visible gaps and closed pores).
– The on-site panelling has to be screwed to the mounting bracket of the ceiling installation enclosure for rain panel.
– The weight of the panelling of the ceiling must not put any strain on the mounting bracket of the ceiling installation
enclosure for rain panel. The mounting brackets are only meant to stabilize the rain panel.
– It is recommended to use screws with a drill head to install the panelling to the mounting brackets of the rain panel.
– The mounting brackets have to fall in line with the metal frame of the ceiling structure.
– Any strain from the panelling has to be carried by the metal frame of the dry wall.
– The thickness of the wall covering (tile, stone etc.) in front of the dry wall panelling (gypsum cardboard) around the rough
parts for electronic control elements is min. 7 - max 35 mm.
The installation of the connecting
cable and concealed rough parts for
electronic control elements has to
occur at the same time that the
pre-wall is closed. Wall thickness in
front of the wall panelling:
min. 7 mm - max. 35 mm
Concealed rough parts rain panel +
Hand shower set
Water installation
Water installation - schema
Electrical installation
Electrical installation - schema
Installation pre-wall
CONCEALED ROUGH PARTS FOR
ELECTRONIC CONTROL ELEMENTS
Cutouts / anchoring points
Trim installation
Positioning
recommendations
Components
Zones of protection
Pre-wall installation
INSTALLATION
Data and standards
Product overview
Checklists

Dornbracht Sensory Sky
ATT Planning guide Page 20/38
90±190±1
1110 - 1290 300±1
150±1300±1
CB
A
A
1160±1
R max. 6
740±1
B
42±1
R max. 6
102±1
42±1
R max. 3
42±1
C
800±1
510±1
– Please note the individual cutouts.
– The concealed rough parts for electronic control elements require a Ø56 mm in the dry wall panelling.
The concealed rough parts for electronic control elements are covered by tiles/stone and require a hole
of 42 x 42 mm.
Cutouts / anchoring points
Concealed rough parts rain panel +
Hand shower set
Water installation
Water installation - schema
Electrical installation
Electrical installation - schema
Installation pre-wall
Concealed rough parts for
electronic control elements
CUTOUTS / ANCHORING POINTS
Trim installation
Positioning
recommendations
Components
Zones of protection
Pre-wall installation
INSTALLATION
Data and standards
Product overview
Checklists
