Robin America EH41 User manual

PARTS
MANUAL
EH41, EH36
ENGINES
Models
PUB-EP5728
Rev. 5/99

© Copyright 1999 Robin America, Inc.
940 Lively Blvd.  Wood Dale, IL 60191  Phone: [phone]  ax: 630-350-8212
e-mail: [email protected] • www.robinamerica.com

PRODUCT NUMBER LABEL
EH41, EH36 - 3 - '99 - 5
HOW TO USE THIS MANUAL
Robin engines are identified by MODEL, SPECIFICATION, and CODE NUMBER. For each
model there may be many different versions called specifications. Each specification will be
unique in some way. The difference may only be the paint color or it may have a different
type of PTO or some other significant difference.
In order the identify the correct service part number, it is important to confirm the specifica-
tion and code numbers for your engine. The specification and code number together are
know as the PRODUCT NUMBER.
All Robin 4 cycle engines have a Product Number label similar to the label illustrated below.
The Product Number Label has a 15 digit alphanumeric string that consists of the
SPECIFICATION (SPEC) number (11 digits) and the CODE number (4 digits). Please
note the illustration below:
PRODUCT NUMBER LABEL LOCATIONS
X X X X
SPEC NO. (11 digits) CODE NO. (4 digits)
PRODUCT NO. (15 digits)
E H 4 1 0

1. SECTION NAME Parts are broadly classified according to their functions.
Refer to the Group Index (table of contents) for respective section name.
2. FIG. No. The FIG. number indexes the reference and part numbers to the illustration. Figure numbers that
vary only in the tens place (i.e..: 700 and 710) are in a group of the same section (i.e..: Electrical
Device Group).
3. REF. No . The Reference number identifies the part illustration with the corresponding part number in the
part list.
4. SUBASSEMBLY SUBASSEMBLY parts of part assembly are listed below the assembly part. The subassembly
part reference number is indicated by the number led by "-" such as "-1", "-2".
5. PART NUMBER It is the number assigned for sales unit. Use the PART No. when making an order.
6. DESCRIPTION It is designation of the part.
7. QTY. Quantity of each part used for each product.
8. REMARKS This gives a distinctive feature and/or a supplementary comment for the type, the specification,
and the part concerned. It also shows part number(s) interchangeable for the part.
9. FROM-TO This section shows the CODE No. to indicate the history of progress in which improved parts
have been introduced in the product. The FROM-TO CODE No. helps to identify PART No.
being employed in the product concerned. See the examples below:
- The part is used in the product irrespective of CODE No.
2101- The part is used in the products with CODE No. of 2101 and after this number.
- 2100 The part is used in the products with CODE No. of 2100 and before this number.
MANUAL LAYOUT
2101-
-2100
①①
①①
①
①①
①①
①
②②
②②
②
②②
②②
②
③③
③③
③
③③
③③
③
④④
④④
④
④④
④④
④
⑤⑤
⑤⑤
⑤
⑥⑥
⑥⑥
⑥⑦⑦
⑦⑦
⑦
⑧⑧
⑧⑧
⑧
⑨⑨
⑨⑨
⑨
○○○○
○○○○
○○○○
EH41, EH36 - 4 - '99 - 5

GROUP INDEX
Group Name Page
CRANKCASE GROUP ............................................................................... 6
CRANKSHAFT GROUP ............................................................................. 8
INTAKE and EXHAUST GROUP.............................................................. 10
GOVERNOR GROUP............................................................................... 12
COOLING and STARTING GROUP......................................................... 14
FUEL GROUP........................................................................................... 16
ELECTRIC DEVICE GROUP - RECOIL START...................................... 20
ELECTRIC DEVICE GROUP - ELECTRIC START ................................. 22
ELECTRIC DEVICE GROUP - ELECTRIC STARTER ............................ 24
ELECTRIC DEVICE GROUP - OIL SENSOR.......................................... 26
EH41, EH36 - 5 - '99 - 5
SYMBOL DESCRIPTION
AY .......................... ASSEMBLY
CP .......................... COMPLETE
EX ..........................EXPORT (from Japan)
FIG......................... FIGURE
FR. ......................... FRONT
" .............................. INCH
INCL.......................INCLUDE
~L ........................... LITER
L= ...........................LENGTH (in. mm)
L.H. (LH) ................LEFT-HAND SIDE
MECH ....................MECHANICAL
NO (NON) .............. NONE
OPT. ....................... OPTIONAL
O.S......................... OVER SIZE
SYMBOL DESCRIPTION
P= .......................... PITCH (in mm)
P.T.O. (PTO) ..........POWER TAKE OFF
REF. .......................REFERENCE
R.H. (RH) ...............RIGHT HAND SIDE
RR. .........................REAR
STD........................STANDARD
SW .........................SWITCH
T=........................... THICKNESS (in mm)
UN .......................... UNIT
U.S. ........................UNDER SIZE
~V .......................... VOLTAGE
~W .........................WATT
W/ .......................... WITH
W/O........................WITHOUT
INDEX OF DESCRIPTION SYMBOLS

SECTION 1 CRANKCASE GROUP
EH41, EH36 - 6 - '99 - 5
FIG. 100

SECTION 1 CRANKCASE GROUP
EH41, EH36 - 7 - '99 - 5
REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG.
10 267-10101-21 CRANKCASE CP 1 100
267-10102-21 CRANKCASE CP 1 electric start type 100
20 132-12AA0-80 VALVE GUIDE, STD. 2 100
21 056-51000-40 CLIP 1 100
25 132-07AA0-50 SEAL 1 100
30 044-03500-90 OIL SEAL 1 100
40 060-03500-10 BALL BEARING 1 BB-6207C3 100
45 060-01500-60 BALL BEARING 1 BB-6202C3 i/w 060-01500-10 100
50 031-00600-20 DOWEL PIN 2 100
60 010-50802-90 STUD 2 100
70 010-50602-91 STUD 2 100
75 044-00800-10 OIL SEAL 1 7.4 x 14 x 4 100
80 040-11400-30 PLUG 2 100
86 042-01800-10 PLUG, RUBBER 1 w/o OIL SENSOR TYPE 100
90 021-11400-20 GASKET 2 100
210 267-11002-11 MAIN BEARING COVER CP 1 SAE 100
267-11001-11 MAIN BEARING COVER CP 1 METRIC 100
220 044-03500-90 OIL SEAL 1 35 x 48 x 8 100
230 060-03500-10 BALL BEARING 1 BB-6207C3 100
240 060-01500-10 BALL BEARING 1 BB-6202C3 100
250 267-45001-01 GOVERNOR GEAR CP 1 100
260 205-41901-03 GOVERNOR SLEEVE 1 100
270 224-63601-03 OIL GAUGE 2 100
280 021-32000-10 GASKET 2 100
290 267-15101-13 GASKET, BEARING COVER 1 100
300 013-00802-20 BOLT AND WASHER AY 5 100
306 003-11080-00 WASHER 2 100
307 267-19999-03 FLANGE BOLT 2 100
610 267-13001-11 CYLINDER HEAD CP 1 100
620 267-15001-03 GASKET, HEAD 1 100
630 011-01000-30 FLANGE BOLT 4 100
680 267-15501-01 ROCKER COVER CP 1 100
685 267-16101-A3 RETAINER PLATE 1 100
686 267-16001-A3 LEAF VALVE 1 100
687 011-00600-10 FLANGE BOLT 1 100
690 267-15201-13 GASKET, ROCKER COVER 1 100
700 031-00600-20 DOWEL PIN 2 100
710 011-00601-30 FLANGE BOLT 4 100
850 085-11000-00 RUBBER PIPE 1 10 x 15 x 70 100

SECTION 2 CRANKSHAFT GROUP
EH41, EH36 - 8 - '99 - 5
FIG. 200

SECTION 2 CRANKSHAFT GROUP
EH41, EH36 - 9 - '99 - 5
REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG.
10 267-20901-01 CRANKSHAFT CP 1 1" KEY, SAE 200
267-21001-01 CRANKSHAFT CP 1 1" PUMP, SAE 200
267-21201-01 CRANKSHAFT CP 1 TAPER, SAE 200
267-20201-01 CRANKSHAFT CP 1 25MM KEY, METRIC 200
40 023-03501-60 SPACER T=0.6 1 select 1 spacer only 200
023-03501-70 SPACER T=0.8 1 select 1 spacer only 200
023-03501-80 SPACER T=1.0 1 select 1 spacer only 200
50 002-18180-00 NUT 1 200
60 003-20180-00 SPRING WASHER 1 200
65 003-10180-00 WASHER 1 200
70 005-32054-01 WOODRUFF KEY 1 200
210 267-24101-03 BALANCER SHAFT 1 200
310 267-22501-00 CONNECTING ROD AY 1 200
320 001-05084-00 FLANGE BOLT 2 200
350 263-23301-03 PISTON PIN 1 200
360 267-23401-03 PISTON 1 STD. 200
267-23402-03 PISTON 1 oversized 0.25mm 200
267-23403-03 PISTON oversized 0.50mm 200
370 267-23501-07 PISTON RING SET 1 STD. 200
267-23502-07 PISTON RING SET 1 oversized 0.25mm 200
267-23503-07 PISTON RING SET 1 oversized 0.50mm 200
380 056-52100-20 CLIP 2 200

SECTION 3 INTAKE and EXHAUST GROUP
EH41, EH36 - 10 - '99 - 5
FIG. 300 Optional Spark
Arrestor Screen

SECTION 3 INTAKE and EXHAUST GROUP
EH41, EH36 - 11 - '99 - 5
REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG.
10 267-31A01-01 CAMSHAFT CP 1 EH41 300
267-31B01-01 CAMSHAFT CP 1 EH36 300
35 246-36201-11 RELEASE LEVER CP 1 300
45 246-36701-03 RETURN SPRING 1 300
50 239-33301-13 TAPPET 2 300
60 246-33611-03 VALVE SPRING 2 300
70 246-33711-03 SPRING RETAINER 2 300
80 263-33401-03 INTAKE VALVE 1 300
90 267-33501-03 EXHAUST VALVE 1 300
95 246-35501-03 COLLET, VALVE 4 300
100 023-02200-50 SPACER T=0.6 1 select 1 spacer only 300
023-02200-60 SPACER T=0.7 1 select 1 spacer only 300
023-02200-70 SPACER T=0.8 1 select 1 spacer only 300
210 267-35301-B1 PUSH ROD CP 2 300
220 267-36101-A3 ROCKER ARM 2 300
230 261-35801-13 BOLT, PILOT 2 i/w 261-35801-03 300
235 261-35701-B3 PIVOT 2 300
240 017-00601-10 NUT 2 300
260 267-36501-A3 GUIDE PLATE 1 300
310 267-30101-02 MUFFLER UN 1 300
320 267-34201-01 MUFFLER COVER CP 1 300
330 267-37001-01 MUFFLER BRACKET CP 1 300
340 246-35201-03 GASKET, MUFFLER 1 300
350 017-00800-30 NUT 2 300
360 015-20601-10 TAPPING SCREW 5 300
365 001-04081-60 FLANGE BOLT 2 300
385 267-37101-02 SCREEN 1 spark arrestor 300
386 015-00400-60 TAPPING SCREW 3 for spark arrestor 300
440 246-37001-07 DEFLECTOR AY 1 300
-445 015-00400-60 TAPPING SCREW 3 300
510 267-32601-10 AIR CLEANER AY 1 300
-70 227-36524-03 CAP NUT 1 i/w 227-36523-03 300
-200 267-35001-11 CLEANER BASE CP 1 300
-201 267-35004-03 PACKING 1 300
-202 270-32720-08 PACKING 1 300
-210 267-35002-11 CLEANER COVER 1 300
-250 267-35005-03 LABEL, CONTROL 1 300
516 011-00601-01 FLANGE BOLT 1 300
520 267-35003-01 CLEANER ELEMENT CP 1 300
540 267-32901-03 INSULATOR 1 300
560 267-35901-A3 GASKET, INSULATOR 2 300
570 002-38060-00 FLANGE NUT 2 300

EH41, EH36 - 12 - '99 - 5
SECTION 4 GOVERNOR GROUP
FIG. 410

SECTION 4 GOVERNOR GROUP
EH41, EH36 - 13 - '99 - 5
REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG.
10 267-42301-03 GOVERNOR LEVER 1 410
20 267-42201-03 GOVERNOR SHAFT 1 410
25 003-11080-00 WASHER 1 410
30 267-42701-01 GOVERNOR ROD CP 1 410
40 267-42801-13 ROD SPRING 1 410
50 003-13060-00 CLIP 2 410
60 001-14063-00 BOLT AND WASHER AY 1 410
70 018-60600-20 NUT 1 410
80 267-42501-03 GOVERNOR SPRING 1 410
210 011-60400-30 BOLT 1 410
310 267-43302-01 SPEED CONTROL LEVER 1 410
340 227-43501-13 STOP PLATE 1 410
345 021-70600-60 FRICTION WASHER 2 410
350 227-45002-03 SPRING WASHER 1 410
360 004-31061-80 SCEW, PANHEAD 1 410
370 002-27060-00 NUT 1 410
395 235-43901-13 CLAMP 1 410
396 004-36051-60 SCEW AND WASHER AY 1 410
445 004-31040-80 SCREW 1 - 4383 410
450 017-60600-30 SELF LOCK NUT 1 i/w 017-60600-20 410
480 267-45101-03 RETURN SPRING 1 410

SECTION 5 COOLING and STARTING GROUP
EH41, EH36 - 14 - '99 - 5

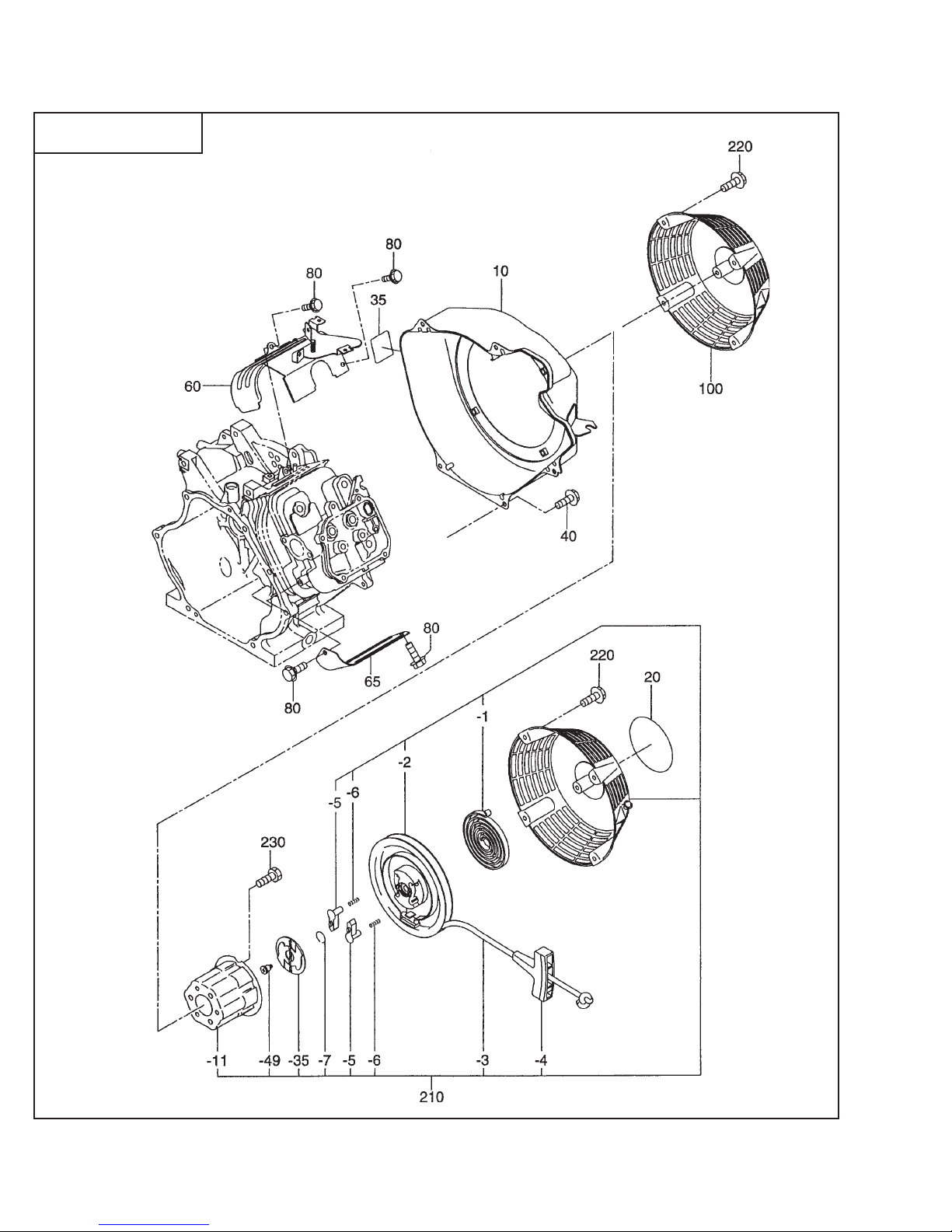

FIG. 500

SECTION 5 COOLING and STARTING GROUP
EH41, EH36 - 15 - '99 - 5
REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG.
10 267-51203-01 BLOWER HOUSING CP 1 BLACK 500
267-51201-01 BLOWER HOUSING CP 1 YELLOW 500
20 267-91703-03 LABEL, TRADE MARK 1 ROBIN SUBARU 500
35 266-91802-03 LABEL, ENGINE 1 500
40 011-00600-20 FLANGE BOLT 5 500
60 267-52601-02 CYLINDER BAFFLE 1 UN 1 500
65 267-52701-03 CYLINDER BAFFLE 2 1 500
80 011-00600-10 FLANGE BOLT 4 500
100 267-54401-01 PULLEY COVER CP 1 for electric start w/o recoil only 500
210 267-50201-00 RECOIL STARTER AY 1 500
-1 261-50115-08 SPIRAL SPRING 1 500
-2 246-50120-08 REEL 1 500
-3 106-50113-08 STARTER ROPE 1 i/w 226-50113-08 500
-4 261-50100-08 STARTER KNOB 1 500
-5 246-50125-08 RATCHET 2 500
-6 246-50130-08 FRICTION SPRING 1 500
-7 227-50135-08 RETURN SPRING 1 500
-11 224-50150-08 STARTER PULLEY 1 500
-35 246-50160-08 RATCHET GUIDE 1 500
-49 227-50152-08 SET SCREW 1 500
220 011-00600-10 FLANGE BOLT 4 500
230 001-65081-20 BOLT 3 500

SECTION 6 FUEL GROUP
EH41, EH36 - 16 - '99 - 5
FIG. 600

SECTION 6 FUEL GROUP
EH41, EH36 - 17 - '99 - 5
REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG.
10 267-60103-01 FUEL TANK CP 1 BLACK 600
267-60101-01 FUEL TANK CP 1 YELLOW 600
27 073-20039-00 LABEL, WARNING 1 600
30 043-04300-15 FUEL TANK CAP CP 1 600
31 267-95201-03 LABEL, EMISSION 1 600
40 064-13600-10 FUEL FILTER 1 600
50 064-20021-01 FUEL STRAINER AY 1 600
-1 064-20002-20 FILTER 1 600
-2 064-20002-30 GASKET 1 600
-3 064-20019-10 CUP 1 600
-4 064-20003-20 NUT 1 600
-5 064-20002-50 GASKET 2 600
-7 064-20002-40 BANJO BOLT 1 600
-8 064-20027-90 LOCK BOLT 1 600
-9 064-20003-30 O-RING 1 600
-10 064-20024-10 LOCK NUT 1 600
-15 064-20032-30 SPRING 1 600
70 224-62611-01 FUEL PIPE 11 CP 1 600
80 085-10600-00 RUBBER PIPE 1 6 x 12 x 100 mm 600
90 056-11100-20 HOSE CLAMP 2 600
95 052-10700-42 BANJO 1 600
113 001-13082-00 BOLT AND WASHER AY 4 600
172 085-10600-00 RUBBER PIPE 1 6 x 12 x 250 mm 600
173 056-11100-20 HOSE CLAMP 1 600
174 056-11200-40 HOSE CLAMP 1 600

SECTION 6 FUEL GROUP
EH41, EH36 - 18 - '99 - 5
FIG. 600

SECTION 6 FUEL GROUP
EH41, EH36 - 19 - '99 - 5
REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG.
210 267-62302-10 CARBURETOR AY 1 EH41 600
210 266-62302-00 CARBURETOR AY 1 EH36 600
-1 267-62535-08 THROTTLE VALVE 1 EH41
266-62535-08 THROTTLE VALVE 1 EH36 600
-2 209-62351-08 SCREW 2 600
-3 267-62525-08 CHOKE VALVE 1 600
-4 237-62451-08 SCREW 2 600
-5 227-62422-08 PILOT JET 1 600
-6 246-62436-08 ADJUSTER 1 600
-7 206-62446-08 SPRING 1 600
-8 267-62520-08 CHOKE LEVER 1 600
-9 239-62560-08 RING, CHOKE 1 600
-11 267-62531-08 THROTTLE SHAFT 1 EH41 600
266-62531-08 THROTTLE SHAFT 1 EH36 600
-12 150-62358-08 BOLT 1 600
-13 226-62550-08 RING 1 600
-14 224-62312-18 NEEDLE VALVE AY 1 600
-15 214-62515-08 PIN 1 600
-16 234-62552-08 FLOAT CHAMBER BODY 1 600
-17 207-62345-08 PACKING 1 600
-18 206-62540-08 PACKING, CHAMBER 1 600
-19 234-62506-08 FLOAT AY 1 600
-20 267-62440-08 MAIN NOZZLE 1 600
-22 267-62402-08 MAIN JET 1 EH41 600
246-62403-08 MAIN JET 1 EH36 600
-23 242-62323-08 SCREW 1 600
-24 224-62569-18 CLIP 1 600
-28 224-62452-08 SCREW 1 600
-29 209-62445-08 SPRING 1 600
-32 267-62450-08 RING 1 600
-33 106-62392-18 SEAL 1 i/w 106-62392-08 600
-40 224-62452-08 ADJUST SCREW 1 600
-41 230-62446-08 SPRING 1 600
-44 106-62411-08 AIR JET 1 EH41 600
266-62410-08 AIR JET 1 EH36 600
-45 246-62410-08 AIR JET 1 600
-61 247-62550-08 CAP 1 600
-62 236-62680-08 SEAL 1 600
-80 246-62551-08 CAP 1 600
-89 246-62425-08 GUIDE HOLDER 1 600
-250 267-62451-08 BRACKET 1 600
-251 267-62452-08 SCREW 1 600
240 246-45006-01 KNOB CP 1 600
250 024-10200-10 GROMMET 1 600

SECTION 7A ELECTRIC DEVICE GROUP - RECOIL START
EH41, EH36 - 20 - '99 - 5
FIG. 700
