NOTICE
FEDERAL EMISSION COMPONENT DEFECT WARRANTY and CALIFORNIA
EMISSION CONTROL WARRANTY are applicable to only those engines
complied with EPA (Environmental Protection Agency) and CARB (California
Air Resources Board) emission regulations in the U.S.A.
AIR INDEX
To show compliance with California emission regulations, a hangtag has been
provided displaying the Air Index level and durability period of this engine.
The Air Index level defines how clean an engine’s exhaust is over a period of
time. A bar graph scaled from “0” (most clean) to “10” (least clean) is used to
show an engine’s Air Index level. A lower Air Index level represents cleaner
exhaust from an engine.
The period of time (in hours) that the Air Index level is measured is known as
the durability period. Depending on the size of the engine, a selection of time
periods can be used to measure the Air Index level (see below).
Descriptive Term Applicable to Emissions Durability Period
Moderate - 50 hours (engine from 0 to 65 cc)
125 hours (engine greater than 65 cc)
Intermediate - 125 hours (engine from 0 to 65 cc)
250 hours (engine greater than 65 cc)
Extended - 300 hours (engine from 0 to 65 cc)
500 hours (engine greater than 65 cc)
Notice : This hangtag must remain on this engine or piece of equipment, and
only be removed by the ultimate purchaser before operation.
The engine exhaust from this product contains
chemicals known to the State of California to
cause cancer, birth defects or other reproductive
harm.
WARNING:
NOTICE
To the engines exported to and used in the countries other than the U.S.A.,
warranty service shall be performed by the distributor in each country in accor-
dance with the standard Robin engine warranty policy as applicable.
EH025/035取説米国向EU171702.5.1511:39AMページ02

FEDERAL EMISSION COMPONENT DEFECT WARRANTY
EMISSION COMPONENT DEFECT WARRANTY COVERAGE
This emission warranty is applicable in all States, except the State of California.
Fuji Heavy Industries Ltd. and Robin America Inc., Wood Dale Illinois, (herein "ROBIN AMERICA")
warrant to the initial retail purchaser and each subsequent owner, that this utility equipment engine
(herein "engine") was designed, built, and equipped to conform at the time of initial sale to all applic-
able regulations of the U.S. Environmental Protection Agency (EPA), and that the engine is free of
defects in materials and workmanship which would cause this engine to fall to conform with EPA
regulations during its warranty period.
For the components listed under PARTS COVERED, the dealer or service center authorized by
ROBIN AMERICA will, at no cost to you, make the necessary diagnosis, repair, or replacement
necessary to ensure that the engine complies with applicable U.S. EPA regulations.
EMISSISON COMPONENT DEFECT WARRANTY PERIOD
The warranty period for this engine begins on the date of sale to the initial purchaser and continues
for a period of 2 years.
PARTS COVERED
Listed below are the parts covered by the Emission Component Defect Warranty. Some of the parts
listed below may require scheduled maintenance and are warranted up to the first scheduled
replacement point for that part.
(1) Fuel Metering System
(i) Carburetor and internal parts
(ii) Fuel filter, if applicable
(iii) Throttle stopper, if applicable
(iv) Choke System, if applicable
(2) Air Induction System
(i) Air cleaner plate
(ii) Air cleaner case
(iii) Air cleaner element
(3) Ignition System
(i) Spark plug
(ii) Flywheel Magneto
(iii) Ignition Coil
(4) Miscellaneous Items Used in Above Systems
(i) Fuel hoses, clamps and sealing gaskets
OBTAINING WARRANTY SERVICE
To obtain warranty service, take your engine to the nearest authorized ROBIN AMERICA, distributor
or dealer.
Bring your sales receipts indicating date of purchase for this engine. The dealer or service center
authorized by ROBIN AMERICA will perform the necessary repairs or adjustments within a reason-
able amount of time and furnish you with a copy of the repair order. All parts and accessories
replaced under this warranty become the property of ROBIN AMERICA.
WHAT IS NOT COVERED
*Conditions resulting from tampering, misuse, improper adjustment (unless they were made by the
dealer or service center authorized by ROBIN AMERICA during a warranty repair), alteration, acci-
dent, failure to use the recommended fuel and oil, or not performing required maintenance services.
*The replacement parts used for required maintenance services.
EH025/035取説米国向EU171702.5.1511:39AMページ03

*Consequential damages such as loss of time, inconvenience, loss of use of the engine of equip-
ment, etc.
*Diagnosis and inspection charges that do not result in warranty-eligible service being performed.
*Any non-authorized replacement part, or malfunction of authorized parts due to use of non-autho-
rized parts.
OWNER’S WARRANTY RESPONSIBILITIES
As the engine owner, you are responsible for the performance of the required maintenance listed in
your owner's manual, ROBIN AMERICA recommends that you retain all receipts covering mainte-
nance on your engine, but ROBIN AMERICA can not deny warranty solely for the lack of receipts or
for your failure to ensure the performance of all scheduled maintenance.
As the engine owner, you should however be aware that the ROBIN AMERICA may deny your
warranty coverage if your engine or a part has failed due to abuse, neglect, improper maintenance
or unapproved modifications.
You are responsible for presenting your engine to the nearest dealer or service center authorized
by ROBIN AMERICA when a problem exists.
If you have any questions regarding your warranty rights and responsibilities, you should contact
the Robin America customer service department at 1-630-350-8200 for the information.
THINGS YOU SHOULD KNOW ABOUT THE EMISSION CONTROL SYSTEM WARRANTY
MAINTENANCE AND REPAIRS
You are responsible for the proper maintenance of the engine.
You should keep all receipts and maintenance records covering the performance of regular mainte-
nance in the event questions arise. These receipts and maintenance records should be transferred
to each subsequent owner of the engine. ROBIN AMERICA reserves the rights to deny warranty
coverage if the engine has not been properly maintained.
Warranty claims will not be denied, however, solely because of the lack of required maintenance or
failure to keep maintenance records.
MAINTENANCE, REPLACEMENT OR REPAIR OF EMISSION CONTROL DEVICES AND
SYSTEMS MAY BE PERFORMED BY ANY REPAIR ESTABLISHMENT OR INDIVIDUAL;
HOWEVER , WARRANTY REPAIRS MUST BE PERFORMED BY A DEALER OR SERVICE
CENTER AUTHORIZED BY ROBIN AMERICA. THE USE OF PARTS THAT ARE NOT EQUIVA-
LENT IN PERFORMANCE AND DURABILITY TO AUTHORIZED PARTS MAY IMPAIR THE
EFFECTIVENESS OF THE EMISSION CONTROL SYSTEM AND MAY HAVE A BEARING ON
THE OUTCOME OF A WARRANTY CLAIM.
If other than the parts authorized by ROBIN AMERICA are used for maintenance replacements or
for the repair of components affecting emission control, you should assure yourself that such parts
are warranted by their manufacturer to be equivalent to the parts authorized by ROBIN AMERICA
in their performance and durability.
HOW TO MAKE A CLAIM
All repairs qualifying under this limited warranty must be performed by a dealer or service center
authorized by ROBIN AMERICA. In the event that any emission-related part is found to be defec-
tive during the warranty period, you shall notify Robin America customer service department at 1-
630-350-8200 and you will be given the appropriate warranty service facilities where the warranty
repair can be performed.
EH025/035取説米国向EU171702.5.1511:39AMページ04

CALIFORNIA EMISSION CONTROL WARRANTY STATEMENT
YOUR WARRANTY RIGHTS AND OBLIGATIONS
The California Air Resources Board and Fuji Heavy Industries Ltd. are pleased to explain the
emission control system warranty on your 2000 and later Small Off-Road engine(herein
"engine"). In California, the engines must be designed, built and equipped to meet the State's
stringent anti-smog standards. Fuji Heavy Industries Ltd. must warrant the emission control
system on your engine for the periods of time described below, provided there has been no
abuse, neglect or improper maintenance of your engine. Your emission control system includes
parts such as the carburetor and the ignition system. Also included may be hoses, connectors
and other emission-related assemblies. Where a warrantable condition exists, Fuji Heavy Indus-
tries Ltd. will repair your engine at no cost to you including diagnosis, parts and labor.
MANUFACTURER'S WARRANTY COVERAGE:
The 2000 and later engines are warranted for two (2) years. If any emission-related part on your
engine is defective, the part will be repaired or replaced by Fuji Heavy Industries Ltd..
OWNER'S WARRANTY RESPONSIBILITIES:
-As the engine owner, you are responsible for the performance of the required mainte-
nance listed in your Owner's Manual. Fuji Heavy Industries Ltd. recommends that you
retain all receipts covering maintenance on your engine, but Fuji Heavy Industries Ltd.
cannot deny warranty solely for the lack of receipts or for your failure to ensure the
performance of all scheduled maintenance.
-As the engine owner, you should however be aware that Fuji Heavy Industries Ltd. may
deny you warranty coverage if your engine or a part has failed due to abuse, neglect,
improper maintenance or unapproved modifications.
-You are responsible for presenting your engine manufactured by Fuji Heavy Industries
Ltd. to a dealer, distributor or warranty station authorized by ROBIN AMERICA Inc., 940
Lively Blvd., Wood Dale, IL60191 which is the U.S. importer and/or OEM of the Small
Off-Road Engine as soon as a problem exists. The warranty repairs should be completed
in a reasonable amount of time, not to exceed 30 days.
If you have any questions regarding your warranty rights and responsibilities, you should
contact ROBIN AMERICA Inc., 940 Lively Blvd., Wood Dale, IL60191 at 1-630-350-8200.
EH025/035取説米国向EU171702.5.1511:39AMページ05

LIMITED WARRANTY
on Emission Control Systems
- California Only -
Fuji Heavy Industries Ltd. warrant to the owner of the 2000 and later engine that the engine (1)
has been designed, built and equipped so as to conform at the time of manufacture with the
applicable regulations of the California Air Resources Board, and (2) is free from defects in
materials and workmanship which cause it to fail to conform with those regulations as may be
applicable in the terms and conditions stated below;
A. WARRANTY COMMENCEMENT DATE
The warranty period begins on the date the engine is delivered to a first retail purchaser.
B. LENGTH OF COVERAGE
Fuji Heavy Industries Ltd. warrants to a first retail purchaser and each subsequent purchaser
that the engine is free from defects in materials and workmanship which cause the failure of a
warranted emission-related part for a period of two (2) years after the date of delivery to the first
retail purchaser.
C. WHAT IS COVERED:
1. REPAIR OR REPLACEMENT PARTS
Repairs and replacement of any warranted part will be performed at no charge to you by
an authorized dealer, distributor or a warranty station. You may contact the ROBIN AMER-
ICA Inc., 940 Lively Blvd., Wood Dale, IL60191 at 1-630-350-8200 which is the U.S.
importer/OEM of the Small Off-Road engine manufactured by Fuji Heavy Industries Ltd. to
get the nearest appropriate location where your warranty repairs are performed.
2. WARRANTY PERIOD
This warranty continues for a period of two (2) years and shall apply only to the repair,
replacement or adjustment of the component parts which are not scheduled for replace-
ment as required maintenance. Further, component parts which are scheduled only for
regular inspection to the effect of "repair or replace as necessary" shall be warranted for
the warranty period. Any warranted part which is scheduled for replacement as required
maintenance shall be warranted for the period of time up to the first scheduled replace-
ment point for that part.
3. DIAGNOSIS
You shall not be charged for diagnostic labor, which leads to the determination that a
warranted part is defective, if the diagnostic work is performed at an authorized dealer,
distributor or warranty station.
4. CONSEQUENTIAL DAMAGES
If a warranted part failed causing damage to other engine components, consult a warranty
station.
D. WHAT IS NOT COVERED
1. This limited warranty does not cover any part which malfunctions, fails or is damaged due
to failure to follow the maintenance and operating instructions set forth in the 2000 and
later Owner's Manual including:
(1) improper or inadequate maintenance of any warranted parts.
EH025/035取説米国向EU171702.5.1511:39AMページ06

(2) improper installation, adjustment or repair of the engine or of any warranted part
unless performed by an authorized dealer.
(3) failure to follow recommendations on fuel use contained in the 2000 and later
Owner's Manual.
(4) repairs performed outside of the authorized warranty service facility.
(5) use of parts, which are not authorized by Fuji Heavy Industries Ltd..
2. Add-on or modified parts
This warranty does not cover any part which malfunctions, fails or is damaged due to
alterations by changing, adding to or removing parts from the engine.
3. Expenses incurred by processing warranty claims
ROBIN AMERICA Inc., 940 Lively Blvd., Wood Dale, IL60191, any authorized dealer,
distributors and warranty station shall not be liable for any loss of use of the engine, for
any alternative usage, for any damage to goods, loss of time or inconvenience.
E. HOW TO FILE A CLAIM
All repairs qualifying under this Limited Warranty must be performed by a dealer who sold you
the engine or distributors or warranty stations authorized by ROBIN AMERICA Inc., 940 Lively
Blvd., Wood Dale, IL60191. In the event that any emission-related part is found to be defective
during the warranty period, you shall notify ROBIN AMERICA Inc., 940 Lively Blvd., Wood
Dale, IL60191 at 1-630-350-8200 and you will be given the appropriate warranty service facili-
ties where the warranty repair is performed.
F. WHERE TO GET WARRANTY SERVICE
It is recommended that warranty service be performed by the authorized dealer, who sold you
the engine, although warranty service will be performed by any authorized dealers, distributors
and warranty stations anywhere in the United States. When warranty repair is needed, the
engine must be brought to an authorized dealer, distributorship or warranty station's place of
business during normal business hours.
In all cases, a reasonable time, not to exceed 30 days, must be allowed for the warranty repair
to be completed after the engine is received by the authorized dealer, distributor or service
station.
G. MAINTENANCE, REPLACEMENT AND REPAIR OF EMISSION-RELATED PARTS
Only warranted engine replacement parts approved by Fuji Heavy Industries Ltd. should be
used in the performance of any warranty maintenance or repairs on emission-related parts. If
other than authorized parts are used for maintenance, replacement or repair of components
affecting emission control, you should assure yourself that such parts are warranted by their
manufacturer to be equivalent to authorized parts in performance and durability. Fuji Heavy
Industries Ltd., however, assumes no liability under this warranty with respect to parts other
than authorized parts. The use of non-authorized replacement parts does not invalidate the
warranty on other components unless the non-authorized parts cause damage to warranted
parts.
H. PARTS COVERED UNDER THE CALIFORNIA EMISSIONS WARRANTY
(1) Fuel Metering System
(i) Carburetor and internal parts
(ii) Air cleaner plate (including choke system)
(iii) Air cleaner cover
(iv) Air cleaner element
(v) Fuel Filter
EH025/035取説米国向EU171702.5.1511:39AMページ07

(2) Ignition System
(i) Spark plug
(ii) Flywheel magneto
(iii) Ignition coil
(3) Miscellaneous Items Used in Above Systems
(i) Hoses and sealing gaskets, bolts, connectors, and assemblies.
I. MAINTENANCE STATEMENTS
It is your responsibility to have all scheduled inspection and maintenance services performed at
the times recommended in the 2000 and later Owner's Manual and to retain proof that inspection
and maintenance services are performed at the times when recommended. Fuji Heavy Indus-
tries Ltd. will not deny a warranty claim solely because you have no record of maintenance;
however, Fuji Heavy Industries Ltd. may deny a warranty claim if your failure to perform required
maintenance resulted in the failure of warranted part. The proof, which you maintain, should be
given to each subsequent owner of the engine. You are responsible for performing the sched-
uled maintenance described below based on the procedures specified in the 2000 and later
Owner's Manual. The scheduled maintenance below is based on the normal engine-operating
schedule.
PROCEDURE INTERVAL
1)Clean engine and check bolts and nuts. : Every 8 hours(daily)
Retighten if necessary.
2)Check and refill engine oil (4 stroke). : Every 8 hours(refill daily up to upper limit)
3)Change engine oil (4 stroke). : Initial 20 hours and every 50 hours afterward
4)Check clogging of cooling air passage and : Every 8 hours (daily)
cylinder fins. Remove and clean if necessary.
5)
Clean air cleaner. : Every 8 hours (daily)
6)Check spark plug. Clean and adjust : Every 8 hours (daily)
if necessary.
7) Check muffler exhaust outlet (or port). : Every 50 hours (monthly)
Clean if necessary.
8)Check fuel filter. If clogged, replace : Every 50 hours (monthly)
with new one.
9)Adjust valve clearance, if applicable : Every 200 hours (yearly)
(4 stroke).
10) Replace fuel lines. : Every 200 hours (yearly)
11) Overhaul engine. : Every 200 hours (yearly)
12) Replace packings and gaskets with : Every reassembling
new ones.
Note: More frequent maintenance may be necessary under dusty, dirty or severe conditions.
EH025/035取説米国向EU171702.5.1511:39AMページ08

FOREWORD
Thank you very much for purchasing a ROBIN ENGINE.
Your ROBIN ENGINE can supply the power to operate various
sorts of machines and equipment.
Please take a moment to familiarize yourself with the proper
operation and maintenance procedures in order to maximize
the safe and efficient use of this product.
Due to constant efforts to improve our products, certain proce-
dures and specifications are subjected to change without
notice.
When ordering spare parts, always give us the MODEL,
SPECIFICATION and SERIAL NUMBER of your engine.
Please fill in the following blanks after checking the specifica-
tion number on your engine.
SPEC NO.
SERIAL NO.
E H
EH025/035取説米国向EU171702.5.1511:39AMページ09

CONTENTS
1.SAFETY PRECAUTIONS ・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 1
2. COMPONENTS ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
4
3. PRE-OPERATION CHECKS ・・・・・・・・・・・・・・・・・・・・・・・・・・
6
4. OPERATING YOUR ENGINE ・・・・・・・・・・・・・・・・・・・・・・・・・
7
5. EASY TROUBLESHOOTING ・・・・・・・・・・・・・・・・・・・・・・・・・
9
6. MAINTENANCE SCHEDULE ・・・・・・・・・・・・・・・・・・・・・・・・・
11
7. "HOW-TO" MAINTENANCE ・・・・・・・・・・・・・・・・・・・・・・・・・・
13
8. PREPARATIONS FOR STORAGE・・・・・・・・・・・・・・・・・・・・・
17
9. SPECIFICATIONS ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
18
EH025/035取説米国向EU171702.5.1511:39AMページ010

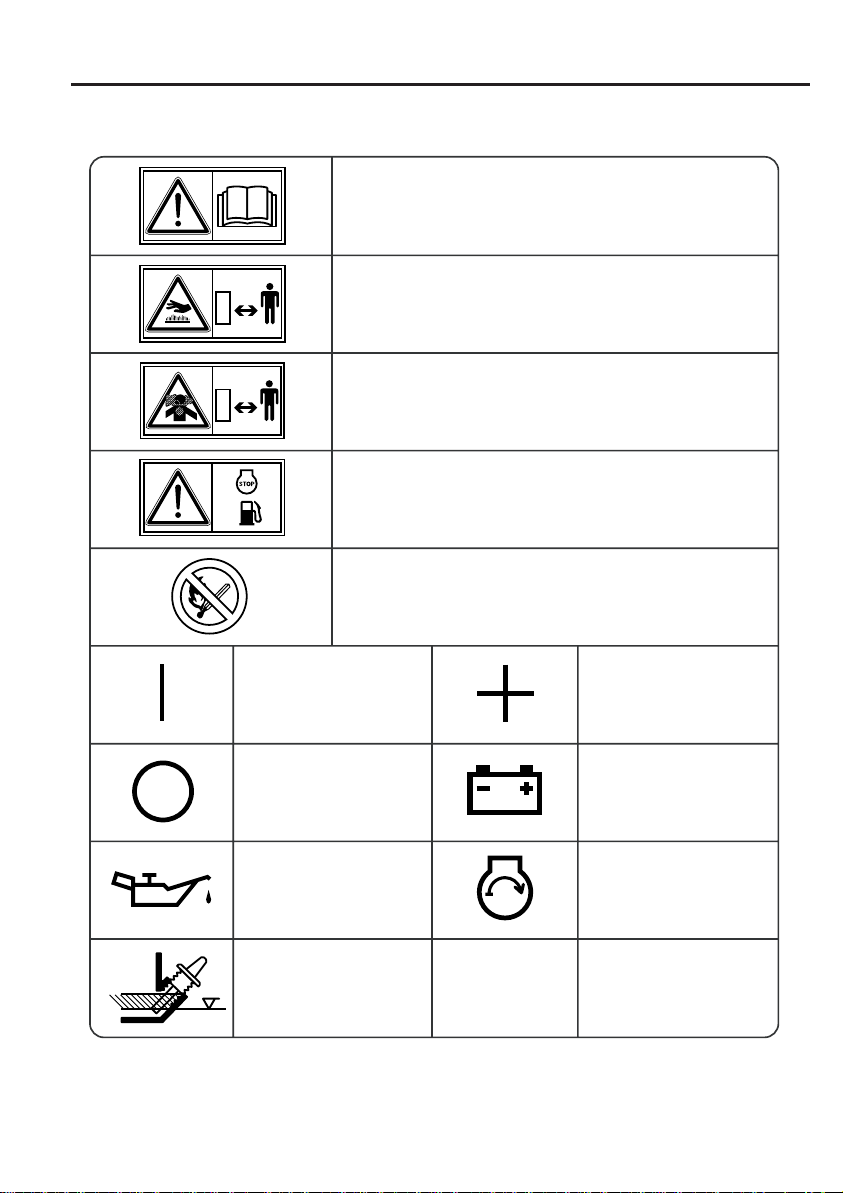

SYMBOLS
Read the owner's manual.
Stay clear of the hot surface.
Exhaust gas is poisonous.
Do not operate in an unventilated area.
Stop the engine before refueling.
Fire, open flame and smoking prohibited.
On (Run) Plus ;
positive polarity
Off (Stop) Battery
Engine oil Engine start
(Electric start)
Add oil
EH025/035取説米国向EU171702.5.1511:39AMページ011

- 1 -

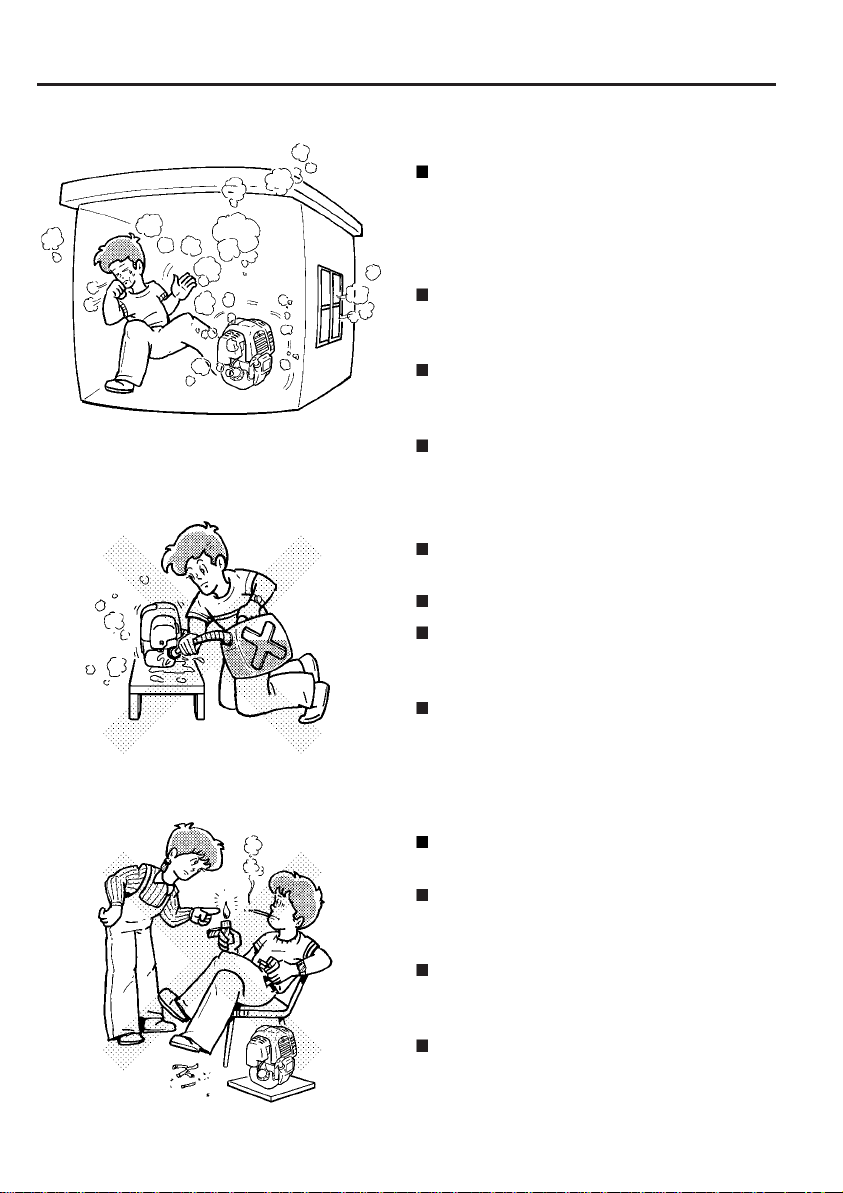

EXHAUST PRECAUTIONS
NNever inhale exhaust gasses.
They contain carbon monoxide, a
colorless, odorless and extremely
dangerous gas which can cause
unconsciousness or death.
Never operate the engine indoors or
in a poorly ventilated area, such as
tunnel, cave, etc.
Exercise extreme care when operat-
ing the engine near people or
animals.
Keep the exhaust pipe free of foreign
objects.
1. SAFETY PRECAUTIONS
FIRE PREVENTION
Do not operate while smoking or near
an open flame.
Do not use around dry brush, twigs,
cloth rags, or other flammable materi-
als.
Keep the engine at least 3 feet
(1 meter) away from buildings or
other structures.
Keep the engine away from flamma-
bles and other hazardous materials
(trash, rags, lubricants, explosives).
REFUELING PRECAUTIONS
Be sure to stop the engine prior to
refueling.
Do not overfill the fuel tank.
If fuel is spilt, wipe it away carefully
and wait until the fuel has dried
before starting the engine.
After refueling, make sure that the
fuel cap is secured to prevent
spillage.
Please make sure you review each precaution carefully.
EH025/035取説米国向EU171702.5.1511:39AMページ1

- 2 -
SURROUNDINGS
Operate the engine on a stable, level
surface free of small rocks, loose
gravel, etc.
PROTECTIVE COVER
Place the protective covers over
the rotating parts.
If rotating parts such as the drive
shaft, pulley, belt, etc. are left
exposed, they are potentially
hazardous.
To prevent injury, equip them with
protective covers or shrouds.
Be careful of hot parts.
The muffler and other engine parts
become very hot while the engine is
running or just after it has stopped.
Operate the engine in a safe area
and keep children away from the
running engine.
Never make adjustments on the
machinery while it is connected to the
engine, without first removing the
ignition cable from the spark plug.
Turning the crankshaft by hand
during adjusting or cleaning might
start the engine, and machinery with
it, causing serious injury to the opera-
tor.
NOTE
Operating the engine at a steep
incline may cause seizure due to
improper lubrication even with a
maximum oil level.
EH025/035取説米国向EU171702.5.1511:39AMページ2

- 3 -
PRE-OPERATION CHECKS .
Carefully check fuel hoses and joints
for looseness and fuel leakage.
Leaked fuel creates a potentially
dangerous situation.
Check bolts and nuts for looseness.
A loose bolt or nut may cause seri-
ous engine trouble.
Check the engine oil and refill if
necessary.
Check the fuel level and refill if
necessary.
Take care not to overfill the tank.
Wear snug fitting working clothes
when operating the engine.
Loose aprons, towels, belt, etc., may
be caught in the engine or drive train,
causing a dangerous situation.
Drain the fuel when transporting
the engine.
Do not move the engine while in
operation when it has been
removed from the equipment.
Keep the unit dry (do not operate it in
rainy conditions).
EH025/035取説米国向EU171702.5.1511:39AMページ3

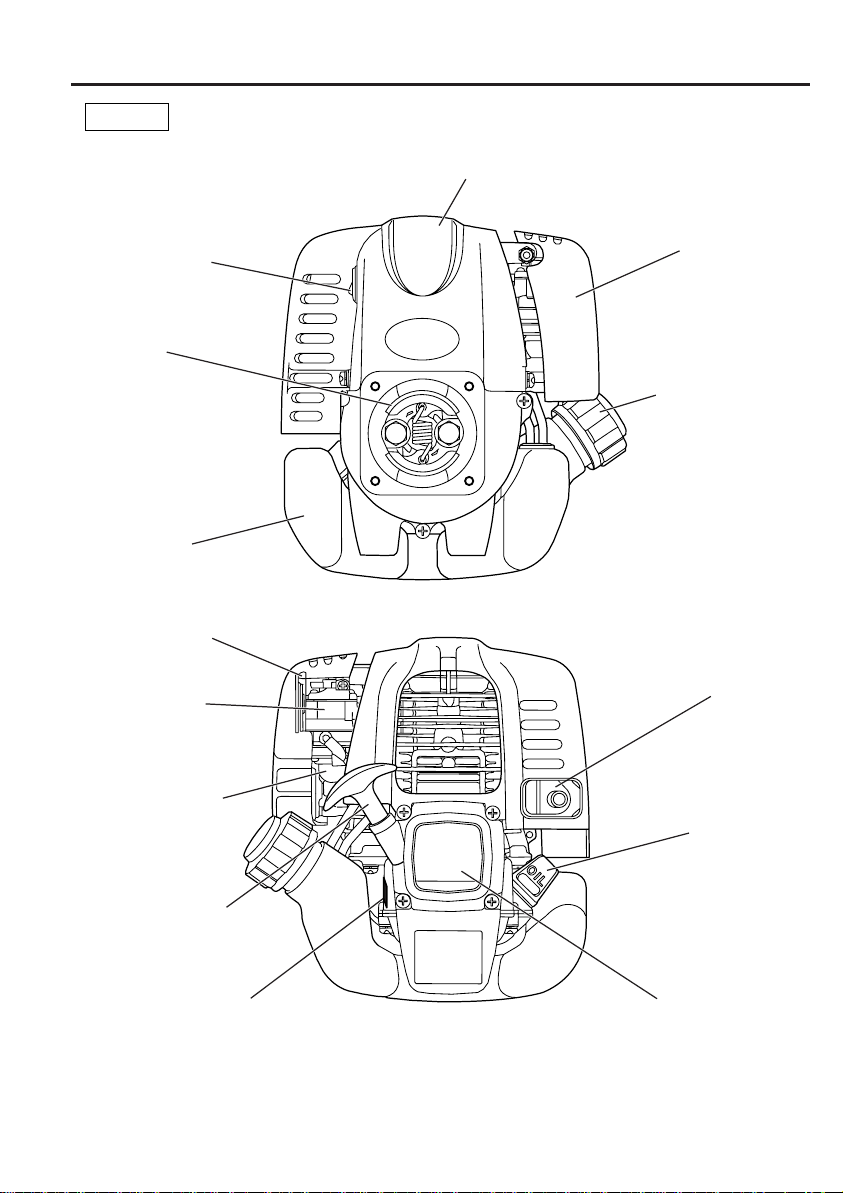

2. COMPONENTS
- 4 -
Stop switch
Clutch
Fuel tank
Choke lever
Carburetor
Primer pump
Starter handle
Plug cover
Air cleaner
Fuel tank cap
Muffler
Oil gauge
(Oil filler)
Recoil starter
Engine serial No.
EH025
EH025/035取説米国向EU171702.5.1511:39AMページ4

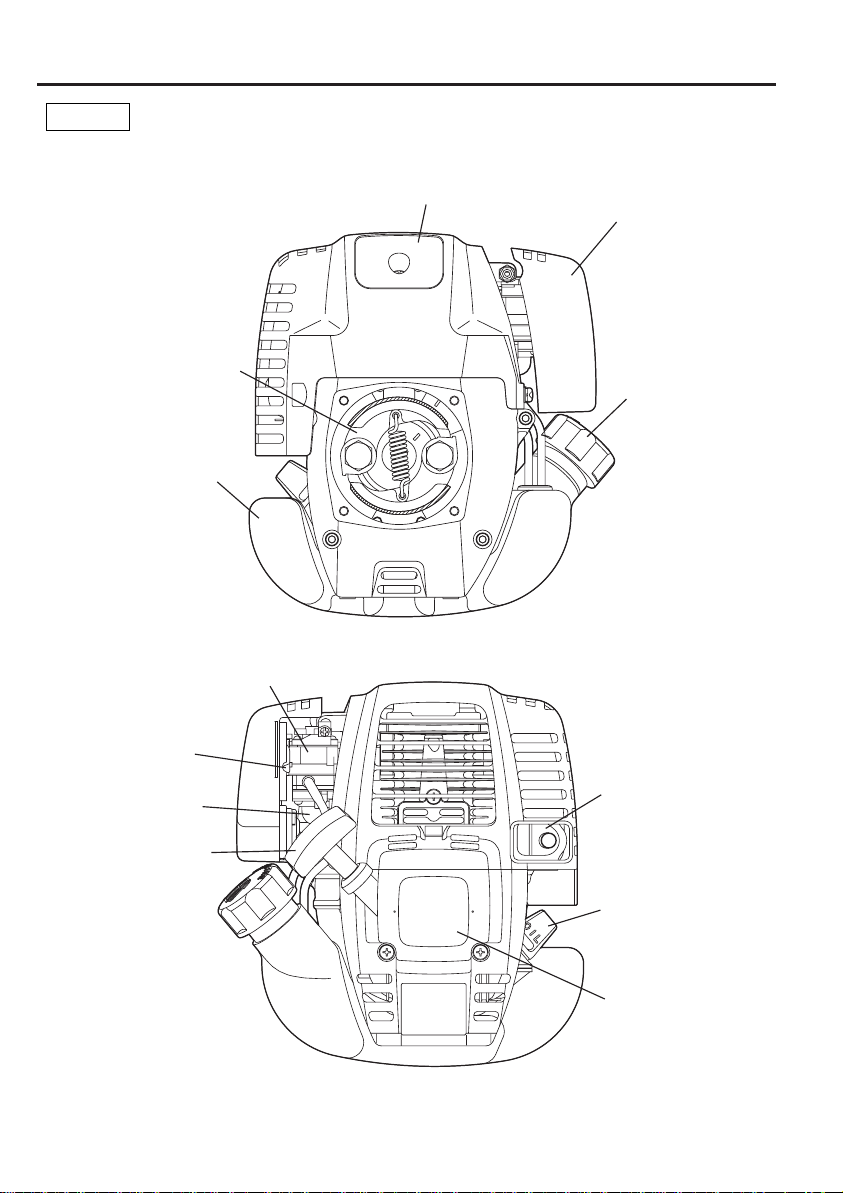

- 5 -
EH035
Plug cover
Clutch
Air cleaner
Fuel tank cap
Fuel tank
Carburetor
Choke lever
Primer pump
Starter handle
Muffler
Oil gauge
(Oil filler)
Recoil starter
EH025/035取説米国向EU171702.5.1511:39AMページ5

3. PRE-OPERATION CHECKS
- 6 -
CHECK ENGINE OIL
Before checking or refilling engine oil, be
sure the engine is located on a stable, level
surface and stopped.
Do not thread the gauge into oil filler to
check oil level.
If the oil level is below the lower level
line on the dipstick, refill with the proper
oil (see table) up to the upper level (up to
the point of overflowing the filler neck).
OIL CAPACITY EH025 : 80 mL
EH035 :
100 mL
Change oil if it is contaminated.
(See page 11 Maintenance Schedule.)
Use class SF (API classification) or
higher grade oil.
If multi-grade oil is employed, oil
consumption tends to increase when
the ambient temperature is high.
Wipe off any spilled oil before starting
the engine.
;;
;
;
;;
5W
10W
20W
#20
#30
#40
10W-30
10W-40
Single
grade
Multi
grade
Ambient
temperature
-20 -10 0 10 20 30 40
-4 14 32 50 68 86 104 Stop the engine and open the cap.
Incline the engine as fuel inlet upward,
then refill fuel to the upper level. Do
not fill fuel too much.
Use automotive unleaded gasoline
only. (This engine is 4-stroke gasoline
engine)
When filling the fuel tank, always use
the fuel filter.
Wipe off any spilled fuel before starting
the engine.
CHECK FUEL
CAUTION
Do not refuel while smoking, near
an open flame or other potential
hazards.
EH025/035取説米国向EU171702.5.1511:39AMページ6

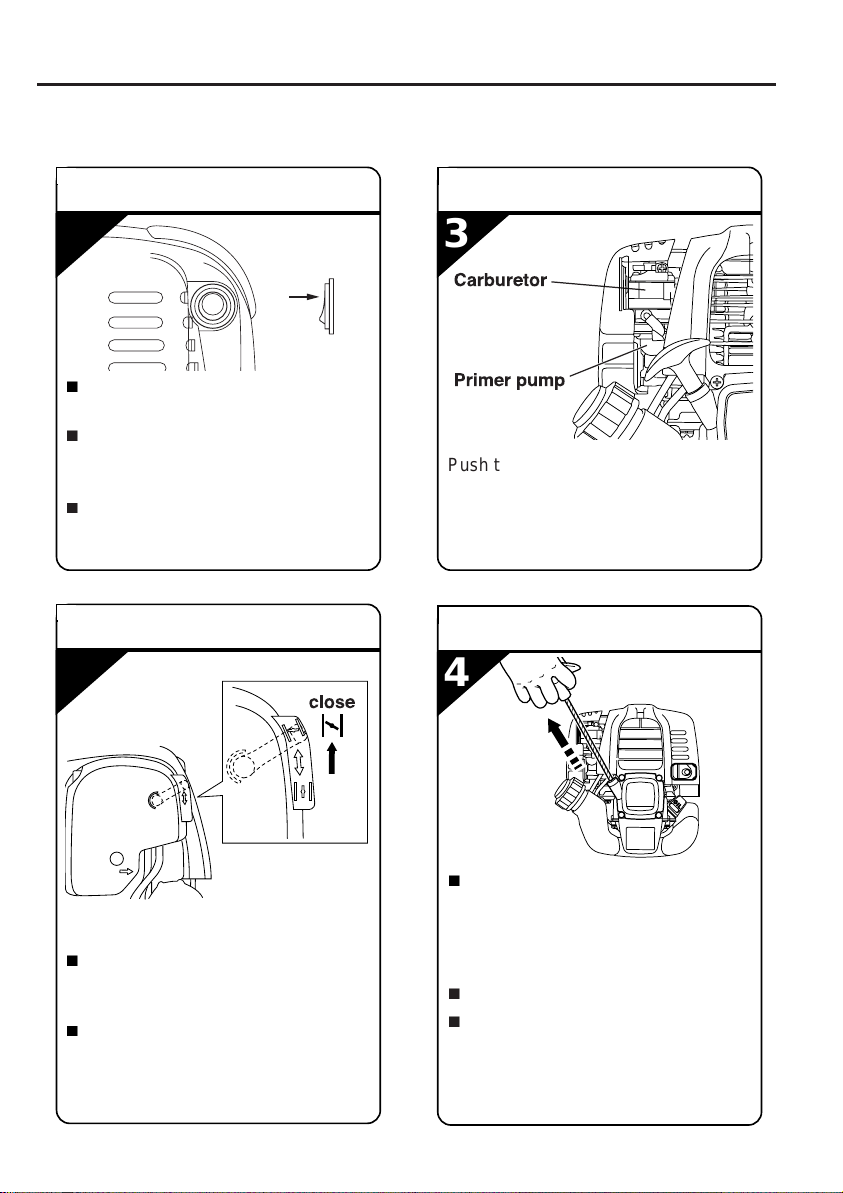

4. OPERATING YOUR ENGINE
- 7 -
ON
ON
OFF
Pull the starter handle slowly, until
resistance is felt.
This is the "compression" point.
Return the handle to its original
position and pull swiftly.
Do not pull out the rope all the way.
After starting the engine, allow the
starter handle to return to its origi-
nal position while still holding the
handle.
RECOIL STARTER
STARTING
1
Set the throttle lever to the idling
position.
If the stop switch is installed on the
engine.Set the stop switch to the
position "ON or I ".
If the stop switch is installed on a
machine side.Set the stop switch to
the position "ON or I ".
Close the choke lever.
If the engine is cold or the ambient
temperature is low, close the choke
lever fully.
If the engine is warm or the ambient
temperature is high, open the
choke lever half-way, or keep it
fully open.
STOP SWITCH
CHOKE LEVER
2
;;
;;;
;;;
4
3
Push the primer pump 7 to 10 times
to feed the fuel to the carburetor.
PRIMER PUMP
EH025/035取説米国向EU171702.5.1511:39AMページ7

- 8 -
STOPPING
OFF
ON
OFF
1
Set the throttle lever at the low
speed position and allow the engine
to run at low speed for 2 or 3
minutes before stopping.
If the stop switch is installed on the
engine.Set the stop switch to the
position "OFF or O ".
If the stop switch is installed on a
machine side.Set the stop switch to
the position "OFF or O ".
STOP SWITCH
Pull the starter handle slowly and
return the handle to its original posi-
tion when resistance is felt.
NOTE :
The above operation is necessary to
prevent outside moist air from intrud-
ing into the combustion chamber.
RECOIL STARTER
;;
;;;
;;;
2
After starting the engine, gradually
open choke by turning the choke
lever and finally keep it fully
opened.
Do not fully open the choke lever
immediately when the engine is
cold or the ambient temperature is
low, because the engine may stop.
CHOKE LEVER
5
Allow the engine to warm up with-
out load for a few minutes.
Gradually move the throttle lever
toward the high speed position
and set it at the required engine
speed.
NOTE :
If the engine is operated at upside
down, white smoke may be
exhausted from the muffler.
RUNNING
EH025/035取説米国向EU171702.5.1511:39AMページ8

5. EASY TROUBLESHOOTING
- 9 -
WHEN ENGINE DOES NOT
START:
Perform the following checks before
you take the engine to your Robin
dealer.
If you still have trouble after complet-
ing the checks, take the engine to
your nearest Robin dealer.

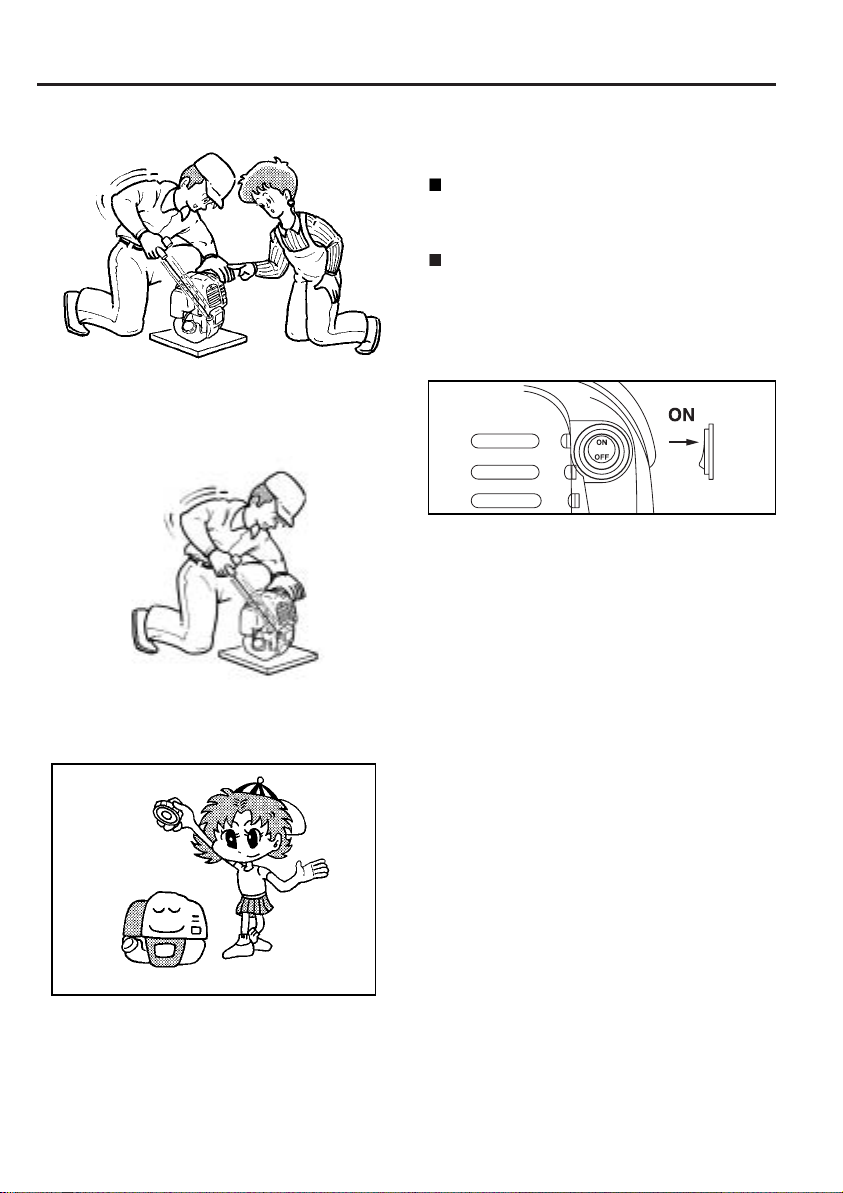

Is there enough compres-
sion?
1. Pull the starter handle slowly and
check if resistance is felt.
2. If little force is required to pull the
starter handle, check if the spark
plug is tightened firmly.
3. If the spark plug is loose, tighten it.
Is the spark plug wet with
gasoline?
1. Choke (close choke lever) and pull
the starter handle five or six times.
Remove the plug and check if its
electrode is wet. If the electrode is
wet, fuel is well supplied to your
engine.
2.When the electrode is dry, check
where the fuel stops.
(Check the fuel intake of the carbure-
tor and fuel strainer intake.)
3. In case the engine does not start
with well supplied fuel, try using
fresh fuel.
Is the engine switch set ON?
EH025/035取説米国向EU171702.5.1511:39AMページ9
