Robin America PKX301T User manual

PARTS
MANUAL
PKX301T
PUMP
Model
PUB-PP5880
Rev. 07/03

© Copyright 2003 Robin America, Inc.
940 Lively Blvd. • Wood Dale, IL 60191 • Phone: [phone] • Fax: [phone]
e-mail: [email protected] • www.robinamerica.com

PKX301T - 3 - 07-03
HOW TO USE THIS MANUAL
Robin engines are identified by MODEL, SPECIFICATION, and CODE NUMBER. For each
model there may be many different versions called specifications. Each specification will be
unique in some way. The difference may only be the paint color or it may have a different type
of PTO or some other significant difference.
In order the identify the correct service part number, it is important to confirm the specifica-
tion and code numbers for your engine. The specification and code number together are
know as the PRODUCT NUMBER.
All Robin 4 cycle engines have a Product Number label similar to the label illustrated below.
The Product Number Label has a 15 digit alphanumeric string that consists of the
SPECIFICATION (SPEC) number (11 digits) and the CODE number (4 digits). Please
note the illustration below:
X X X X
SPEC NO. (11 digits) CODE NO. (4 digits)
PRODUCT NO. (15 digits)
E X 2 7 0

PKX301T - 4 - 07-03
MANUAL LAYOUT

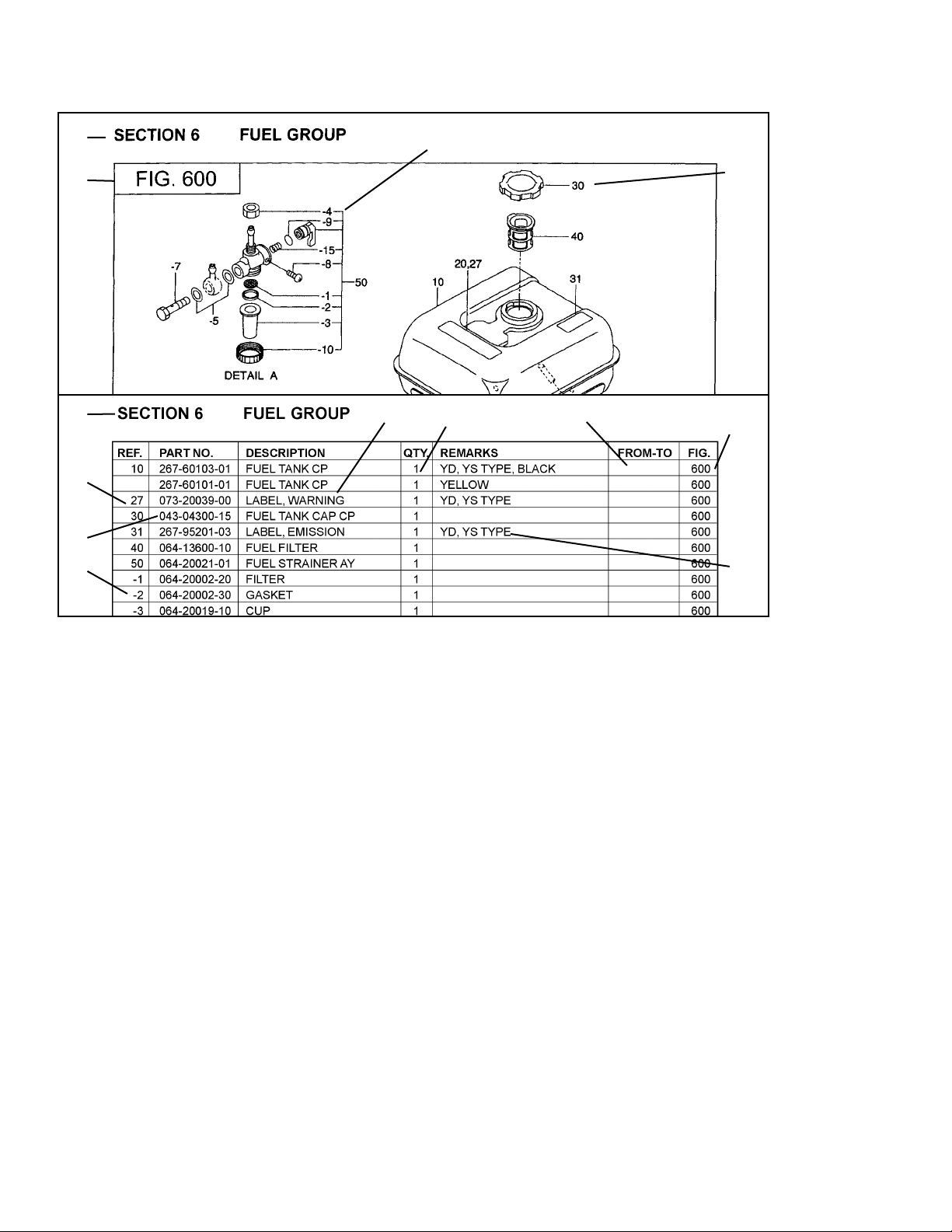

1. SECTION NAME Parts are broadly classified according to their functions.
Refer to the Group Index (table of contents) for respective section name.
2. FIG. No. The FIG. number indexes the reference and part numbers to the illustration. Figure numbers
that vary only in the tens place (i.e..: 700 and 710) are in a group of the same section
(i.e..:Electrical Device Group).
3. REF. No . The Reference number identifies the part illustration with the corresponding part number in the
part list.
4. SUBASSEMBLY SUBASSEMBLY parts of part assembly are listed below the assembly part. The subassembly
part reference number is indicated by the number led by "-" such as "-1", "-2".
5. PART NUMBER It is the number assigned for sales unit. Use the PART No. when making an order.
6. DESCRIPTION It is designation of the part.
7. QTY. Quantity of each part used for each product.
8. REMARKS This gives a distinctive feature and/or a supplementary comment for the type, the specification,
and the part concerned. It also shows part number(s) interchangeable for the part.
9. FROM-TO This section shows the CODE No. to indicate the history of progress in which improved parts
have been introduced in the product. The FROM-TO CODE No. helps to identify PART No.
being employed in the product concerned. See the examples below:
- The part is used in the product irrespective of CODE No.
2101- The part is used in the products with CODE No. of 2101 and after this number.
- 2100 The part is used in the products with CODE No. of 2100 and before this number.
1
23
4
16792
8
3
5
4

PKX301T - 5 - 07-03
GROUP INDEX
Group Name Page
PUMP GROUP ........................................................................................... 6
CRANKCASE GROUP ............................................................................... 8
CRANKSHAFT GROUP ........................................................................... 10
INTAKE and EXHAUST GROUP.............................................................. 12
GOVERNOR GROUP .............................................................................. 16
COOLING and STARTING GROUP......................................................... 18
FUEL, LUBRICANT GROUP.................................................................... 20
CARBURETOR GROUP .......................................................................... 22
ELECTRIC DEVICE GROUP .................................................................. 24
ACCESSORY GROUP............................................................................. 26
SYMBOL DESCRIPTION
AY ...........................ASSEMBLY
CP...........................COMPLETE
EX........................... EXPORT (from Japan)
FIG..........................FIGURE
FR........................... FRONT
" ..............................INCH
INCL. ......................INCLUDE
~L............................LITER
L= ...........................LENGTH (in. mm)
L.H. (LH)................. LEFT-HAND SIDE
MECH.....................MECHANICAL
NO (NON)............... NONE
OPT......................... OPTIONAL
O.S. ........................OVER SIZE
SYMBOL DESCRIPTION
P= ........................... PITCH (in mm)
P.T.O. (PTO) ...........POWER TAKE OFF
REF......................... REFERENCE
R.H. (RH)................ RIGHT HAND SIDE
RR. .........................REAR
STD. .......................STANDARD
SW.......................... SWITCH
T= ...........................THICKNESS (in mm)
UN ..........................UNIT
U.S..........................UNDER SIZE
~V ........................... VOLTAGE
~W .......................... WATT
W/ ...........................WITH
W/O ........................WITHOUT
INDEX OF DESCRIPTION SYMBOLS

PKX301T - 6 - 07-03
SECTION 1 PUMP GROUP
FIG. 100

PKX301T - 7 - 07-03
SECTION 1 PUMP GROUP
REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG.
110 470-01154-46 CASING 1 100
113 470-01155-78 CASING PACKING 1 100
115 470-01156-76 ORING 1 100
120 470-01161-64 INNER CASING 1 100
130 470-01155-58 IMPELLER 1 100
135 470-01160-86 WEAR PLATE 1 100
140 470-01156-78 MECHANICAL SEAL 1 100
145 470-01100-81 ADJUSTING WASHER 3 100
150 470-01155-79 FRONT COVER PACKING 1 100
170 470-01180-79 PLUG AY 1 100
172 471-00000-09 O RING 1 100
190 471-00000-74 SOCKET BOLT 2 100
191 471-00000-02 SEAL WASHER 2 100
193 471-00000-75 BOLT AND WASHER 3 100
194 470-01161-73 WASHER 3 100
210 470-01158-82 FRONT COVER PACKING 1 100
260 470-01180-78 PLUG AY 1 100
262 471-00000-09 O RING 1 100
270 470-01155-80 COVER BOLT 4 100
272 471-00000-73 BOLT AND WASHER 4 100
276 470-01155-90 KNOB 4 100
280 470-01165-17 SOCKET BOLT 4 100
285 470-01164-93 WASHER 4 100
310 470-01113-60 SUCTION FLANGE 1 100
314 471-00000-50 BOLT AND WASHER 6 100
320 470-01156-92 CHECK VALVE 1 100
410 470-01155-47 DELIVERY BODY 1 100
414 471-00000-34 BOLT AND WSHER 4 100
420 470-01155-48 HEAD PACKING 1 100
430 470-01158-37 DELLIVERY FLANGE 1 100
435 471-00000-34 BOLT AND WASHER 4 100
440 470-01105-84 PACKING, DELIVERY 1 100
460 470-01184-50 PLUG AY 1 100
462 471-00000-20 O RING 1 100
510 470-01109-78 STRAINER 1 100
520 471-00000-39 HOSE BAND 3 100
610 470-01177-17 FRAME 1 100
630 470-01157-78 TOOL 1 100
632 471-00000-79 WING BOLT 1 100
370 470-01161-72 CUSHION RUBBER 1 100
371 470-01161-72 CUSHION RUBBER 2 100
380 471-00000-80 BOLT AND WASHER 2 100
381 471-00000-73 BOLT AND WASHER 4 100
390 471-00000-38 NUT 2 100
391 471-00000-76 NUT 4 100
910 471-01165-80 LABEL, PUMP NAME 1 100

PKX301T - 8 - 07-03
SECTION 2 CRANKCASE GROUP

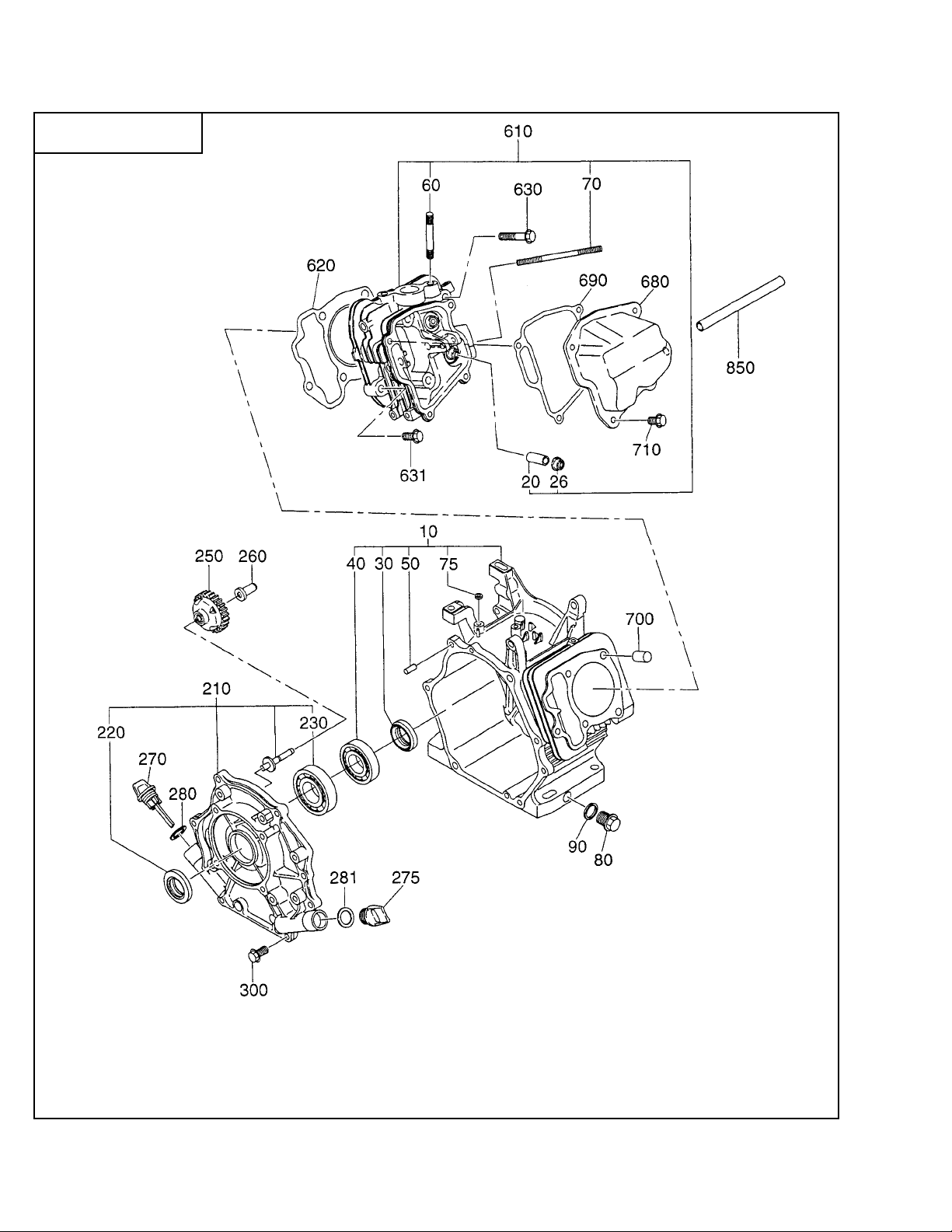

FIG. 200

PKX301T - 9 - 07-03
SECTION 2 CRANKCASE GROUP
REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG.
10 279-10102-21 CRANKCASE CP 1 w/ Oil Sensor 200
20 237-14202-03 VALVE GUIDE 2 200
26 277-16010-01 STEM SEAL 1 200
30 044-03001-60 OIL SEAL 1 200
40 060-03003-40 BALL BEARING 1 200
50 277-15011-03 PIPE KNOCK 2 200
60 010-50802-50 STUD 2 200
70 010-50604-10 STUD 2 200
75 044-00600-20 OIL SEAL 1 200
80 040-11400-30 PLUG 2 200
90 021-11400-20 GASKET 2 200
210 279-11001-11 MAIN BEARING COVER CP 1 200
220 044-03001-60 OIL SEAL 1 200
230 060-03000-20 BALL BEARING 1 200
250 277-45004-11 GOVERNOR GEAR CP 1 200
260 263-41901-03 GOVERNOR SLEEVE 1 200
270 279-63601-03 OIL GAUGE 1 200
275 279-65001-03 FILLER PLUG 1 200
280 021-32000-50 GASKET 1 200
281 021-32000-50 GASKET 1 200
300 001-04083-50 FLANGE BOLT 7 200
610 279-13001-01 CYLINDER HEAD CP 1 200
620 279-15001-13 GASKET, head 1 200
630 011-00802-40 FLANGE BOLT 4 200
631 001-04083-50 FLANGE BOLT 1 200
680 277-15501-01 ROCKER COVER CP 1 200
690 277-16001-03 GASKET, rocker cover 1 200
700 277-15011-03 PIPE KNOCK 2 200
710 011-00600-20 FLANGE BOLT 4 200
850 085-10800-00 RUBBER PIPE 1 200
960 279-99001-07 GASKET SET 1 200
EX0-20000-01 GASKET IN A TUBE
Gasket Sets include the following:
Fig. 200 items 90, 280, 620 and 690
Fig. 400 items 340 and 550

PKX301T - 10 - 07-03
SECTION 3 CRANKSHAFT GROUP

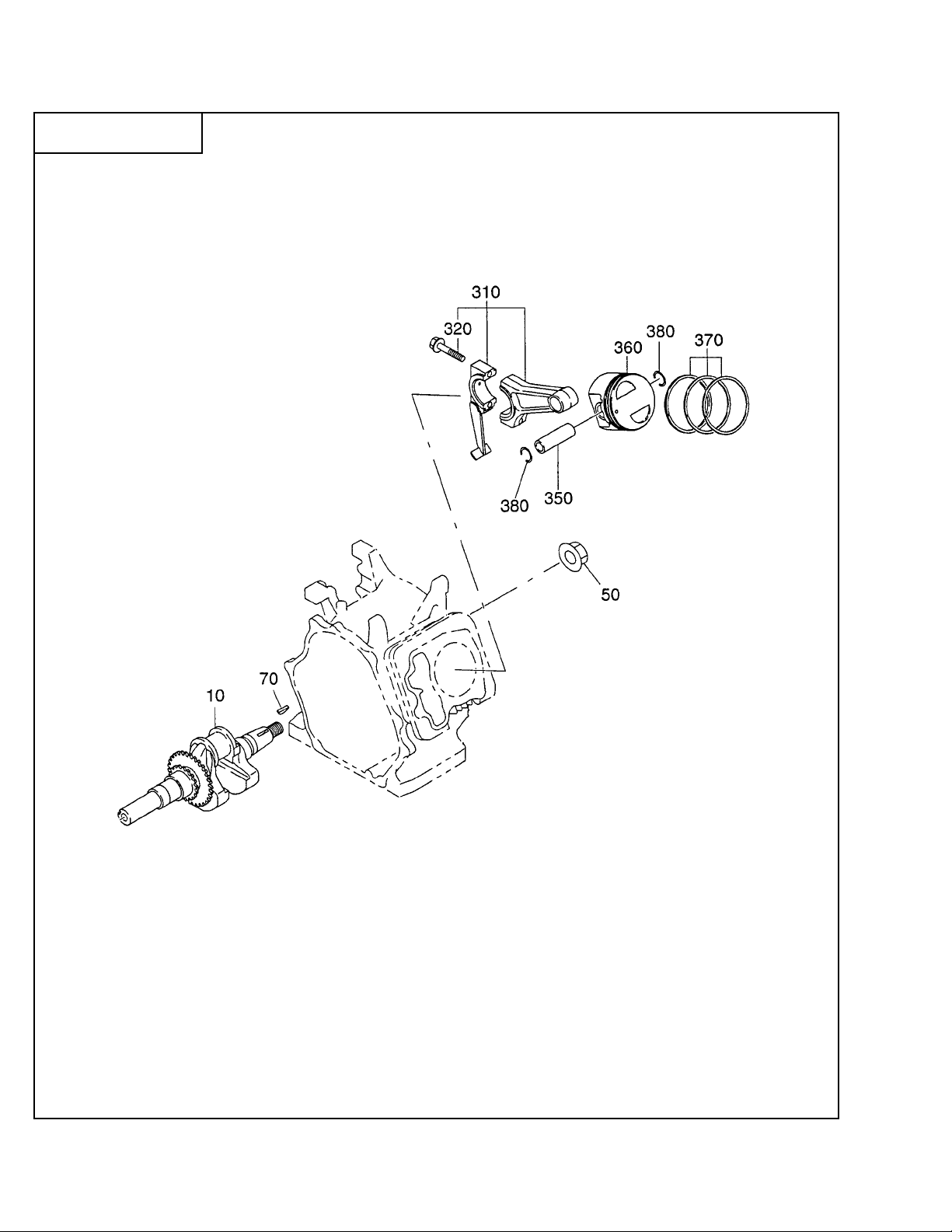

FIG. 300

PKX301T - 11 - 07-03
SECTION 3 CRANKSHAFT GROUP
REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG.
10 279-20301-11 CRANKSHAFT CP 1 300
50 018-01800-10 FLANGE NUT 1 300
70 032-30300-10 WOODRUFF KEY 1 300
310 279-22501-20 CONNECTING ROD AY 1 300
320 279-23001-03 CONNECTING ROD BOLT 2 300
350 279-23301-03 PISTON PIN 1 300
360 279-23401-03 PISTON 1 300
370 279-23511-07 PISTON RING SET 1 300
380 056-51800-10 CLIP 2 300

PKX301T - 12 - 07-03
SECTION 4 INTAKE and EXHAUST GROUP
FIG. 400

PKX301T - 13 - 07-03
SECTION 4 INTAKE and EXHAUST GROUP
REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG.
10 279-31601-01 CAMSHAFT CP 1 400
25 277-35101-03 PIN, camshaft 1 400
27 024-00600-10 O RING 1 400
34 277-38601-03 PIN, spring 1 400
35 279-36401-03 RELEASE LEVER 1 400
37 277-36501-03 CLIP 1 400
38 277-38701-03 RETURN SPRING 1 400
60 279-33601-03 VALVE SPRING 2 400
70 132-09KA0-40 RETAINER VALVE SPRING 2 400
80 279-33401-13 INTAKE VALVE 1 400
90 279-33501-13 EXHAUST VALVE 1 400
95 132-10KA0-31 COLLET VALVE 4 400
150 279-35601-01 TIMING CHAIN CP 1 400
160 277-36911-03 TENTIONER 1 400
163 277-37101-03 SPRING, tentioner 1 400
166 277-36902-03 PIN, tentioner 1 400
170 277-36913-13 CHAIN GUIDE 1 400
200 277-35001-03 PIN, rocker 1 400
220 277-36101-00 ROCKER ARM AY, intake 1 400
225 277-36102-00 ROCKER ARM AY, exhaust 1 400
230 014-90500-10 ADJUST SCREW 1 400
231 014-90500-10 ADJUST SCREW 1 400
240 017-00500-20 NUT 1 400
241 017-00500-20 NUT 1 400
290 011-00600-20 FLANGE BOLT 1 400
310 279-30101-11 MUFFLER CP 1 400
320 279-34201-11 MUFFLER COVER CP 1 400
340 277-35201-03 GASKET, muffler 1 400
350 980-20082-80 FLANGE NUT 2 400
360 015-20600-90 TAPPING BOLT 2 400
361 011-00600-10 FLANGE BOLT 1 400
365 011-00801-50 FLANGE BOLT 1 400
440 277-37001-03 DEFLECTOR 1 400
445 015-00400-60 TAPPING SCREW 2 400
510 279-32612-00 AIR CLEANER AY 1 400
540 279-32901-11 INSULATOR CP 1 400
550 279-35901-13 GASKET, insulator 1 400
570 002-38060-00 FLANGE NUT 2 400
580 011-00600-50 FLANGE BOLT 1 400

PKX301T - 14 - 07-03
SECTION 4 INTAKE and EXHAUST GROUP
FIG. 410

PKX301T - 15 - 07-03
SECTION 4 INTAKE and EXHAUST GROUP
REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG.
510 279-32712-00 AIR CLEANER AY 1 Dual 410
-200 279-32631-08 CASE 1 Dual 410
-210 279-32720-08 PACKING 1 Dual 410
-220 279-32650-08 GASKET 1 410
-250 279-32640-08 COVER 1 410
-260 279-32730-08 LABEL 1 410
-270 279-32740-08 NUT 1 Dual 410
520 279-32607-07 ELEMENT 1 Dual 410

PKX301T - 16 - 07-03
SECTION 5 GOVERNOR GROUP
FIG. 500

PKX301T - 17 - 07-03
SECTION 5 GOVERNOR GROUP
REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG.
10 279-42301-13 GOVERNOR LEVER 1 500
20 277-42201-13 GOVERNOR SHAFT 1 500
30 279-42701-01 GOVERNOR ROD CP 1 500
40 277-42801-13 ROD SPRING 1 500
50 003-13050-00 CLIP 1 500
60 001-14062-50 BOLT and WASHER AY 1 500
70 018-60600-20 NUT 1 500
80 279-42502-03 GOVERNOR SPRING 1 500
310 279-43302-01 SPEED CONTROL LEVER 1 500
340 277-43501-03 STOP PLATE 1 500
350 020-00601-70 WASHER 1 500
355 021-70600-70 FRICTION WASHER 1 500
360 004-31064-00 SCREW 1 500
365 237-45004-23 SPRING, adjust 1 500
370 002-17060-00 NUT 1 500
395 277-43901-03 CLAMP 1 500
396 004-36051-60 SCREW and WASHER AY 1 500
435 277-46001-01 SPEED CONTROL BRKT CP 1 500
440 004-31040-80 SCREW 1 500
450 002-35060-00 SELF LOCK NUT 1 500
480 267-45101-03 RETURN SPRING 1 500
485 011-00600-20 FLANGE BOLT 2 500

PKX301T - 18 - 07-03
SECTION 6 COOLING and STARTING GROUP
FIG. 600

PKX301T - 19 - 07-03
SECTION 6 COOLING and STARTING GROUP
REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG.
10 279-51201-01 BLOWER HOUSING 1 Yellow 600
20 073-20051-40 LABEL, trademark 1 600
40 011-00600-20 FLANGE BOLT 4 600
60 279-52711-11 BAFFLE 1 CP, case 1 600
61 279-52702-03 BAFFLE 2, head 1 600
80 001-65081-20 BOLT 1 600
81 011-00600-20 FLANGE BOLT 1 600

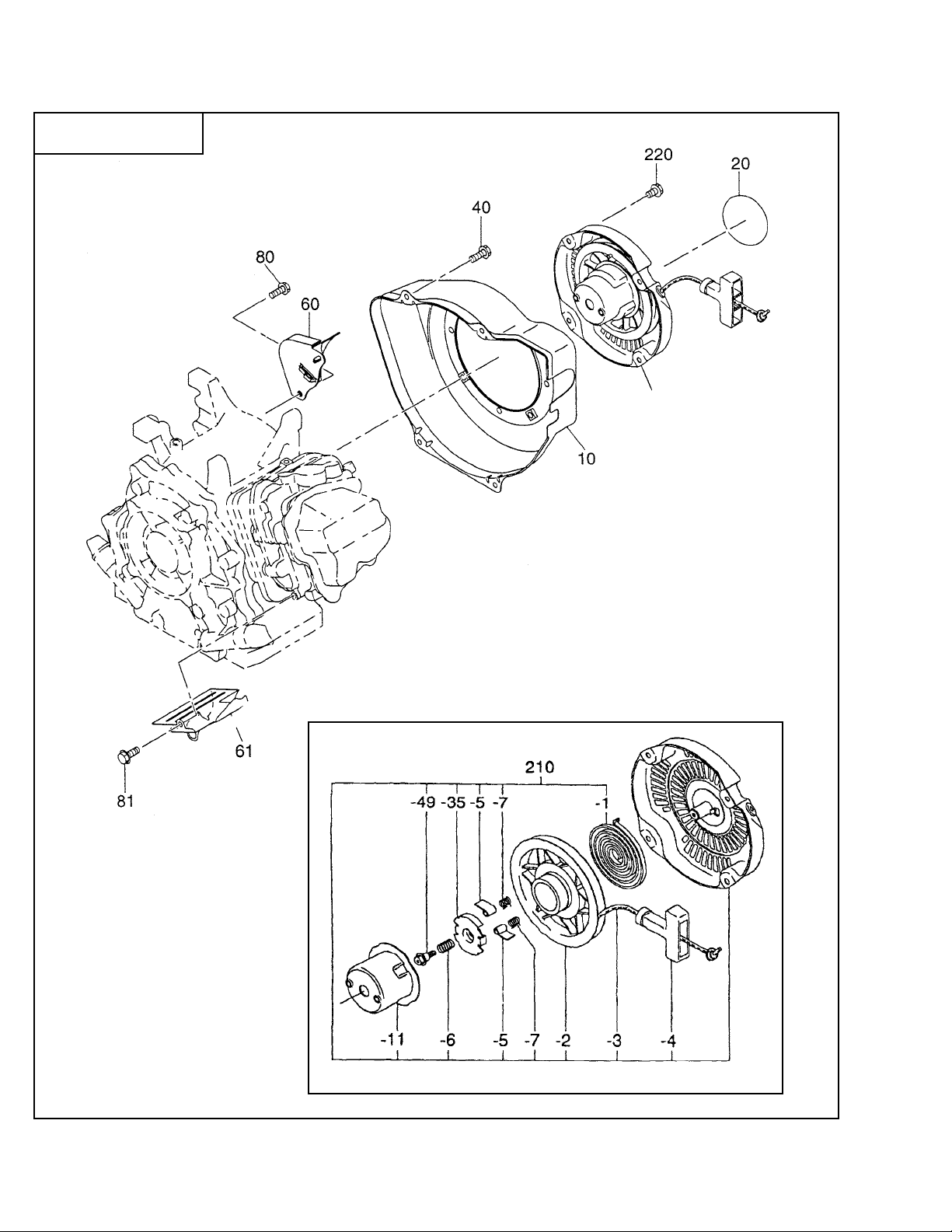

210 279-50202-00 RECOIL STARTER AY 1 600
-1 226-50716-08 SPIRAL SPRING 1 600
-2 279-50120-08 REEL 1 600
-3 279-5010-08 STARTER ROPE 1 600
-4 226-50701-08 STARTER KNOB 1 600
-5 279-50125-08 RATCHET 2 600
-6 226-50731-08 FRICTION SPRING 1 600
-7 226-50752-08 RATCHET SPRING 2 600
-11 279-50145-08 STARTER PULLEY 1 600
-35 226-50741-08 FRICTION PLATE 1 600
-49 226-50753-08 CENTER SCREW 1 600
220 011-00600-10 FLANGE BOLT 4 600

PKX301T - 20 - 07-03
SECTION 7 FUEL, LUBRICATION GROUP

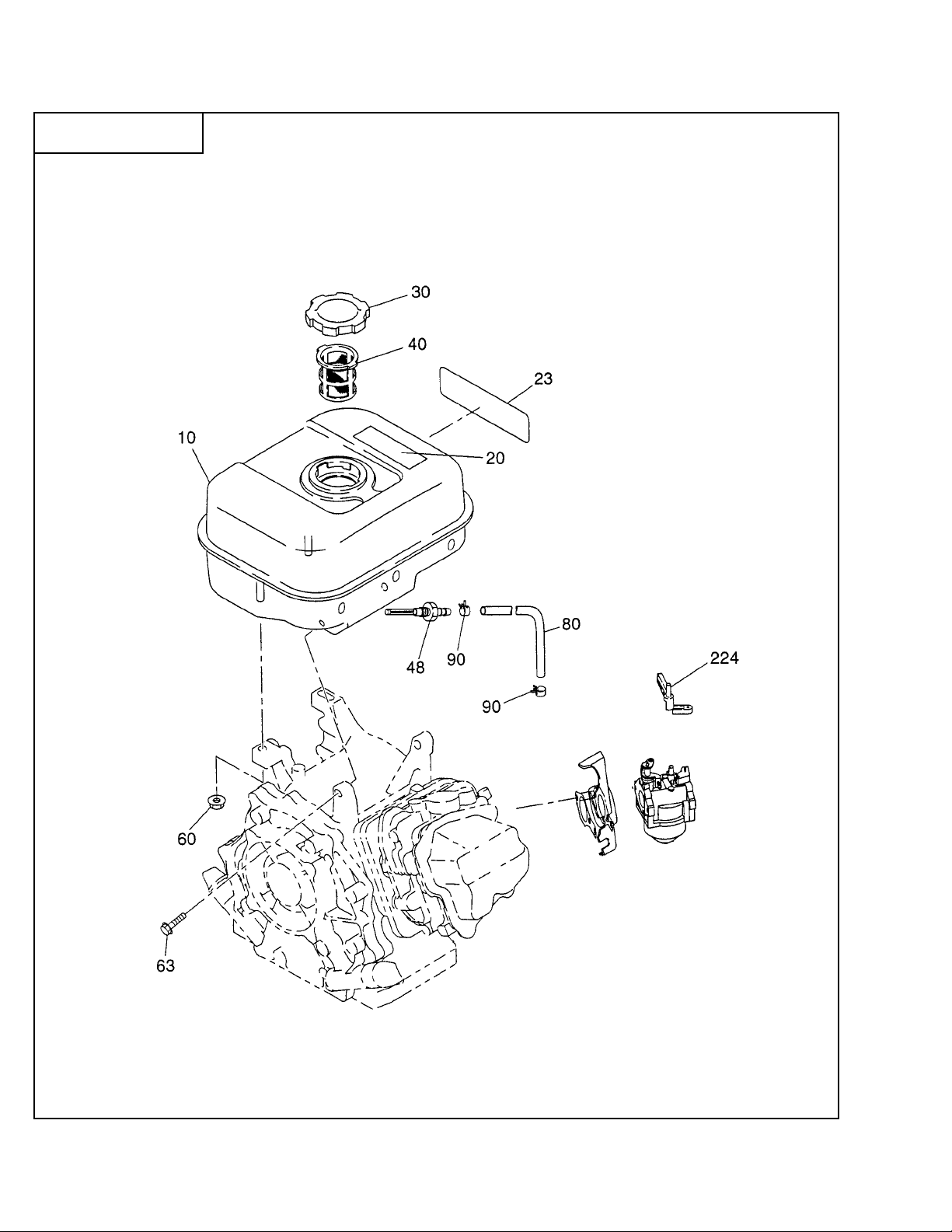

FIG. 700
50
