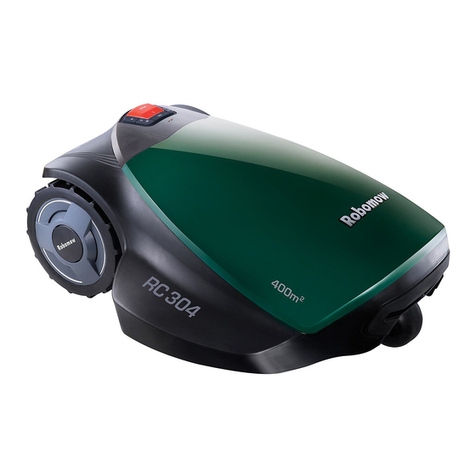

Robomow RC series User manual

Follow
me!
Watch
the
Video
Quick start guide
For RC / MC Models
On/Off
Button
Wire
Indicator

2
3
4
5
51
1
1
2 3 4
5
Left turns Right turns
20cm
90°
45°
Wire Setup Chapter numbers mentioned in this Guide refer to the Operating & Safety Manual
Carefully read and review all safety instructions,
warnings and cautions contained in the
Operating & Safety Manual.
Main Zone
Main Zone
Sub-Zone
1
Separated Zone
A
What Does Your Lawn Look Like?
Chap. 3.1
Chap. 3.1.1 Chap. 3.1.2, 4.3.3 Chap. 3.1.3
Base Station Location
Chap. 3.2
Wire Direction & Distance
Chap. 4.2.1
Corners
Chap. 4.2.2
Avoid slopes
Chap. 4.2.2
20cm from edge
28cm from wall
Obstacles Inside Lawn
Chap. 3.4.1
Hard obstacle
Chap. 4.3.1
Soft obstacle
Chap. 4.3.2
Both wires under
same peg
Leave 30cm
at starting point
Max 15m
Min 3m
Anti
Clockwise

6 7 8
910
11
12 13 14
15
16 1817
Base Station Installation
Power Box Installation
Finish
Chap. 4.5
Connect the wire
Connect the Plot Connector
Chap. 4.6
Insert 2 Pegs
Chap. 4.6
One-Time Setup
10
9
11
Mount
Bracket
Connect
15cm extension cable
Chap. 4.6 Chap. 4.7
Chap. 4.7
Turn Safety Switch ON Operating Panel
Chap. 5.2.1
Choose Measurements Units
Chap. 5.2.2
Scroll Choose / Confirm Scroll
Back / Cancel
Meter
Celsius
24 Hours
Foot
Fahrenheit
12 hours (AM / PM)
Set Day & Time
Chap. 5.2.3
Set Lawn Size
Chap. 5.2.4
Peg Base
Chap. 5.2.5
Press OK
Test Base Station Position
Chap. 5.2.5
Press OK
Possible Error
Messages:
Confirm steps 7,10,11
Swap wires in
plot connector
Reposition
Base Station
Press OK

* 0-5 Min.= CHF 0.08/Min. ab/à partir de 6 Min.= CHF
1.40/Min. beim schweizerischen Festnetz. Pour
le téléphone fixe Suisse Mobilfunkkosten können
abweichen/Les coûts téléphoniques mobiles
peuvent dévier.
** Max €0.35 p/m.
For all MS models:
AT. 01/ 278 51 00–180
BE. 070.660.124**
CH. 0900.888.101*
CZ. 800.909.898
DE. 02421/ 693 76-80
DK. 70 25 23 03
FI. 093 157 9150
FR. 03.68780407
IT. 840.22.22.00
LU. 0900.4300.4090**
NL. 0900.762.6669**
NO. 32 82 99 40
PL. +48.58.770.94.45
SE. 08 5250 8480
UK. 014835 16633
For all RS models:
AT. 01/ 278 51 00-180
BE. 070.660.124**
CH. 0900.888.101*
CZ. 800.909.898
DE. 02421/ 693 76-80
DK. 70 25 23 03
FI. 093 157 9150
FR. 03.68780407
IE. 0862 550801
IT. 840.22.22.00
LU. 0900.4300.4090**
NL. 0900.762.6669**
NO. 4000.7719
PL. [phone]
RU. +7(495)544.24.14
SE. 0771 895 895
UK. 01522 283007
19 20
21
Mowing with Edge /
Left arrow
Settings
Stop (during operation) / Back (while in menu)
OK to choose / approve selection
Mowing without Edge /
Right arrow
GO to Base
(home)
Test Wire Position
Chap. 5.2.6
Adjust wire
Possible Error Messages: Add Pegs
Chap. 5.2.7
Press OK
Reference
Set Cutting Height
Chap. 5.1 Sharp Blade
Cutting Height Indicator
On/Off
Button
Wire
Indicator
Docking
Indicator
Operating
Indicator
DOC7002C
Safety Switch off
