Robomow RS635 Pro S User manual

Robotic Mower
RS635 Pro S, RS625 Pro, RS615 Pro, RS615u
EN
User Guide
See how
to install
Original Operating Instructions

1/Learn
Your Lawn
I’m
Robomow,
nice to
meet you.
Your safety is important to us -
Please review this Manual carefully for all safety warnings and
take extra caution to keep both children and pets off the lawn
when Robomow is in operation.

1
Safety first..................... 2
Installation................... 13
Quick reference.............. 46

2
3
Safety first
IMPORTANT!
READ CAREFULLY BEFORE USE
KEEP FOR FUTURE REFERENCE
Warning decal definitions
Safety warnings & precautions
Safety features
Do not allow children to use or operate the mower.
Children must be supervised at all times.

2
3

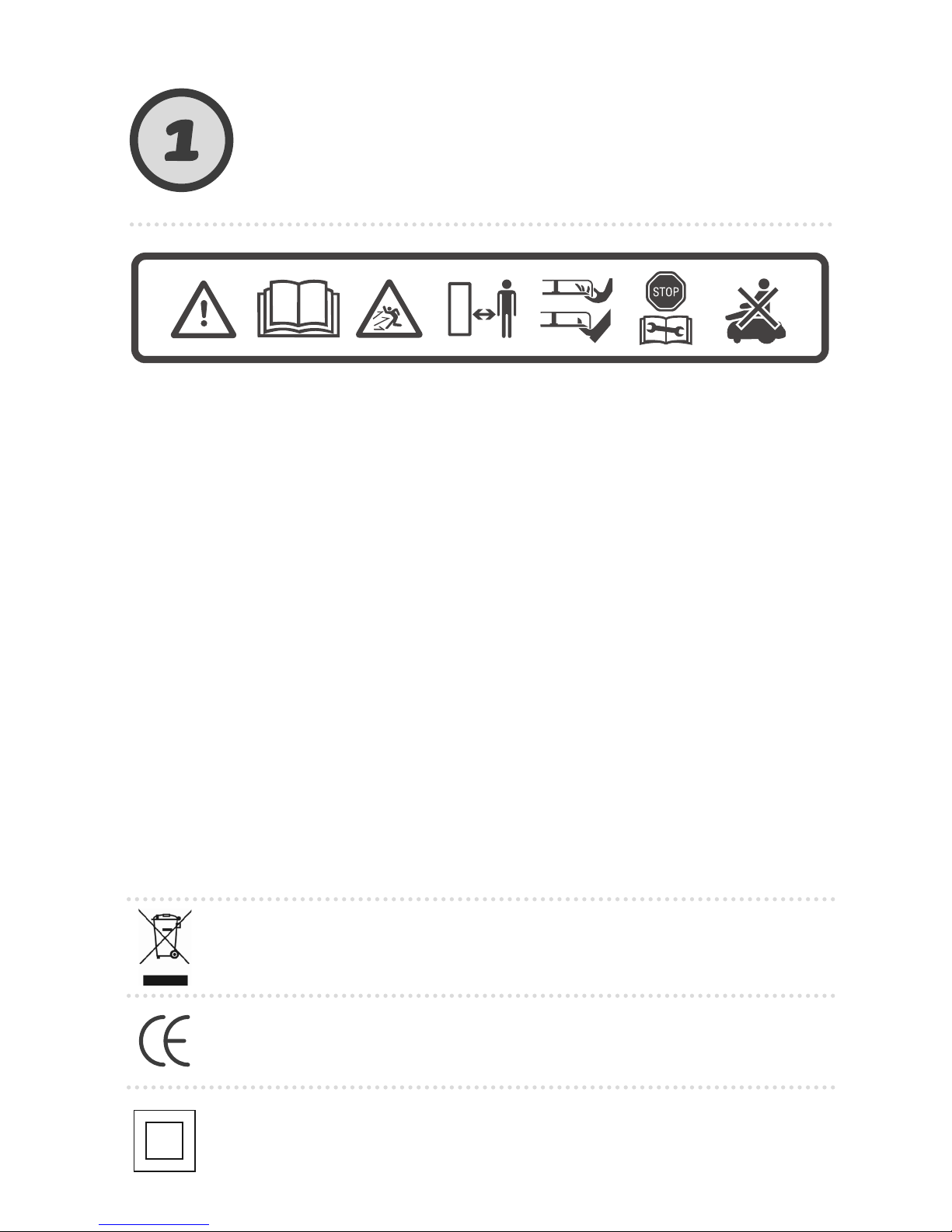

Warning
decal definitions
1 2 3 4 5 6 7
This symbol indicates that the mains electricity is double
insulated
Do not dispose of the mower or any of its parts as unsorted
municipal waste. They should be collected separately.
This product conforms to applicable EU directives.
1.This is a dangerous power tool. Exercise care when
operating and follow all safety instructions and warnings.
2.Read the Safety Manual carefully before operating your
mower.
3.Be careful of thrown objects during operation.
4.Keep a safe distance from the mower while it is operating.
Keep people, especially children, pets and bystanders
away from the area where the mower is operating.
5.CAUTION – Do not touch rotating blade. Keep hands and
feet away and do not lift the mower from the ground.
6.Activate the disabling device before working on or lifting
the mower (see Section 3.b).
7.Do not ride the mower.

4
5
A. Before you begin
1. Read this Safety Manual carefully before operating
the mower to become familiar with its controls
and proper use.
2. Never allow children, persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge or people unfamiliar
with these instructions to use the machine. Local
regulations may restrict the age of the operator.
3. You are responsible for accidents or for harm to
other people or their property.
4. It is your responsibility to inform your neighbors
about the risks, and that it is forbidden to enter
your lawn while the mower is operating.
5. If your lawn is open to the street and/or your
neighbors,
you must be present during the mower’s
operation to prevent others from accessing your
lawn. Alternatively, you must protect / fence your
lawn so that others do not access the mower during
operation.
B. Preparations
1. Ensure the correct installation of the Perimeter
Wire, as instructed.
2. Inspect periodically the area where the mower is
used and remove all stones, sticks, cones, wires
and other foreign objects.
3. Periodically visually inspect to verify that the
blade is not worn or damaged. Replace a worn or
damaged blade (Part No. MRK6101A).
Safety warnings &
precautions

4
5
C. Operation
IMPORTANT SAFETY WARNING!
Do not leave the mower to operate unattended if you
know that there are pets, children or people in the
vicinity. Never mow while people (especially children)
or pets are nearby.
1. Do not operate the mower if any safety feature or any part
is damaged, worn or inoperable.
2. Keep hands and feet away from the cutting blade and
other moving parts.
3. Always switch off the Safety Switch before lifting it or
planning to operate any adjustments.
4. Never pick up or carry the mower while the motors are running.
5. Do not touch the blade before it has completely stopped rotating.
6. Do not use the mower for any purpose other than cutting lawn.
7. Keep all guards, shields, safety devices, and sensors in
place. Repair or replace damaged parts, including decals.
8. Set the weekly program at times when there are no people
on the grass.
9. Do not connect a damaged power cord to the supply, or
touch a damaged cord before it is disconnected from the
supply as it can lead to contact with live parts.
10. Keep the extension power cord away from the blade to
prevent the mower from damaging it. A damaged power
cord can lead to contact with live parts.
11. If the power cord becomes damaged or entangled during
use, detach it from the mains by pulling the plug from the socket.
12. In the event of accident or breakdown whilst the mower is
operating, immediately press the red STOP button.

6
7
IMPORTANT! It is recommended to keep the
original packaging for shipping purposes.
Long distances:
When transporting your mower over long distances,
switch off the Safety Switch.
D. Transportation
Within the working area:
1. Press the STOP button to
stop the mower.
2. Use the Remote Control.
(available as an accessory
or via the mobile App) to
drive it from one place to
another.
3. In case of different ground
height level, switch off the
Safety Switch, and carry
the mower by its carrying
handle (lift the STOP button
for that).

6
7
E. Using the remote control (manual mowing)
1. Mow only in daylight or in good artificial light, and avoid
operating on wet grass.
2. Do not operate the mower barefoot or wearing open
sandals. Always wear substantial footwear and long
trousers; always make sure of your footing on slopes.
3. Use extreme caution when reversing the direction of the
mower towards you.
4. Always switch on the motor according to the instructions
while standing away from the blade.
5. Do not mow manually in slopes greater than 15 degrees
or where a firm footing is not possible.
F. Batteries
1. Do not open or damage the battery pack.
2. The Battery Pack contains electrolytes. In case of an
electrolyte leakage from the Battery Pack, the following
actions should be taken:
• Skin contact: Wash the contact areas off immediately
with water and soap.
• Eye contact: Immediately flush the eyes with plenty of
clean water for at least 15 minutes, without rubbing.
• Get medical assistance.
3. Ensure that the battery is charged using the correct
charger recommended by the manufacturer. Incorrect use
may result in electric shock, overheating or leakage of
corrosive liquid from the battery.

8
9
G. Maintenance and special instructions
1. Always switch off the Safety Switch before clearing
blockage/checking/cleaning/working on the mower,
or after striking a foreign object to inspect the
machine for damage. Never attempt to service or
adjust the mower while it is in operation.
2. In case of abnormal vibrations, stop the mower,
switch off the Safety Switch and check for any
damage of the blade. Replace a worn or damaged
blade (Part No. MRK6101A) to preserve balance. If
the vibration continues, call for service.
3. Use heavy gloves when inspecting or servicing the blade.
4. Do not perform maintenance barefoot or wearing
open sandals. Always wear suitable work shoes
and long trousers.
5. Replace worn or damaged parts for your safety.
6. Use only original equipment and accessories. It is not
permitted to modify the original design of the mower.
All modifications are made at your own risk.
7. Ensure that only replacement cutting means of
the right type (Part No. MRK6101A) are used.
8. Maintenance/servicing/cleaning of the mower should
be according to manufacturer’s instructions.
9. Keep all nuts, bolts and screws tight to be sure
the machine is in safe working condition.
WARNING!
When there is a risk of a lightning storm, disconnect
the Perimeter Wire from the Base Station /Perimeter
Switch and the Power Supply 230 V/120 V plug from
the power outlet.

8
9
H. Product end of use
1. The mower and its accessories should be collected
separately at the end of their life to prevent waste electrical
and electronic equipment from ending up in landfill sites,
and to protect and improve the quality of the environment.
2. Do not dispose of the mower or any other of its parts
(including the Power Supply and Base Station) as unsorted
municipal waste - they should be collected separately.
3. Ask your local distributor/dealer about return and
collection systems availability.
4. Do not dispose of the battery pack in a fire, and do not
place used batteries in your household trash.
5. The battery must be collected, recycled, or disposed of in
an environmentally sound manner.

10
11
WARNING!
Your mower is equipped with numerous built-in
safety features. However, the mower is a hazardous
device with a sharp blade, which can cause major
injury to anyone who comes in contact with it.
Therefore, it is absolutely forbidden to be on the
lawn while the mower is working. Alternatively,
halt the mower’s operation when people (especially
children) or pets are to stay or play on the lawn.
A. Child Lock
The Child Lock prevents unintended operation of
the mower by an accidental press of one of the
buttons. Only pressing two buttons in the right
order will initiate the operation. It is required to
activate the Child Lock feature if children under
age 6 may come in contact with the mower.
B. Anti-Theft/Disabling Device
The Anti-Theft/Disabling Device system function
will prevent anyone from using or driving the
mower unless they have a valid code to enter. You
will be prompted to enter a four digit code of your
choice to use as your personal security code. It is
highly recommended to activate this feature to
prevent operation of the mower by children or
people who are unfamiliar with the mower or not
allowed to use it.
Safety
features

10
11
C. Lift Sensor
If the mower is raised from the ground during the blade’s
operation, the blade will stop rotating immediately.
D. Tilt Sensor
If the mower is tilted up towards a vertical position, the
blade will stop immediately.
E. Obstruction Sensor
Your mower detects interfering obstacles in its way during
operation. When the mower collides with an obstacle, it
will stop the rotation of the blade immediately, will stop
movement in that direction and reverse itself away from
the obstacle.
F. Emergency Stop Button
Pressing the STOP button at any time during operation will
stop the mower and the blade immediately.
G. Safety Switch
Switching off the Safety Switch will prevent any operation
of the mower. It is required to switch it off before lifting the
mower and before any maintenance is done.
H. Base Station/Perimeter Switch and
Perimeter Wire
The mower cannot operate without a Perimeter Wire
installed and activated through the Base Station/Perimeter
Switch. In the event the Perimeter Wire signal is turned
off, the mower will stop operating.

12
PB
Let’s get
started.
Can’t wait
to mow your
lawn.

PB
13
Welcome
to a friendly home
Congratulations on on your purchase! You are just a few
steps away from meeting your best team player. Very soon
you will come to count on your new friend to do a perfect job.
It will independently depart from its base on predetermined
days and times, mow your lawn and return to base for
charging.
A preinstalled perimeter wire sets the boundaries (a “virtual
wall”) for your mower. It will be laid around the edges of your
lawn and objects that you want to protect.
The mower moves randomly within its working area, as

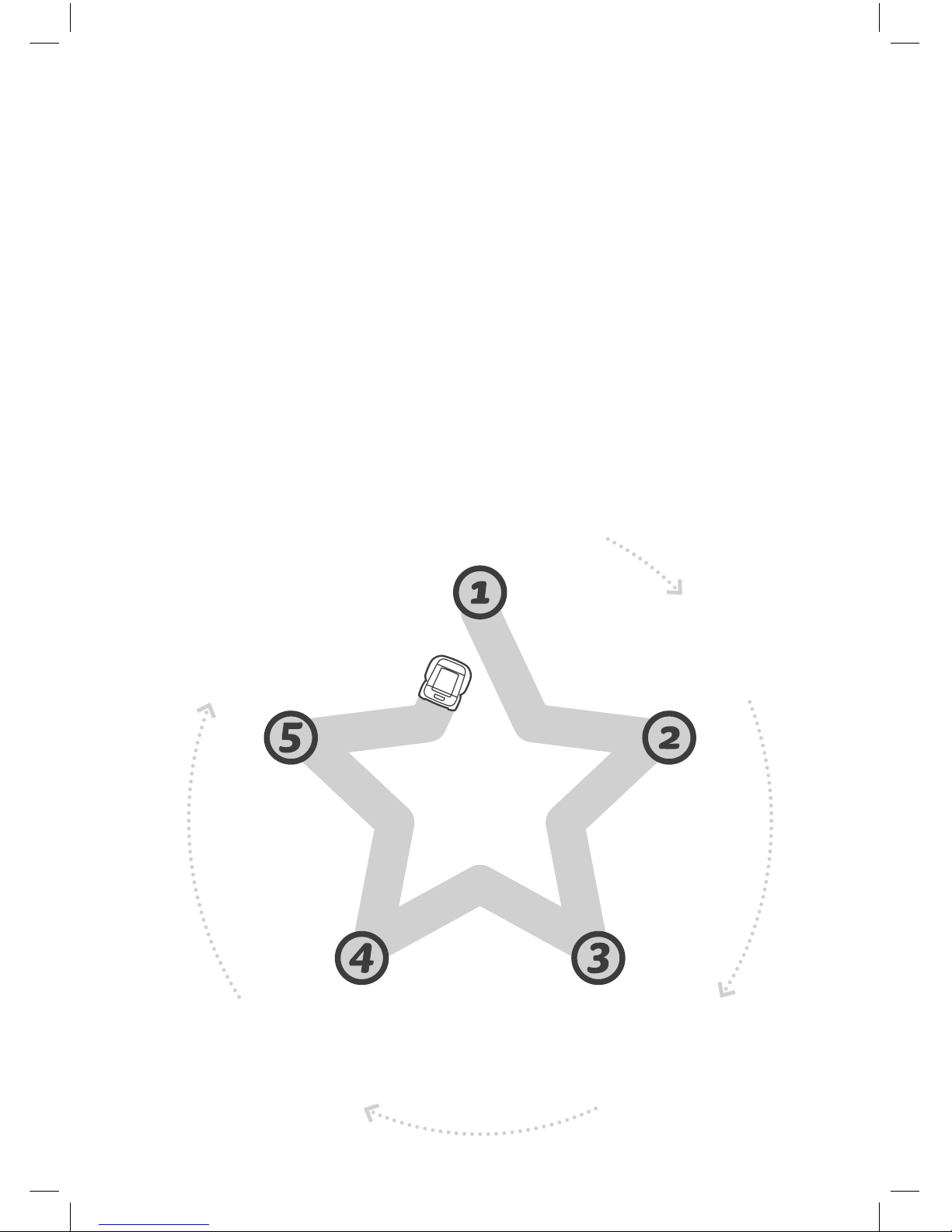

defined by the perimeter wire. This kind of random movement
provides the perfect cut and ensures complete coverage of
your lawn.

14
15
In addition, it follows the perimeter wire, when it mows the
edges of your lawn to give it a perfect finish.
Good-looking lawns are achieved by consistent mowing,
which is exactly what a robotic mower provides.
After following the clear installation instructions, you will be
ready to enjoy your free time, while your new friend looks
after your lawn.

14
15
So where are we headed?
Correct installation of your mower will ensure maximum
results. This is what it takes to prepare it to do a perfect job
for you:
Know Your Lawn
What’s your lawn type?
Get Started
Choose Base Station location
Power Up
Plug it in
Ready, Set, Test
Setup and trial run
Lay the Wire
Lay out the
“virtual boundary”

16
17

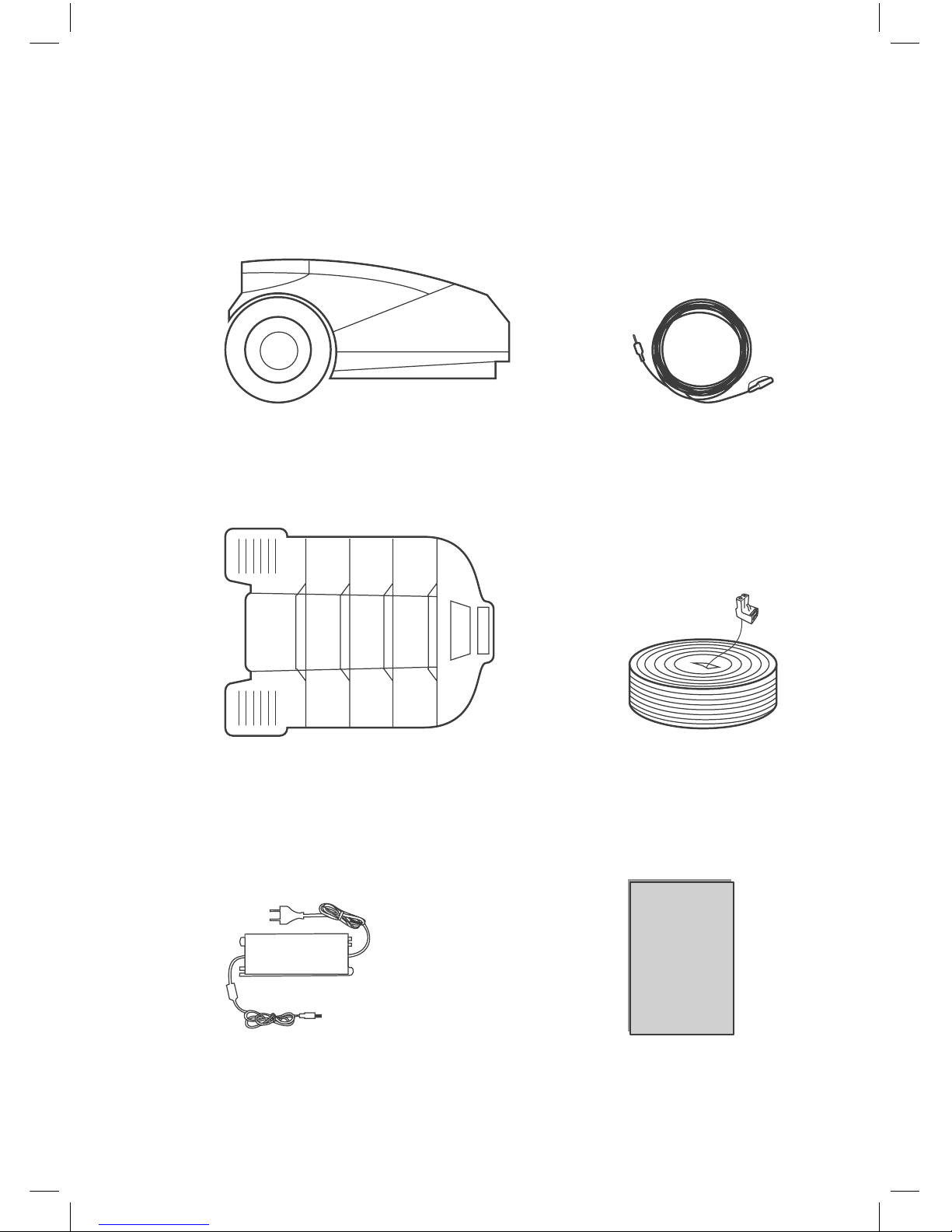

What’s in the Box
The product
Your new Robotic Mower
Base Station
This is where the mower
recharges itself
Extension Cable
20 m (65 ft) low voltage
cable to connect the mower
to the Power Supply unit
Perimeter Wire
Marks the working area
for the mower
Power Supply
The power supply for
charging your mower
User Guide
USER
GUIDE

16
17

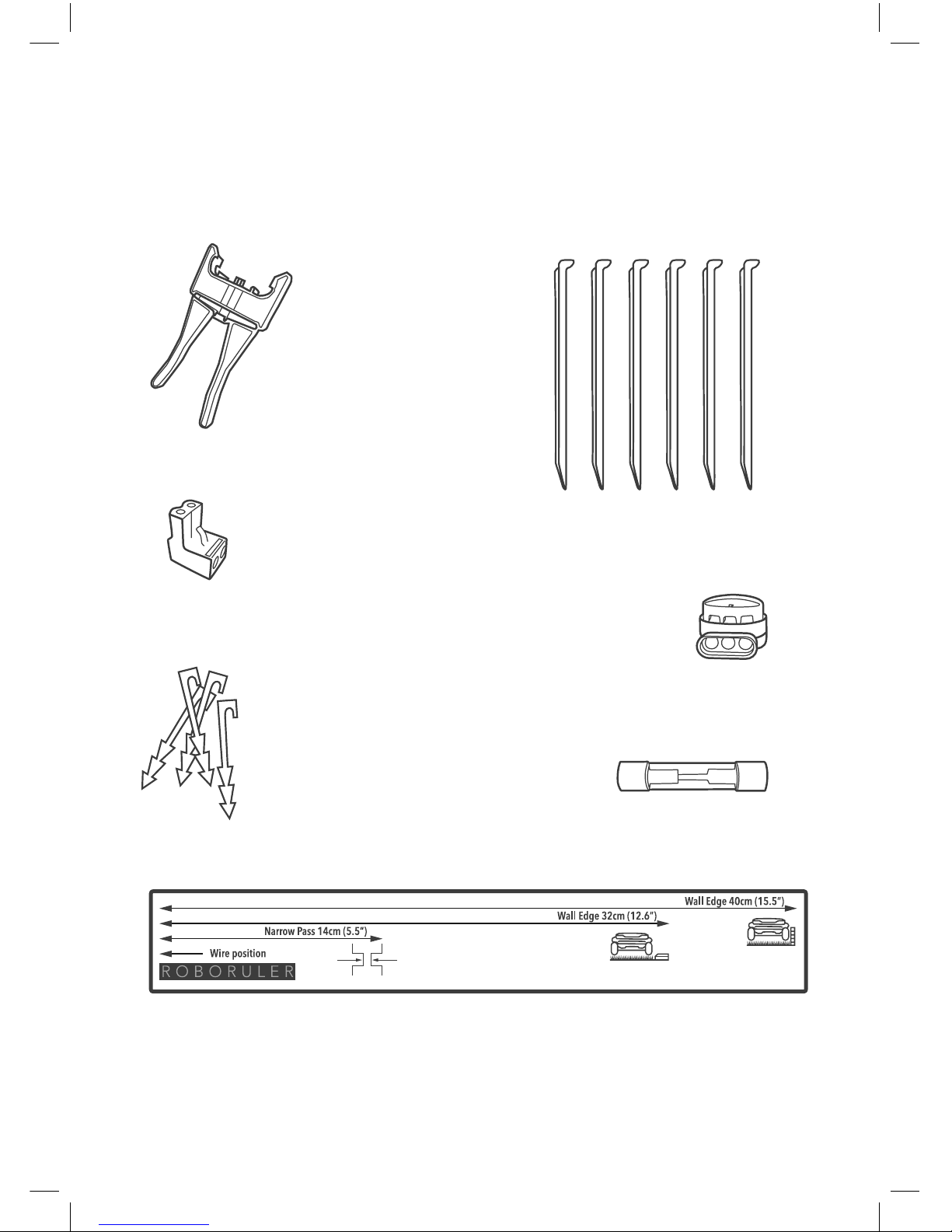

Ready? Let’s begin...
Blade Tool
For safe removal of the
blades
Spare Plot Connector
For connecting the
Perimeter Wire to
the Base Station
RoboRuler
For measuring the Perimeter Wire’s
distance from the lawn’s edge
Base Station Stakes (x6)
For affixing the Base
Station to the ground
Fuse
For preventing battery
discharge during storage
Wire Pegs
For securing the wire
to the ground
Wire Connectors
For splicing the Perimeter
Wire in case of a cut

18
19
Type A
Main Zone only
Your lawn area is one
continuous zone and all
areas of the lawn are wide
enough for the mower
to navigate through (at
least 4 m (14 ft) wide at its
narrowest point).
Main Zone
Main Zone
Sub Zone
Understanding your lawn will save you unnecessary
mistakes and make the installation process easier and
more straight-forward.
Know
Your Lawn
Type B
Main Zone + Sub Zone
Your lawn consists of more
than one zone. These zones
are connected by a narrow
passage (1.5-4 m / 4.5-14 ft
wide). The mower can drive
between these zones to mow
the entire area.
You can also skip some later sections in this manual that are
not relevant to your lawn type.
So, what does your lawn look like?
