Rocket Espresso Fausto Grinder User manual

USER MANUAL

Congratulations on purchasing the FAUSTO GRINDER
by Conti Valerio for Rocket Espresso.
ROCKET ESPRESSO –WARRANTY AND REGISTRATION
Warranty is with the dealer from whom you purchased the machine.
To register your purchase with Rocket Espresso, please go to
www.rocket-espresso.com/register.html and enter the following
details:
• Name:
• Country:
• Place of purchase:
• Serial number of the machine:
• Email address:

Pg 01
CONTENTS
• General information 02
• Preservation of the manual 03
• Removing machine from packaging 03
• Safety instructions 04
• Technical data 06
• Other information 07
• Appliance description 08
• Setting up your Fausto 10
• Locking the container 11
• Introduction 12
• Instructions for use 13
• Grind setting 14
• Appliance setting 15
• Switching on your Fausto 16
• Function block 18
• Cleaning and maintenance 19

Pg 02
GENERAL INFORMATION
This user manual is an essential part of the safe operation of your
Fausto Grinder, therefore it is important that you read the enclosed
warnings and precautions carefully.
The information contained in this manual must not be construed
as substituting the safety prescriptions and the technical data
regarding the installation and operation carried on the machine
itself and packaging materials.
The manufacturer reserve the right to make modications to this
manual with no obligation to update previous versions except in
exceptional cases. Particularly information concerning the safety
during installation, operation and cleaning. This manual reects the
current state of machine technology and shall not be considered
obsolete when updated at a later date on the basis of acquired
experience.
Please keep this manual in a safe place where it can be made
available to all users.
Rocket Espresso can not be held liable for any damage to people or
property resulting from failure to respect the instructions concerning
safety, installations and maintenance contained in this manual.
For repairs contact only an authorised service centre and request
use of original and spare parts.
This manual must be preserved with care: the manufacturer (Conti
Valerio) declines all responsibility for damages to persons or things
or to the machine itself from improper use or from use other than
those outlined in safety precautions and maintenance.

Pg 03
PRESERVATION OF THE MANUAL
This manual must be available at all times to users and /or the
persons performing maintenance on the machine. They must be
informed of how to use the machine correctly and residual risk.
Ensure it is preserved in a clean dry place so that the contents are
not damaged.
Do not remove, tear out or rewrite any part of the manual for any
reason. In case of loss or for further information please contact
Rocket Espresso or Conti Valerio.
REMOVAL FROM PACKAGING
1. Ensure that there are no signs of damage to the machine by
checking the external cladding of the packaging.
2. Check the machine for signs of damage once the packaging has
been carefully removed.
3. Keep the packaging ( boxes, foam, plastic bags) well away from
the reach of children.
4. If there is evidence of defect or damage to the machine, the
authorised dealer from whom you purchased the machine should
be notied immediately so that remedial action can be taken.
5. This symbol on the appliance or package means that the
appliance must not be considered as normal household
refuse, but that it must be delivered to an appropriate
collection centre for the recycling of electric and electronic
appliances.
Make sure the appliance is disposed of correctly. For further
information about how to recycle this product contact your local
council or refuse disposal service.

Pg 04
SAFETY INSTRUCTIONS
The design of this machine has taken into account all reasonable
user safety precautions. Nevertheless particular conditions of
installations and handling may create unforeseen situations beyond
the installers control.
1. Check to see that the data on the rating plate corresponds to
that of the main electrical supply to which the machine will be
attached.
2. The installation and repair must conform to local electrical safety
codes and regulations.
3. This machine is only safe when it has been correctly connected to
an efcient earthing/grounding system.
4. We do not recommend the use of multiple adapters and
extension cords.
5. Do not use this machine if there is damage to its cord, plug or if
any part of the machine malfunctions. Return the machine to the
nearest authorised service facility for examinations, repair or
adjustment.
6. The machine has been designed for the sole use of grinding
roasted coffee beans. Any other use must be considered
improper and therefore dangerous. The manufacturer shall not
be held responsible for any damaged caused by inappropriate
use.
7. To protect against electric shocks when using any electrical
appliance including your Fausto Grinder:
a. Do not immerse the machine itself, cord and plugs in water or
other liquid and do not let the machine’s internal parts get in
contact with liquid.
b. Prevent the power cable from being stretched or pulled tight.
c. Do not use the machine with wet hands.
d. Do not allow children or untrained persons to use
the machine.
e. Do not operate the machine when bare foot.

Pg 05
f. Always unplug the machine from the power supply before
performing any cleaning and or maintenance operations.
g. Do not leave the machine switched on when not in use.
h. Do not obstruct the ventilation and or heat dissipation
openings and or slits not introduce water or any other liquid
into same.
i. Always switch off the appliance before removing blockages
from the pouring lip.
j. Never insert spoons, forks or other utensils into the dispensing
funnel, see (10) on page 09 or into the coffee bean container,
see (7) on page 09.
k. Should a foreign body stop the motor, switch the machine off
immediately and contact an authorised dealer and or service
centre.
l. Do not expose the machine to atmospheric agents (sun, rain, etc)
8. The machine is not designed for use in extreme temperature.
Operate within a -5°c to +30°c range
9. This appliance must not be used by children or people with
reduced physical, sensorial or mental abilities. It must also never
be used by people without the necessary skills and experience
unless under supervision or during training.
10. Do not allow children to play with this equipment at any time.
11. The user must respect the general safety regulations in force in
the country in the machine is being used as well as the rules of
common sense and shall be responsible for ensuring periodic
maintenance is performed.
12. The owner is responsible for checking the machine is installed in
tolerable environmental conditions such as to not create a health
or safety hazard for those using the machine.
13. Should you decide to no longer use this type of appliance, we
recommend that you make it inoperative: unplug the appliance
from the mains socket and cut off the power cord.
14. In the case of machine breakdown or malfunction switch the
machine off and do not tamper with it.

Pg 06
DESCRIPTION
VOLTAGE (V) 110 220 230 240
FREQUENCY (Hz) 60 60 50 50
POWER CONSUMPTION (W) 400 300 350 350
MOTOR POWER (W)* 245 235 246 246
RPM 1650 1630 1290 1290
PRODUCTIVITY (KG/H) 10 10 9.5 9.5
WEIGHT WHEN EMPTY 10 10 10 10
HEIGHT (MM) 441 441 441 441
WIDTH (MM) 172 172 172 172
DEPTH (MM) 262 262 262 262
TECHNICAL DATA
*The value given is for the actual revolutions of the burrs Activation times:
*Ton: 120 sec. *Toff: 900 sec.

Pg 07
DESCRIPTION
VOLTAGE (V) 110 220 230 240
FREQUENCY (Hz) 60 60 50 50
POWER CONSUMPTION (W) 400 300 350 350
MOTOR POWER (W)* 245 235 246 246
RPM 1650 1630 1290 1290
PRODUCTIVITY (KG/H) 10 10 9.5 9.5
WEIGHT WHEN EMPTY 10 10 10 10
HEIGHT (MM) 441 441 441 441
WIDTH (MM) 172 172 172 172
DEPTH (MM) 262 262 262 262
OTHER INFORMATION
MANUFACTURER
CONTI VALERIO S.R.L.
Via Luigi Longo, 39/41
50019 SESTO FIORENTINO
Firenze
Italy
For Rocket Espresso
COFFEE GRINDER MODEL
RRT65E

APPLIANCE DESCRIPTION
1. LCD Display
2. Decreasing Key
3. Luminous key for single coffee dose
4. Increasing key
5. Luminous key for double coffee dose
6. Container cover
7. Coffee bean container
8. Coffee bean container opening/closing tab
9. Grinding adjusting knob
10. Dispensing funnel
11. Filter holder fork
12. Power ON switch
1
2
3
4
5
Pg 08

Pg 09
6
7
8
9
10
11
12

Pg 10
SETTING UP YOUR FAUSTO
MACHINE UNLOCK
1. Before starting the grinder operation, unscrew and remove the
white lock screw under the machine (turn anti-clockwise).
1

7
Pg 11
13
LOCKING THE CONTAINER
Before starting the appliance it is necessary to t the coffee
bean container (7) and t the portalter holder fork (11).
• Insert the bean container (7) into its seat positioning so
that the hole lines up.
• Tighten the lock screw (13).
• Place the portalter holder fork (11) onto the machine and fasten
with provided screws. There is a little exibility with height.
11

Pg 12
INTRODUCTION
It is necessary to set up the appliance before operating by
determining the correct grind required to create a perfect extraction.
1. An espresso grind is a very ne grind yet still granular.
2. Coffee loses its avour rapidly once ground and therefore only
grind as much as is needed for the espresso you are about to
prepare.
3. Temperature, humidity and wearing of the grinder burrs all affect
the accuracy of the grind setting, therefore each morning you
may nd you need to “dial in “ your grinder (make the grind setting
coarser or ner). This will be the difference between good coffee
and great coffee.
4. Ensure that your dosing and tamping is consistent.
5. Good extraction is characterised by a 5 - 10 second delay, before
any coffee will pour. Heavy droplets will appear and develop into
a thick, straight and even pour. The colour will be dark brown or
hazelnut, preferably with a reddish reection.
6. The pour should be stopped before colour lightens and the pour
begins to curl in.
7. If the ow is too fast ( another sign will be a pale crema and white
streaks) Then adjust your grind and make it ner - rotate the
adjusting knob clockwise.
8. If the ow is too slow the grind is too ne. Adjust the grind and
make is coarser. - rotate the adjusting knob anticlockwise.
9. Correct grind equals correct extractions equals correct avour.
35

Pg 13
INSTRUCTIONS FOR USE
1. Plug in the machine and close the push tab at the bottom of the
bean container.
2. Fill the bean container with coffee beans
3. Press the power on button (12) that must light up
4. Pull the tab out a little to permit the passage of the beans
5. Place the portalter onto the fork (11) underneath the dispensing
tunnel.
6. Select the single (3) or double (5) dose illustrated with one
cup or two cups on the LCD display
7. Dispensing/grinding stops once the preset time has elapsed or
if you want stop the grinding sooner press the key (3) or (5)
again.
11
12

Pg 14
GRIND SETTING
Set the grinder by means of the adjusting knob (9) by rotating it
clockwise to make powder ner or anticlockwise to make it coarser.
To start, grind some coffee off into the portalter and make a coffee.
This will give you the initial understanding of what the setting is like in
relation to the coffee.
Change the setting when the grinder is operating 1 - 2 notches at a
time. The difference between the notches will relate to 3 - 5 seconds
in extraction time.
9

13
17 2018
16 19
14 15
APPLIANCE SETTING
13. Dispensing time of present ‘single’ coffee dose.
14. Continuous dispensing enabled.
15. Dispensing time of present ‘double’ coffee dose.
16. Dispensing image of ‘single’ coffee dose.
17. Counter of dispensed ‘single’ coffee dose.
18. Padlock (locked programming).
19. Dispensing image of ‘double’ coffee dose.
20. Counter of dispensed ‘double’ coffee dose.
Pg 15

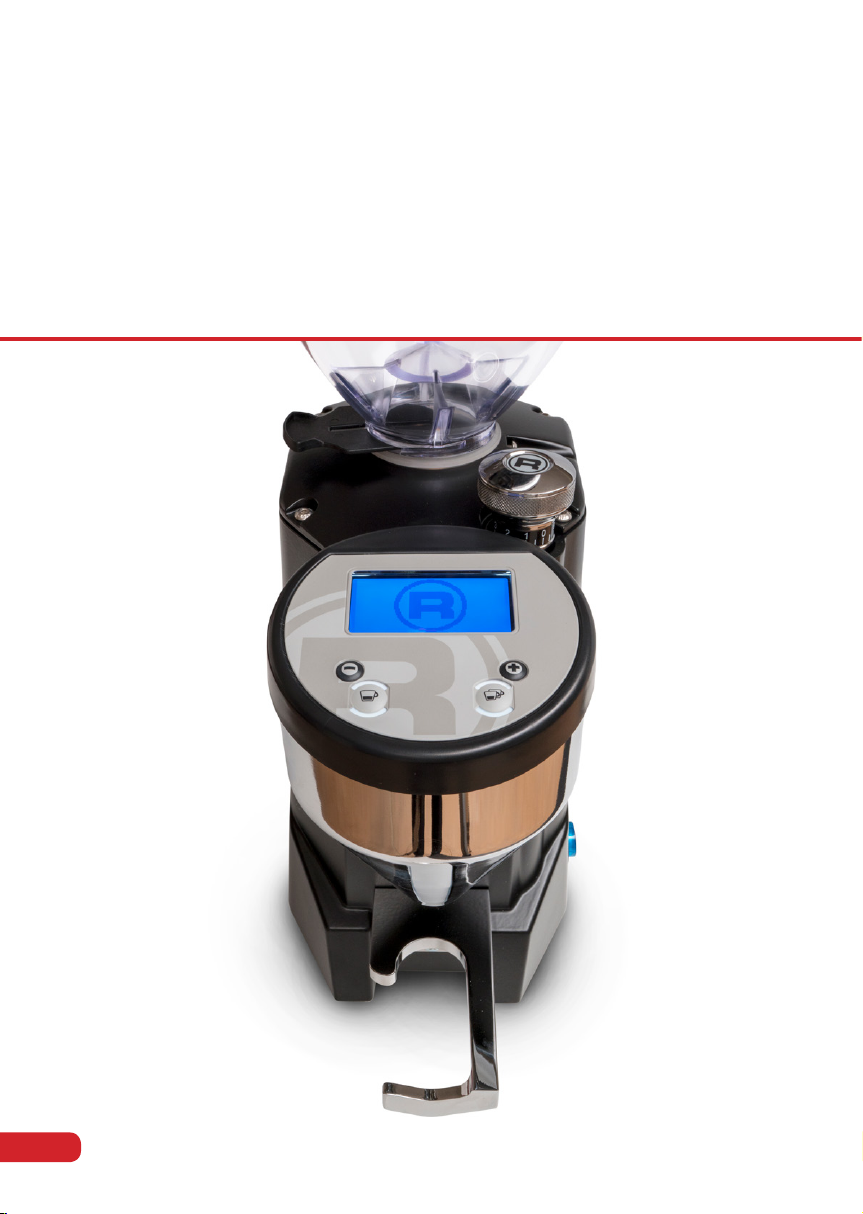

SWITCHING ON YOUR FAUSTO
When switching the appliance on for the rst time, it is congured
in the mode set by the factory and it will maintain the last mode
previous to switch off.
When switching the appliance on, the LCD screen will display the ‘R’
graphic for approximately 7.5 seconds.
Pg 16

14
Pg 17
DOSE DISPENSING AND SETTING DISPLAY
• Place the portalter on the lter hold fork.
• Press the key image of one cup or two cups.
• The key will illuminate and the coffee will be ground and
dispensed into the portalter.
• Once grinding has been completed, the zero returns to set value
• The grind time can be increased by pressing the (4) key or
decreased by pressing the (2) key.
CONTINUOUS DISPENSING MODE ACTIVATION
If you press both cup images (3) and (5) simultaneously the
continuous mode is activated.
Both dose keys light up and continuous grinding symbol
appears (14)
By pressing one of the keys (3) or (5) you return to the
automatic mode of dose selection.
DOSE COUNTER ZEROING
By pressing both key (4) and (2) for more than 5 seconds both
dose counters are reset to zero.
2
3
4
5

Pg 18
FUNCTION BLOCK
By pressing both keys (4) and (2) and releasing them, all
functions are blocked except the dose selection and the dispensing
start. The display will show the lock symbol (18)
To unlock press both keys (4) and (2) and when you release
them all functions will be unlocked.
24
18
