Rockford Fosgate ELEMENT READY M5-800X4 User manual

M5-800X4
M5-1000X1
M5-1500X5
ELEMENT READY™
AMPLIFIERS

M5-800X4
Rockford Fosgate Stages 3 & 4 SXS kits
Front Level - 1 O’Clock
Rear Level - 3 O’Clock
Front/Rear EQ - MIN
Input Switch - 4CH*
Front/Rear Crossover - 80Hz
Front X-over Switch - HP
Rear X-over Switch - LP
PRESET SETTINGS
M5-1000X1
Sub Level - 3 O’Clock
Punch EQ - MIN
Sub X-Over Switch - 80Hz
M5-1500X5
Rockford Fosgate Stage 5 SXS kit
Front /Rear Level - 1 O’Clock
Sub Level - 3 O’Clock
Front/Rear/Sub Punch EQ - MIN
Front/Rear/Sub Crossover - 80Hz
Front/Rear X-over Switch - HP
Sub Input - ON*
Input Switch - 2CH*
The PRESET switch disables the control panel and sets this amp for the best sound to be used with your ROCKFORD
FOSGATE stage kit audio system. Turn the switch OFF to manually adjust this amp.
* Input switches are not controlled via preset switch.
C.L.E.A.N.
OUT
C.L.E.A.N.
OUT
X
INPUT LVL
MIN MAX
ON
OFF
ON
OFF
X
PUNCH EQ
MIN MAX
LP
AP
HP
OFF
ON
SUB INPUT
00
0
Hz
50
80 200
250
PRESET PRESET
C.L.E.A.N.
IN
OUT
C.L.E.A.N.
OUT
C.L.E.A.N.
OUT
INPUT LVL
MIN MAX
INPUT LVL
MIN MAX
INPUT LVL
MIN MAX
ON
OFF
ON
OFF
ON
OFF
MIN MAX MIN MAX
PUNCH EQ
MIN MAX
LP
AP
HP
LP
AP
HP
OFF
ON
SUB INPUT
FREQ
Hz
50
80 200
250
FREQ
Hz
50
80 200
250
FREQ
Hz
50
80 200
250
PWR
FRONT REAR SUB
PUNCH EQ PUNCH EQ
PRESET PRESET PRESET

M5-1500X5
A 1
B
C
A 2
D 1
D 2
A 3
D 3
A 4

2
CH 4
CH

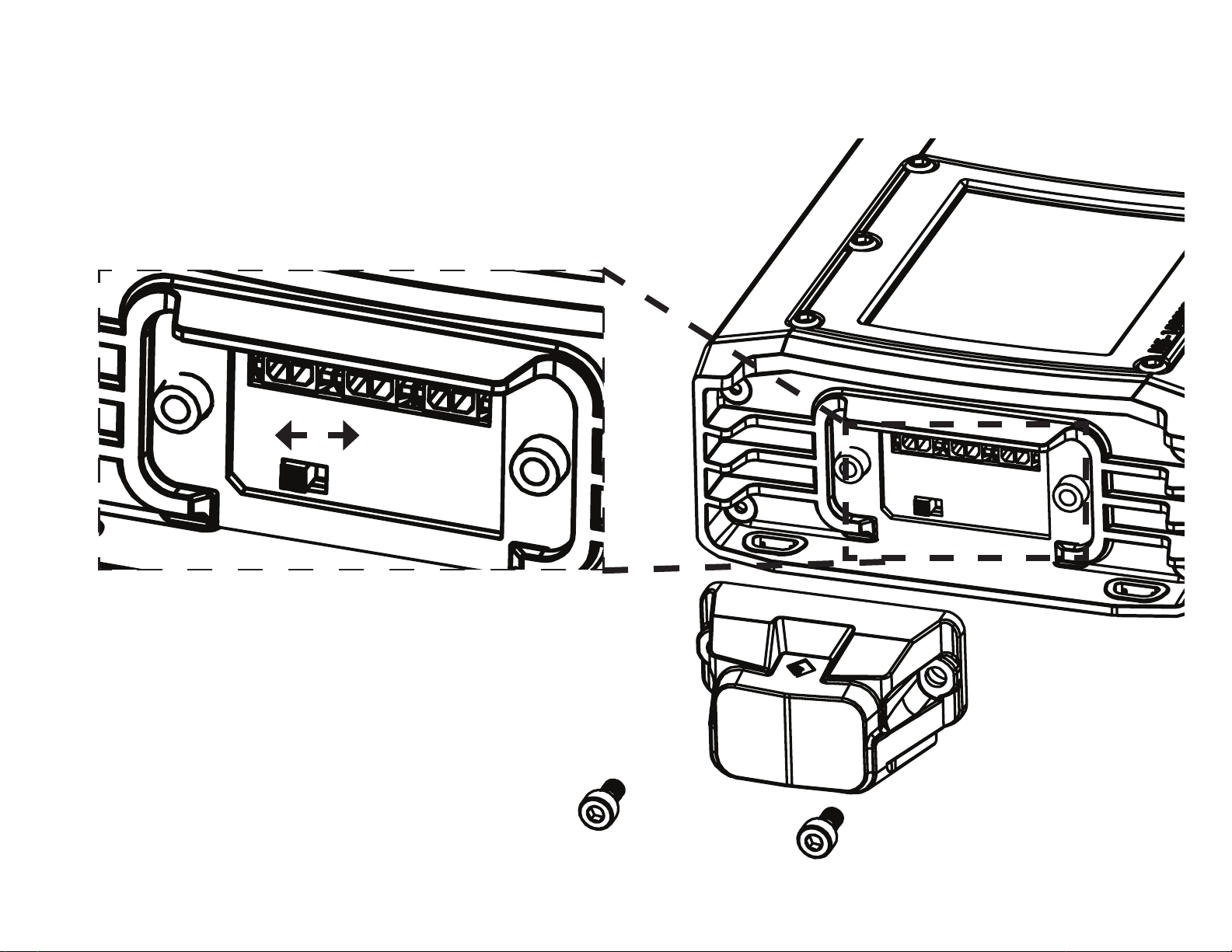

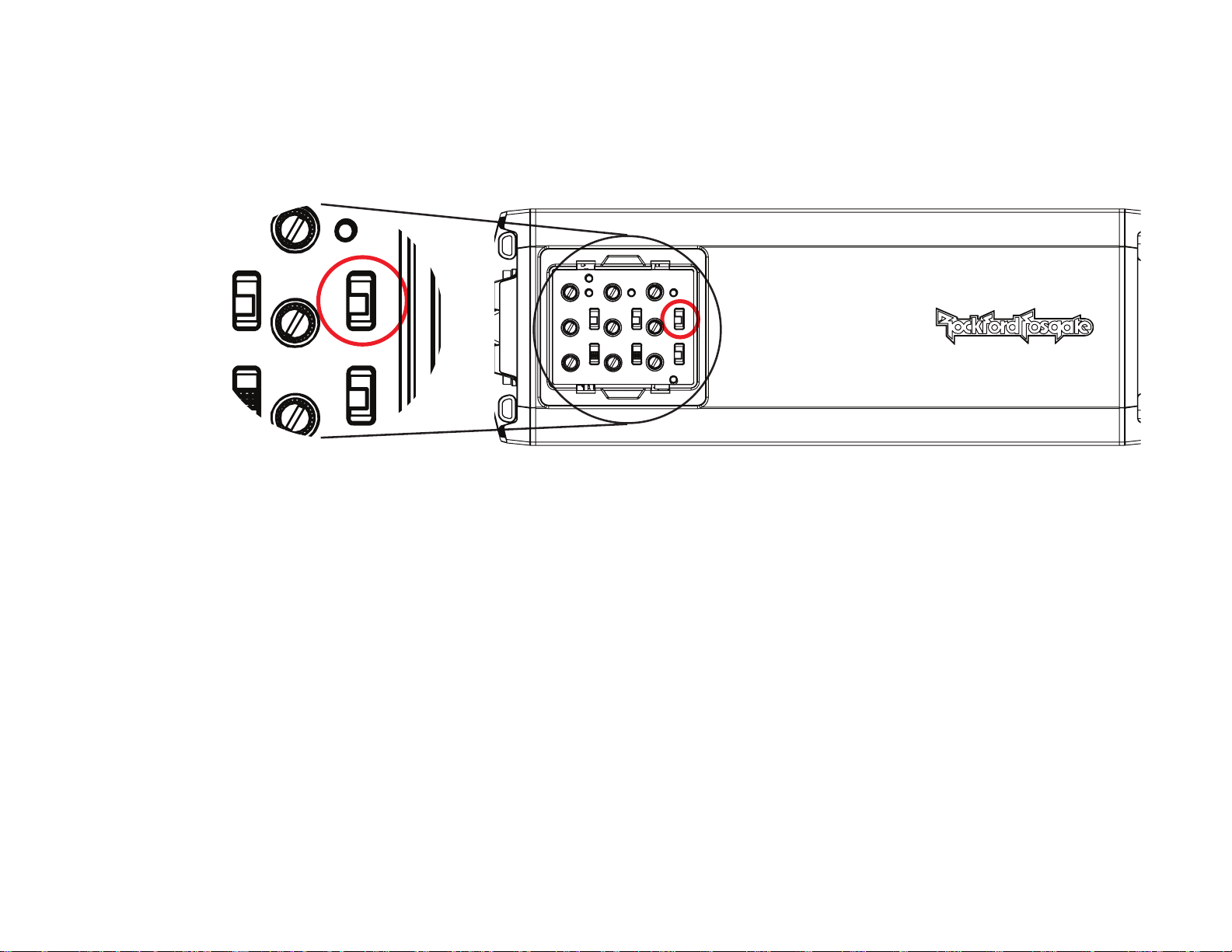

How to adjust 2 channel mode or 4 channel mode on M5-1500X5
The M5-1500x5 comes in 2 channel mode.
1. Using the included 3mm wrench, remove the 2 screws
holding the input wire harness on the control panel side
of the amp.
2. Pull the harness straight out.
3. Flip switch to the right for 4 channel mode.
4. Re-install the harness. Be sure that the gaskets and
O-rings are not damaged before re-installing the harness

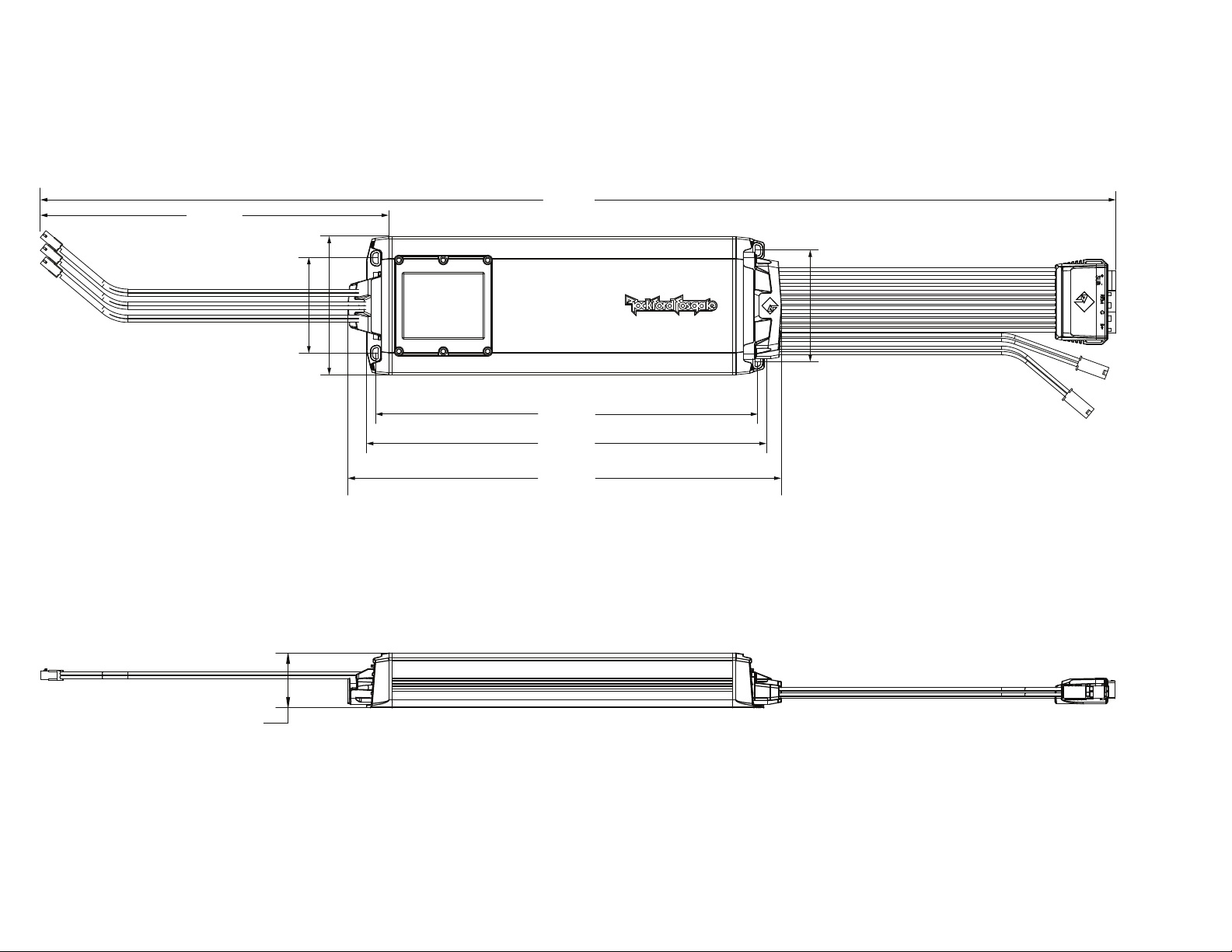

Model M5-800X4 M5-1000X1 M5-1500X5
A1 - Overall Amplifier
Length
9.7”
(245.9mm)
9.7”
(245.9mm)
13.4”
(339.7mm)
A2 - Chassis Length 8.4”
(213mm)
8.4”
(213mm)
12.3”
(311.4mm)
A3 - Harness Length
(Input/Output are the
same length)
12”
(304.8mm)
12”
(304.8mm)
12”
(304.8mm)
A4 - Total Length of
Amplifier
33.7”
(855.5mm)
33.7”
(855.5mm)
37.4”
(949.3mm)
B - Chassis Width 4.25”
(108.1mm)
4.25”
(108.1mm)
4.25”
(108.1mm)
C - Chassis Height 1.7”
(42.7mm)
1.7”
(42.7mm)
1.7”
(42.7mm)
D1 - Mounting Length 7.8”
(198.7mm)
7.8”
(198.7mm)
11.8”
(299.2mm)
D2 - Mounting Width 2.9”
(74.5mm)
2.9”
(74.5mm)
2.9”
(74.5mm)
D3 - Mounting Width
(Input side, M5-
1500X5 ONLY)
N/A N/A 3.4”
(86.5mm)

Model M5-800X4 M5-1000X1 M5-1500X5
CTA-2006 Dynamic
Power* Rating
125W x 4 @ 4Ohm
200W x 4 @ 2Ohm
400W x 2 @ 4Ohm Bridged
600W x 1 @ 4Ohm
900W x 1 @ 2Ohm
1000W x 1 @ 1Ohm
125W x 4/ 400W x 1 @ 4Ohm
200W x 4/ 700W x 1 @ 2Ohm
700W x 1 @ 1Ohm (Sub Only)
400W x2 @ 4-Ohms Bridged
CTA-2006 Continuous
Power Rating
100W x4 @ 4-Ohm
100W x4 @ 2-Ohm
200W x 2 @ 4Ohm Bridged
500W x 1 @ 4-Ohm
750W x 1 @ 2-Ohm
750W x 1 @ 1-Ohm
100W x 4/ 400W x 1 @ 4-Ohm
100W x 4/ 600W x 1 @ 2-Ohm
600W x 1 @ 1-Ohm (Sub
Only)
THD @ Rated Power <1.0% <1.0% <1.0%
Signal to Noise Ratio >105dB >110dB >105dB 4CH/ >85dB Sub
Frequency Response 10Hz - 50kHz +/- 1dB 30Hz-245Hz +/- 1dB 10Hz - 50kHz +/- 1dB
MIN/MAX Input Voltage 150mV -12Vrms 150mV -12Vrms 150mV -12Vrms
Low-pass Crossover
Freq.
50-250Hz @12dB Per
Octave
50-250Hz @12dB Per
Octave 50-250Hz @12dB Per Octave
High-pass Crossover
Freq.
50-250Hz @12dB Per
Octave N/A 50-250Hz @12dB Per Octave
Infra-sonic Freq. N/A 30Hz @ 12dB Per Octave 30Hz @ 12dB Per Octave
Punch EQ YES YES YES
Signal Sense/DC Oset
Turn On YES YES YES
Power Connections 8 AWG 8 AWG 4 AWG
Fused Rating 100A 120A 200A
Operating Voltage
Range 9-16VDC 9-16VDC 9-16VDC
Topology / Class ad bd Front/Rear ad/ SUB bd
IP Rating IPX6 (Water spray) IPX6 (Water spray) IPX6 (Water spray)
Warranty 2 YEAR 2 YEAR 2 YEAR
Specifications
A
m
p
l
i
fi
e
r
P
o
w
e
r
S
t
a
n
d
a
r
d
C
T
A
-
2
0
0
6
C
o
m
p
l
i
a
n
t
*Dynamic Power indicates actual, usable power delivered by the amplifier to the speakers when listening to music. Dynamic power
ratings are based on CTA-2006 industry standards. Dynamic power has been provided to indicate the actual RMS power output
performance of the amplifier in the real world.
CTA 2006
Power ratings on Rockford Fosgate amplifiers conform to CTA-2006 industry standards. These guidelines mean your amplifier’s output power ratings are REAL POWER
numbers, not inflated marketing ratings.
What is the IPX6 testing method? It is the rating given aer passing the testing method to show that this product will withstand
water ingression of the given test. Here is the breakdown of everything needed for testing of the IPX6 rating.
A 0.5” (12.5mm) nozzle with 15 psi (100 kPa) outputting 100 liters per min of water from a distance of 9.8’ (3 meters) from all
directions for at least 3 minutes.

Warranty Information
Rockford Corporation oers a limited warranty on Rockford Fosgate products on the following terms:
Length of Warranty
POWER Amplifiers – 2 Years
BMW® Direct Fit Speakers – 2 Years
PUNCH® & PRIME® Amplifiers – 1 Year
Speakers, Signal Processors, Accessories and Capacitors – 1 Year
All marine, motorcycle, motorsport products - 2 Years
Any Factory Refurbished Product – 90 Days (receipt required)
What is Covered
This warranty applies only to Rockford Fosgate products sold to consumers by authorized Rockford
Fosgate dealers in the United States of America. Products purchased by consumers from an
Authorized Rockford Fosgate Dealer in another country are covered only by that country’s Distributor
and not by Rockford Corporation.
Who is Covered
This warranty covers only the original purchaser of Rockford product purchased from an authorized
Rockford Fosgate dealer in the United States. In order to receive service, the purchaser must provide
Rockford with a copy of the receipt stating the customer name, dealer name, product purchased and
date of purchase.
Products found to be defective during the warranty period will be repaired or replaced (with a product
deemed to be equivalent) at Rockford’s discretion.
What is Not Covered
Damage caused by accident, abuse, improper installation, operations, the, water (on non-Element
Ready products).
Any cost or expense related to the removal or re-installation of product.
Service performed by anyone other than Rockford or an authorized Rockford Fosgate service center.
Any product which has had the serial number defaced, altered, or removed.
Subsequent damage to other components.
Any product purchased outside the U.S.
Any product not purchased from an authorized Rockford Fosgate dealer. Refer to rockfordfosgate.com
dealer locator for more detail.
Limit on Implied Warranties
Any implied warranties including warranties of fitness for use and merchantability are limited in
duration to the period of the express warranty set forth above. Some states do not allow limitations
on the length of an implied warranty, so this limitation may not apply. No person is authorized to
assume for Rockford Fosgate any other liability in connection with the sale of the product.
How to Obtain Service
Please call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return
Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of
product to Rockford.
EU Warranty
This product meets the current EU warranty requirements, see your Authorized dealer for details.
12042020 1230-73116-01C Printed In China
600 South Rockford Drive • Tempe, Arizona 85281 United States
Direct: [phone] • Toll Free: [phone]
rockfordfosgate.com

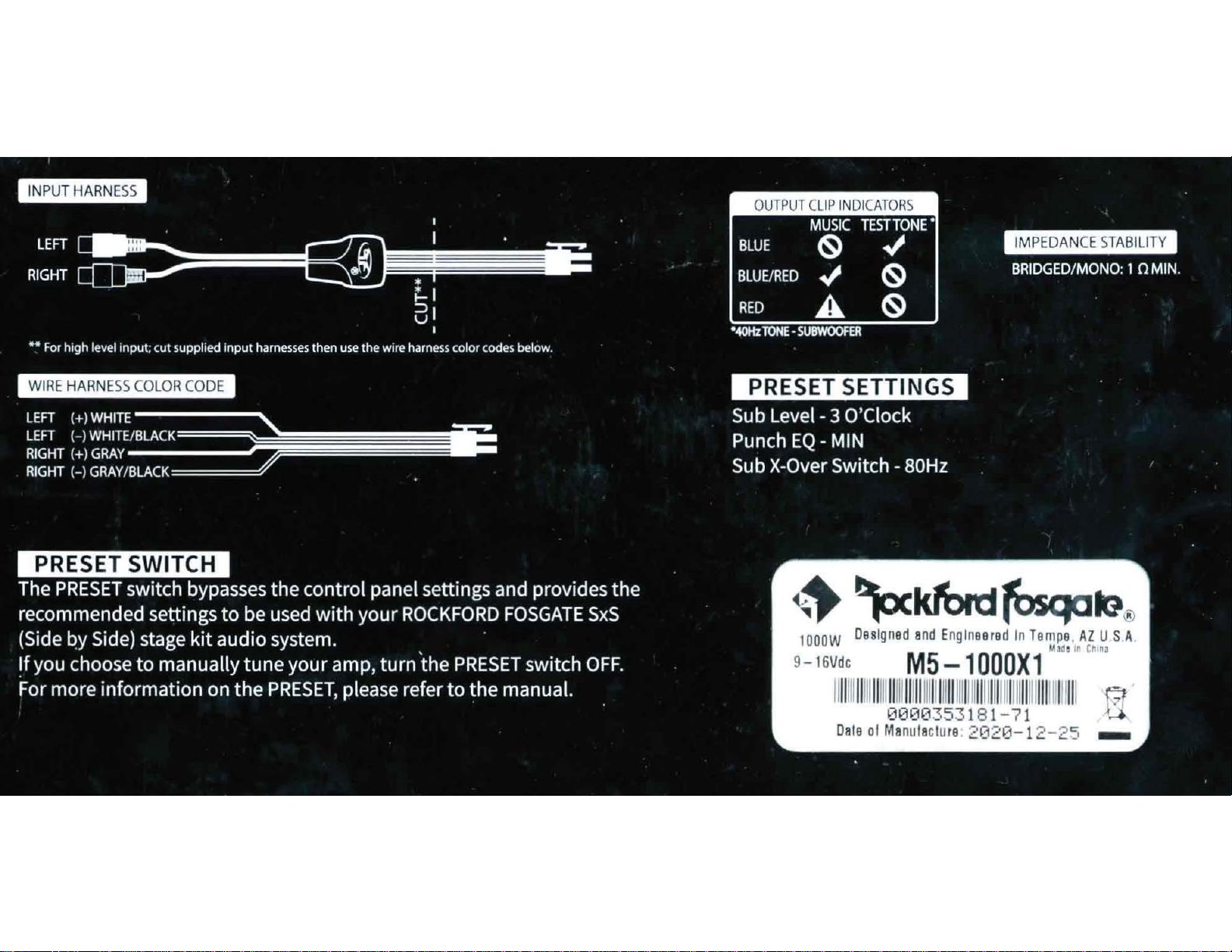

HARNESS _LENGTHS 1
121n
(304. 8mm)
-
I I I I 1
Power In/Audio Ou t
~-=-r.
---
:.....,:.....,
3 s·
2-
1
Signal In
8.4in
[213mm)
7.8in
(198.7mm)
~@@@ ltPX6j
CLASS D C.L.E.A.N. MEHSA
4
DIFFE~~~tW..f,'.'iiPUTS
ELEMENT READY™
Rockford's Element Ready™ product line take sd
into account the effects of the env ironm ent an
takes measures to ensure lasting performance.
UV Inhibitor Materials
Thermal Shock Resistant
Dust Resistant
water Resista nt
Corrosion Protection
Stainless Hardware
Vibration Resistant

RNIN
I
-
The PRESET switchbypassesthecontrolpanelsettingsand
provides the recommended settings to be used with your
ROCKFORD FOSGATE SxS (Side bySide) stage kit audiosystem.
If youchoose to manuallytune your amp, turn the PRESET switch OFF.
Formoreinformationonthe PRESET, please refer to the manual.

~ ~kfordf't,sqab ®
Ooow
Designed and Engineered In Tempe , AZ US .A
1 Ma de In Chin a
9-16 Vdc M5-1QQOX1
ll l lll l ll lll ll lll !~~ }~~l~~l~l~l ~l ~l ij l~ ll 111 1111 11 0:
Dale ol Manula clu re . 2020-12 -2 5

♦ ',ockford(osqab .

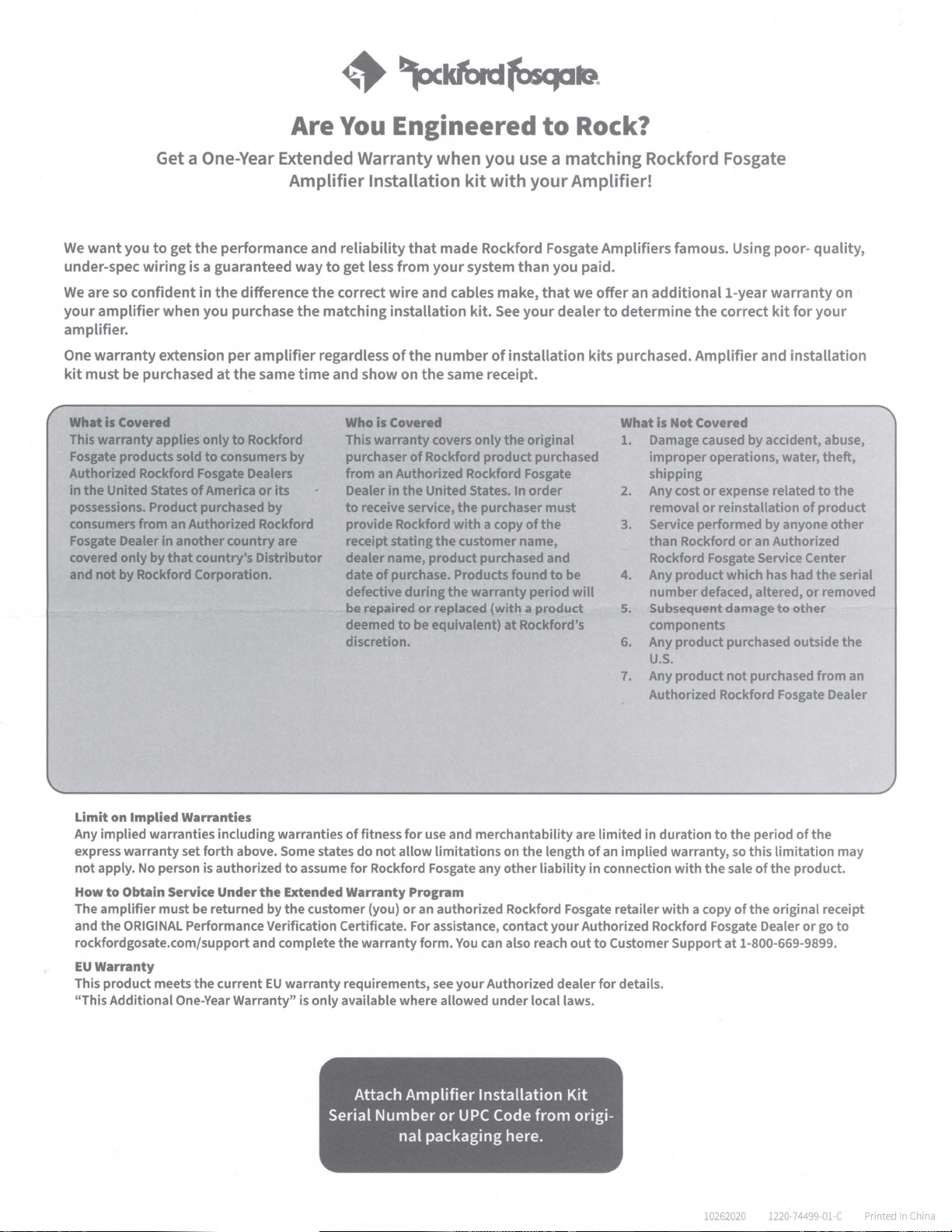

Are You Engineered to Rock?
Get a One-Year Extended Warranty when you use a matching Rockford Fosgate
Amplifier Installation kit with your Amplifier!
We want you to get the performance and reliability that made Rockford Fosgate Amplifiers famous. Using poor- quality,
under-spec wiring is a guaranteed way to get less from your system than you paid.
We are so confident in the difference the correct wire and cables make, that we offer an additional 1-year warranty on
your amplifier when you purchase the matching installation kit. See your dealer to determine the correct kit for your
amplifier.
One warranty extension per amplifier regardless of the number of installation kits purchased. Amplifier and installation
kit must be purchased at the same time and show on the same receipt.
What is Covered
This warrantyapplies only to Rockford
Fosgate productssold to consumers by
Authorized Rockford Fosgate Dealers
in the United States of America or its
possessions. Productpurchased by
consumers from an Authorized Rockford
Fosgate Dealerin anothercountryare
covered onlyby that country's Distributor
and not by Rockford Corporation.
Limit on ImpliedWarranties
Who is Covered
Thiswarrantycovers only the original
purchaser of Rockford productpurchased
from an Authorized Rockford Fosgate
Dealerin the United States. In order
to receive service, the purchasermust
provide Rockford with acopy of the
receiptstating the customername,
dealername, productpurchased and
date of purchase. Productsfound to be
defectiveduring the warranty period will
be repaired or replaced (with aproduct
deemed to be equivalent) atRockford's
discretion.
What is Not Covered
1. Damage caused byaccident, abuse,
improperoperations, water, theft,
shipping
2. Any cost or expense related to the
removal or reinstallation of product
3. Service performed by anyone other
than Rockford or an Authorized
Rockford Fosgate Service Center
4. Any productwhich has had the serial
numberdefaced, altered, or removed
5. Subsequent damage to other
components
6. Any productpurchased outside the
U.S.
7. Any product not purchased from an
Authorized Rockford Fosgate Dealer
Any implied warranties includingwarranties of fitness for use and merchantabilityare limited in duration to the period of the
express warrantyset forth above. Some states do notallow limitations on the length of an implied warranty, so this limitation may
notapply. No person is authorized to assume for Rockford Fosgate any otherliabilityin connection with the sale of the product.
How to Obtain Service Under the Extended Warranty Program
The amplifiermust be returned by the customer (you) or an authorized Rockford Fosgate retailer with acopy of the original receipt
and the ORIGINAL PerformanceVerification Certificate. For assistance, contact yourAuthorized Rockford Fosgate Dealer or go to
rockfordgosate.com/support and complete the warranty form. You can also reach out to Customer Supportat 1-800-669-9899.
EU Warranty
This product meets the current EU warranty requirements, see yourAuthorized dealer for details.
"ThisAdditional One-Year Warranty" is only available where allowed underlocal laws.
Attach Amplifier Installation Kit
Serial Number or UPC Code from origi-
nal packaging here.
10262020 1220·74499-01-C Printed In China

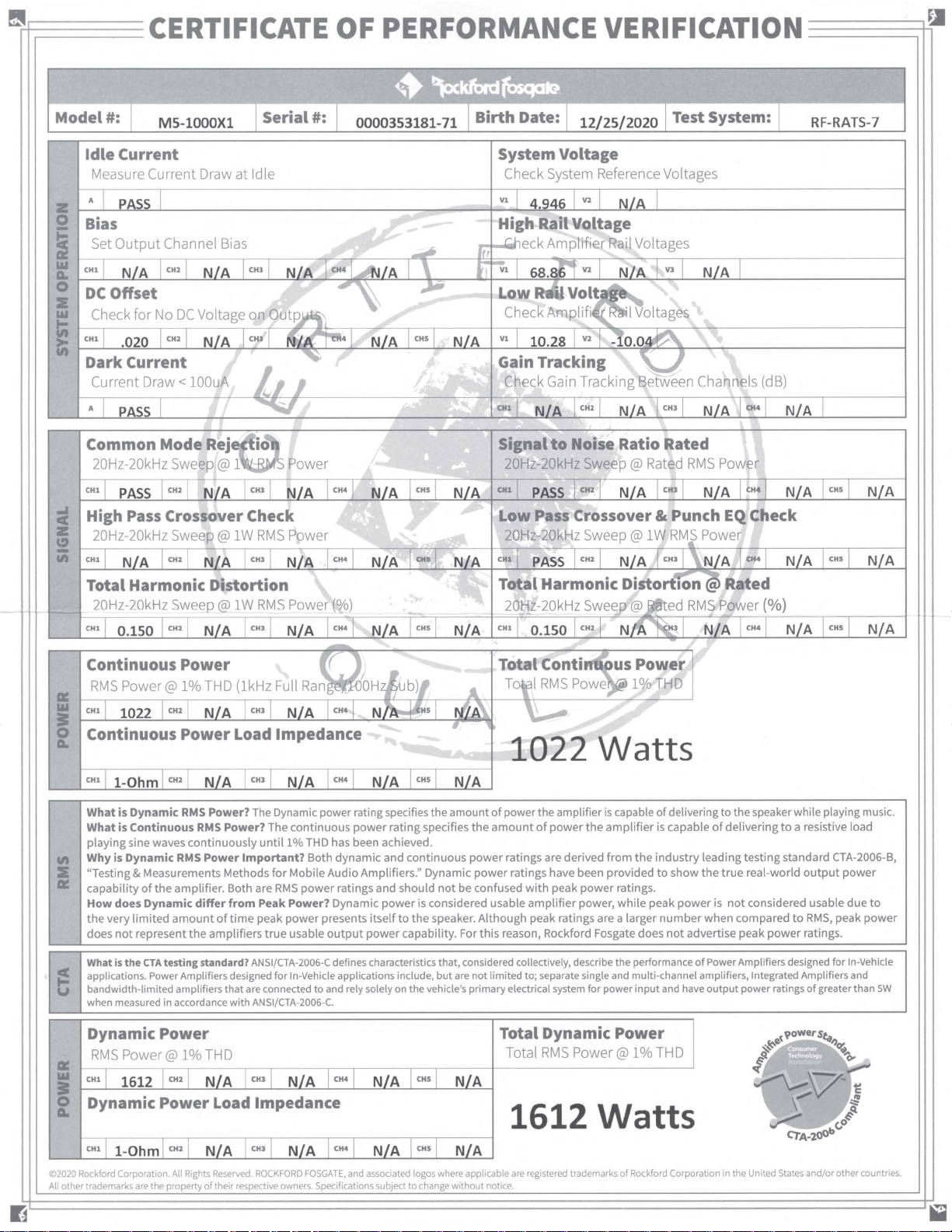

!!,..;::-- _-_-_-___::--_ CERTIFICATE OF PERFORMANCE VERIFICATION==-~-=--=----.-~
m
Model#:
M5-1000Xl
Serial#:
12/25/2020 I Test System:
RF-RATS -7
Idle Current System Voltage
Measure Current Draw at idle Check System Reference Voltages
z A
2 Bias
S Set Output Chan nel_B_i a-,s,--,------.--:,----,----.-'..=:__-----l!aai=-----.----"'11...,.----,-----,--.----,------------l
i CH1 N A CHl N A CH3 N A CH4 Vl N/ A _ V3 N/ A
0
• Ill
DC Offset
iI CHl I ,020 I CHl I NIA ICHJ I jt ~• I NIA I CHS I NIA I Vl I 10.28 I I -.1.v, *' -· I
Check for No DC Voltage on Outr,
Dark Current Gain Tracking _
=
"
;;;
•
Current Draw< lO0uA
A
PASS
Common Mode Rej
20Hz-20kHz Sweep@ l'
CH1
PASS
CHl
NLA
High Pass Crossover Check
20Hz-20kHz Sweep@ lW RMS Power
CH1
N/A
CHl
N/A
CH3
N/A
CH4
CH4
Total Harmonic Distortion
20Hz-20kHz Sweep@ lW RMS Power(%)
m I 0.150 I CHl I N/ A Im I N/ A
Continuous Power
RMS Power@ 1% THO (lkHz Full Ran
NIA I CHS I
NA
CHS
Check Gain Tracking B~tween Channels (dB)
N/A
CHl
NIA
CH3
N/A
CH4
Signal to Noise Ratio Rated
20Hz-20kHz Sweep@ Rated RMS Power
N/A
NIA ICH1 I PASS I CHl I NIA ICHJ I NIA I CH< I NIA I CHS I
Low Pass Crossover &Punch EQ Check
,·'
20Hz-20kHz Sweep @ 1W RMS Power
NA
CH1
PASS
CHl
N/A
CHS
Total Harmonic Dist Rated
20Hz-20kHz Sweey ted RMS ~?wer (%)
N/A I CH1 0.150 CHl
N/A
CH4
N/A
CHS
N/A
N/A
N/A
11 CHl I 1022 I CHl I NIA ICHJ I NIA I I .. /,--1 --f' I ;;~I
2 1022 Watts
cH1 I 1-OhmI cH2 I N/A I cH• I N/A i cH•
N/A I CHS
N/A
What is Dynamic RMS Power? The Dynamic power ratingspecifies the amount of power the amplifier is capable of delivering to the speaker while playing music.
What is Continuous RMS Power? The continuous power rating specifies the amount of power the amplifier is capable of delivering to a resistive load
playing sine waves continuously until 1% THD has been achieved.
• Why
is Dynamic RMS Power Important? Both dynamic and continuous power ratings are derived from the industry leading testing standard CTA-2006-B,
•
"Testing & Measurements Methods for Mobile Audio Amplifiers." Dynamic power ratings have been provided to show the true real-world output power
•
capability of the amplifier. Both are RMS power ratings and should not be confused with peak power ratings.
How does Dynamic differ from Peak Power? Dynamic power is considered usable amplifier power, while peak power is not considered usable due to
the very limited amount of time peak power presents itself to the speaker. Although peak ratings are a larger number when compared to RMS, peak power
__ ..
does not represent the amplifiers true usable output power capability. For this reason, Rockford Fosgate does not advertise peak power ratings.
e
What is the CTA testing standard? ANSI/CTA-2006-C defines characteristics that, considered collectively, describe the performance ofPower Amplifiers designed for In-Vehicle
applications. Power Amplifiers designed for In-Vehicle applications include, but are not limited to; separate single and multi-channel amplifiers, Integrated Amplifiers and
bandwidth-limited amplifiers that are connected to and rely solely on the vehicle's primaryelectrical system for power input and have outputpower ratings ofgreater than SW
when measured in accordance with ANSI/CTA-2006-C.
Dynamic Power ITotal Dynamic Power I _,,owers1
RMS Power@lo/o THO
Total RMS Power@ 1% THO
a:
Ill
CH1
1612
CHl
NA
CHJ
NA
CH4
NA
CHS
NA
:I
0 Dynamic Power Load Impedance I 1612 Watts
A,
C'l'A-2
1
cH1 1 1- 0hm IcH2 I
N/A I CH> I N/A ICH< I N/A I CHS I
N/A
©2020 Rockford Corporation. All Rights Reserved. ROCKFORD FOSGATE, and associated logos where applicable are registered trademarks of Rockford Corporation in the United States and/or other countries.
All other trademarks are the property of their respective owners. Specifications subject to change without notice.
ill
