Rockford Fosgate Punch200 trans ana 4-channel User manual

®®

DSM
4-CHANNEL AMPLIFIER
OWNER'S MANUAL

Dear Customer,
Congratulations on your purchase of the world's finest brand of car audio
amplifiers. At Rockford Fosgate we are committed to musical reproduction at
its best, and we are pleased you chose our product. Through years of engineer-
ing expertise, hand craftsmanship and critical testing procedures, we have
created a wide range of products that reproduce music with all the clarity and
richness you deserve.
For maximum performance we recommend you have your new Rockford
Fosgate product installed by an Authorized Rockford Fosgate Dealer, as we
provide specialized training through Rockford Technical Training Institute
(RTTI). Please read your warranty and retain your receipt and original carton
for possible future use.
To add the finishing touch to your new Rockford Fosgate image, order your
Rockford accessories, which include everything from T-shirts and jackets to
hats and sunglasses.
To get a free brochure on Rockford Fosgate products and Rockford accessories,
please call 602-967-3565 or FAX [phone]. For Canada, call Korbon
Trading at 416-567-1920. For International orders, FAX [phone]-
8132 or call +001-1-602-967-3565.
The serial number can be found on the outside of the box. Please record it in
the space provided below as your permanent record. This will become useful
in recovering your amplifier if it is ever stolen and serve as verification of your
factory warranty.
Serial Number: ___________________
Model Number: ___________________
PRACTICE SAFE SOUND™
CONTINUOUS EXPOSURE TO SOUND PRESSURE LEVELS OVER
100dBMAYCAUSEPERMANENTHEARINGLOSS.HIGHPOWERED
AUTOSOUNDSYSTEMSMAYPRODUCESOUNDPRESSURELEVELS
WELL OVER 130dB. USE COMMON SENSE AND PRACTICE SAFE
SOUND.

TABLE OF CONTENTS
Specifications ................................................................................... 1
Punch 4-Channel Accessory Pack ................................................... 3
Introduction ...................................................................................... 4
Features and Benefits ................................................................. 4
Controls and Features...................................................................... 5
Top View of Amplifier and End Caps .......................................... 5
Power/REM/LED Side ................................................................. 6
Input/Output Terminal Side ......................................................... 7
Installation Considerations ............................................................... 8
Tools Needed .............................................................................. 9
Battery and Charging ....................................................................... 9
Mounting and Location ................................................................... 10
Trunk Mounting ......................................................................... 10
Passenger Compartment Mounting .......................................... 10
Wiring the Punch ............................................................................ 10
Preparing Wires and Fuses ....................................................... 10
Wiring the Fuse Holder ............................................................. 10
Wiring the Ring and Spade Connectors .................................... 12
Power ........................................................................................ 12
Ground ...................................................................................... 13
Remote Turn-on ........................................................................ 13
Input .......................................................................................... 13
Speakers ................................................................................... 14
Bridged/Mono Configuration ..................................................... 14
Passive Crossover Impedance ................................................. 14
Table of Component Values........................................................... 16
Active Crossover Mode Selection .................................................. 17
Crossover Frequency Settings ....................................................... 17
Wiring Diagrams............................................................................. 18
Troubleshooting ............................................................................. 25
Dynamic Power Measurements ..................................................... 28
Warranty Information...................................................................... 31

1
SPECIFICATIONS PUNCH 4040DSM PUNCH 4080DSM
Dynamic Power Rating (IHF-202 Standard) - Measured at 14.4 Volts
1
Bridged into a 4ΩLoad 115 Watts X 2 220 Watts x 2
Per channel into a 2ΩLoad 55 Watts X 4 100 Watts x 4
Per channel into a 4ΩLoad 35 Watts X 4 60 Watts x 4
Continuous Power Rating (IASCA Standard)
RMS continuous power per channel, all channels 20 Watts 40 Watts
driven into a 4Ωload from 20 to 20,000 Hz, with less ( @ 12.6 ( @ 13.8
than 0.05% Total Harmonic Distortion (THD) battery volts) battery volts)
RMS continuous power per channel, all channels 40 Watts 80 Wattls
driven into a 2Ωload from 20 to 20,000 Hz, with less ( @ 12.6 ( @ 13.8
than 0.1% Total Harmonic Distortion (THD) battery volts) battery volts)
RMS continuous power bridged into a 4Ωload from 80 Watts 160 Watts
20 to 20,000 Hz, with less than 0.1% Total Harmonic ( @ 12.6 ( @ 13.8
Distortion (THD) battery volts) battery volts)
Signal-to-Noise Ratio Over 100dB A-weighted
Factory Default Crossover Point 100 Hz - Selectable with optional Module Cards
Crossover Alignment Butterworth
1
See Appendix A - Dynamic Power Measurements for information on these specifications.

2
PUNCH 4040DSM PUNCH 4080DSM
Dimensions 9-5/8" (24.4cm) W 9-5/8" (24.4cm) W
12-5/8" (32.0cm) L 13-5/8" (34.6cm) L
2-5/8" ( 6.6cm) H 2-5/8" ( 6.6cm) H
Bandwidth 15Hz to 100kHz
Damping Factor @ 4ΩAt output connector - Over 150
Frequency Response 20Hz to 20kHz ±1dB / 10Hz to 100kHz -3dB
Crossover 12dB/octave with selectable high pass, low pass and full range
via interchangeable Module Cards
Slew Factor Over 5
IM Distortion (IHF) Less than 0.05%
Input Gain Variable from 40dB to 14dB (200mV - 2 Volt)
The above figures are factory preset and are correct
for 500 mV rated source units.
Protection Internal analog-computer output protection circuitry limits power in case of
overload. Thermal switch shuts down the amplifier in case of overheating.
B+ Fuse Size 30 Amps 50 Amps
(External to Amplifier)
Fuse Type ATC AGU
Equalization Bass: +18dB Maximum at 45Hz
Treble: +12dB Maximum at 20kHz
Input Impedance 20k ohms
Specifications subject to change without notice.

PUNCH 4-CHANNEL ACCESSORY PACK
3
17' (518cm)
Red Power
Wire
12' (366cm)
Blue Remote
Turn-on Wire
1.5' (46cm) Black
Grounding Wire
Punch
Verification
Certificate
Punch
Owner's
Manual
Remote Turn-on Wire
Connector Plug
Power Ring
Terminals
Allen Head Set Screws
and Mounting Screws
Fuse Holder 4040
Fuse Holder 4080

4
INTRODUCTION
This manual provides information on the features, instal-
lation, and operation of the Punch 4040 DSM and 4080
DSM Amplifiers. We suggest you save this manual for
future reference.
We strongly recommend you have your Authorized Rock-
ford Fosgate Dealer install your new Punch 4-channel
amplifier. If you do choose to install the amplifier yourself,
please be sure to read the entire manual before begin-
ning.
TheRockfordFosgate4-Channelautomotivestereopower
amplifiers provide state-of-the-art sound in cars, vans,
boats, or wherever a high current 12 volt power source is
available.
“Discrete Surface Mount” (DSM) technology is utilized
in the crafting of all of our Punch amplifiers. This process
provides greater ruggedness and consistency of both
components and layout. Already used heavily in aero-
space and industrial applications, this technology is also
highly advantageous in the hostile automotive environ-
ment.
Low Level Input Senstivity. The Punch 4-channel ad-
justable input circuits are designed to match almost any
music source. The amplifiers will drive most normal
speaker types.
PunchEqualization.This circuit is designed to compen-
sate for the acoustic inadequacies of the automotive
environment. This patented circuitry will correct for the
poor bass response and natural high frequency roll-off
inherent in the world of automotive stereo. The result is
full-range sound without the unpleasant changes in the
mid-range sound produced by most tone control and
equalizer circuits.
Active Electronic Crossover Modules built-into the
4040 and 4080 features 12 dB/octave Butterworth filters.
The independent crossover points in these plug-in mod-
ules allow for various configuration possibilities.
Features
and
Benefits

5
Real Time Power Protection (R.T.P.P.) allows for the
greatest power output under all load conditions. When
output reaches an unsafe level it will be reduced, unlike
current limiting which often causes premature protection
or failure to protect at all.
To get a better understanding of the Punch let’s take a
closer look.
This section describes the various controls and features of
the Punch 4040 DSM and 4080 DSM amplifiers.
Top View of Amplifier and End Caps
The cast aluminum heatsink of the Punch 4-Channel is
designed for high performance cooling. The raised design
of the housing allows cables and wires to run underneath
the unit. This provides for greater wiring flexibility and
protects the cables from damage caused by excessive
heat and bending.
Interchangeable end caps conceal the wiring and input
cables, giving the amplifier a clean, "stealth" look. Also
incorporated, is a holding dimple built into the end cap.
This small feature enables the cap to be held in place while
being mounted.
The end caps are secured to the housing with flush
mounting, captive screws.
CONTROLSAND FEATURES
Punch
4-Channel
Housing
End Caps

6
B+/GND
Power
Connector
LED Power
Indicator
REM
Connector
Four (4) custom, round, hex screws included in the acces-
sory pack hold the unit in place. These screws are covered
when the end caps are installed.
The Punch 4-Channel is turned on by connecting the blue
remote turn-on wire to the source unit’s “Accessory”or
“Auto Antenna”lead, either of which will go to +12 volts
when the source unit is turned on.
The LED illuminates when the unit is activated.
These connectors are used to supply power and ground
to the amplifier and accept 12 gauge - 8 gauge wire.*
These gold-plated terminal blocks connect the Right/Left
Front and Right/Left Rear channel outputs to the speak-
ers and accept wire sizes from 8 gauge through 18 gauge.
Gold-plated connectors are immune to corrosion that can
cause signal deterioration.
Mounting
Screws
Power/REM/LED Side
*Rockford Fosgate's Perfect Interface line of accessories in-
cludes high quality power and speaker wire, gold plated RCA
interconnecting cable and other products to complete your
installation.AskyourAuthorized Rockford Fosgate Dealer about
Perfect Interface.
Speaker
Ouptut
Terminals
LED
Indicator B+/GND
Power Connectors
REM
Connector
Front Speaker
Output Terminals
Rear Speaker
Output Terminals

Input/Output Terminal Side
7
Front Treble
Adjustment
Control
Front Bass
Adjustment
Control
Front Input
Gain
Control
Rear Treble
Adjustment
Control
Rear Input
Gain
Control
Rear Bass
Adjustment
Control
This switch allows you to use the front input to drive both
Front and Rear channels. Switching to Rear position
allows you to run separate Front and Rear inputs. This
eliminates the need for a "Y-adapter" when using the
amplifier in a bi-amplified or 4-Channel mode.
This switch enables you to easily invert the phase of the
Rear channels on the amplifier without having to discon-
nect the speaker wires. See the wiring diagram on page
17 for use.
These controls adjust the amount of treble and bass
response desired. To increase the amount of response,
turn the controls clockwise; to decrease, turn the controls
counterclockwise. Note that there are separate Bass and
Treble controls for Front and Rear channels.
These controls are factory preset to 500 millivolts to
matchmost headunits andare variablefrom 100millivolts
to two volts. ( More than likely they will not need
adjusting. )
If just a little volume from the source unit drives the
amplifier into distortion, reduce the input gain controls so
that the distortion doesn’t start until the source volume is
at about 3/4 of its rotation. Note that there are separate
Front and Rear gain controls.
0/180°Rear
Phase
Selector
Switch
Front/Rear
Input Switch
Treble/Bass
Input Gain
Controls
Front+Rear
Summed Pass-Thru
Connectors
Rear Input
Connectors
Front Input
Connectors
0/180°Rear
Phase Selector
Switch
Front/Rear
Input Switch

8
The amplifier’s signal input, female, RCA jacks should be
connected to the source unit’s signal outputs with high-
quality RCA cables. The connectors have been plated in
gold to eliminate the possibility of corrosion that can cause
signal deterioration.
These pass-thru connectors allow you to daisy-chain an
additional Punch amplifier without running an additional
set of RCA cables from the front of the vehicle to the rear
amplifier location. The crossover module in the Pass-Thru
RCA circuit allows the daisy-chained amplifier to be con-
figured independently of the Front and Rear channels for
low pass, high pass or full range operation.
ThePass-Thru signalis derivedby summing the Front Left
and Rear Left inputs to create the Left output, and sum-
ming the Front Right and Rear Right input to create the
Right output. This provides constant output regardless of
the source unit fade position.
This section focuses on some of the vehicle consider-
ations for installing your new Punch 4-Channel amplifier.
Checking your battery and current sound system, as well
as pre-planning your system layout and best wiring routes
will save installation time. When deciding how to lay out
your new system, be sure that each component will be
easily accessible for making adjustments.
Before beginning any installation, be sure to follow these
simple rules:
1. Carefully read and understand the instructions before
attempting to install the amplifier.
2. For easier assembly, we suggest you run all wires
prior to mounting your amplifier in place.
3. Use only quality connectors for making connections.
See your Authorized Rockford Fosgate Dealer for
Perfect Interface wire enhancements.
Input
Connectors
INSTALLATION CONSIDERATIONS
Front & Rear
Summed
Pass-Thru
Connectors

9
4. Think before you drill! Be careful not to cut or drill
into gas tanks, fuel lines, brake or hydraulic lines,
vacuum lines or electrical wiring when working on
any vehicle.
5. Forsafety, disconnectthe batteryground cableprior
to beginning the installation process.
6. Neverrunwiresunderneaththevehicle. Thecleanest,
safest wiring connections are made by running the
wire under the carpet or behind the side panels.
Never leave wires exposed.
7. Avoid running wires over or through sharp edges.
Use grommets to protect wires routed through holes
in metal.
8. ALWAYS protect the battery and electrical system
fromshorts withproper fusing.Afuse holderand fuse
must be installed within 18”(46cm) of the battery
terminal to safeguard from possible damage or in-
jury.
9. Grounding connections should be as short as pos-
sible and always be connected to metal that is
welded to the main body, or chassis, of the vehicle.
The following is a list of tools you will need for installing
the Punch amplifier:
7/64" & 3/32" Allen Wrenches (included)
Wire Strippers Wire Cutters
Battery Post Wrench Voltmeter
Electric Hand Drill with assorted bits Wire Crimpers
BATTERYAND CHARGING
Punch amplifiers will naturally put an extra load on your
battery and charging system. We recommend you check
your alternator capacity to ensure ample charging capa-
bility to handle the additional load of your new Punch
equipment. Stock electrical systems in good condition
should typically handle the extra load of any individual
Punch unit without problems. If problems arise, we sug-
gest you first check the charging system, then use a heavy
duty battery and/or a high output alternator as needed.
Tools
Needed

MOUNTING AND LOCATION
The mounting location and position of the Punch 4-
Channel will have a great effect on its ability to dissipate
the heat generated in normal operation. The Punch 4-
Channel has a heatsink designed for heat dissipation
and internal shutoff circuitry to avoid overheating. It is
reasonably tolerant of mounting variations. However,
care should be taken to ensure adequate ventilation.
The temperature inside a trunk can reach as high as 175°
F (80°C) during the summer months. Since the thermal
shutoff point for the Punch 4-Channel is 195°F (90°C),
it is easy to see that the amp must be mounted for
maximum cooling capability. Mounting the amplifier on
the floor or under the rear parcel tray prevents sufficient
convectional air flow cooling. Mounting the unit vertically
on a surface with the fin grooves running up and down
usually results in the best cooling.
Underthe seator floormounting willwork aslong asthere
is a minimum of 1”(2.5cm) of air gap above the amplifer's
heatsink.
Vertical mounting of the amplifier is still the best.
Trunk
Mounting
Passenger
Compartment
Mounting
WIRING THE PUNCH
Caution! Be sure to avoid running the power wires
nearthelowlevelinputcables,antenna,powerleads,
sensitive equipment or harnesses. The power wires
carry substantial currents and could induce noise.
The following instructions explain how to prepare the
wires, connectors and fusing. We suggest you perform
these procedures prior to wiring and mounting your new
Punch 4-Channel amplifier.
1. Use approximately 18" (46cm) of the red power wire.
Strip one end of the wire back 1/2”(1.3cm) as shown
in the following diagram:
Preparing
Wires and
Fuses
10
1/2"
(1.27cm)
>
>
(1.3cm)
Wiring the
Fuse Holder

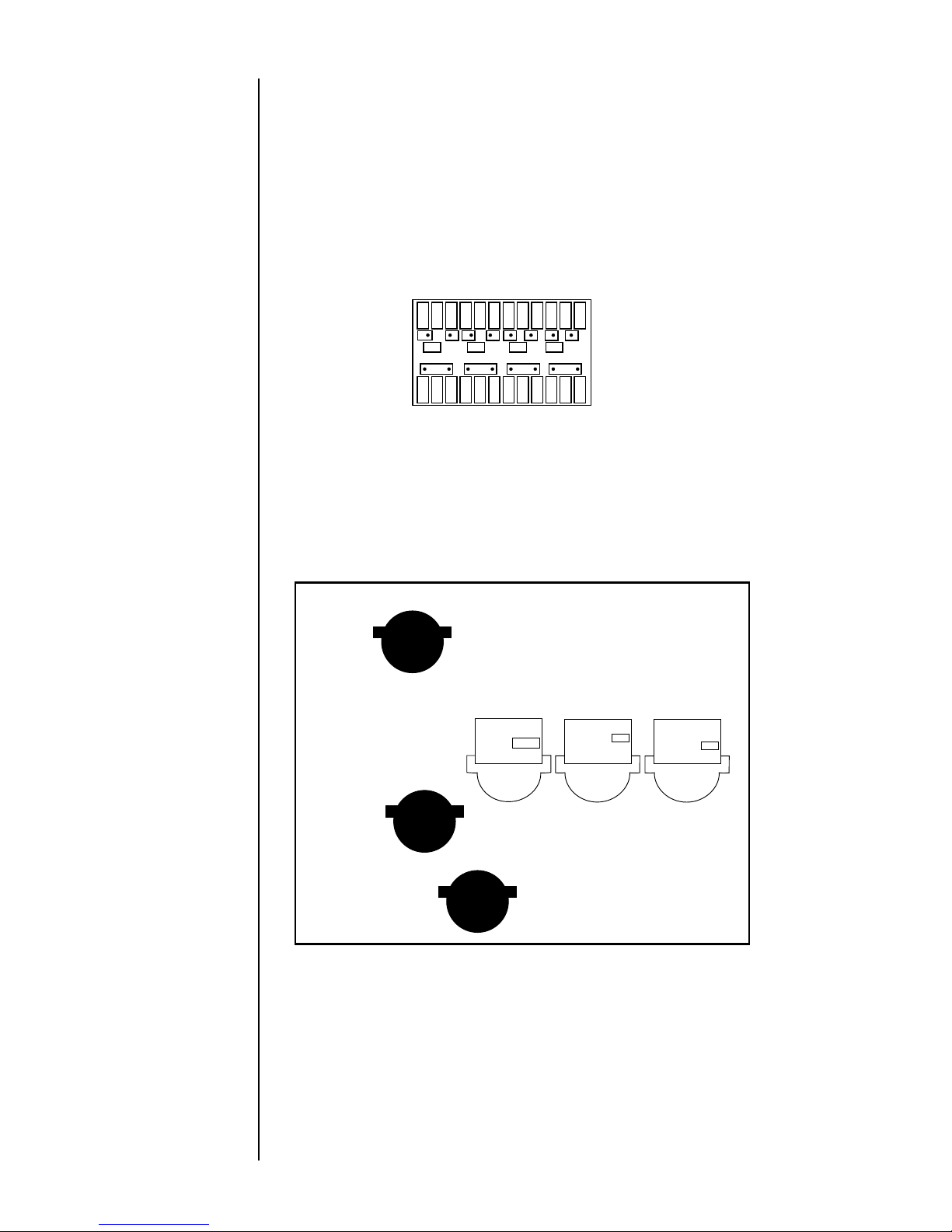

2. For the Punch 4040, place the protective boot onto
the wire. Insert the wire into one end of the fuse holder
so that the insulation is just inside the crimp area as
shown in the diagram. Crimp the wire in place with the
notched portion of a crimping tool. Cover the crimped
area with the protective boot that is supplied with the
fuse holder.
11
Fuse Holder
Protective Boot
Crimp Here
{
3. For the Punch 4080, place the protective boot onto
the wire. Slide the wire into the wire sleeve. Making
sure the screw holes on the wire sleeve and fuse
holder align, insert the prepared wire sleeve into the
smaller end of the fuse connector. Tighten the wire in
place with the enclosed allen screw. Screw the pro-
tective boot onto the fuse holder.
wire
4. Repeat the above steps to connect the remainder of
the red power wire to the other side of the fuse holder
and route to the amplifier mounting location.
wire fuse connector
wire sleeve

12
Wiring the
Ring and
Spade
Connectors

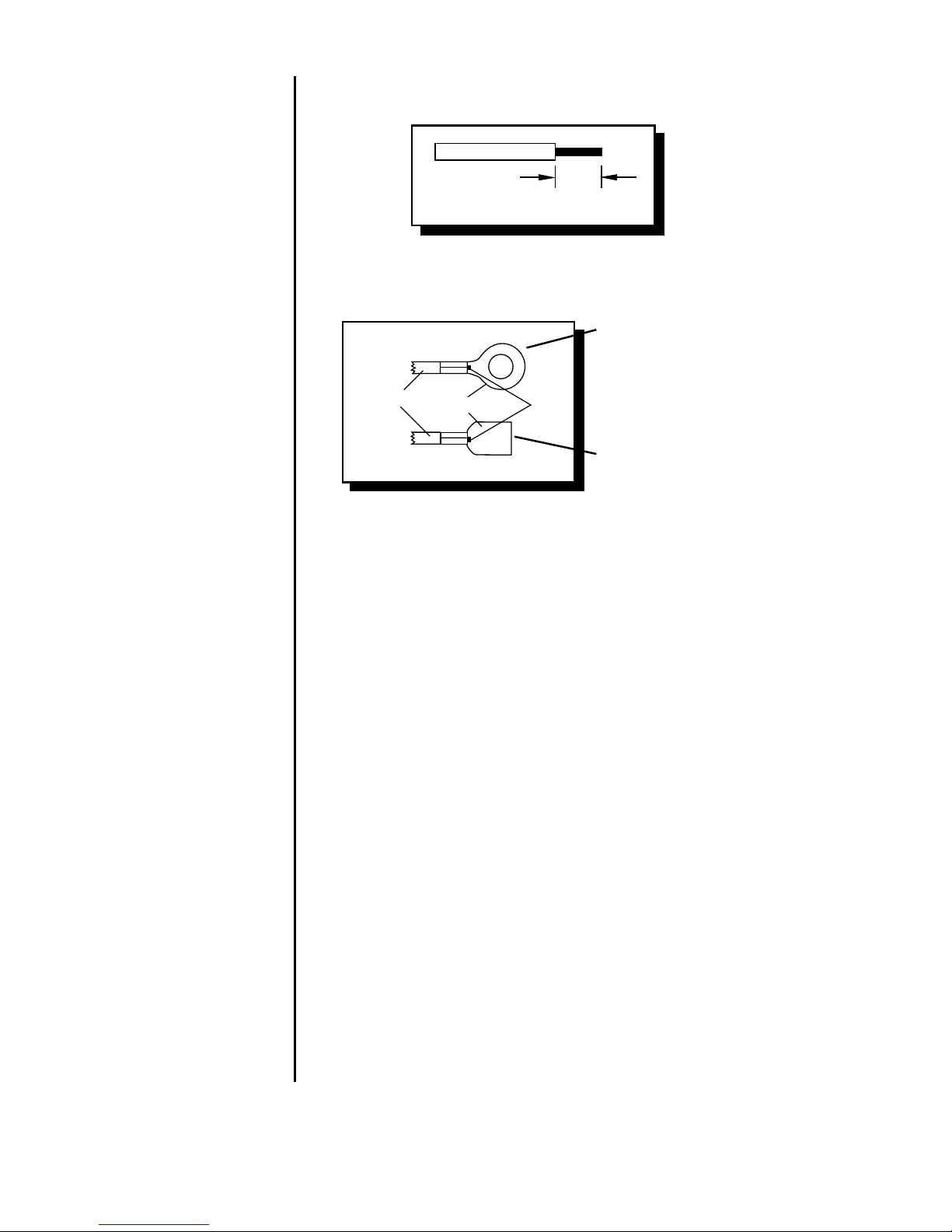

1. Strip back approximately 3/8" (1cm) of insulation.
2. Insert the bare wire into the connector and crimp in
place as shown in the following diagram:
3/8"
(1cm)
{
{
Crimp Here
Wire w/insulation Bare
Wire
Connectors
Crimp Here This connector is used for
the Red Power wire and
Black Ground wire.
This connector is for the
Blue Remote Turn-On wire.
Power The gold B+ terminal on the amplifier must be connected
directly to the positive (+) terminal of the battery with an
appropriate size fuse. (See the Specifications Table for
more information.) This provides a power source with a
low voltage drop and low noise. Be sure to use the
supplied fuse and fuse holder within 18" (46cm) of
the battery’s positive terminal. Failure to do so may
cause damage to the vehicle and the amplifier.
If the power wire must be extended beyond 17' (518cm),
we recommend you use 8 gauge, or heavier, stranded
wire.

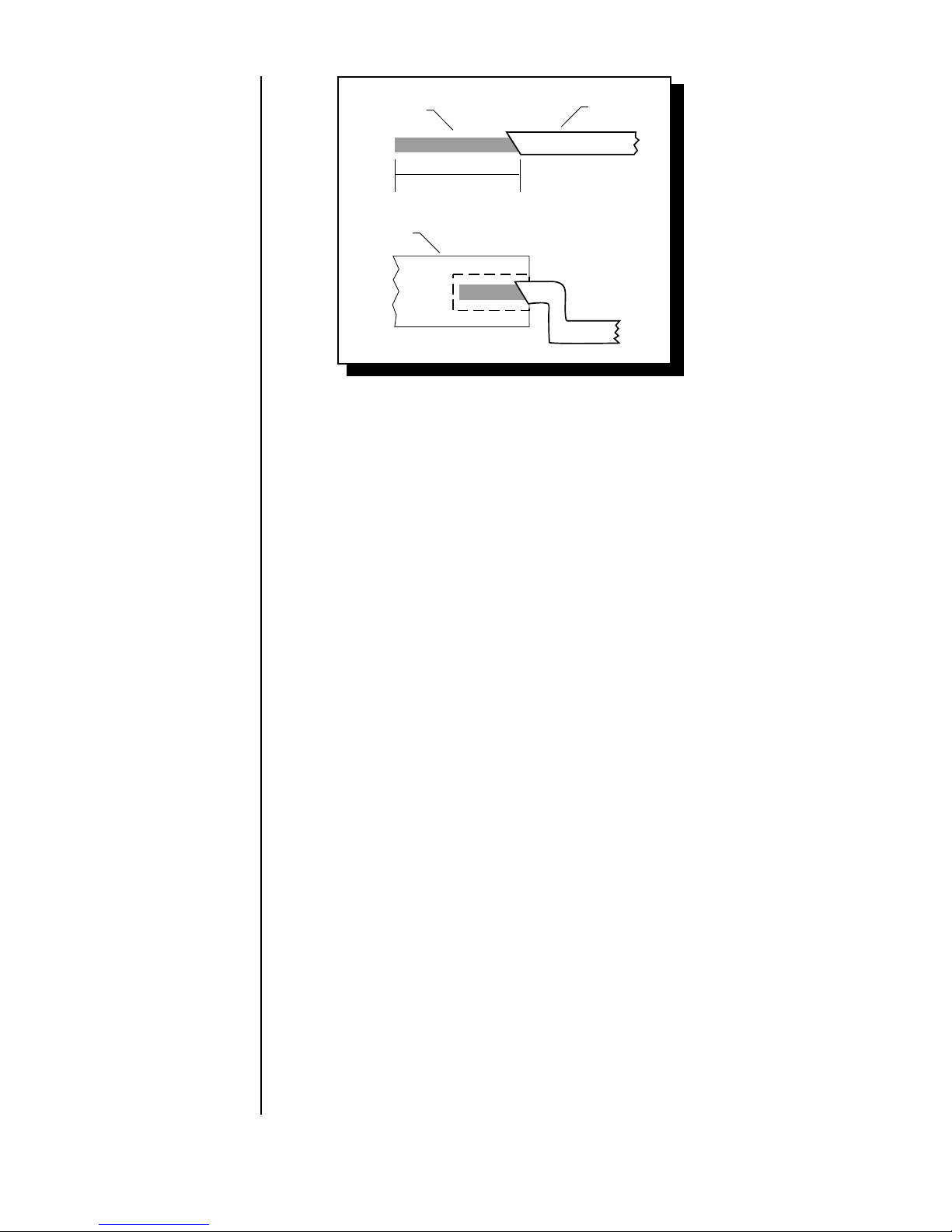

If using a larger gauge wire than that supplied with your
new Punch 4-Channel, cut the wire casing on the diago-
nal as shown in the following diagram. Insert the wire into
the connector. Twist the wire around so that the long end
ofthe insulationfacesup. Bendthe wirepriorto tightening
in place. This will make it easier for attaching the end cap
to the amplifier.
Note: For easier assembly, only 5/8" (1.6cm) of wire
should be bare.
Using Larger
Gauge Wire

13
><
5/8"
INSULATION
STRIP WIRE
>
>
AMP
>
The GND terminal grounds the amplifier and is con-
nected to the chassis of the vehicle with 12 gauge, or
heavier, stranded wire. When grounding, scrape paint off
metal to ensure a good, clean ground connection. To
prevent ground loops, we recommend you refrain from
extending the ground wire beyond 18" (46cm) in any
installation.
The Punch 4-Channel amplifiers are turned on by supply-
ing positive (+) 12 volts to the REM terminal. Usually the
terminal is connected to the source unit’s “Accessory”or
“Auto Antenna”lead, either of which will go to +12 Volts
when the source unit is turned on.
Although the majority of high-quality automotive source
units have an Accessory or Antenna output, there are
many which require different turn-on methods. If the
source unit has no Auto Antenna lead (or if the Auto
Antenna goes down during tape operation), we recom-
mend a switch in the car with one terminal connected to
+12 volts and the other to the Punch 4-Channel REM
lead. This will allow you to engage the amplifier manually.
The amplifier’s signal input RCA jacks should be con-
nected to the source unit’s signal outputs with high-
quality braided or double-shielded interconnecting RCA
cables.
Note: Be sure to route the Punch 4-Channel signal
input cable away from the main power wire and the
car’s wiring harnesses to avoid noise coupling.
Remote
Turn-on
Ground
Input

14
Punch 4-Channel amplifiers are rated for safe operation
into loads of 2Ω, or greater in stereo mode or 4Ωin
bridged/mono configurations. The primary loads on any
amplifier come from directly connected speakers without
using capacitors. The measured resistance for each side
should not be less than 2Ωstereo or 4Ωbridged/mono.
The Punch 4-Channel amplifiers are capable of bridged/
mono configurations.
This configuration enables you to:
•Run amplifier as a separate 2 channel subwoofer or
satellite amplifier.
•Create a high power stereo system
•Run 2 channels with a bridged mono woofer and the
other 2 as a high-frequency stereo amp, etc.
Note: Both Punch 4-Channel amplifiers allow the
above 3 configurations all in one.
For more information refer to the wiring diagrams begin-
ning on page 18.
Note: To bridge the amplifier use the L+ and R–
speaker connectors.
Caution! Punch4-Channelamplifiersarenotrecom-
mended for impedance loads below 2Ωstereo or 4Ω
bridged/mono.
Be sure to observe proper speaker terminal polarity
throughout the system. It is critical for the Punch 4-
Channel to use the correct negative terminals for
right and left channels, since the RIGHT NEGATIVE
(–)terminalisthe“hot”terminalfortherightspeaker.
DO NOT chassis ground any of the speaker leads as
unstable operation may result.
A passive crossover is a circuit that employs capacitors
and/or coils and is placed on speaker leads between the
amplifier and speaker to delegate frequencies in the
speaker’s optimum performance range.
Speakers
Bridged/Mono
Configuration
Passive
Crossover
Impedance

The most commonly used filter networks are 6 dB per
octave systems. These are easy to construct and require
a minimum number of parts. A filter network can perform
one of three functions. These are highpass (capacitors),
lowpass (inductors, chokes or coils) and bandpass (com-
bination of a capacitor and a coil).
The result, limiting the types of frequency to the speaker,
is directly dependent upon the speaker’s impedance and
component values.
The most common filters used in speaker crossovers, as
stated above, are 6 dB per octave which use one compo-
nent per filter. Placing this filter in series with the circuit will
reduce power to the speaker by 6 dB per octave above or
below the crossover point depending on whether it is a
High Pass or Low Pass filter. When passive crossover
components are used in multiple speaker systems, the
crossoversystem'seffect ontheoverallimpedance should
be taken into consideration along with the speaker's
impedance when determining amplifier loads.
More complex systems such as 12 dB or 18 dB per octave
can cause impedance problems if not professionally de-
signed. If such a system is required, we recommend
consulting an Authorized Rockford Fosgate Dealer.
15

16
Table of Component Values
6 dB/Octave Low Pass 6 dB/Octave High Pass
Freq.
Hertz Speaker Impedance
80 4.1mH 1000µF 8.2mH 500µF 16mH 250µF
100 3.1mH 800µF 6.2mH 400µF 12mH 200µF
130 2.4mH 600µF 4.7mH 300µF 10mH 150µF
200 1.6mH 400µF 3.3mH 200µF 6.8mH 100µF
260 1.2mH 300µF 2.4mH 150µF 4.7mH 75µF
400 .8mH 200µF 1.6mH 100µF 3.3mH 50µF
600 .5mH 136µF 1.0mH 68µF 2.0mH 33µF
800 .41mH 100µF .82mH 50µF 1.6mH 26µF
1000 .31mH 78µF .62mH 39µF 1.2mH 20µF
1200 .25mH 66µF .51mH 33µF 1.0mH 16µF
1800 .16mH 44µF .33mH 22µF .68mH 10µF
4000 .08mH 20µF .16mH 10µF .33mH 5µF
6000 51µH14µF .10mH 6.8µF .20mH 3.3µF
9000 34µH 9.5µF68µH 4.7µF .15mH 2.2µF
12000 25µH 6.6µF51µH 3.3µF 100µH 1.6µF
2 OHMS 8 OHMS
4 OHMS
LC L CL C
LC
L = Low Pass (Inductor)
C = High Pass (Capacitor)
For more information, see your Authorized Rockford Fosgate Dealer.
6 dB/Octave High and Low Pass Filters

The Punch 4-Channel amplifiers feature selectable elec-
tronic crossovers. Selection is made by positioning of a
removable module card. These modules control the
output channels and can be configured in a High Pass,
Low Pass or Full Range (factory default) position. The 4-
Channel amplifiers are shipped with 100Hz 12dB per
octave Butterworth aligned crossover modules. Addi-
tional crossover frequency modules are available from
your Authorized Rockford Fosgate Dealer.
Active
Crossover
Mode
Selection
17
LP
➞
HP
➞
Note: The factory default is Full Range.
To change the crossover mode, remove the crossover
module from the housing. Rotate the module to the
desired setting and gently push the module back into the
amplifier housing as shown on the diagram on the back
of the amplifier.
Crossover
Frequency
Settings
NOTE:
All of the crossover cards in this amplifier have been
factory installed in the FULL RANGE configuration.
They can be reconfigured to produce a 100Hz LOW
PASS or HIGH PASS according to the following
instructions.
CROSSOVER CARD INSTALLATION:
Use a small screwdriver to pry out the plastic hole
covers. Orient the card in the FULL RANGE, LOW
PASS, or HIGH PASS configuration as shown below,
then insert the card fully into the connector.
FRONT+REAR
SUM OUTPUT
FRONT
SPEAKERS
REAR
SPEAKERS
FULL RANGE LOW PASS HIGH PASS
FULL
LP
HP
HP
LP
➝
➝
➝
➝
➝
➝
FRONT+REAR SUM OUTPUT:
The center pair of RCA jacks provide a
FRONT+REAR summed output signal, with a
crossover that operates independently of the FRONT
SPEAKER and REAR SPEAKER crossovers.
Example: The 4040 DSM is shipped with three 100 Hz
modules. With the modules in the Full Range setting, the
amplifier will pass through all 20Hz -20kHz frequencies.
In the Low Pass setting, only those frequencies below
100 Hz will pass through the amplifier.
In the High Pass setting, only those above 100 Hz will
pass through the amplifier.
