GENERAL SAFETY WARNINGS
This product is designed only for specific applications as defined in the instructions and
should not be modified or used for any manner not described in these instructions. Use only
recommended accessories. Before using the Wireless Speaker Kit: READ, UNDERSTAND
and FOLLOW ALL INSTRUCTIONS AND SAFETY WARNINGS. KEEP THESE
INSTRUCTIONS READILY AVAILABLE FOR FUTURE REFERENCE.
> Always confirm that you are using the most
recent version of the Instructions and safety
warnings for your product (see the
Instructions link on the product
page at Rockler.com).
> Before using another tool with this product,
always read, understand and follow the
instructions and safety warnings in the
owner’s manual for that tool. If you do not
have the owner’s manual, obtain one from
the tool’s manufacturer before using it with
this product.
> Before using any chemical with this
product, always read, understand and
follow all safety warnings and guidelines
in the manufacturer’s Safety Data
Sheet (SDS; formerly called “MSDS”),
especially regarding:
• How to safely use the chemical,
including potential hazards and
recommended first aid measures;
• Personal safety equipment required
to safely use the chemical (e.g. gloves,
eye protection, mask/respirator, etc.);
• Proper and safe handling, storage
and disposal of the chemical.
> Before using this product, review and verify
that all tools to be used with it have safety
equipment installed and are in proper
working order as defined by the tool’s
owner’s manual.
> Do not use this product until you have read
and are confident you understand:
• Product Specific Warnings (pp. 3 - 4);
• Assembly (p. 5);
• Connecting to Your Device (p. 6);
• Operating Controls (p. 6).
>The user assumes all risk and responsibility
for the proper and safe use of this product
and for ensuring product suitability for the
intended application.
>It is the sole responsibility of the purchaser
of this product to ensure that any anyone
you allow to use this product reads and
complies with all instructions and safety
precautions outlined in this manual
prior to use.
>Follow all standard shop safety
practices, including:
• Keep children and bystanders away
from the tool operating area;
• Do NOT use power tools in explosive
environments, or in the presence of
flammable liquids, fumes or dust;
• TURN OFF AND UNPLUG all power
tools BEFORE making any adjustments
or changing accessories;
• Remain alert and use good judgment.
Do not use this product if you are in any
way impaired by medications, alcohol,
drugs or fatigue;
• Keep your work area well lit and clean;
• Dress appropriately. Secure loose
clothing, remove all jewelry and tie
up long hair before using this product;
• ALWAYS wear safety glasses, hearing
protection and respiratory protection
that complies with NIOSH/OSHA/ANSI
safety standards;
• Use dust collection tools and dust face
masks to reduce exposure to dust;
• Use safety equipment such as
featherboards, push sticks and push
blocks, etc., when appropriate;
• Maintain proper footing at all times
and do not overreach;
• Do NOT force woodworking tools.
> These warnings and instructions do
NOT represent the total of all information
available regarding tool safety, use and
technique. Always seek out opportunities
to learn more and improve your skills
and knowledge.
Drilling, sawing, sanding
or machining wood products can expose
you to wood dust, a substance known ot
the State of California to cause cancer.
Avoid inhaling wood dust or use a dust
mask or other safeguards for personal
protection. For more information go to
www.P65Warnings.ca.gov/wood.
BP0918

3
Danger indicates a hazardous situation that, if not avoided, will result
in death or serious injury.
Warning indicates a hazardous situation that, if not avoided, could
result in death or serious injury.
Caution indicates a hazardous situation that, if not avoided, may result
in minor or moderate injury or property damage.
Notice indicates important or helpful information and/or user tips.
SAFETY WARNING KEY
> Read, understand and follow all safety
warnings included in these instructions.
Keep these instructions in a place where
they will be readily accessible later.
>To reduce the risk of fire or electric
shock, do NOT expose this apparatus
to rain or moisture. As with any
electronic products, use care not to
spill liquids into any part of the product.
Exposure to liquids may create a failure
and/or fire hazard.
> Do NOT place open-flame sources,
such as lighted candles, on or near
the product.
> Do NOT use near any heat sources
such as radiators, heat registers, stoves,
prolonged direct sunlight or other
apparatus that produce heat.
> Do NOT subject batteries to
mechanical shock.
>This device uses an internal
rechargeable lithium-ion battery
that should last the lifetime of the
device. Never disassemble the unit
or attempt to remove the battery as
that could cause leakage of an
electrolytic substance.
> In the event of a battery leaking, do
not allow the liquid to come in contact
with the skin or eyes. If contact has been
made, wash the affected area with
copious amounts of water and seek
medical advice.
> Do NOT use any charger other than
that specifically provided for use with
the equipment.
> Do NOT leave a battery on prolonged
charge when not in use.
> After extended periods of storage, it may
be necessary to charge and discharge
the batteries several times to obtain
maximum performance.
> Batteries give their best performance
when they are operated at normal room
temperature 68°F (20°C) ± 9°F (5°C).
> This product contains magnetic material.
Contact your physician if you have
questions on whether this might affect
the operation of your implantable
medical device.
PRODUCT SPECIFIC SAFETY WARNINGS
Product Specific Safety Warnings continued on page 4

4
PRODUCT SPECIFIC SAFETY WARNINGS CONTINUED
> Do not make unauthorized alterations
to the product; doing so may compromise
safety, regulatory compliance and
system performance.
> This product is not designed and has
not been tested for use in recreational
vehicles or on boats.
>This product is intended to be used only
with the power supply provided.
> When working with epoxy, make sure the
area is well-ventilated, wear nitrile gloves
and use an applicator. Avoid contact with
skin or clothing.

5
Assembly
The Wireless Speaker Kit, which includes one
speaker unit with connector wires and one
control unit, can be mounted in solid material
or in a hollow or box-type structure.
If the two components are to be installed back
to back, the distance from the front of the
material or box to the back must be at least 2"
but no more than 12" to allow wire connections
to be made.

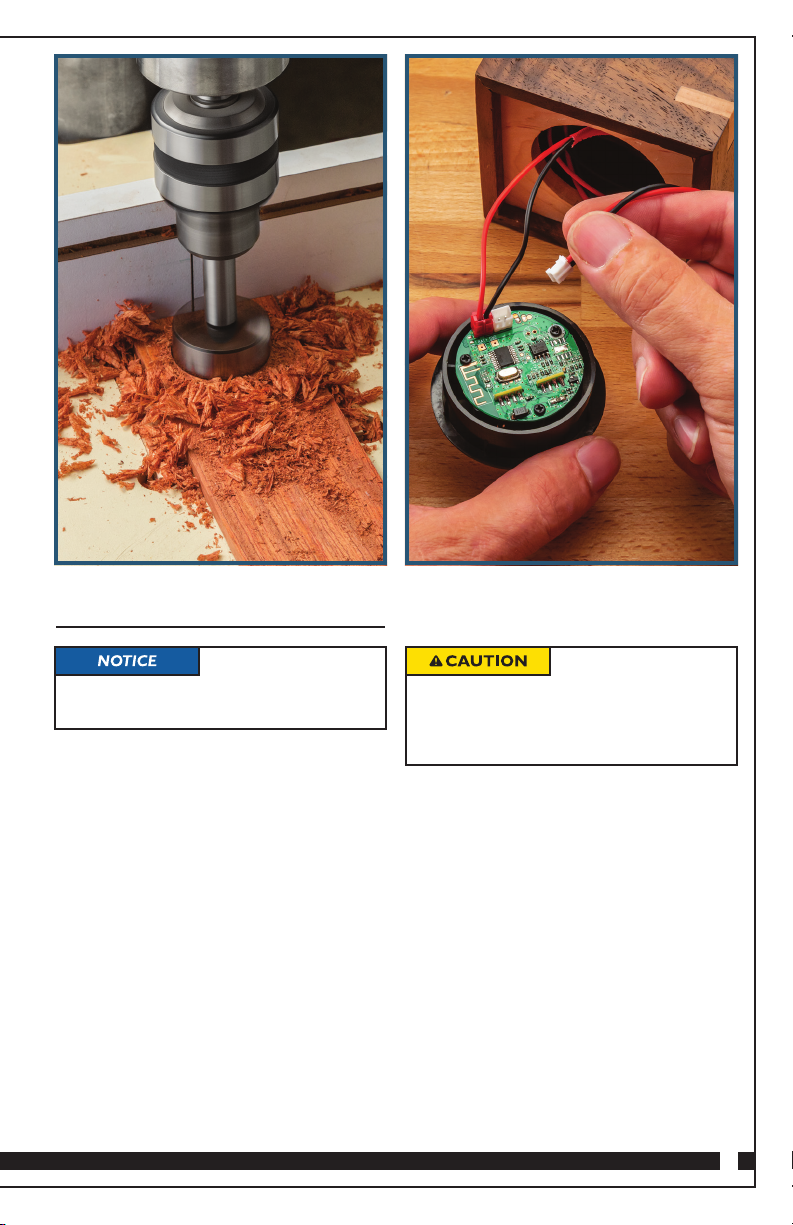

1. Use a coping or scroll saw or a drill with
a Forstner bit (55985, sold separately) or
hole saw to cut a 17⁄8" diameter hole for
mounting the speaker and control units.
Fig. 1. Solid material will require a through
hole; a hollow box will require matching
holes in front and back.
2. Press fit or, if desired, epoxy the
speaker unit into the front of the mounting
structure. Make sure you will have access
to the color-coded wires/connectors. Be
sure to wipe away any excess epoxy.
3. Connect the wires from the speaker unit to
the control unit, pressing the red connector
at the end of one set of wires into the red
port on the back of the control unit and the
white connecter on the other set of wires
into the white port. Fig. 2.
4. Push the wires inside the opening and
press fit or epoxy the control unit into
the rear mounting hole.
Recommended
interior dimensions of speaker
enclosure: 31⁄4" x 31⁄4" x 23⁄8".
When working
with epoxy, make sure the area is
well-ventilated, wear nitrile gloves and
use an applicator. Avoid contact with
skin or clothing.
Fig. 2Fig. 1

6
Connecting to Your Device
1. Charge the speaker by plugging the small
end of the included USB cord into the
control unit and the other end into
a power source.
2. Once the battery is charged, disconnect
the speaker. Make sure Bluetooth®
connectivity is enabled on your device.
3. Turn on the speaker by pressing and
holding the button on the back of the
control unit for three seconds. The blue
LED will blink.
4. When you open your device, “My BT
Speaker” should appear onscreen.
Select it and wait for the connection to
be established. Once a connection is
established, the blue LED will blink
quickly and you will hear a tone.
Operating Controls
On/off: Press and hold the button on the
back of the control unit.
Play/Pause: Press and release to pause
or play.
Forward/back: To advance to the next audio
file, press and release the button. To
go back to the previous audio file, press and
release the button.
Volume up/down: The speaker volume can
be controlled at the speaker or through the app
that you are using to play audio. To increase
volume at the speaker, press and hold the
button. To decrease volume, press
and hold the button.
Auxiliary Input Jack: Allows you to connect a
device via cable. Accepts a 3.5mm plug.
The LED indicator
light will be red while the battery is
charging and go off when the battery
is fully charged. Battery life is up to
four hours.
Wireless Speaker Controls
Check Rockler.com for updates. If you have further
questions, please contact our Technical Support
Department at 1-800-260-9663 or
[e-mail]
Auxiliary Input Jack
Micro USB
Charging
Input
LED Indicator
Press and RELEASE:
Play or Pause
Press and HOLD:
Power on/off Press and RELEASE:
Next audio file
Press and HOLD:
Increase volume
Press and RELEASE:
Previous audio file
Press and HOLD:
Decrease volume

7
IDENTIFICATION OF
ASSEMBLED PRODUCT
57033 WIRELESS SPEAKER KIT
FCC ID: FFDD
APPLICABLE
COMPLIANCE STATEMENTS
NOTE: This equipment has been tested and
found to comply with the limits for a Class
B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is
no guarantee that interference will not occur
in a particular installation. If this equipment
does cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user
is encouraged to try to correct the interference
by one or more of the following measures:
— Reorient or relocate the
receiving antenna.
— Increase the separation between
the equipment and receiver.
— Connect the equipment into an outlet
on a circuit different from that to which
the receiver is connected.
— Consult the dealer or an experienced
radio/TV technician for help
RESPONSIBLE
PARTY / MANUFACTURER
ROCKLER COMPANIES
ADDRESS 4365 WILLOW DRIVE, MEDINA,
MN 55340
TELEPHONE [phone]
WWW.ROCKLER.COM
BLUETOOTH®
Version 5.0
BLUETOOTH®
Profile A2DP,AVRCP, HFP, HSP
Transducer 1 x 40mm
Output Power 3W
Frequency
Response 180Hz-20khz
Signal-to-Noise
Ratio 80dB
Battery
Charge Time 1hr
Battery
Play Time 3-4 hours 70% volume
Battery
Capacity 500mAh
Weight 78g
BLUETOOTH®
Transmitter
Power
4dBm
BLUETOOTH®
Transmitter
Frequency
Range
2.402-2.480GHz
BLUETOOTH®
Transmitter
Modulation
GFSK,PI/4DQPSK
Power Supply DC 3.7V by battery
or DC 5V by adapter
Audio Input AUX
Charging Type Micro USB
Changes or
modifications to this unit not expressly
approved by the party responsible
for compliance could void the user’s
authority to operate the equipment.
“This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.”

Distributed by Rockler Companies, Inc.
4365 Willow Dr. Medina, MN 55340
The Bluetooth®word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc., and any use of such marks by
Rockler Companies is under license.
1-800-279-4441
www.rockler.com
57033
Rev 07/19
