ROCKSOLAR RS81 MAX Operator's manual

PORTABLE POWER STATION
User Instruction Manual
RS81 MAX

ABOUT THE UNIT
Thank you for applying our multi-function portable power station. In case of power
failure or you need to charge on a travel, you can temporarily charge your electrical
or digital devices with this unit. This unit can provide USB, DC and AC output. You can
keep laptops, appliances, lights and more going for hours longer. Before using this
unit, please read the user manual carefully and properly keep it for reference.
ATTENTION!
This manual is to help you use the product correctly; it does not represent any
description on the hardware and software configuration of the product. About the
product configuration, please refer to the contract related to this product (if there is),
or consult to the seller that sells the product. Pictures in this manual is for reference
only, if there are individual pictures do not match the actual, please prevail in actual
products.
The unit provides Modified Sine Wave output
The unit provides Modified Sine Wave output, and can be compatible to AC electric
appliance that works with Sinusoidal waveform (power <80W). However, anything
that uses an AC motor isn't going to work to full capacity on a modified sine wave.
Such as an electrical fan, it will even make the electric appliance arouse some noise.
Appliances like refrigerators, microwaves, and compressors that use AC motors and
some delicate medical equipment will be better off with a pure sine wave inverter.
This product is only used for emergency, it cannot replace the normal alternating
current, for long-term use, please adapts the power station specification required by
electrical appliances.
【I】PRODUCT PARAMETERS
Capacity
111Wh,7.5/14.8V(equivalent 30000mAh/3.7V))
Dimensions(LWH)
144.8x77x105mm
Weight
about 1.04Kg
Built-in Battery
High Quality Lithium ion Batteries
Input Recharging
Adapter: DC19V/1.5A
Solar Panel Charging: DC 15V~25V/1.2A Max
Fully Charged Time
DC19V/1.5A: 5~6 hours
USB Output
2 x USB 5V-2.4A Total:4.8A Max
2 x USB 5-12V/2A Qualcomm QuickCharge3.0(18W Max,
Total: 5V/3.4A max)
1 x USB C 5V/3A,9V/2A,12V/1.5A(PD2.0 18W Max)
DC Output
DC Output 12-16.8V/10A Total 13A Max

AC Output
110V/60Hz
AC Power
AC Continuous Output: 80W/120W Max
Bulb Type
1 x Ultra bright LED Flashlight
1 x LED Light Panel
Power Indicator
LED Indicators
Operation temperature
-10℃-40℃
Lifecycle
>500 times
Package include
1 x Portable Power Station 1 x power adapter
1 x Cigarette Lighter 1 x User Manual
※There may be some differences on different spare parts. Please adhere to the
actual product instead.
【II】PRODUCT DESCRIPTION
【Top】
dd
AC Outlet
LED LIGHTPANEL
FLASHLIGHT SWITCH
AC ON/OFF
AC INDICATOR
BATTERY INDICATOR
POWER SWITCH
LED LIGHTPANEL SWITCH
USB 5V/3A,9V/2A,12V/1.5A 18W Max
Qualcomm QuickCharge3.0
(Total 5V/3.4A Max when both in use)
2 x USB 5V-2.4A
Total:4.8A Max
DC Output 12-16.8V/10A
(13A Max)
USB C 5V/3A,9V/2A,12V/1.5A
(PD2.0 18W Max)

【LEFT】【RIGHT】
【III】PRODUCT INSTRUCTION
1) How to provide power for DC12V appliances (such as head lamp, fan) with this
product?
Plug your appliances to the DC output port and press power switch button to gain
power. DC output rated Current: 10A , Max output Current<13A.
Notices: Please confirm whether your DC12V appliance support charging with 5.5mm
DC header interface (The diameter of the DC Port of the Product is: 5.5mm),
otherwise it is unable to connect with the DC output, you can consult the electrical
manufacturer, buy the corresponding adapter and connect with it.
WARNING!
※Note: The DC output voltage is range between 12V~16.8V, maximum output
current is 13A. DC output voltage drops or increase while battery capacity drops or
increase due to chemical characteristics of the battery. If your appliance is not
built-in input voltage stabilizing function, it may shutdown when input voltage is too
low or too high. If your 12V devices can not work due to input voltage is too high,
please read the device manual or consult the device manufacturer to get the input
voltage range of your device.
or charge car kits via DC to Cigarette Lighter Connector
5.5mm DC12V for Fan or
LED lights
Support 5.5mm DC12V car kits with DC-Cigarette
Lighter Adapter, such as Vacuum Cleaner, Inflation
Pump, Electric wrench, fridge, etc.
Ultra Bight LED Flashlight
3.5MM/1.35mm DC Input
Quick Recharging
Cooling vents

Protection Mode:
Short-circuit/Overpower Protection: If the DC output is short-circuited or over
powered(Load(s) power>150W), the unit will shutdown to protect itself. Please clear
the problem and recharge the unit to recover from protection mode.
2) How to provide power for AC appliances with this product?
Connect the power cable plug of the electrical appliance to the AC outlet of the
product, switch on the power button and the unit will start providing power to your
appliances.
WARNING! The Ac outlets, AC voltage and frequency are different according to
different countries; please carefully check whether the product specifications are
consistent with the appliance specifications before use, otherwise it can lead to
dangerous situations.
【Top】
When the AC port is not in use, turn it off to conserve power.
Protection Mode:
Short-circuit/Overpower Protection: If the AC output is short-circuited or
overpowered (Load(s) power>80W), the unit will shutdown AC output to protect
itself. Please clear the problem and re-press the AC button for AC output.
※Some devices, such as refrigerator, ice maker or a laser printer may require a surge
power to start or work during a very time period, the surge power could exceed
120W or even higher, this could cause overpower protection with this unit. Please
remove the devices and consult with the device manufacturers for more information.
Please clear the problem and re-press the AC button for AC output.
3) How to provide power for USB(C) digital appliances with this product?
Connect the standard USB cable of digital appliance to the USB output of the unit,
press the“ ” to turn on USB output.
Notice: Some smart devices, such as Bluetooth headphones and LED lights. require
very small input current to charge, which could be less than 150mA. The unit may fail
to charge these kinds of smart devices due to detection current limitation by the USB
output ports. On this occasion, user can press the AC button “ ” to keep the USB
port output running. Please turn off AC output when the smart devices are fully
charged to save power.
Limited Appliance Wattage<80W, Lamp, Electric
Fan, TV, etc. AC will shut down when it’s short
circuited or power overloaded. Remove the device
and the unit will recover from short-circuit or
overpower protection in a few seconds. Repress the
AC output button to switch on AC output again.

Quick Charge Output: This product supports Qualcomm QuickCharge 3.0 and USB C
PD(Power Delivery)2.0 Output, support: 5V/3A,9V/2A,12V / 1.5A 18W max output
for smartdevices which also support Qualcomm QuickCharge 3.0 or USB PD2.0
Protocol. The actual output voltage and current depends on the actual smartdevices,
it can be obtained by consulting the smartdevice manufacturer.
4) How to use the flashlight
This unit is built with ultra bright LED flashlight. Press the “ ” button to switch on
flashlight and single press the button to switch to blink/SOS mode, Press the button
to switch off.
Warning! Do not point directly at the eyes of human in case of any damage due to
the strong light.
5) How to use the Led light panel
This unit is built with LED light panel. Press the“ ” button to switch on light panel
and single press the button to switch brightness, Press the button again to switch off.
Warning! Do not point directly at the eyes of human in case of any damage due to
the strong light.
6) How to charge the unit?
a. Charge through AC Wall Charger
Using the included AC Wall Charger, plug the unit into any wall outlet to charge the
unit. You will know the unit is charging when the blue LED battery indicators are
blinking. The unit is fully charged when all battery indicators stop blinking and remain
solid. After the unit is fully charged, please remove the AC wall charger in time.
【Top】
【LEFT】
AC Socket
AC Adapter (charger)

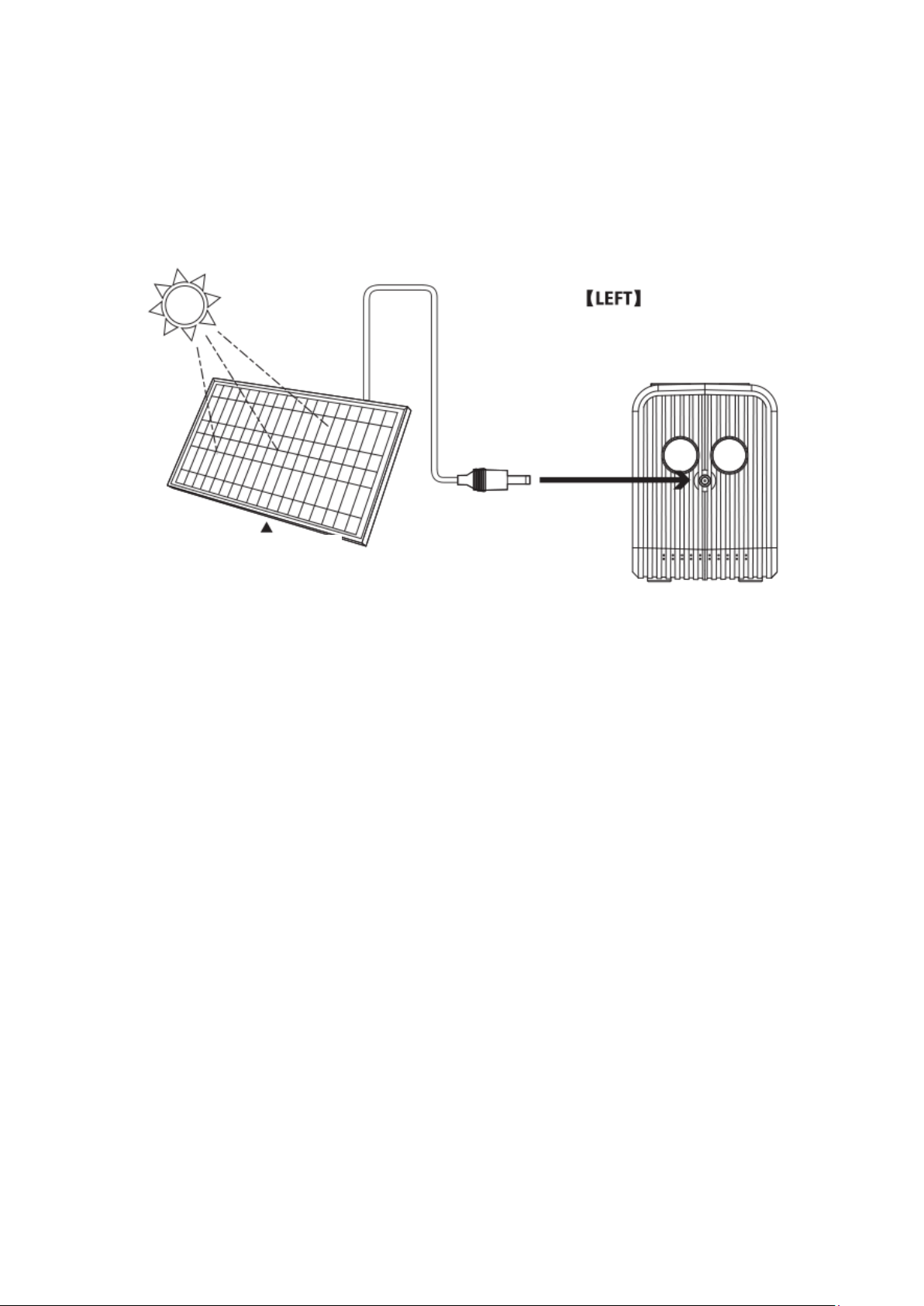

b. Charge from Solar panel
1. Place your solar panel where it will get as much direct sunlight as possible.
2. Plug the output of the solar panel into the input of the unit to start charging. You
will know the unit is charging when the blue LED Battery Indicator lights up and
blinks. The unit is fully charged when all battery indicators stop blinking and remain
solid.
【IV】SECURITY AND MAINTENANCE
a) Do not short-circuit the unit. To avoid short-circuiting, keep the unit away from all
metal objects (e.g. coins, hair-pins, keys, etc.).
b) Do not heat the unit, or dispose of it in fire, water or other liquids. Keep away
from high temperatures. Do not expose the unit to direct sunlight.
c) Keep away from high humidity, dusty places.
d) Do not disassemble or reassemble this unit.
e) In order to extend the life of product (lithium battery), it is best to charge within
3 Do not drop, place heavy objects on, or allow strong impact to this unit.
f) This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
g) Children should be supervised to ensure that they do not play with the appliance.
h) Do not cover the device with towels, clothing and other item.
i) The unit may become hot when charging. This is normal. Use caution when
handling.
j) Do not charge the unit over the required time.
k) Disconnect the unit when fully charged.
l) Use the unit properly to avoid electronic shock.
Input Charging
DC 15V~25V/1.2A Max

m) Please deal with scrap products in accordance with the regulations, do not treat
the built-in battery as a household garbage, so as not to cause the explosion and
pollution.
n) The product is only used for emergency situations, it cannot replace the standard
DC or AC power of household appliances or digital products.
【V】PRODUCT APPLICATION SKILLS
a) This product is built in high quality original lithium ion battery, it has no memory
effect but high-capacity, and it is durable. However, we still recommend you to
apply in the range of 10 ℃~30 ℃, so as to obtain the optimal charging capacity.
b) When charging, in order to avoid interference, please stay away from TV, radio and
other equipment.
c) If the device has not been used for a long time, please disconnect the cable and
store.
d) Some portable devices may need to be set in charge mode to charge, see the
corresponding equipment use manual for more information.
e) In order to extend the life of product (lithium battery), it is best to charge within 3
months, and charge at least once within 6 months.
Cold Weather Usage
Cold temperatures (below freezing) can affect the unit’s battery capacity due to
chemical characteristics of the battery. If you’ll be living off-grid in sub-zero
conditions, we recommend you keep your unit in an insulated cooler, and connected
to a power source (solar panels). The natural heat generated by the unit contained in
an insulated cooler will keep battery capacity at its highest.
Recycle
Always return your used electronic products, batteries, and packaging materials to
dedicated collection points. This way you help prevent uncontrolled waste disposal
and promote the recycling of materials.
Battery information
Your device has and internal, non-removable, rechargeable battery. Do not attempt
to remove the battery, as you may damage the device.
The battery can be charged and discharged over 500 times, but it will eventually
wear out.
Statement
All rights reserved. Reproduction in whole or in part without written permission is
prohibited.
All other trademarks are trademarks of their respective owners. Features and
specifications are subject to change without notice.

Limited Warranty
Rocksolar LLC. provides a non-transferable warranty to the purchaser of Rocksolar
product purchased from an authorized Rocksolar reseller. Rocksolar LLC. warrants to
the original consumer purchaser that the Rocksolar product will be free from defects
in workmanship and material under normal consumer use during the applicable
warranty period identified in the ‘Warranty Period’ section below, subject to the
exclusions set forth below. This warranty statement sets forth Rocksolar’s total and
exclusive warranty obligation. We will not assume, nor authorize any person to
assume for us, any other liability in connection with the sale of our products.
Warranty Period
The warranty period is 12 months. In each case, the warranty period is measured
starting on the date of purchase by the original consumer purchaser. The sales
receipt from the first consumer purchase, or other reasonable documentary proof, is
required in order to establish the start date of the warranty period.
Remedy
ROCKSOLAR’s entire liability and your exclusive remedy for any ROCKSOLAR product
that is not operating in accordance with its published technical specifications is at
ROCKSOLAR’s discretion: replace the product at ROCKSOLAR’s expense. This warranty
obligation is conditioned upon the hardware being returned to the original place of
purchase, or another place as directed by ROCKSOLAR, with the original sales receipt
attached. You may be required to pay shipping and handling charges, as well as any
applicable tariffs, duties, taxes, or other fees. ROCKSOLAR may, at its discretion,
provide new or refurbished products.
Limited to Original Consumer Buyer
The warranty on Rocksolar’s product is limited to the original consumer purchaser
and to any subsequent owner.
LIMITATION OF LIABILITY
ROCKSOLAR SHALL NOT BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR
CONSEQUENTIAL DAMAGES WHATSOEVER, INCLUDING BUT NOT LIMITED TO LOSS
OF PROFITS, REVENUE, OR DATA (WHETHER DIRECT OR INDIRECT) OR COMMERCIAL
LOSS FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON YOUR PRODUCT
EVEN IF ROCKSOLAR HAS BEEN ADVISED PREVIOUSLY OF THE POSSIBILITY OF SUCH
DAMAGES. Some local laws do not allow the exclusion or limitation of special,
indirect, incidental or consequential damages, so this limitation or exclusion may not
apply in your jurisdiction.

Exclusions
The warranty does not cover failures result from incorrect handling, product modifications,
installation, conversion or additions, supplements, operation, natural elements (weather),
excessive or deficient energy supply, chemicals, the effect of solid bodies or deliberate
damage. If the Warrantor determines that the problem with the Rocksolar product(s) is not
due to a manufacturing defect in the Warrantor’s workmanship or materials, or otherwise
does not qualify for warranty repair, then the Purchaser will be responsible for all costs
incurred by the Warrantor necessary to repair, replace and transport the Rocksolar
product(s). Rocksolar’s warranty does not apply to the battery cell unless the battery cell is
fully charged by you within seven days after you purchase the product and at least every 3
months thereafter.
How to Receive Service
To obtain warranty service, contact our customer service team at [e-mail]
Contact us
ROCKSOLAR TECHNOLOGY LLC.
Address: 500 DELAWARE AVE, STE 1 #1960 WILMINGTON,DE,US,19899
Email:[e-mail]
Website: www.rocopower.com
