rocksoul HM-EX05SXHD User manual

Operating Instructions
3)
3)
3)
3) Replacement
Replacement
Replacement
Replacement parts:
parts:
parts:
parts: When parts need replacing ensure the servicer uses parts specified by the
manufacturer or parts that have the same characteristics as the original parts. Unauthorized substitutes
may result in fire, electric shock, or other hazards.
4) Safety
Safety
Safety
Safety check:
check:
check:
check: After repairs or service, ask the servicer to perform safety checks to
confirm that the unit is in proper working condition.
WARRANTY
WARRANTY
WARRANTY
WARRANTY
If your product does not work properly because of a defect in material s or workmanship, our Company
(referred to as "the warrantor" ) will, for the length of the period indicated as below, (Parts(1)Year,
(Parts(1)Year,
(Parts(1)Year,
(Parts(1)Year,
Labor(90)
Labor(90)
Labor(90)
Labor(90) Days)
Days)
Days)
Days) which starts with the date of original purchase ("Limited Warranty period"), at its option
either(a) repair your product with new or refurbished parts, or (b) replace it with a new of a refurbished
product. The decision to repair or replace will be made by the warrantor.
During the "Labor" Limited Warranty period there will be no charge for labor.
During the "Parts" warranty period, there will be no charge for parts. You must mail-in your product
during the warranty period. This Limited Warranty is extended only to the original purchaser and only
covers product purchased as new. A purchase receipt or other proof of original purchase date is required
for Limited Warranty service.
M
M
M
M AIL
AIL
AIL
AIL -I
-I
-I
-I N
N
N
N S
S
S
S ERVICE
ERVICE
ERVICE
ERVICE
When shipping the unit carefully pack and send it prepaid, adequately insured and preferably in the
original carton. Include a letter detailing the complaint and provide a day time phone and/or email
address where you can be reached.
LIMITED
LIMITED
LIMITED
LIMITED WARRANTY
WARRANTY
WARRANTY
WARRANTY LIMITS
LIMITS
LIMITS
LIMITS AND
AND
AND
AND EXCLUSIONS
EXCLUSIONS
EXCLUSIONS
EXCLUSIONS
1) This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES
NOT COVER normal wear and tear or cosmetic damage.
The Limited Warranty ALSO DOES NOT COVER damages which occurred in shipment,
or failures which are caused by products not supplied by warrantor, or failures which result from
accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up
adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning
damage, modification, or service by anyone other than a Factory Service center or other Authorized
Servicer, or damage that is attributable to acts of God.
2) THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER "LIMITED WARRANTY
COVERAGE". THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES
RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OU T OF ANY BREACH OF THIS WARRNTY.
(As example s , this excludes damages for lost time, cost of having someone remove or re-install an
installed unit if applicable,
travel to and from the service, loss of or damage to media or image s , data or other recorded content. The
items listed are not exclusive, but are for illustration only.)
3) PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE
YOUR RESPONSIBILITY.
4
4
4
4
Operating Instructions
HDMI
HDMI
HDMI
HDMI Extender
Extender
Extender
Extender
MODEL:
MODEL:
MODEL:
MODEL: HM-EX05SXHD
HM-EX05SXHD
HM-EX05SXHD
HM-EX05SXHD
Operating
Operating
Operating
Operating Instructions
Instructions
Instructions
Instructions
Dear
Dear
Dear
Dear Customer
Customer
Customer
Customer
Thank you for purchasing this product. For optimum performance and safety, please read these
instructions carefully before connecting, operating or adjusting this product. Please keep this manual
for future reference.
FEATURES
FEATURES
FEATURES
FEATURES
�Each set includes one transmitter and one receiver .
�One pair as a full functional module, no need of setting.
�With IR Control function ,it allows you control back the source at the end of destination .
�Use Dual UTP cable （Cat5E/6 ）to substitute HDMI cable to achieve long distance transmission,the
UTP Cable follows the standard of IEEE-568B.
�Transmission distance reaches up to 50 meters under the video format of 1080P.
�Auto-adjustment of feedback, equalization and amplify .
�Signaling rates up to 2.25Gbits in support of 1080P display.
�With ESD protection inside.
�DC 5V Power .
NOTICE
NOTICE
NOTICE
NOTICE
Our company reserve the right to make changes in the hardware, packaging and any accompanying
documentation without prior written notice.
1
1
1
1

Operating Instructions
TABLE
TABLE
TABLE
TABLE OF
OF
OF
OF CONTENTS
CONTENTS
CONTENTS
CONTENTS
Specifications
Package Contents
Panel Descriptions
Connecting and Operating
M aintenance
Product Service
Warranty
SPECIFICATIONS
SPECIFICATIONS
SPECIFICATIONS
SPECIFICATIONS
Operating Temperature Range
-5 to +35 ℃( +23 to +95 ℉)
Operating Humidity Range 5 to 90%RH (No Condensation)
Input Video Signal 0.5-1.0 Volts P-P
Input DDC Signal 5 volts p-p(TTL)
Support Video Format DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P
HDMI Output Compliant with HDMI 1.3, HDCP 1.1
Support Audio Format DTS-HD Master Audio 、Dolby true-HD etc.
Transmission Distance
1080P 8-bit 50m (Maximum ) over CAT 5e/ CAT6 2 4 AWG/Solid( recommend to use 23AWG Cat6 cable )
Power consumption 3watts(Maximum)
Dimension (L × W × H) 83x46x23mm
Net Weight 213g(Pair)
IR wavelengh &frequency Wavelengh:940nm,frequency 38kHz
Note 1 : Specifications are subject to change without notice. Mass and dimensions are approximate.
N ote 2 : When in 36Bits deepcolor mode, we suggest set the HDMI source device to output 1080i or 720p.
PACKING
PACKING
PACKING
PACKING CONTENTS
CONTENTS
CONTENTS
CONTENTS
1) Main Unit. Transmitter&Receiver 2) IR-TX cable&IR-RX cable
3) DC5V Power Supply 4 ) Operating Instructions

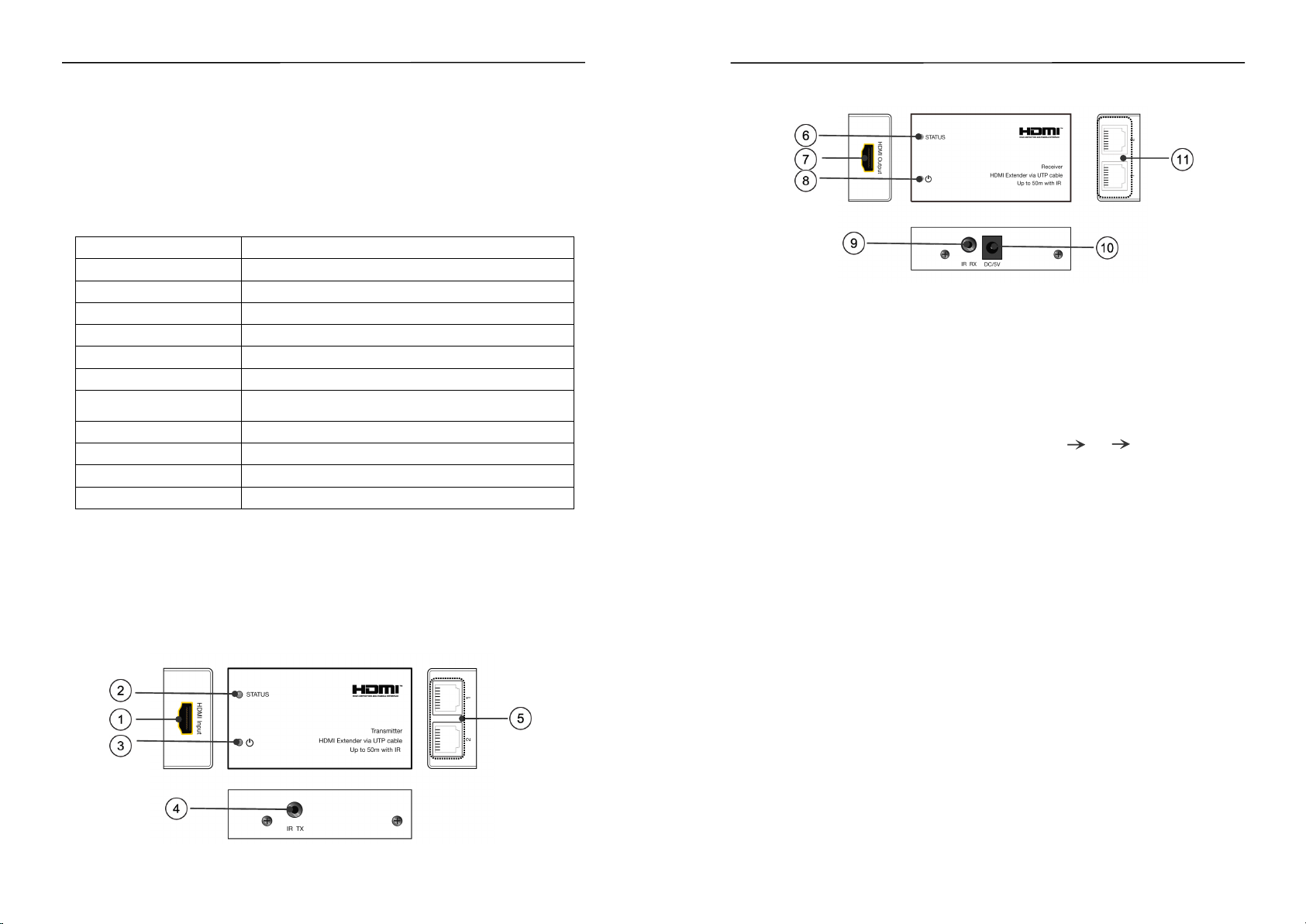

PANEL
PANEL
PANEL
PANEL DESCRIPTIONS
DESCRIPTIONS
DESCRIPTIONS
DESCRIPTIONS
Transmitter Panel
2
2
2
2
Operating Instructions
Receiver Panel
1. HDMI input 2. S tatus of signal connection 3. S tatus of power input
4. IR-TX input 5. C AT-5E/6 output1 and output2 6. S tatus of signal connection
7 .HDMI output 8 . S tatus of power input
9.IR-RX input 10.Power input 11. CAT-5E/6 input1 and input2
CONNECT
CONNECT
CONNECT
CONNECT ING
ING
ING
ING AND
AND
AND
AND OPERAT
OPERAT
OPERAT
OPERAT ING
ING
ING
ING
1) Connect the HDMI signal sources (Such as PS3, STB etc) to HDMI Transmitter .
2) Connect two Cat5e/ C at6 cables to both the outputs of the transmitter and inputs of the
Receiver. And note that the right connection of the two cables, 1 1 ,2 2
(The cables must follow the standard of EIA-TIA 568B) .
3) Connect the HDMI output ( S uch as HD-LCD, HD-DLP) into the Receiver.
4) Connect IR-RX cable into IR-RX input ,connect IR-TX cable into IR-TX into and put it on HDTV
5) Remark: In most cases the power adapter could be taken off. The power adapter is
only needed when the signal source has no sufficient power driving ability.
Attention: Insert/Extract cable s gently.
MAINTENANCE
MAINTENANCE
MAINTENANCE
MAINTENANCE
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to clean this unit.
PRODUCT
PRODUCT
PRODUCT
PRODUCT SERVICE
SERVICE
SERVICE
SERVICE
1) Damage
Damage
Damage
Damage requiring
requiring
requiring
requiring service:
service:
service:
service:
The unit should be serviced by qualified service personnel if:
(a) The DC power supply cord or AC adaptor has been damaged;
(b) Objects or liquids have gotten into the unit;
(c) The unit has been exposed to rain;
(d) The unit does not operate normally or exhibits a marked change in performance;
(e) The unit has been dropped or the cabinet damaged.
2) Servicing
Servicing
Servicing
Servicing Personnel:
Personnel:
Personnel:
Personnel: Do not attempt to service the unit beyond that described in
these operating instructions.Refer all other servicing to authorized servicing personnel.
3
3
3
3
